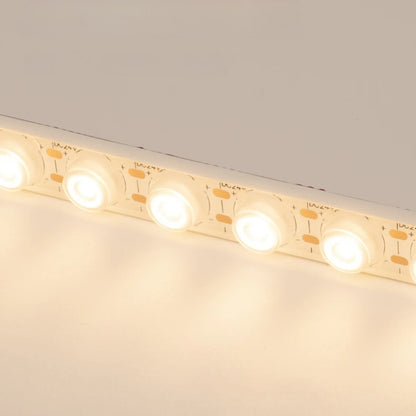

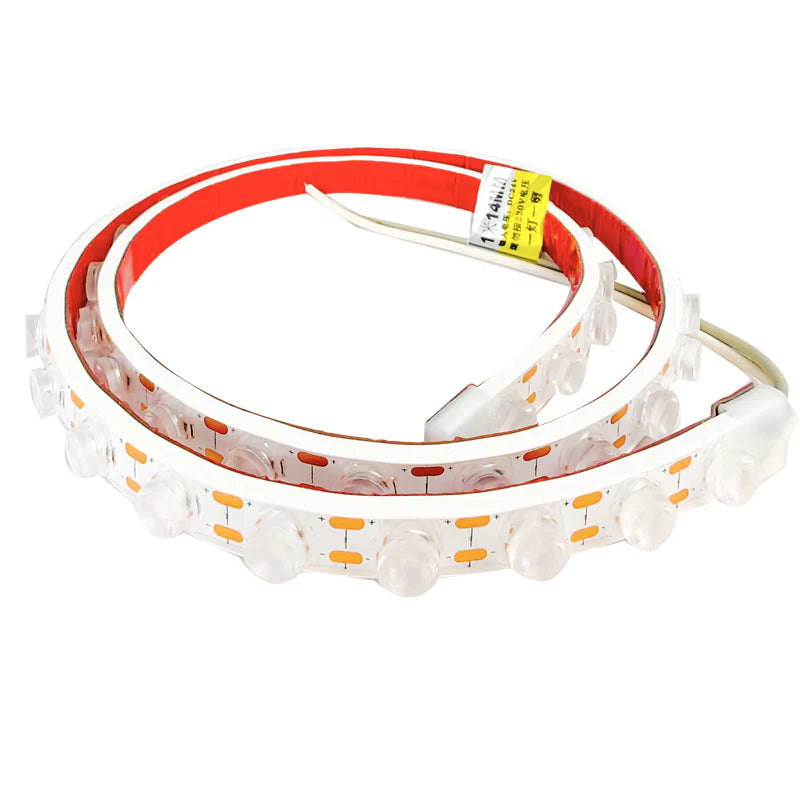

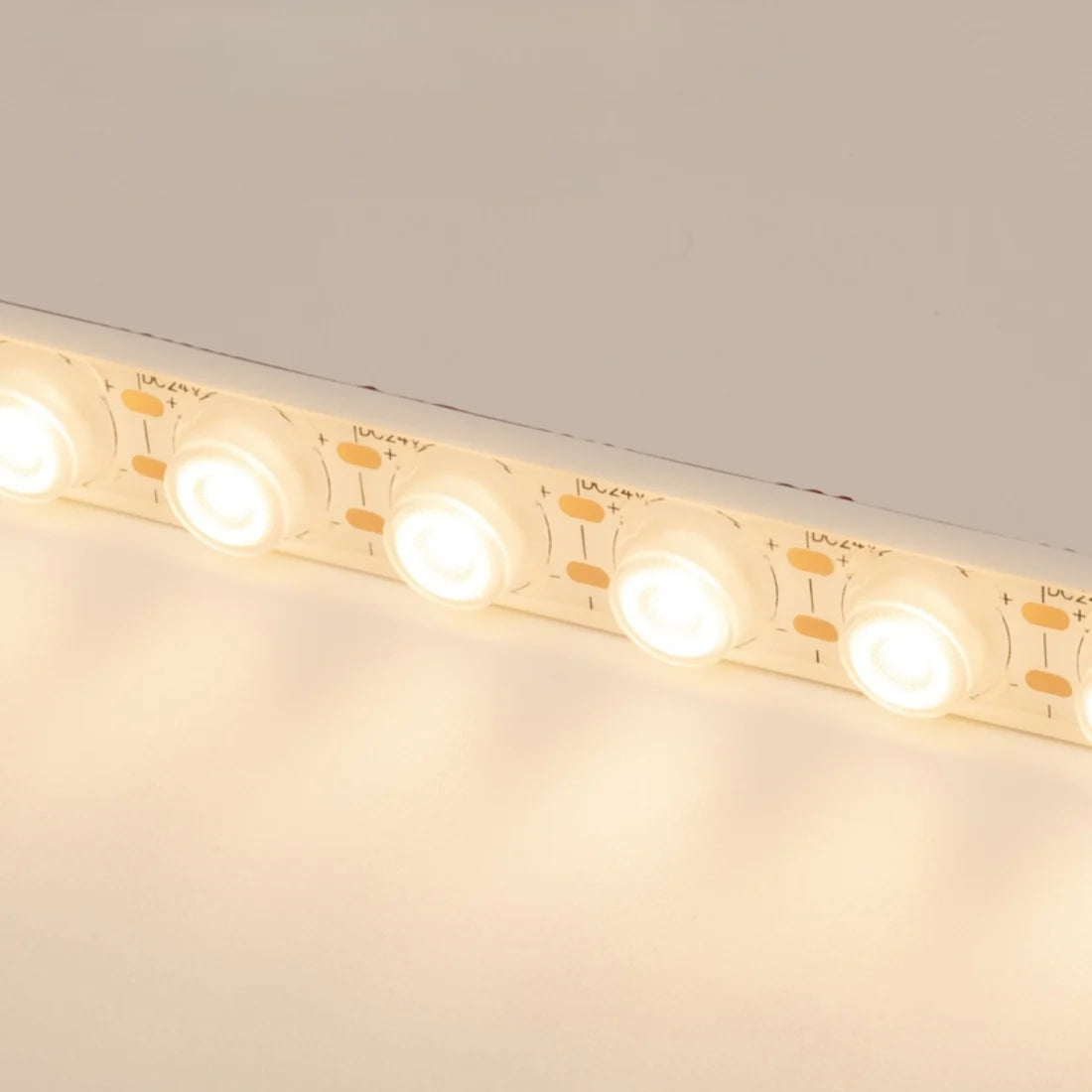

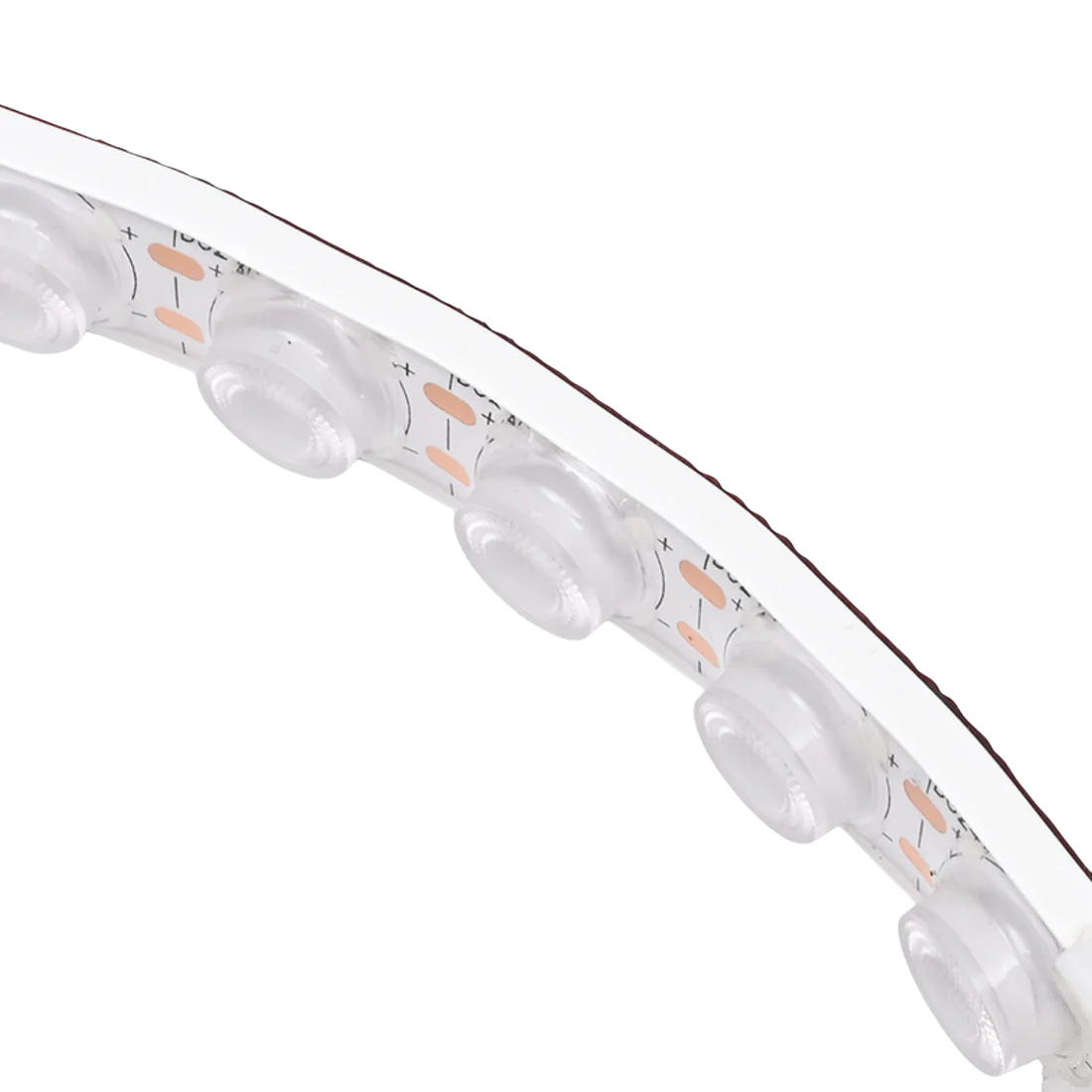

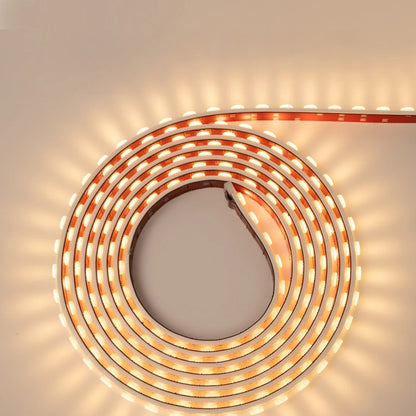

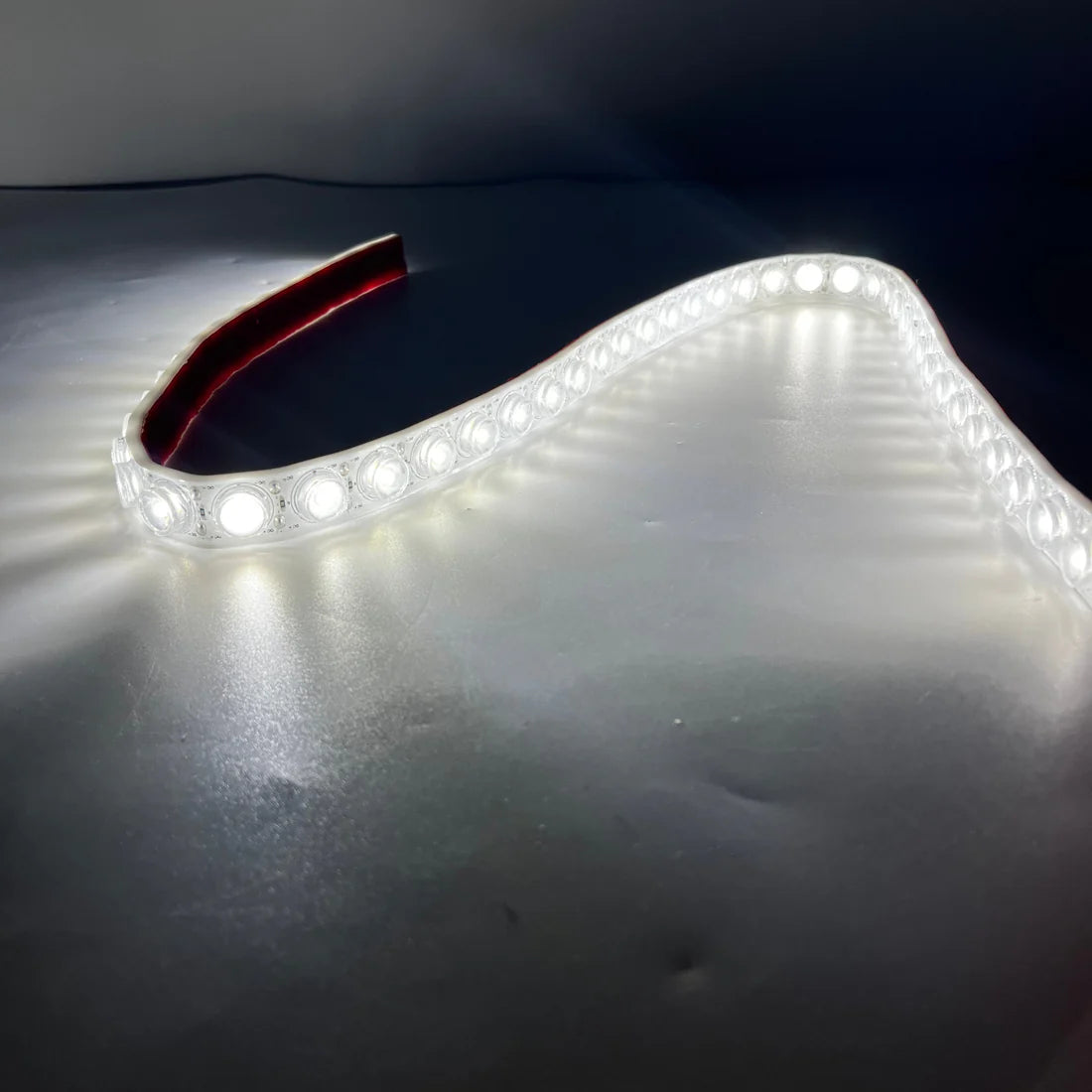

Waterproof Wall Washer LED Strip Light – DC 24V | 25° Beam Lens | 18W/m | 42 LEDs/m | IP67 Waterproof | 3000K / 4000K / 6000K / Red / Green / Blue / Yellow | Architectural Lighting | 50/500M

Package Included

Voltage	Light Color	Package Quantity
24V	3000K-Warm White	165FT (5M × 10 Roll)
24V	3000K-Warm White	1650FT (5M × 100 Rolls)
24V	4000K-Natural White	165FT (5M × 10 Roll)
24V	4000K-Natural White	1650FT (5M × 100 Rolls)
24V	6000K-Cool White	165FT (5M × 10 Roll)
24V	6000K-Cool White	1650FT (5M × 100 Rolls)
24V	Blue	165FT (5M × 10 Roll)
24V	Blue	1650FT (5M × 100 Rolls)
24V	Red	165FT (5M × 10 Roll)
24V	Red	1650FT (5M × 100 Rolls)
24V	Yellow	165FT (5M × 10 Roll)
24V	Yellow	1650FT (5M × 100 Rolls)
24V	Green	165FT (5M × 10 Roll)
24V	Green	1650FT (5M × 100 Rolls)

Order & Logistics

Lead Time: Ships directly from headquarters. Handling time 3–5 business days
Packing: Cardboard box with anti-static protection
Shipping:
This series enjoys our Free Shipping Policy for orders over $399.
HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days

Strip Features:

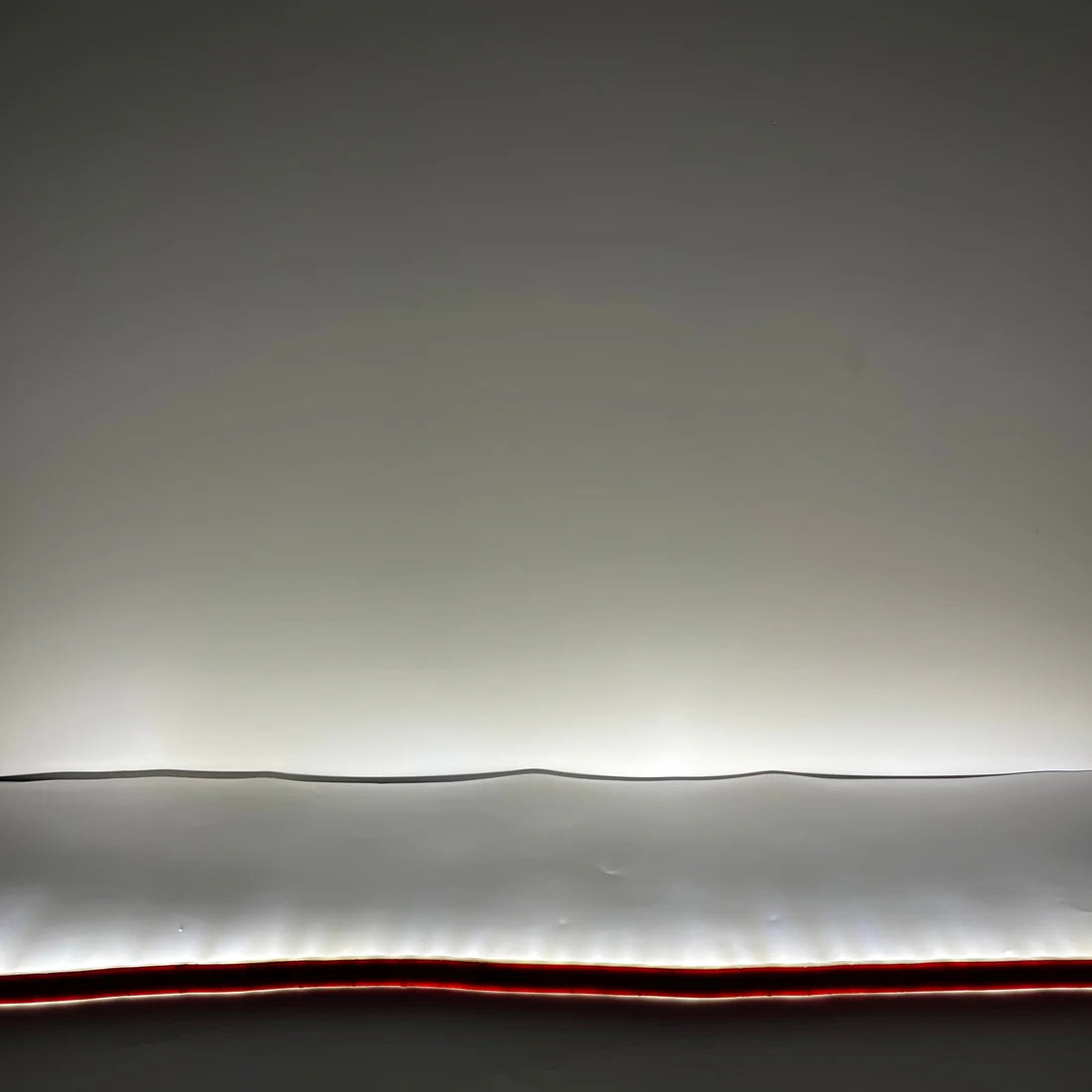

Precise 25° Beam Angle: Built-in optical lens delivers sharp wall-washing and grazing effects for façades, signage, and architectural accents.
High Lumen Output: 48 LEDs per meter with 18W/m power for powerful and consistent long-distance illumination.

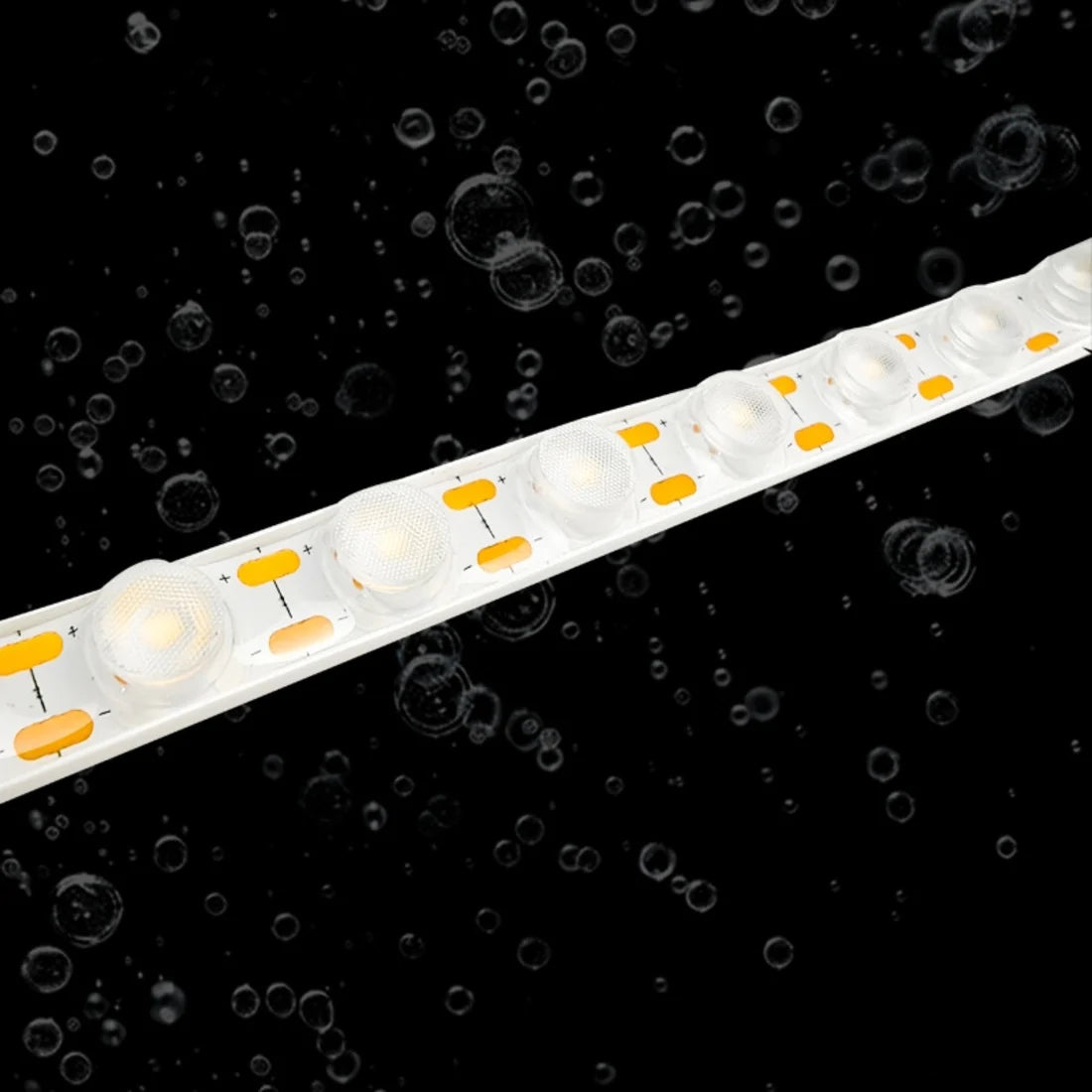

Outdoor Waterproof Design: IP67 silicone protection ensures durability against rain, moisture, and dust in outdoor environments.
Efficient 24V DC Operation: Low voltage system reduces voltage drop and supports safer, longer installations.
Flexible Installation: Supplied in standard 5m (16.5ft) rolls, cuttable every LED (one LED per cut) for maximum customization.

Specification:

Specification	Details
Product Type	Waterproof Wall Washer LED Strip with 25° Beam Lens
LED Type & Density	42 LEDs/m (High Brightness)
Lumen Output	100 LM/Watt
Power Consumption	18W per meter
Input Voltage	24V DC
Beam Angle	25° (Optical Lens)
Color Options	3000K (Warm White), 4000K (Neutral White), 6000K (Cool White)，Blue，Red，Yelloew，Green
IP Rating	IP67 (Silicone Waterproof Protection)
PCB Width	Standard (with lens housing)
Strip Weight	180 g / meter
Strip Width x Height	20 x 10 (mm)

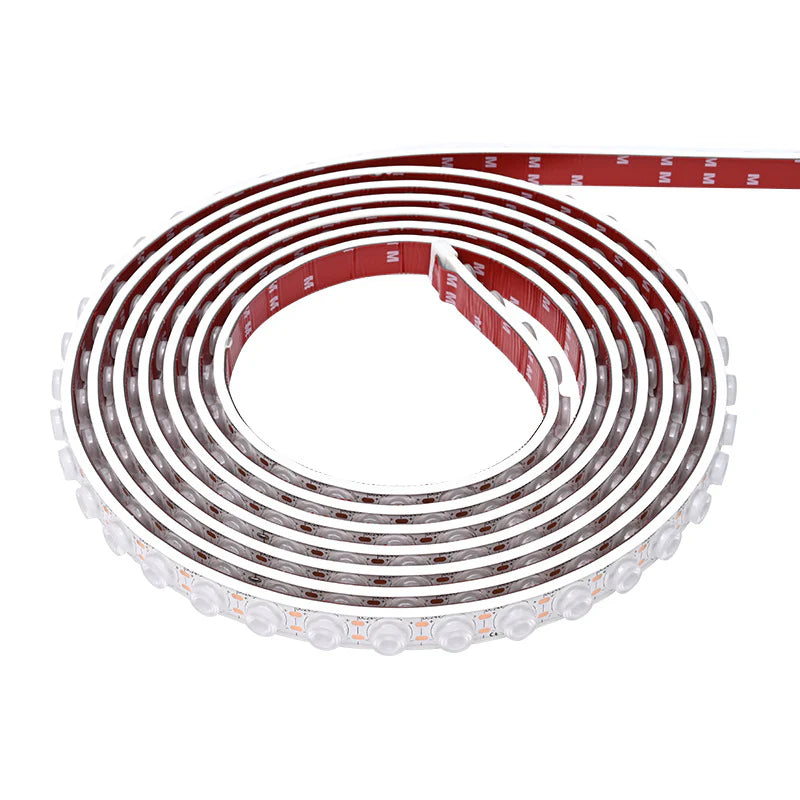

Roll Length	5m (16.5ft) per roll
Cutting Unit	Cuttable per LED (1 LED = 1 cut point)
Package Options	10 Roll × 5m / 100 Rolls × 5m
Applications	Outdoor façades, wall washing, signage, landscape & architectural lighting

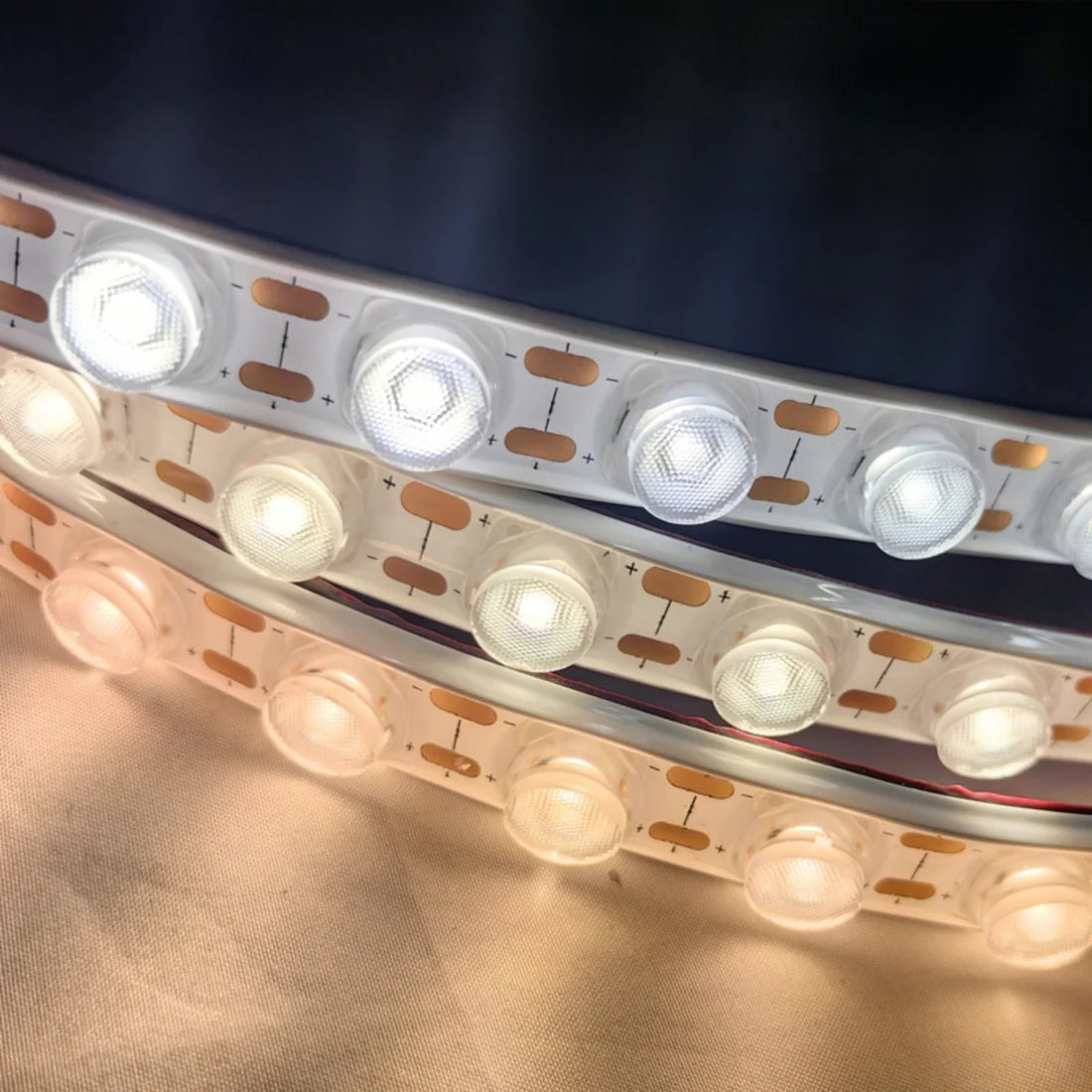

Light Color

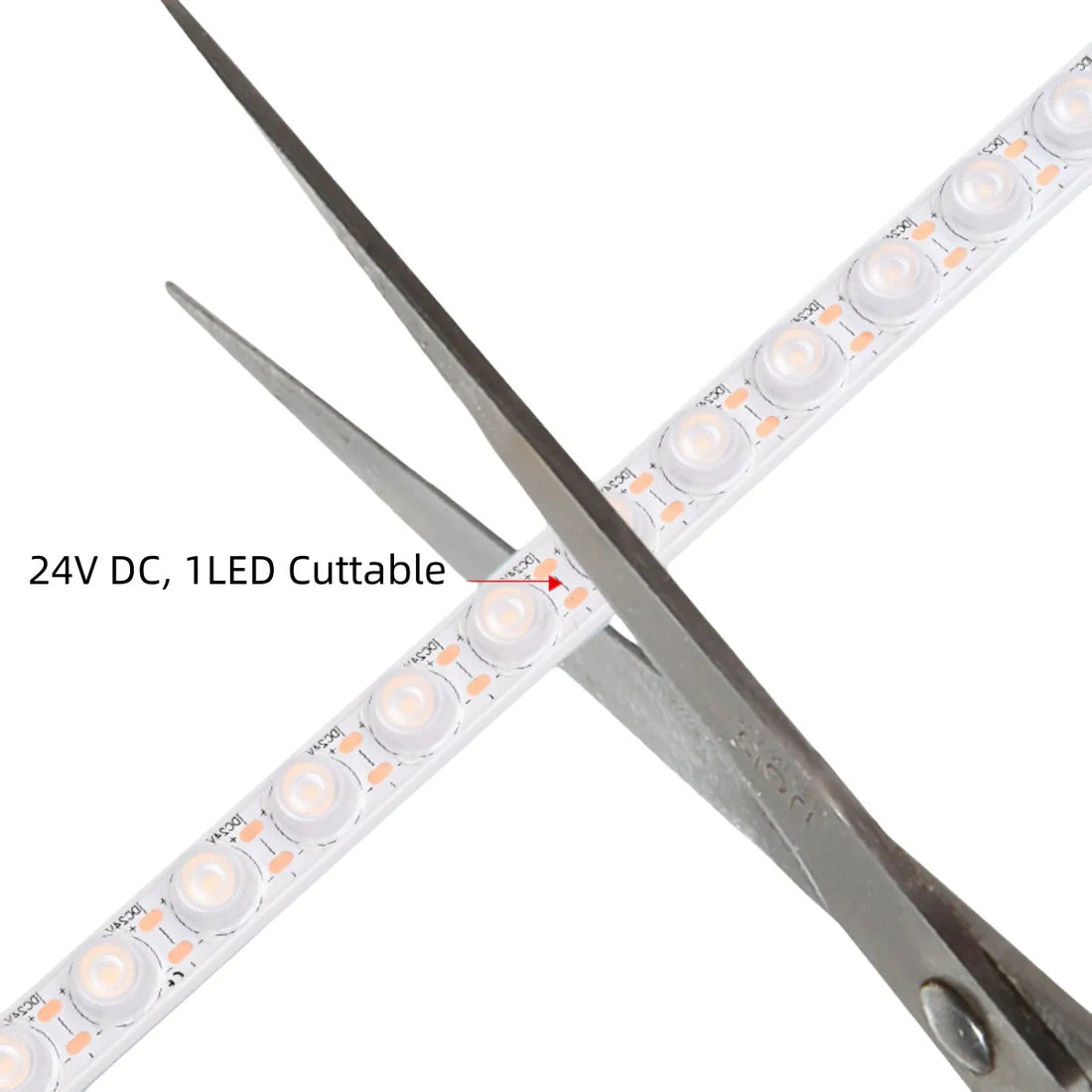

Cut Section: 24VDC Every 1LED can be Cut

How to power/control the strip:

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

And a big power transformer do no harm to the strip but good for safty.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
