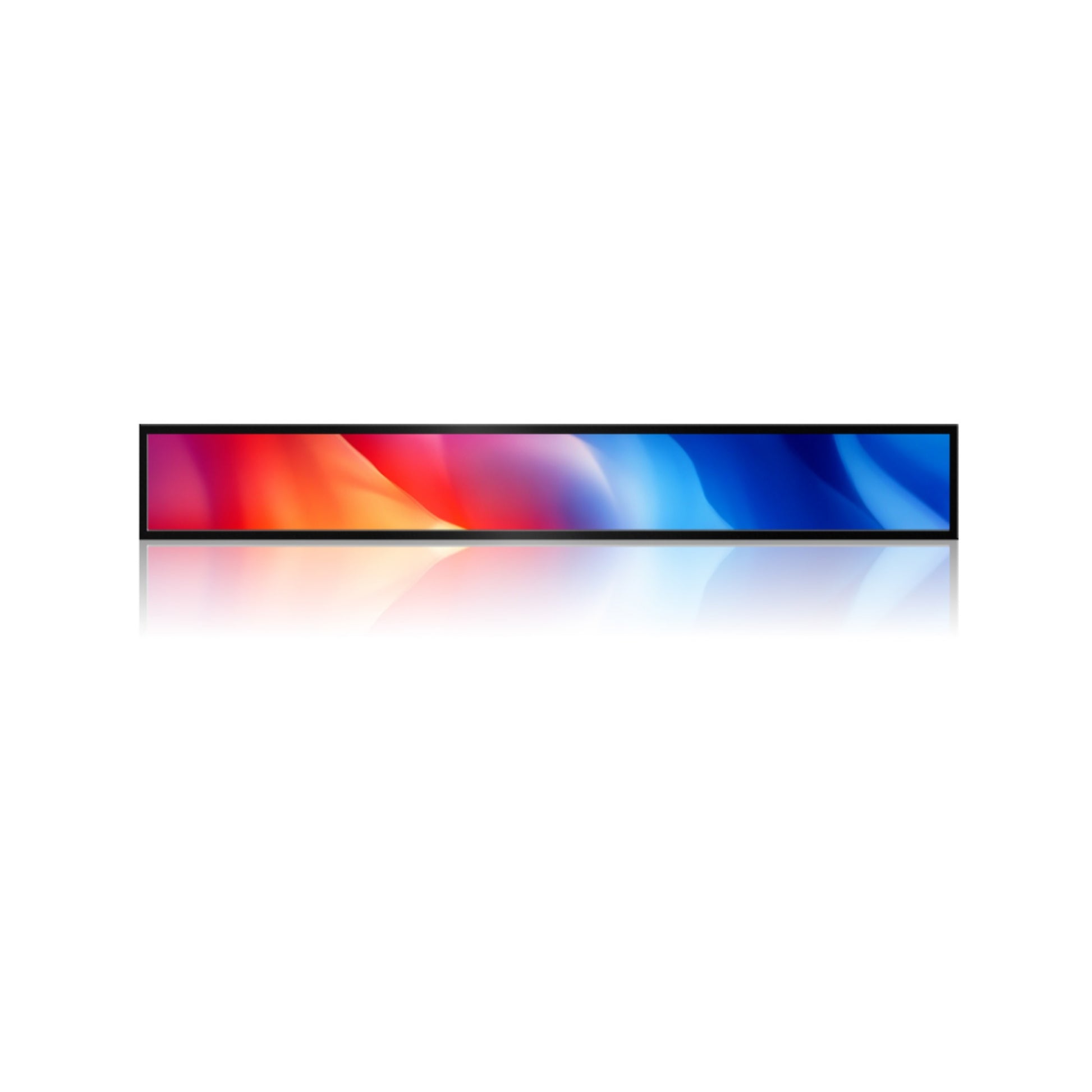

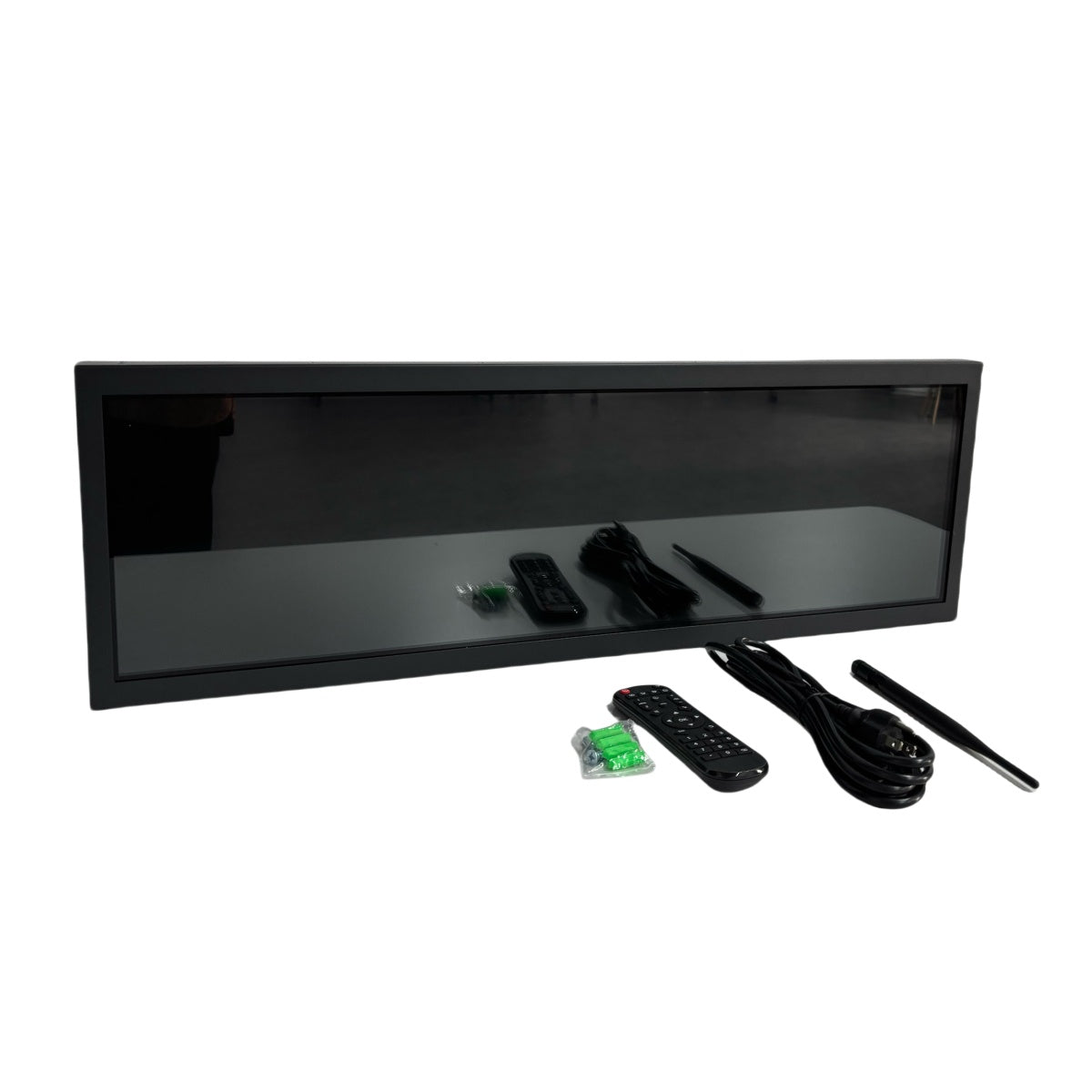

28.1 Inch (698.5×140mm Viewable) Android Stretched LCD Bar Display for Store Shelves | Cloud Platform / Mobile App / USB Media

$4,431.00
Screen Type
Package QTY.
$4,431.00
$4,431.00
Shipping calculated at checkout.
Out of stock

28.1 Inch (698.5×140mm Viewable) Android Stretched LCD Bar Display for Store Shelves | Cloud Platform / Mobile App / USB Media

Package Included

Version Package Included

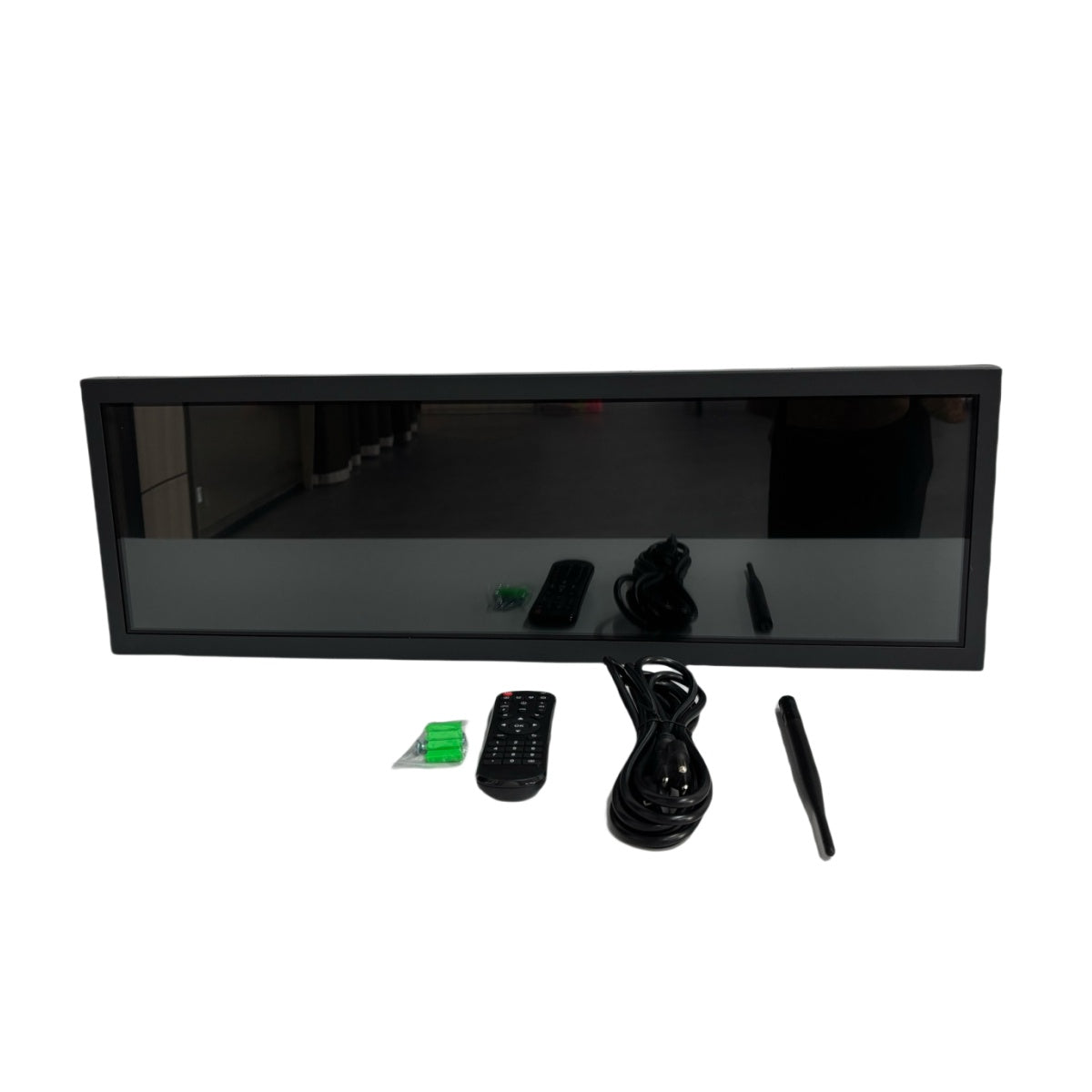

TXP-28.1" LCD Bar Display ×1, Power Adapter ×1, Mounting Kit ×1, User Manual ×1

About this item

  • Ultra-wide LCD bar screen with Android OS, ideal for shelf-edge advertising, signage, and creative installations
  • Multiple sizes available, resolutions up to 3840×1080 for ultra-clear display
  • Durable aluminum frame + tempered glass ensures long service life
  • Control methods: Cloud Platform, LEDArt App, USB plug & play, LAN / Wi-Fi
  • Optional capacitive touch screen for interactive applications
  • Widely used in retail shelves, shopping malls, exhibitions, transportation hubs, and creative installations

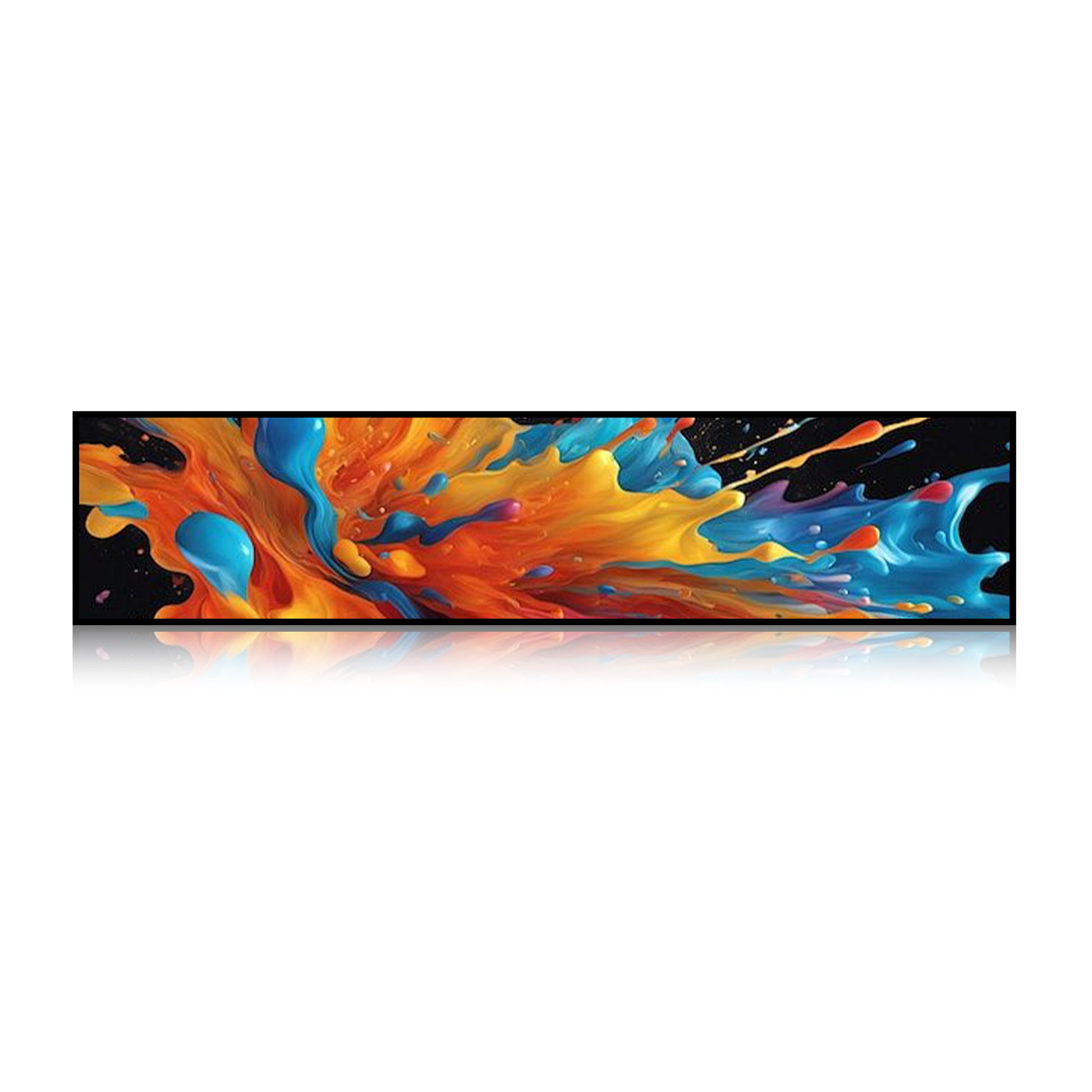

  • Display Example Image

Order & Logistics

  • Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.

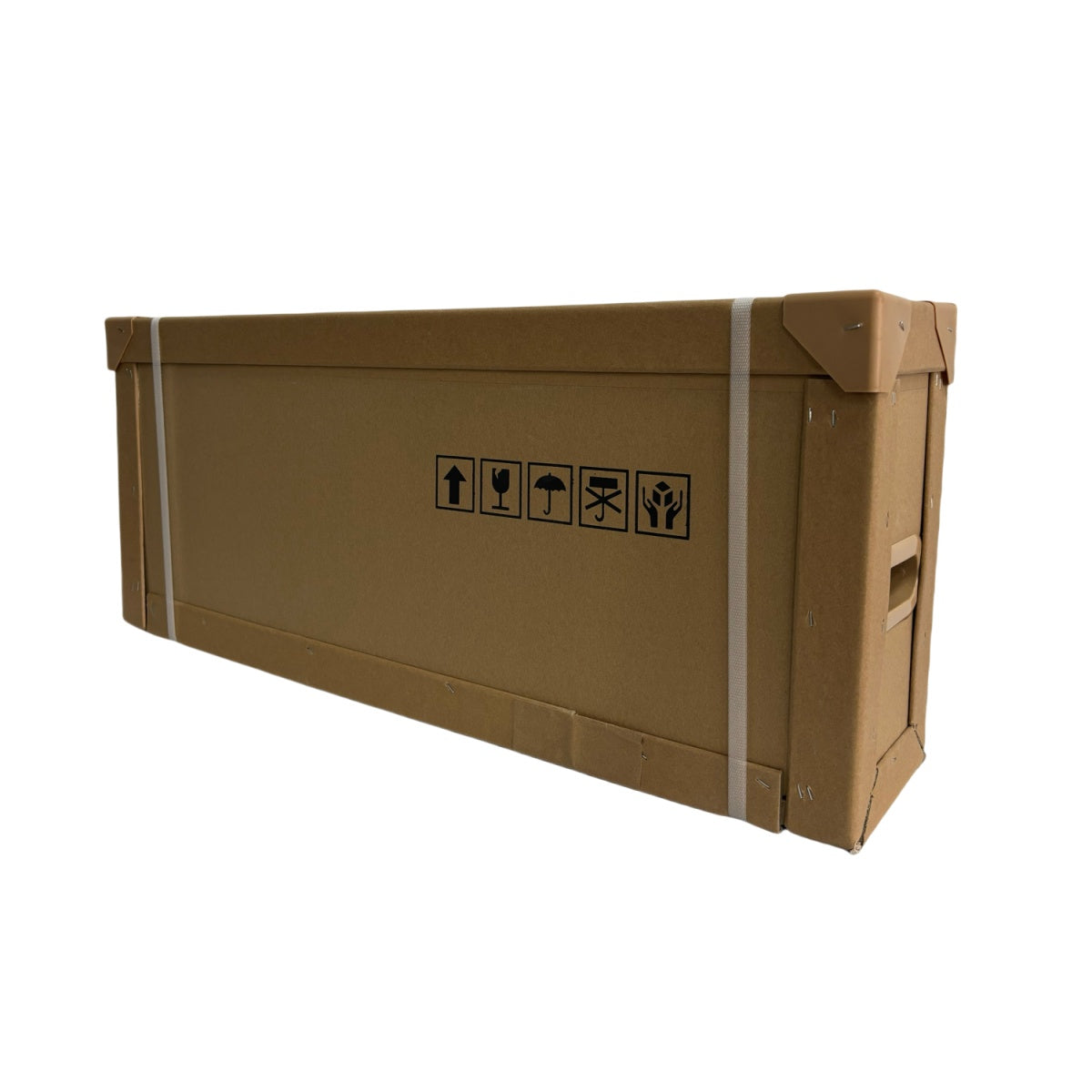

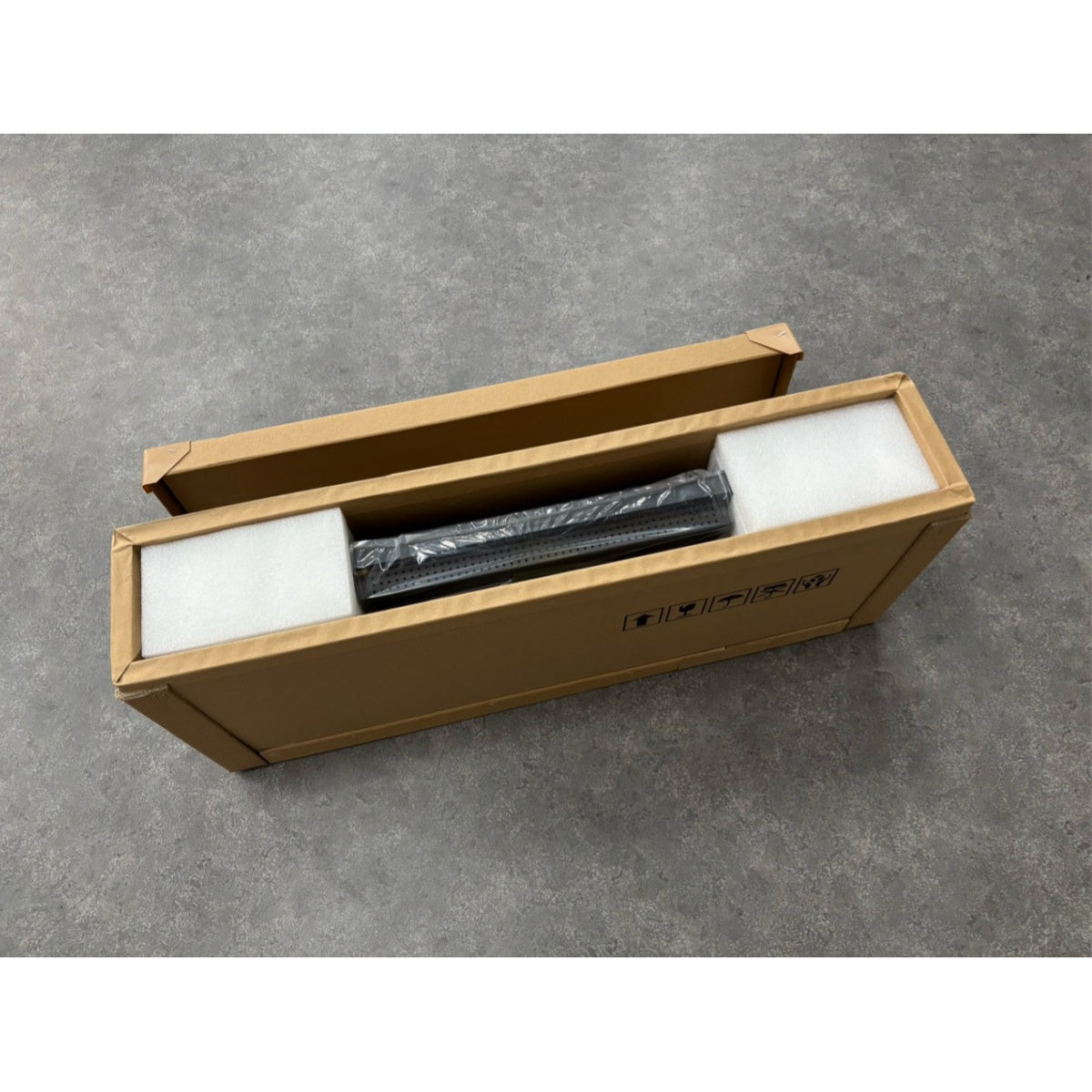

  • Packing: Hard carton with protective inner foam.
  • Shipping:
  • Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
  • Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
  • DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.

PARAMETERS (DOWNLOAD DATA-SHEET)

Parameter Value
Model # TXP-28.1''
Screen Dimensions 28.1 inch
Screen Vendor LG
Resolution 1920×385
Display size (mm) 698.5(H) × 140(V)
Brightness 500 cd/m²
Contrast 1200:1
Viewing angle (H/V) 89/89/89/89 (Min.) (CR≥10)
Response Time 8ms (typ.)
Display Color 16.7M
Pixel Pitch 0.27963 × 0.27963 mm
Refresh Rate 60Hz
Control Board Motherboard: RK3568; 4 Core ARM Cortex-A55, 2.0GHz, Mali-G52 GPU
Internal Cache (RAM) 2G
Internal Storage (ROM) 16G
System Android 11
Audio Speaker (Optional)
Remote Remote control (Optional)
Touch IR Touch (Optional)

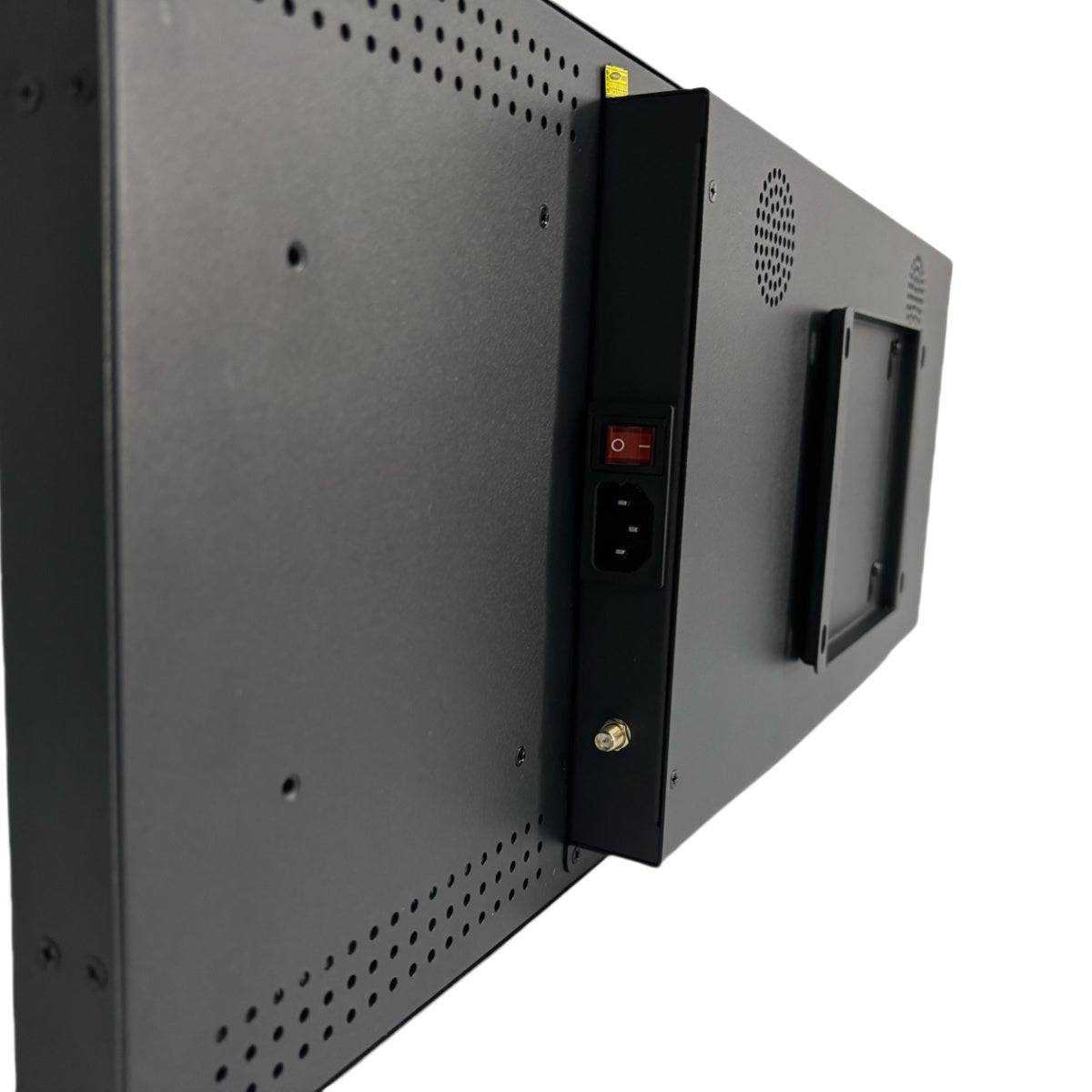

Interface USB3.0, OTG, TF-card, Audio, RJ45, HDMI out, DC-IN
Weight Net weight around 5kgs

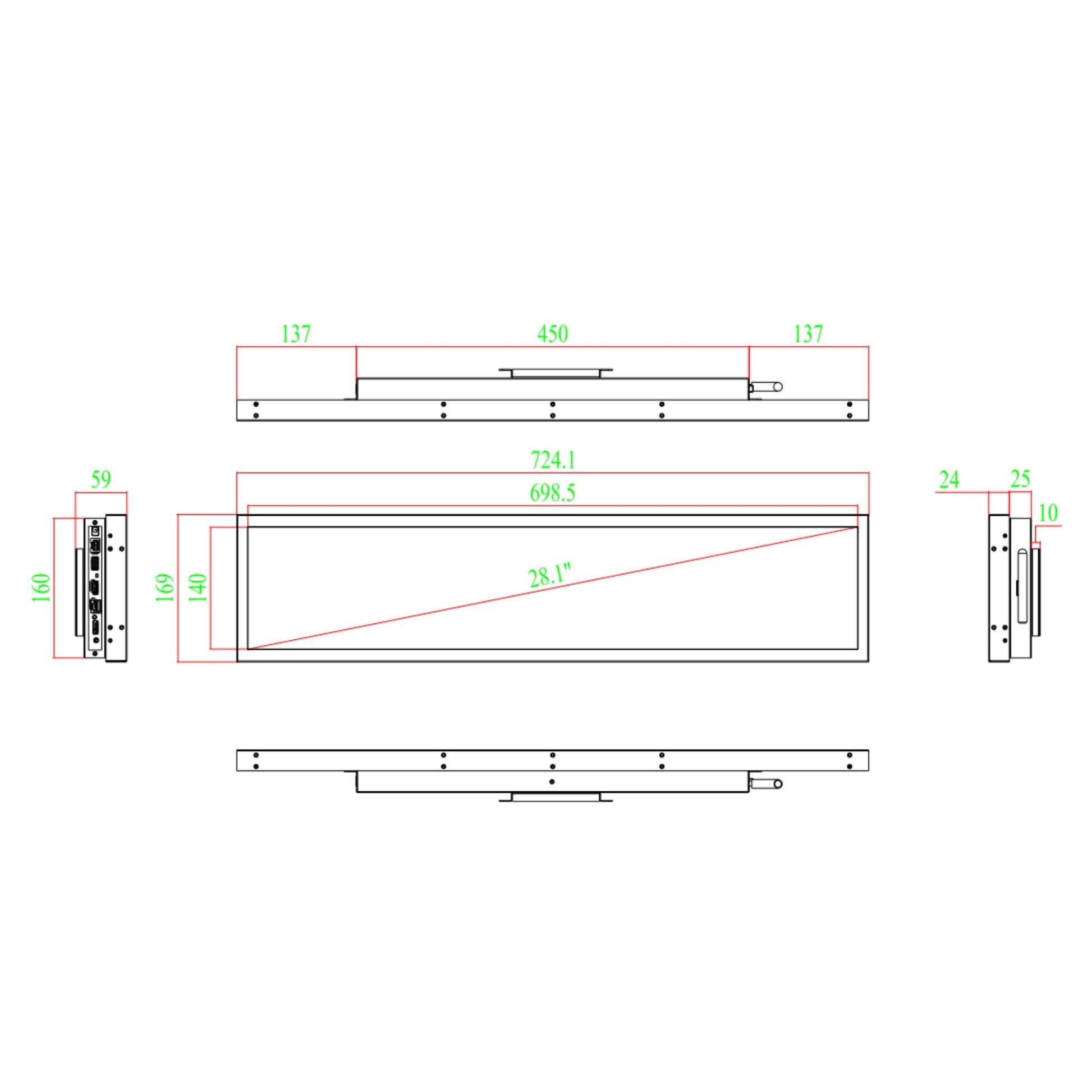

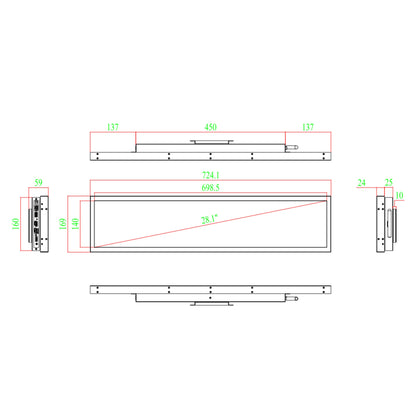

Housing Complete machine size: 724.1 × 169 × 59 mm; Casing material: Iron Metal Sheet
Power Power input voltage: AC220V 50-60Hz; Complete machine power ≤40W; Standby power <1W
Environment Operating temperature: 0℃～+50℃; Operating humidity: 10%～90% RH Non-Condensing; Storage temperature: -20℃～60℃; Storage humidity: 5%～95% RH Non-Condensing
Language OSD: English/Chinese

Usage Notes / Installation Tips

Send Program via Cloud Platform Send Program via LEDArt Play Program via U-disk/SD card
Login cloud platform
Create and edit programs
Send programs to the device
NOTE: The device mode needs to be adjusted to networking mode and associated with the cloud platform account.
Cloud server address: http://www.led-cloud.cn / http://www.led-cloud.com
 Run mobile APP LEDArt
Create and edit programs
Send program to the device
NOTE: The device mode needs to be adjusted to stand-alone mode, and the mobile phone is in the same local area network
 Save programs into U-disk or SD Card
Insert U-Disk or SD Card
Playback program automatically
NOTE: The device mode needs to be adjusted to stand-alone mode, and the system format of the U-disk/SD Card needs to be FAT32

Applications

  • Retail shelf-edge displays
  • Shopping mall signage
  • Exhibition & trade show displays
  • Airport / metro / bus station information boards
  • Creative installations & advertising walls
