Side Emitting SMD4020 RGB LED Strip Light - DC12V | 5mm PCB | 60 LEDs/M | Non-Waterproof | for Mirror, Kitchen Cabinet, Bedroom | 50/500M

From $5,207.00
Light Color
Waterproof Type
Package Quantity
$5,207.00
$5,207.00
Shipping calculated at checkout.
In stock

Side Emitting SMD4020 RGB LED Strip Light - DC12V | 5mm PCB | 60 LEDs/M | Non-Waterproof | for Mirror, Kitchen Cabinet, Bedroom | 50/500M

Package Included:

Version Package Included
10 Roll × 5 m (164 ft total) (Strip Only) 10 Roll × 5 m (164 ft) LED Strip Light Only, Do not include Power Supply and Controller
100 Rolls × 5 m (1640 ft total) (Strip Only) 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller
1 × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit) 1 Roll × 5 m Strip + 1 × Controller + 1 × Power Supply (Complete Kit)

About this item

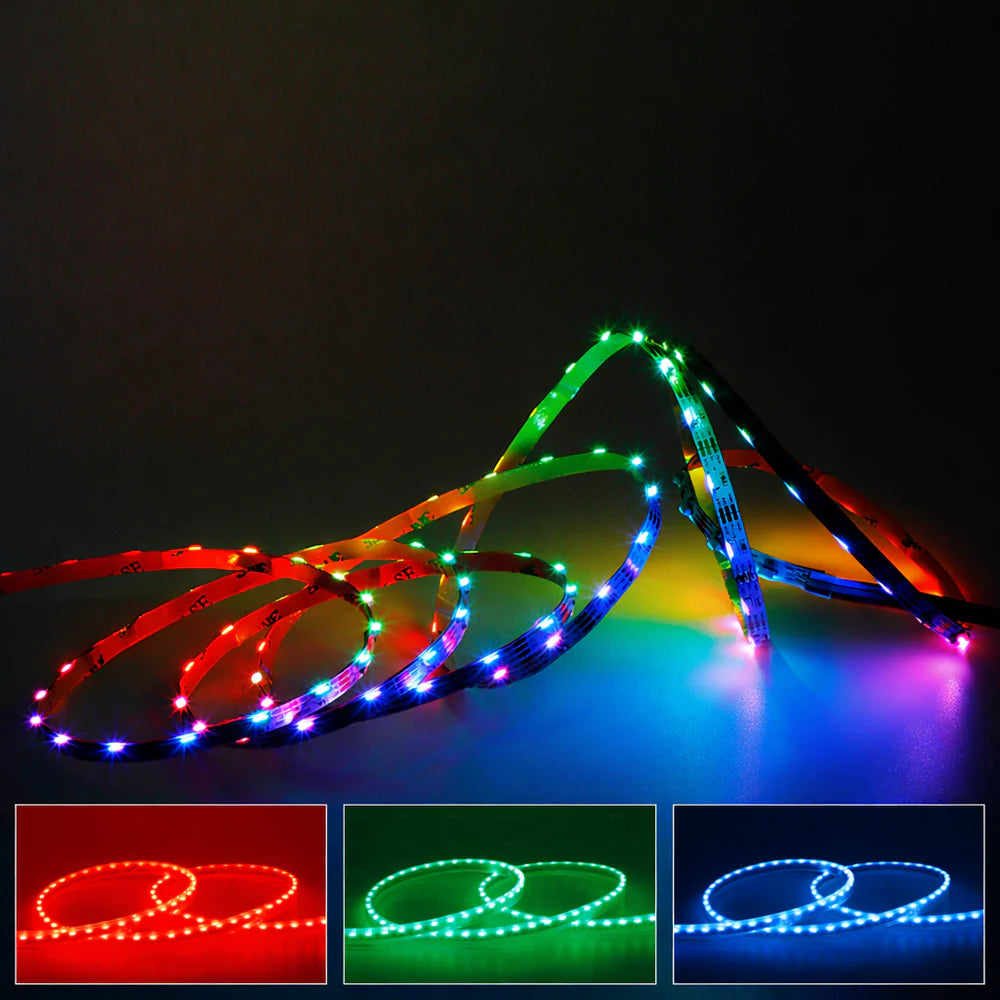

  • Side-Emitting 4020 LEDs for Unique Edge Glow – Side-emitting SMD4020 LEDs project light laterally to create a clean “edge lighting” effect, ideal for mirrors, shelves, furniture lines, and hidden accent lighting.

  • Addressable WS2812B IC for Pixel-Level Control – Built-in intelligent IC enables each LED to be controlled individually for chasing, flowing, gradient transitions, and custom animations (requires a compatible addressable controller).

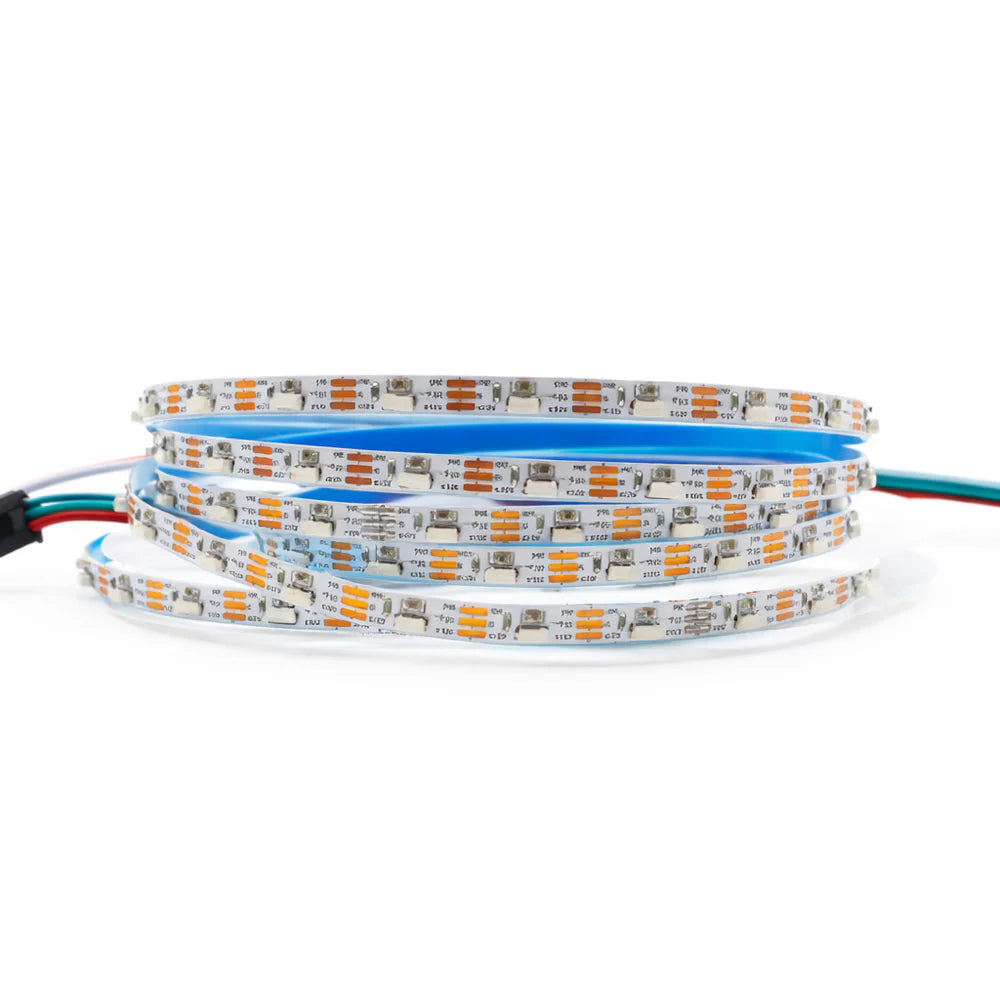

  • Slim 5 mm PCB for Tight Install Spaces – Narrow 5 mm flexible PCB fits compact channels and corners, making it easier to route along cabinetry edges, display outlines, and curved surfaces.

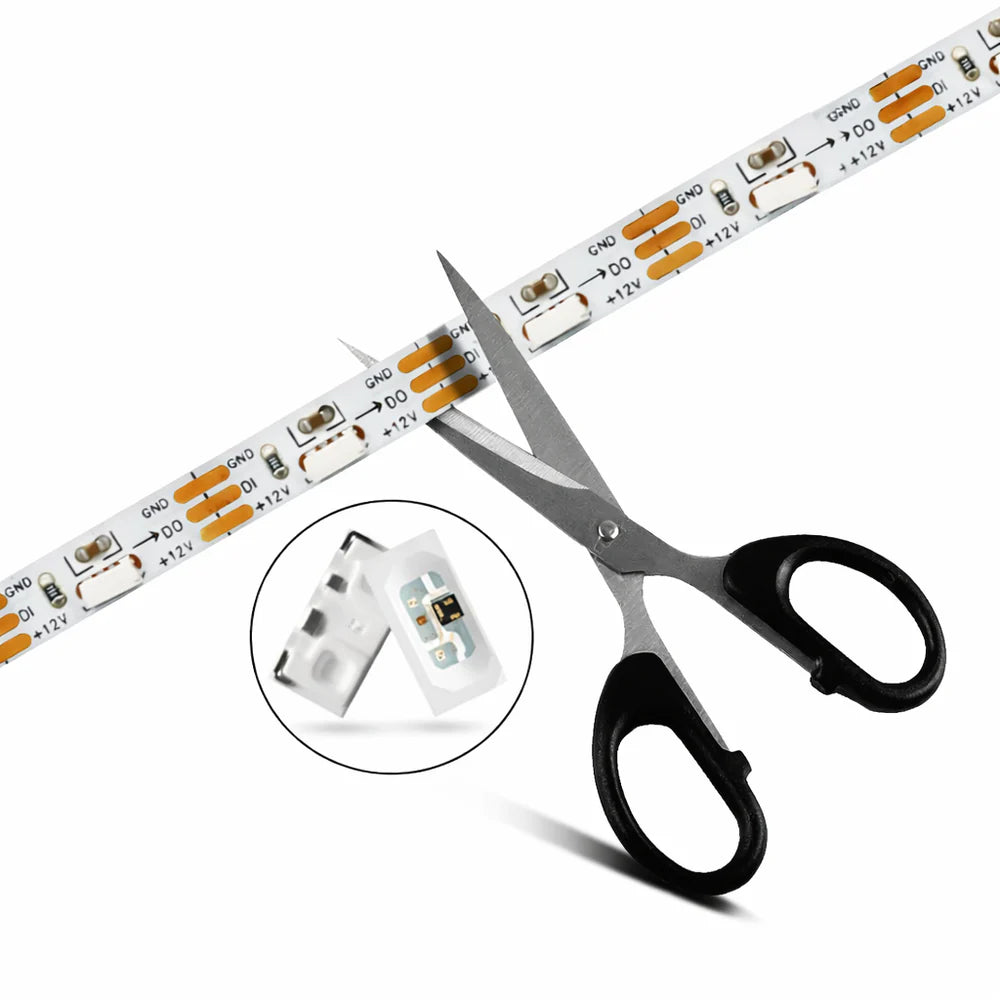

  • Cuttable & Extendable Design – Cut along the designated marks to match your layout. For larger projects, extend with proper wiring and compatible control solutions for stable signal performance.

  • Low-Voltage Operation for Smart Lighting Projects – Available in DC5V / DC12V versions to suit different applications. Designed for smart home lighting, DIY builds, and decorative installations.

Order & Logistics

  • Lead Time: Ships directly from headquarters. Handling time 3–5 business days
  • Packing: Carton packaging with protective wrapping
  • Shipping:

    This series enjoys our Free Shipping Policy for orders over $399.

  • HQ Fulfillment (when local stock is unavailable): Standard 9–18 days | Express 5–9 days.

Key Specifications

  • Model: WS2812B Side-Emitting
  • LED Type: SMD 4020
  • LED Density: 60 LEDs per meter
  • Input Voltage: DC12V
  • Power Consumption: 0.24 W per LED
  • Beam Angle: 180°
  • PCB Width: 5 mm
  • PCB Thickness: 200–400 μm
  • PCB Color: White
  • Protection Rating: Non-waterproof (IP20)
  • Operating Temperature: -25°C to 80°C

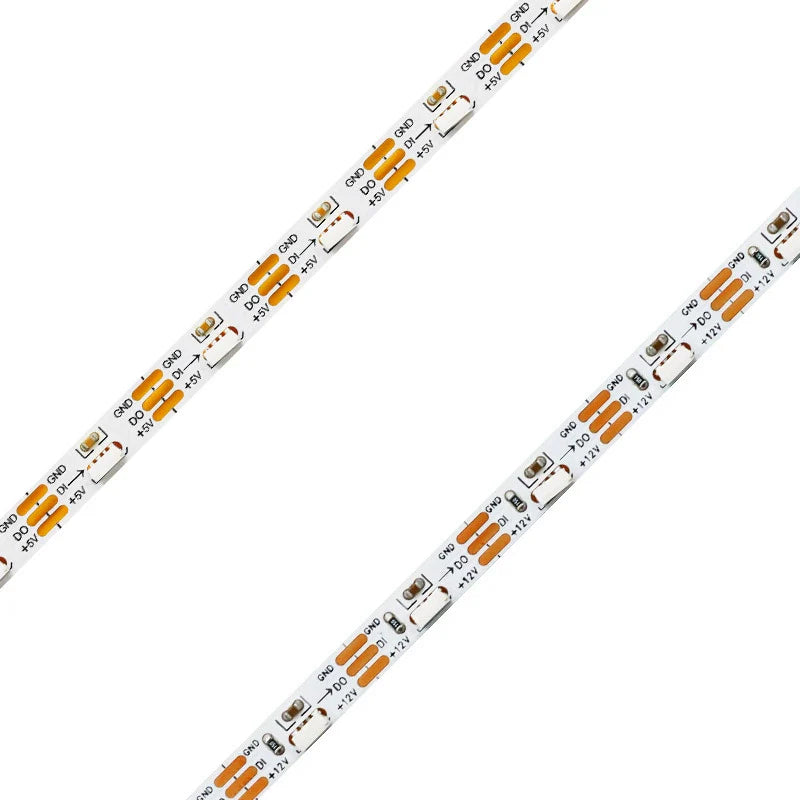

  • Available Versions: 5 mm – 60 LEDs/m – DC5V / DC12V

Technical Specifications

Specification Details
Product Type Side Emitting SMD4020 RGB LED Strip Light
Model WS2812B Side-Emitting
LED Type SMD 4020
LED Density 60 LEDs per meter
Luminous Flux per LED 18–22 lm
Beam Angle 180°
Power Consumption 0.24 W per LED
Input Voltage DC12V
PCB Width 5 mm
PCB Thickness 200–400 μm
Protection Rating Non-waterproof (IP20)
CRI 80
Lifespan Up to 30,000 hours
Operating Temperature -25°C to 80°C
Control Type Intelligent Controller
PCB Color White

Applications

  • Furniture lighting
  • Refrigerator and appliance lighting
  • DIY electronics projects
  • Architectural lighting accents
  • Automotive lighting modifications
  • Smart home lighting systems
  • Industrial indicators and automation equipment

Complete Kit Included:

Specification of the Strip

  • RGB Color Changing Strip
  • PCB Color: White
  • PCB Width: 10mm
  • Length: SMD5050-600 LED per 16.4FT (5Meters)
  • Power: 12VDC < 75W 6.25Amp
  • 12V DC operating, need to work with 12V transformer if run to wall outlet
  • Control: Need to work with matched RGB controller

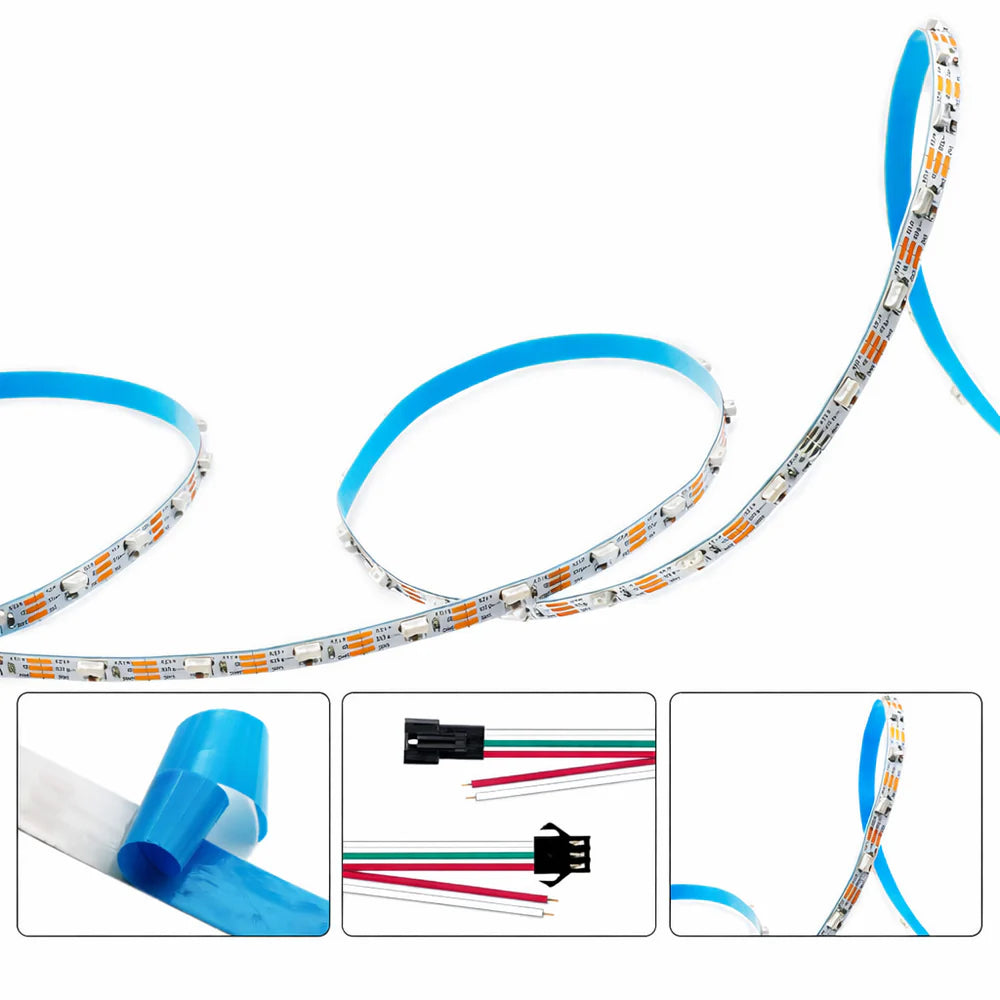

  • Pre-wired with 4pin RGB Connector at both ends

Strip LED Density Compare:


Applications:

  • Widely used for home, hotels, clubs, shopping malls
  • Architectural decorative lighting, boutique atmosphere lighting
  • Extensively applied in backlighting, concealed lighting, advertisement lighting box edge lighting
  • Emergency & security lighting, advertisement sign lighting
  • Holiday, event, show exhibition decoration
  • Auditorium walk stairway lighting, Hidden groove, Wine cabinet Decor
  • Amusement park, theater and aircraft cabin mood lighting
  • Applicable for automobile, boat and bicycle decoration

Waterproof Strip Dimension

  • Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
  • Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction
  • Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
  • Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.

About the Controller in the Complete Kit

Model: SP113E

SP113E 3CH PWM RGB LED Controller, with RE3 2.4G remote control. Built-in rich and diverse RGB color dynamic light effects, with 16 million color range. Utilizes 16KHz PWM high-frequency dimming technology to ensure smooth, even, and stable lighting.

  • 3CH PWM RGB Control : Independent control of RGB three colors, built-in a variety of dynamic light effects.
  • 16KHz PWM Utilizes : Utilizes 16KHz PWM high-frequency dimming technology to ensure smooth, even, and stable lighting.
  • 2.4G RF Remote Control :  Distance control up to 30 meters for quick and easy light setting.
  • Color Correction: The remote control allows for quick color correction, ensuring that the function of the remote control's color keys matches the actual color of the light.
  • 16 Million Colors: 16 million full-color color mixing, with a wealth of color options, with commonly used color gamut, to achieve rapid color mixing.
  • Collected Effect Cycle: All lighting effects can be looped for added ambience.
  • Timed Lights Off: Support 30 minutes, 60 minutes, 90 minutes timer to turn off the light
  • Power-down Memory: Remember your last settings so you don't have to reset them the next time you use it

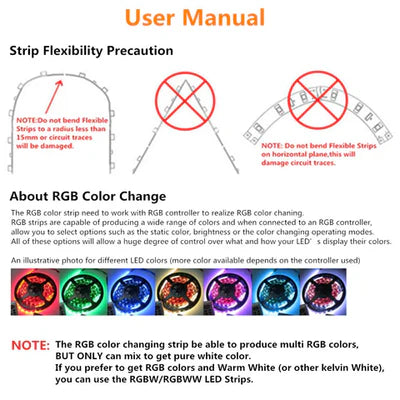

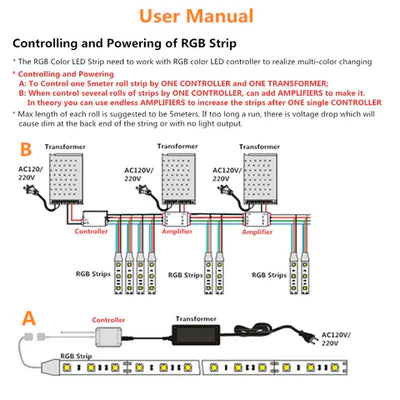

Strip Usage Notices:

General Information:
