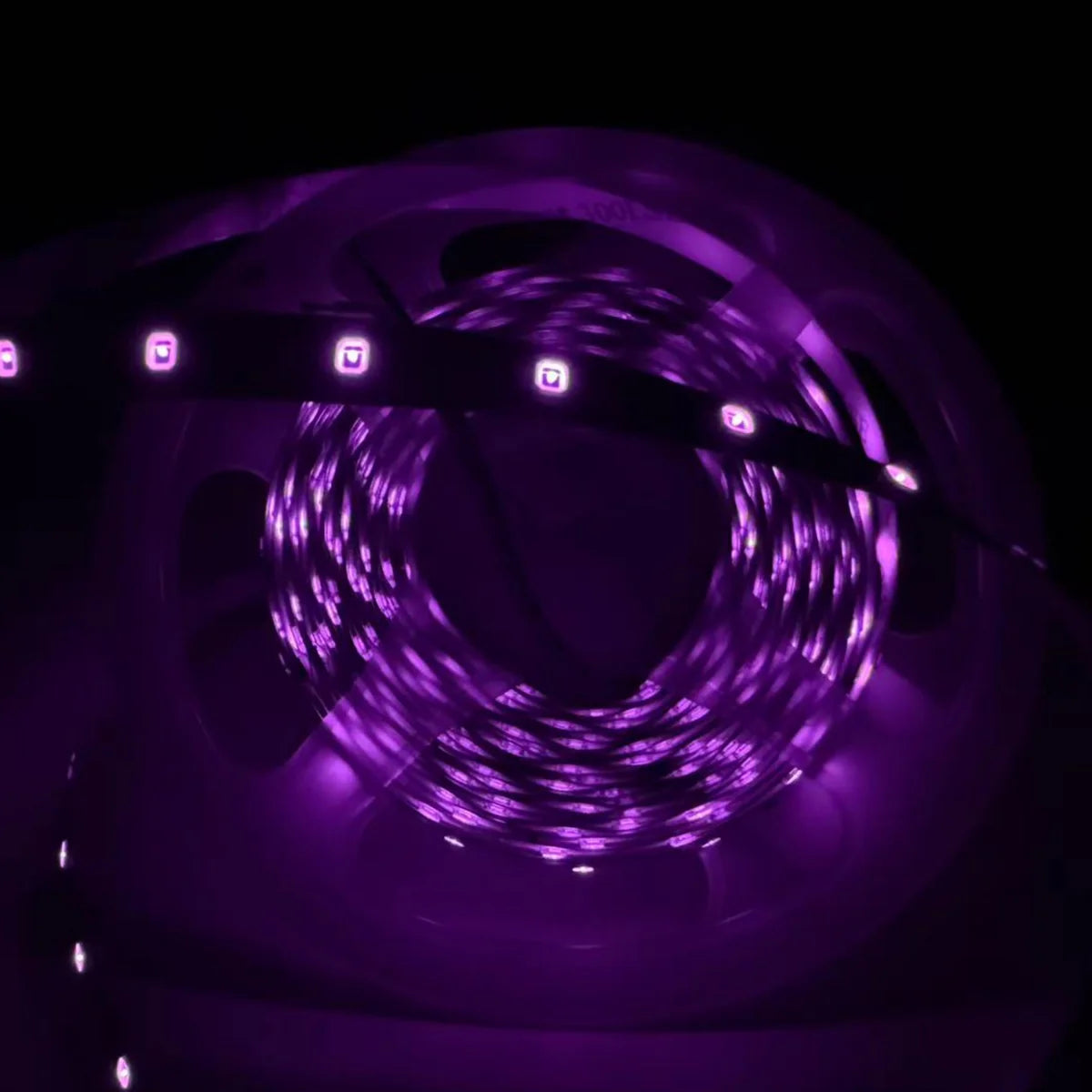

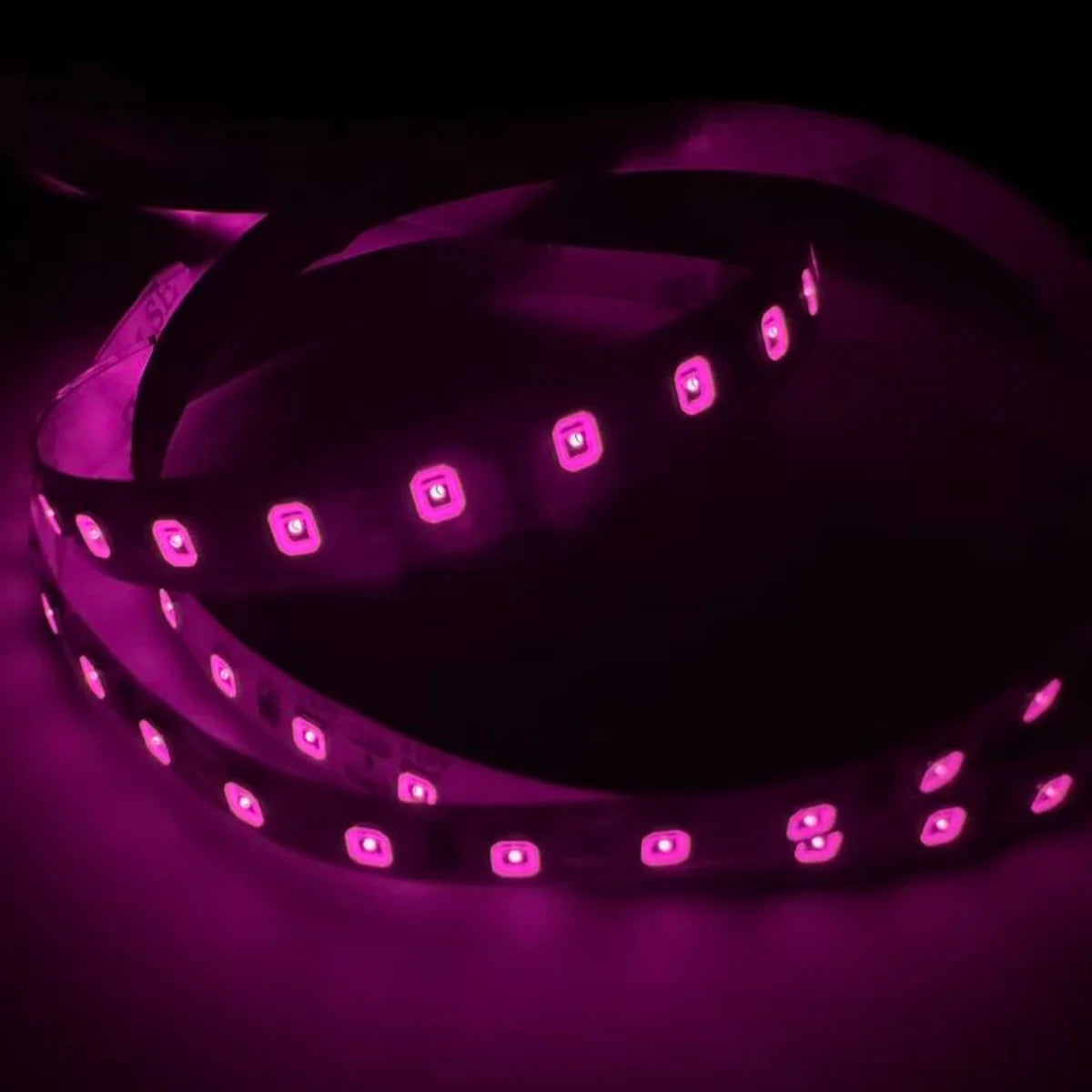

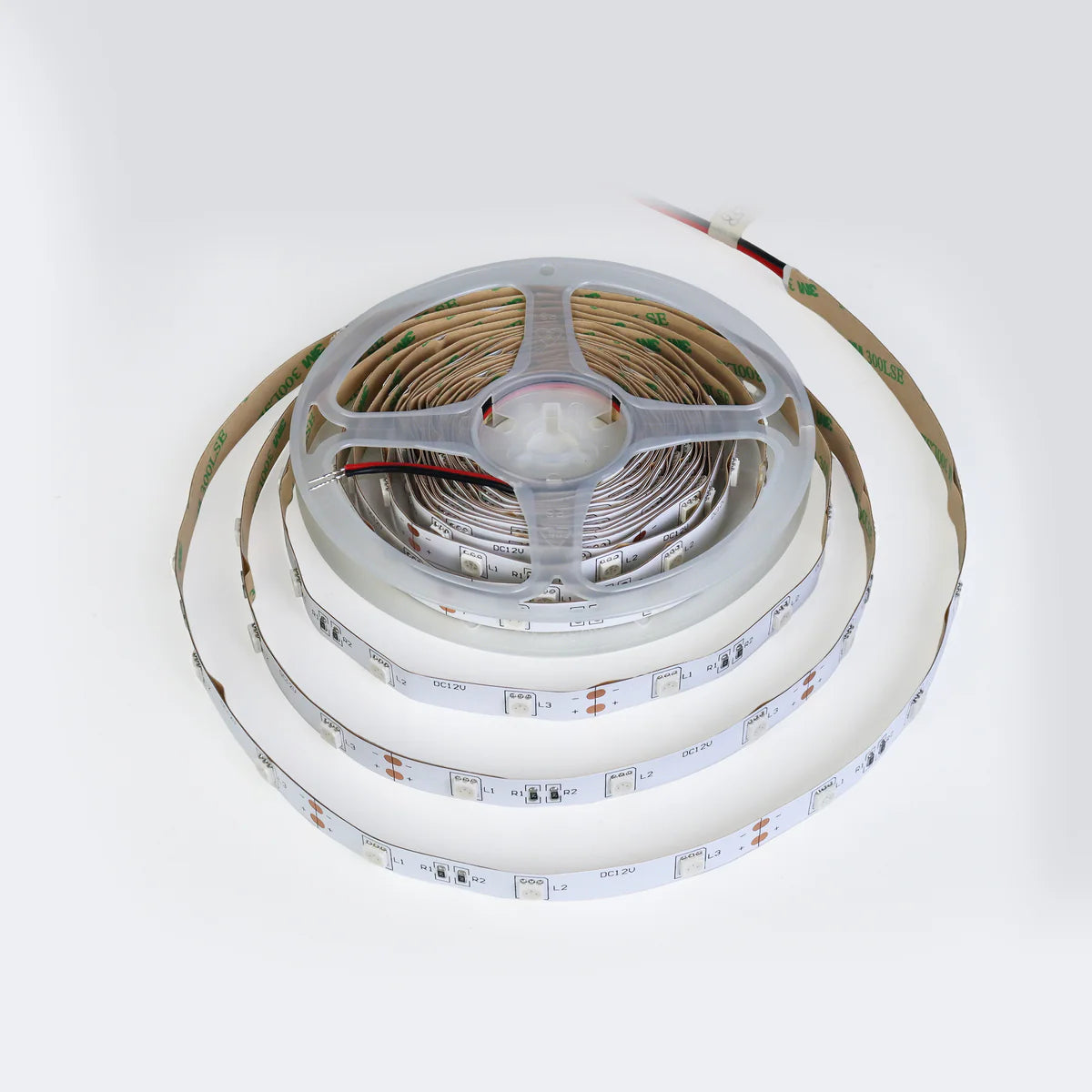

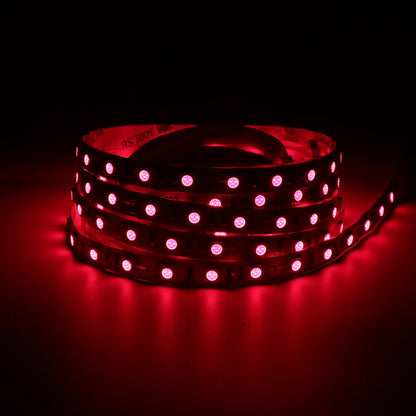

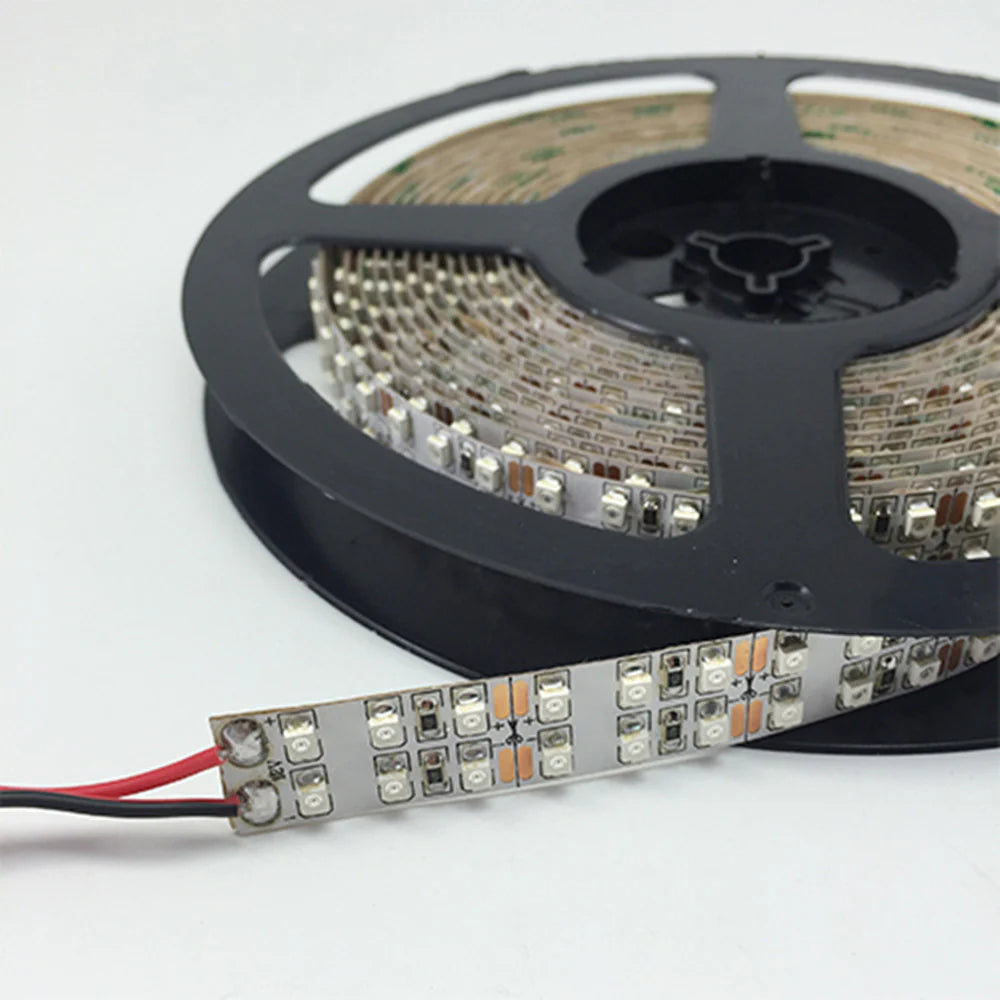

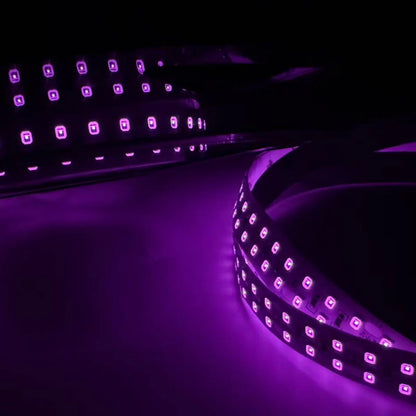

810nm-DC12V Red & Infrared Rigid LED Strip-SMD2835/SMD5050, 30/60/120/240 LEDs/m, 5/50/500 Meters, IP00/IP65, Near Infrared Light, Wellness Light, Body Care, NIR Light

From $349.00
LED Chip Type - LED Density
Waterproof Rating
Package Size
$373.00
$373.00
Shipping calculated at checkout.
In stock

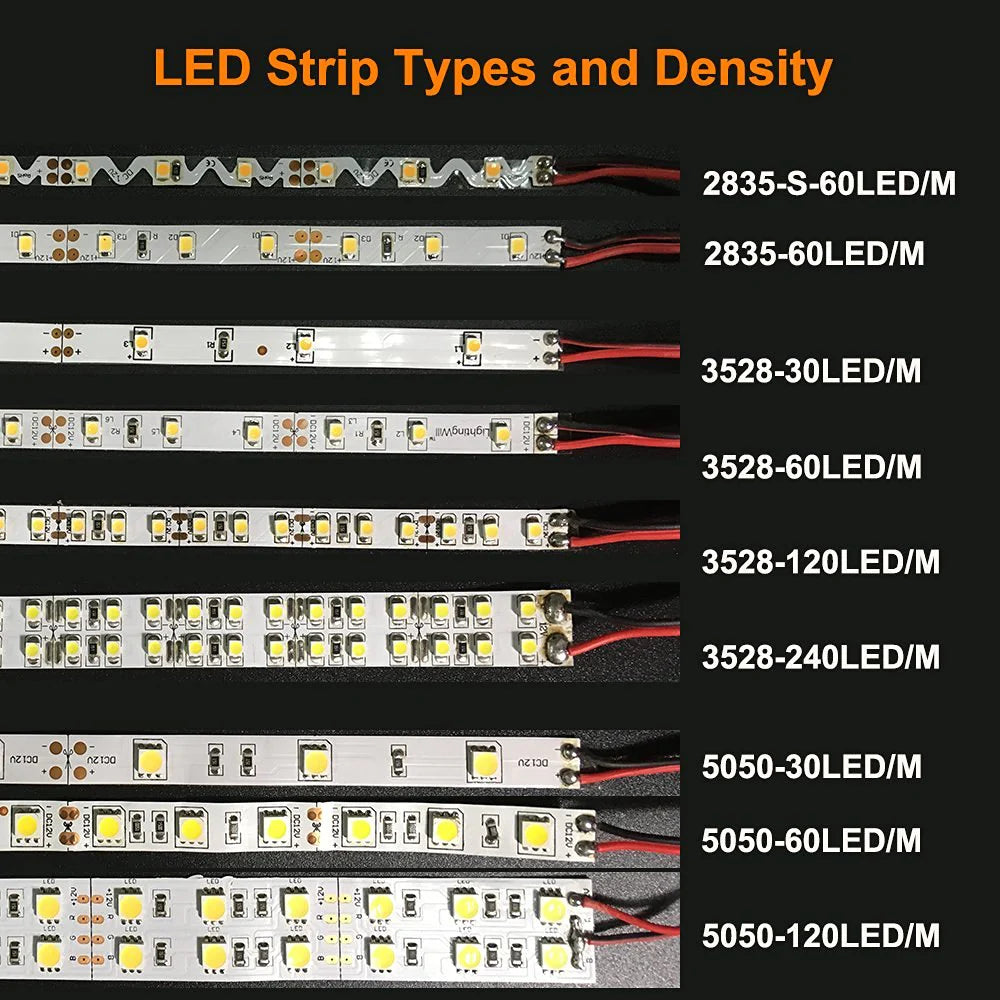

LED Density Illustration

LED Density Comparison

About this item

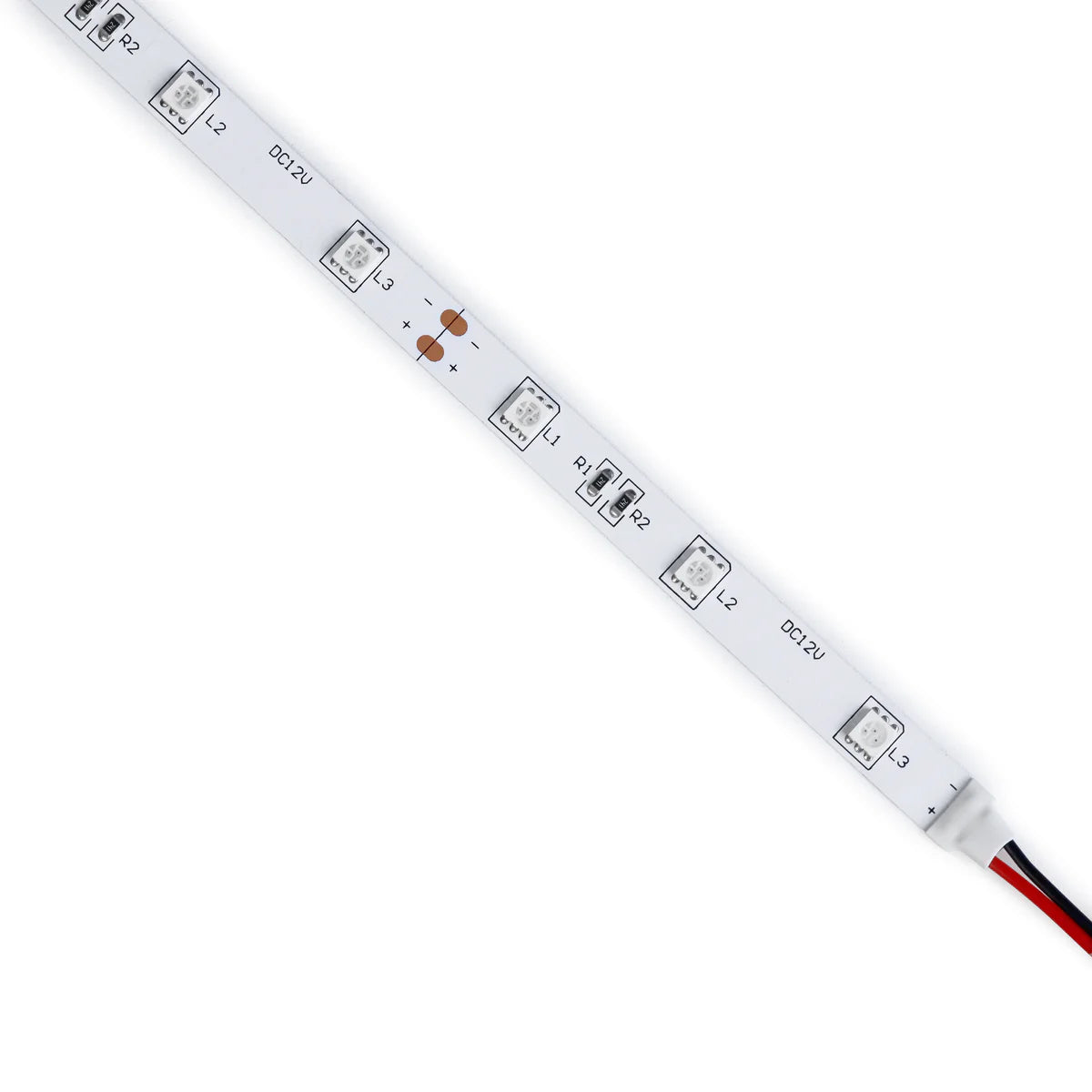

  • Uses SMD2835 / SMD5050 infrared LEDs, available in 810nm wavelength.
  • Multiple LED densities: 30 / 60 / 120 / 240 LEDs/m, power ≤ 6W/m, 12W/m, 18W/m, 28.8W/m respectively.
  • Operates on DC 12V with a 120° beam angle.

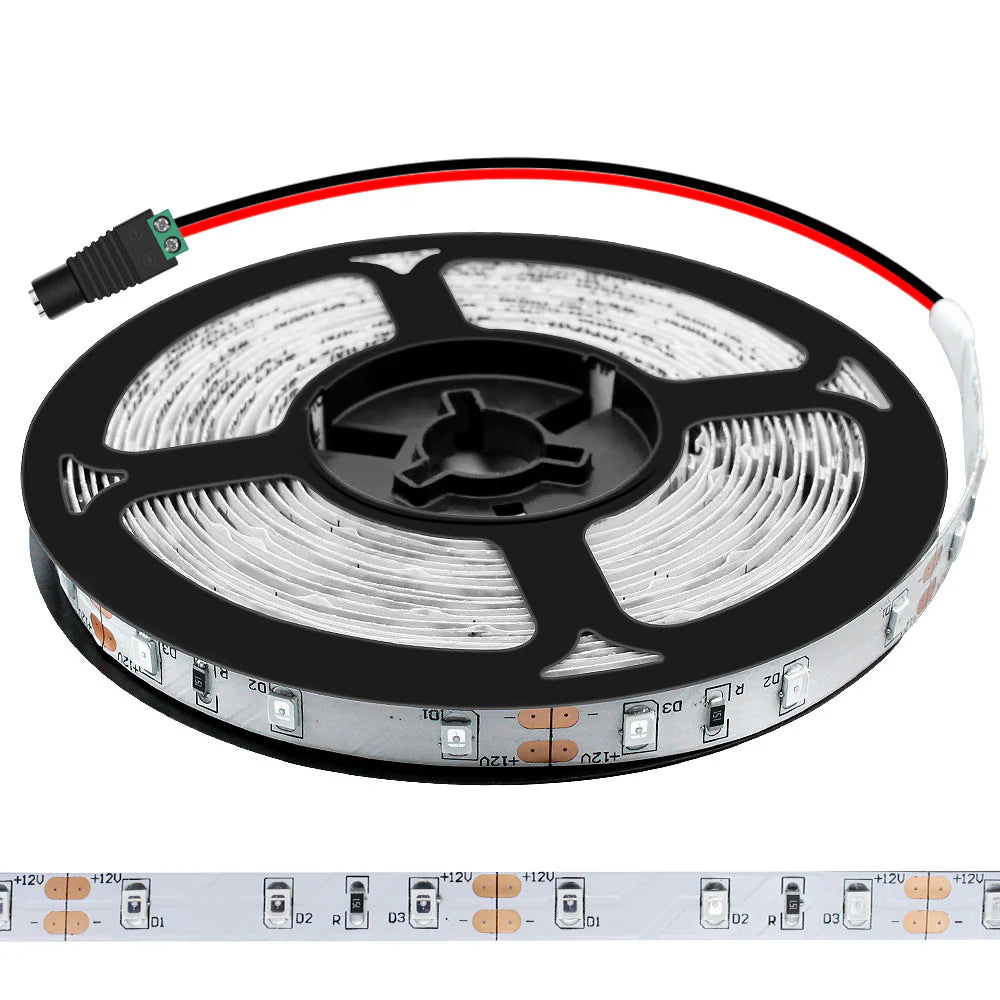

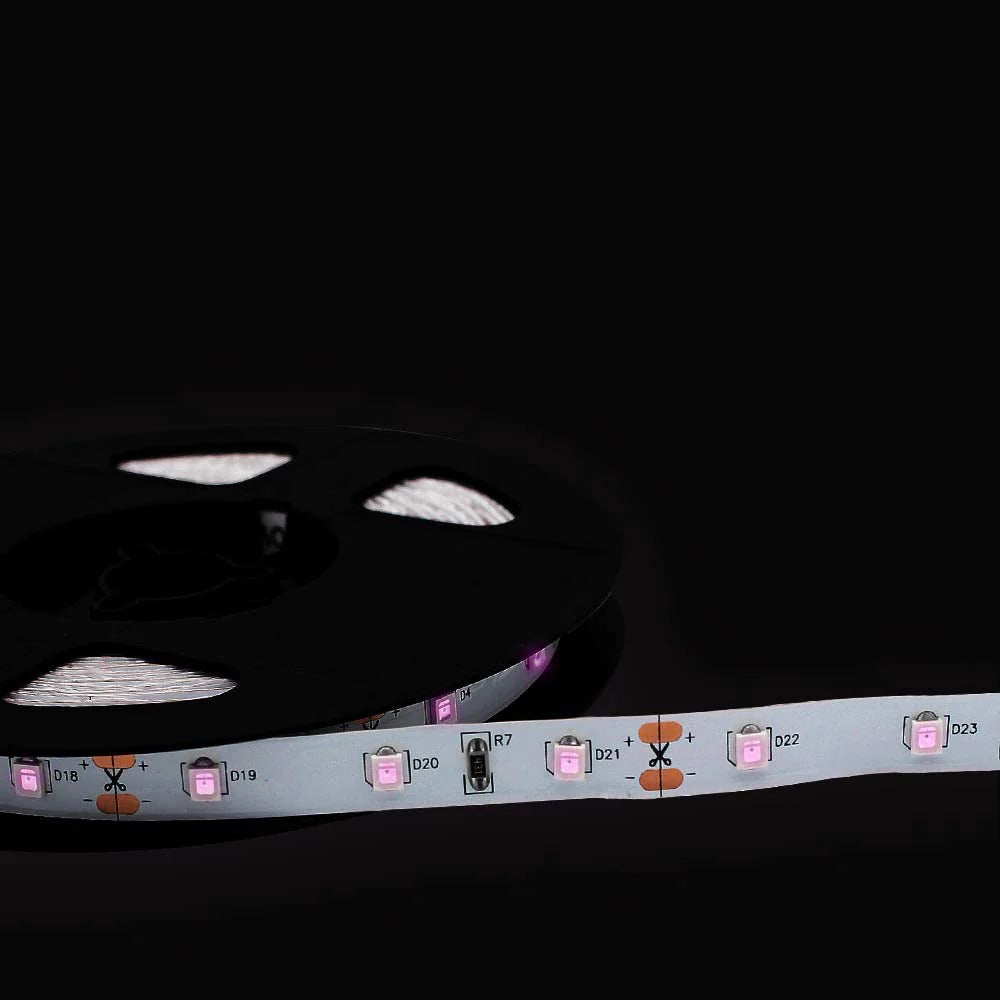

  • Cuttable design varies by LED density: 3 LEDs/4", 3 LEDs/2", 6 LEDs/1", 6 LEDs/0.5".
  • Available lengths: 5M per roll (16.4 ft).
  • Flexible PCB width: 10–15 mm depending on model, color white.
  • Waterproof options: Non-Waterproof (IP00), IP65.
  • Dimmable with compatible dimmers.
  • Self-adhesive backing for easy installation.
  • Emits near infrared light, suitable for therapy, wellness, and photoperiod applications.

Package Included

Version Package Included
SMD2835-60 LEDs/m Non-Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD2835-60 LEDs/m Non-Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD2835-60 LEDs/m Non-Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD2835-120 LEDs/m Non-Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD2835-120 LEDs/m Non-Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD2835-120 LEDs/m Non-Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD2835-240 LEDs/m Non-Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD2835-240 LEDs/m Non-Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD2835-240 LEDs/m Non-Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD5050-30 LEDs/m IP65 Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD5050-30 LEDs/m IP65 Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD5050-30 LEDs/m IP65 Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD5050-60 LEDs/m IP65 Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD5050-60 LEDs/m IP65 Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD5050-60 LEDs/m IP65 Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD5050-120 LEDs/m IP65 Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD5050-120 LEDs/m IP65 Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD5050-120 LEDs/m IP65 Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD2835-60 LEDs/m IP65 Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD2835-60 LEDs/m IP65 Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD2835-60 LEDs/m IP65 Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD2835-120 LEDs/m IP65 Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD2835-120 LEDs/m IP65 Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD2835-120 LEDs/m IP65 Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD2835-240 LEDs/m IP65 Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD2835-240 LEDs/m IP65 Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD2835-240 LEDs/m IP65 Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD5050-30 LEDs/m Non-Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD5050-30 LEDs/m Non-Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD5050-30 LEDs/m Non-Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD5050-60 LEDs/m Non-Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD5050-60 LEDs/m Non-Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD5050-60 LEDs/m Non-Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks
SMD5050-120 LEDs/m Non-Waterproof (5M × 1 Roll) 5M LED strip, 1 × Terminal Block
SMD5050-120 LEDs/m Non-Waterproof (5M × 10 Rolls) 50M LED strip, 10 × Terminal Blocks
SMD5050-120 LEDs/m Non-Waterproof (5M × 100 Rolls) 500M LED strip, 100 × Terminal Blocks

Order & Logistics

  • Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.

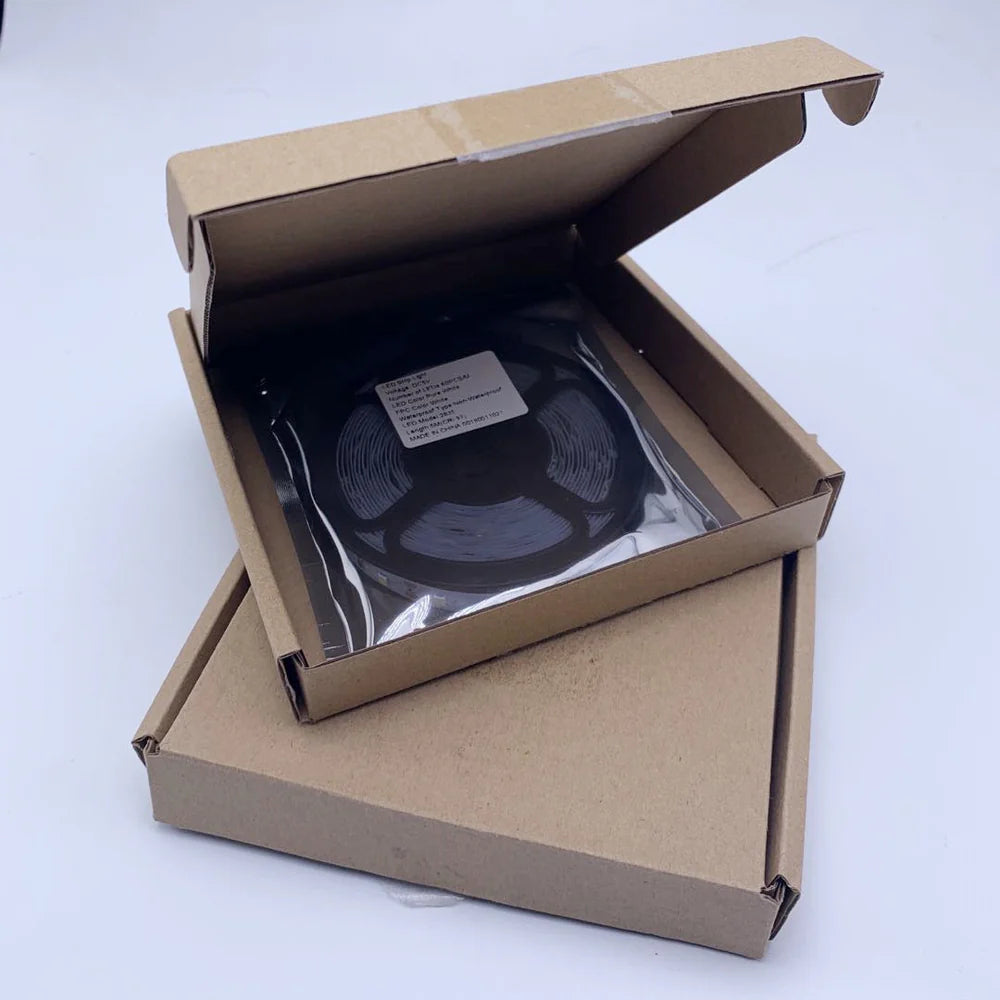

  • Packing: Cardboard box.
  • Shipping: From local warehouse (3–7 days) if available, or from HQ: 9–18 days standard or 5–9 days express.

Technical Specification

Specification SMD2835-60 LEDs/m SMD2835-120 LEDs/m SMD2835-240 LEDs/m SMD5050-30 LEDs/m SMD5050-60 LEDs/m SMD5050-120 LEDs/m
Wavelength 810nm 810nm 810nm 810nm 810nm 810nm
Color Near-Infrared (NIR) (invisible) Near-Infrared (NIR) (invisible) Near-Infrared (NIR) (invisible) Near-Infrared (NIR) (invisible) Near-Infrared (NIR) (invisible) Near-Infrared (NIR) (invisible)
LED Type SMD2835 SMD2835 SMD2835 SMD5050 SMD5050 SMD5050
LED Quantity 60 LEDs/m 120 LEDs/m 240 LEDs/m 30 LEDs/m 60 LEDs/m 120 LEDs/m
Voltage 12V DC 12V DC 12V DC 12V DC 12V DC 12V DC
Beam Angle 120° 120° 120° 120° 120° 120°
Strip Length Options 16.4 ft (5M × 1 Roll), 164 ft (5M × 10 Rolls), 1640 ft (5M × 100 Rolls)
Protection Grade Non-Waterproof, IP65 Waterproof
Dimmable Yes (requires compatible dimmer)

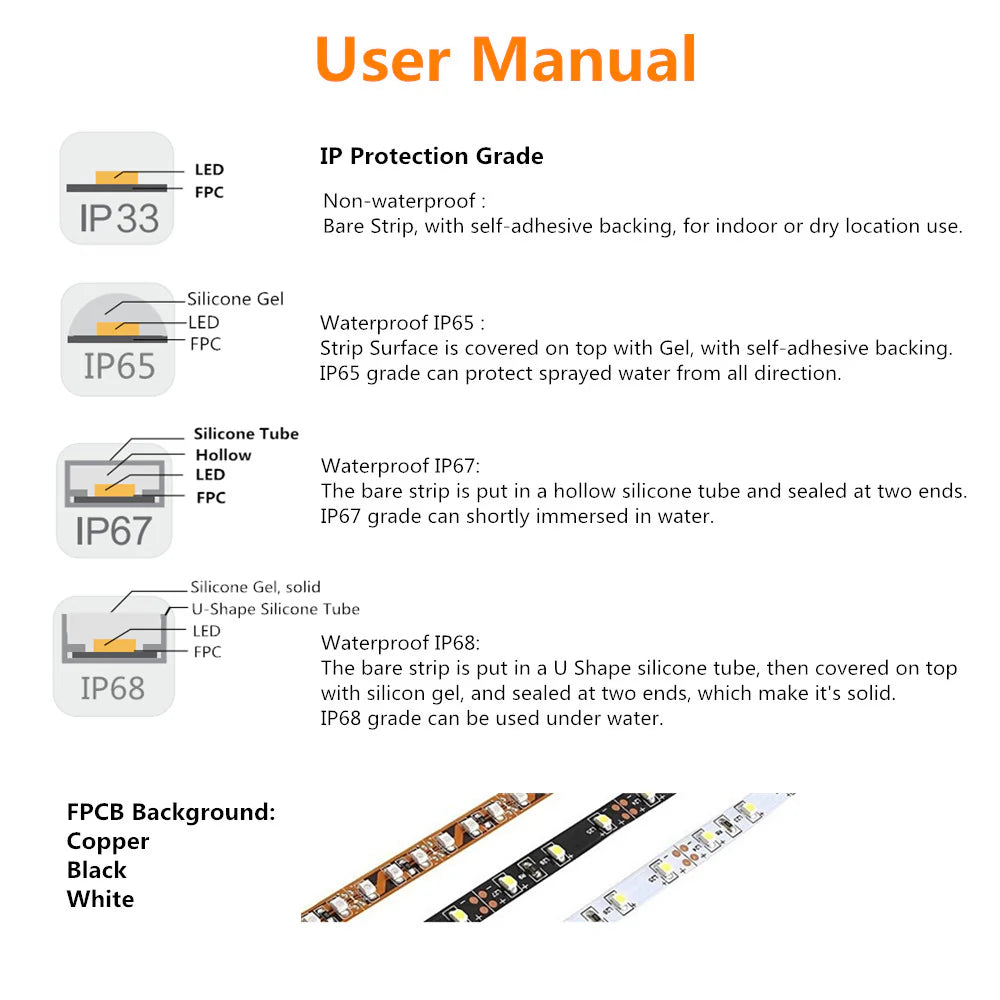

Type of LED & Different Waterproof IP Grade

  • Non-waterproof (IP20): Bare strip, self-adhesive backing, for indoor/dry use.

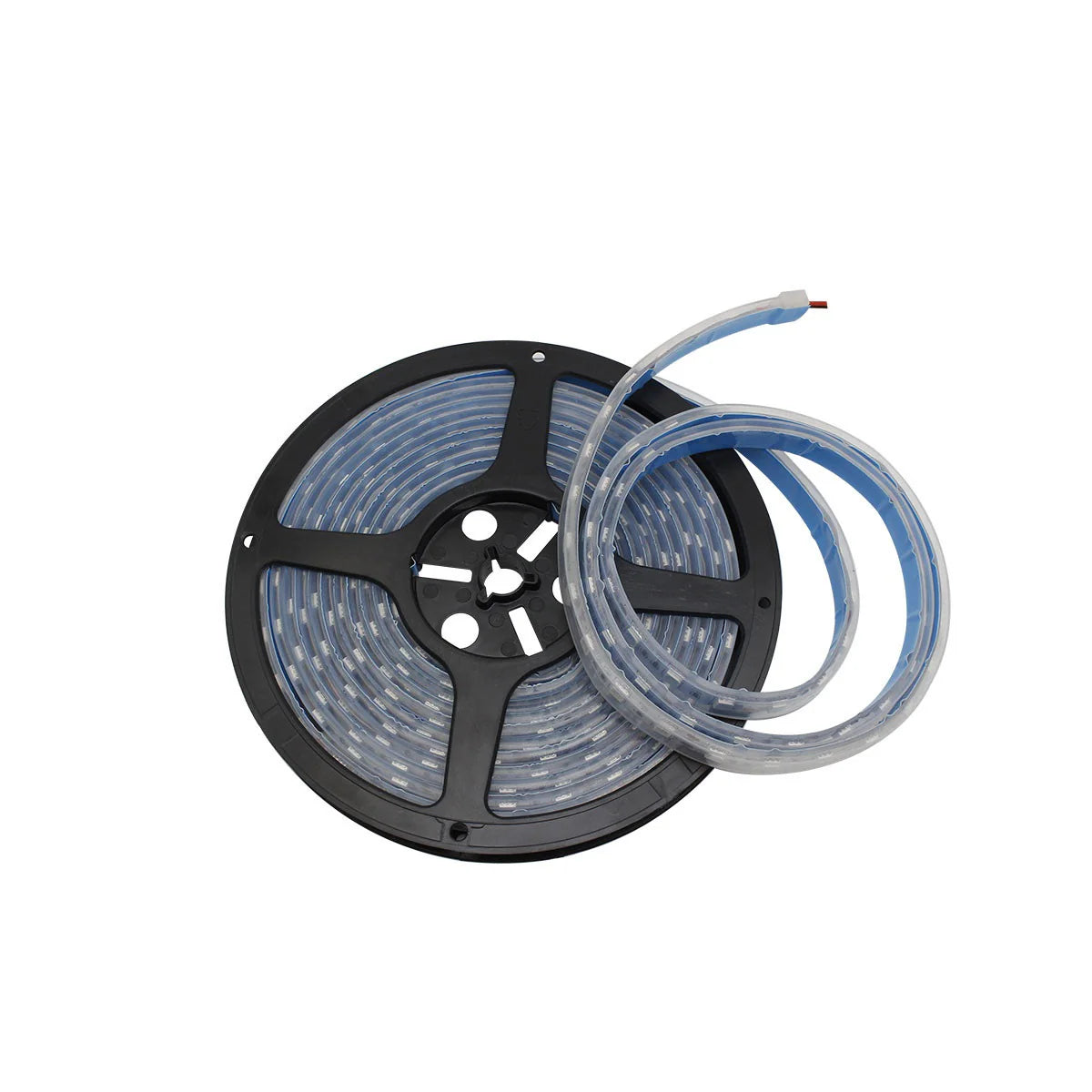

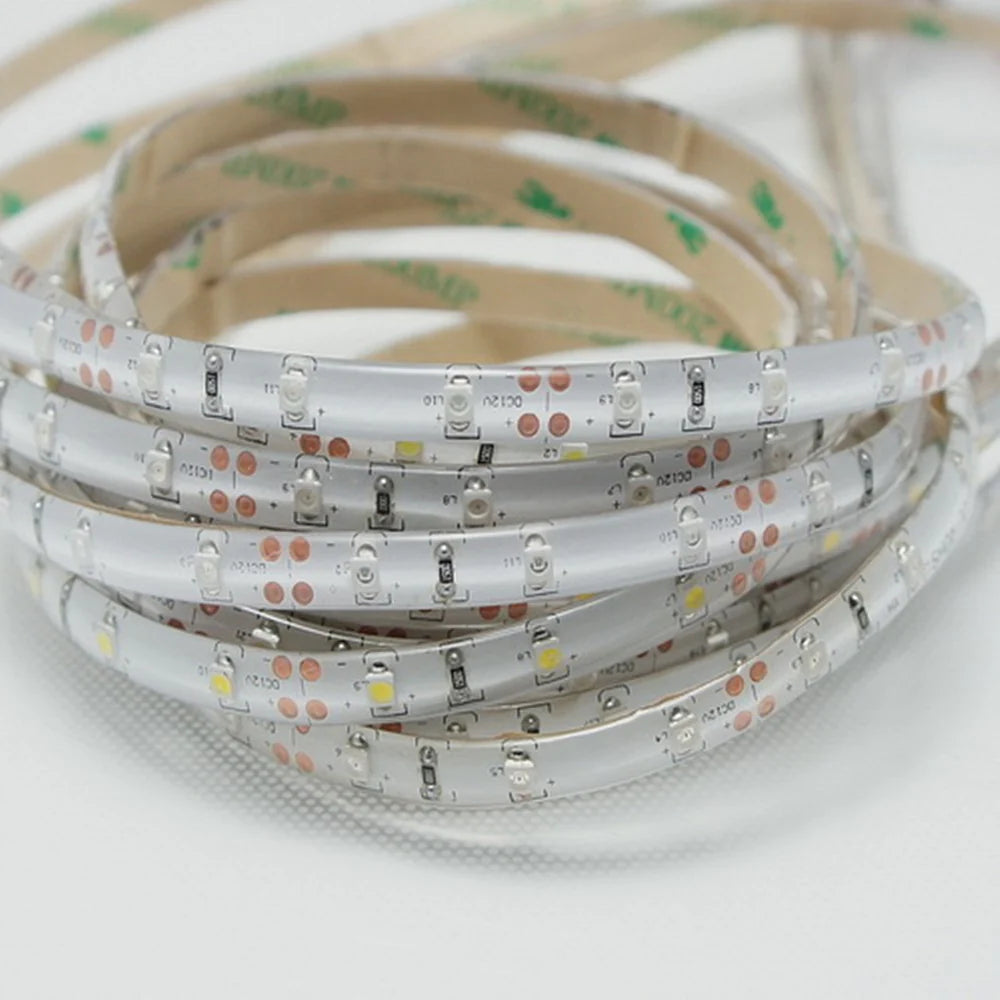

  • Waterproof IP65: Surface covered with gel, self-adhesive backing, protects from sprayed water from all directions.

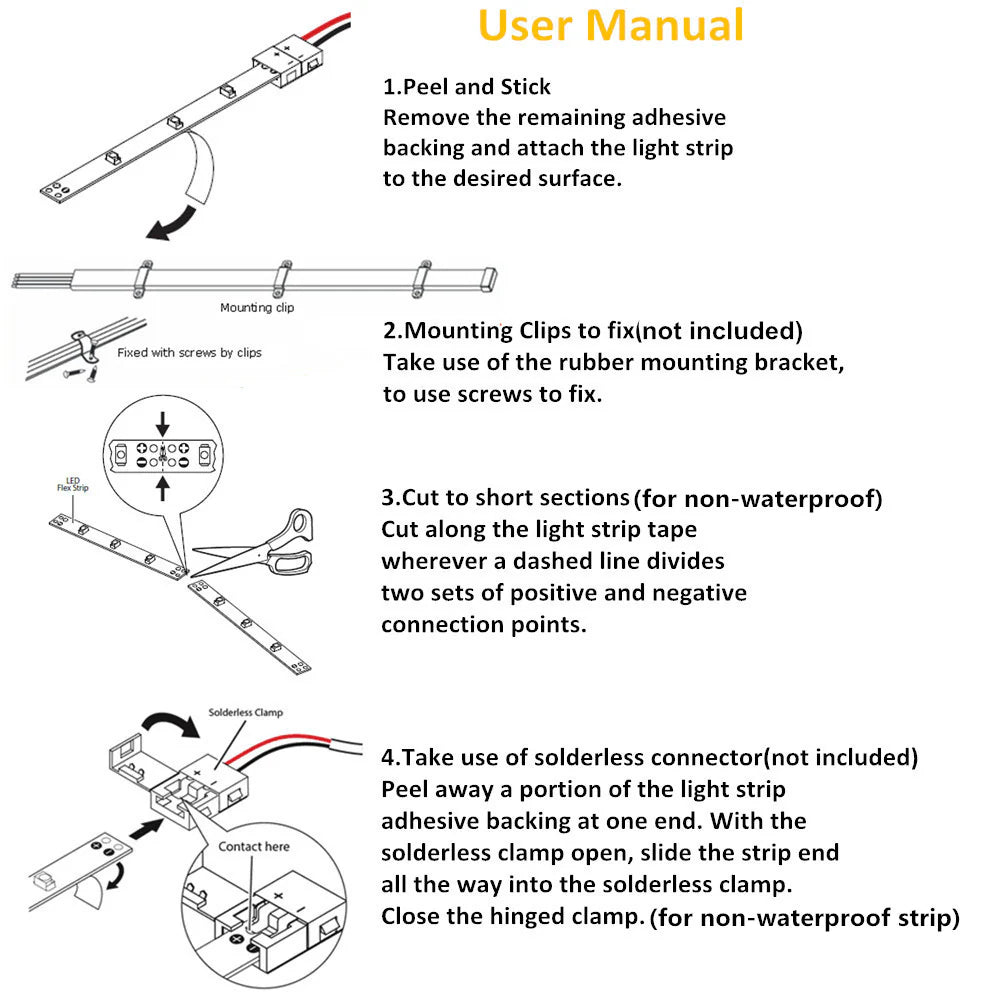

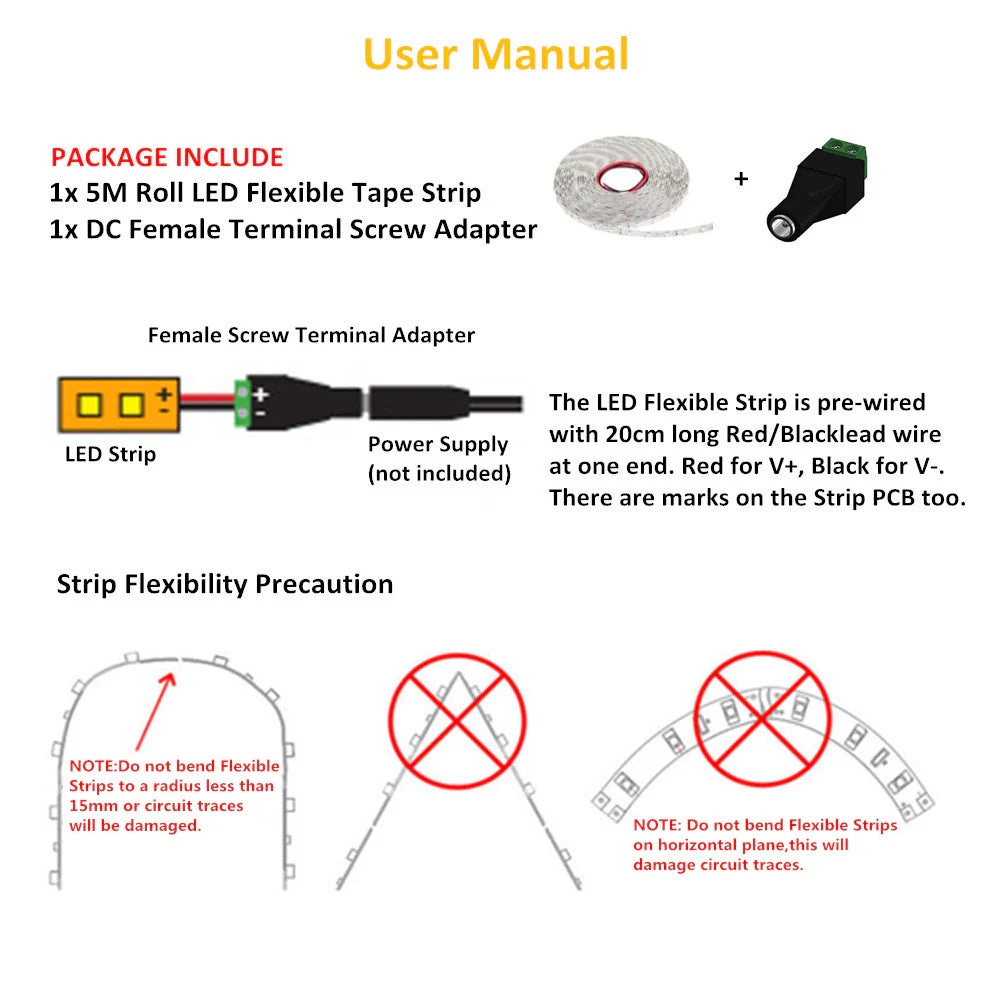

Installation Tips

  • Always disconnect power supply before cutting/connecting LED Light Strips.
  • Do not crimp strip tape, bend strips width-wise, or length-wise to radius < 15mm.
  • Do not connect LED Light Strips directly to 120V AC power.
  • Apply power to test LED Light Strips before mounting.

Installation Tips

How to Power / Control the Strip

  • Choose transformer wattage based on total LED strips to be powered.
  • Use a higher wattage transformer than total rated strip power to avoid full-load operation.
  • Higher wattage transformers do not harm strips and increase longevity.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.

Applications

  • Therapy and wellness lighting
  • Near infrared therapy
  • Industrial and inspection lighting
  • Stage lighting and ambient illumination
