MEAN WELL LRS Series LRS-200-5 / LRS-350-5 Enclosed Power Supply – 5V Output | 200W / 350W | CE & UL Certified | Indoor / Covered Outdoor Use

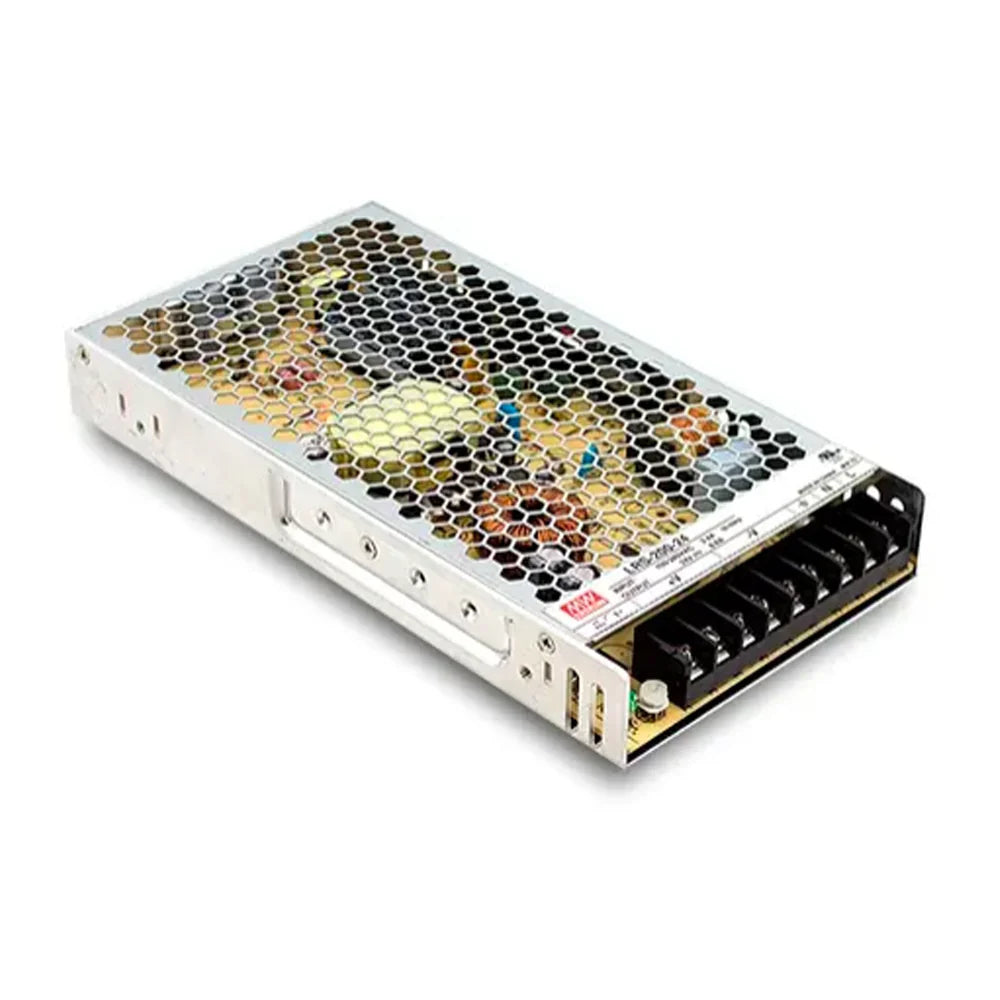

MEAN WELL LRS Series LRS-200-5 Enclosed Power Supply – 5V Output | 200W | CE & UL Certified | Moisture-Resistant | Indoor / Covered Outdoor Use

Features

• AC input range selectable by switch
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Cooling by free air convection
• 1U low profile
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption < 0.75W
• 100% full load burn-in test
• High operating temperature up to 70°C
• Operating altitude up to 5000 meters
• High efficiency, long life and high reliability
• 3 years warranty

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus

Description

LRS-200 series is a 200W single-output enclosed type power supply with 30mm low profile design. Adopting 115VAC or 230VAC input (selectable by switch), it provides 5V output. With high efficiency up to 90% and metallic mesh case for heat dissipation, LRS-200 operates from -25°C to 70°C under air convection without fan. Extremely low no-load power consumption (<0.75W) allows compliance with global energy requirements. Complete protection functions and 5G anti-vibration capability. Complies with IEC/UL 62368-1. Ideal high price-to-performance power supply for industrial applications.

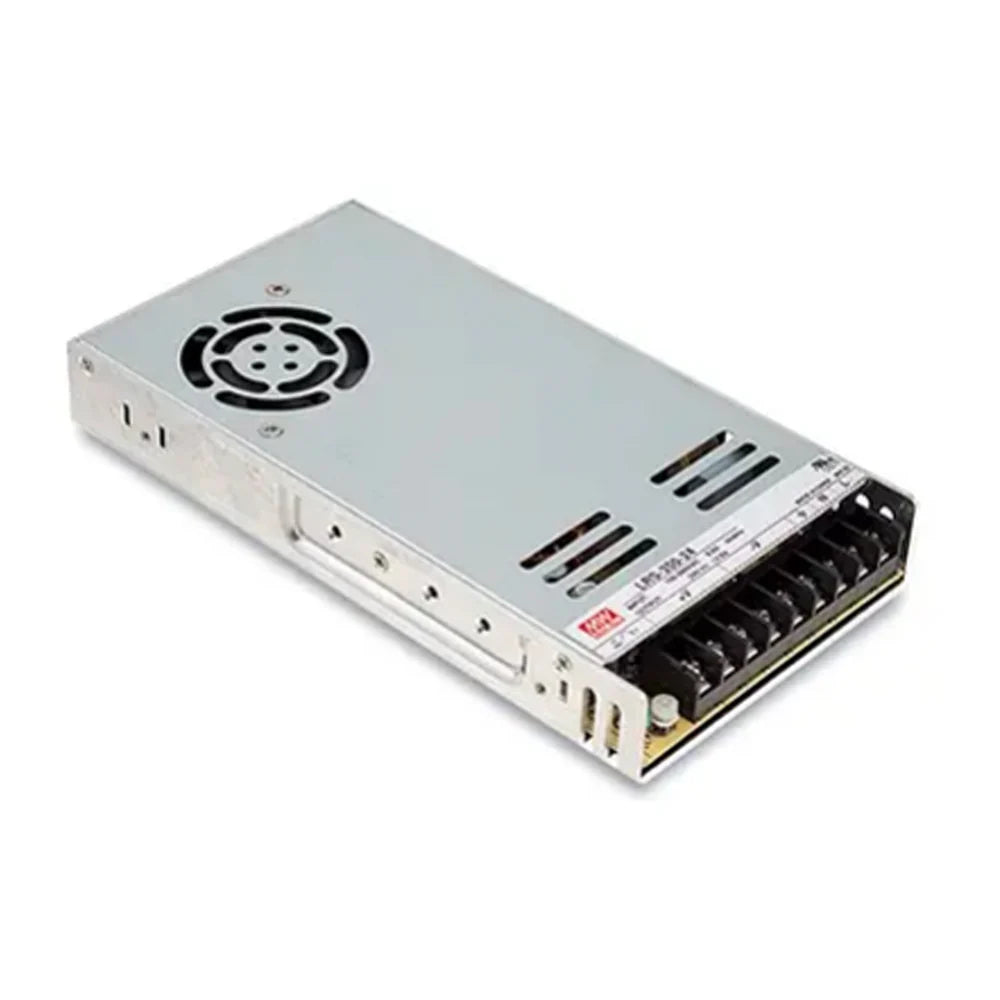

MEAN WELL LRS Series LRS-350-5 Enclosed Power Supply – 5V Output | 350W | CE & UL Certified | Moisture-Resistant | Indoor / Covered Outdoor Use

Features

• AC input range selectable by switch
• Withstand 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Forced air cooling by built-in DC fan with ON/OFF control
• 1U low profile
• Withstand 5G vibration test
• LED indicator for power on
• No load power consumption < 0.75W
• 100% full load burn-in test
• High operating temperature up to 70°C
• Operating altitude up to 5000 meters
• High efficiency, long life and high reliability
• 3 years warranty

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipments or apparatus

Description

LRS-350 series is a 350W single-output enclosed type power supply with 30mm low profile design. Adopting 115VAC or 230VAC input (selectable by switch), it provides 5V output. With high efficiency up to 89% and built-in long-life fan, LRS-350 operates under -25°C ~ 70°C with full load. Extremely low no-load power consumption (<0.75W) allows compliance with global energy requirements. Complete protection functions and 5G anti-vibration capability. Complies with IEC/UL 62368-1. Ideal high price-to-performance power supply for industrial applications.
