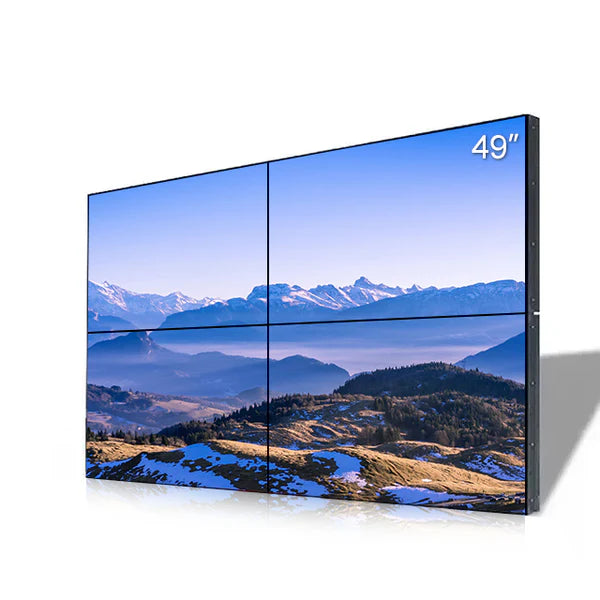

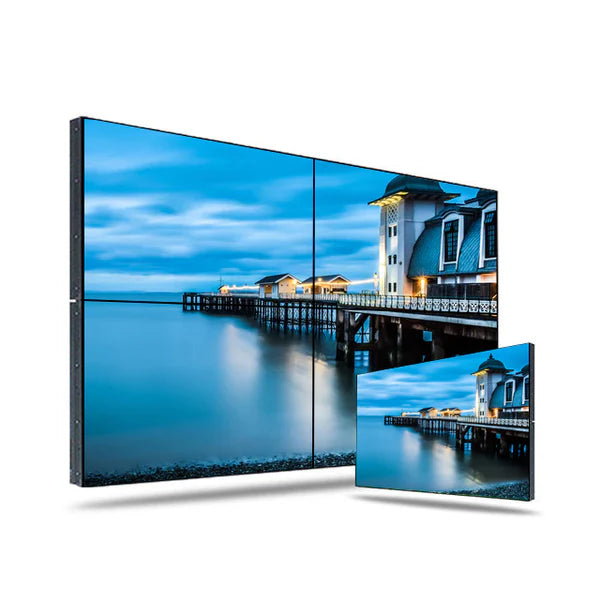

49” BOE LCD Video Wall – 2x2 Kit (4 Panels) | 1920x1080 FHD | 500 nits | Ultra Narrow Bezel 3.5mm | HDMI Splicer + Wall Mount Included

$43,811.00
Bezel
Brightness
$43,811.00
$43,811.00
Shipping calculated at checkout.
9999 in stock

49” BOE LCD Video Wall – 2x2 Kit (4 Panels) | 1920x1080 FHD | 500 nits | Ultra Narrow Bezel 3.5mm | HDMI Splicer + Wall Mount Included

Package Included

Version Package Included
2x2 Package

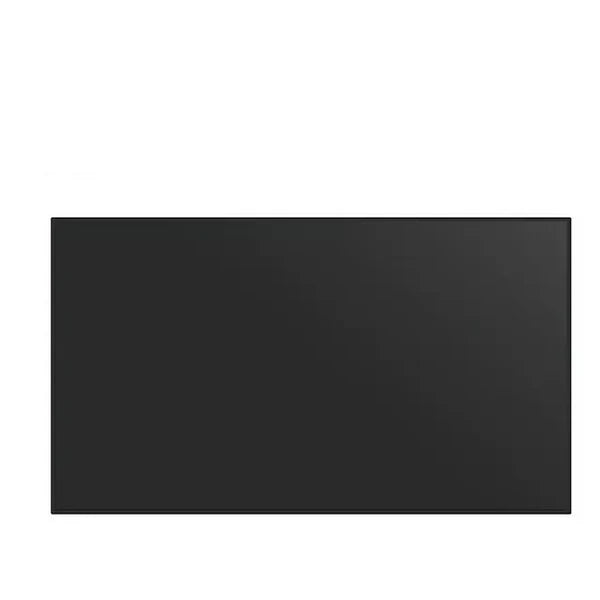

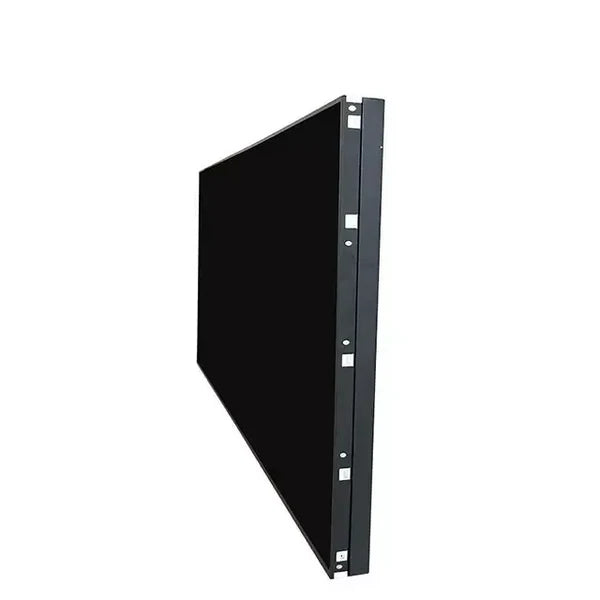

4 × 49" Black Frame LCD Video Wall Screen；

4 × Hydraulic Front Maintenance Mounting Bracket

1 × 1 in 4 out HDMI Splitter

5 × HDMI Cable

3 × RJ45 Ethernet Cable

4 × Power Plug Cable；

1 × Remote Controller (battery not included)；

2 × Plywood Packing Case

Order & Logistics

  • Lead Time: 3–7 business days
  • Packing: Plywood case and corrugated carton with protective foam
  • Shipping Method Options:
  1. Sea Freight + door-to-door truck — typical transit time: 30–38 days after vessel departure.
  2. Air Freight + door-to-door truck — typical transit time: 9–18 days after flight departure.

DDP Term: All fees included. If DDP is not supported in the destination country, we will confirm alternative shipping solutions with the buyer (e.g., EXW / FOB).

⚠️ This product line is not eligible for Free Shipping due to heavy freight. Final freight charges will be calculated automatically at checkout based on order weight.

Specification

Screen size 46'' 49'' 55'' 65''
Interface gap 3.5mm|1.7mm|0.88mm 3.5mm 3.5mm|1.7mm|0.88mm 3.5mm
Display size 1018*572 mm 1073.8*604 mm 1209.6*680.4 mm 1428*803 mm
Frame size 1023.98*578.7*83.2 mm 1077.58*607.8*63 mm 1211.4*682.2*60.1 mm 1433.88*808.92*78 mm
Resolution 1920x1080 1920x1080 1920x1080 1920x1080
Display color 16.7 M 16.7 M 16.7 M 16.7 M
Color Gamut 72% NTCS 72% NTCS 72% NTCS 72% NTCS
Brightness 500 cd/sqm 500 cd/sqm 500 cd/sqm 500 cd/sqm
Contrast ratio 3500:1 3500:1 3500:1 3500:1
Viewing angle 178/178 178/178 178/178 178/178
Response time 6ms 6ms 6ms 6ms
Display mode 16:9 16:9 16:9 16:9
OSD menu Yes Yes Yes Yes
Freeze/unfreeze Yes Yes Yes Yes
Signal buffer Yes Yes Yes Yes
Menu language English, Chinese and others
USB input 1-way: USB2.0 supports software upgrade
Vertical frequency 50HZ, 60HZ, 70HZ, 75HZ
Video format PAL/NTSC
Control interface RS232 Control : RJ45x3 (1in 2out)

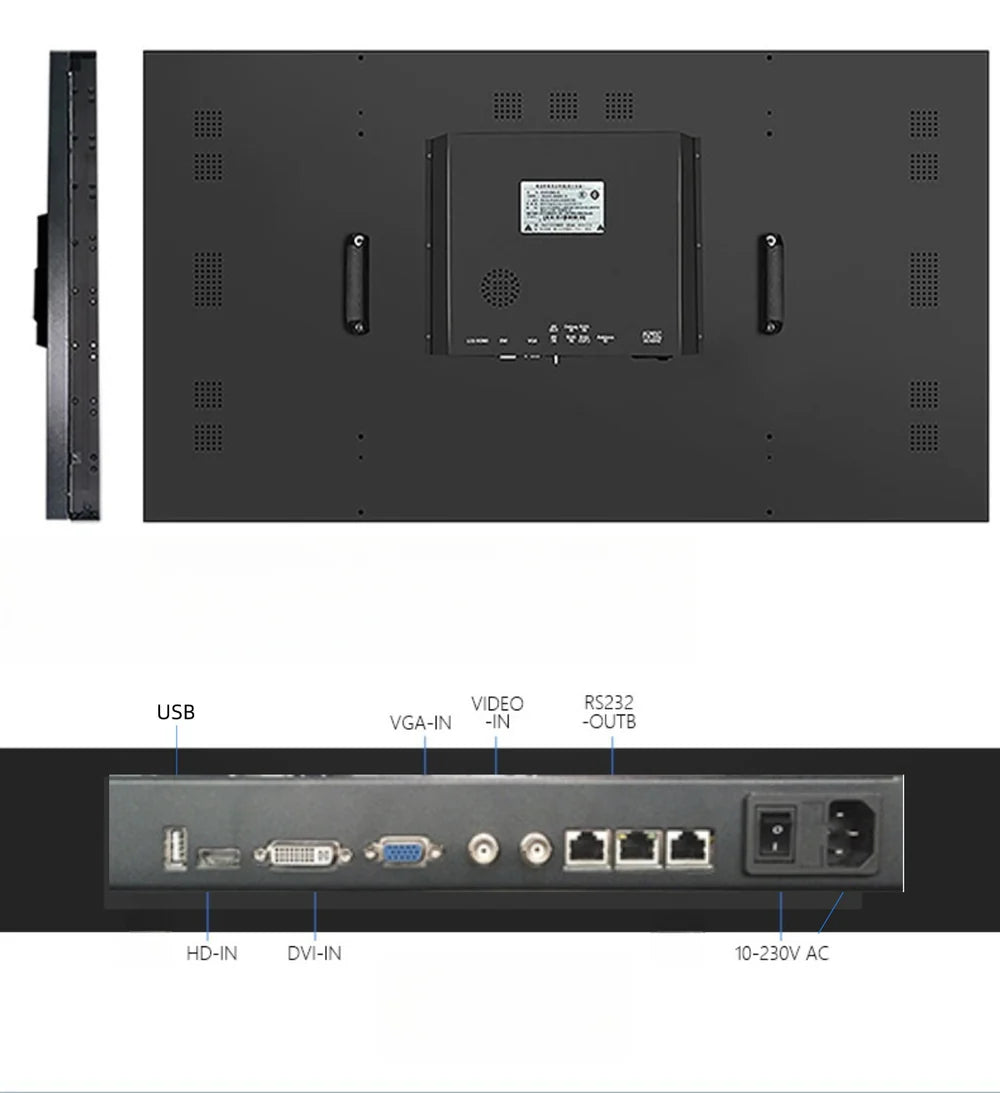

Video interface VGAx1/DVIx1/HDMIx1/CVBSx2/BNC 1in 1out
Input voltage AC100-240V (50/60HZ)
Power Consumption <=200W <=200W <=245W <=260W
Operating temperature 0-50 degree C
Mounting method Wall-mounted, front-maintenance hydraulic support, vertical support, embedded, cabinet, ceiling-mounted

Features:

1. BOE industrial LCD Panel

HIGH DEFINITION RESOLUTION: the screen has a resolution of 1920*1080 and a pixel value up to 2.07 million, clearly showing every detail of the picture 16:9 widescreen ratio.
178° WIDE VIEWING ANGLE: delivers consistent color from any direction.
3D NOISE REDUCTION: accurate restoration and sharpening for clean images.
ISP HARD SCREEN: IPS hard screen ensures smoother motion and better durability.

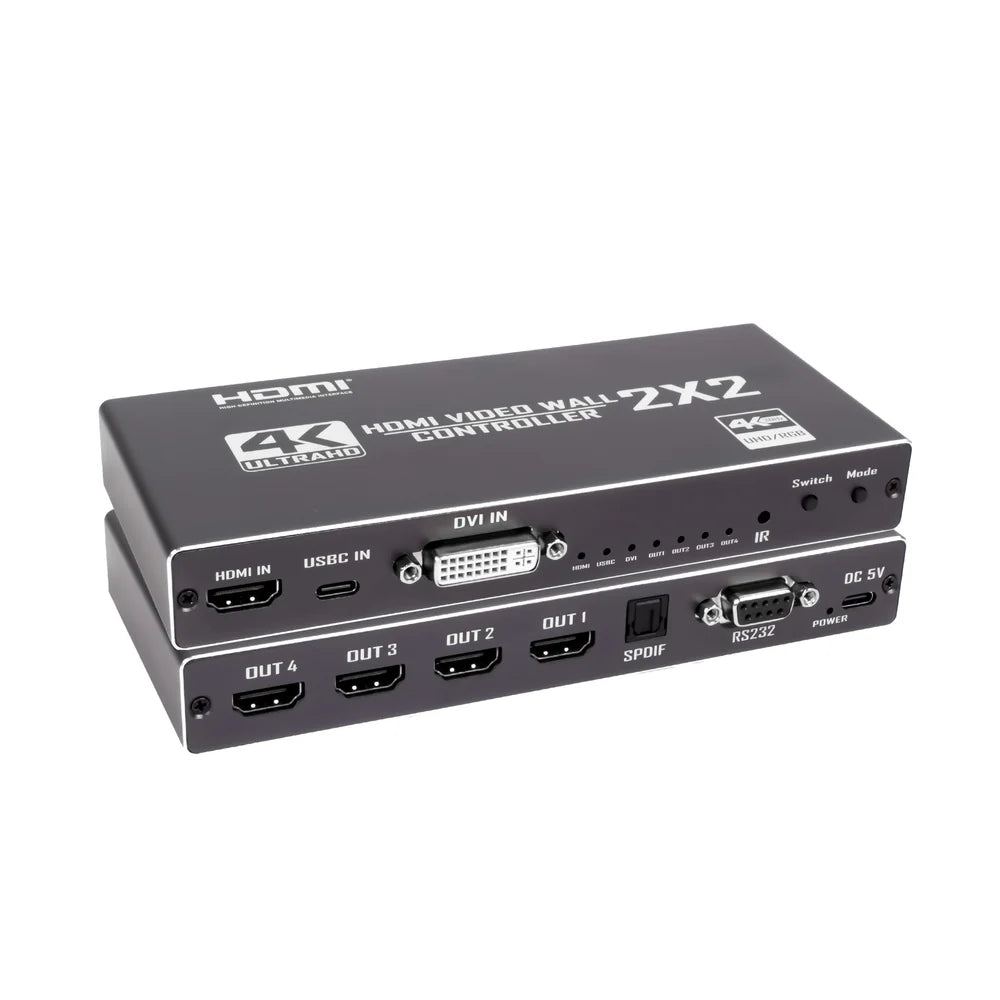

2. With the HDMI Splitter

    • Supports HDMI, DVI and Type-C signal inputs
    • Flexible horizontal or vertical video wall splicing
    • Edge blending and seam adjustment
    • Supports 180-degree image flip
    • RS232 control + remote control
    • Audio synchronization separation output

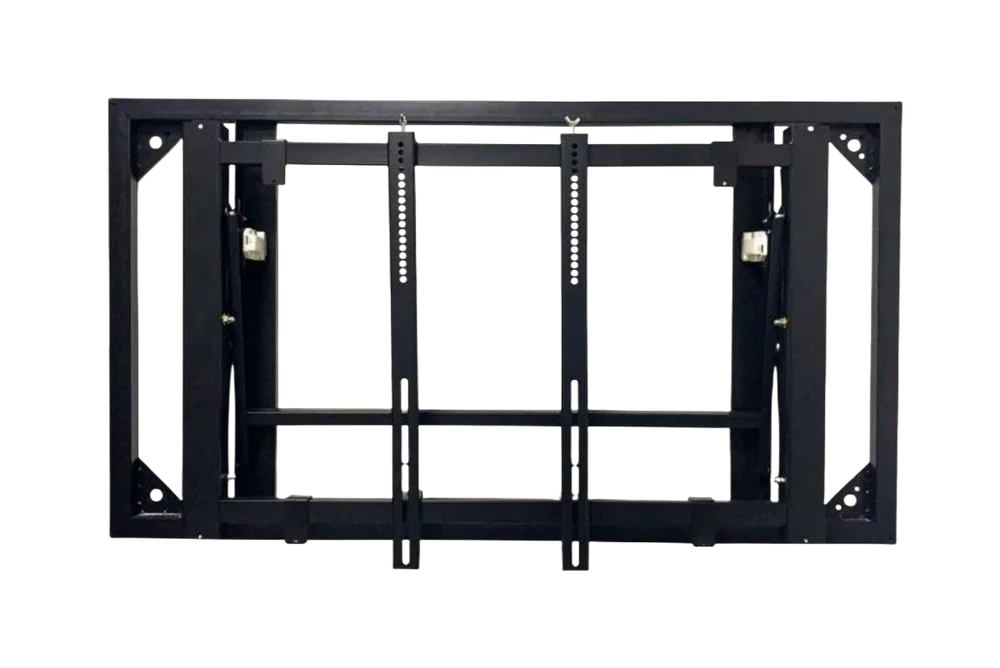

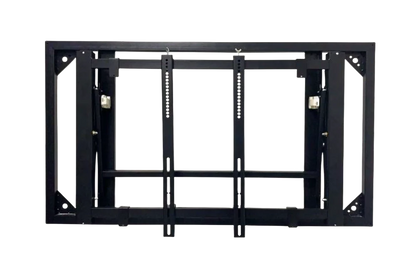

3. With Hydraulic Front Maintenance Bracket

    • Easy Front Access – Panels pop out smoothly for service
    • Uninterrupted Operation – Maintenance without shutting down
    • Space-Saving Design
    • Hydraulic Support – Stable and reliable
    • Convenient Servicing
