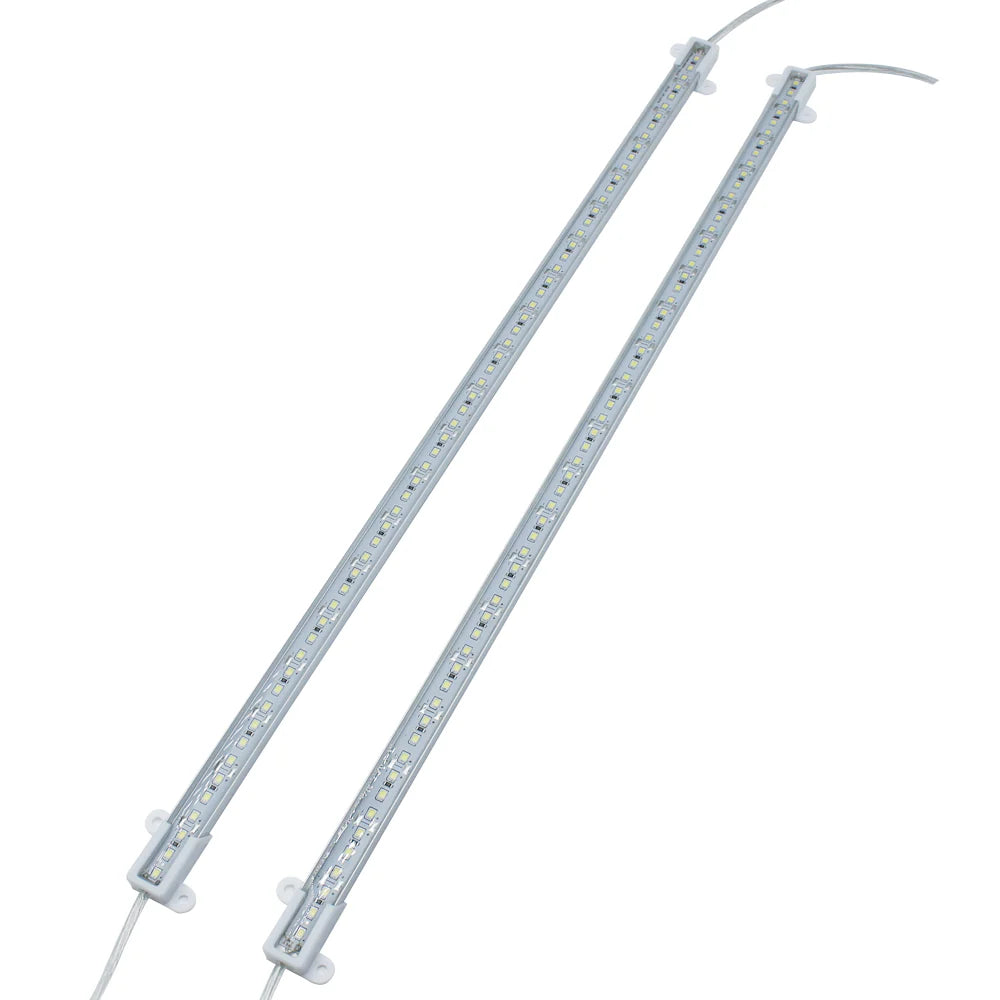

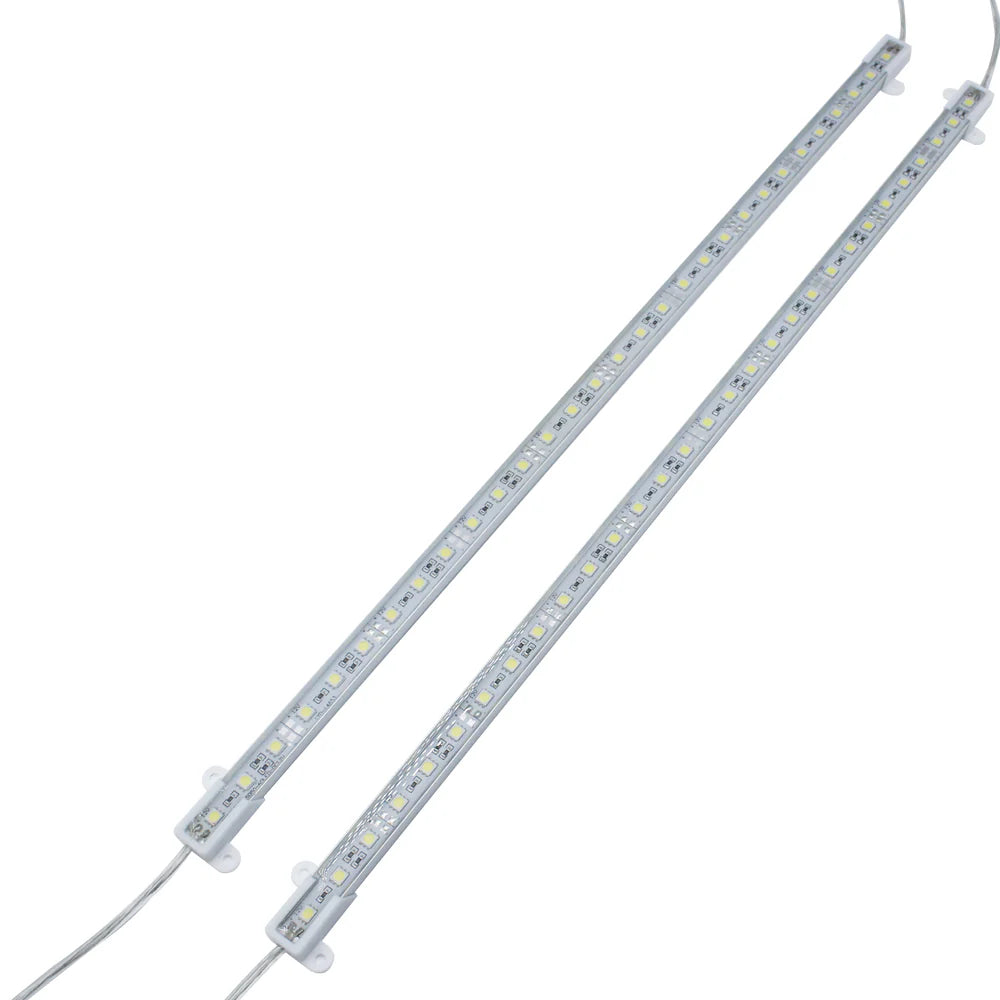

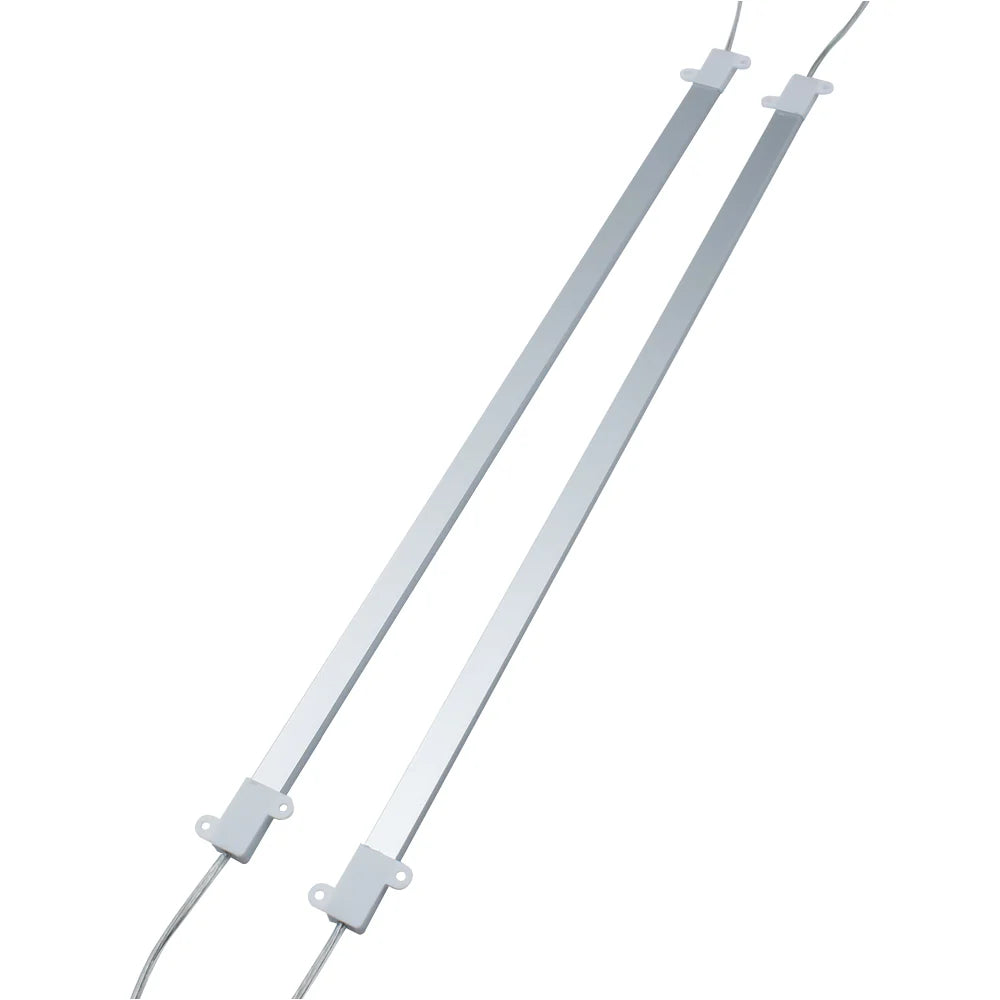

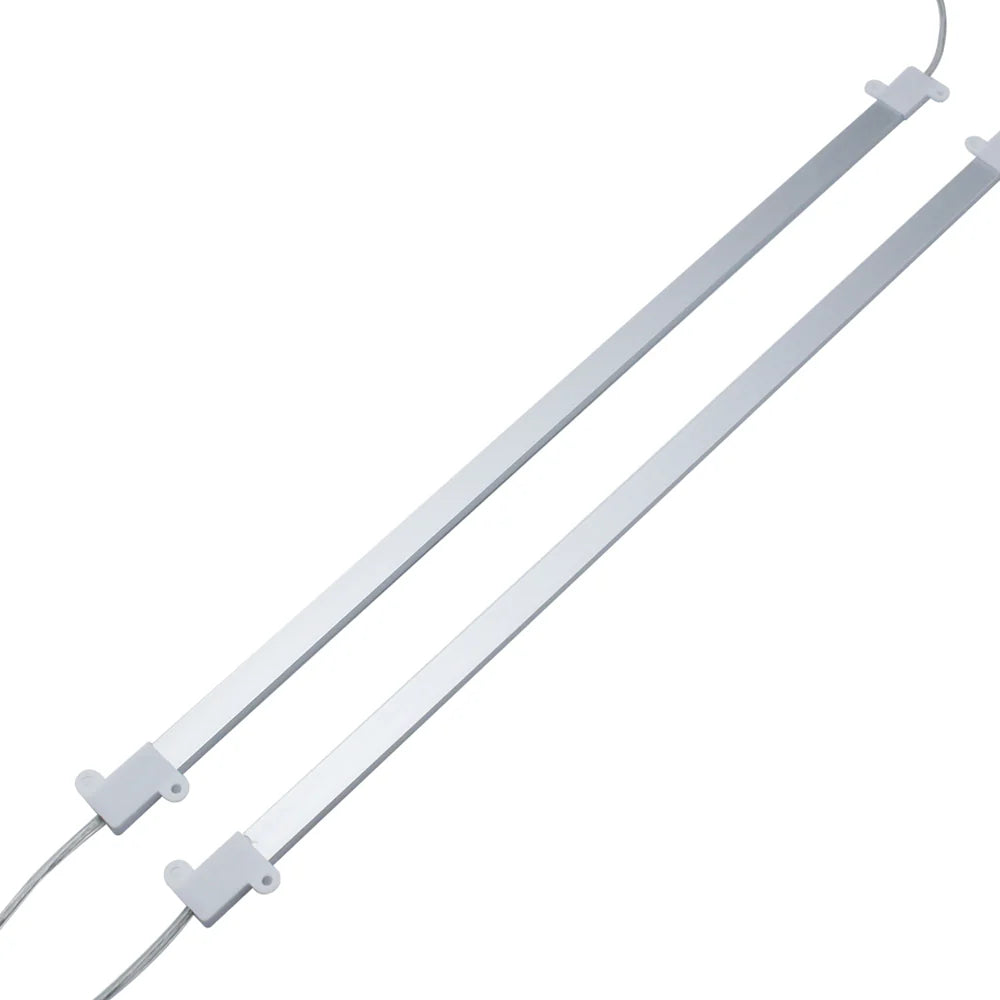

660–670nm 50cm 10/100 /1000 Pack, IP65 Waterproof DC12V Red & Infrared Rigid LED Strip, SMD2835/36 LEDs, SMD5050/30 LEDs, Greenhouse Plant Growth & Hydroponics Use
From $804.00
Regular price
$804.00
Sale price
$804.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
In stock
Package Included
| Version | Package Included |
|---|---|
| SMD2835 36 LEDs/m – 10-Pack | 10 × 50cm rigid LED strip, 10 × Terminal Blocks |
| SMD2835 36 LEDs/m – 100-Pack | 100 × 50cm rigid LED strip, 100 × Terminal Blocks |
| SMD2835 36 LEDs/m – 1000-Pack | 1000 × 50cm rigid LED strip, 1000 × Terminal Blocks |
| SMD5050 30 LEDs/m – 10-Pack | 10 × 50cm rigid LED strip, 10 × Terminal Blocks |
| SMD5050 30 LEDs/m – 100-Pack | 100 × 50cm rigid LED strip, 100 × Terminal Blocks |
| SMD5050 30 LEDs/m – 1000-Pack | 1000 × 50cm rigid LED strip, 1000 × Terminal Blocks |
About this item
- Rigid LED strip with SMD2835 36 LEDs/m or SMD5050 30 LEDs/m.
- Available wavelength: 660–670nm.
- Operates on DC 12V with a 120° beam angle.
- Waterproof rating: IP65, suitable for indoor and protected outdoor applications.
- Aluminum PCB for rigidity and better heat dissipation.
- Emits deep red light, suitable for greenhouse plant growth, hydroponics, and horticulture lighting.
Order & Logistics
- Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
- Packing: Cardboard box.
- Shipping: From local warehouse (3–7 days) if available, or from HQ: 9–18 days standard or 5–9 days express.
Technical Specification
| Specification | Value |
|---|---|
| Wattage | 4 W/pc |
| Voltage | 12V DC |
| Beam Angle | 120° |
| Dimming | Yes |
| LED Type | SMD2835 / SMD5050 |
| Strip Section | 3 LEDs per 1.93 inch (SMD2835), 30 LEDs per 50cm (SMD5050) |
| WxH | 14×7 mm (excluding end cap) |
| LED Quantity | 36 LEDs/pc (SMD2835), 30 LEDs/pc (SMD5050) |
| Length Available | 50 cm per piece |
| Available Color | 660–670 nm |
| Protection Grade | Waterproof IP65 |
| Finish Color | Silver |
LED Density Illustration
Other Features
| Feature | Details |
|---|---|
| Weight | 150 g/pc |

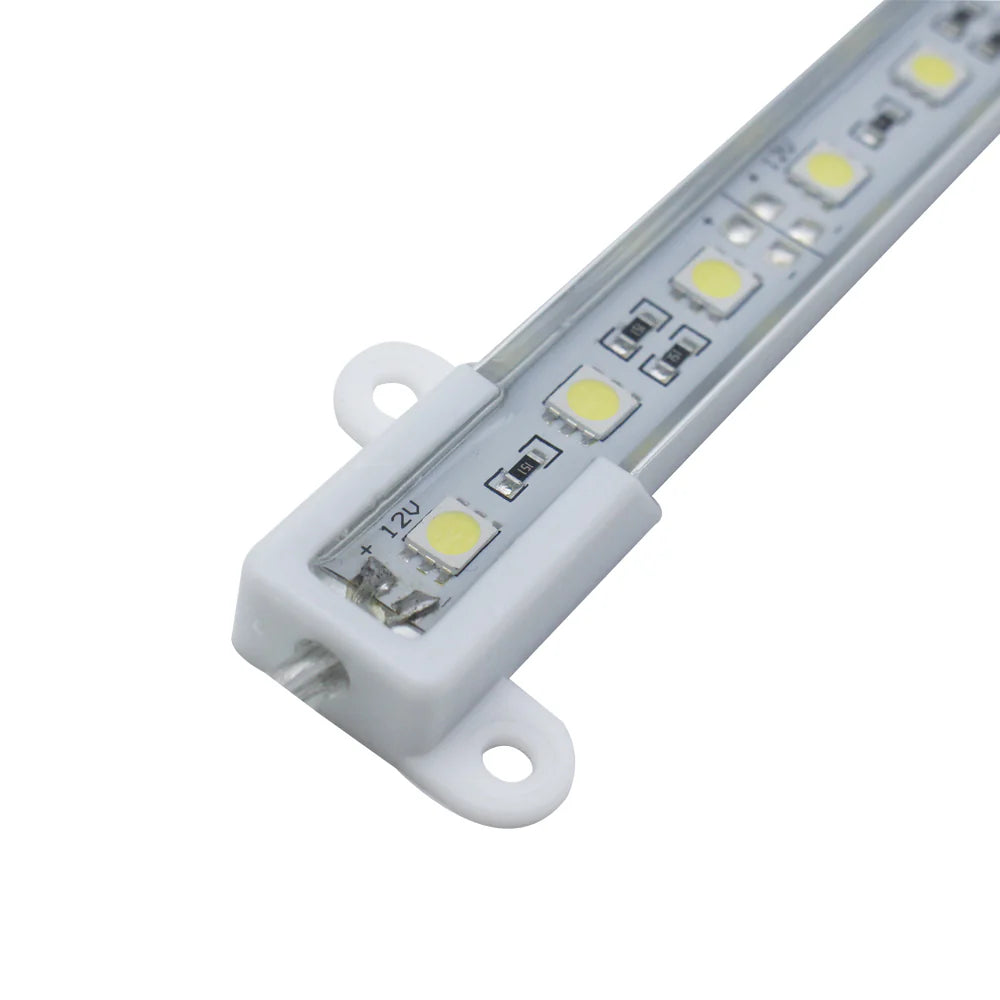

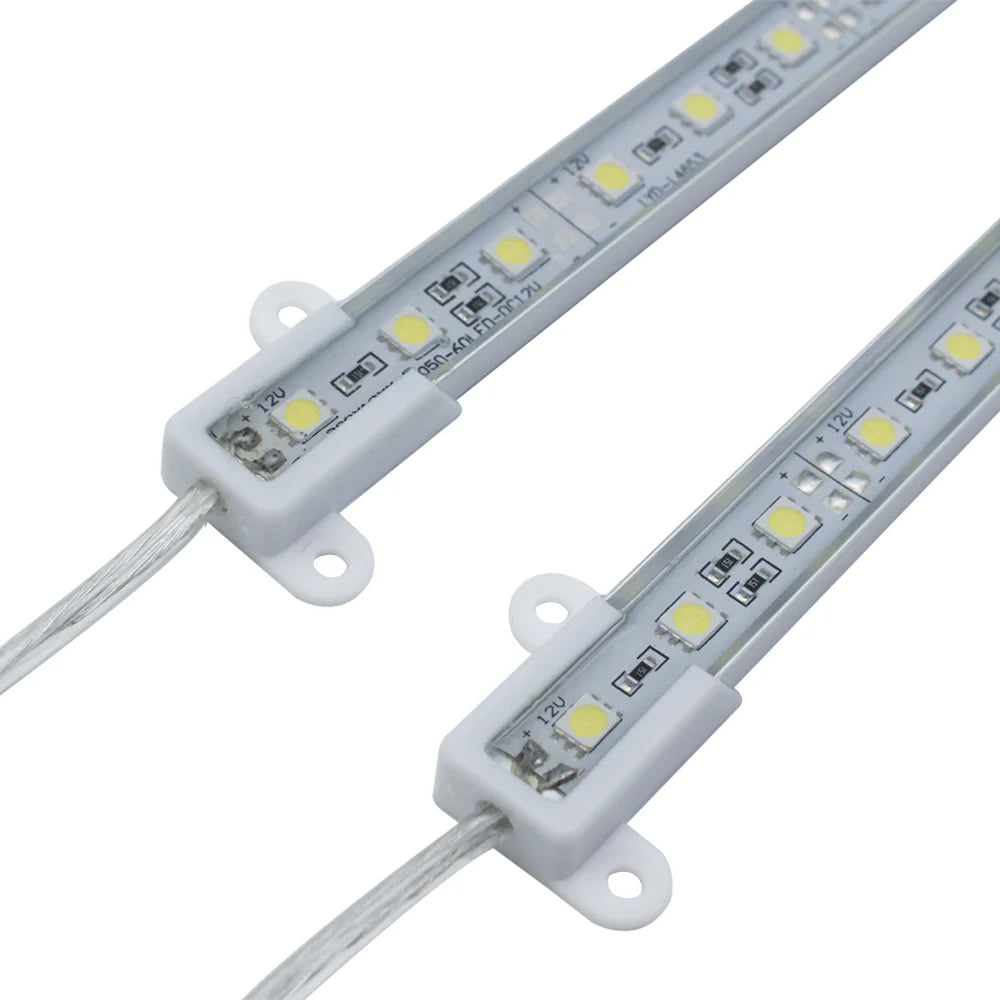

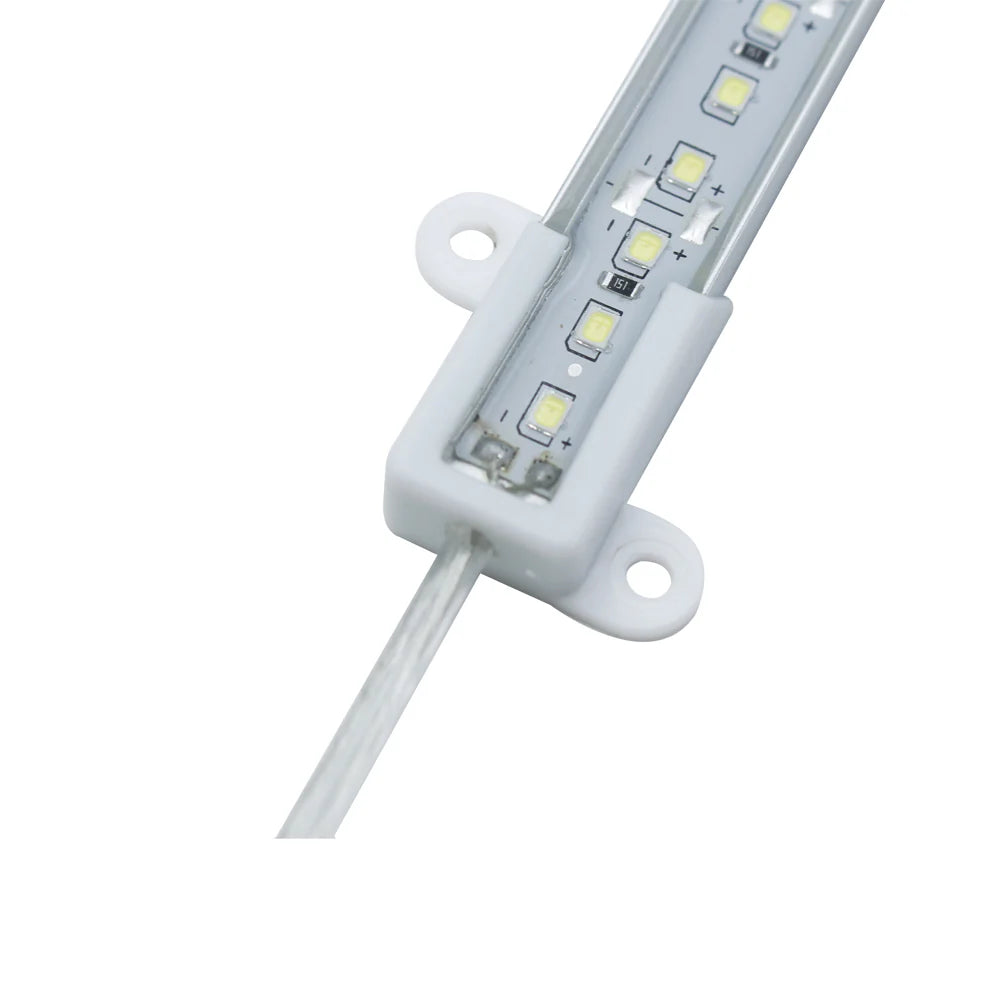

| Mounting | End cap with mounting hole; can be fixed using included screws |

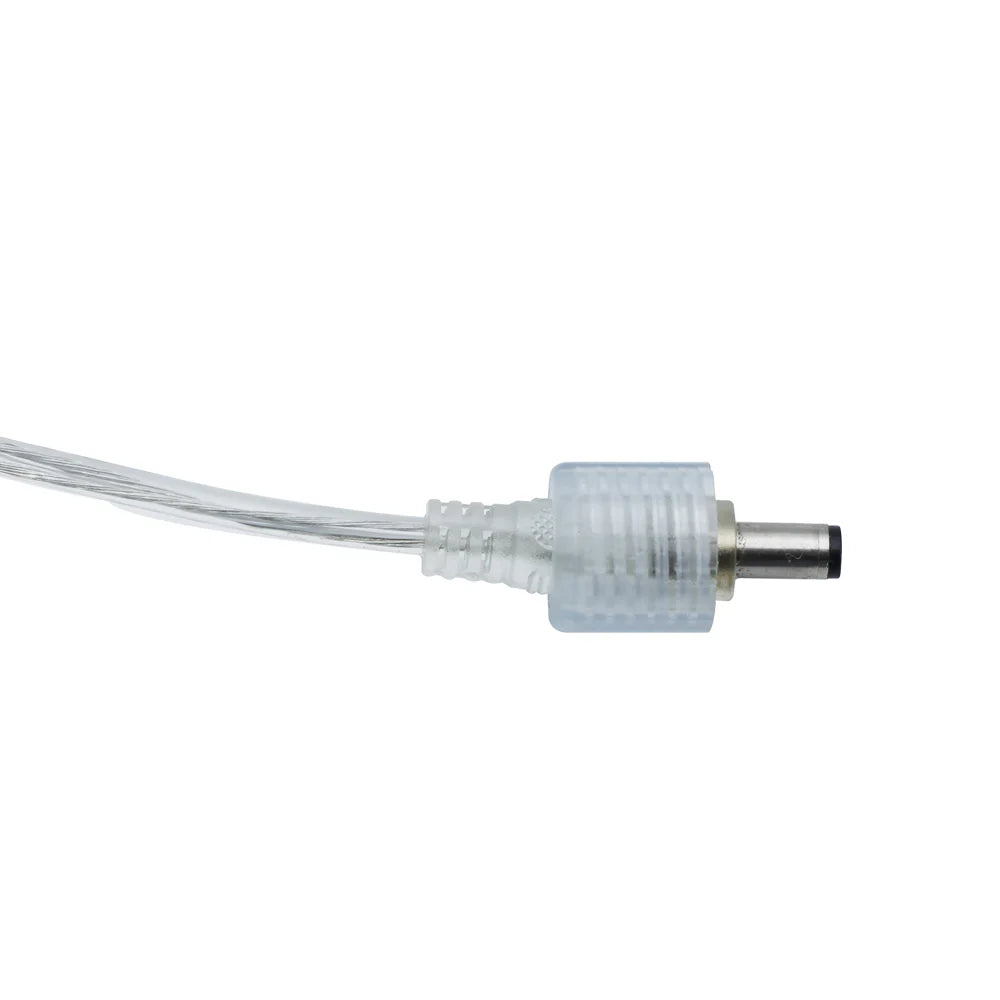

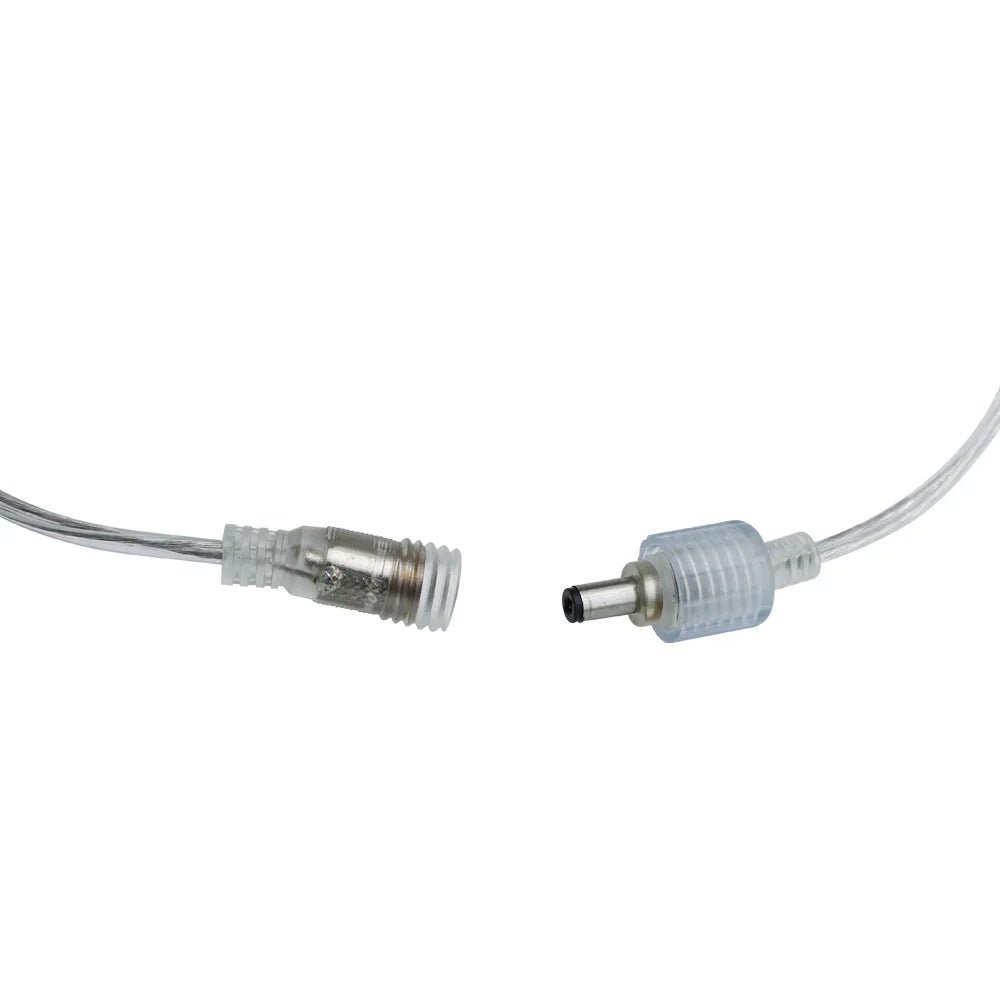

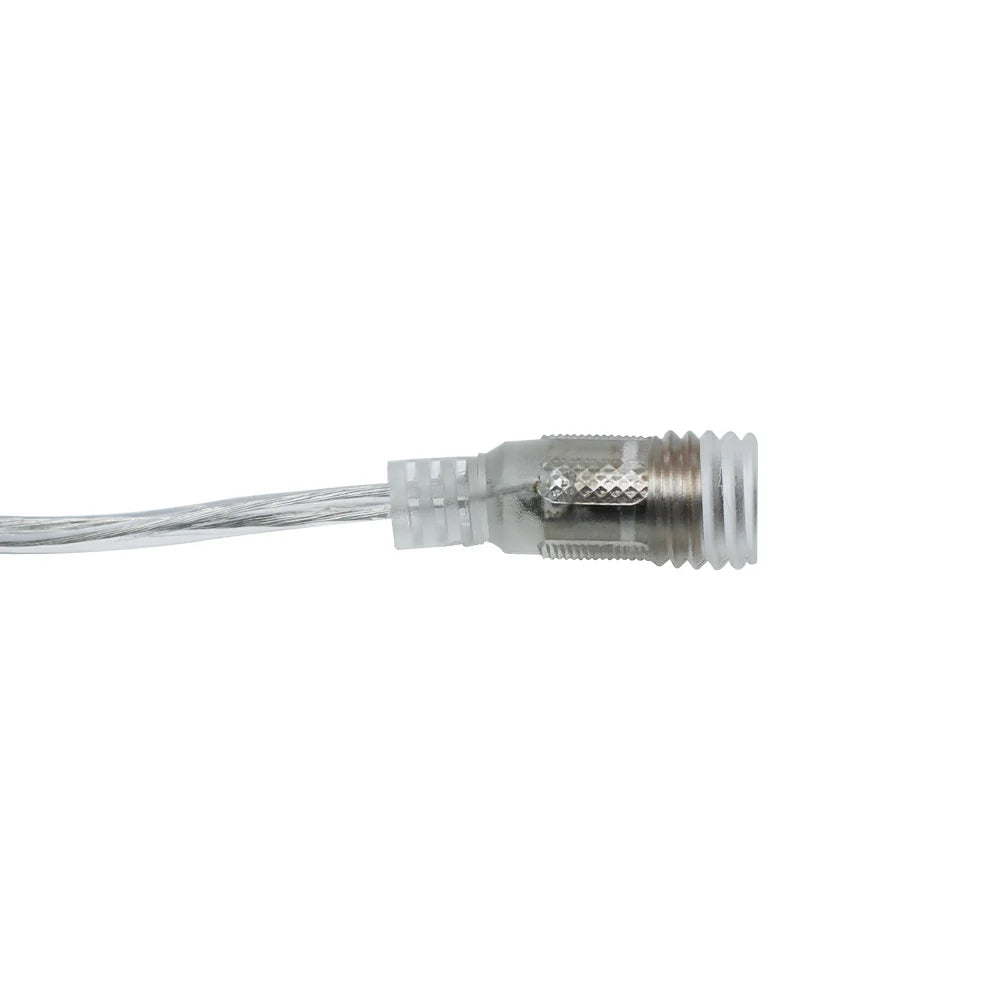

| Accessories | DC5.5×2.1 mm plug connector soldered at both ends (one female, one male) |
| Lead | V+ and V- (polarity sensitive) |
Type of LED & Waterproof IP Grade
- Waterproof IP65: Surface covered with clear silicone, protects from sprayed water from all directions.
Installation Tips
- Always disconnect power supply before connecting LED strips.
- Do not bend rigid strips to avoid damaging the PCB.
- Do not connect LED strips directly to 120V AC power.
- Apply power to test LED strips before mounting.
How to Power / Control the Strip
When selecting a transformer:
- Choose wattage based on how many LED strips you need to power.
- It is recommended to select a transformer with higher wattage than the total rated power of the strips to avoid full-load operation.
- Using a higher wattage transformer does not harm the strips and is safer for longevity.
Below please find the connection diagram for Single Color Light Strip for reference.
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
Applications
- Greenhouse plant growth
- Hydroponics lighting
- Horticulture supplemental lighting
- Plant growth supplemental lighting
