DC12V WS2815 RGBWIC LED Strip Light - 4-In-1 SMD5050 Individually Addressable | RGBW (RGB+6000K) | Breakpoint Resume | 10mm PCB | White PCB | 30/60/96 LEDs/M | IP00 / IP65 / IP67 | for Party, Decoration, Home DIY Lighting Projects | 50/500M
From $3,718.00
Regular price
$3,718.00
Sale price
$3,718.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
In stock
DC12V WS2815 RGBWIC LED Strip Light - 4-In-1 SMD5050 Individually Addressable | RGBW (RGB+6000K) | Breakpoint Resume | 10mm PCB | White PCB | 30/60/96 LEDs/M | IP00 / IP65 / IP67 | for Party, Decoration, Home DIY Lighting Projects | 50/500M
Package Included
| LED Density | Waterproof Type | Package Quantity |
|---|---|---|
| 30 LEDs/M | Non-Waterproof | 165FT (5M × 10 Roll) |
| 30 LEDs/M | Non-Waterproof | 1650FT (5M × 100 Roll) |
| 30 LEDs/M | Non-Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 30 LEDs/M | IP65 Waterproof | 165FT (5M × 10 Roll) |
| 30 LEDs/M | IP65 Waterproof | 1650FT (5M × 100 Roll) |
| 30 LEDs/M | IP65 Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 30 LEDs/M | IP67 Waterproof | 165FT (5M × 10 Roll) |
| 30 LEDs/M | IP67 Waterproof | 1650FT (5M × 100 Roll) |
| 30 LEDs/M | IP67 Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 60 LEDs/M | Non-Waterproof | 165FT (5M × 10 Roll) |
| 60 LEDs/M | Non-Waterproof | 1650FT (5M × 100 Roll) |
| 60 LEDs/M | Non-Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 60 LEDs/M | IP65 Waterproof | 165FT (5M × 10 Roll) |
| 60 LEDs/M | IP65 Waterproof | 1650FT (5M × 100 Roll) |
| 60 LEDs/M | IP65 Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 60 LEDs/M | IP67 Waterproof | 165FT (5M × 10 Roll) |
| 60 LEDs/M | IP67 Waterproof | 1650FT (5M × 100 Roll) |
| 60 LEDs/M | IP67 Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 96 LEDs/M | Non-Waterproof | 165FT (5M × 10 Roll) |
| 96 LEDs/M | Non-Waterproof | 1650FT (5M × 100 Roll) |
| 96 LEDs/M | Non-Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 96 LEDs/M | IP65 Waterproof | 165FT (5M × 10 Roll) |
| 96 LEDs/M | IP65 Waterproof | 1650FT (5M × 100 Roll) |
| 96 LEDs/M | IP65 Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
| 96 LEDs/M | IP67 Waterproof | 165FT (5M × 10 Roll) |
| 96 LEDs/M | IP67 Waterproof | 1650FT (5M × 100 Roll) |
| 96 LEDs/M | IP67 Waterproof | 1× 5M Strip + 1× Controller + 1× Power Supply (Complete Kit) |
Complete Kit Included:
Order & Logistics:
- Lead Time: Ships within 3–7 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
About this item:
- 【Important】Please ensure an SPI controller and a compatible DC12V power supply are available for setup. (Note: These components are not included with strip-only versions.) Please connect both BI (Backup Input) and BO (Backup Output) wires only to the controller signal terminals. Never connect them to the negative pole. Dual-signal design allows stable data transmission and supports longer LED strip installations.

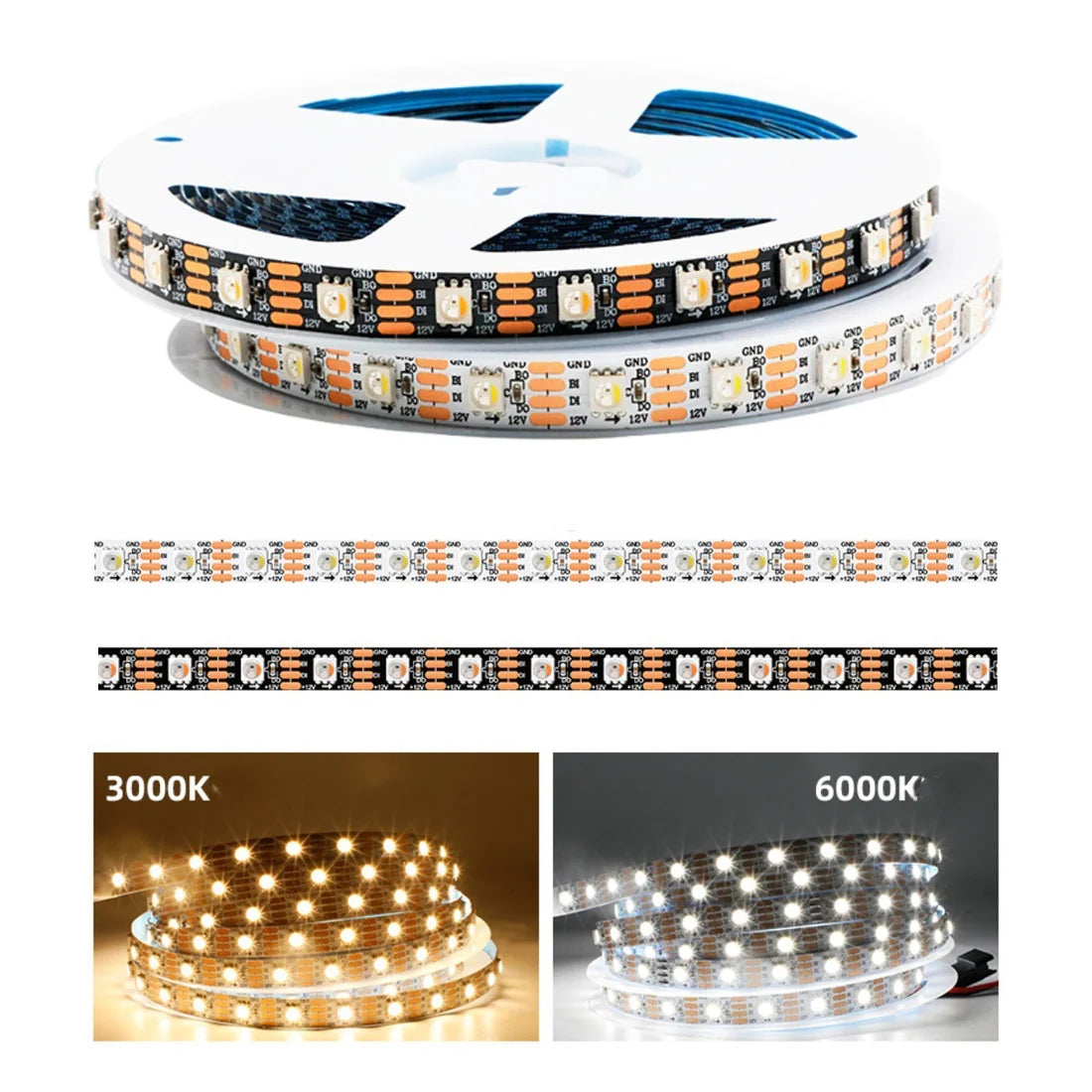

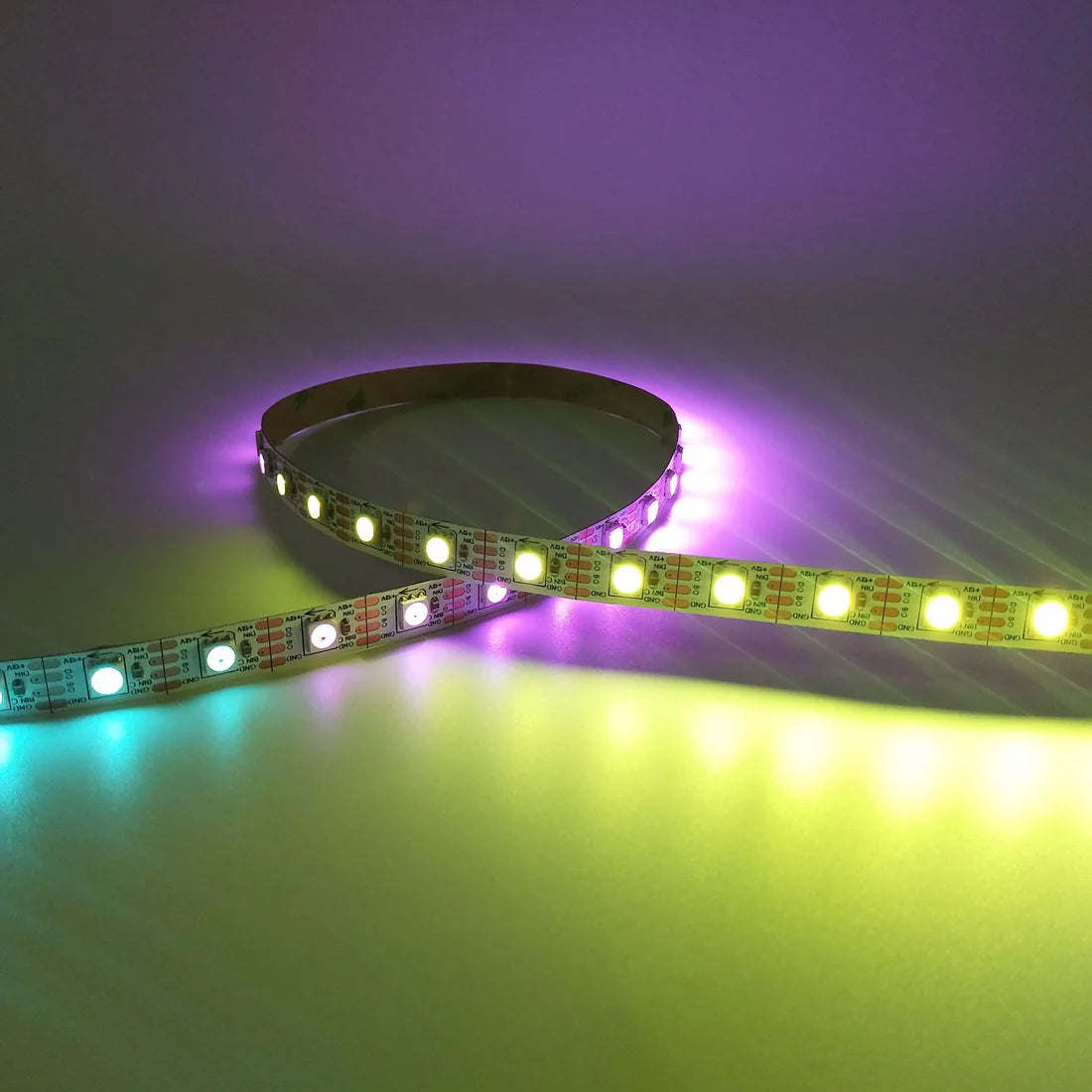

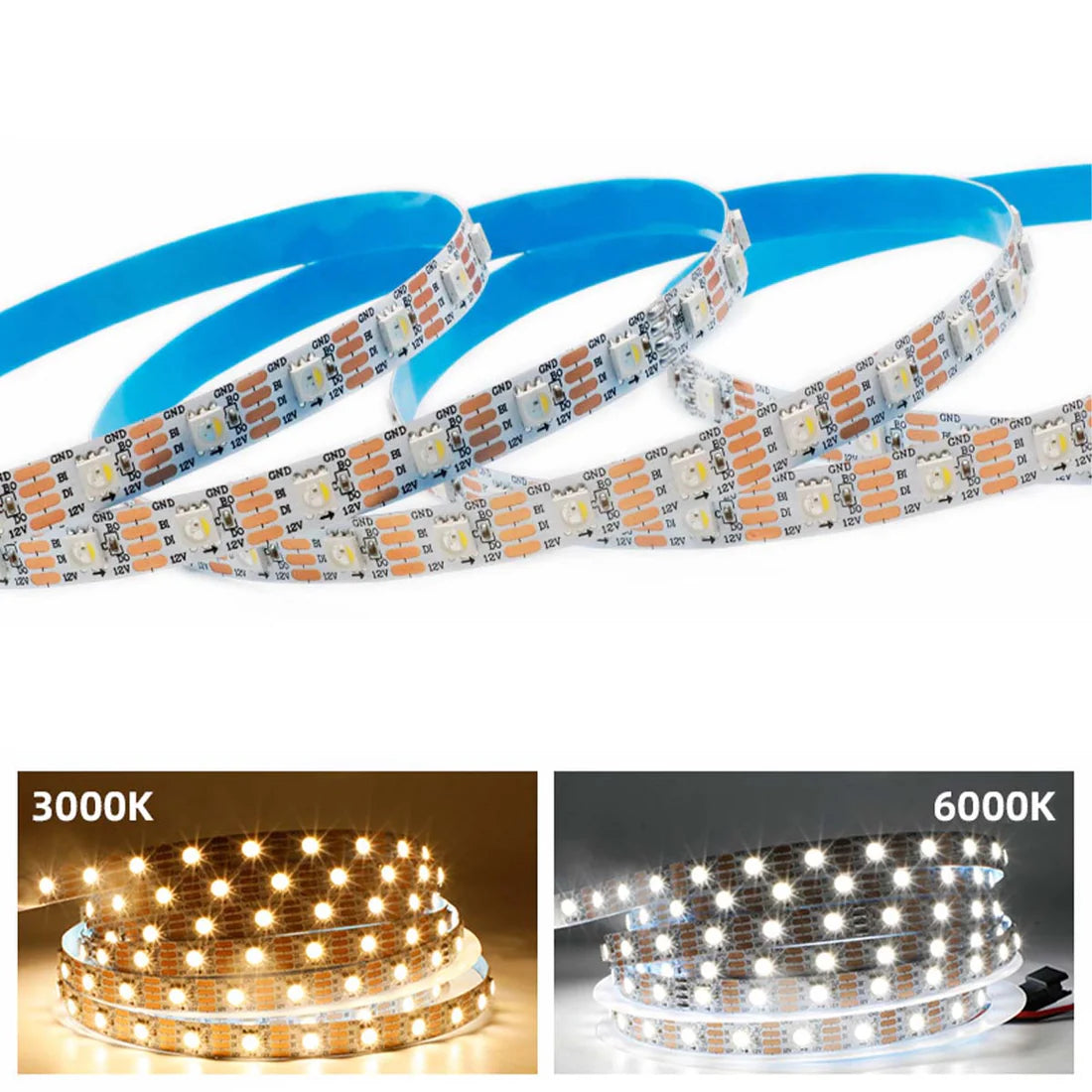

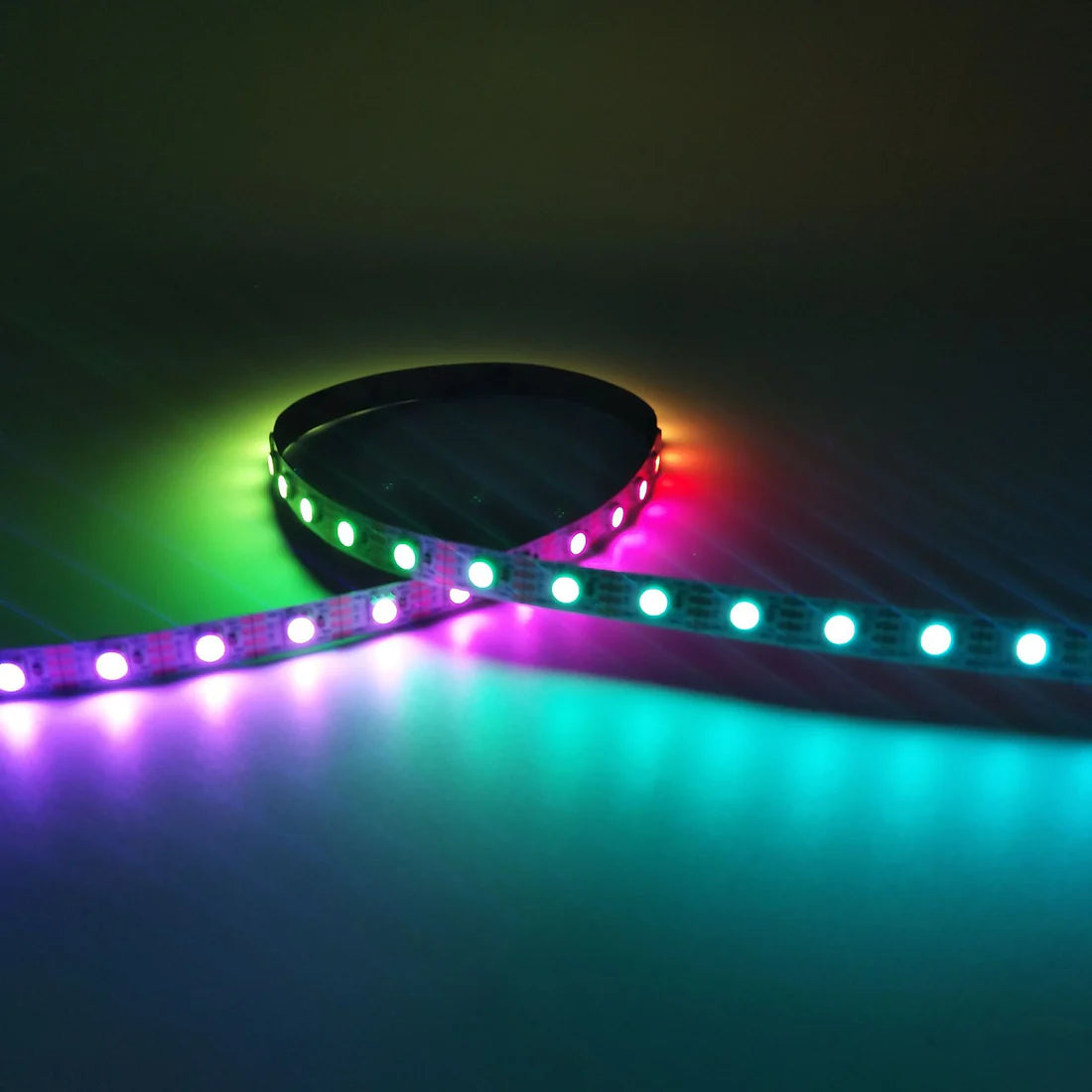

- 【WS2815 RGBWIC 4-in-1 SMD5050 LED】This LED strip integrates RGB color LEDs and a 6000K white channel into one 4-in-1 SMD5050 package, allowing dynamic RGB color effects together with bright white illumination. Each LED is individually addressable, enabling smooth flowing lighting effects for decorative lighting projects.

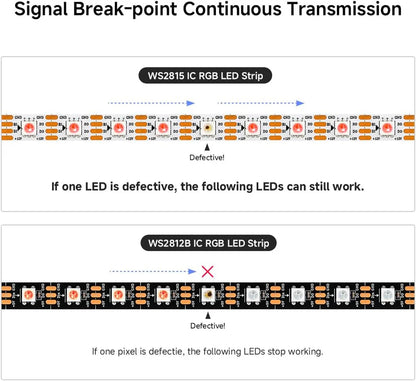

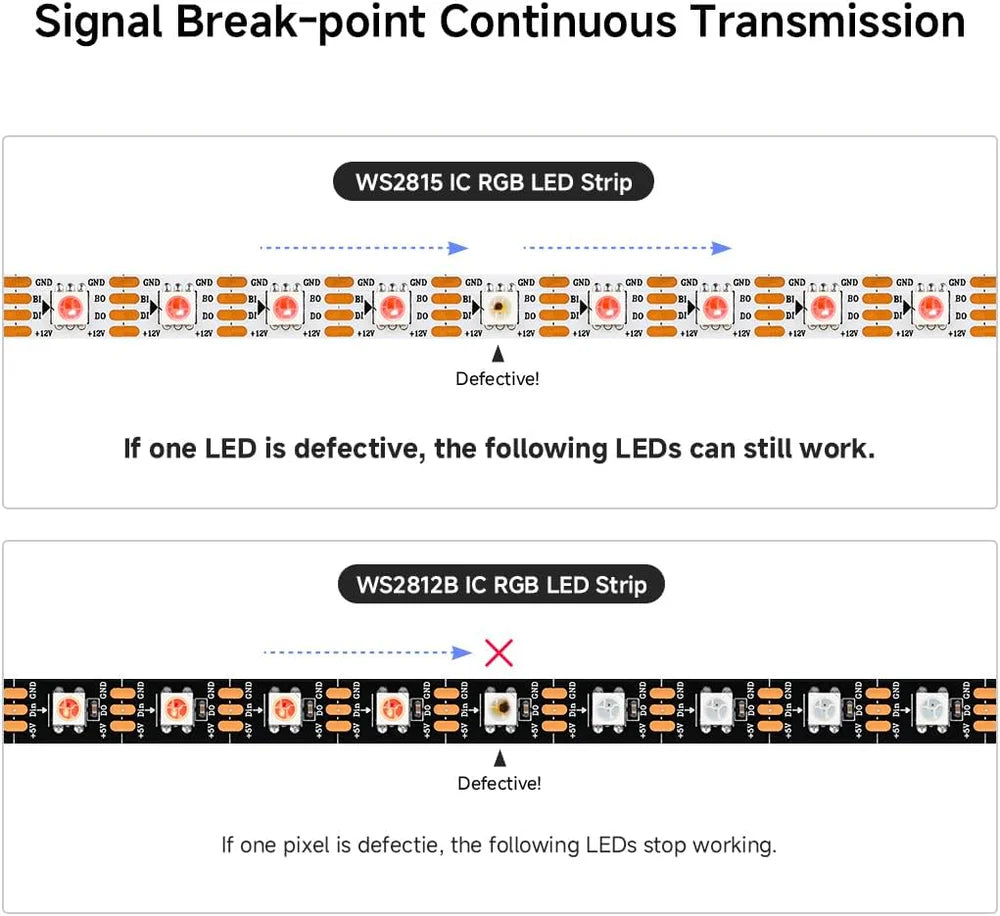

- 【Breakpoint Resume Signal Transmission】Equipped with redundant signal transmission lines (BI/BO). If one LED is damaged, the signal automatically bypasses the failed pixel and continues transmitting to the remaining LEDs, maintaining uninterrupted lighting performance.
- 【Multiple LED Density Options】Available in 30 LEDs/m, 60 LEDs/m and 96 LEDs/m configurations to provide different brightness levels and lighting effects for various decorative lighting applications.

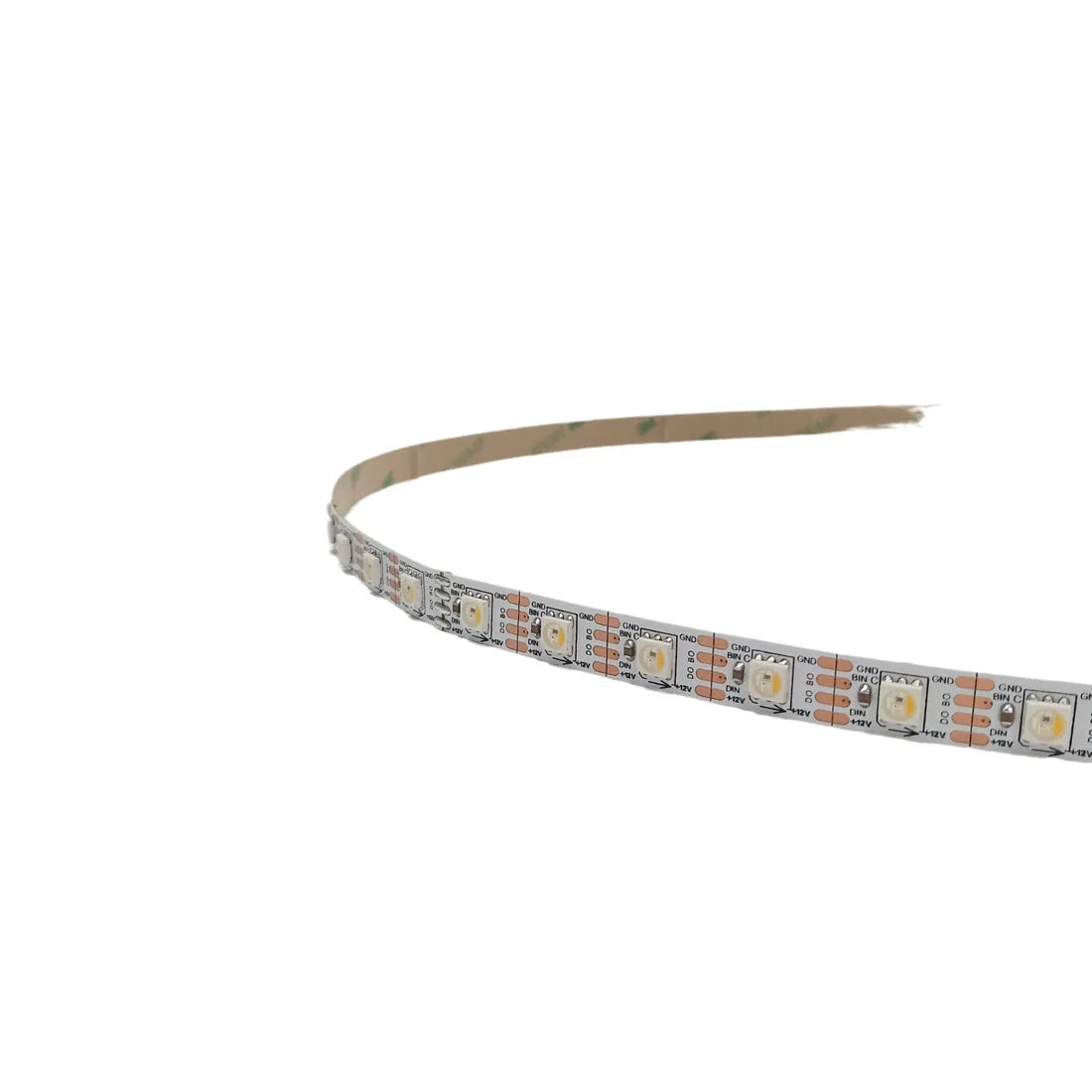

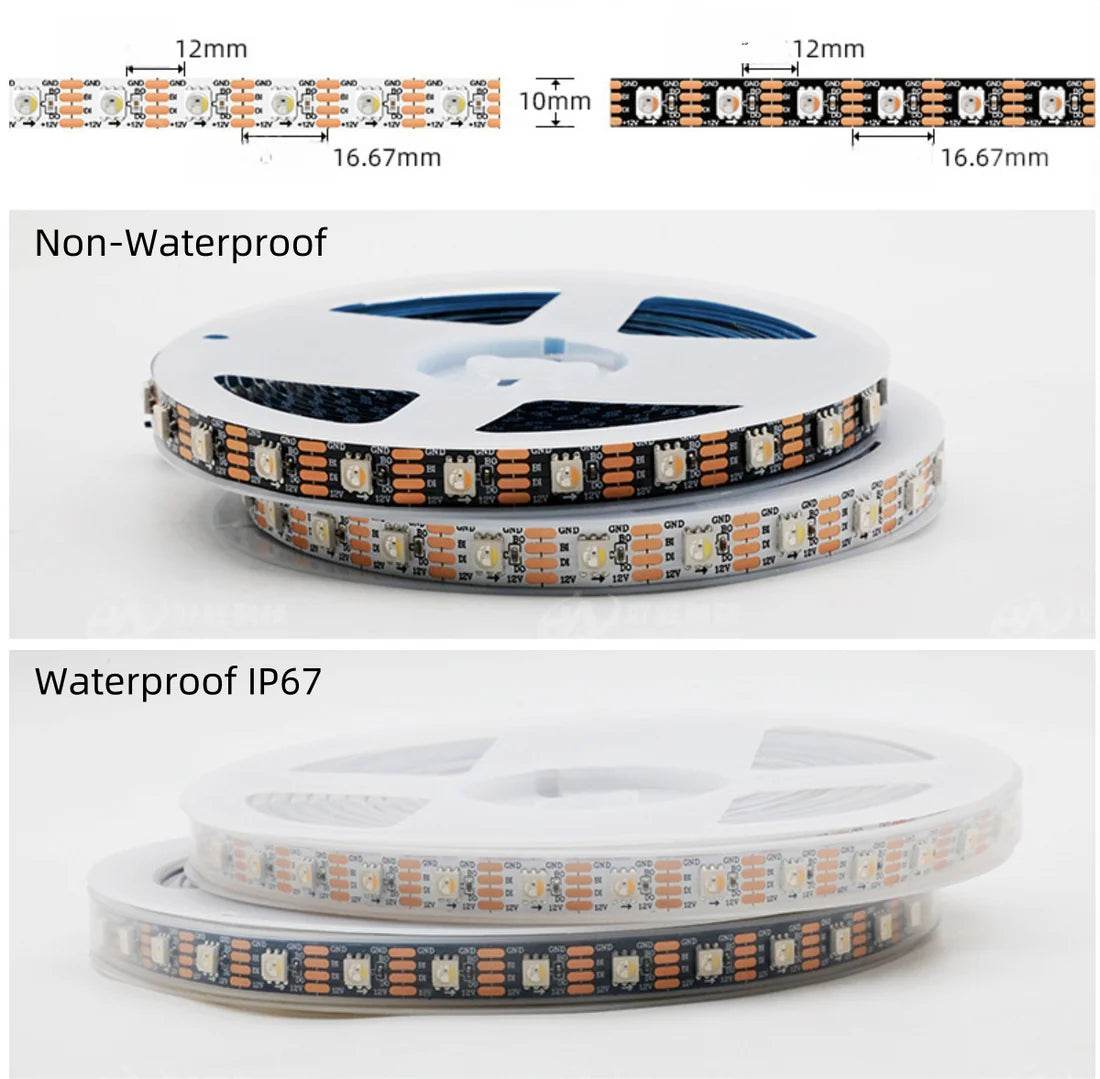

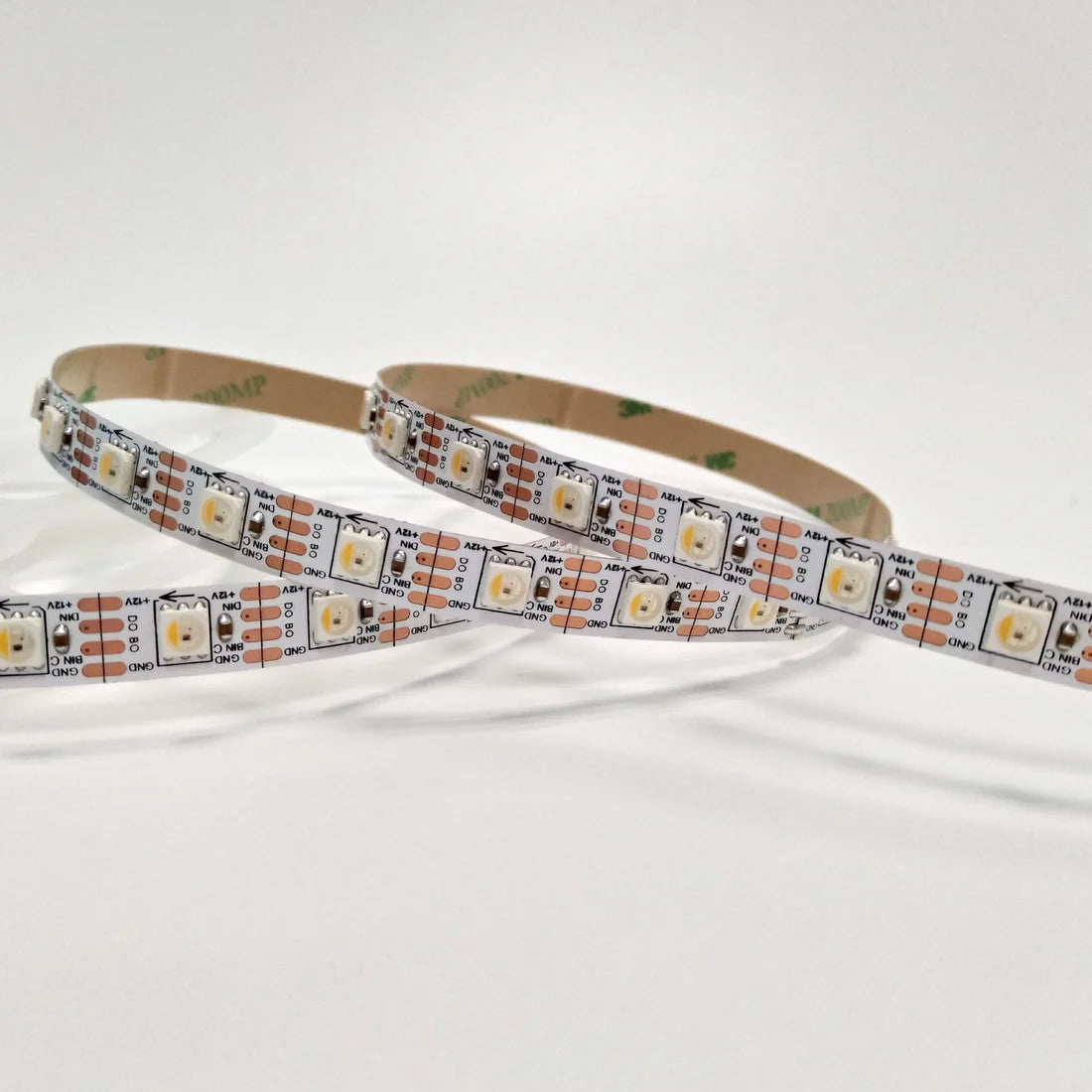

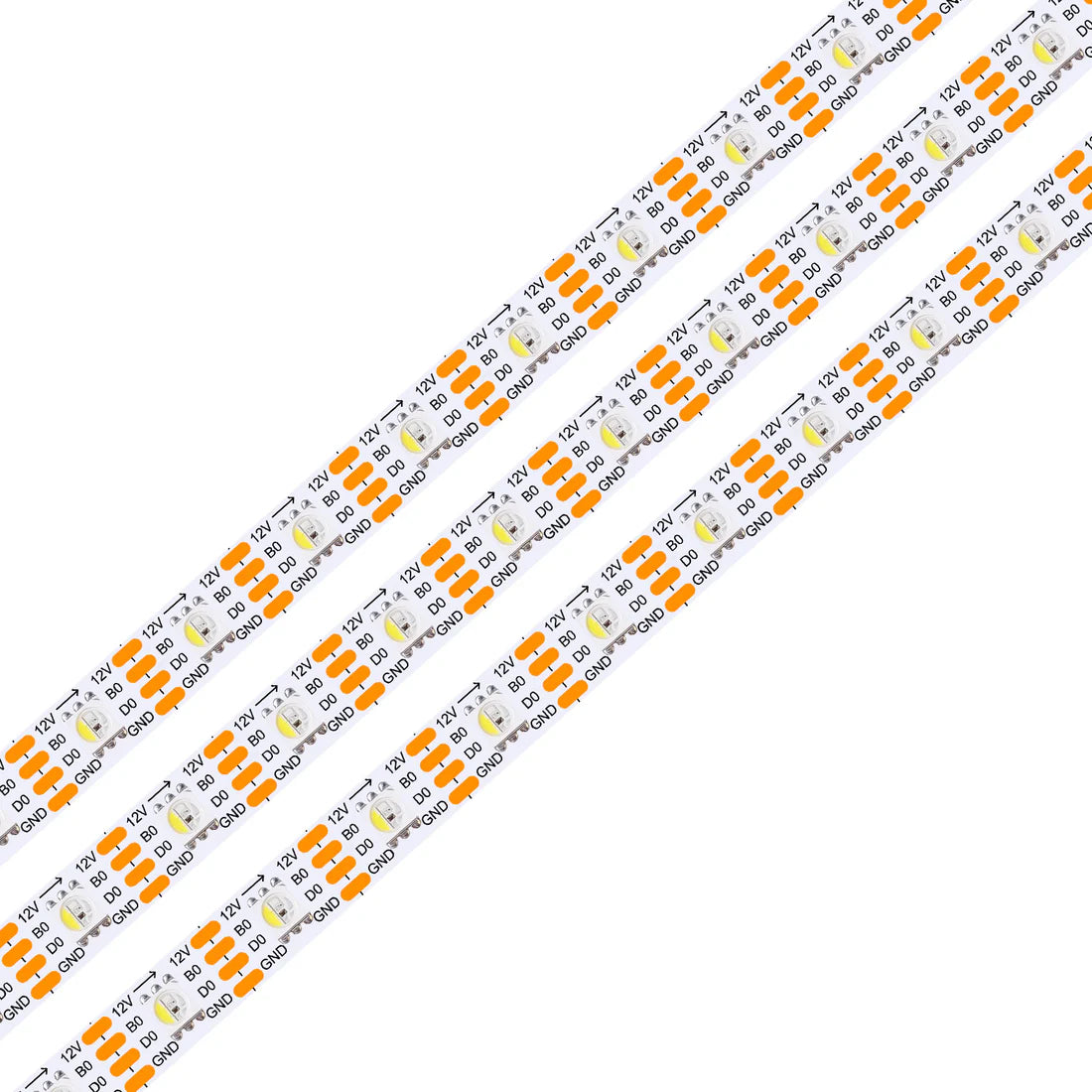

- 【Flexible Installation & Multiple Waterproof Options】Designed with a 10mm white PCB for flexible installation and easy cutting at marked positions. Available in Non-Waterproof, IP65 Waterproof and IP67 Waterproof versions to suit different installation environments.
- 【Wide Decorative Applications】Ideal for party lighting, decoration, home DIY lighting projects, display lighting and creative ambient lighting installations.
Specification for the LED Strip:
| Light Source Type | 4-in-1 SMD5050 LED with built-in WS2815 IC |
|---|---|
| LED Package | SMD5050 |
| Light Color | RGBW (RGB + 6000K) |
| Input Voltage | DC12V |
| LED Density | 30 LEDs/m / 60 LEDs/m / 96 LEDs/m |
| Power Consumption | 0.24W per LED |
| Luminous Flux | 18–22 lm per LED |
| Beam Angle | 120° |
| PCB Width | 10 mm White PCB |
| Strip Length | 5 m per roll |
| Waterproof Options | Non-Waterproof (IP00) / IP65 Waterproof / IP67 Waterproof |
| Control Type | SPI Individually Addressable Pixel Control |
| Dimmable | Yes |
| Color Rendering Index | CRI 80 |
| Lifespan | 30000 hours |
| Weight | 150 g per roll |
| Special Features | Breakpoint Resume, Individually Addressable, Dual Signal Transmission |
| Applications | Party Lighting, Decoration, Home DIY Lighting Projects |
The Controller
Features:
SPI four-channel addressable RGBW LED controller, with unique dynamic, music
and DIY effects to meet your lighting and ambiance needs.
1. Support App control and2.4G remote control;
2. Support up to 450 single-wire RZ RGBW LED driver ICs;
3. Built-in a variety of music and dynamic effects, support effects pause,
multi-parameter adjustable;
4. Capture music through the phone microphone, player streamer and on-board
microphone;
5. Support effect collection;
6. support DIY effects;
7. With a variety of ON/OFF animation effects;
8. With sequential channel calibration and ON/OFF timer functions;
9. Support OTA firmware upgrade
Wiring Diagram
General Information:
