23.1 Inch (579.5×37mm Viewable) Android Stretched LCD Bar Shelf Display | Ultra-Wide Digital Signage Screen | Cloud / Mobile / USB Content Upload

$3,836.00
Screen Type
Package QTY.
$3,836.00
$3,836.00
Shipping calculated at checkout.
Out of stock

23.1 Inch (579.5×37mm Viewable) Android Stretched LCD Bar Shelf Display | Ultra-Wide Digital Signage Screen | Cloud / Mobile / USB Content Upload

Package Included

Version Package Included
TXP-23.1'' LCD Bar Display ×1, Power Plug Cable ×1, Remote Controller (Battery not included) ×1, Mounting Screws & Expansion Tubes ×1, Honeycomb Cardboard Box ×1

About this item

  • 23.1" ultra-wide Android LCD bar screen, ideal for shelf-edge promotions and signage
  • 120  (H)  x1880  (V)  pixel resolution, 500 cd/m² brightness, 178° wide viewing angle for clear display
  • Android 13 with quad-core CPU, 2 GB RAM, 16 GB storage for smooth performance
  • Multiple content upload options: Cloud Platform / LEDArt App / U-Disk & SD Card
  • Optional Remote Controller and built-in speaker for interactive applications

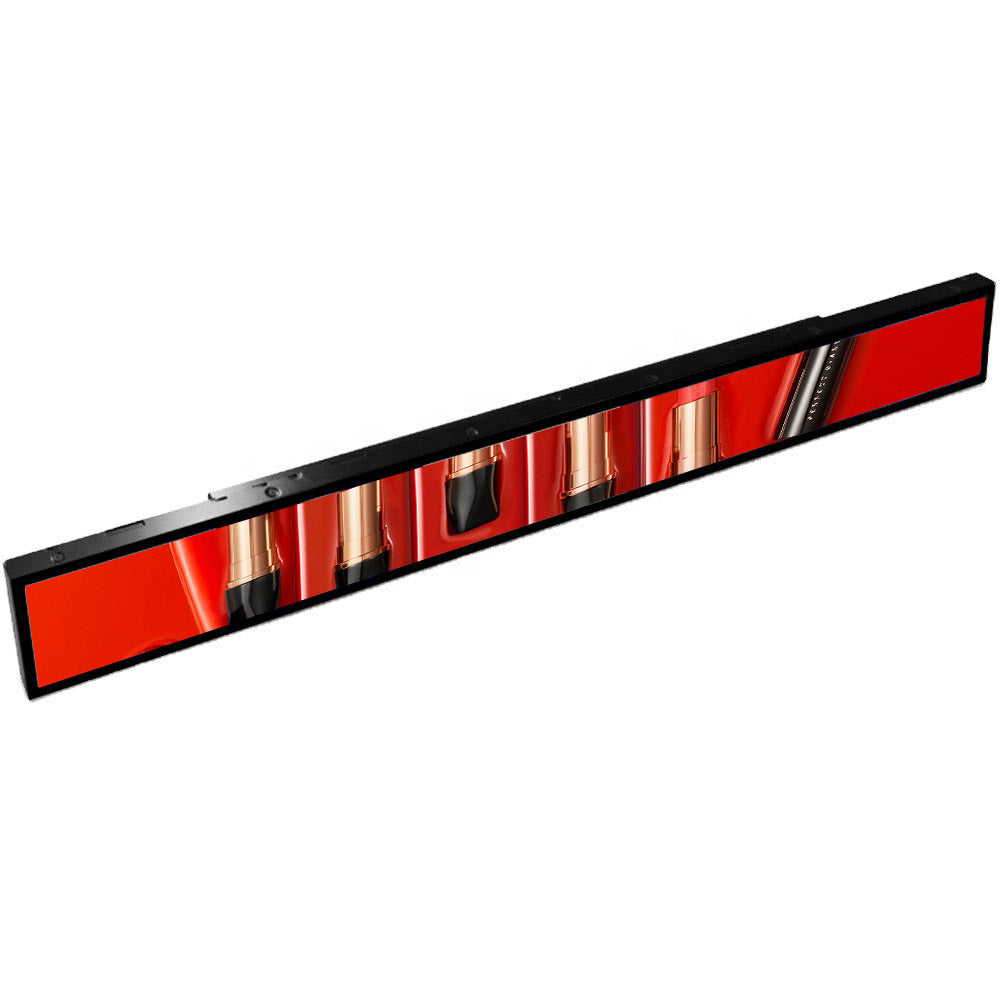

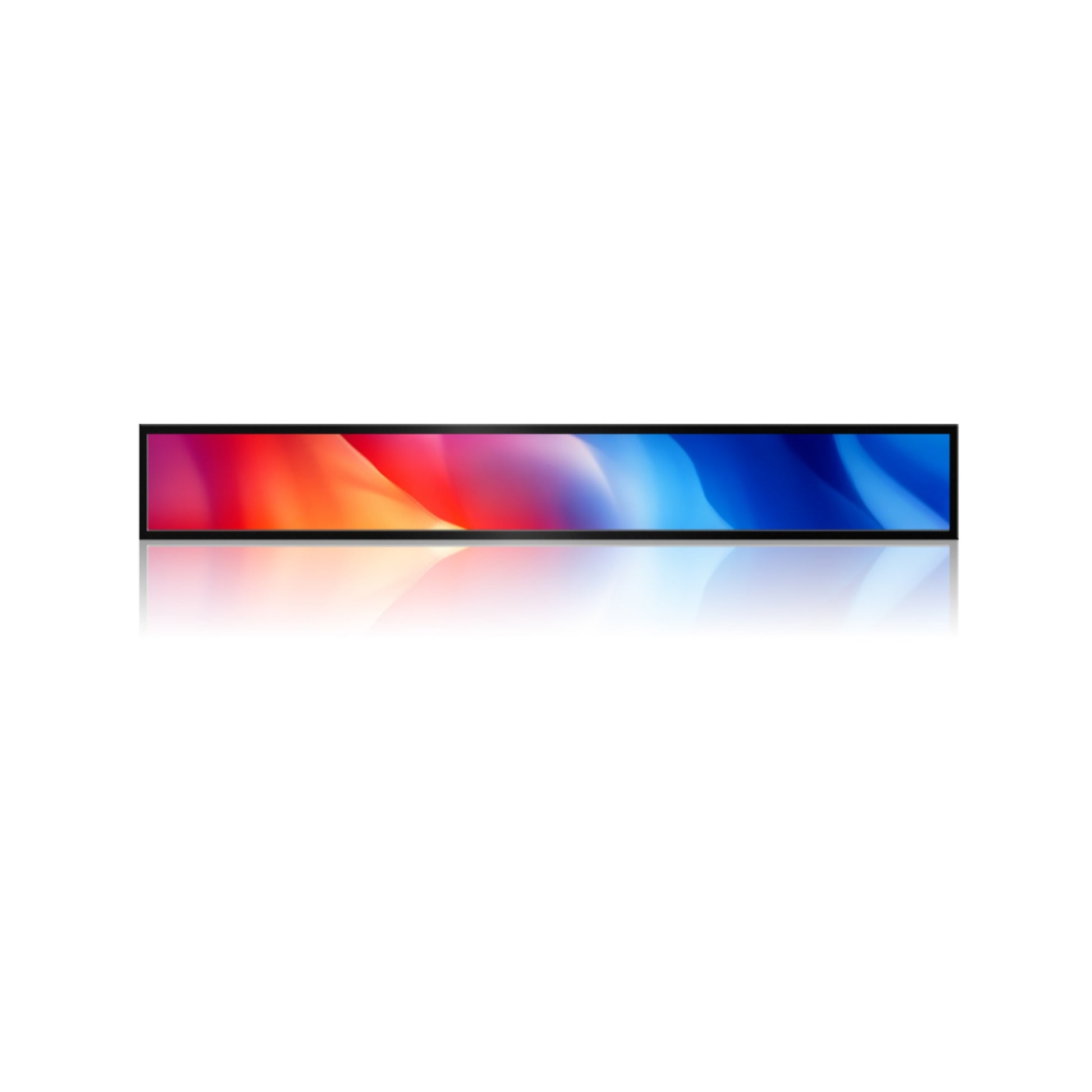

23.1 inch LCD Display - Product View

Order & Logistics

• Lead Time: If stock is available, ships within 5 business days. For models requiring production, the typical lead time is 10–15 business days.
• Packing: Hard carton with protective inner foam.
• Shipping:
• Free Freight (DDP): 10–20 days (Air + Ground) — economy air shipping, freight already included in product pricing.
• Priority Freight (DDP): 7–15 days (Air + Ground) — faster delivery option at checkout.
• DDP Terms: Customs clearance, duties, and taxes are included. If DDP service is not available in your destination country, we will coordinate alternative terms (e.g., EXW / FOB) with you to ensure smooth delivery.

Specifications

Specification Value
Model # TXP-23.1''
Screen Vendor LG
Resolution 120  (H)  x1880  (V)  pixel
Display Size 579.51  (H)x 36.99mm(V)
Brightness 500 cd/m²
Contrast Ratio 3000:1
Viewing Angle 89/89/89/89 (CR≥10)
Response Time 8 ms
Display Color 16.7M
Refresh Rate 60 Hz
CPU RK3566 Quad-core ARM Cortex-A55 1.8GHz
GPU Mali-G52
RAM / ROM 2 GB / 16 GB
System Android 11
Interfaces TFx1, DC-in, Micro USB 2.0 x1  USB 2.0 x1

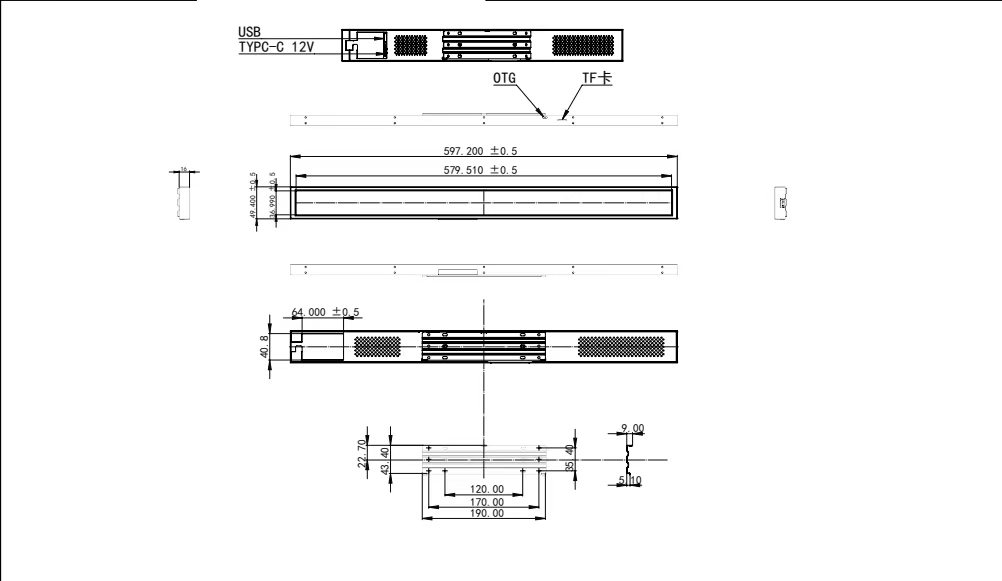

Dimensions 594×64×27 mm
Housing Material Iron Metal Sheet
Power Input DC 12 V
Power Consumption ≤15 W (Standby <1 W)
Operating Temp. 0℃–50℃
Operating Humidity 10%–90% RH Non-condensing
Storage Temp. -20℃–60℃
Storage Humidity 5%–95% RH Non-condensing
OSD Languages English / Chinese
Data Sheet Download Parameters (PDF)

Usage Notes / Operation Tips

Content Upload & Operation Steps

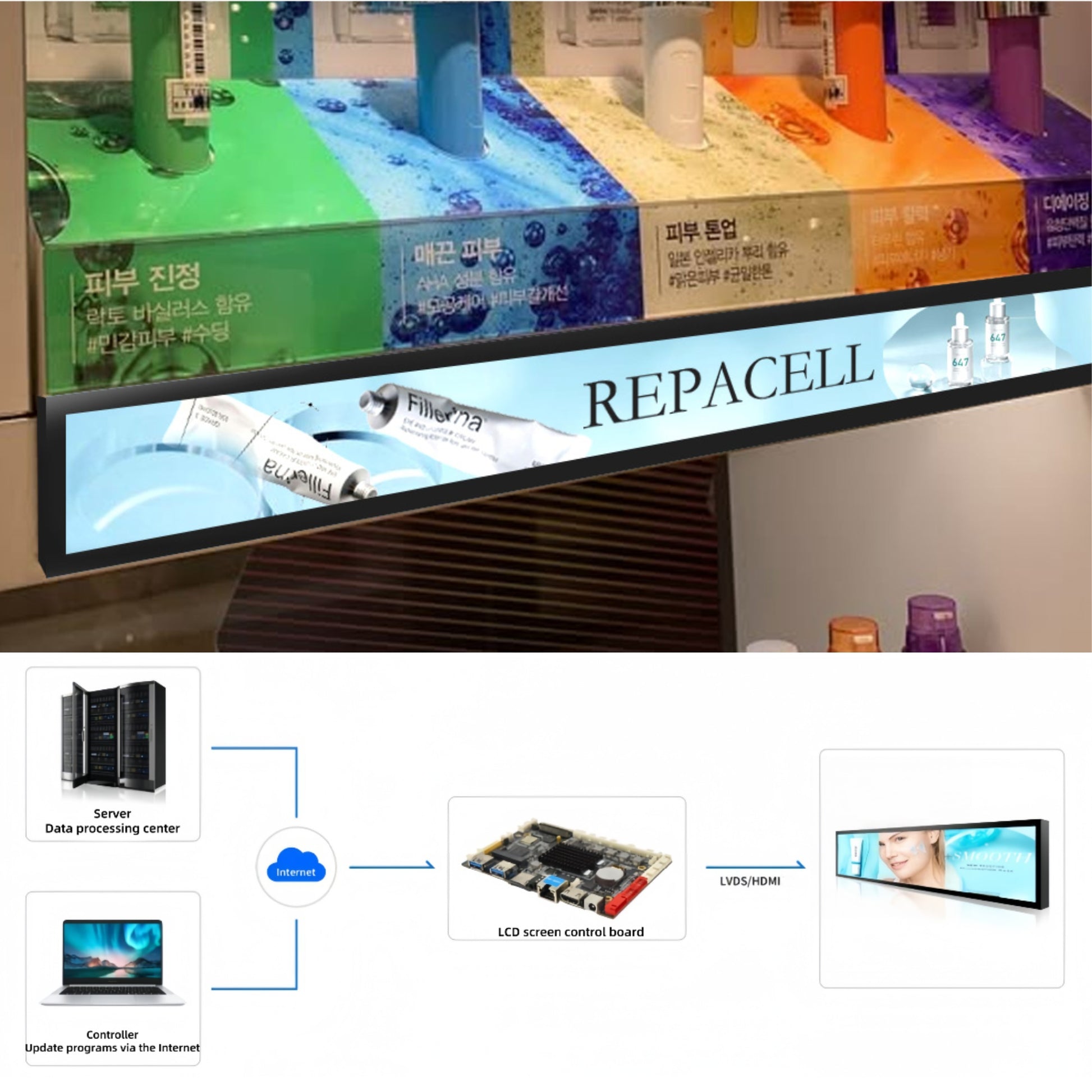

Send Program via Cloud Platform Send Program via LEDArt Play Program via U-disk / SD card
① Login cloud platform
② Create and edit programs
③ Send programs to the device
Notes: Device mode: Networking mode; associate with cloud platform account.
 ① Run LEDArt mobile app
② Create and edit programs
③ Send program to the device
Notes: Device mode: Stand-alone mode; phone on the same local network.
 ① Save programs to U-disk / SD card
② Insert U-disk / SD card
③ Auto playback
Notes: Device mode: Stand-alone mode; format media as FAT32.

Upload via Cloud Upload via LEDArt Upload via U-disk

Applications

  • Retail shelf-edge displays
  • Shopping mall signage
  • Exhibition & trade show displays
  • Airport / metro / bus station information boards
  • Creative installations & advertising walls
