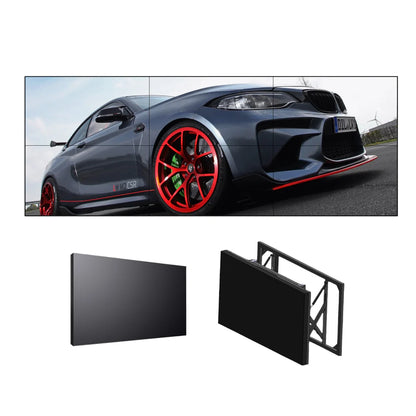

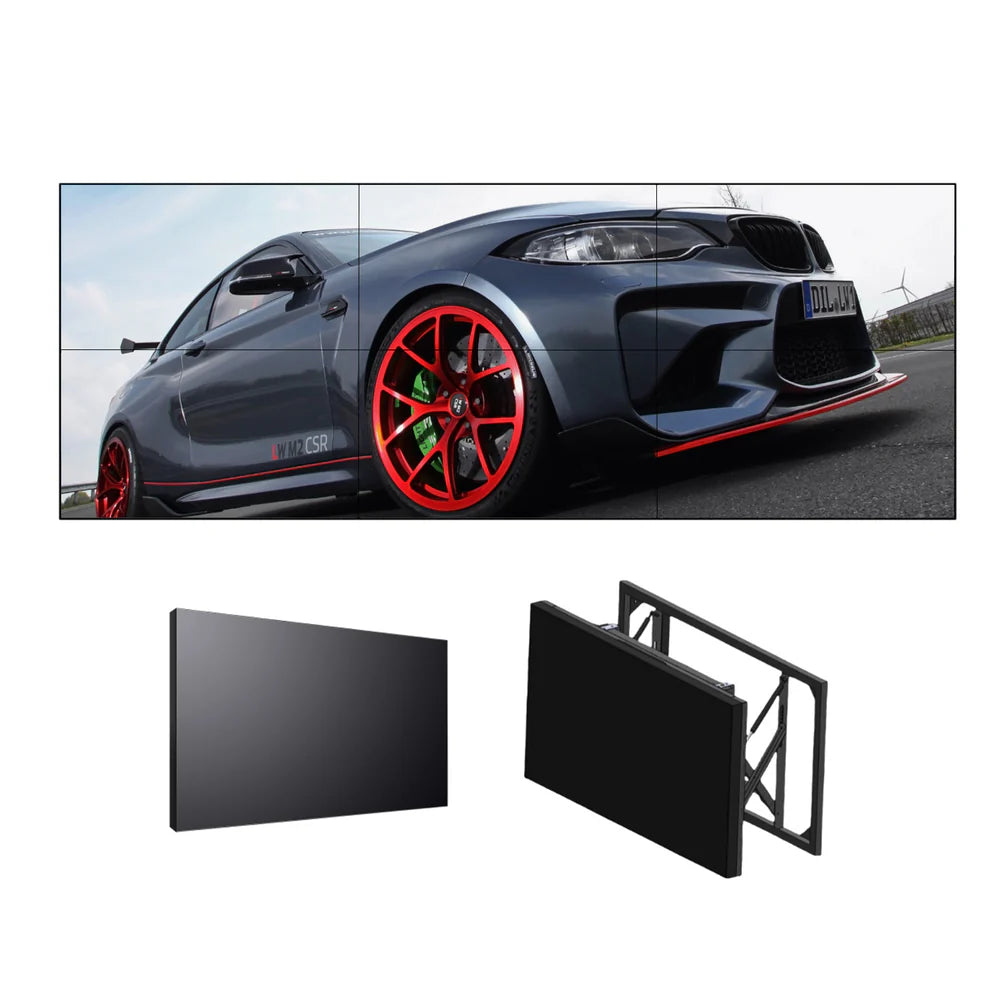

46” BOE LCD Video Wall – 3x2 Kit (6 Panels) | 1920x1080 FHD | 500 nits | Ultra Narrow Bezel 0.88mm / 1.7mm / 3.5mm | HDMI Splicer + Wall Mount Included

From $59,534.00
Bezel Options
Brightness
Package Includes
$59,534.00
$59,534.00
Shipping calculated at checkout.
In stock

46” BOE LCD Video Wall – 3x2 Kit (6 Panels) | 1920x1080 FHD | 500 nits | Ultra Narrow Bezel 0.88mm / 1.7mm / 3.5mm | HDMI Splicer + Wall Mount Included

Package Included

Version Package Included
3x2 Package

6 × 46" Black Frame LCD Video Wall Screen；

6 x Hydraulic Front Maintenance Mounting Bracket

1 x 1 in 6 out HDMI Splitter

7 x HDMI Cable

5x RJ45 Ethernet Cable;

6 × Power Plug Cable；

1 × Remote Controller (battery not included)；

2 × Plywood Packing Case

Order & Logistics

  • Lead Time: 3–7 business days
  • Packing: Plywood case and corrugated carton with protective foam
  • Shipping Method Options:
  1. Sea Freight + door-to-door truck — typical transit time: 30–38 days after vessel departure.
  2. Air Freight + door-to-door truck — typical transit time: 9–18 days after flight departure.

DDP Term: All fees included. If DDP is not supported in the destination country, we will confirm alternative shipping solutions with the buyer (e.g., EXW / FOB).

⚠️ This product line is not eligible for Free Shipping due to heavy freight. Final freight charges will be calculated automatically at checkout based on order weight.

Specification

Screen size 46'' 49'' 55'' 65''
Interface gap 3.5mm|1.7mm|0.88mm 3.5mm 3.5mm|1.7mm|0.88mm 3.5mm
Display size 1018*572 mm 1073.8*604 mm 1209.6*680.4 mm 1428*803 mm
Frame size 1023.98*578.7*83.2 mm 1077.58*607.8*63 mm 1211.4*682.2*60.1 mm 1433.88*808.92*78 mm
Resolution 1920x1080 1920x1080 1920x1080 1920x1080
Display color 16.7 M 16.7 M 16.7 M 16.7 M
Color Gamut 72% NTCS 72% NTCS 72% NTCS 72% NTCS
Brightness 500 cd/sqm 500 cd/sqm 500 cd/sqm 500 cd/sqm
Contrast ratio 3500:1 3500:1 3500:1 3500:1
Viewing angle 178/178 178/178 178/178 178/178
Response time 6ms 6ms 6ms 6ms
Display mode 16:9 16:9 16:9 16:9
OSD menu Yes Yes Yes Yes
Freeze/unfreeze Yes Yes Yes Yes
Signal buffer Yes Yes Yes Yes
Menu language English, Chinese and others
USB input 1-way: USB2.0 supports software upgrade
Vertical frequency 50HZ, 60HZ, 70HZ, 75HZ
Video format PAL/NTSC

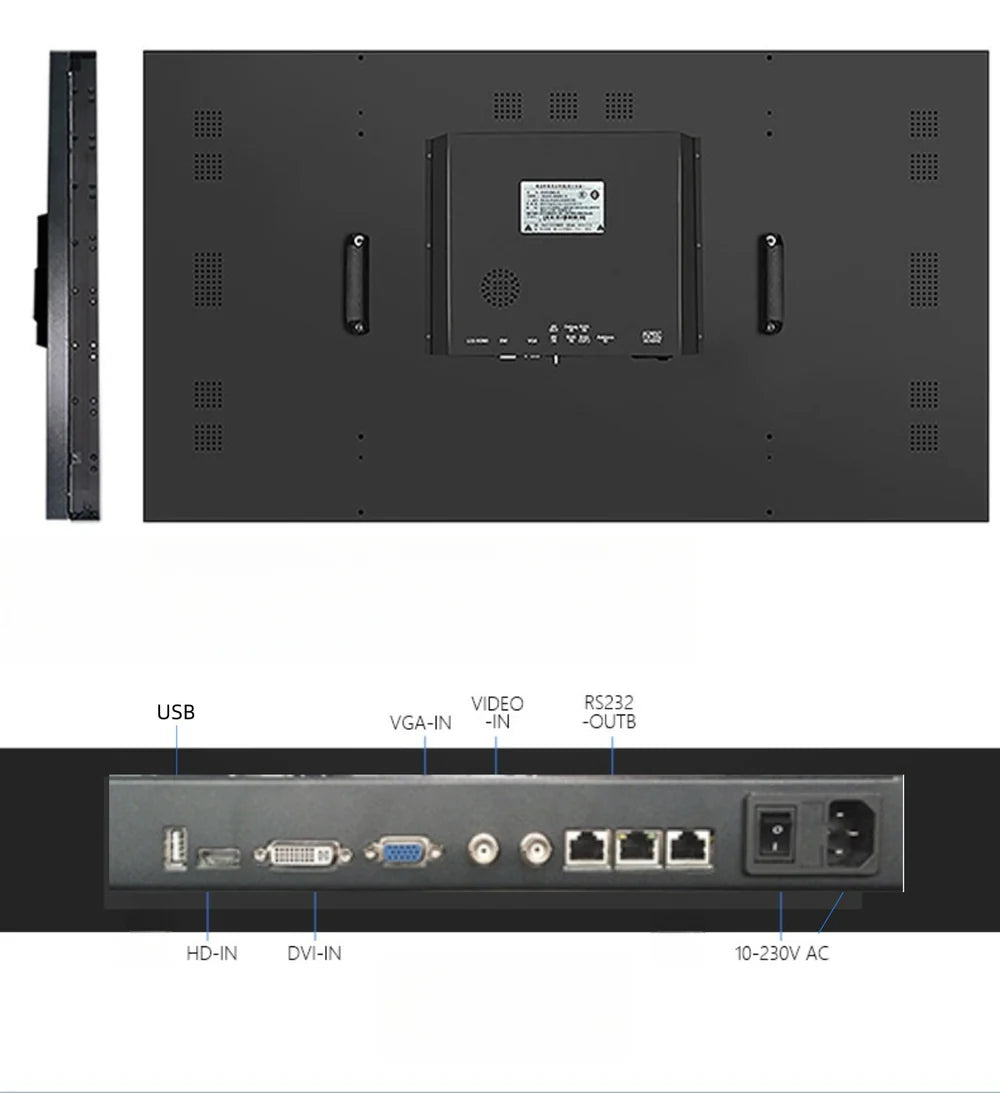

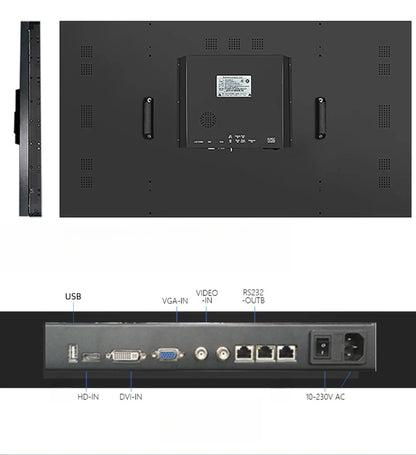

Control interface RS232 Control : RJ45x3 (1in 2out)
Video interface VGAx1/DVIx1/HDMIx1/CVBSx2/BNC 1in 1out
Input voltage AC100-240V (50/60HZ)
Power Consumption <=200W <=200W <=245W <=260W
Operating temperature 0-50 degree C
Mounting method Wall-mounted, front-maintenance hydraulic support, vertical support, embedded, cabinet, ceiling-mounted

Features:

1. Narrow Bezel LCD Screen Display

Ultra-narrow bezel optional from 3.5mm, 1.7mm and 0.88mm for virtually seamless, life-like viewing experience

2. BOE industrial LCD Panel

HIGH DEFINITION RESOLUTION: the screen has a resolution of 1920*1080 and a pixel value up to 2.07 million, clearly showing every detail of the picture 16:9 widescreen ratio, so that you can enjoy the great clarity.
178° WIDE VIEWING ANGLE: 178° wide viewing angle technology, higher casting rate, lower power, release arbitrary angle color, more realistic picture and fuller color.
3D NOISE REDUCTION REDUCES IMAGE EDGE NOISE: 3D noise reduction technology, for the image edge noise generated by signal loop, accurate restoration and sharpening, clear and beautiful picture, to achieve the purpose of restoring high-definition picture quality.
ISP HARD SCREEN SHOWS THE BEAUTY OF COLOR: ISP hard screen, tap screen no water ripple. Comparing with ordinary liquid crystal, IPS hard screen liquid crystal molecular horizontal conversion, has faster recovery after tapping, present motion picture quality is more smooth.

3. With the HDMI Splitter

    • It supports three signal inputs: HDMI, DVI, and Type-C;
    • Make the LCD video wall screen can be spliced in multiple ways, horizontally or vertically;
    • Edge blending technology, seam adjustment docking function, reducing black edge gap;
    • Supports 180-degree image flip;
    • RS232 serial port control + remote control, supports serial port cable connection to computer host or central console remote control;
    • Audio synchronization separation: supports optical fiber audio synchronization separation output

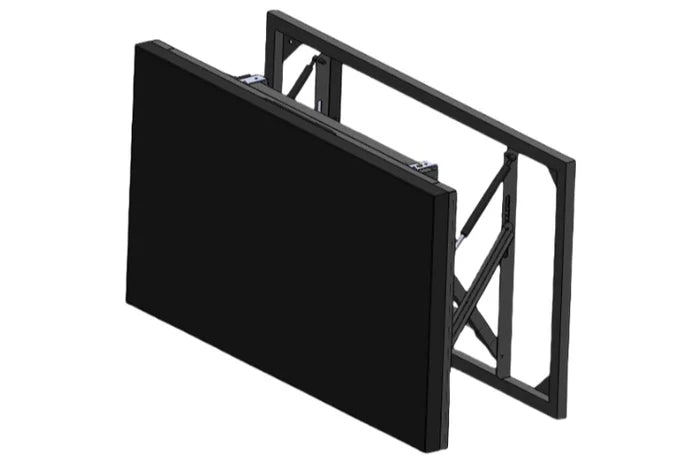

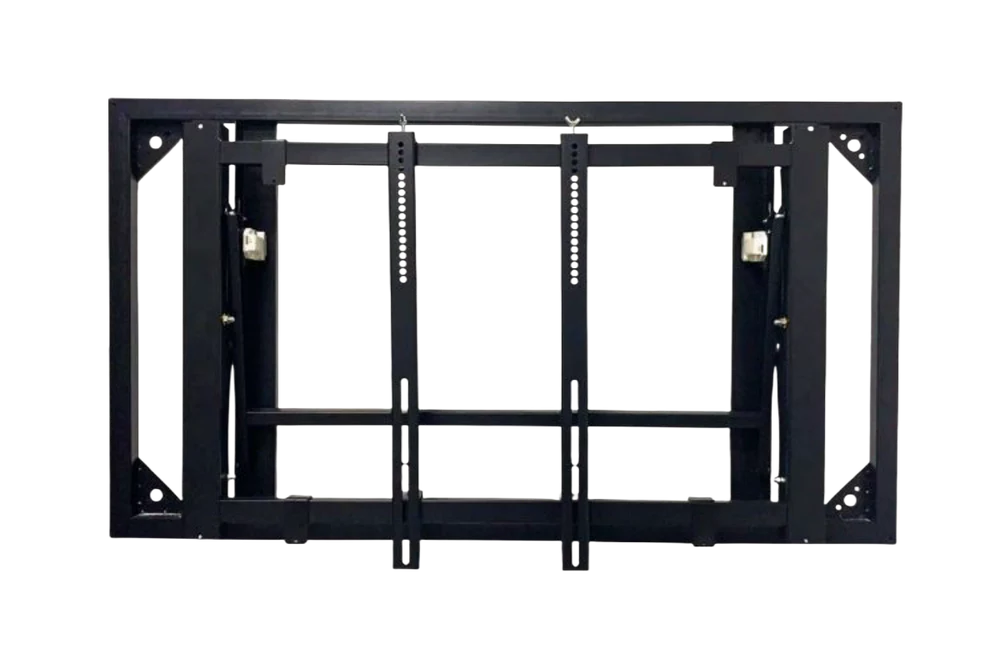

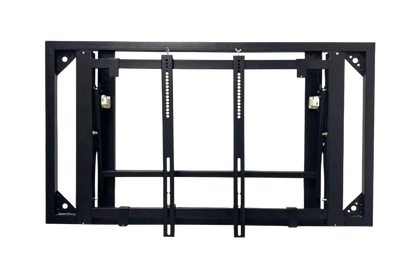

4. With Hydraulic Front Maintenance Bracket

    • Easy Front Access – Each LCD splicing panel can be gently pressed to pop out and pushed back in, ensuring effortless handling.
    • Uninterrupted Operation – Maintenance can be carried out without affecting the normal use of the video wall.
    • Space-Saving Design – Ideal for large-screen display systems where installation space is limited.
    • Hydraulic Support – Equipped with a hydraulic front maintenance bracket for smooth and reliable operation.
    • Convenient Servicing – Provides full accessibility for inspection, repair, and component replacement.
