MEAN WELL RSP Series RSP-200-5 / RSP-320-5 Enclosed Power Supply – 5V Output | 200W / 300W | CE & UL Certified | Moisture-Resistant | Indoor / Covered Outdoor Use

MEAN WELL RSP Series RSP-200-5 / RSP-320-5 Enclosed Power Supply – 5V Output | 200W / 300W | CE & UL Certified | Moisture-Resistant | Indoor / Covered Outdoor Use

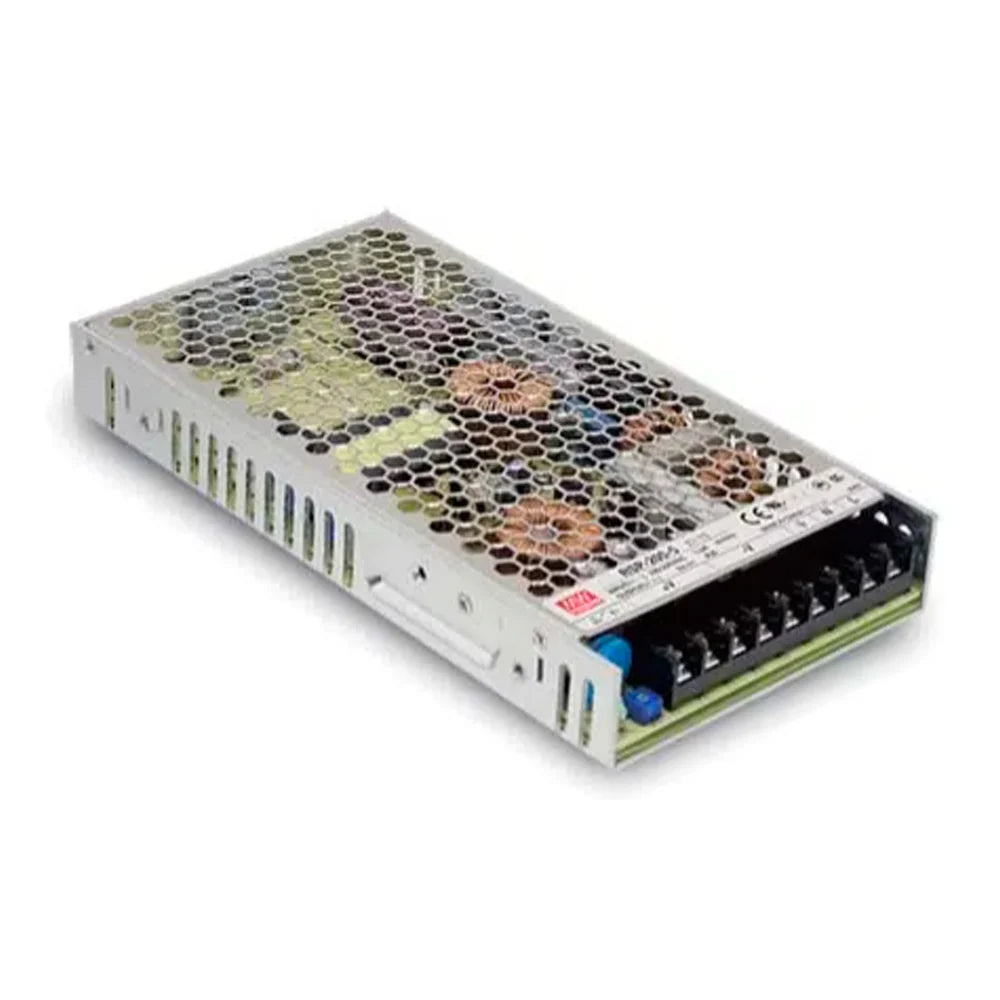

RSP-200-5

Features

• Universal AC input / Full range
• Built-in active PFC function
• High efficiency up to 90%
• Cooling by free air convection
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Optional conformal coating
• LED indicator for power on
• 3 years warranty

Applications

• Factory control or automation apparatus
• Test and measurement instrument
• Laser related machine
• Burn-in facility
• RF application

Description

RSP-200 is a 200W single output enclosed type AC/DC power supply. This series operates for 88~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, working for the temperature up to 70°C.

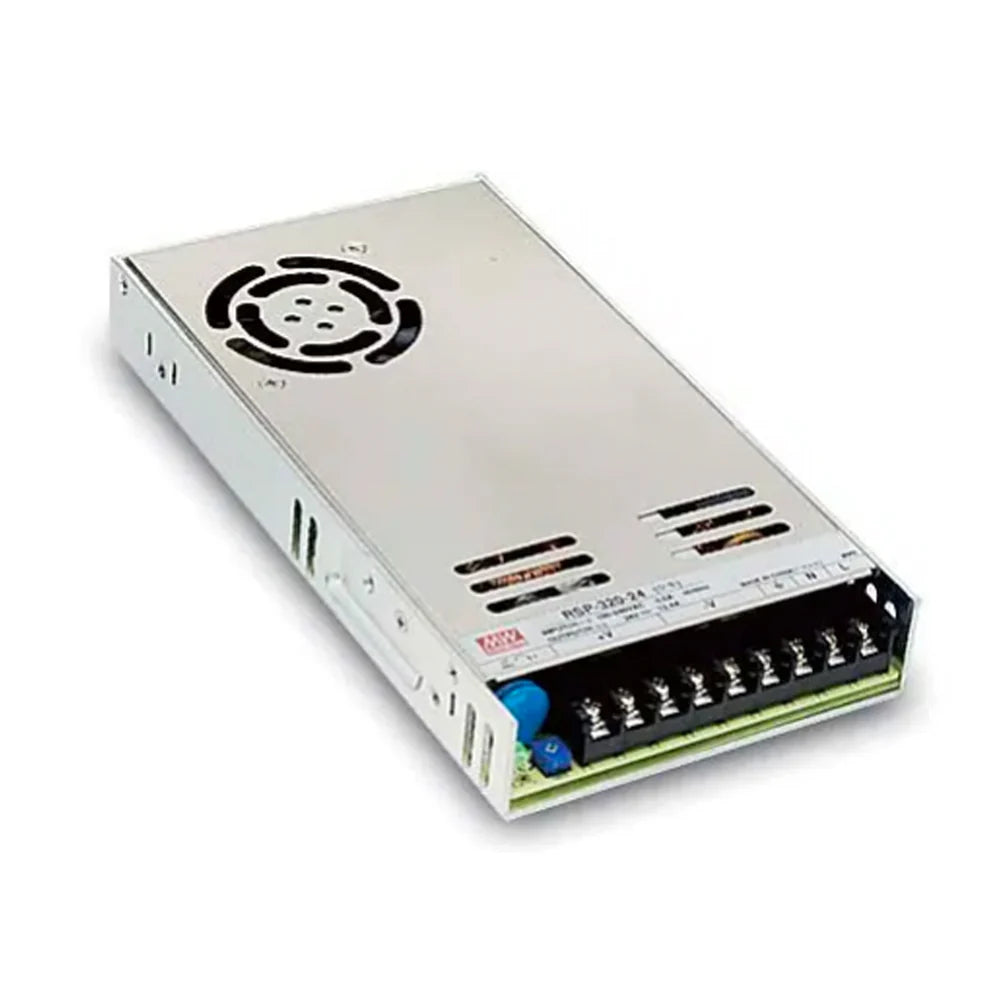

RSP-320-5

Features

• Universal AC input / Full range
• Built-in active PFC function
• High efficiency up to 90%
• Forced air cooling by built-in DC Fan with fan speed control function
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Operating altitude up to 5000 meters
• Optional conformal coating
• LED indicator for power on
• 3 years warranty

Applications

• Factory control or automation apparatus
• Test and measurement instrument
• Laser related machine
• Burn-in facility
• RF application

Description

RSP-320 is a 320W single output enclosed type AC/DC power supply. This series operates for 88~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70°C.
