FL Series 130cm to 196cm (51.2–77.2 inch) | 3D Hologram LED Display | Large Size | Cloud Control (AS) | Large Hologram Fan | Fan Only / Dual-Pole Mobile Stand | 8 Blades

From $13,417.00

Diameter S13 - 130cm (51.2 inch) S15 - 151cm (59.4 inch) Z200 - 180cm (70.9 inch) S20 - 196cm (77.2 inch)

Package Configuration Fan Only Fan with Dual-Pole Mobile Stand

Power Plug Type US / UK / EU / AU (shipped according to country)

$13,417.00

Shipping calculated at checkout.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

In stock

Package Included

Version	Package Included
S13 - 130cm (51.2 inch)	Available Package Configurations: Fan Only 1 × S13 3D Hologram LED Display 1 × Remote Control 1 × External Power Supply Fan with Dual-Pole Mobile Stand 1 × S13 3D Hologram LED Display 1 × Dual-Pole Mobile Stand 1 × Remote Control 1 × External Power Supply
S15 - 151cm (59.4 inch)	Available Package Configurations: Fan Only 1 × S15 3D Hologram LED Display 1 × Remote Control 1 × External Power Supply Fan with Dual-Pole Mobile Stand 1 × S15 3D Hologram LED Display 1 × Dual-Pole Mobile Stand 1 × Remote Control 1 × External Power Supply
Z200 - 180cm (70.9 inch)	Available Package Configurations: Fan Only 1 × Z200 3D Hologram LED Display 1 × Remote Control 1 × External Power Supply Fan with Dual-Pole Mobile Stand 1 × Z200 3D Hologram LED Display 1 × Dual-Pole Mobile Stand 1 × Remote Control 1 × External Power Supply
S20 - 196cm (77.2 inch)	Available Package Configurations: Fan Only 1 × S20 3D Hologram LED Display 1 × Remote Control 1 × External Power Supply Fan with Dual-Pole Mobile Stand 1 × S20 3D Hologram LED Display 1 × Dual-Pole Mobile Stand 1 × Remote Control 1 × External Power Supply

About this item

Available in four large display sizes from 130cm (51.2 inch) to 196cm (77.2 inch) for high-impact commercial holographic advertising.

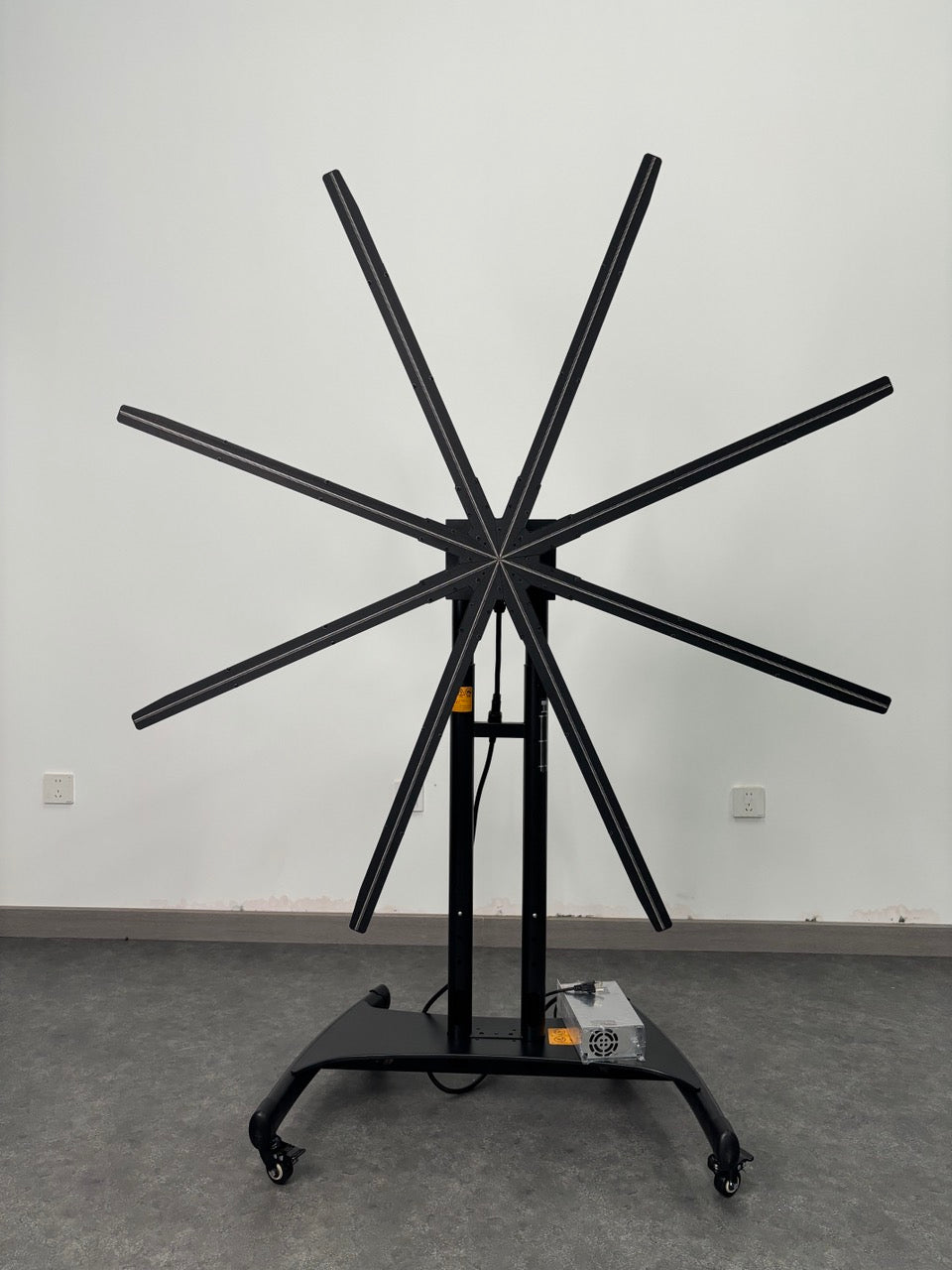

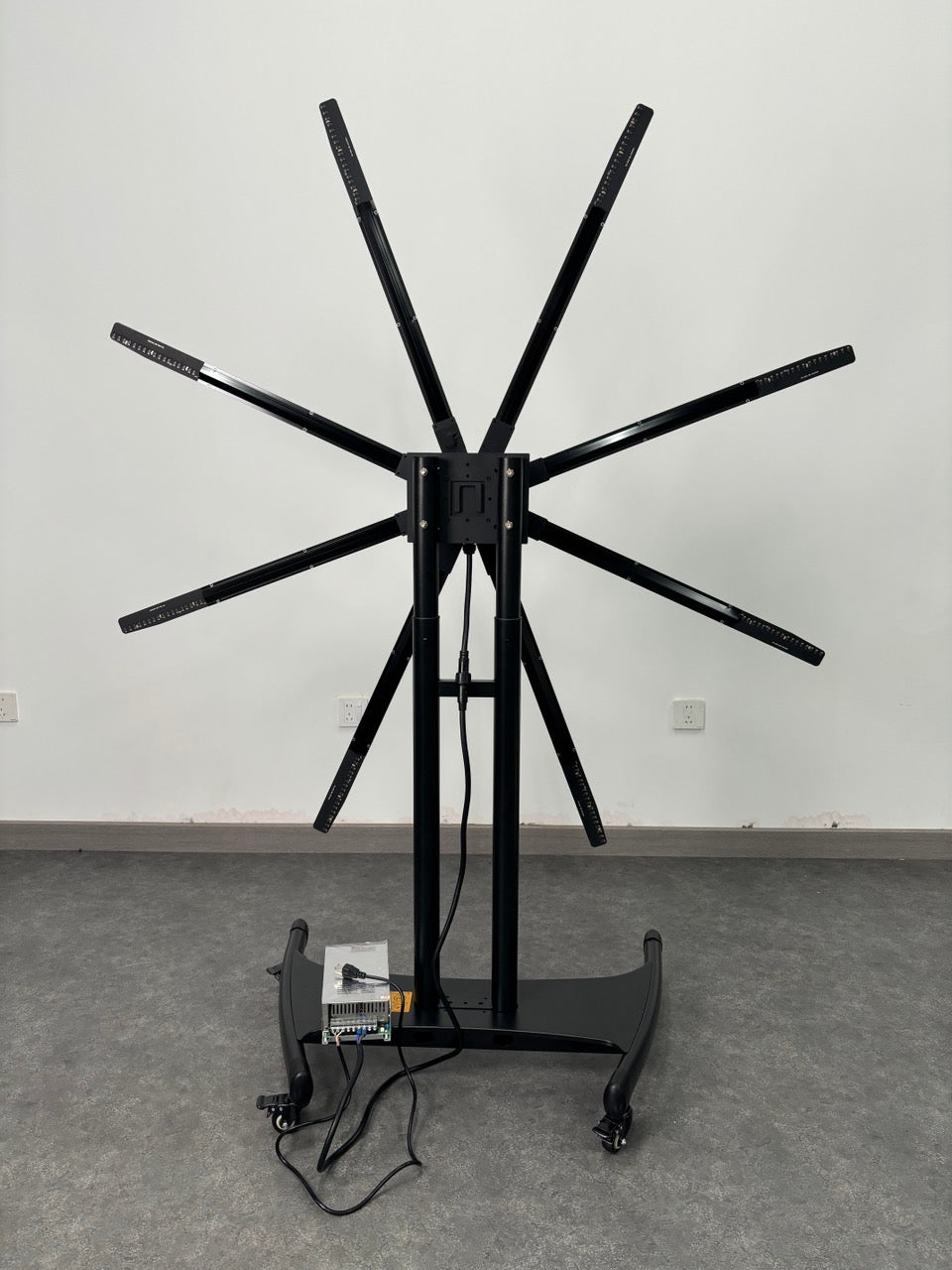

Each model is available as Fan Only or with a Dual-Pole Mobile Stand for flexible installation.

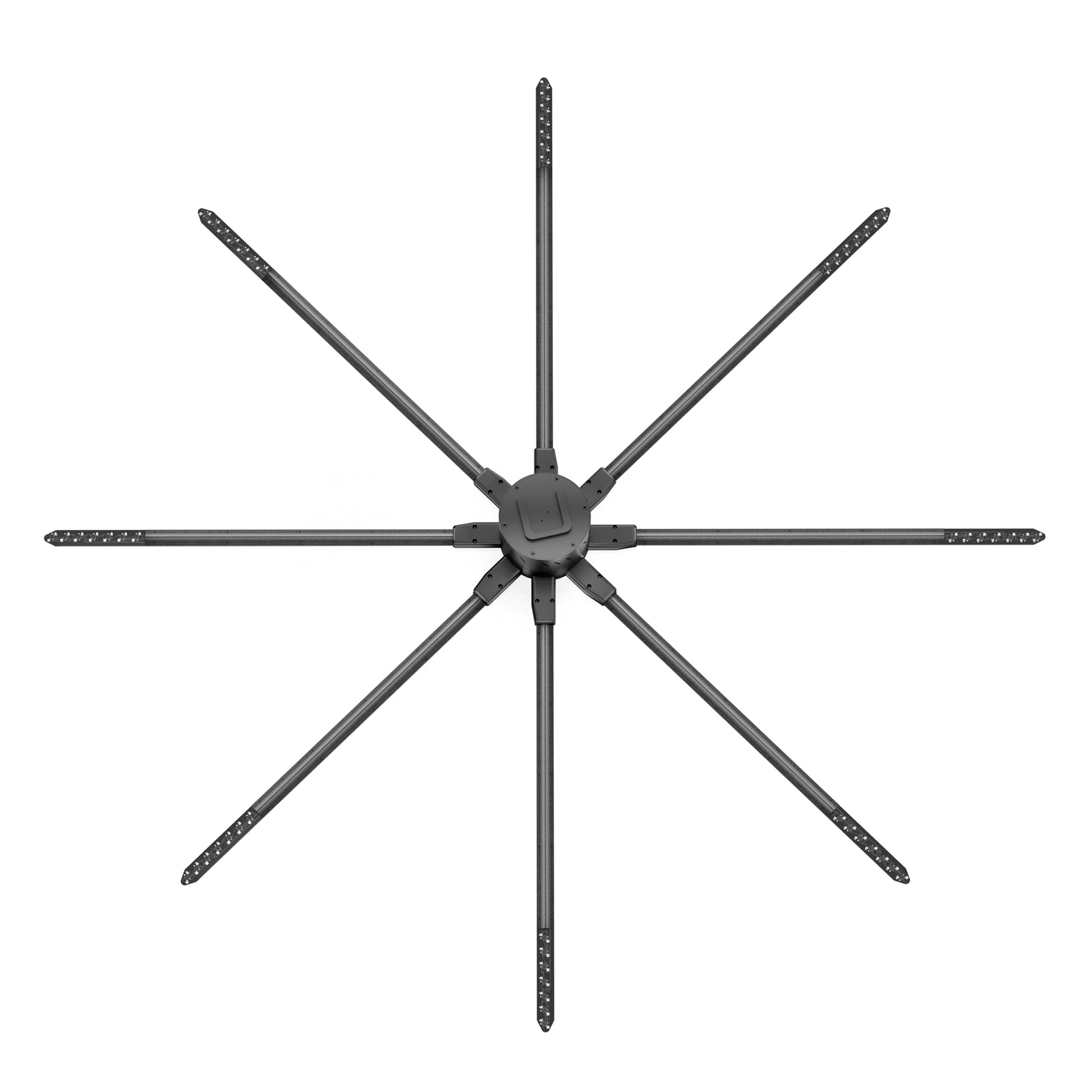

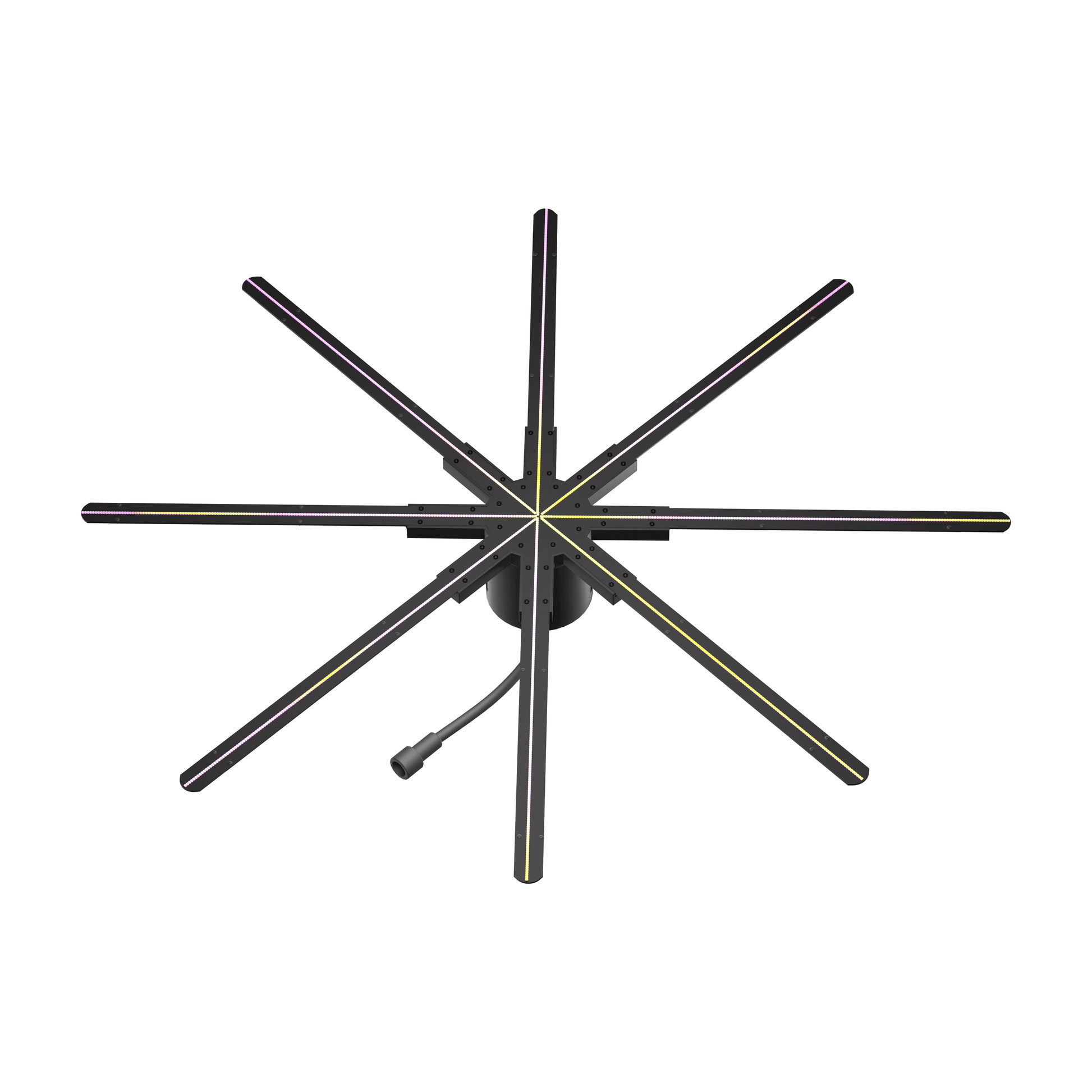

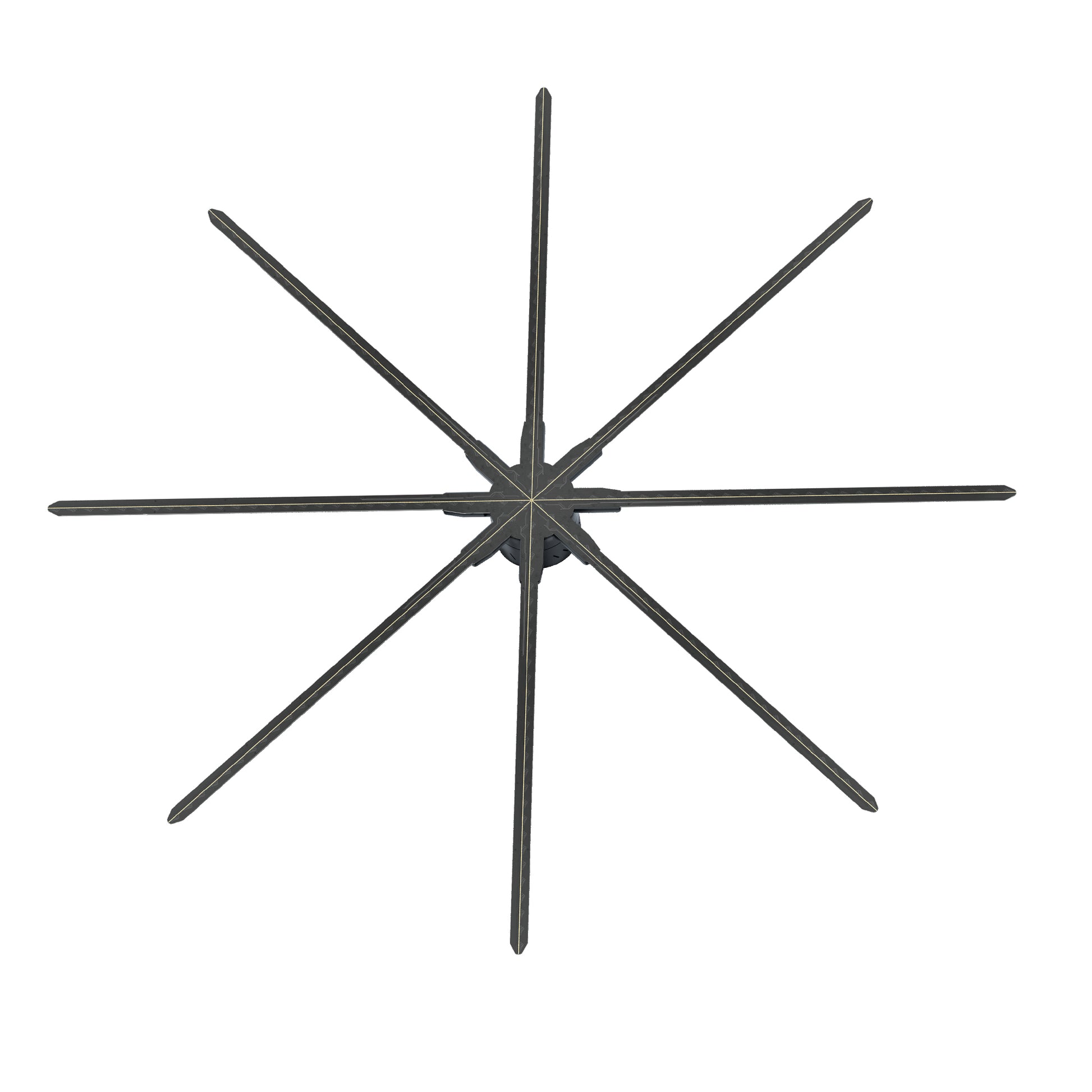

Large 8-blade hologram display design delivers vivid visuals for exhibitions, shopping malls, stages, and commercial venues.
Supports content management through a mobile APP, web platform, PC, and cloud platform.
Selected functions include multi-unit splicing, Bluetooth audio output, real-time screen casting, and third-party APP installation.
High-brightness output and high refresh rates provide clear, smooth playback for professional advertising applications.

Order & Logistics

Lead Time

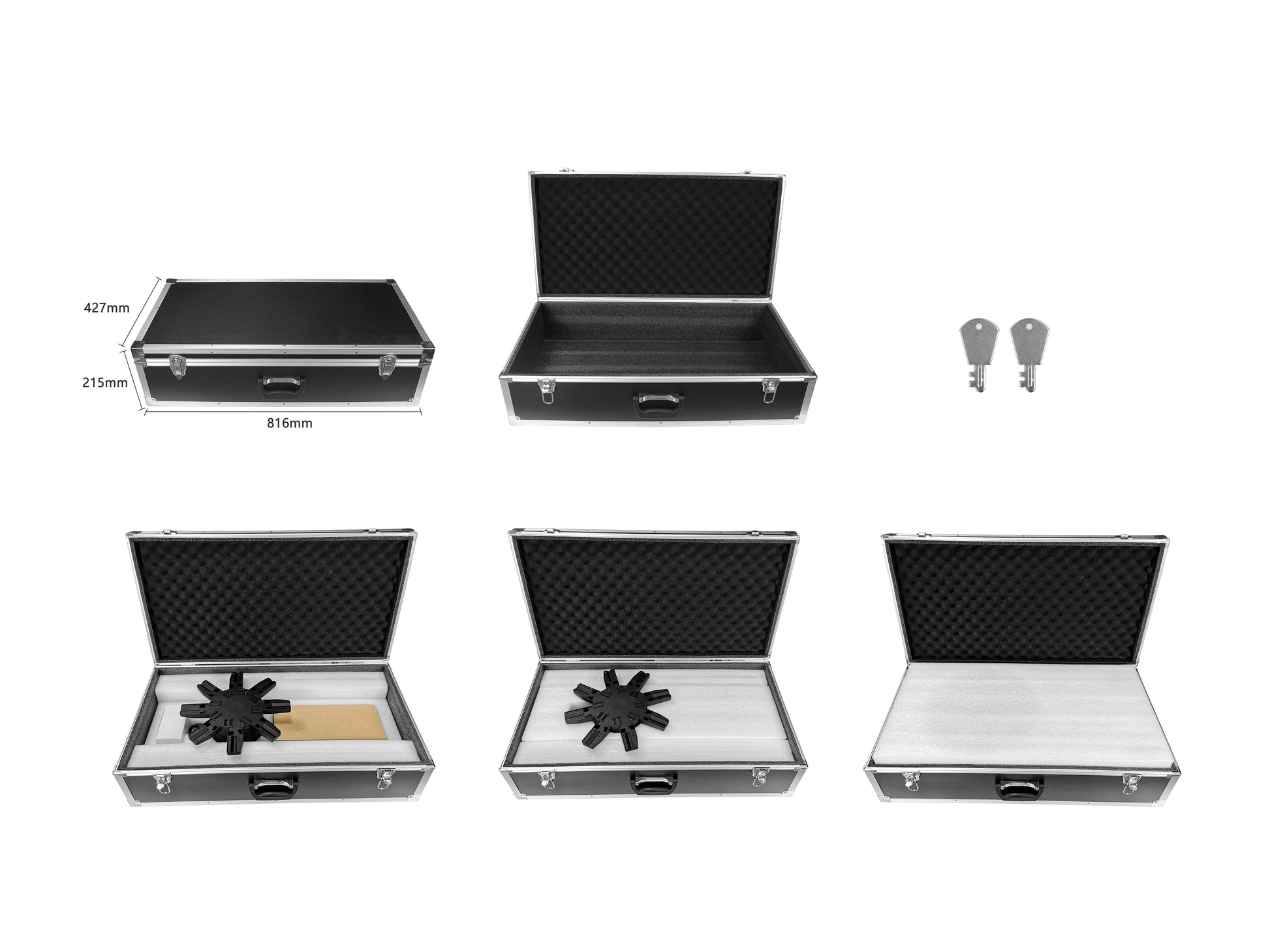

Standard fans and stands are usually dispatched within 1–3 business days, while protective cover versions typically require 3–6 business days for handling.

Freight & Delivery

Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
HQ Fulfillment: Standard delivery takes 9–18 business days, while Express delivery takes 5–9 business days.

Key Specifications

Item	Specification
Product Type	3D Hologram LED Display
Models	S13 / S15 / Z200 / S20

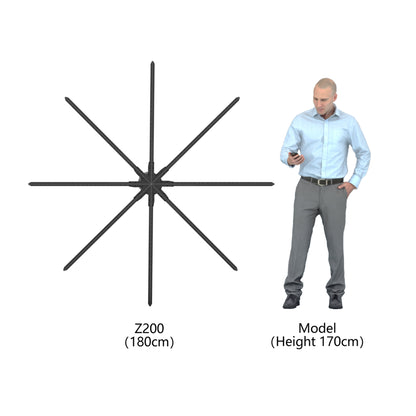

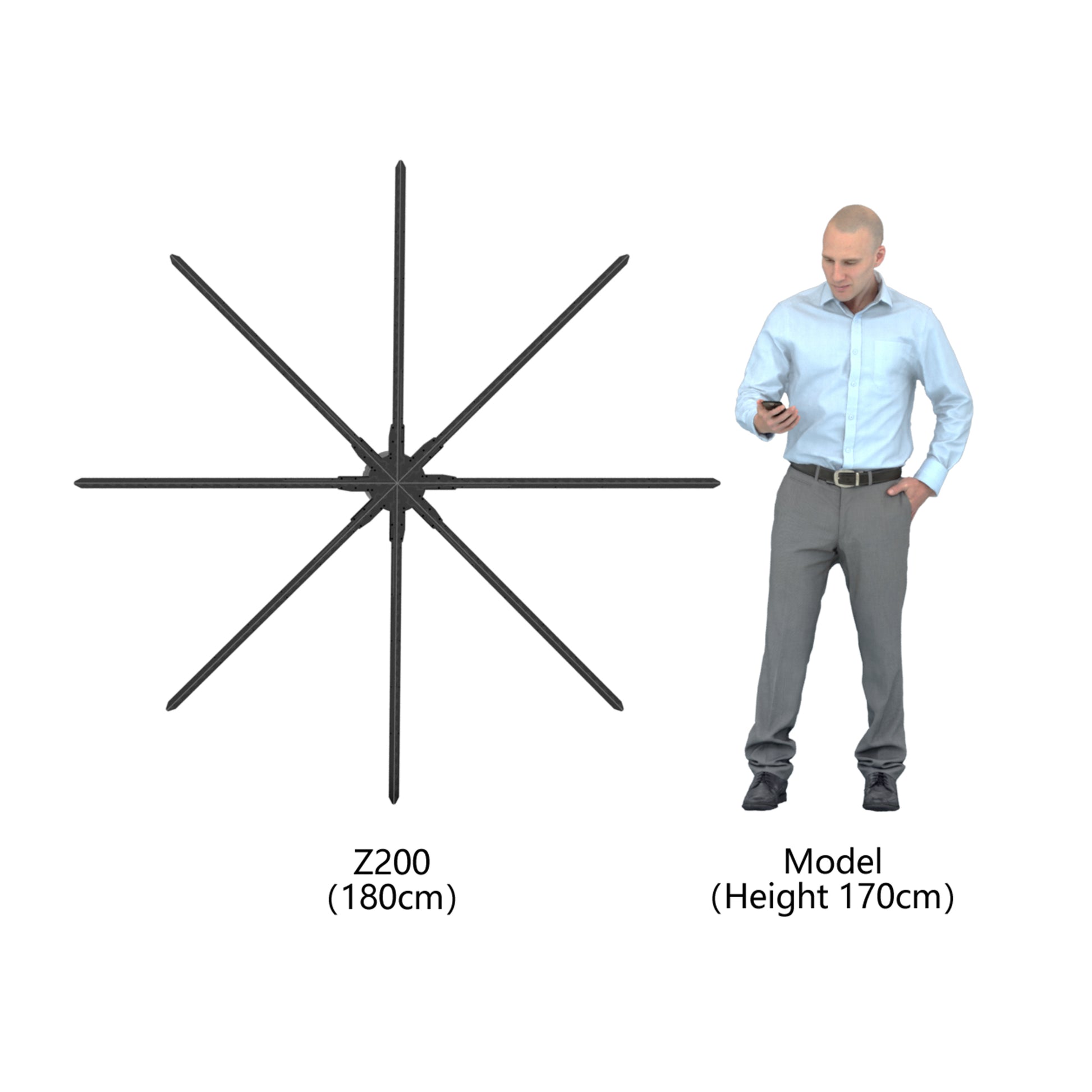

Display Diameter	S13: 1300 mm / 130 cm (51.2 inch) S15: 1510 mm / 151 cm (59.4 inch) Z200: 1800 mm / 180 cm (70.9 inch) S20: 1960 mm / 196 cm (77.2 inch)

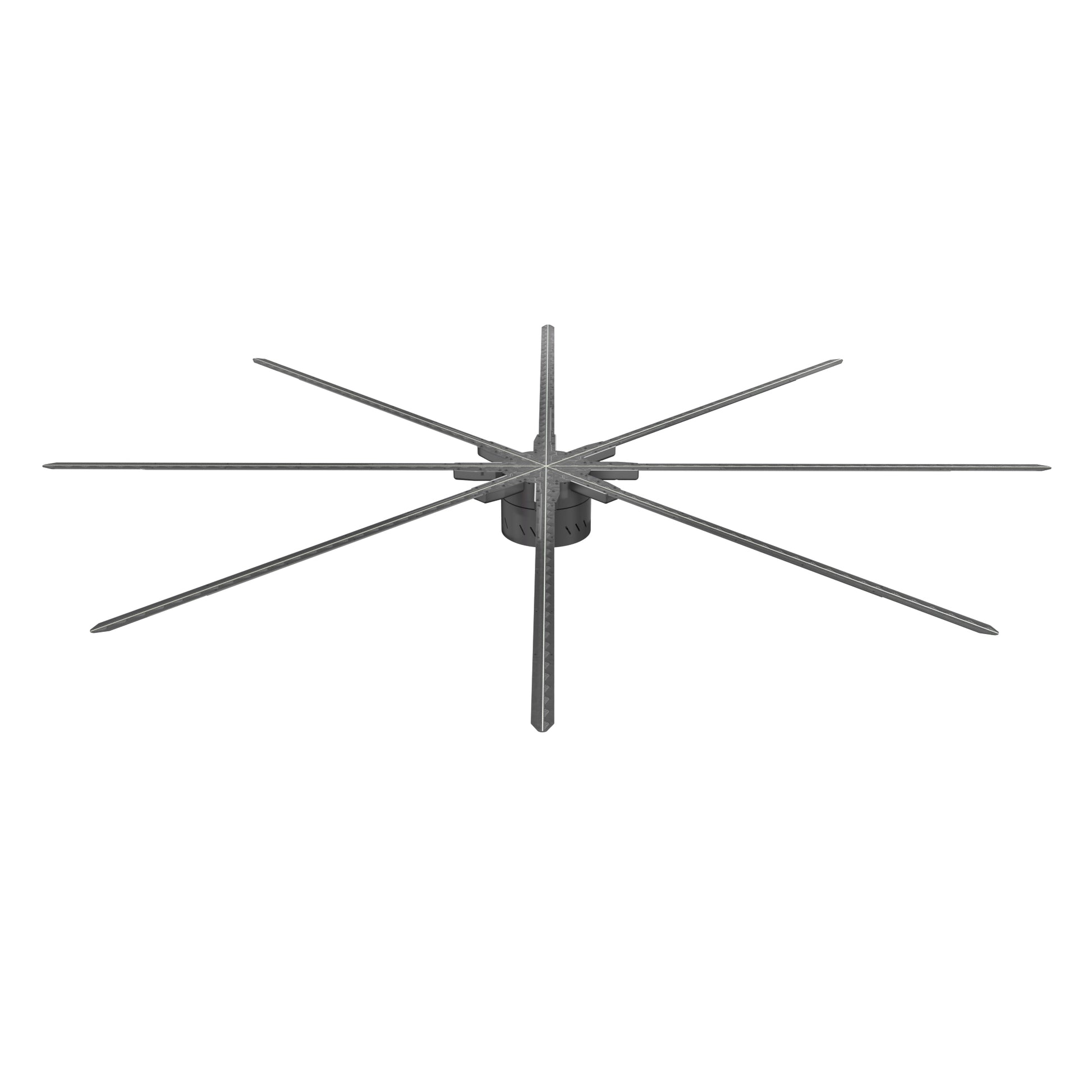

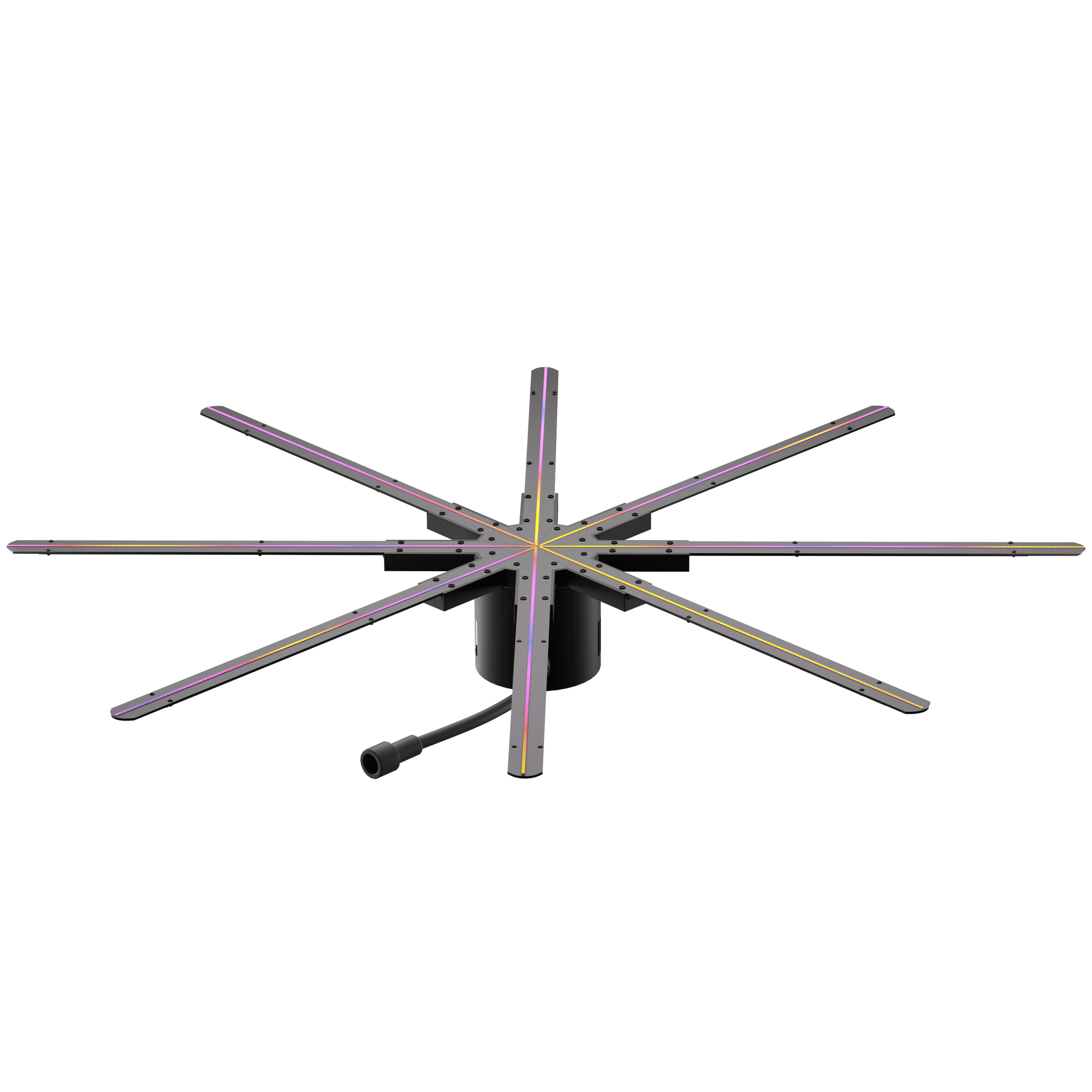

Blade Configuration	8-Blade Hologram Fan
Input Voltage	AC100–240V (50/60Hz)
Processor	S13: Allwinner A40i Quad-Core, 1.2GHz S15: Allwinner A40i Quad-Core, 1.2GHz Z200: Not Specified S20: Allwinner A40i Quad-Core, 1.2GHz
Control Mode	Asynchronous Control
LED Count	S13: 3,066 LEDs S15: 3,072 LEDs Z200: 2,512 LEDs S20: 3,066 LEDs
Display Resolution	S13: 2800 × 3066 S15: 2800 × 3072 Z200: 2048 × 2512 S20: 2800 × 3066
Rotation Speed	S13: 360 RPM S15: 350 RPM Z200: 350 RPM S20: 350 RPM
Frame Rate	24 FPS
Noise Level	S13: 70 dB S15: 80 dB Z200: 80 dB S20: 100 dB
Brightness	S13: 3740 cd/m² S15: 3740 cd/m² Z200: 3500 cd/m² S20: 5000 cd/m²
Refresh Rate	S13: 3840Hz S15: 3840Hz Z200: Not Specified S20: 3840Hz
Storage	S13: 8GB, expandable to 16GB S15: 8GB, expandable to 16GB Z200: 16GB TF Card S20: 8GB, expandable to 16GB
Storage Upgrade Note	S13 / S15 / S20: Upgrade to 16GB available for an additional RMB 22 per unit without affecting lead time
Rated Power	S13: 450W (24V) S15: 485W (24V) Z200: 400W (24V) S20: 490W (24V)
Content Management	S13: Mobile APP, Web Platform, PC, Cloud Platform S15: Mobile APP, Web Platform, PC, Cloud Platform Z200: Mobile APP, Web Platform, Cloud Platform S20: Mobile APP, Web Platform, PC, Cloud Platform
Supported Content Formats	S13: MP4, JPG S15: MP4, JPG Z200: MP4, AVI, RMVB, MKV, JPG S20: MP4, JPG
Multi-Unit Splicing	Supported
Bluetooth Audio Output	Supported
Real-Time Screen Casting	Supported
APP Power Control	S13: Not Specified S15: Not Specified Z200: Supported S20: Not Specified
Brightness Adjustment	S13: Not Specified S15: Not Specified Z200: Supported S20: Not Specified
Scheduled Power On/Off	S13: Not Specified S15: Not Specified Z200: Supported S20: Not Specified
Third-Party APP Installation	S13: Supported S15: Supported Z200: Not Specified S20: Supported

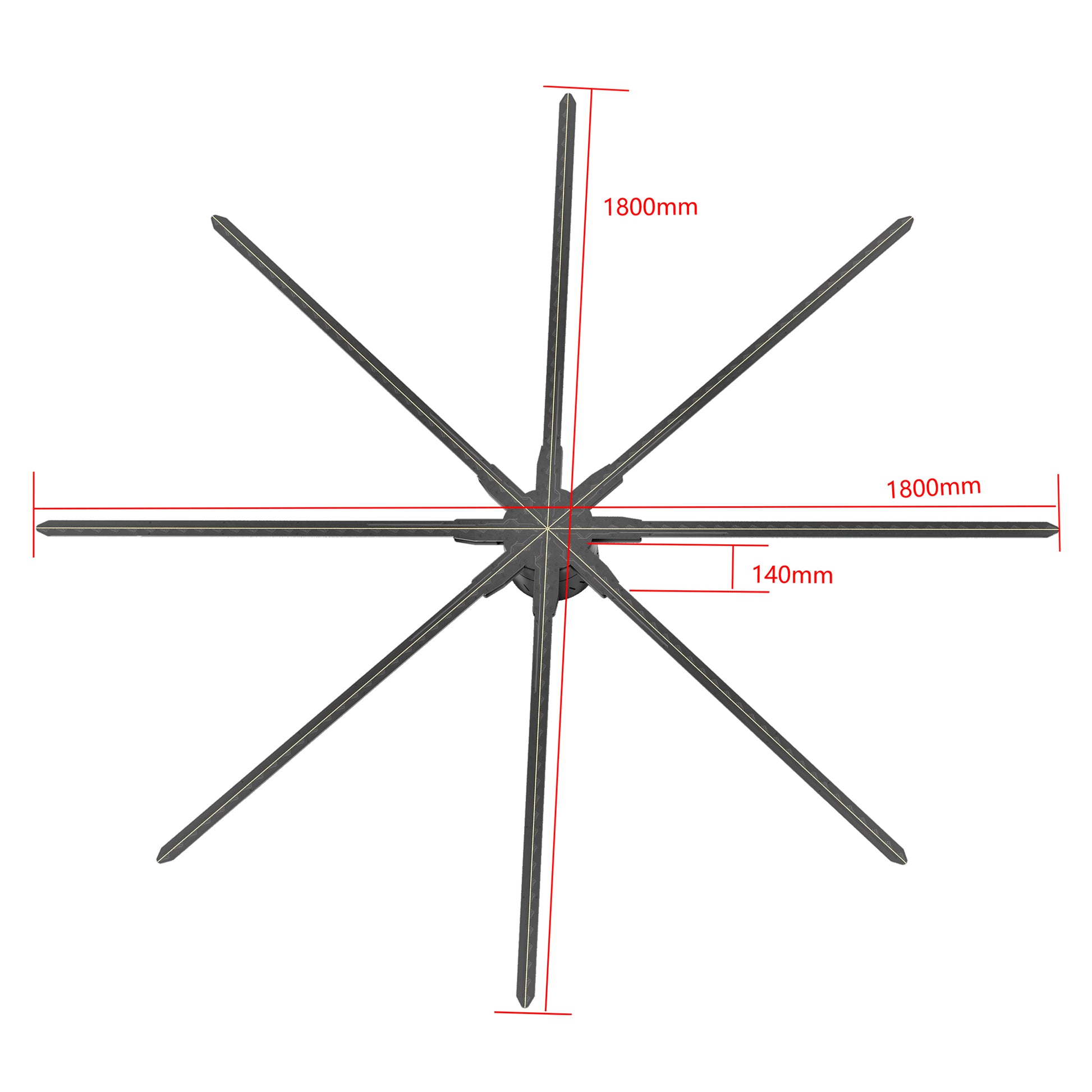

Product Dimensions	S13: 1300 × 1300 × 145 mm S15: 1510 × 1510 × 145 mm Z200: 1800 × 1800 × 140 mm S20: 1960 × 1960 × 145 mm
APP	S13: 3Display S15: 3Display Z200: 3D LED FAN S20: 3Display
Shipping Region	US / UK / EU / AU (Shipped According to Destination Country)

Usage Notes / Installation Tips

Select the required model and package configuration before placing the order.

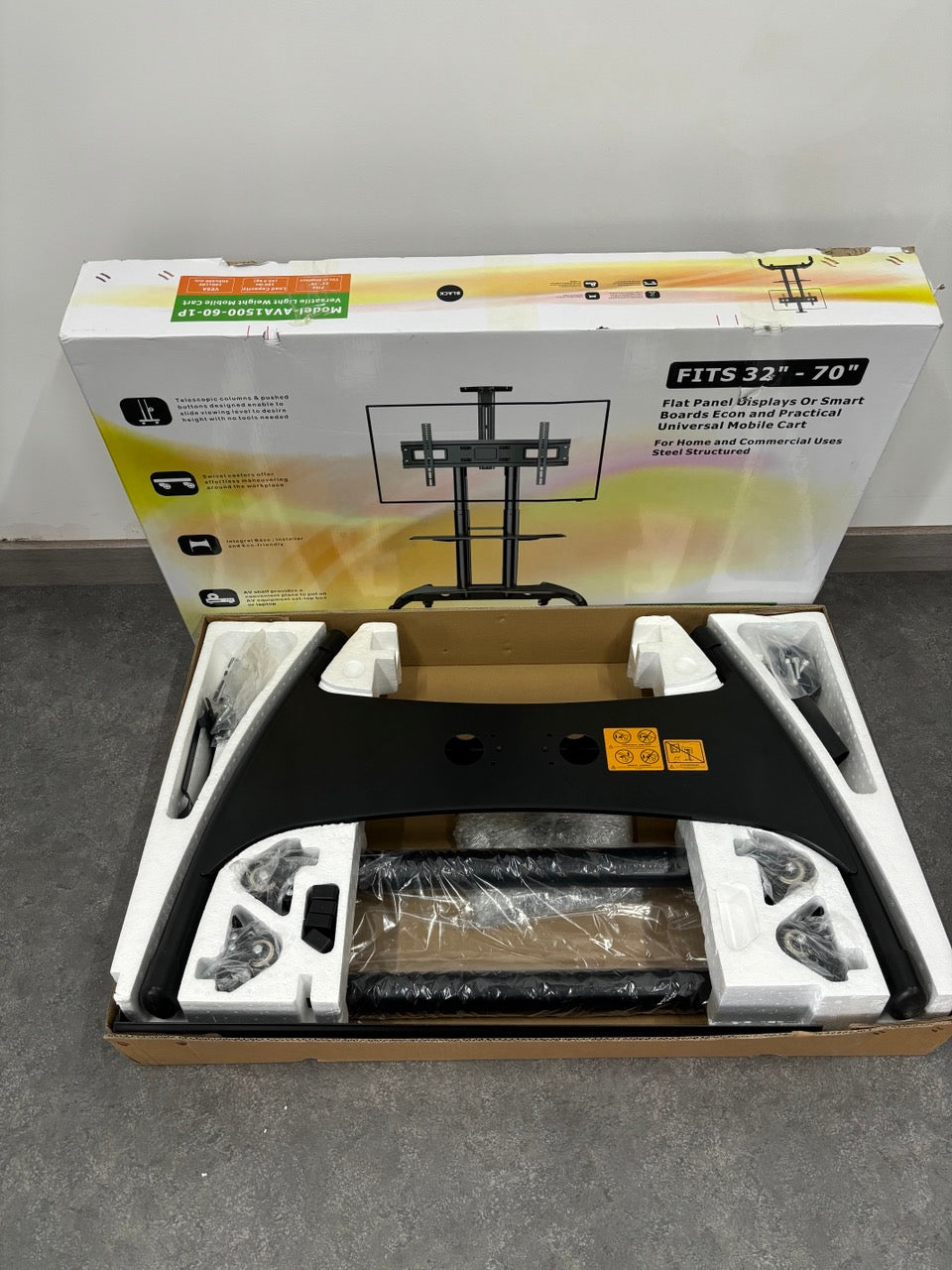

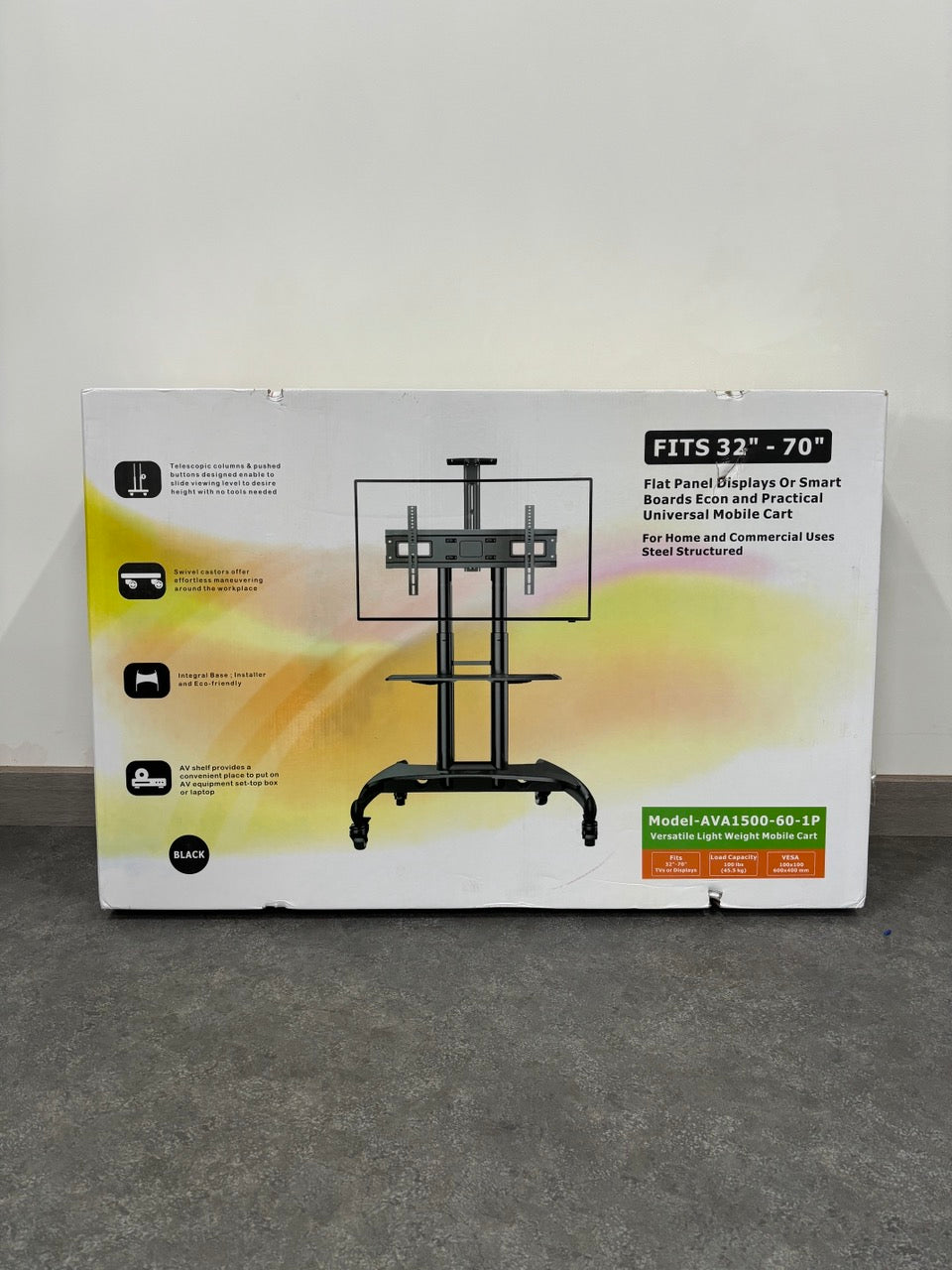

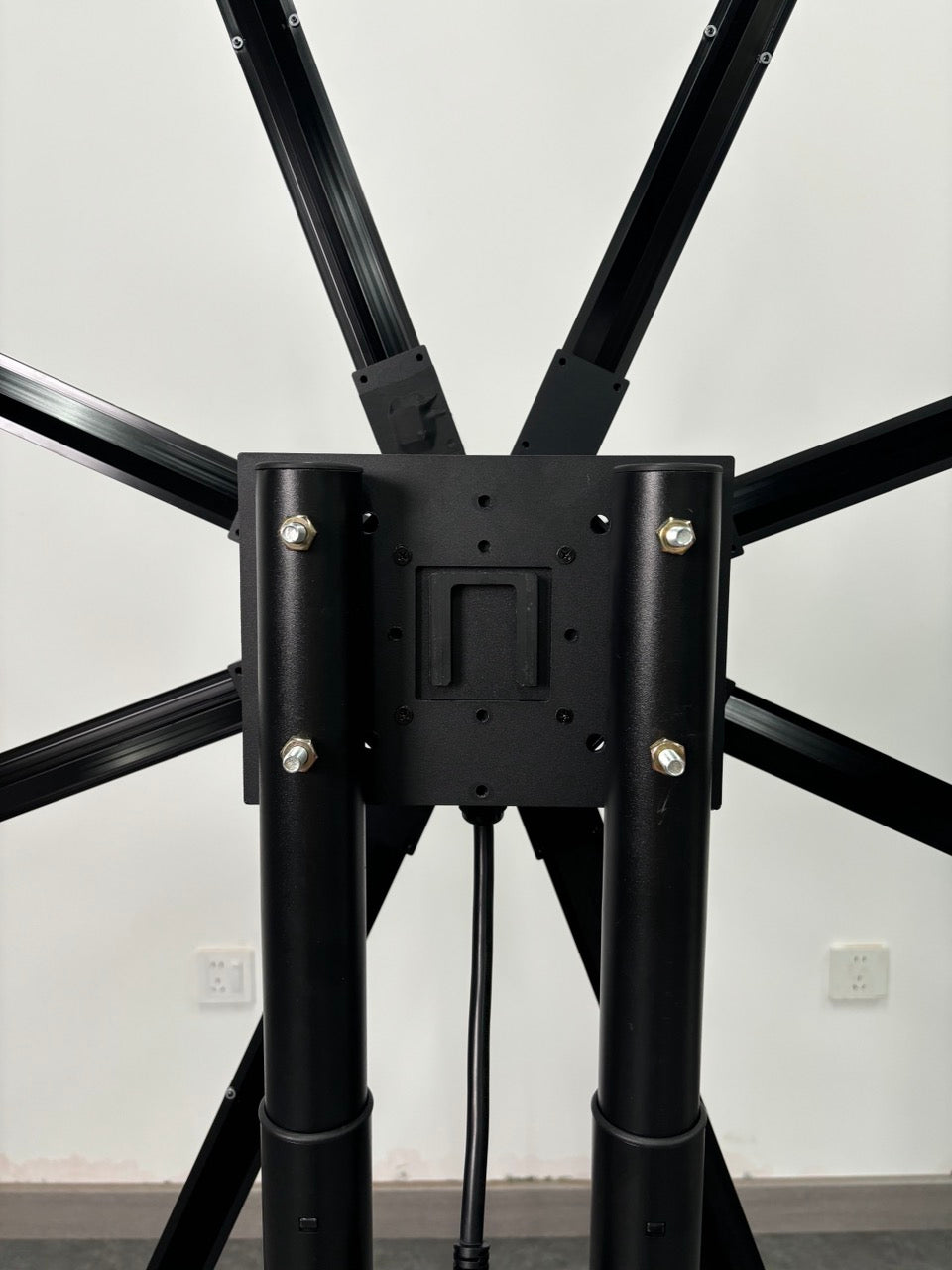

Secure the dual-pole mobile stand before mounting the display when selecting the stand version.
Use the supplied external power supply and confirm the input voltage before operation.
Use the corresponding APP listed in Key Specifications for content management.
Professional installation is recommended due to the large display diameter.
Maintain adequate clearance around the rotating blades during operation.
Disconnect the power before installation, adjustment, cleaning, or maintenance.
