15.7 Inch (Dia.400mm Viewable) Round LCD Display Screen, Capacitive Touch (Optional), Cloud / APP / USB Disk

$17,801.00
Screen Type
Package QTY
$17,801.00
$17,801.00
Shipping calculated at checkout.
Out of stock

15.7 Inch (Dia.400mm Viewable) Round LCD Display Screen, Capacitive Touch (Optional), Cloud / APP / USB Disk

About this item

  • HD: HD full-view LCD display, ultra-HD resolution.
  • Ultra-thin: Industrial-grade appearance, reasonable design, stable and strong.
  • Performance: Internal heat dissipation adopts convection method, long-term load work without worry.
  • Android 11 System: Powerful 3568 motherboard solution, equipped with Android 11 operating system.
  • Multiple control options: Cloud CMS, LEDArt App, USB/SD playback, LAN, and Wi-Fi
  • Appearance: Unique round eye-catching shape.
  • Capacitive Touch or IR Touch Screen (optional), Make to Request.

Package Included

Version Package Included
15.7" Model Round LCD Display ×1, Power Cord ×1, Remote Controller ×1 (Battery not included), Mounting Bracket Kit ×1, Honeycomb Cardboard Box ×1

Order & Logistics

  • Lead Time: Standard production lead time: 10–15 business days
  • Shipping Method Options:
  • All models are shipped directly from our China headquarters.
  • DDP Term: All fees included. If DDP is not supported in the destination country, we will confirm alternative solutions with the buyer (e.g., EXW / FOB).
  • ⚠️ This product line is not eligible for Free Shipping due to heavy freight. Final freight charges will be calculated automatically at checkout based on order weight.

Technical Specification

Parameters (Download Datasheet)
The Screen Model YXLCD-15.7‘’
LCD screen specifications Brand new original LCD panel
Viewing angle 89/89/89/89
Color 16.7M, 72% NTSC
Refresh rate 60HZ
Display area 400*400 mm
Screen size 15.7‘’
Brightness 700cd/m2
Contrast ratio 1000:1 (TYPIC, subject to actual conditions)
Lifespan 50000H
Resolution 960*960
Control Board Chip RK3568
CPU Quad-core ARM Cortex-A55, 2.0G
RAM 2G
System Android 11
GPU Mali-G52 Quad-core
ROM 16G (customizable)
Interface Headphones, HDMI out, RJ45, HDMI IN, USB 3.0*2, DC-IN
Network Gigabit wired network port; support 2.4G/5G wireless; Bluetooth; optional 3G/4G module
Physical Features Frame material Sheet metal/profile
Body color Black
Frame color Black and other options available
Tempered glass Optional 3mm explosion-proof tempered glass
Dimensions Φ453 * 61.2mm
Touch Function (Optional) Touch type Capacitive touch
Minimum recognition 6mm
Writing surface screen hardness 7H
Response time <25ms
Number of touch points 20 points
Input method Finger, capacitive pen
Communication method Full-speed USB
Touch accuracy ±1.5mm (more than 90% touch area)
Power Consumption Power input voltage DC 12V
Device power ≤50W
Standby power <1W
Working Environment Input voltage AC110-220V/DC12-24V
Usage environment Temperature ‐0℃~55℃ / Humidity 10%~90% RH
Standby power consumption ≤1W
Storage environment Temperature ‐5℃~60℃ / Humidity 10%~90% RH
Language OSD English / Chinese
Accessories Accessories Power cord ×1, Wall Hanging Hardware ×1

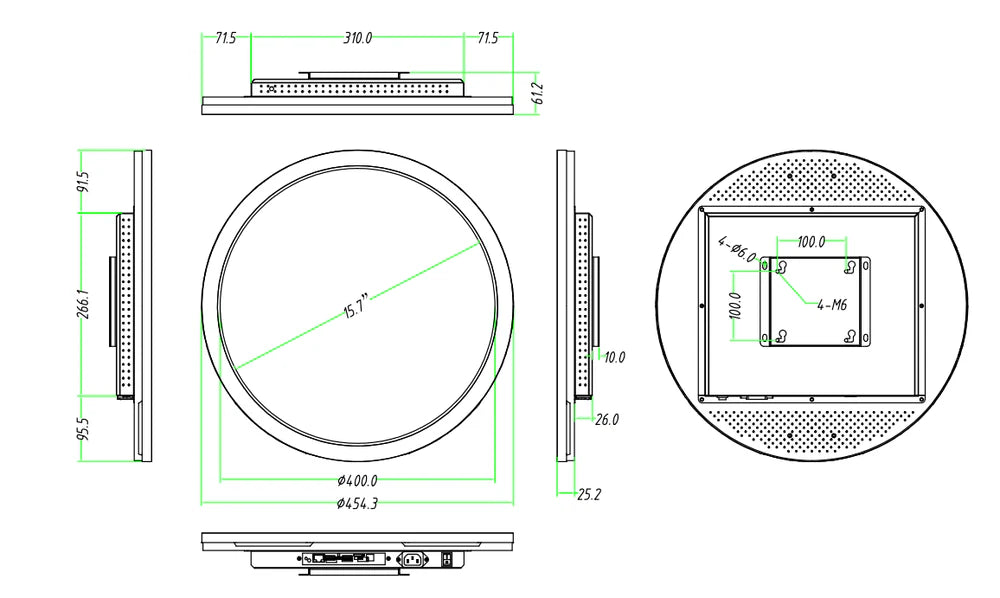

Dimension (unit: mm)

Usage Notes / Installation Tips

Send Program via Cloud Platform Send Program via LEDArt Play Program via U-disk/SD card
Login cloud platform
Create and edit programs
Send programs to device
NOTE: Device mode must be networking mode and associated with cloud account.
Cloud server: led-cloud.cn / led-cloud.com 		Run mobile APP LEDArt
Create and edit programs
Send program to device
NOTE: Device mode must be stand-alone and phone on same LAN		 Save programs to U-disk/SD Card
Insert U-Disk/SD Card
Playback automatically
NOTE: Device mode must be stand-alone and FAT32 format
