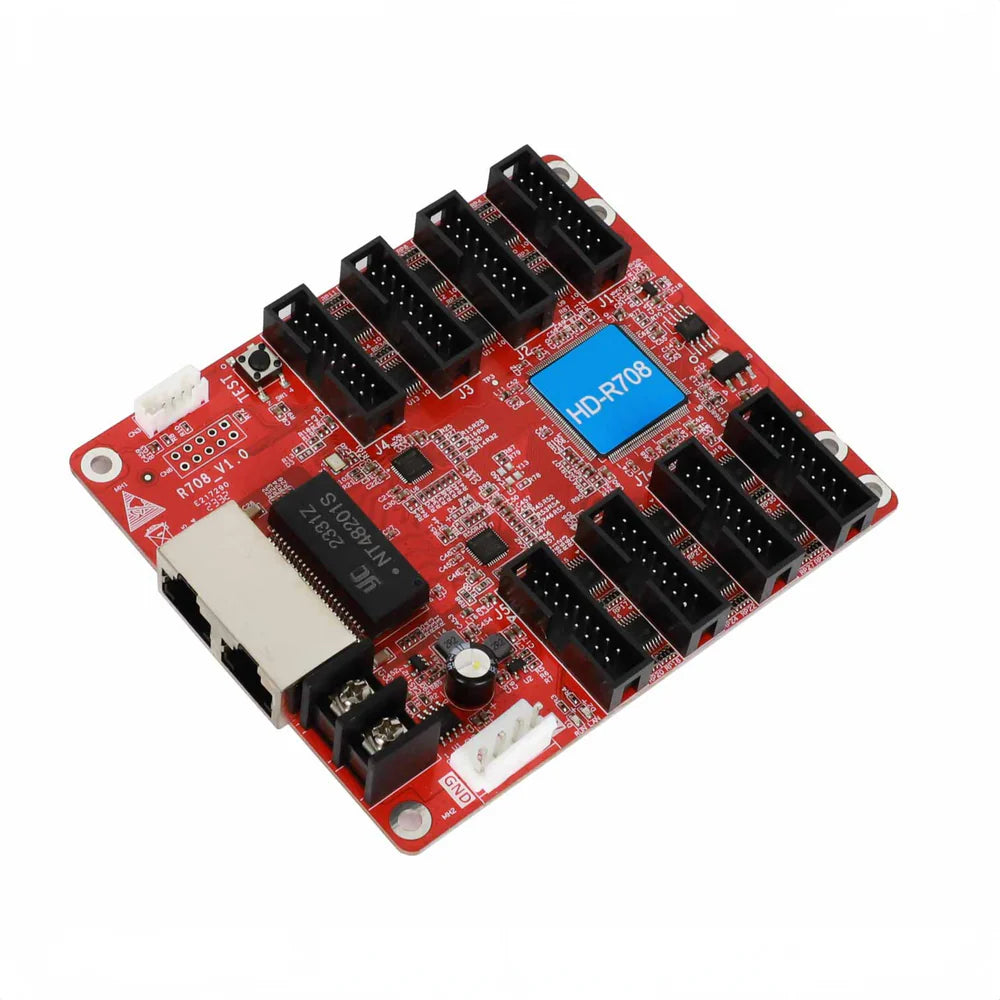

Huidu HD-R708 Receiving Card – 128 × 512Pixels | HUB75 | High-Compatibility LED Display Control Card for for LED Display Screens

$102.00
Package Qty
$102.00
$102.00
Shipping calculated at checkout.
999 in stock

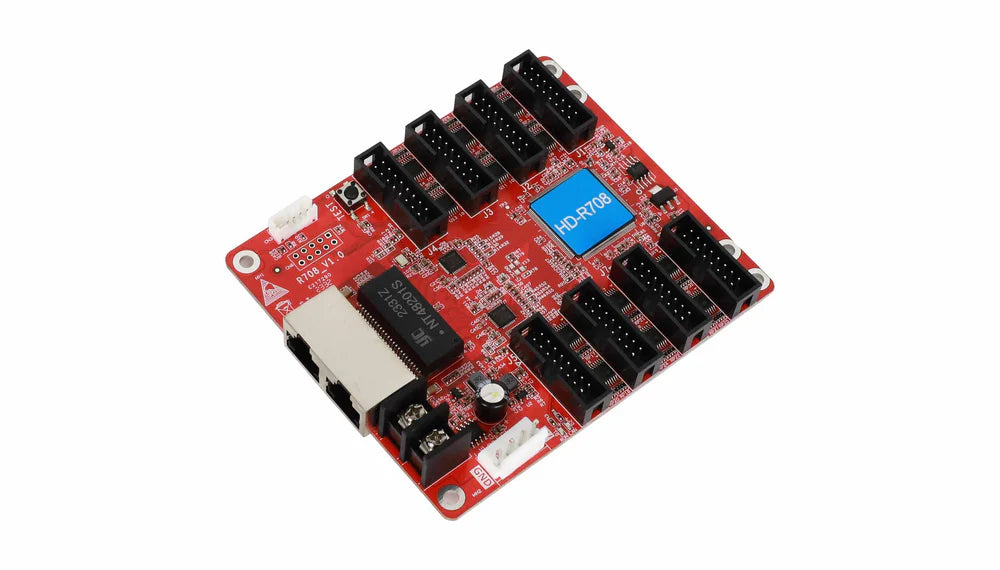

Huidu HD-R708 Receiving Card – 128 × 512Pixels | High-Compatibility LED Display Control Card for for LED Display Screens

Package Included

Version Package Included
HD-R708 HD-R708 receiving card

About this item

  • R708 ton-board with 8 × HUB75E ports; compatible with R series receiving cards.
  • Works with asynchronous sending cards, synchronous sending cards, and all-in-one LED controllers.
  • Supports dual-mode sending box and VP series video processors.
  • Compatible with common IC modules and most PWM IC modules.
  • Scan mode: supports any scanning method from static to 1/128 scan.
  • Control range: Conventional chip 128 × 512 pixels; PWM chip 256 × 512 pixels; large range supports P1.667 / P1.538 / P1.25 fully loaded with 8 ports.

Order & Logistics

  • Lead Time: Typically ships within 2–5 business days
  • Packing: Cardboard box
  • Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Key Specifications

  • Ports: 8 × HUB75E
  • Data output: 16 groups of RGB
  • Supported resolution (conventional): 128 × 512 pixels
  • Supported resolution (PWM): 256 × 512 pixels
  • Scan range: Static ~ 1/128
  • Compatibility: Common IC modules; most PWM IC modules
  • Works with: Asynchronous / synchronous sending cards; dual-mode sending box; VP series video processor; all-in-one LED controller
  • Power: 5 W

Usage Notes / Installation Tips

  • Power off the system before connecting or disconnecting any cables.
  • Use the correct HUB75E wiring and verify scan settings before powering on.
  • Ensure proper ventilation in the controller cabinet for stable operation.

Technical Specifications

Specification Value
Model HD-R708
HUB interface 8 × HUB75E
Data output 16 groups of RGB
Scanning Static ~ 1/128
Loading capacity (Conventional chip) 128 × 512 pixels
Loading capacity (PWM chip) 256 × 512 pixels
Compatibility Common IC modules; most PWM IC modules
Controller compatibility Asynchronous / synchronous sending cards; dual-mode sending box; VP series video processor; all-in-one LED controller
Supported features Module construction, Rotate animation, Specify setting, Extract rows/columns, Brightness correction, Arbitrary sort, Bright line control, Mapping
Power 5 W

More Models Compare

Model
 HD-R716 HD-R712 HD-R708 HD-R732 HD-R3210
Loading capacity
Conventional chip: 160*1024
PWM chip: 320*1024
Conventional chip: 128*1024
PWM chip: 256*1024
Conventional chip:  128*512
PWM chip: 256*512
Conventional chip: 128*1024
PWM chip: 256*1024
 Conventional chip: 512*512
HUB interface
 16×HUB75E
12×HUB75E
 8×HUB75E
8×HUB320
 10×HUB320
Data output
 32 group of RGB
24 group of RGB
 16 group of RGB
32 group of RGB
 40 group of RGB
Scanning
 Static~1/128
Static~1/128
 Static~1/128
Static~1/128
 Static~1/128
Module construction
 √ √ √ √ √
Rotate animation
 √ √ √ √ √
Specify setting
 √ √ √ √ √
Extract rows/columns
 √ √ √ √ √
Brightness correction
 √ √ √ √ √
Arbitrary sort
 √ √ √ √ √
Bright line control
 √ √ √ √ √
Mapping
 √ √ √ √ √
Power 5W 5W 5W 5W 5W

Applications

  • Fixed LED billboards
  • Rental stage LED screens
  • Indoor/outdoor advertising
  • Conference / exhibition displays
