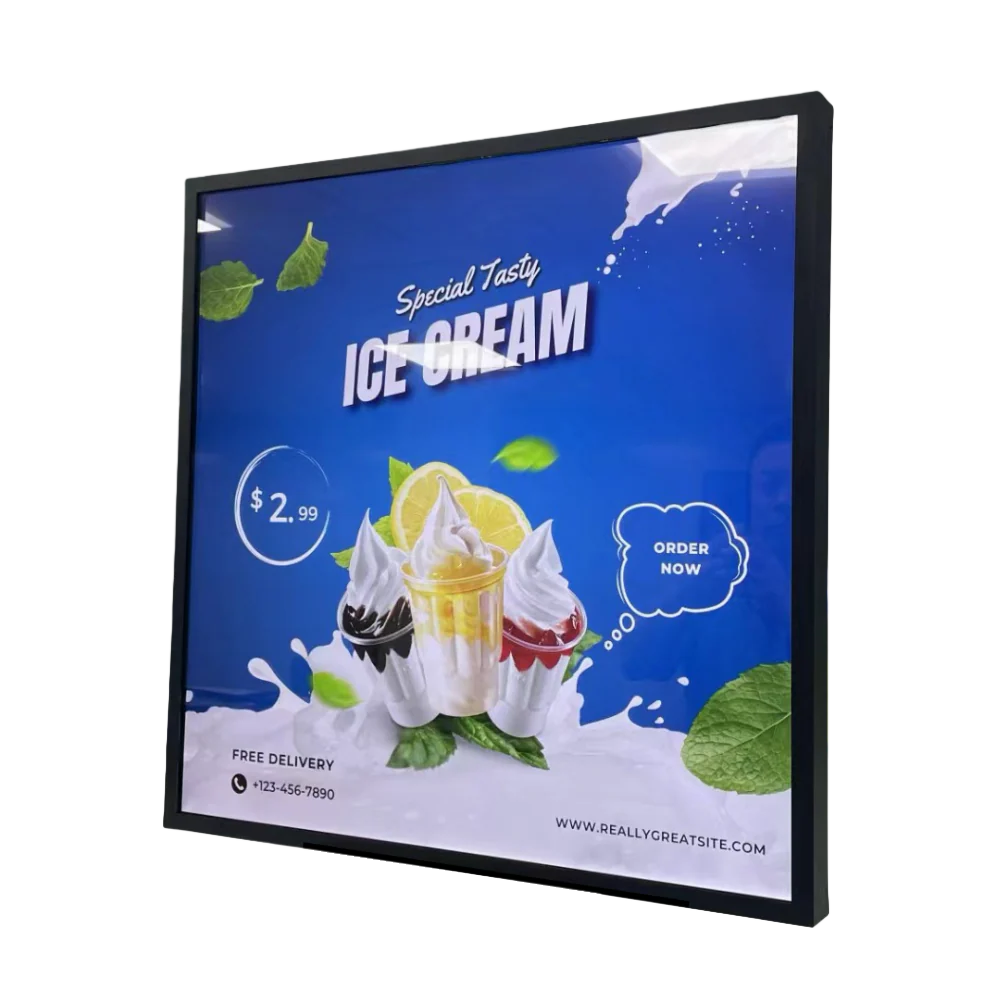

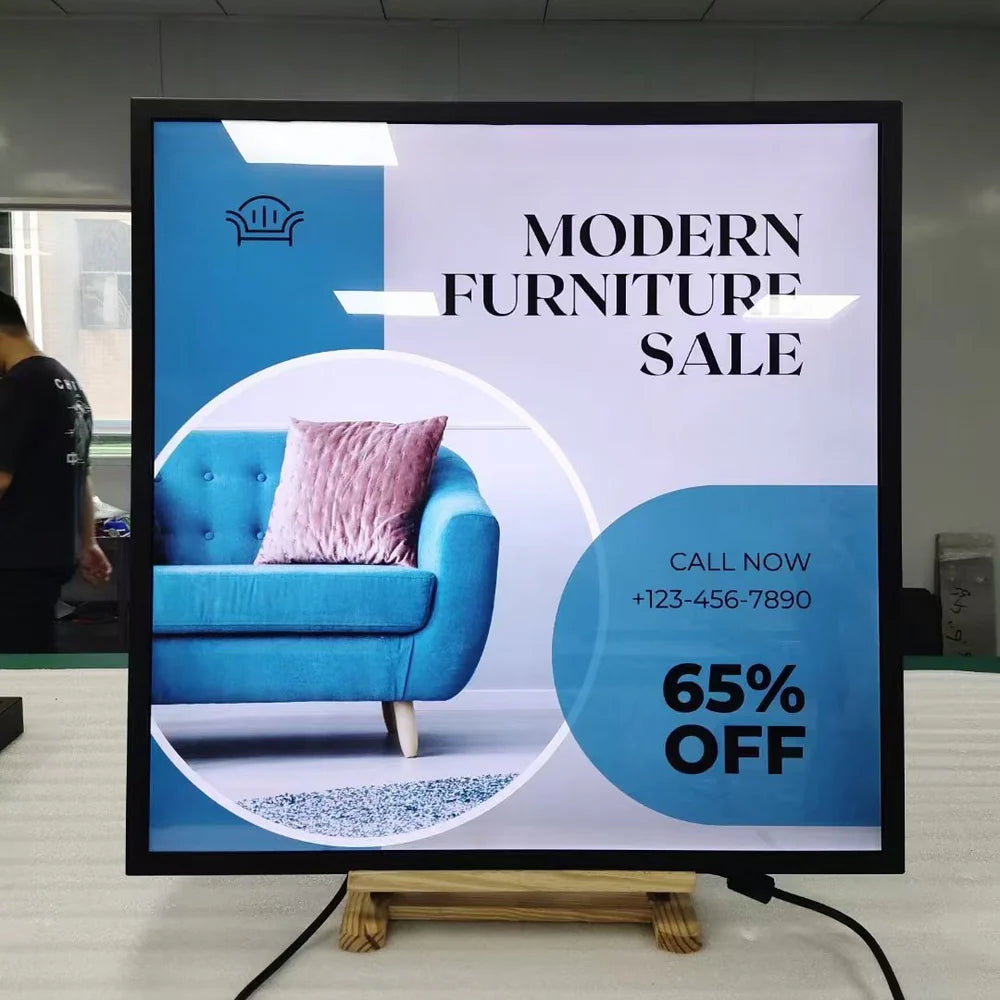

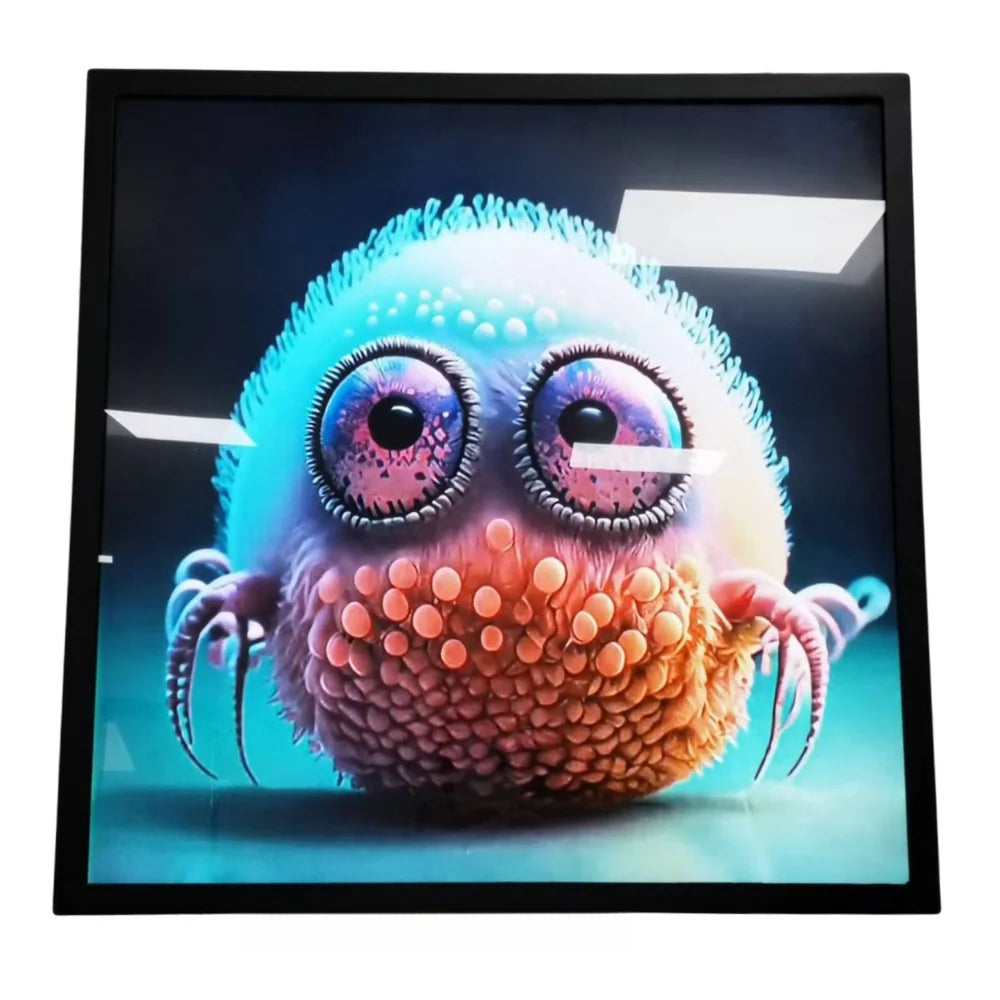

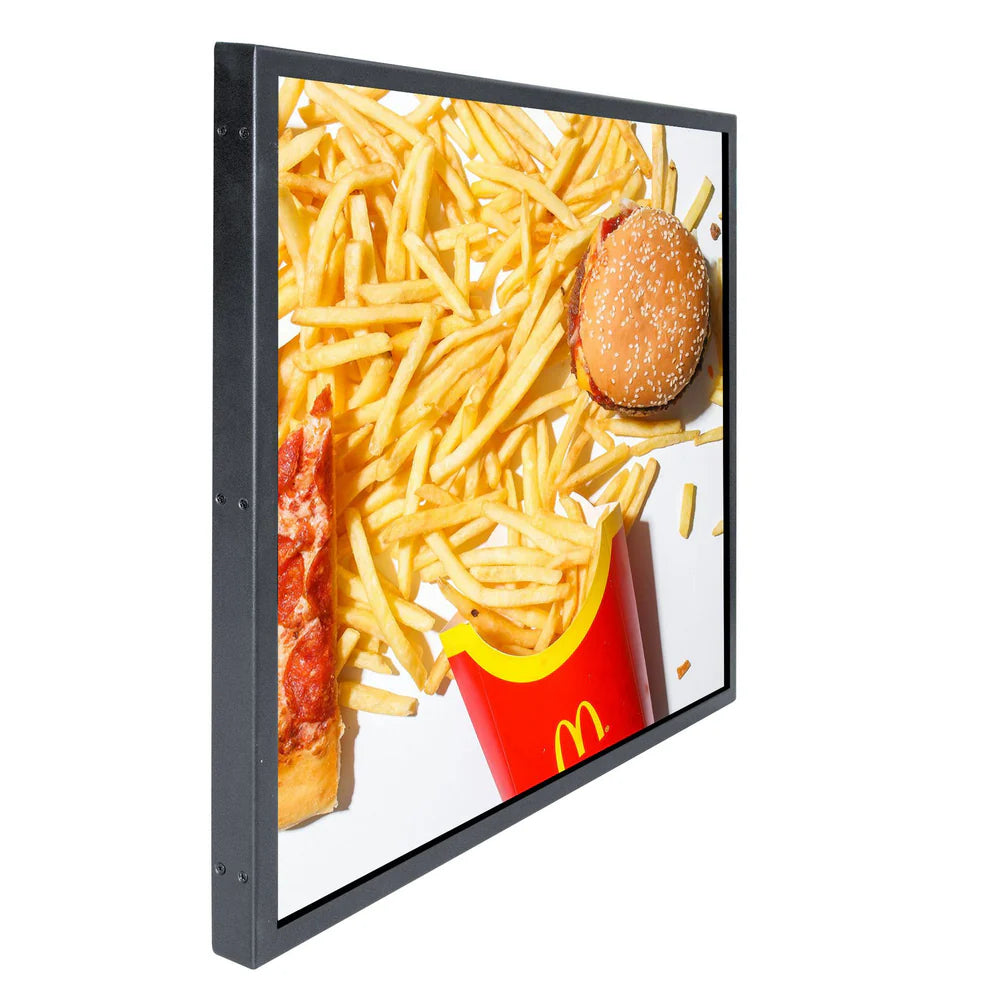

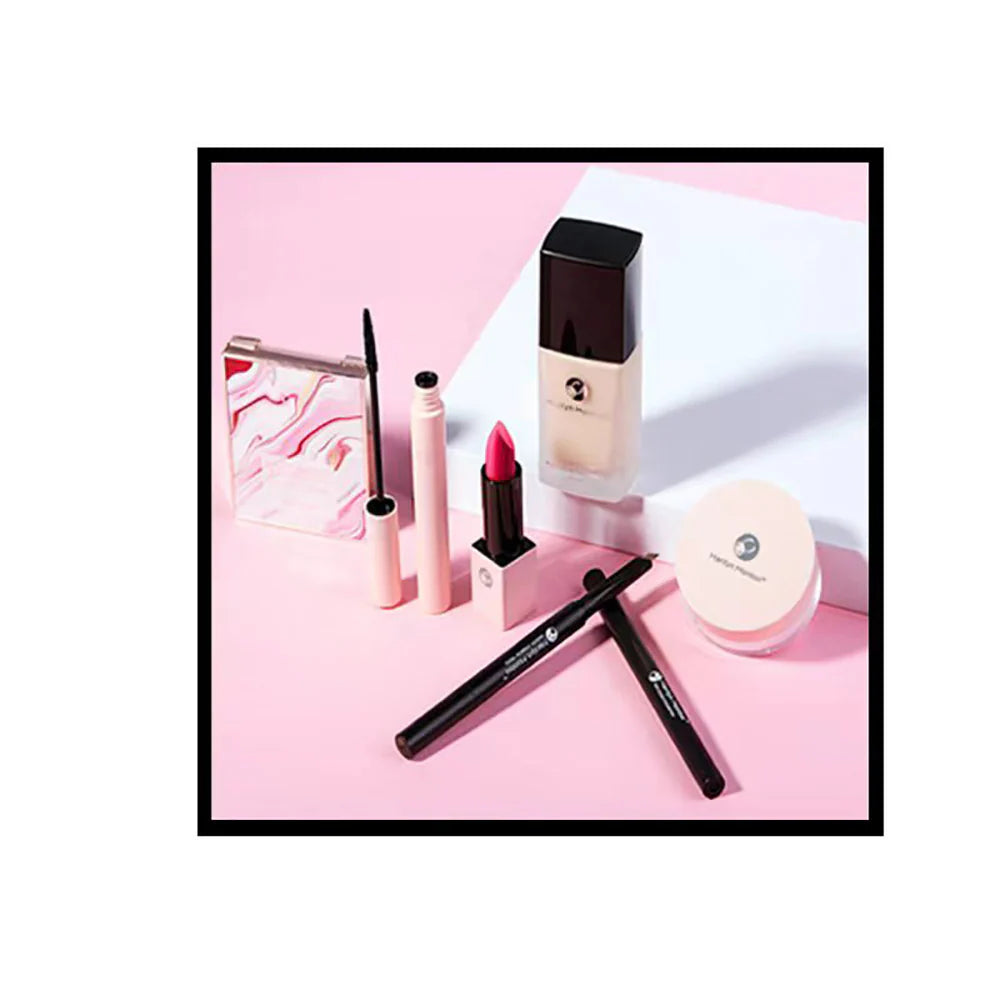

26.5 Inch (476×476mm Viewable) Square LCD Digital Screen Display, Cloud / APP / USB Disk Playback

$8,117.00
Screen Type
Package QTY
$8,117.00
$8,117.00
Shipping calculated at checkout.
Out of stock

26.5 Inch (476×476mm Viewable) Square LCD Digital Screen Display, Cloud / APP / USB Disk Playback

About this item

  • The 26.5-inch Square Shape LCD screen uses LED backlight, which has more uniform display brightness and wider color gamut.
  • Industrial-grade design, ultra-high reliability and high stability, with an average trouble-free operation time of more than 50,000 hours.
  • It uses the RK3568 quad-core chip solution, equipped with the Android11 system, with a maximum main frequency of up to 2.0GHz, and has super performance.
  • Supports AFBC (frame buffer compression), 4K/H.265 hard decoding, 1080P video decoding, and 4K-level video playback.
  • Supports infrared remote control, RJ45, USB, OTG and other rich interfaces.

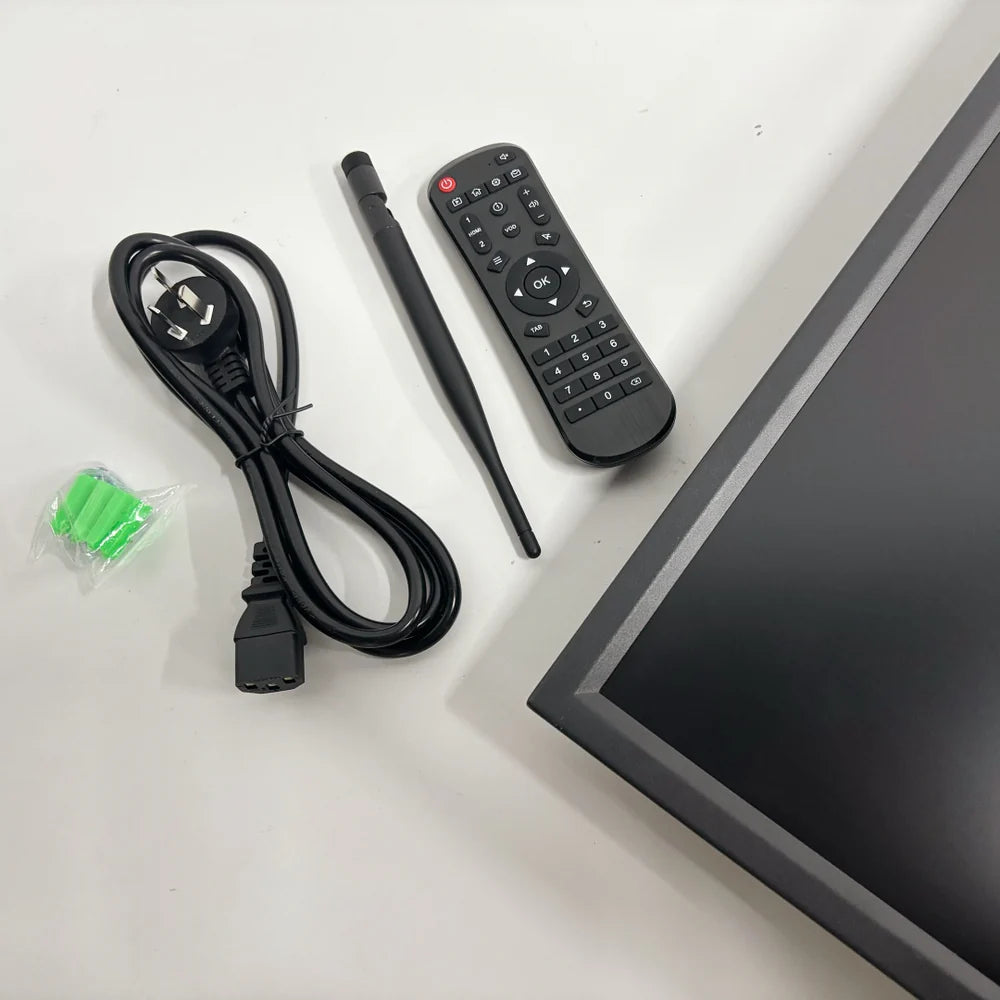

Package Included

Version Package Included
26.5" Model Square LCD Display ×1, Power Cord ×1, Remote Controller ×1 (Battery not included), Mounting Bracket Kit ×1, Honeycomb Cardboard Box ×1

Order & Logistics

  • Lead Time: Standard production lead time: 10–15 business days
  • Shipping Method Options:
  • Standard Freight: 10–20 days (Air + Ground) — economy air shipping option at checkout.
  • Priority Freight: 7–15 days (Air + Ground) — faster air delivery option at checkout.
  • All models are shipped directly from our China headquarters.
  • DDP Term: Listed shipping methods are offered under DDP (Delivered Duty Paid), meaning customs clearance, duties, and taxes are included. If DDP service is not supported in the destination country, we will coordinate alternative terms (e.g., EXW / FOB) to ensure smooth delivery.

Features

  • The LCD Screen is made of metal, which is radiation-proof, magnetic-field-proof and strong-electric interference-proof
  • Professional hard screen technology is adopted, with large viewing angle, fast response speed and high color reproduction.
  • LED backlight mode is adopted, and the brightness is more uniform
  • High physical resolution of 1920*1920, and the picture quality is more delicate
  • The viewing angle can reach 178°, which is close to the horizontal
  • 1200:1 ultra-high contrast ratio, the picture display is more vivid and the color performance is more outstanding
  • Industrial-grade design, high reliability, high stability and low power consumption

Technical Specification

PARAMETERS Download Datasheet
The Screen Size 26.5"
Screen supplier LG
Resolution 1920x1920
Display size (mm) 476(H)×476(V)
Brightness 500cd/m2
Contrast 1200:1
Viewing angle (horizontal/vertical) 89/89/89/89 (Min.)(CR≥10)
Response time 8ms (typ.)
Display color 16.7M
Pixel pitch 0.0606×0.1818 mm
Refresh rate 60Hz
Control Board Motherboard RK3568,4 Core ARM Cortex-A55, 2.0GHz, Mali-G52 GPU
Memory 2+16G
System Android 11

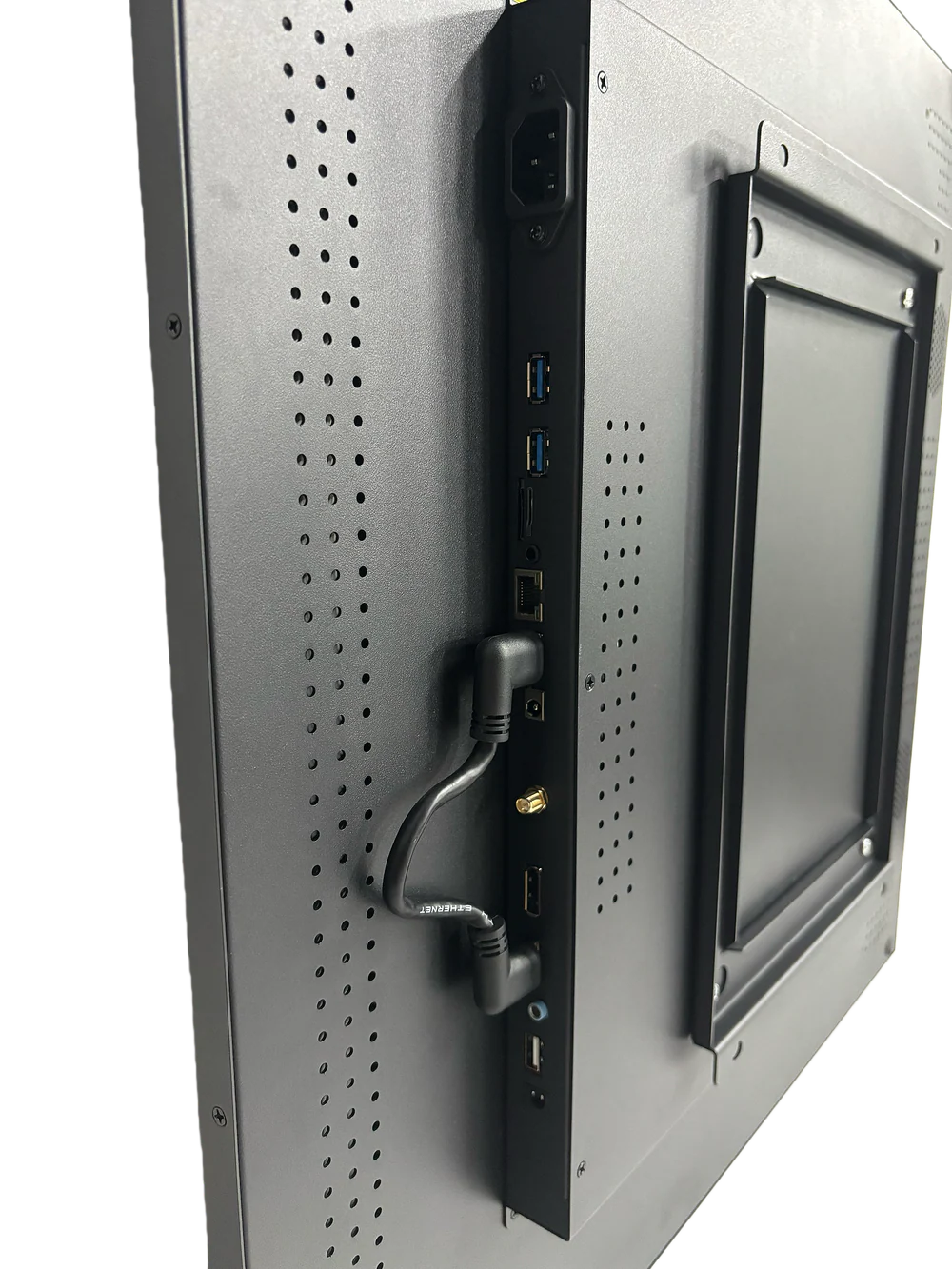

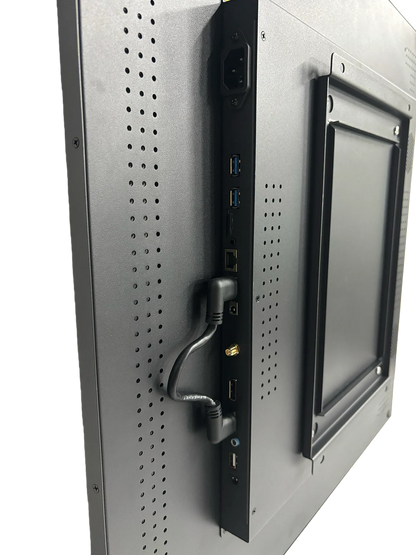

Interface USB3.0, OTG, TF-card, Audio, RJ45, HDMI out, DC-IN
Audio Speaker Optional
Remote Remote control Optional
Weight Net weight TBD
Physical Size Device size 505*505*60mm
Casing material Metal Sheet
Power Consumption Power input voltage DC 12V
Device power ≤40W
Standby power <1W
Working Environment Operating temperature 0℃～+50℃
Operating humidity 10%～90% RH Non-Condensing
Storage temperature -20℃～60℃
Storage humidity 5%～95% RH Non-Condensing
Language OSD English / Chinese
Accessories Power cord *1
Wall Hanging Bracket *1

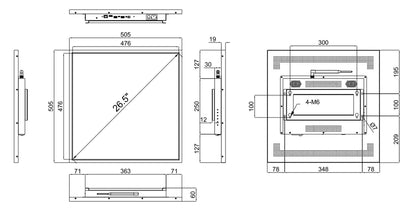

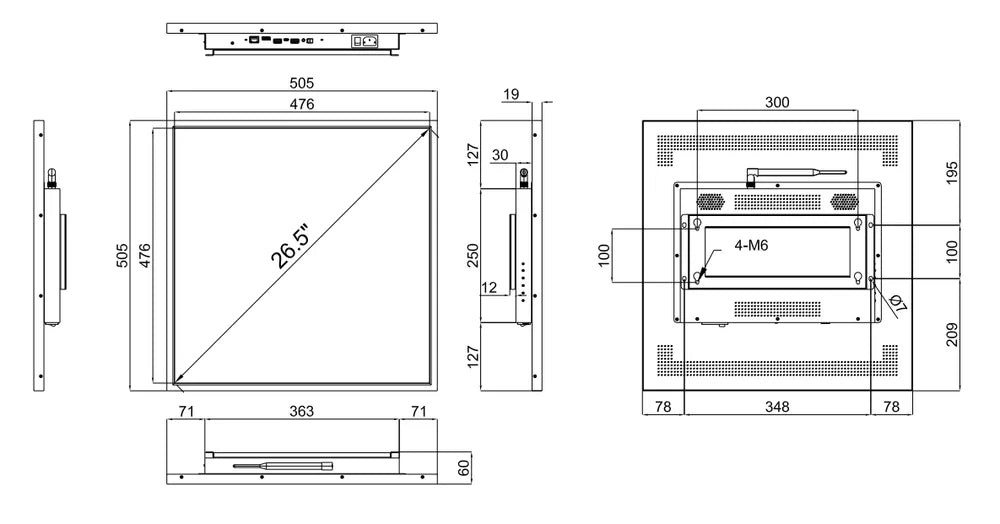

Dimension (unit:mm)

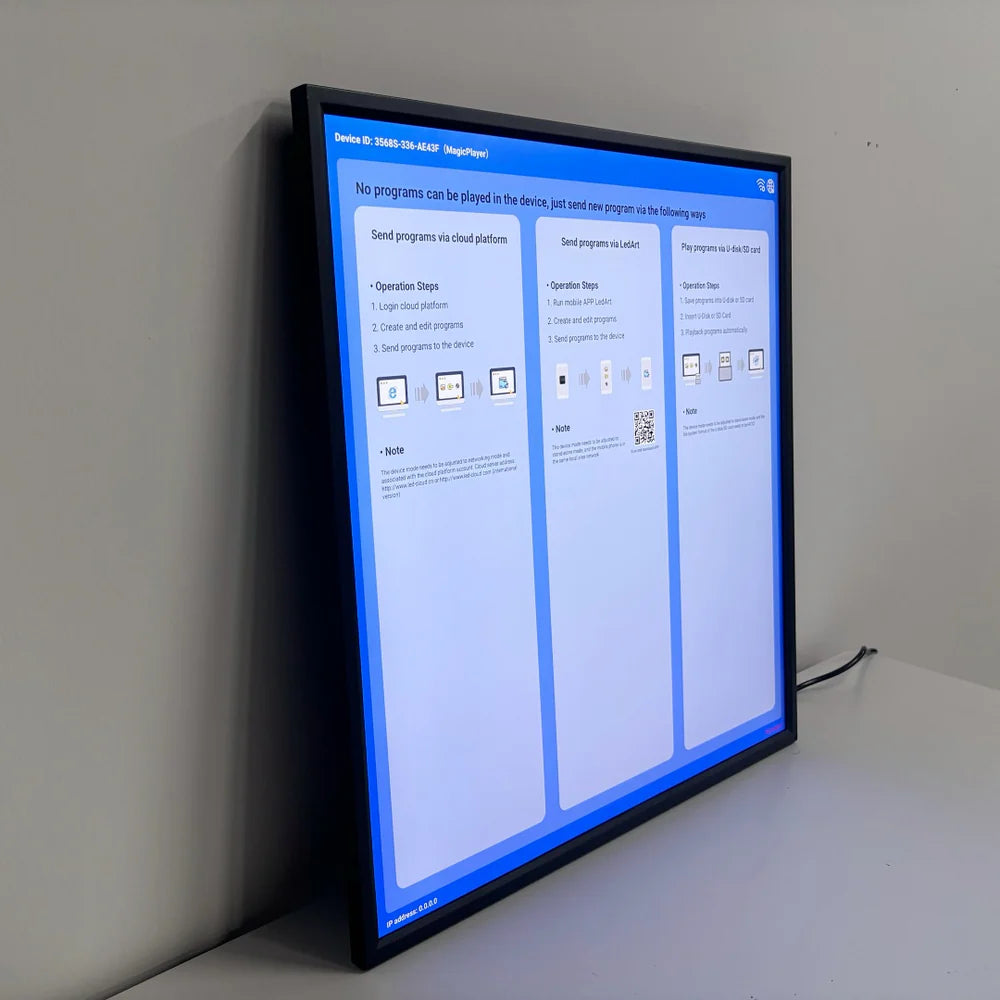

Usage Notes / Installation Tips

Send Program via Cloud Platform Send Program via LEDArt Play Program via U-disk/SD card
Login cloud platform
Create and edit programs
Send programs to the device
NOTE: Device mode must be networking mode and associated with cloud platform account.
Cloud server: led-cloud.cn / led-cloud.com 		Run mobile APP LEDArt
Create and edit programs
Send program to device
NOTE: Device mode must be stand-alone mode and phone on same local network		 Save programs to U-disk/SD Card
Insert U-Disk/SD Card
Playback automatically
NOTE: Device mode must be stand-alone and U-Disk/SD card FAT32
