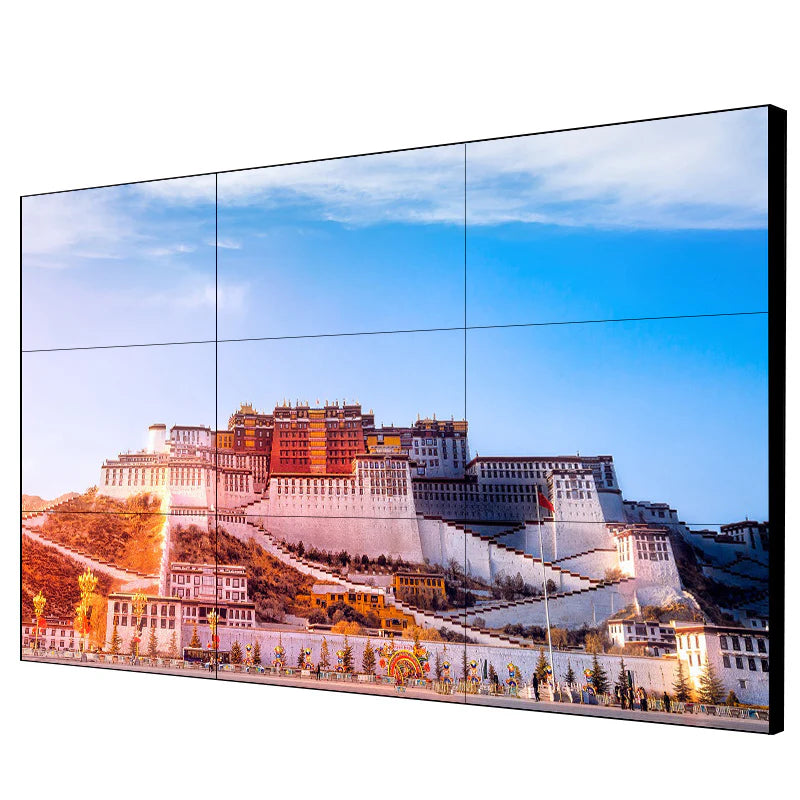

46” BOE LCD Video Wall – 3x3 Kit (9 Panels) | 1920x1080 FHD | 500 nits | Ultra Narrow Bezel 0.88mm / 1.7mm / 3.5mm | HDMI Splicer + Wall Mount Included

From $89,211.00
Bezel Options
Brightness
Package Includes
$89,211.00
$89,211.00
Shipping calculated at checkout.
In stock

46” BOE LCD Video Wall – 3x3 Kit (9 Panels) | 1920x1080 FHD | 500 nits | Ultra Narrow Bezel 0.88mm / 1.7mm / 3.5mm | HDMI Splicer + Wall Mount Included

Package Included

Version Package Included
3x3 Package

9 × 46" Black Frame LCD Video Wall Screen；

9 × Hydraulic Front Maintenance Bracket;

1 × 1 in 12 out HDMI Splitter;

10 × HDMI Cable;

8 × RJ45 Ethernet Cable;

9 × Power Plug Cable；

1 × Remote Controller (battery not included)；

2 × Plywood Packing Case

Order & Logistics

  • Lead Time: 3–7 business days
  • Packing: Plywood case and corrugated carton with protective foam
  • Shipping Method Options:
  1. Sea Freight + door-to-door truck — typical transit time: 30–38 days after vessel departure.
  2. Air Freight + door-to-door truck — typical transit time: 9–18 days after flight departure.

    DDP Term: All fees included. If DDP is not supported in the destination country, we will confirm alternative shipping solutions with the buyer (e.g., EXW / FOB).

    ⚠️ This product line is not eligible for Free Shipping due to heavy freight. Final freight charges will be calculated automatically at checkout based on order weight.

Specification

Screen size 46'' 49'' 55'' 65''
Interface gap 3.5mm|1.7mm|0.88mm 3.5mm 3.5mm|1.7mm|0.88mm 3.5mm
Display size 1018*572 mm 1073.8*604 mm 1209.6*680.4 mm 1428*803 mm
Frame size 1023.98*578.7*83.2 mm 1077.58*607.8*63 mm 1211.4*682.2*60.1 mm 1433.88*808.92*78 mm
Resolution 1920x1080 1920x1080 1920x1080 1920x1080
Brightness 500 cd/sqm 500 cd/sqm 500 cd/sqm 500 cd/sqm
Contrast ratio 3500:1 3500:1 3500:1 3500:1
Viewing angle 178/178 178/178 178/178 178/178
Response time 6ms 6ms 6ms 6ms
Display mode 16:9 16:9 16:9 16:9
Menu language English, Chinese and others
Input voltage AC100-240V (50/60HZ)
Operating temperature 0-50°C
Mounting method Wall-mounted, front-maintenance hydraulic support, vertical support, embedded, cabinet, ceiling-mounted

Features:

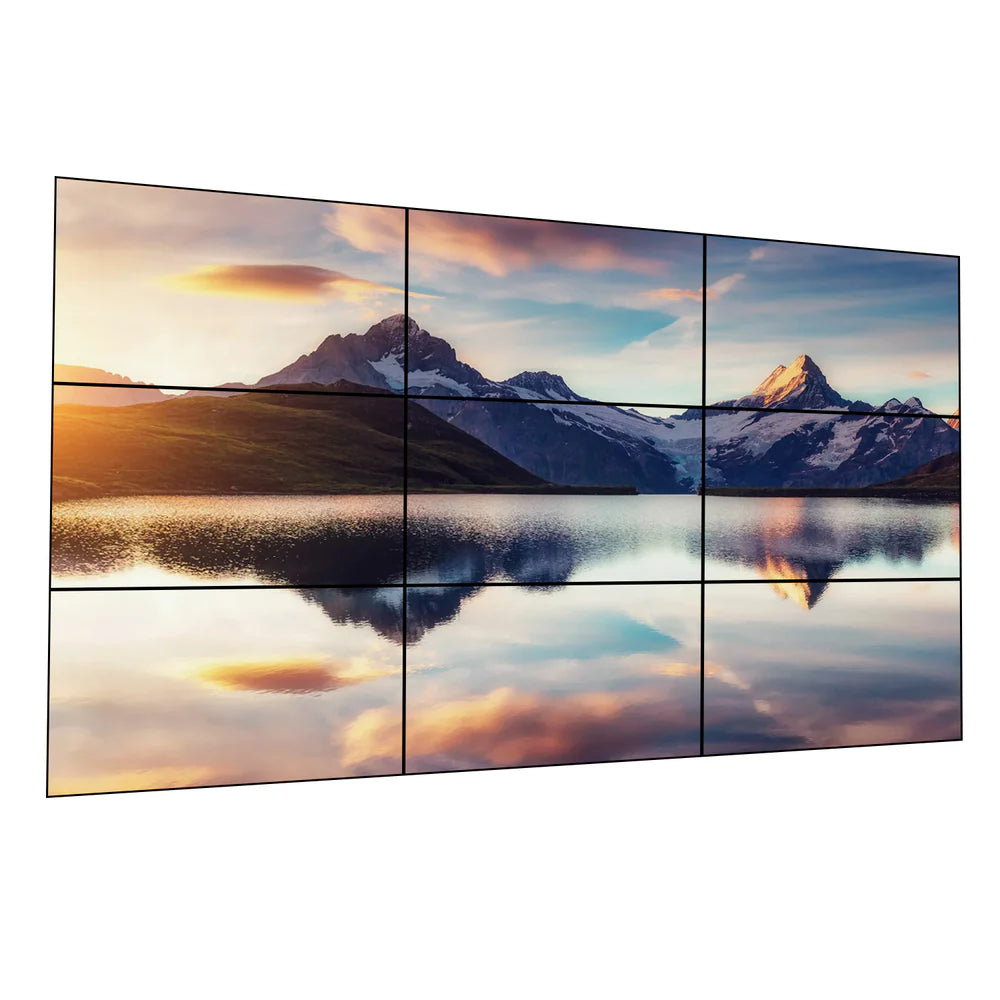

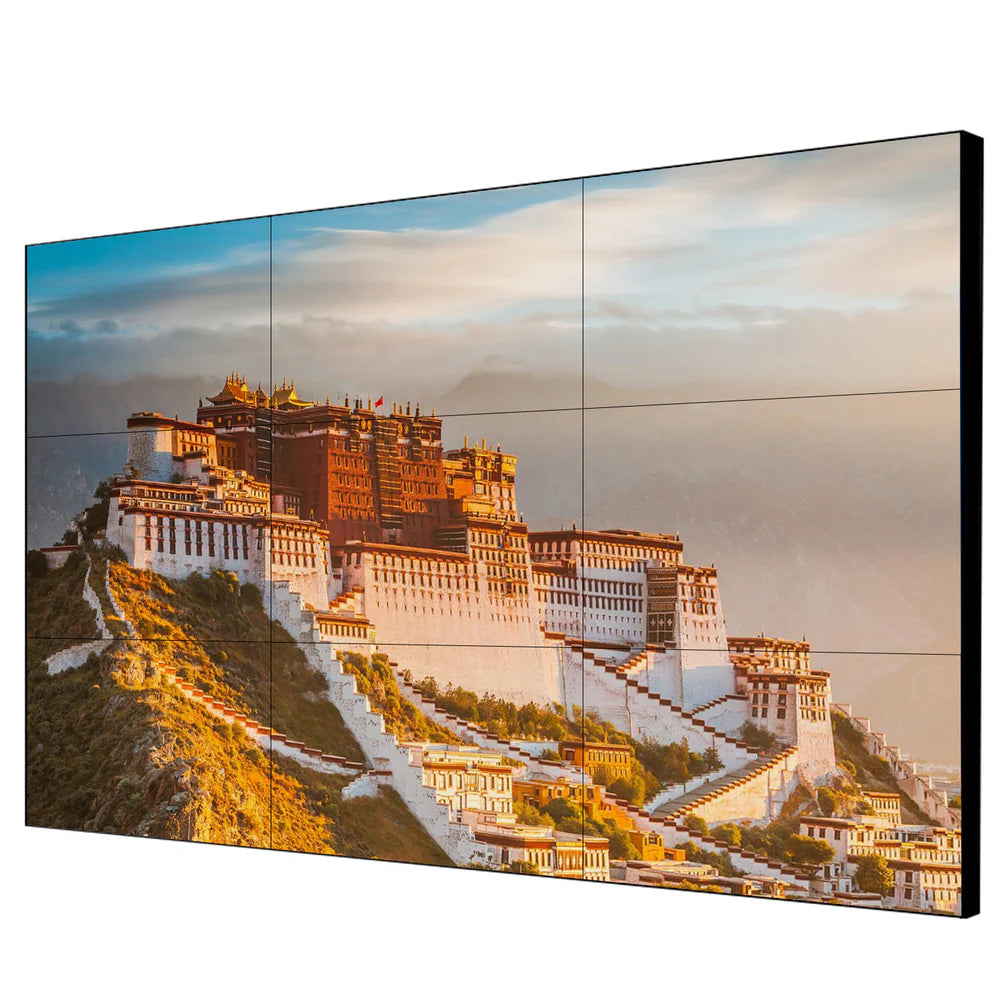

1. Narrow Bezel LCD Screen Display

Ultra-narrow bezel optional from 3.5mm, 1.7mm and 0.88mm for virtually seamless, life-like viewing experience

2. BOE Industrial LCD Panel

HIGH DEFINITION RESOLUTION: 1920×1080 Full HD resolution delivers sharp and vivid images.
178° WIDE VIEWING ANGLE: Consistent color and clarity from any angle.
3D NOISE REDUCTION: Restores clean and sharp picture quality.
ISP HARD SCREEN: Smooth motion performance and durable panel structure.

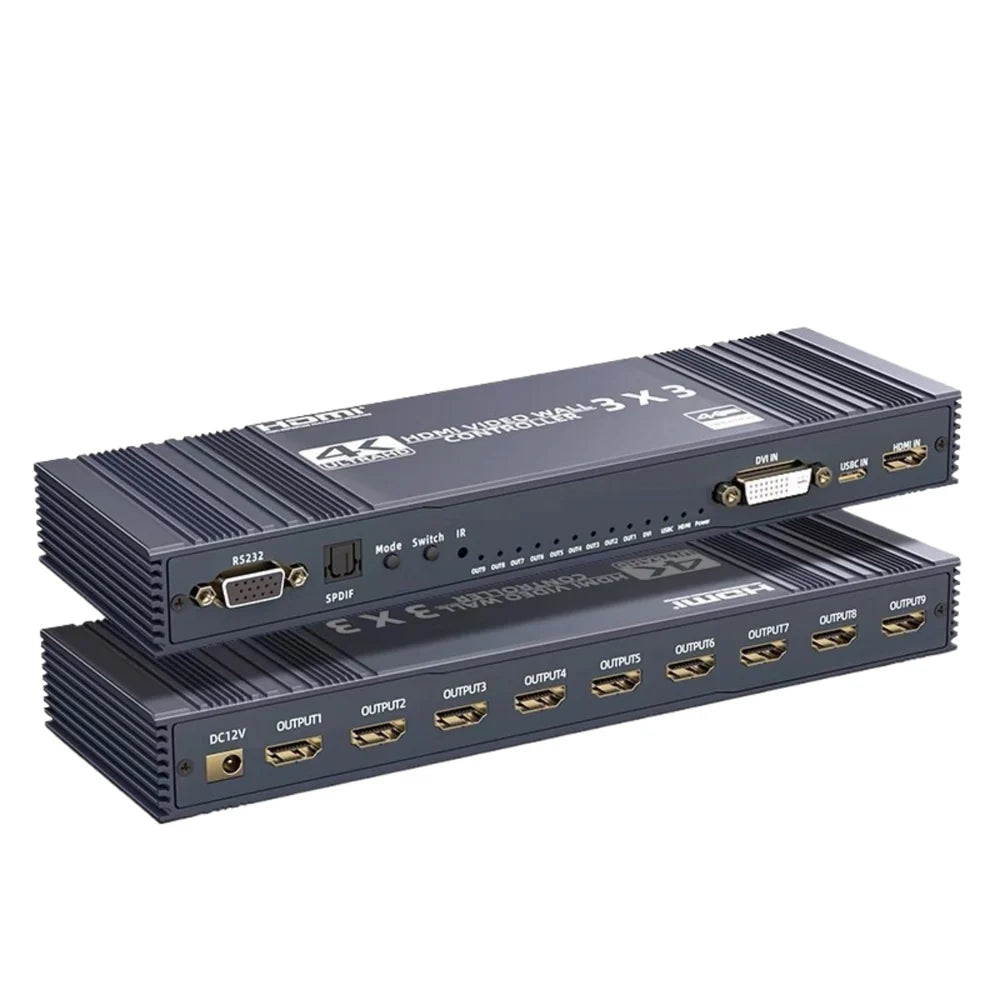

3. HDMI Splicer System

  • Supports HDMI, DVI and Type-C signal inputs
  • Flexible horizontal or vertical splicing
  • Edge blending and seam adjustment
  • Supports 180° image flip
  • RS232 + remote control operation
  • Audio synchronization separation supported

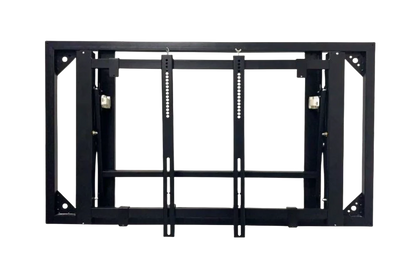

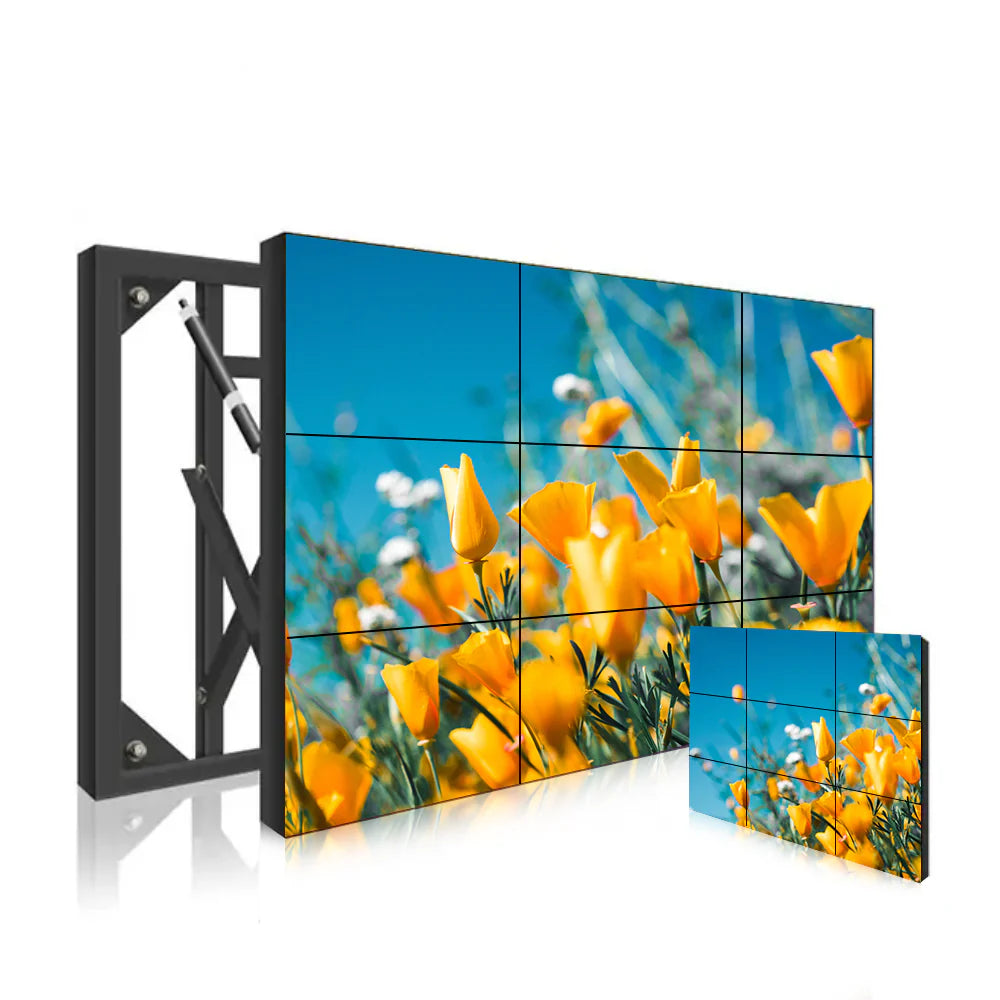

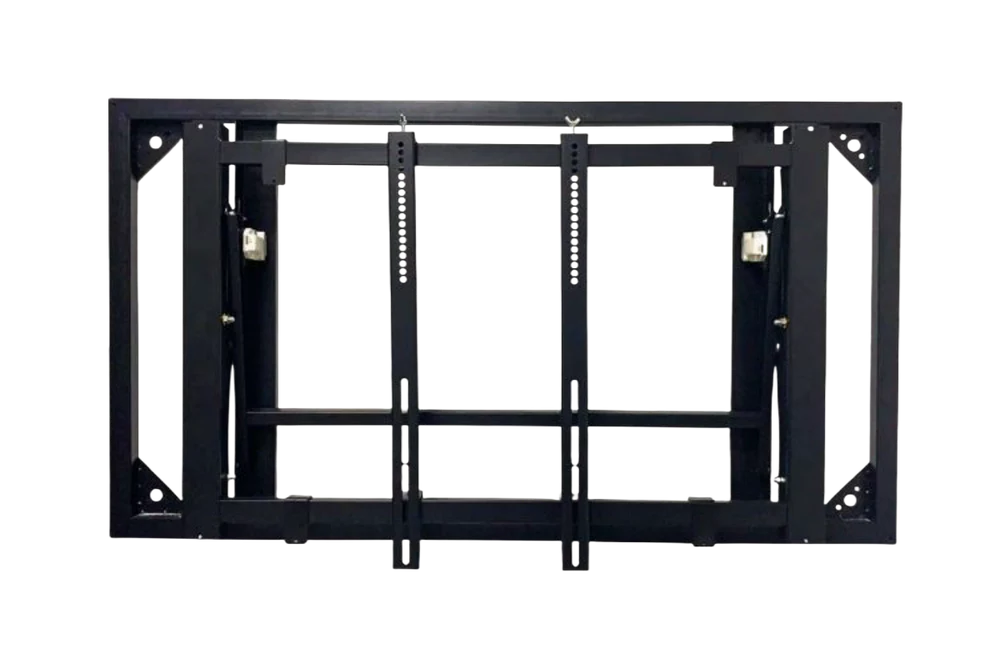

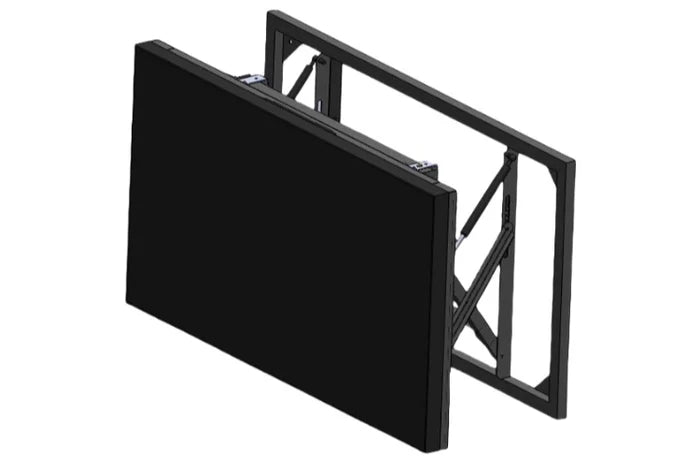

4. Hydraulic Front Maintenance Bracket

  • Easy Front Access – Pop-out design for quick maintenance
  • Uninterrupted Operation – Service without shutting down the wall
  • Space-Saving Design – Ideal for tight installation spaces
  • Hydraulic Support – Smooth and stable opening system
  • Convenient Servicing – Full access for repair and replacement
