OD-320SR Series Outdoor LED Screen Module – 320×160mm | P2 / P2.5 / P3.076 / P4 / P5 / P8 / P10 | SMD | IP65 Front, IP54 Rear Cover | Front & Rear Service | Outdoor Digital Signage & Commercial Advertising Displays
From $169.00
Regular price
$169.00
Sale price
$169.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
In stock

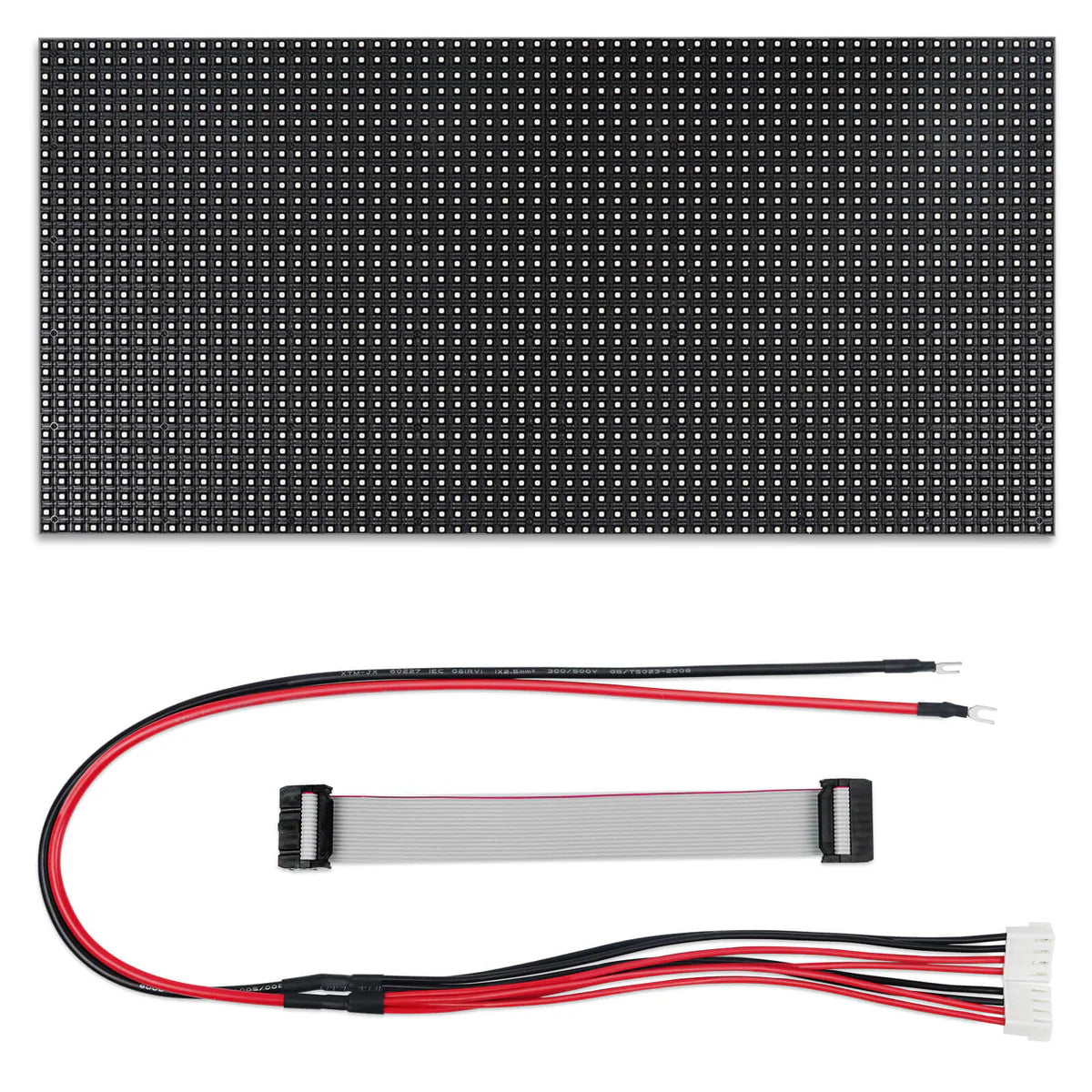

Package Included
| Version | Package Included |
| 1pc Sample Pack | 1 × P10/P8/P5/P4/P3.076/P2.5/P2 320×160mm Outdoor LED Screen Modules 1 × 5V Power Cable 1-to-2 Split 1 × Flat Data Cable |
| 30pcs Standard Pack | 30 × P10/P8/P5/P4/P3.076/P2.5/P2 320×160mm Outdoor LED Screen Modules 15 × 5V Power Cable 1-to-2 Split 30 × Flat Data Cable |
| 200pcs Pack | 200 × P10/P8/P5/P4/P3.076/P2.5/P2 320×160mm Outdoor LED Screen Modules 100 × 5V Power Cable 1-to-2 Split 200 × Flat Data Cable |
| 500pcs Pack | 500 × P10/P8/P5/P4/P3.076/P2.5/P2 320×160mm Outdoor LED Screen Modules 250 × 5V Power Cable 1-to-2 Split 500 × Flat Data Cable |
About this item
- Rear Cover Outdoor LED Screen Modules – Designed with a 320×160mm standardized outdoor module structure, these Outdoor LED Screen Modules are suitable for weatherproof outdoor LED displays, digital billboards, smart city display systems, transportation screens, and commercial outdoor projects requiring enhanced structural protection and flexible maintenance access.

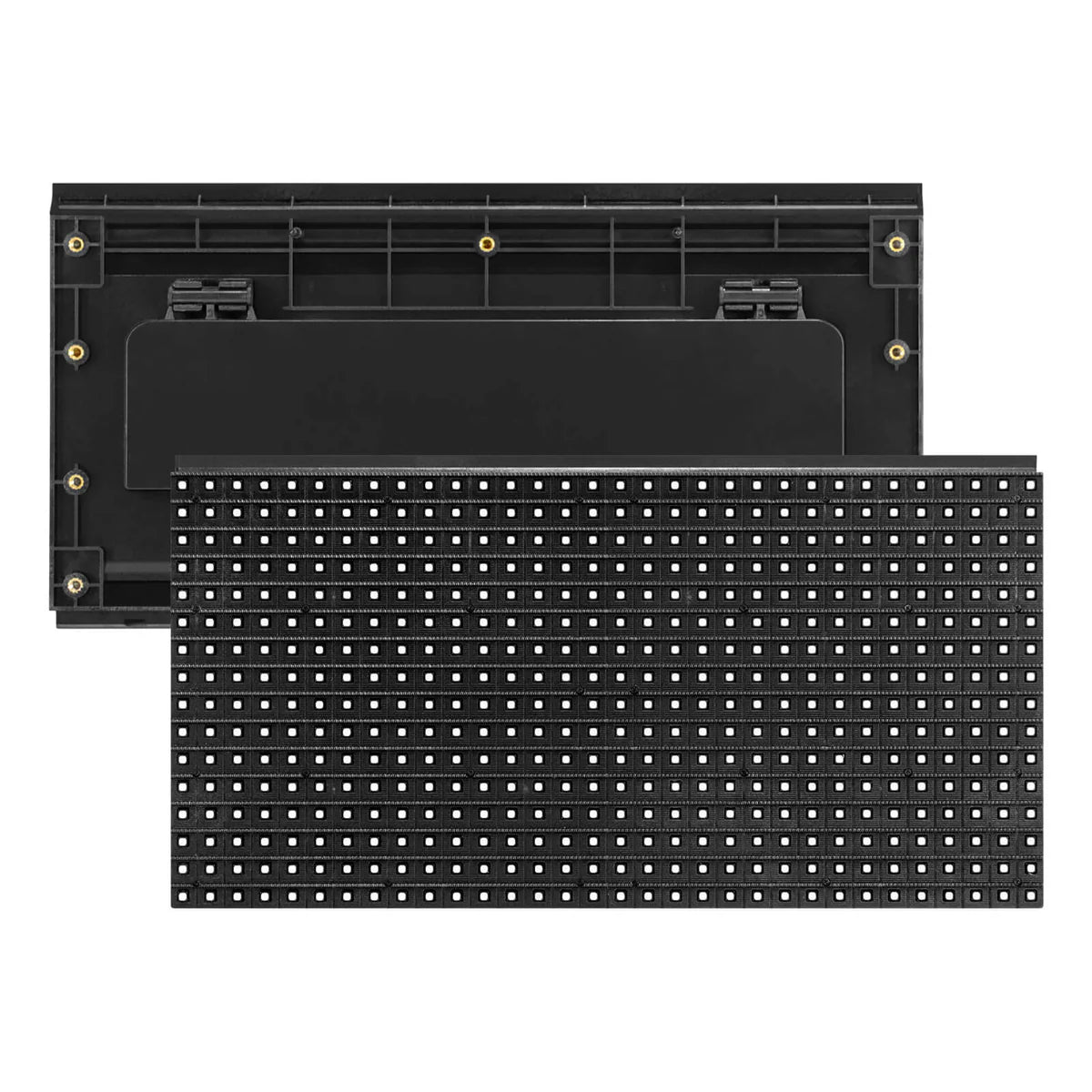

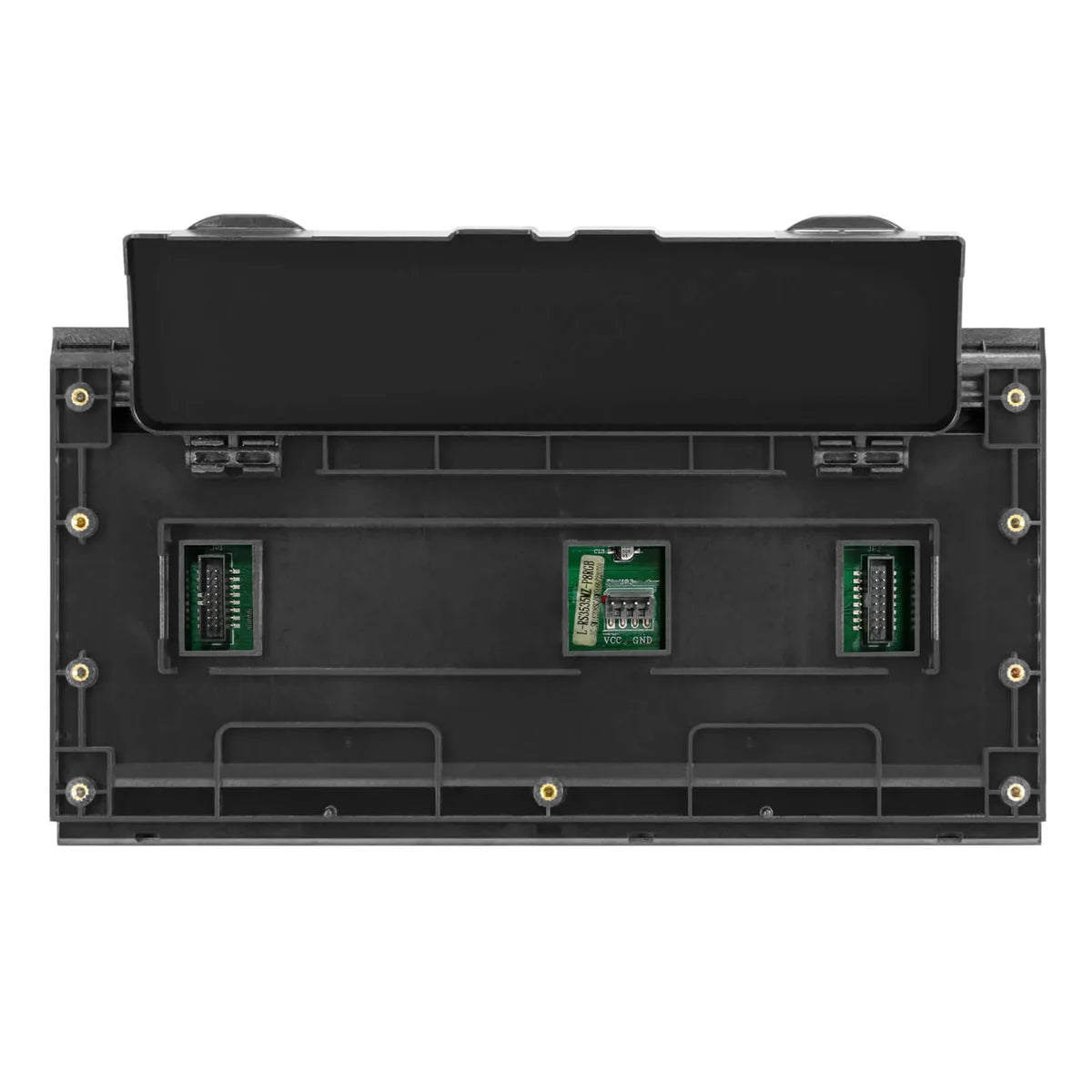

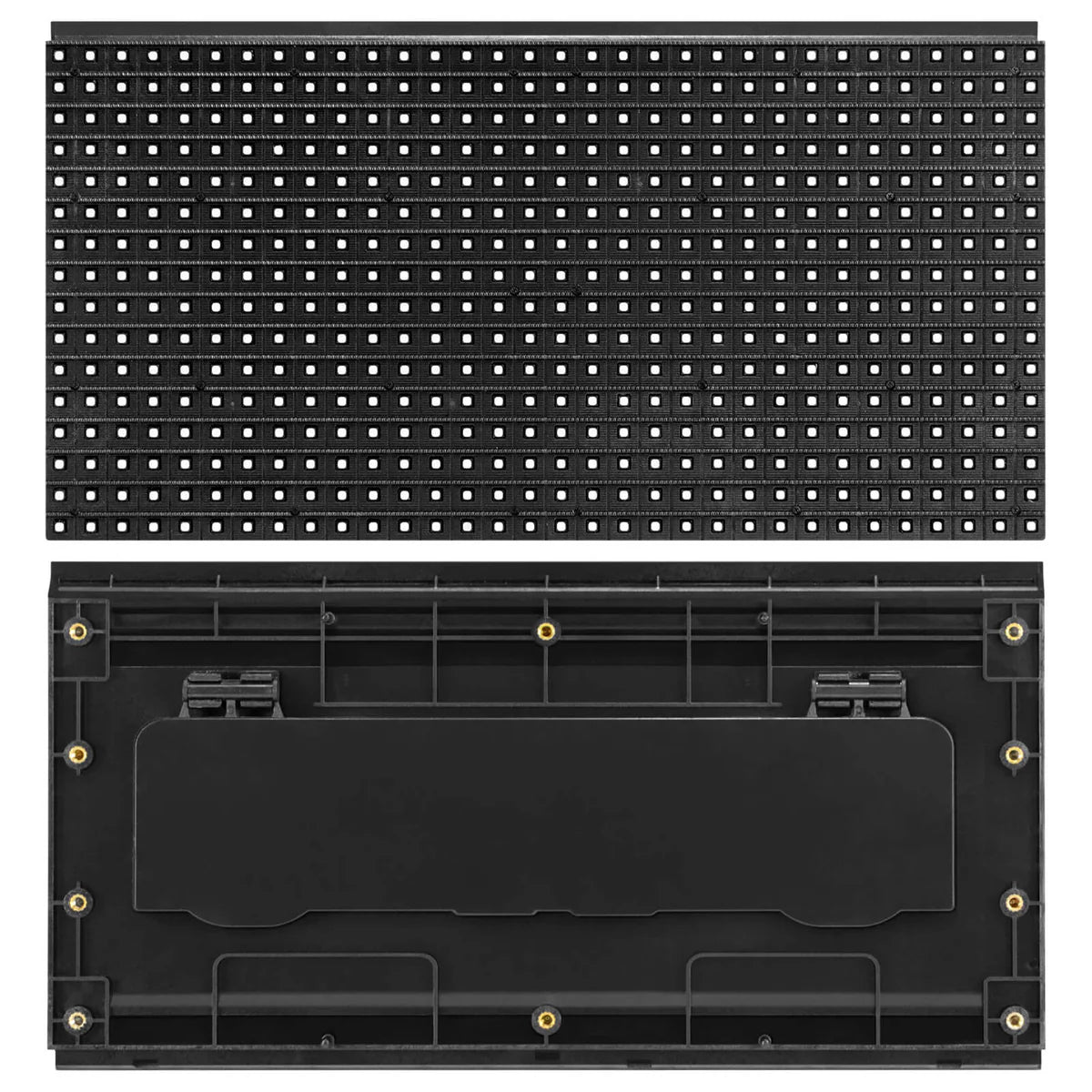

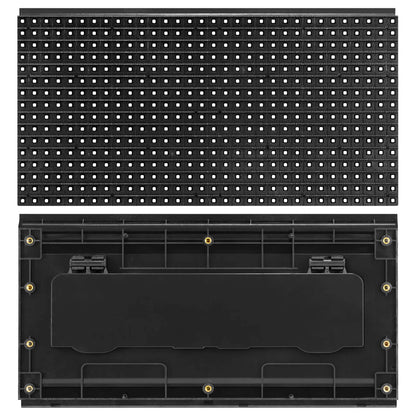

- Integrated Rear Cover Protection Structure – The rear cover design improves module protection, enhances structural stability, and supports reliable deployment in outdoor environments exposed to dust, moisture, and changing weather conditions.
- IP65 Front and IP54 Rear Protection Design – The separated protection structure combines IP65 front protection with IP54 rear cover protection, improving environmental resistance while maintaining convenient service accessibility.
- Multiple Pixel Pitch Solutions – Available in P10, P8, P5, P4, P3.076, P2.5, and P2 pixel pitch options, providing different image detail and viewing distance solutions for outdoor LED display projects.
- Outdoor SMD LED Technology Platform – Featuring SMD3535, SMD1921, SMD1919, SMD1415, and SMD1516 LED technologies, these Outdoor LED Screen Modules provide stable brightness output, reliable color performance, and consistent outdoor display operation.

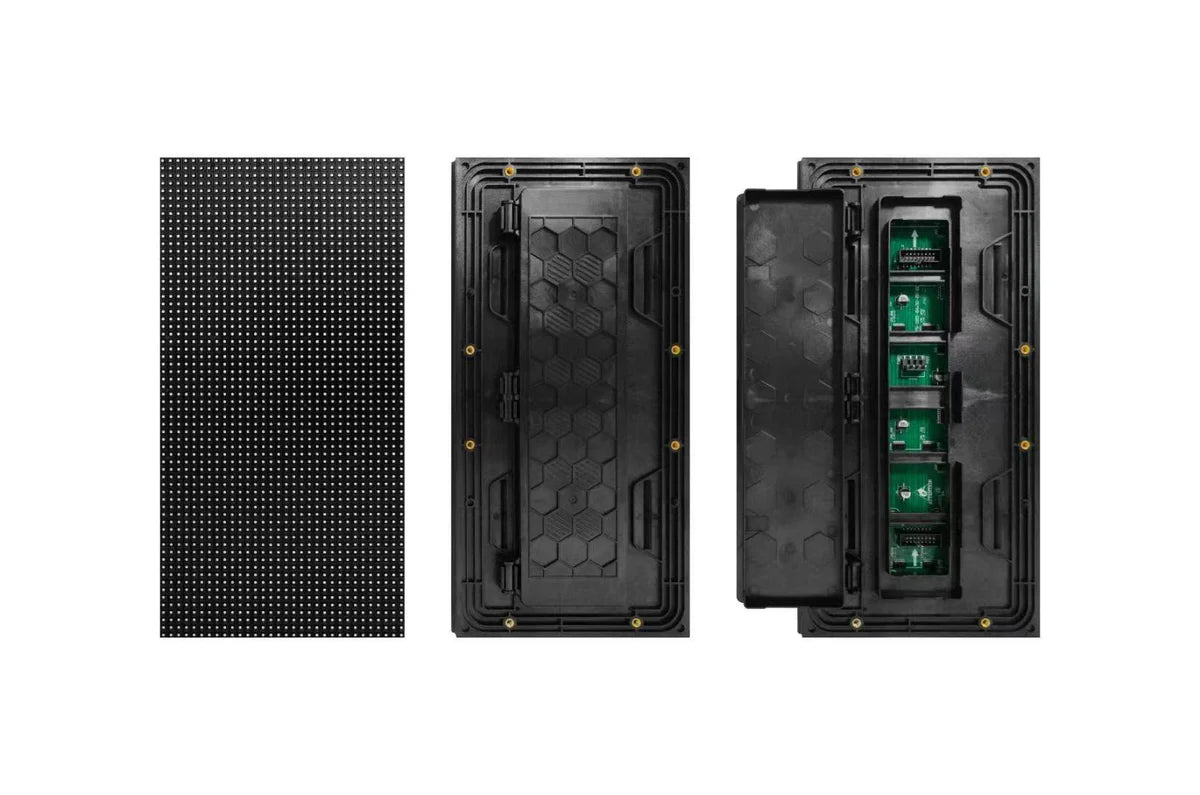

- Front & Rear Service Maintenance Structure – The dual-side maintenance design provides flexible access for installation, inspection, and module replacement, improving maintenance efficiency for commercial outdoor LED systems.
- Standard 320×160mm Outdoor Module Format – The standardized module size supports efficient cabinet integration, replacement maintenance, and scalable outdoor LED screen construction.
- Professional Outdoor Applications – Suitable for DOOH advertising displays, digital billboards, highway advertising screens, smart city information displays, transportation hub LED screens, and commercial outdoor LED projects.
Order & Logistics
Lead Time
- OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
- OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
- OD-320GR: Handling time 7–15 business days.
- OD-320SD / OD-320GD: Handling time 15–25 business days.
Freight & Delivery
- Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
- Available shipping methods: Standard shipping / Express shipping / Project logistics.
- Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
- Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
- For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.
Technical Specifications
| Specification | P10 | P8 | P5 | P4 | P3.076 | P2.5 | P2 |
| Module Size | 320×160mm | ||||||
| Pixel Pitch | 10mm | 8mm | 5mm | 4mm | 3.076mm | 2.5mm | 2mm |
| Module Resolution | 32×16 dots | 40×20 dots | 64×32 dots | 80×40 dots | 104×52 dots | 128×64 dots | 160×80 dots |
| Pixel Density | 10,000 dots/m² | 15,625 dots/m² | 40,000 dots/m² | 62,500 dots/m² | 105,625 dots/m² | 160,000 dots/m² | 250,000 dots/m² |
| LED Type | SMD3535 | SMD3535 | SMD1921 | SMD1919 / SMD1921 | SMD1415 / SMD1516 | SMD1415 / SMD1516 | SMD1415 / SMD1516 |
| Technology System | Outdoor LED Screen Modules with Rear Cover Structure | ||||||
| Brightness | ≥4500 nits | ≥4000 nits | |||||
| Protection Structure | Front Protection: IP65 Rear Protection: IP54 Rear Cover Structure: Integrated / Patent Rear Cover Structure |
||||||
| Installation Method | Screw Lock + Magnetic | ||||||
| Maintenance Method | Front & Rear Service | ||||||
Structure & Design Features

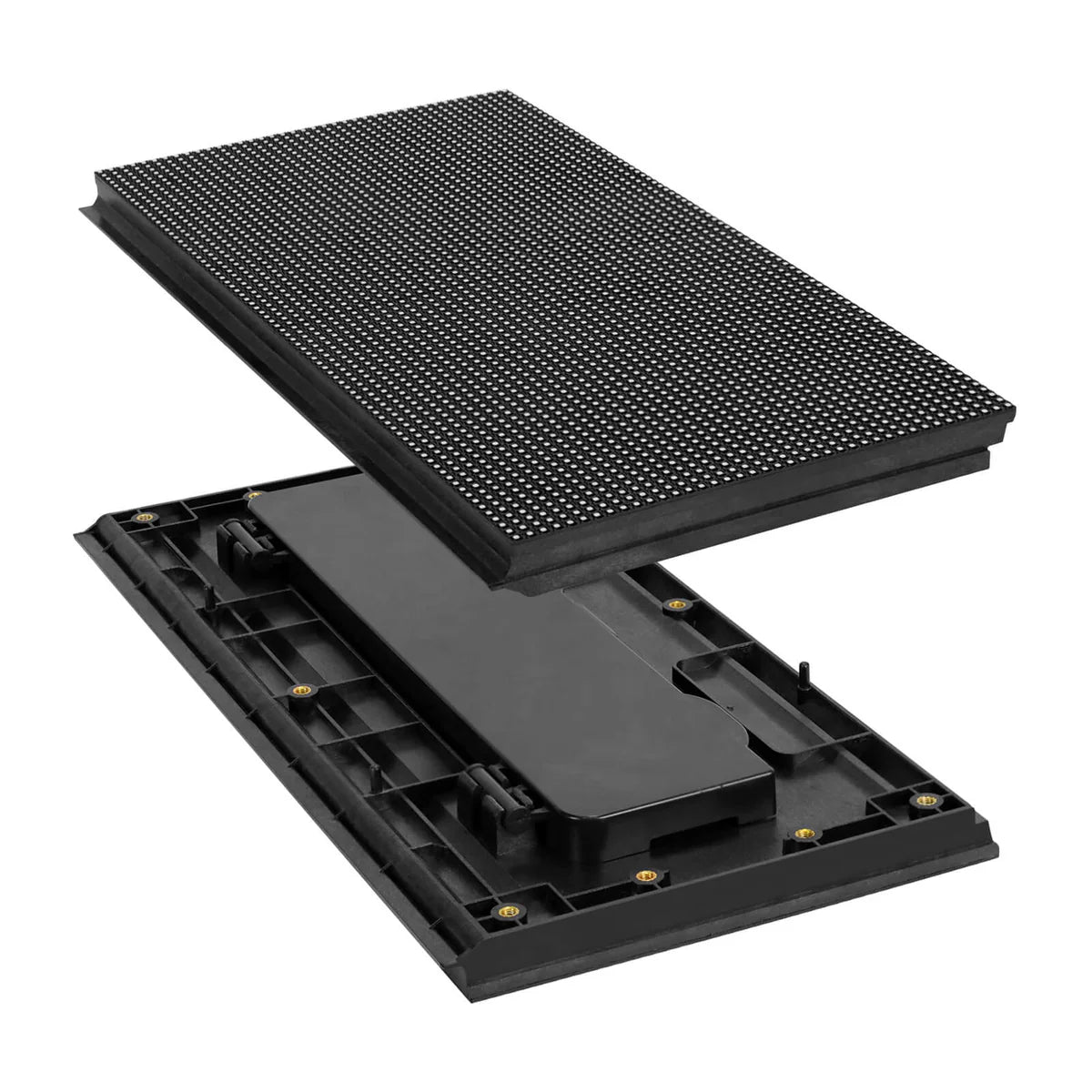

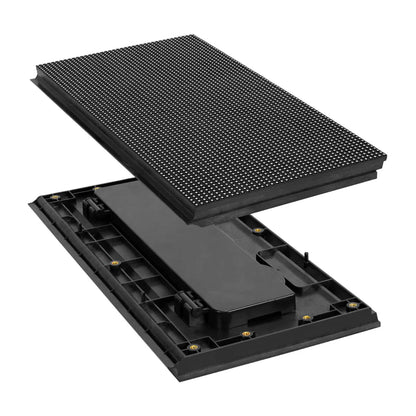

- Integrated Rear Cover Protection Structure – The rear cover design provides additional physical protection, improves module stability, and supports reliable Outdoor LED Screen Modules deployment in demanding outdoor environments.
- IP65 Front and IP54 Rear Weatherproof Structure – The separated protection structure improves resistance against dust, moisture, and outdoor environmental exposure while maintaining flexible service accessibility.
- Front & Rear Service Outdoor LED Screen Modules Platform – The dual-side maintenance structure supports flexible installation, inspection, and module replacement, improving maintenance efficiency for fixed outdoor LED projects.
- Multi-Pixel-Pitch Outdoor LED Solution – P10, P8, P5, P4, P3.076, P2.5, and P2 pixel pitch options provide different solutions for viewing distance, image detail, and application requirements.
- SMD3535/SMD1921/SMD1919/SMD1415 Outdoor LED Technology – Different LED packages are optimized for different pixel pitch ranges, providing stable brightness, reliable color reproduction, and consistent outdoor display performance.
- Patent Rear Cover Outdoor Module Design – Selected models feature patent rear cover structures to enhance protection, structural stability, and reliability during long-term outdoor operation.
Installation Guide
- Confirm the cabinet size, module layout, pixel pitch, receiving card configuration, power supply capacity, and rear cover structure before installation.
- Install the P10/P8/P5/P4/P3.076/P2.5/P2 320×160mm Outdoor LED Screen Modules according to the cabinet layout and ensure each module is securely fixed.
- Connect the data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
- Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
- Use front or rear maintenance access according to project structure requirements when replacing modules or performing system maintenance.
- Avoid strong impact, scratching, or improper handling of the LED surface and rear cover structure during transportation, installation, and maintenance.
Applications
- Weatherproof Outdoor LED Displays: Suitable for fixed outdoor LED screens requiring enhanced protection and flexible maintenance.
- DOOH Advertising Displays: Designed for digital billboards, outdoor advertising networks, and commercial media display systems.
- Smart City Information Displays: Suitable for transportation information systems, public displays, and urban communication screens.
- Transportation Hub LED Screens: Applicable for airports, stations, and public areas requiring stable outdoor visual communication.
- Commercial Outdoor LED Displays: Suitable for shopping centers, retail outdoor signage, brand experience displays, and large commercial LED projects.
- High Protection Outdoor LED Projects: Designed for projects requiring IP65 front protection, IP54 rear protection, rear cover structure, and convenient maintenance access.
