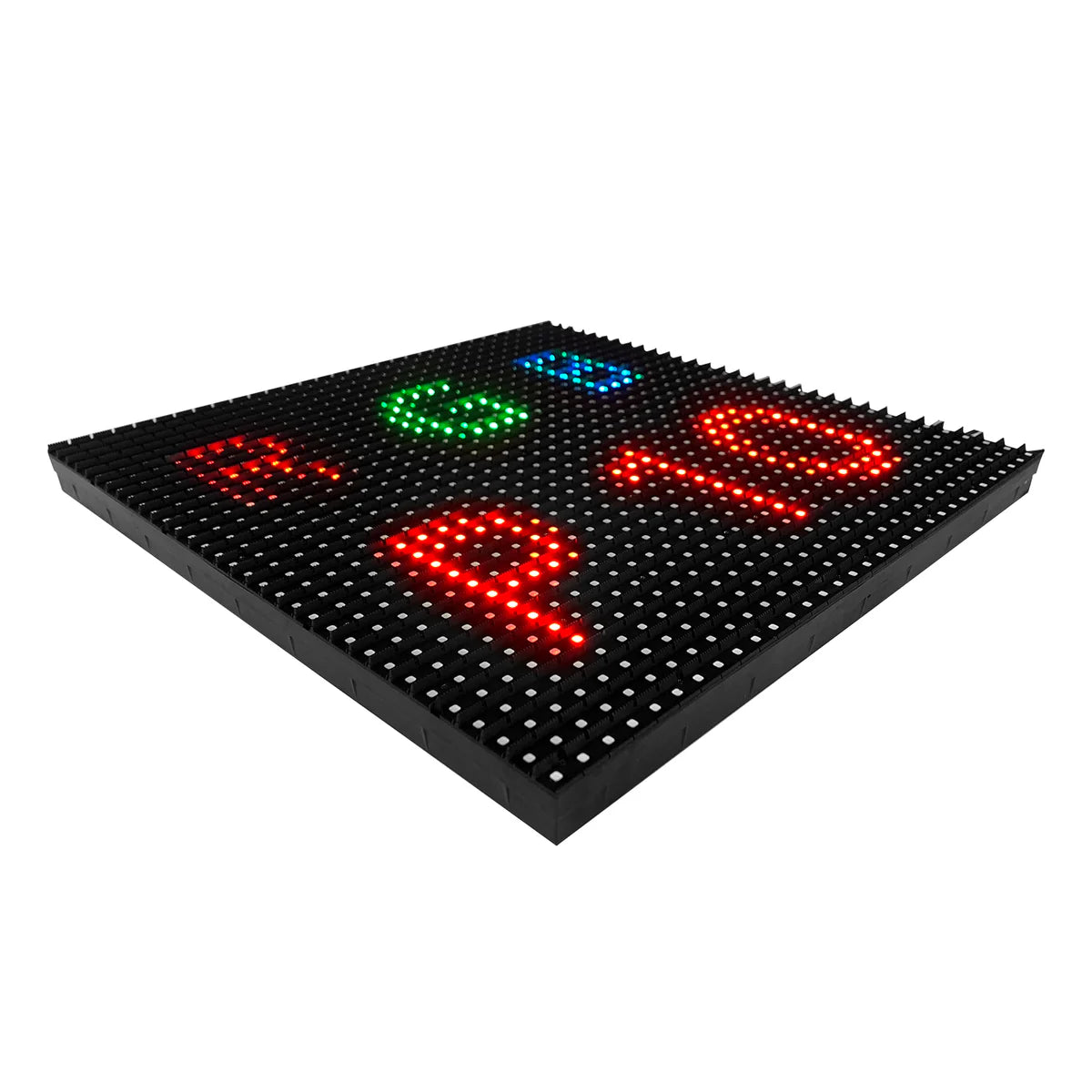

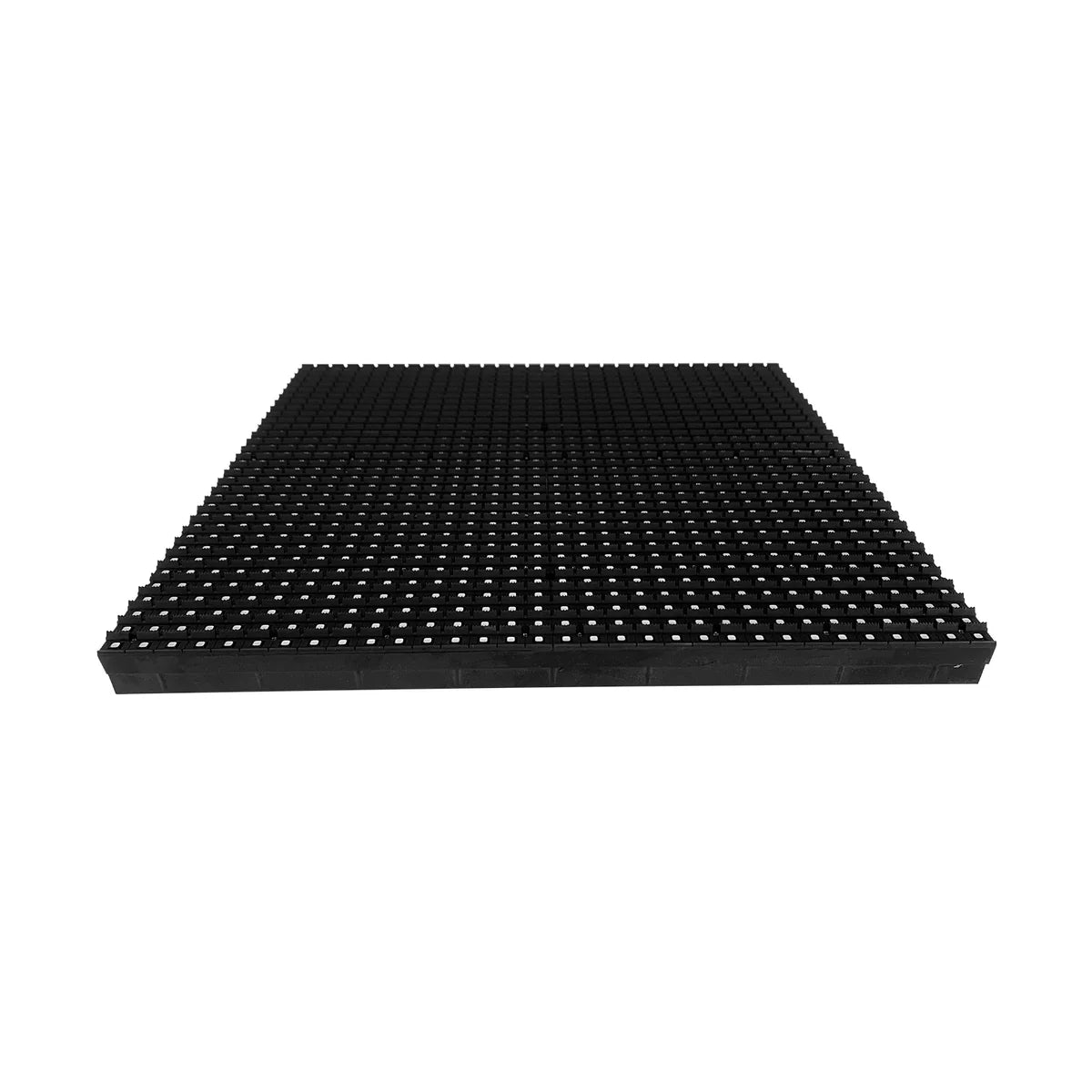

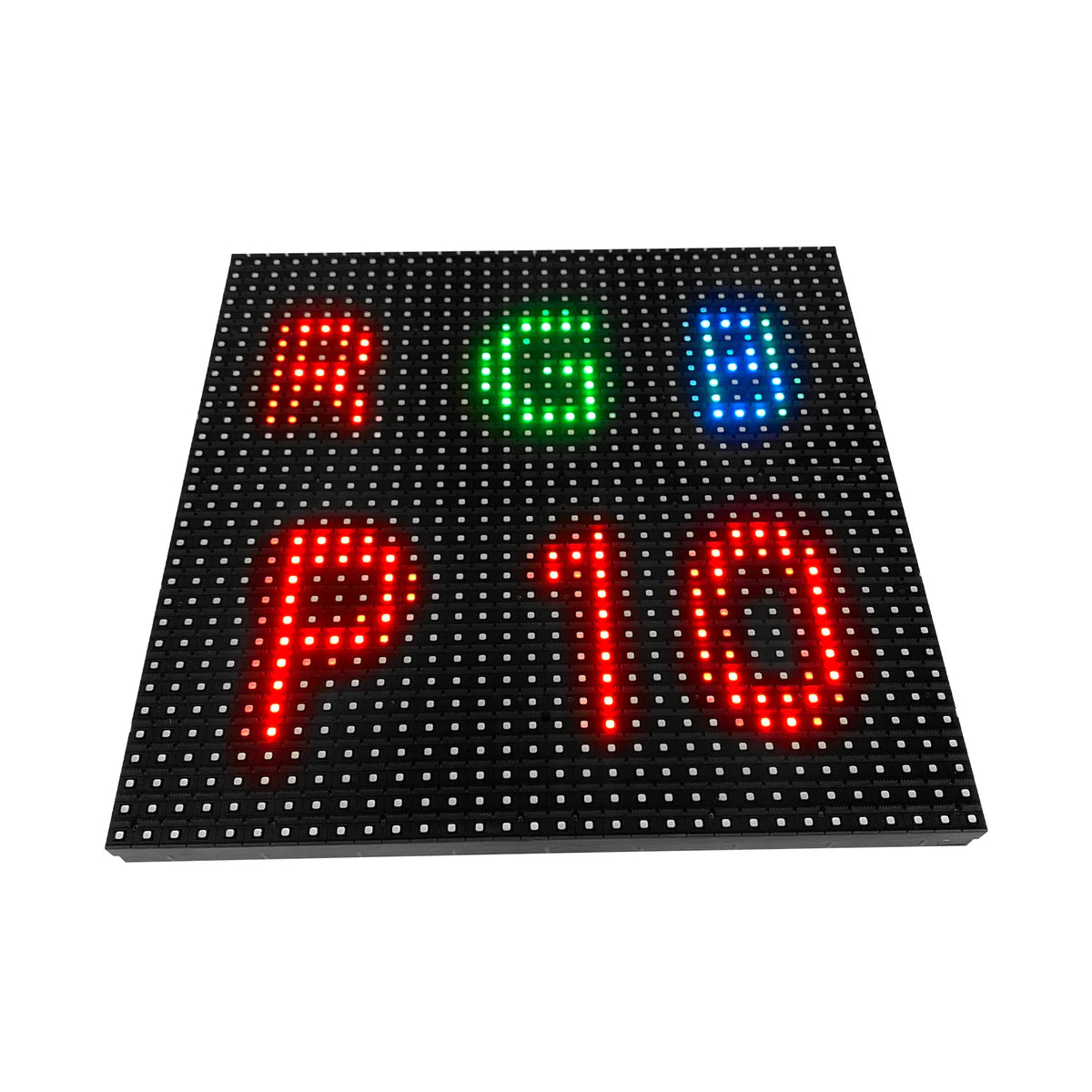

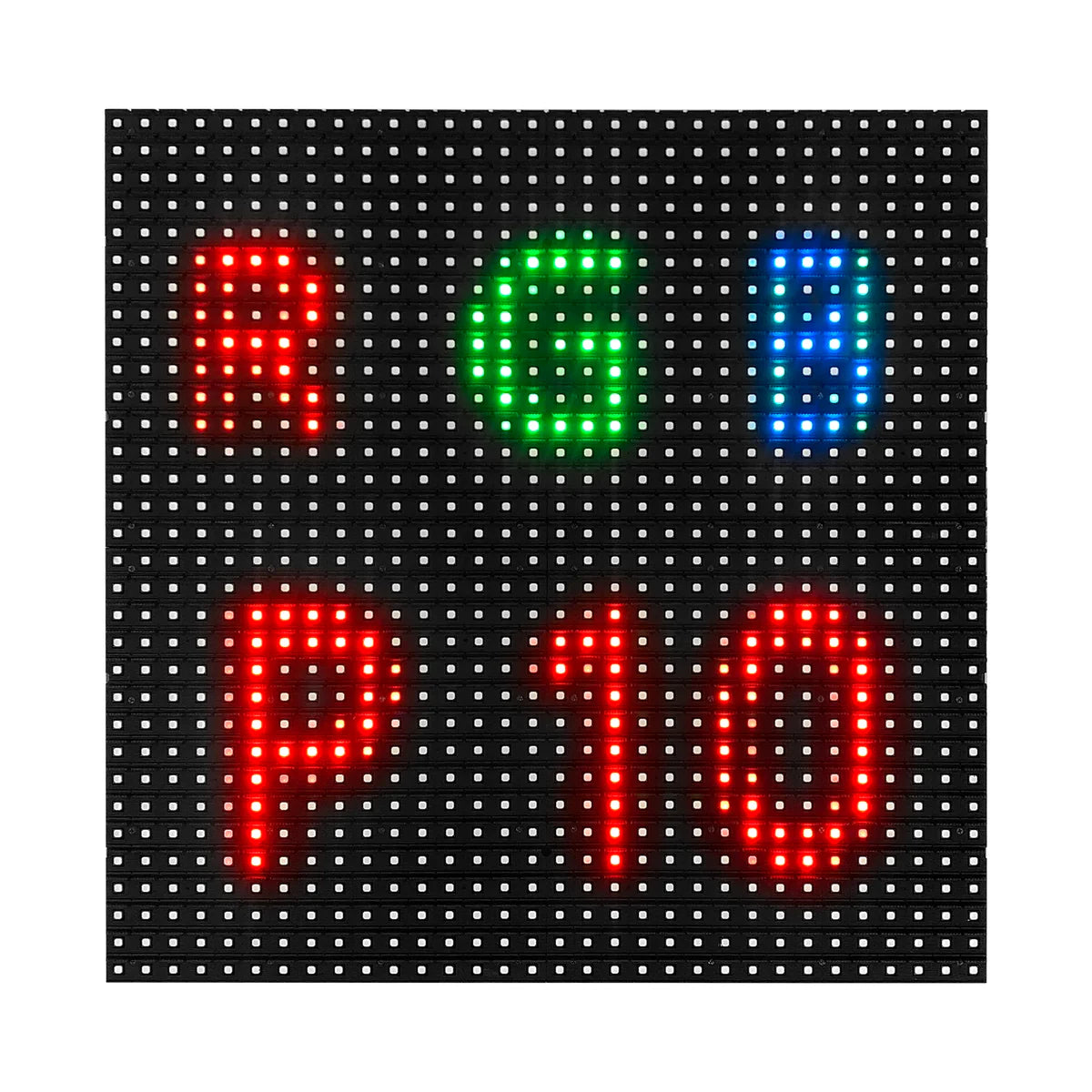

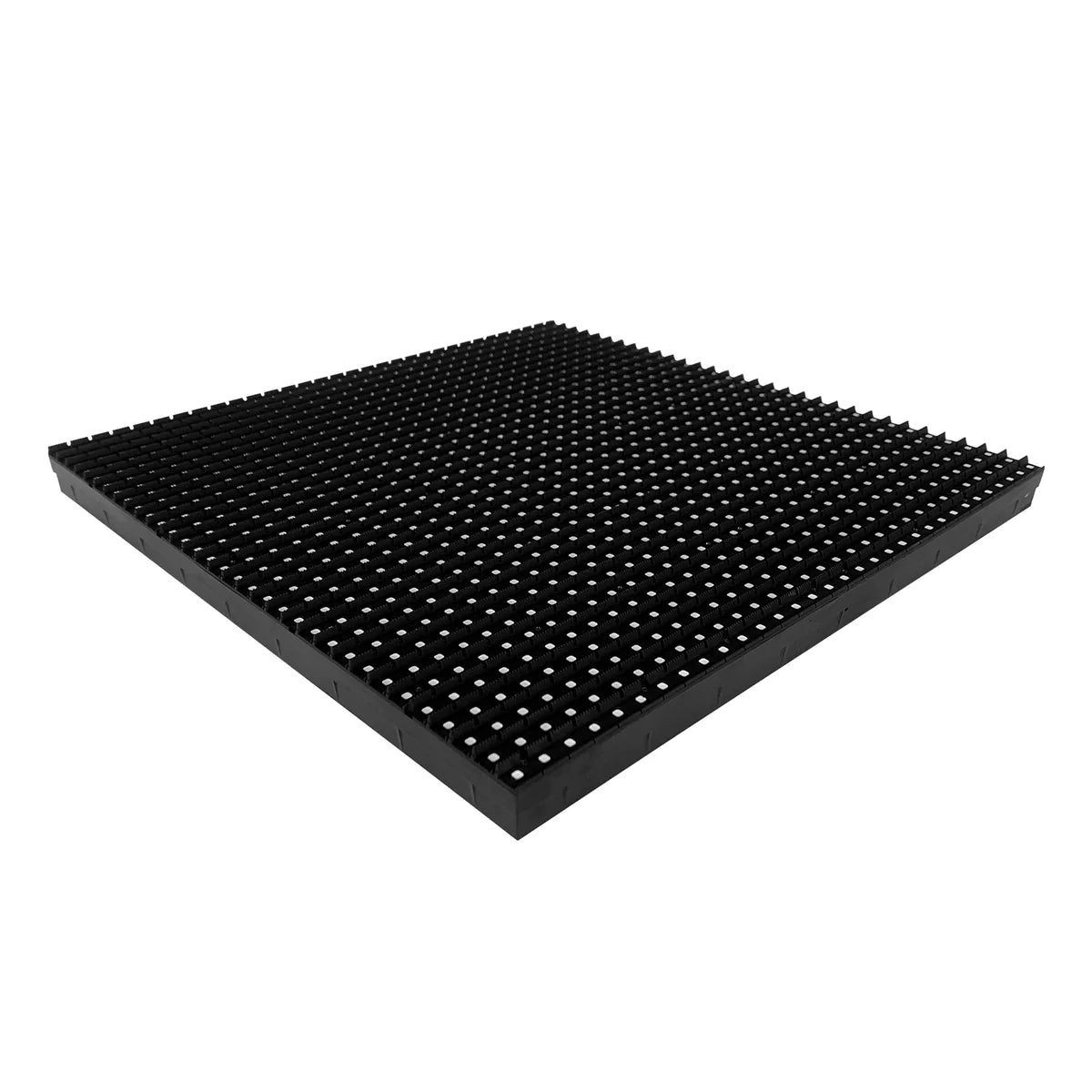

OD-320SD Series Outdoor LED Screen Module – 320×320mm | P4 / P5 / P6.67 / P8 / P10 | SMD | Double-sided IP65 | Front Service | Double-sided Advertising Displays & Outdoor Media Screens

From $70,550.00

Skip to product information
1 of 8
Pixel Pitch
Package Qty

Regular price $70,550.00
Sale price $70,550.00 Regular price
Shipping calculated at checkout.
In stock

Package Included

Version Package Included
200pcs Pack 200 × P10/P8/P6.67/P5/P4 320×320mm Outdoor LED Screen Modules
100 × 5V Power Cable 1-to-2 Split
200 × Flat Data Cable
500pcs Pack 500 × P10/P8/P6.67/P5/P4 320×320mm Outdoor LED Screen Modules
250 × 5V Power Cable 1-to-2 Split
500 × Flat Data Cable

About this item

  • 320×320mm Outdoor LED Screen Modules Platform – Designed with a square 320×320mm module structure, these Outdoor LED Screen Modules are suitable for weatherproof outdoor LED displays, digital billboards, building facade screens, commercial outdoor displays, and fixed outdoor LED projects requiring reliable structural performance.
  • IP65 Front & Back Weatherproof Protection – The fully sealed protection structure improves resistance against dust, rain, and outdoor environmental exposure, supporting stable operation in demanding outdoor conditions.
  • Multiple Pixel Pitch Solutions – Available in P4, P5, P6.67, P8, and P10 options, providing different image detail and viewing distance solutions for outdoor advertising, commercial displays, and digital signage applications.
  • High Brightness Outdoor Display Performance – Providing up to ≥6000 nits brightness by pixel pitch, these Outdoor LED Screen Modules deliver clear visibility under direct sunlight and strong outdoor lighting conditions.

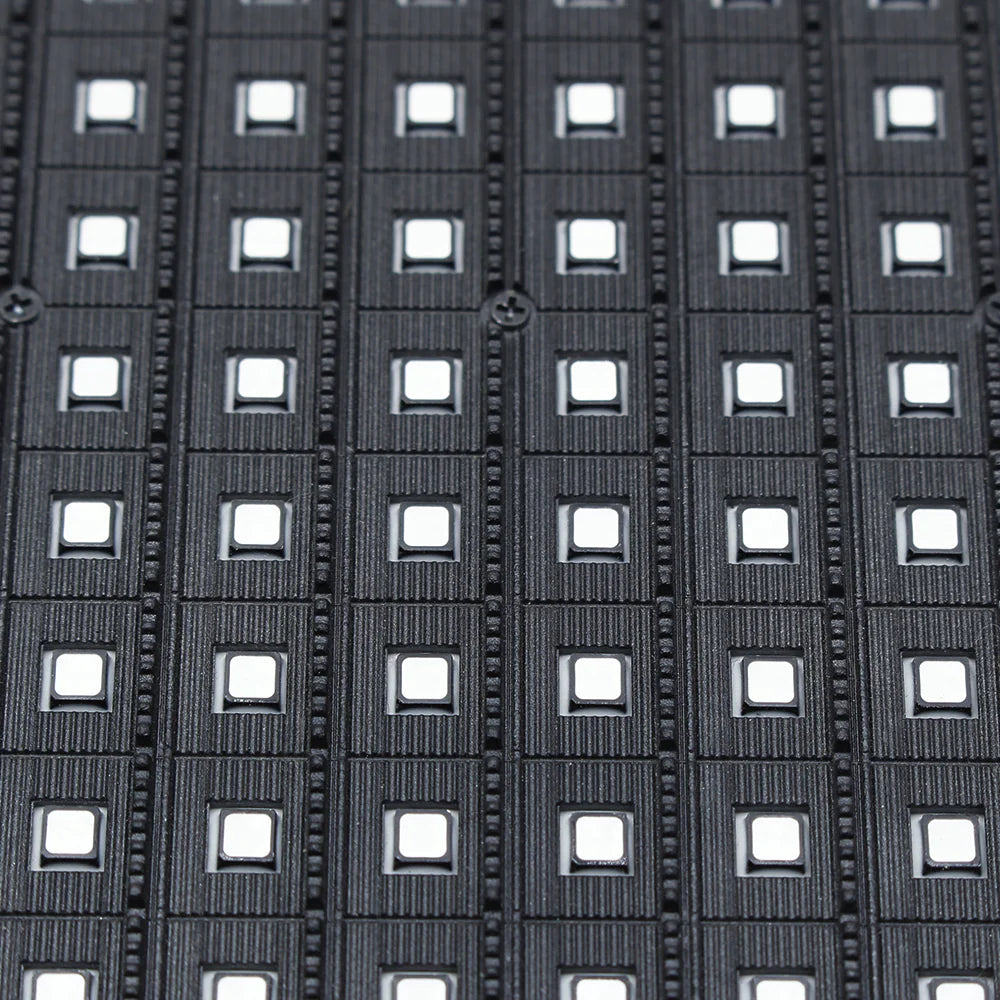

  • SMD LED Technology Platform – Featuring SMD1921 and SMD2727 LED technologies, the modules provide stable brightness output, reliable color reproduction, and consistent outdoor display performance.

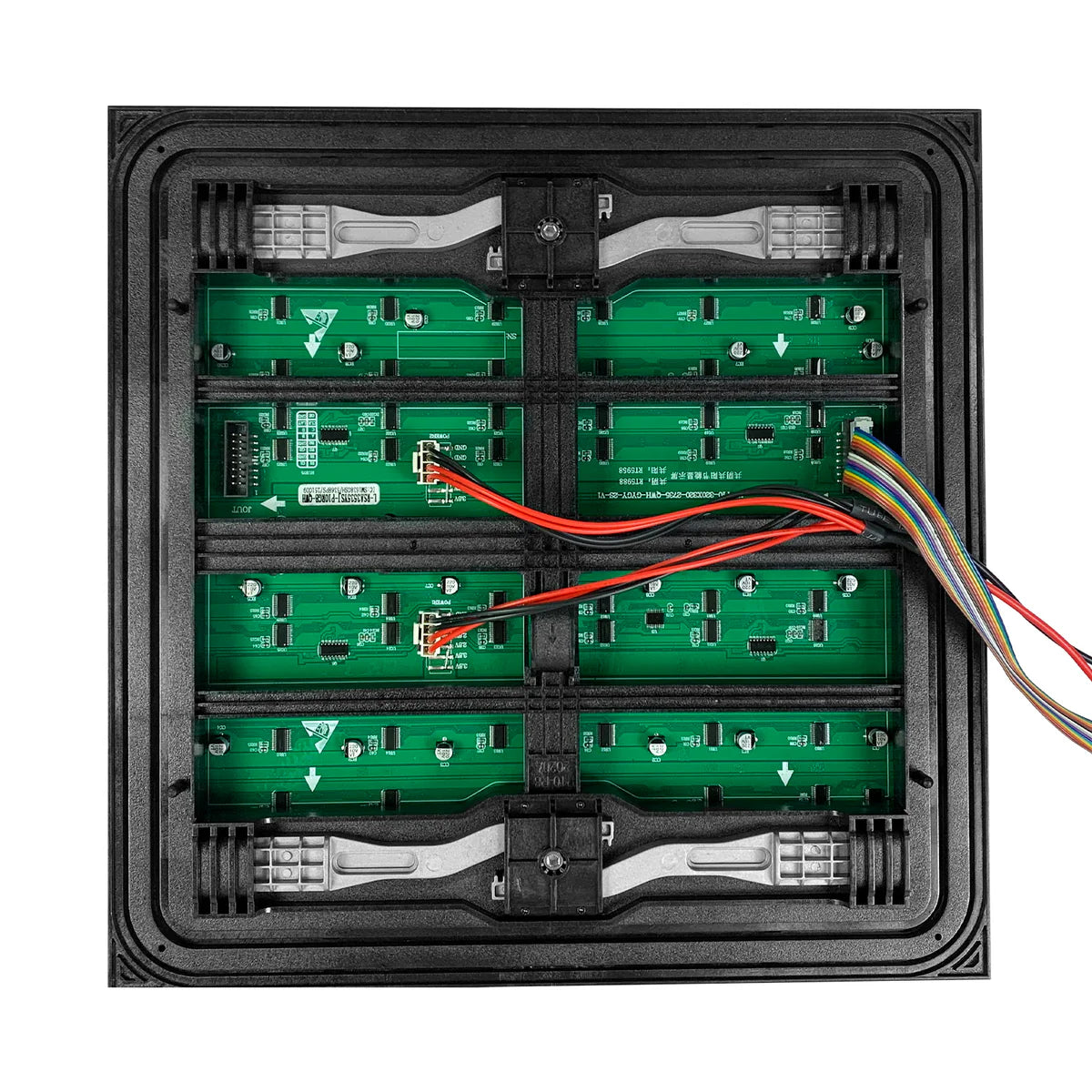

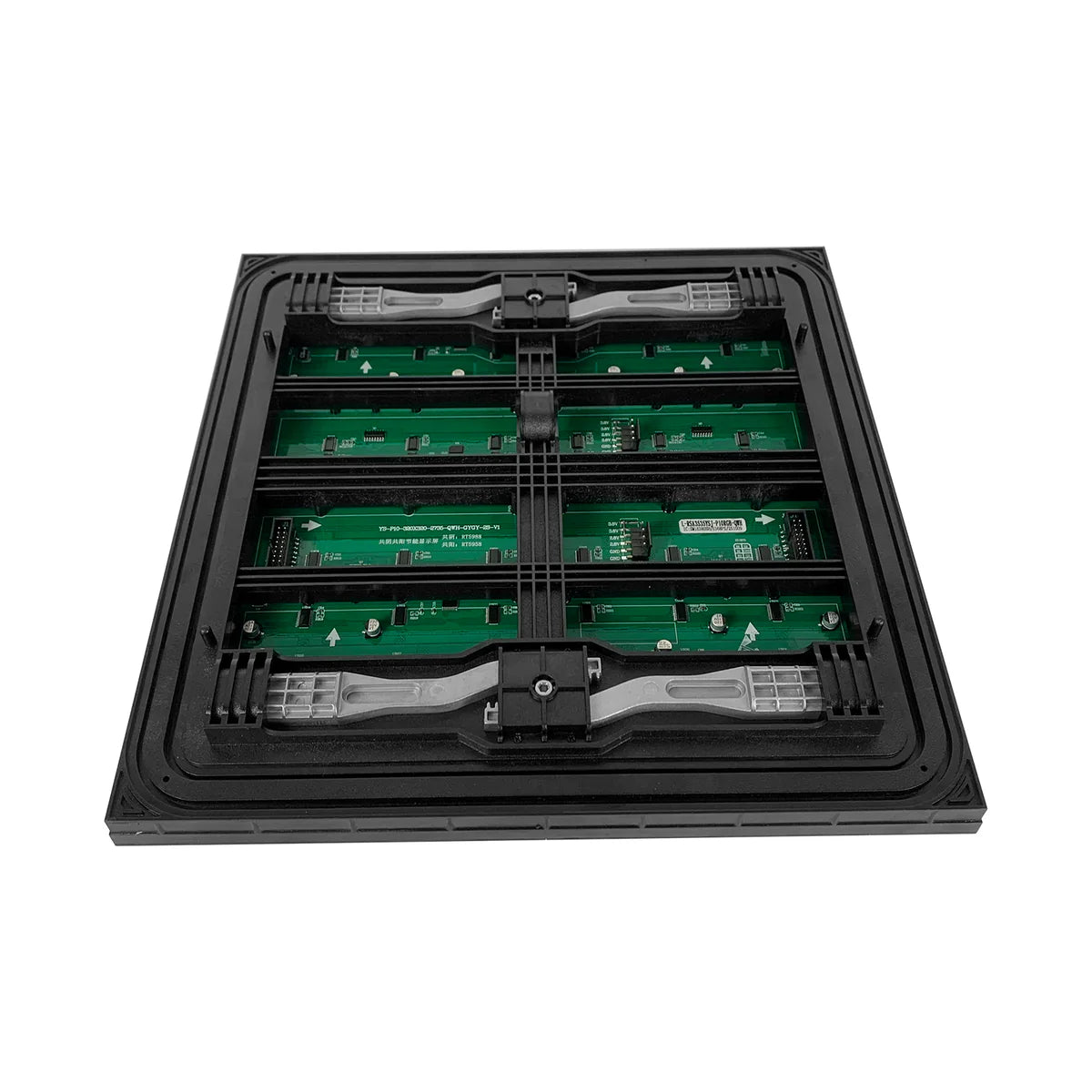

  • Front & Rear Service Maintenance Structure – The dual-side service design provides flexible installation, inspection, and module replacement access, improving maintenance efficiency for fixed outdoor LED systems.

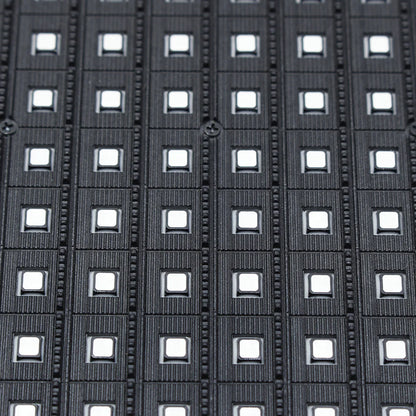

  • Flat Mask & High Mask Design Options – P4/P5 models use flat masks, while P6.67/P8/P10 models use high mask structures to improve outdoor contrast performance.
  • Large Format Outdoor LED Screen Modules Supply – Available in bulk package options to support engineering procurement, system integration, and large-scale outdoor LED display projects.

Order & Logistics

Lead Time

  • OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
  • OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
  • OD-320GR: Handling time 7–15 business days.
  • OD-320SD / OD-320GD: Handling time 15–25 business days.

Freight & Delivery

  • Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
  • Available shipping methods: Standard shipping / Express shipping / Project logistics.
  • Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
  • Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
  • For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Specification P4 P5 P6.67 P8 P10
Module Size 320×320mm
Pixel Pitch 4mm 5mm 6.67mm 8mm 10mm
LED Configuration SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Module Resolution 80×80 dots 64×64 dots 48×48 dots 40×40 dots 32×32 dots
Pixel Density 62,500 dots/m² 40,000 dots/m² 22,500 dots/m² 15,625 dots/m² 10,000 dots/m²
Module Mask Flat Flat High Mask High Mask High Mask
Driving Mode (Scan) 1/10 1/8 1/6 1/4 1/2
Brightness ≥5500 nits ≥5500 nits ≥6000 nits ≥6000 nits ≥6000 nits
Refresh Rate 3840Hz
Contrast Ratio ≥4000:1
Gray Level 65,536
Viewing Angle (H/V) 140°/140° 140°/140° 140°/85° 140°/85° 140°/85°
Input Voltage AC110/220V ±10%, 50/60Hz
Working Voltage DC 5V
Power Consumption (Max / Avg) ≤900 / ≤300 W/㎡ ≤850 / ≤283 W/㎡ ≤830 / ≤276 W/㎡ ≤830 / ≤276 W/㎡ ≤830 / ≤276 W/㎡
Minimum Viewing Distance ≥4m ≥5m ≥6m ≥8m ≥10m
Operating Temperature -15°C to 70°C
Operating Humidity 10%–90% RH
IP Rating IP65 (Front & Back)
Lifetime ≥100,000 Hours
Usage Environment Outdoor Fixed Installation
Service Method Front & Rear Service

Structure & Design Features

  • IP65 Front & Back Weatherproof Structure – The sealed protection design improves resistance against dust, rain, and outdoor environmental exposure, supporting reliable long-term Outdoor LED Screen Modules operation.
  • Large Format 320×320mm Outdoor Module Architecture – The square module structure supports efficient cabinet integration, flexible display design, and scalable outdoor LED screen construction.
  • Flat Mask and High Mask Design Options – P4 and P5 models use flat mask structures, while P6.67, P8, and P10 models use high mask structures to improve outdoor contrast performance.
  • SMD1921 / SMD2727 Outdoor LED Technology – Different LED packages are optimized for different pixel pitch ranges, providing stable brightness, reliable color reproduction, and consistent outdoor display performance.
  • Front & Rear Service Maintenance Platform – The dual-side service structure improves installation flexibility, inspection efficiency, and module replacement convenience for fixed outdoor LED projects.
  • Dual Hardware Version Support – Two hardware versions may be supplied depending on stock availability. Both versions maintain the same specifications and performance standards.

Installation Tips

  • Disconnect power before installing or servicing the module.
  • Confirm correct polarity and secure data/power connections.
  • Ensure proper cabinet sealing and drainage; avoid water ingress at cable entries.
  • Use compatible receiving card, sending card, control software, and DC 5V power supply.

Applications

  • Outdoor Advertising Billboards: Suitable for commercial advertising screens, digital billboards, and large outdoor media displays.
  • Building Facade LED Displays: Supports architectural LED screens and outdoor visual communication projects.
  • Sports Venue LED Displays: Suitable for stadium perimeters, scoreboards, and outdoor event displays.
  • Transportation Hubs & Public Information Displays: Supports airports, stations, and public communication display systems.
  • Outdoor Digital Signage Systems: Suitable for retail outdoor signage, brand displays, and commercial information systems.
  • Large-Scale Fixed Outdoor LED Projects: Supports engineering LED installations requiring high brightness, weather protection, and long-term operation.

Pixel Pitch Options
