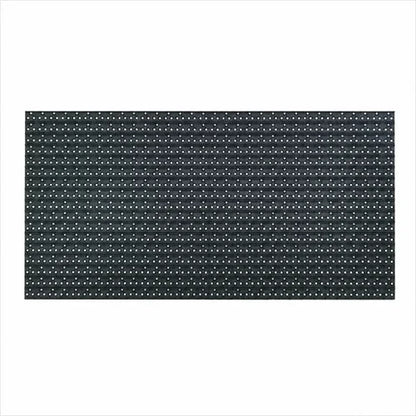

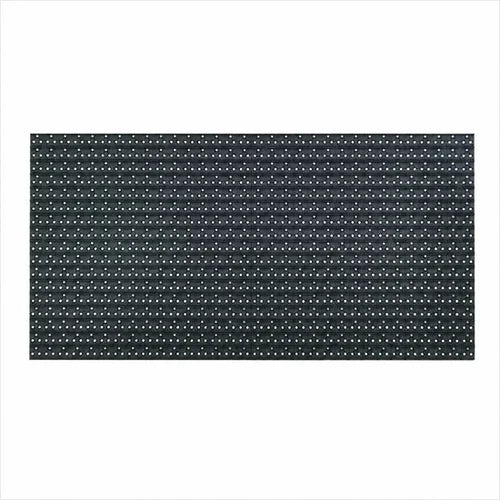

OD-320S Series High Brightness Outdoor LED Screen Module – 320×160mm | P5 / P10 | SMD | Rear Service | Digital Billboards & Highway Advertising Screens

Package Included

About this item

• High Brightness Outdoor LED Screen Modules – Designed for large-format LED advertising displays, digital billboards, highway advertising screens, DOOH networks, and fixed outdoor LED projects requiring exceptional brightness and reliable long-term operation.
• SMD1921 LED Technology for Outdoor Media Displays – Built with SMD1921 LED technology, these Outdoor LED Screen Modules provide strong daylight visibility, stable brightness output, reliable color performance, and long-term outdoor operation.
• Ultra High Brightness Performance – The P5 version provides ≥8000 nits brightness, while the P10 version provides ≥10000 nits brightness, delivering excellent visibility for outdoor environments with strong sunlight exposure.
• IP65 Weatherproof Outdoor Protection – The IP65 protection structure helps protect the LED display system against dust and water exposure, supporting reliable operation in changing outdoor environments.
• Static and High Efficiency Driving Structure – The P10 version uses static scan driving technology for maximum brightness performance, while the P5 version uses optimized scan driving technology for efficient outdoor display operation.

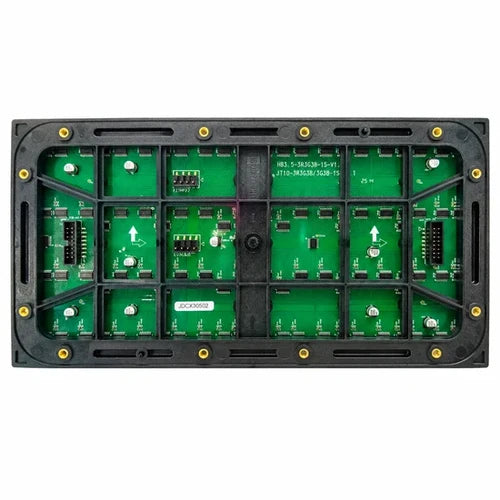

• Rear Service Large Format Design – The rear service structure provides convenient maintenance access, secure cabinet integration, and efficient module replacement for large-scale outdoor LED display systems.
• Long Distance Outdoor Display Applications – Suitable for highway billboards, outdoor media screens, airport advertising displays, transportation information screens, smart city displays, and large commercial outdoor LED projects.

Order & Logistics

Lead Time

• OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
• OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
• OD-320GR: Handling time 7–15 business days.
• OD-320SD / OD-320GD: Handling time 15–25 business days.

Freight & Delivery

• Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Structure & Design Features

• Ultra High Brightness Outdoor Display Structure – Designed with SMD1921 LED technology, the P5 provides ≥8000 nits brightness and the P10 provides ≥10000 nits brightness, delivering excellent daylight visibility for large-format outdoor advertising and media display applications.
• IP65 Weather Protection Design – The outdoor protection structure helps maintain stable operation in environments exposed to dust, moisture, and changing weather conditions.
• High Brightness Rear Service Module Platform – The rear service structure supports efficient maintenance, secure installation, and large-scale Outdoor LED Screen Modules deployment.
• Large Format Outdoor LED Architecture – The standardized 320×160mm module format supports efficient cabinet integration, scalable LED screen construction, and engineering-level outdoor media projects.
• Long Distance Visibility Optimization – The high brightness design and outdoor SMD platform provide strong visibility for viewing distances from 10m to 200m, making the modules suitable for highway and large-area advertising applications.

Installation Guide

• Confirm the cabinet size, module layout, receiving card configuration, power supply capacity, and rear service structure before installation.
• Install the P5/P10 high brightness 320×160mm Outdoor LED Screen Modules according to the cabinet layout and ensure each module is securely fixed.
• Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
• Connect the DC 4.2V / 5V module power supply correctly and verify polarity before powering on the LED display system.
• For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
• Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.

Applications

• Large Format LED Advertising Displays: High brightness Outdoor LED Screen Modules designed for digital billboards, commercial advertising screens, and large media displays.
• Highway & Transportation Displays: Suitable for highway advertising LED screens, airport outdoor information displays, transportation hub LED screens, and public information systems.
• DOOH Advertising Networks: Supports outdoor media screens, smart city information displays, and commercial digital advertising projects requiring strong daylight visibility.
• Long Distance Outdoor LED Displays: Suitable for large viewing distance applications requiring high brightness and stable outdoor performance.
• Large-Scale Fixed Outdoor LED Projects: Supports engineering outdoor video walls, outdoor event LED screens, and long-term fixed installation projects.
