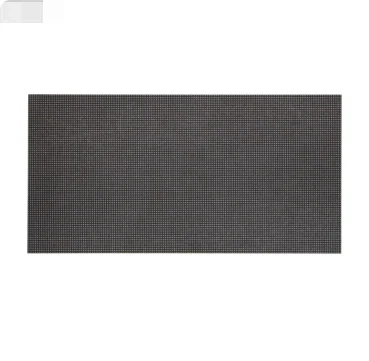

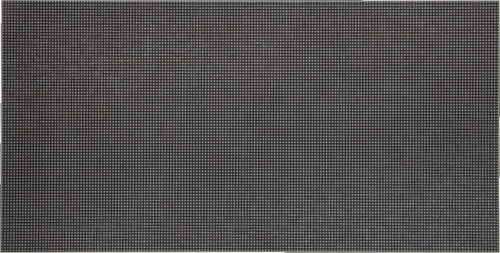

OD-320GD Series Outdoor LED Screen Module – 320×160mm | P1.53 / P1.86 / P2 / P2.5 | GOB | Double-sided IP65 | Dual Service | Smart City Displays & Double-sided Advertising Screens

Package Included

About this item

• High Protection Outdoor LED Screen Modules – Designed for smart city displays, transportation information screens, outdoor digital signage, and commercial outdoor LED projects requiring enhanced surface protection, high pixel density, and reliable long-term operation.
• Double-sided IP65 Outdoor Protection Structure – The double-sided IP65 protection design improves resistance against dust, moisture, and changing weather conditions, supporting stable outdoor LED display operation.
• GOB and MIP LED Protection Technology – Featuring GOB surface protection and MIP1010 LED protection technologies, these Outdoor LED Screen Modules improve LED surface durability while maintaining detailed image performance for demanding outdoor environments.
• Fine Pixel Outdoor Display Performance – Available in P2.5, P2, P1.86, and P1.53 pixel pitch options, providing different image detail solutions for smart city displays, transportation systems, and premium outdoor applications.
• High Brightness Outdoor Display Capability – All models provide ≥4000 nits brightness, delivering clear image visibility and stable visual performance under outdoor daylight conditions.
• Dual Service Maintenance Design – The dual service structure provides flexible access for installation, inspection, and module replacement, improving maintenance efficiency for outdoor LED display systems.

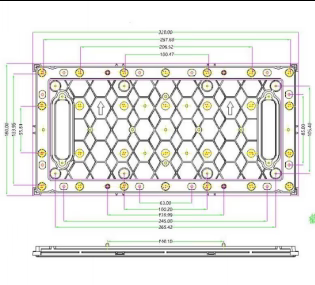

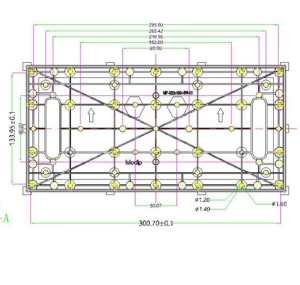

• Standard 320×160mm Outdoor Module Format – The standardized module size supports efficient cabinet integration, scalable LED display construction, and project-based deployment.
• Professional Outdoor Applications – Suitable for smart city LED displays, outdoor digital signage, transportation displays, commercial LED screens, DOOH advertising systems, and large-scale fixed outdoor LED projects.

Order & Logistics

Lead Time

• OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
• OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
• OD-320GR: Handling time 7–15 business days.
• OD-320SD / OD-320GD: Handling time 15–25 business days.

Freight & Delivery

• Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Structure & Design Features

• Double-sided IP65 Protection Structure – The double-sided IP65 protection design improves resistance against dust, moisture, and changing weather conditions while supporting reliable Outdoor LED Screen Modules operation.
• GOB Surface Protection Structure – The GOB protection technology enhances LED surface durability, reduces environmental impact, and improves long-term display reliability for outdoor applications.
• MIP1010 Fine Pixel Outdoor Protection Structure – MIP1010 LED technology provides high pixel density, improved surface protection, and stable display performance for demanding outdoor LED environments.
• Fine Pixel Outdoor LED Display Platform – P2.5, P2, P1.86, and P1.53 pixel pitch options provide different image detail solutions for smart city displays, transportation systems, commercial signage, and premium outdoor LED projects.
• Dual Service Outdoor Module Platform – The dual service structure supports flexible installation, inspection, and module replacement, improving maintenance efficiency for high-protection outdoor LED systems.
• Magnetic + Screw Installation Structure – The combined installation method improves module stability while supporting efficient cabinet assembly and maintenance operations.

Installation Guide

• Confirm the cabinet structure, module layout, pixel pitch, receiving card configuration, and power supply requirements before installation.
• Install the P2.5/P2/P1.86/P1.53 320×160mm Outdoor LED Screen Modules according to the cabinet design and ensure each module is securely fixed.
• Connect the HUB75/HUB320 data interface according to the LED display system wiring plan.
• Connect the DC 5V power supply correctly and check polarity before powering on the LED display system.
• Use dual service access according to project requirements for module inspection and replacement.
• Avoid strong impact, scratching, or improper handling of the GOB/MIP LED surface during transportation, installation, and maintenance.

Applications

• Smart City LED Displays: Suitable for urban information systems, public communication displays, and transportation information screens.
• Weatherproof Outdoor LED Screens: Designed for outdoor installations requiring double-sided IP65 protection and reliable operation.
• Outdoor Digital Signage: Suitable for commercial signage, advertising displays, and premium outdoor visual communication projects.
• Transportation LED Displays: Applicable for traffic information systems, transportation hubs, and public display applications.
• Commercial Outdoor LED Displays: Suitable for shopping centers, brand experience displays, and fixed outdoor LED projects.
• Large-Scale Fixed Outdoor LED Projects: Supports engineering deployments requiring high protection, detailed image quality, and convenient maintenance.
