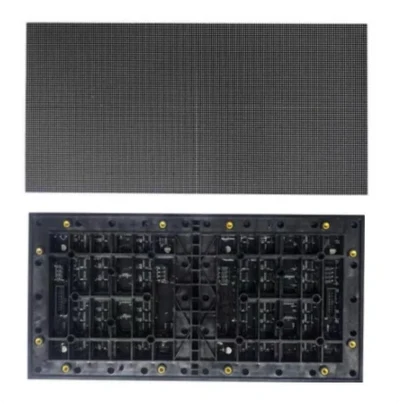

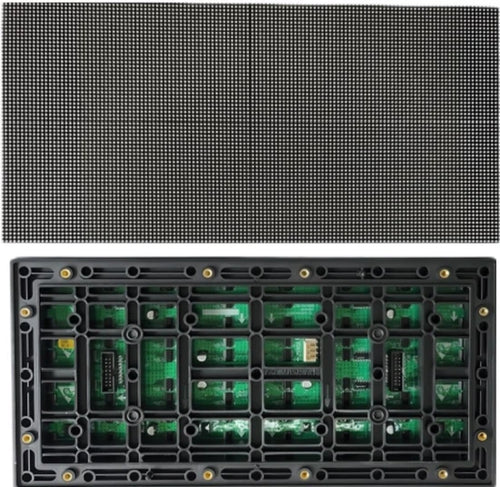

OD-320G Series Outdoor LED Screen Module – 320×160mm | P2 / P2.5 | GOB | Rear Service | Outdoor Advertising Displays & High-protection LED Screens

Package Included

About this item

• Fine Pitch Outdoor LED Screen Modules with GOB Protection – Designed for commercial outdoor LED displays, digital signage systems, advertising screens, and fixed outdoor projects requiring enhanced surface protection, high brightness performance, and reliable long-term operation.

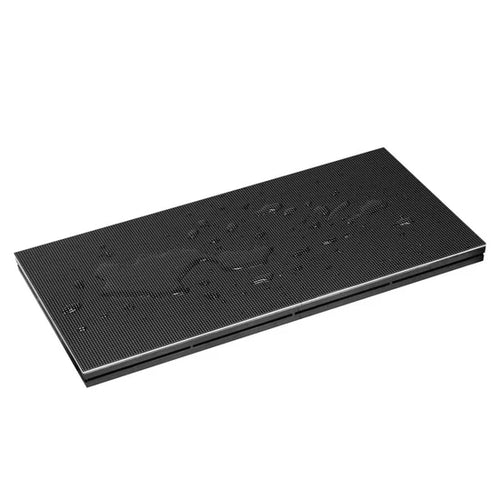

• GOB Surface Protection Technology – The GOB protection layer improves LED surface durability, resistance against environmental exposure, and long-term display reliability for demanding outdoor applications.
• High Brightness Fine Pitch Outdoor Performance – The P2 version provides ≥5000 nits brightness, while the P2.5 version provides ≥5500 nits brightness, delivering clear image performance for outdoor environments requiring high visibility.
• High Refresh Rate Outdoor Display Performance – The P2 version supports 7680Hz refresh rate, while the P2.5 version supports 3840Hz refresh rate, providing smooth image output for professional outdoor LED applications.
• IP65 Weatherproof Outdoor Protection – The outdoor protection structure helps protect the LED display system against dust and water exposure during continuous outdoor operation.

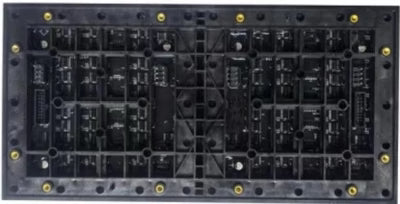

• Rear Service Outdoor LED Screen Modules Design – The rear maintenance structure supports convenient module replacement, secure cabinet integration, and efficient maintenance for large-scale outdoor LED display systems.
• Integrated Magnetic and Screw Lock Installation – The combined installation structure improves module stability while supporting efficient cabinet assembly and maintenance operations.
• Professional Outdoor Applications – Suitable for outdoor advertising displays, smart city information systems, shopping mall outdoor screens, transportation hub displays, public information displays, and commercial LED projects.

Order & Logistics

Lead Time

• OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
• OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
• OD-320GR: Handling time 7–15 business days.
• OD-320SD / OD-320GD: Handling time 15–25 business days.

Freight & Delivery

• Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Structure & Design Features

• Outdoor GOB Surface Protection Structure – The GOB protection layer enhances LED surface durability and improves resistance against environmental exposure, making these Outdoor LED Screen Modules suitable for demanding outdoor display applications.
• Fine Pitch Outdoor LED Display Platform – Combining P2/P2.5 fine pixel pitch, SMD LED technology, and GOB surface protection, the modules provide detailed image performance for commercial outdoor displays requiring closer viewing distances.
• High Refresh Rate Outdoor Display Performance – The optimized driving structure provides smooth image output and stable visual performance for professional outdoor advertising and digital signage applications.
• Rear Service Outdoor Module Platform – The rear maintenance structure supports efficient module replacement, secure cabinet installation, and large-scale outdoor LED display deployment.
• Integrated Magnetic and Screw Lock Installation – The combined installation structure improves module stability while supporting efficient cabinet assembly and maintenance operations.
• Reliable Outdoor Protection Architecture – Designed for continuous outdoor operation with protection against dust and water exposure, supporting long-term commercial LED display projects.

Installation Guide

• Confirm the cabinet size, module layout, pixel pitch, receiving card configuration, power supply capacity, and rear service structure before installation.
• Install the P2/P2.5 320×160mm Outdoor LED Screen Modules according to the cabinet layout and ensure each module is securely fixed.
• Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
• Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
• For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
• Avoid strong impact, scratching, or improper handling of the GOB LED surface during transportation, installation, and maintenance.

Applications

• Outdoor GOB LED Display Screens: Fine pitch Outdoor LED Screen Modules designed for commercial LED displays and fixed outdoor installations.
• Outdoor Advertising Displays: Digital advertising screens, shopping mall outdoor displays, and commercial media projects requiring high image quality.
• Smart City LED Displays: Public information displays, transportation hub screens, and outdoor communication systems.
• Fine Pitch Outdoor LED Projects: Close-viewing outdoor LED displays, brand experience outdoor displays, and premium commercial LED screen projects.
• Large-Scale Outdoor LED Display Projects: Engineering LED installations requiring reliable protection, stable performance, and efficient maintenance.
