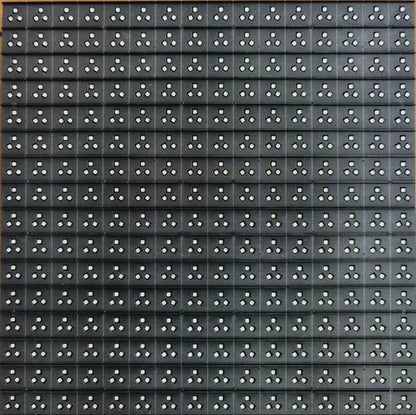

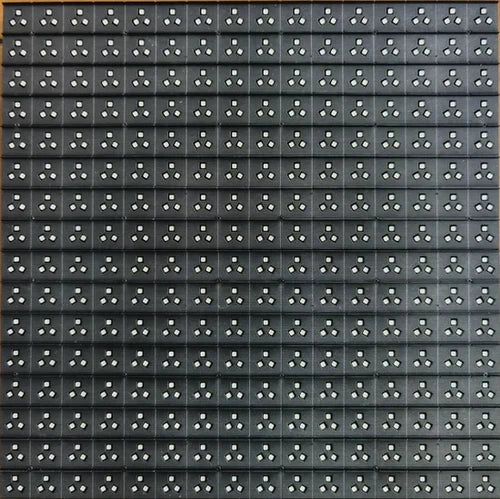

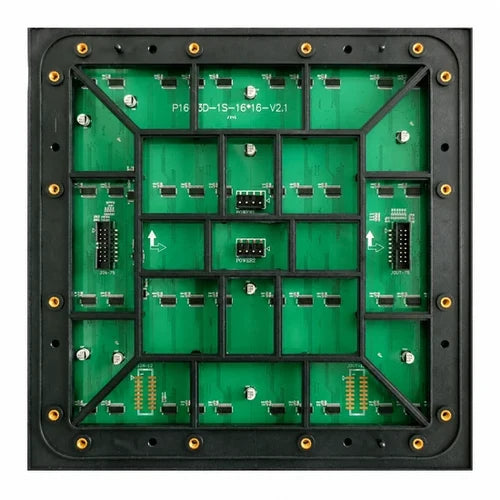

OD-256S Series High Brightness Outdoor LED Screen Module – 256×256mm | P16 | SMD | Rear Service | LED Billboard Displays & Highway Advertising Screens

Package Included

About this item

• 8000 Nits High Brightness Outdoor LED Screen Modules – Designed for ultra long-distance billboard displays, highway advertising screens, DOOH advertising networks, and large-format outdoor LED projects requiring exceptional brightness and reliable outdoor performance.
• SMD2728 LED Technology for Large Outdoor Displays – Featuring SMD2728 LED technology, 16mm pixel pitch, 8000 nits brightness, and 1920Hz / 3840Hz refresh rate to provide strong daylight visibility, stable color output, and dependable operation for fixed outdoor installations.
• Static Scan Structure for High Brightness Performance – The static scan driving structure improves display stability and supports consistent image output for outdoor environments requiring high brightness and long viewing distances.
• IP65 Weatherproof Outdoor Protection – The IP65 protection structure helps protect the LED display system against dust and water exposure during continuous outdoor operation in changing weather conditions.
• Rear Service Large Format LED Screen Modules Design – The rear service structure provides convenient maintenance access, secure cabinet integration, and efficient module replacement for large-scale outdoor LED display systems.
• Professional Long Distance Display Applications – Suitable for highway billboards, outdoor media screens, airport advertising displays, transportation hub LED screens, smart city information displays, and large-scale fixed outdoor LED projects.

Order & Logistics

Lead Time

• OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
• OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
• OD-320GR: Handling time 7–15 business days.
• OD-320SD / OD-320GD: Handling time 15–25 business days.

Freight & Delivery

• Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Structure & Design Features

• Ultra High Brightness Outdoor Display Structure – Designed with SMD2728 LED technology and ≥8000 nits brightness, these Outdoor LED Screen Modules provide excellent daylight visibility for large-format outdoor advertising and long-distance media display applications.
• IP65 Weather Protection Design – The outdoor protection structure helps maintain stable operation in environments exposed to dust, moisture, and changing weather conditions.
• Static Scan Rear Service Module Platform – The static scan structure combined with rear service design supports high brightness output, efficient maintenance, and large-scale outdoor LED display deployment.
• Large Format Outdoor LED Screen Modules Architecture – The 256×256mm standardized module format supports efficient cabinet integration, scalable construction, and engineering-level outdoor LED display projects.

Installation Guide

• Confirm the cabinet size, module layout, receiving card configuration, power supply capacity, and rear service structure before installation.
• Install the P16 high brightness 256×256mm Outdoor LED Screen Modules according to the cabinet layout and ensure each module is securely fixed.
• Connect the HUB75 data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.
• Connect the DC 5V module power supply correctly and verify polarity before powering on the LED display system.
• For rear service maintenance, remove and replace the LED module from the rear side using proper tools and maintenance procedures.
• Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.

Applications

• Ultra Long Distance Billboard Displays: High brightness Outdoor LED Screen Modules designed for highway advertising screens and large-format billboard applications.
• Outdoor Advertising Display Systems: Suitable for DOOH advertising networks, outdoor media screens, airport advertising displays, and commercial outdoor LED projects.
• Transportation & Public Information Displays: Supports highway information screens, transportation hub LED displays, and smart city visual communication systems.
• Large-Scale Fixed Outdoor LED Projects: Suitable for engineering outdoor video walls, commercial LED displays, and long-term fixed installation projects.
