OD-192SR Series Outdoor LED Screen Module – 192×192mm | P3 / P6 | SMD | IP65 Front, IP54 Rear Cover | Front & Rear Service | Traffic LED Displays & Outdoor Information Screens

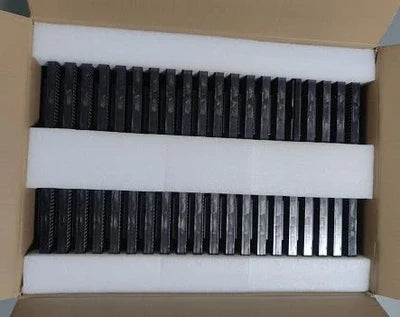

Package Included

About this item

• Compact Rear Cover Outdoor LED Screen Modules – Designed with a 192×192mm compact module structure, these Outdoor LED Screen Modules are suitable for weatherproof outdoor LED displays, building facade screens, commercial outdoor displays, sports stadium screens, and fixed outdoor LED projects requiring enhanced structural protection.
• Patent Rear Cover Protection Structure – The integrated rear cover design improves module protection, enhances structural stability, and supports reliable deployment in outdoor environments exposed to dust, moisture, and changing weather conditions.
• IP65 Front Outdoor Protection – The IP65 front protection structure helps protect the LED display system against dust and water exposure during long-term outdoor operation.

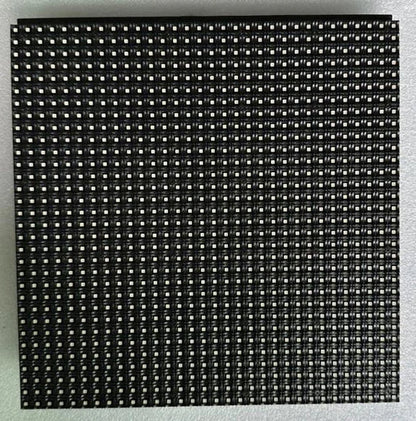

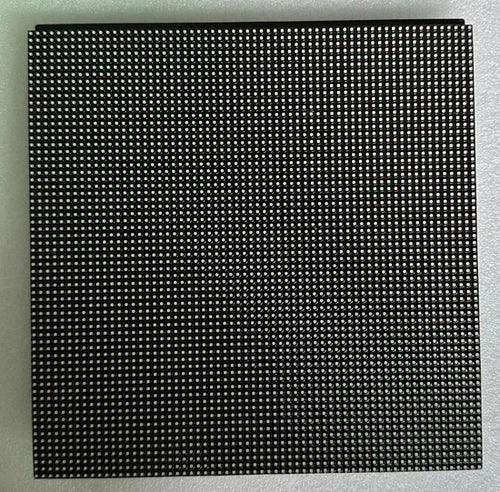

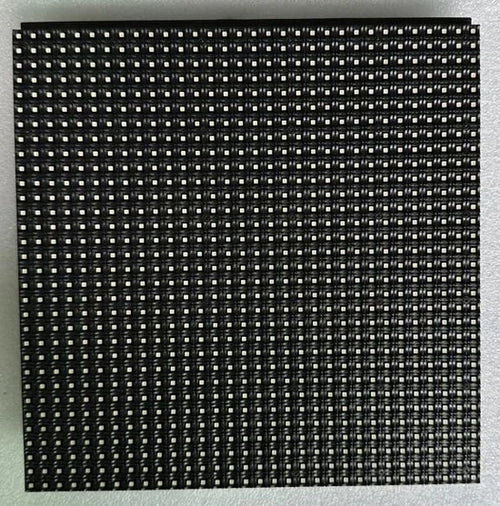

• Multiple Pixel Pitch Solutions – Available in P6 and P3 pixel pitch options, providing different image detail and viewing distance solutions for commercial outdoor LED applications.
• Outdoor SMD LED Technology Platform – Featuring SMD2525, SMD2727, SMD1415, and SMD1516 LED technologies, these Outdoor LED Screen Modules provide stable brightness output, reliable color performance, and consistent outdoor display operation.
• Front & Rear Service Maintenance Structure – The dual-side maintenance design provides flexible access for installation, inspection, and module replacement, improving maintenance efficiency for outdoor LED display systems.
• Compact 192×192mm Outdoor Module Format – The standardized module size supports flexible cabinet integration, replacement maintenance, and scalable outdoor LED screen construction.
• Professional Outdoor Applications – Suitable for building facade LED displays, sports stadium screens, smart city displays, outdoor digital signage, commercial LED screens, and weatherproof outdoor LED projects.

Order & Logistics

Lead Time

• OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
• OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
• OD-320GR: Handling time 7–15 business days.
• OD-320SD / OD-320GD: Handling time 15–25 business days.

Freight & Delivery

• Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Structure & Design Features

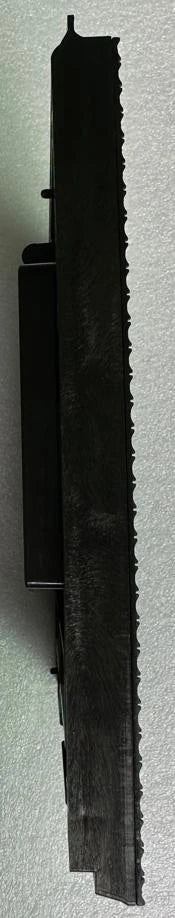

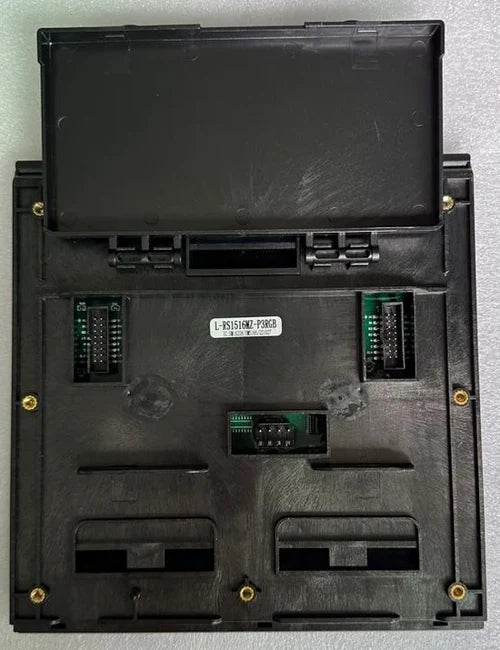

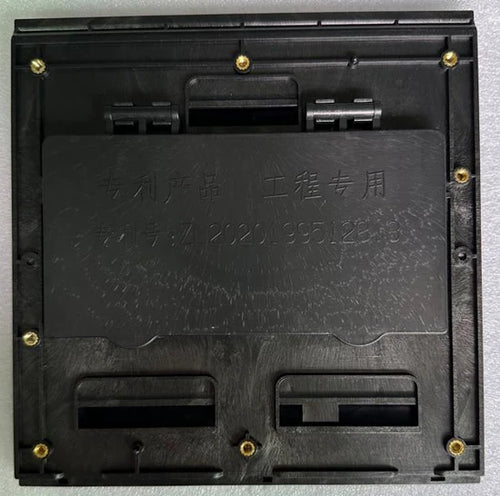

• Patent Rear Cover Protection Structure – The rear cover design provides additional physical protection, improves module stability, and supports reliable outdoor LED Screen Modules deployment for long-term fixed installations.
• IP65 Weatherproof Outdoor Structure – The protection design helps maintain stable operation in outdoor environments exposed to dust, moisture, and changing weather conditions.
• Compact Outdoor LED Display Platform – The 192×192mm module structure combined with SMD LED technology provides flexible deployment options for building facade displays, stadium screens, and commercial outdoor LED applications.
• High Density Outdoor Display Performance – The P3 version provides higher pixel density for detailed image presentation, while the P6 version provides an efficient solution for medium-distance outdoor viewing applications.
• Front & Rear Service Maintenance Platform – The dual-side service structure improves installation flexibility, inspection efficiency, and module replacement convenience for outdoor LED systems.
• Integrated Magnetic and Screw Lock Installation – The combined mounting structure improves module stability while supporting efficient cabinet assembly and maintenance operations.

Installation Guide

• Confirm the cabinet size, module layout, pixel pitch, receiving card configuration, power supply capacity, and rear cover structure before installation.
• Install the P6/P3 192×192mm Outdoor LED Screen Modules according to the cabinet layout and ensure each module is securely fixed.
• Connect the data cables according to the signal direction, receiving card configuration, and outdoor LED screen wiring plan.

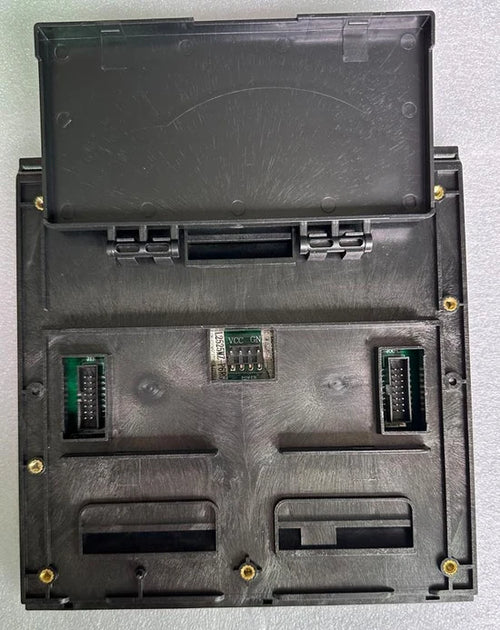

• Connect the DC 5V power cables correctly and check polarity before powering on the LED display system.
• Use front or rear maintenance access according to project structure requirements when replacing modules.
• Avoid strong impact, scratching, or improper handling of the LED surface and rear cover structure during transportation, installation, and maintenance.

Applications

• Building Facade LED Displays: Suitable for architectural LED screens, commercial building displays, and outdoor visual communication projects.
• Sports Stadium LED Displays: P3 provides detailed image performance for stadium screens and professional outdoor display applications.
• Weatherproof Outdoor LED Screens: Designed for fixed outdoor installations requiring IP65 protection and reliable structural performance.
• Smart City Display Systems: Suitable for public information displays, transportation systems, and urban communication screens.
• Outdoor Digital Signage: Applicable for DOOH advertising displays, commercial outdoor screens, and brand experience projects.
• Large-Scale Fixed Outdoor LED Projects: Supports engineering LED display deployments requiring convenient maintenance and long-term operation.
