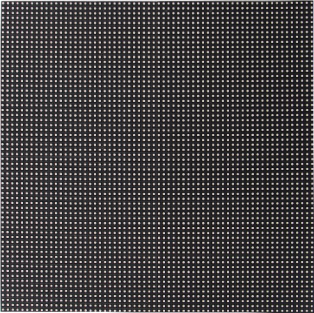

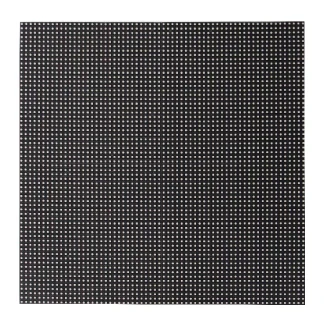

OD-192S Series Outdoor LED Screen Module – 192×192mm | P3 | SMD | Rear Service | Outdoor Digital Signage & Traffic Information Displays

From $14,897.00
Pixel Pitch
Package Qty
$14,897.00
$14,897.00
Shipping calculated at checkout.
In stock

Package Included

Version Package Included
100pcs MOQ Pack 100 × P3 192×192mm Outdoor LED Screen Modules
50 × 5V Power Cable 1-to-2 Split
100 × Flat Data Cable
200pcs Pack 200 × P3 192×192mm Outdoor LED Screen Modules
100 × 5V Power Cable 1-to-2 Split
200 × Flat Data Cable
500pcs Pack 500 × P3 192×192mm Outdoor LED Screen Modules
250 × 5V Power Cable 1-to-2 Split
500 × Flat Data Cable

About this item

  • P3 Fine Pitch Outdoor LED Screen Modules – Designed with a 192×192mm standardized outdoor module structure, these Outdoor LED Screen Modules are suitable for commercial outdoor LED displays, weatherproof digital signage, building facade LED screens, and fixed outdoor display projects requiring stable performance.
  • SMD1415 LED Technology for Outdoor Applications – Featuring SMD1415 LED technology, 3mm pixel pitch, 5000 nits brightness, and 1920Hz refresh rate, the module provides clear image quality, stable color performance, and reliable visual output for professional outdoor LED installations.
  • IP65 Weatherproof Outdoor Protection – The IP65 protection structure improves resistance against dust and moisture, supporting reliable outdoor LED display operation in changing weather environments.

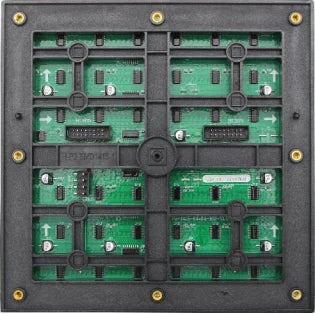

  • Rear Service Maintenance Design – The rear service structure provides convenient access for inspection, maintenance, and module replacement, making it suitable for fixed outdoor LED cabinets with rear maintenance space.
  • Standard 192×192mm Outdoor Module Format – The compact standardized module size supports efficient cabinet integration, flexible LED screen construction, and scalable engineering outdoor projects.
  • Professional Outdoor Display Applications – Suitable for advertising LED screens, commercial outdoor displays, public information systems, transportation displays, retail outdoor screens, and large-scale fixed outdoor LED projects.

Order & Logistics

Lead Time

  • OD-192S / OD-256S / OD-320S: Handling time 1–3 business days, MOQ 100pcs items: Handling time 7–15 business days.
  • OD-320G / OD-192SR / OD-320SR: Handling time 3–5 business days, 192×192mm MOQ 100pcs items in OD-192SR: Handling time 7–15 business days.
  • OD-320GR: Handling time 7–15 business days.
  • OD-320SD / OD-320GD: Handling time 15–25 business days.

Freight & Delivery

  • Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
  • Available shipping methods: Standard shipping / Express shipping / Project logistics.
  • Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
  • Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
  • For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Specification Value
Module Size 192×192mm
Module Weight 0.41kg
Pixel Pitch 3mm
Module Resolution 64×64 dots
Pixel Density 111,111 dots/m²
LED Type SMD1415
Technology System Outdoor LED Screen Modules
Brightness 5000 nits
Scan Rate 1/16 scan
Refresh Rate 1920Hz
Viewing Angle H:170° / V:120°
Input Voltage DC 5V
Module Average Power 16W
Installation Method Screw-Lock
Protection Level IP65
Maintenance Method Rear Service
Data Interface HUB75
Recommended Viewing Distance 3–10m
Lifetime ≥100,000 Hours

Structure & Design Features

  • IP65 Weatherproof Outdoor Structure – The IP65 protection design improves resistance against dust and moisture while supporting stable Outdoor LED Screen Modules operation in changing weather environments.
  • SMD1415 Fine Pitch Outdoor Platform – The SMD1415 LED technology combined with 3mm pixel pitch provides detailed image performance, stable brightness, and reliable visual output for commercial outdoor display applications.
  • Rear Service Screw-Lock Module Design – The screw-lock installation structure and rear service design support convenient maintenance access, secure module installation, and efficient replacement for fixed outdoor LED cabinets.
  • Standardized 192×192mm Outdoor Module Architecture – The compact module format supports efficient cabinet integration, scalable LED screen construction, and engineering project deployment.

Installation Guide

  • Confirm the cabinet structure, module layout, pixel pitch, receiving card configuration, and power supply requirements before installation.
  • Install the P3 192×192mm Outdoor LED Screen Modules according to the cabinet design and ensure each module is securely fixed.
  • Connect the HUB75 data interface according to the LED display system wiring plan.
  • Connect the DC 5V power supply correctly and check polarity before powering on the LED display system.
  • Perform rear-side maintenance when replacing modules or checking system components.
  • Avoid strong impact, scratching, or improper handling of the LED surface during transportation, installation, and maintenance.

Applications

  • Commercial Outdoor LED Displays: Fixed outdoor LED screens, advertising displays, and commercial information systems.
  • Weatherproof LED Screen Projects: Outdoor digital signage, building facade LED displays, and public information displays.
  • Retail & Transportation Displays: Retail outdoor screens, transportation information displays, and public visual communication systems.
  • Large-Scale Outdoor LED Projects: Engineering LED displays, commercial outdoor video walls, and scalable fixed installation projects.
