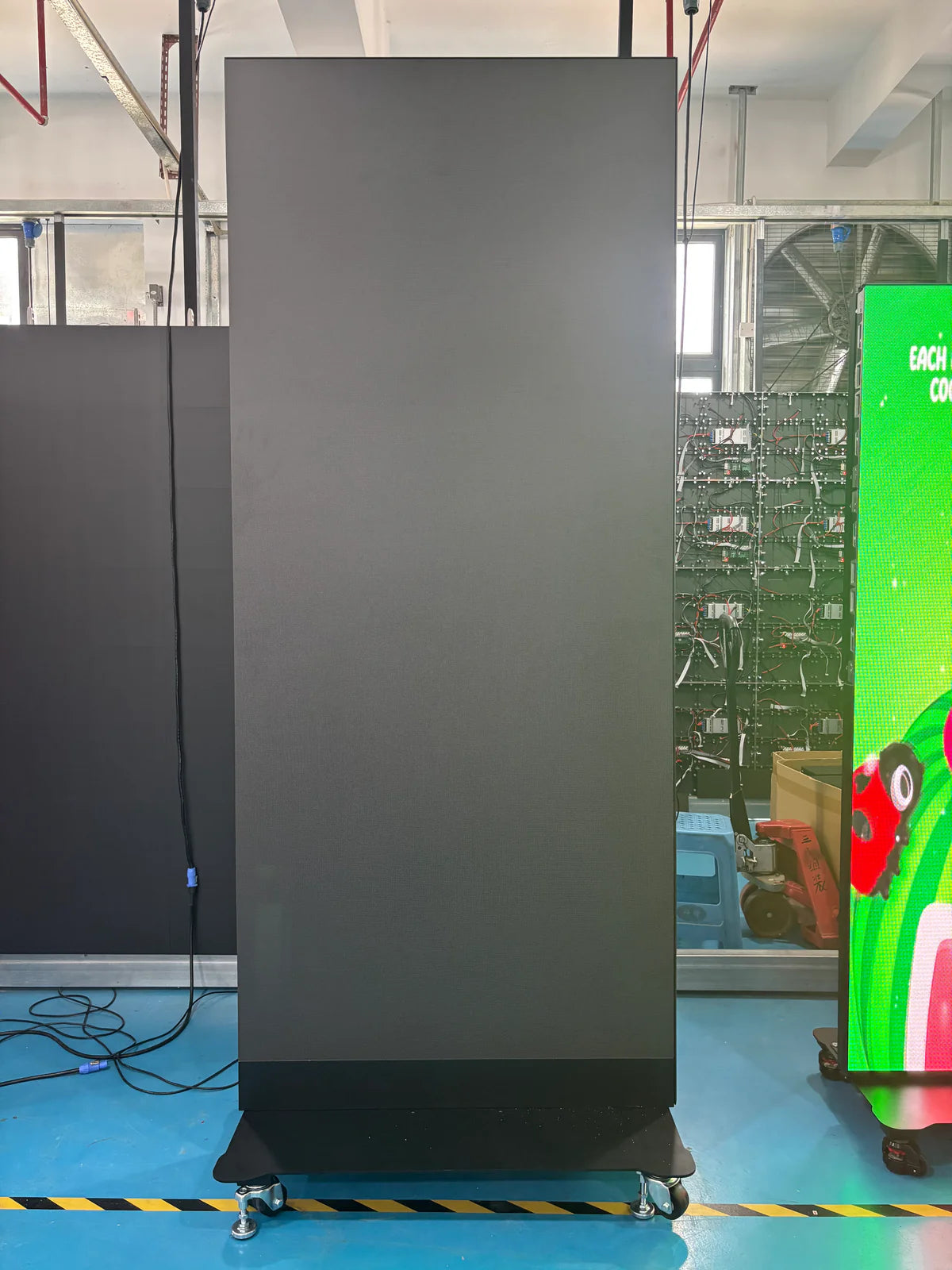

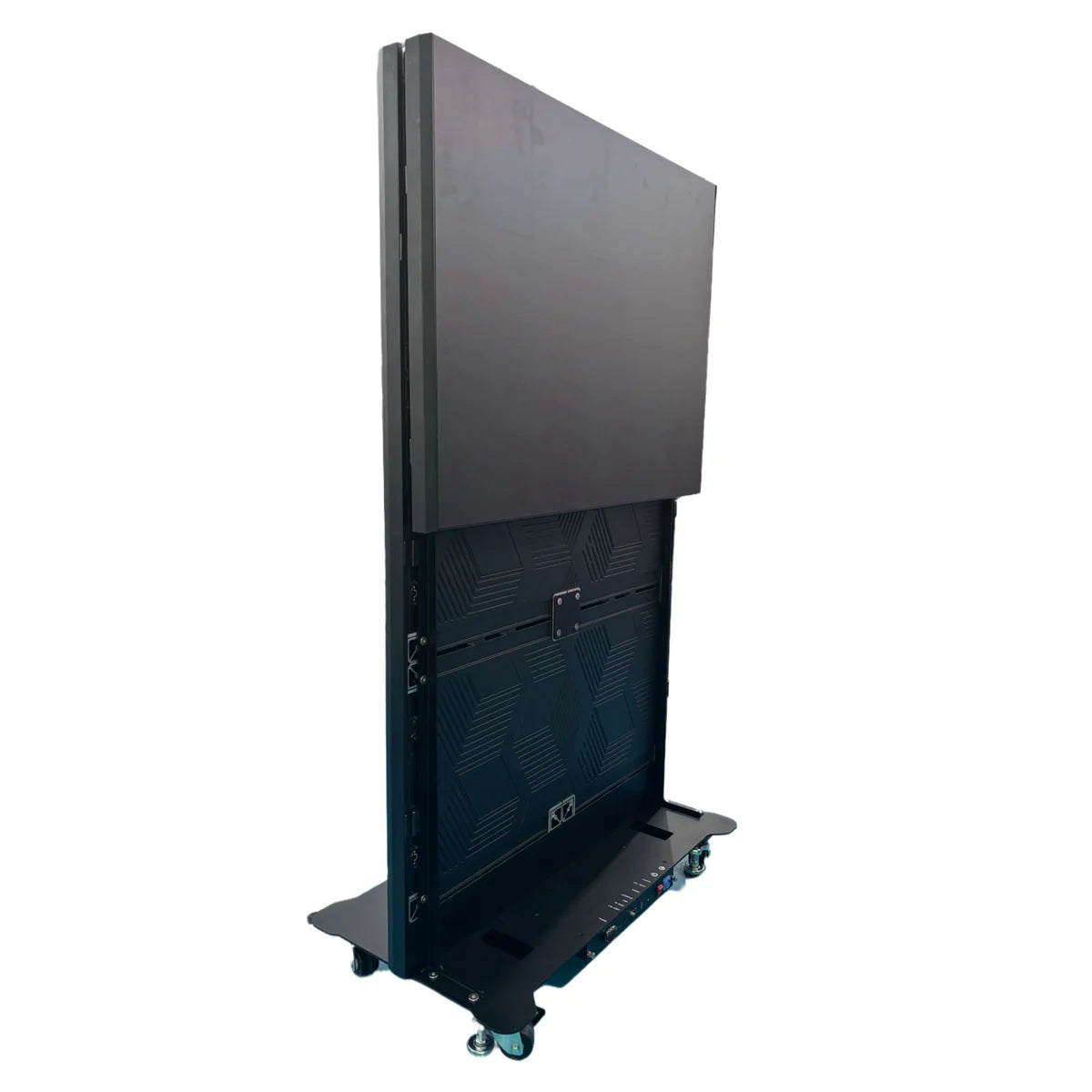

LEP-F Series Foldable Extra-Large LED Digital Signage Poster | GOB Surface + Magnetic Frame | 1000×2250mm | P2.6 / P1.95 / P1.56 / P1.25 | Available in 1 set / 3 set Pack / 6 set Pack
From $52,514.00
Regular price
$52,514.00
Sale price
$52,514.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
9999 in stock
LEP-F Series Foldable Extra-Large LED Digital Signage Poster | GOB Surface + Magnetic Frame | 1000×2250mm | P2.6 / P1.95 / P1.56 / P1.25 | Available in 1 set / 3 set Pack / 6 set Pack
PRODUCT INTRODUCTION AND USING TIPS!
FEATURES:
- 【Extra Large Display Area】 ： W3.28FT by H7.38FT / W1000mm by H2250mm, made with 250x250 mm LED Display Modules. Complete Poster is in 2500mm/8.2FT tall.
- 【Multiple Pixel Pitch Options】 ：Available for various pixel pitch options: P1.25, P1.56, P1.95, P2.6.

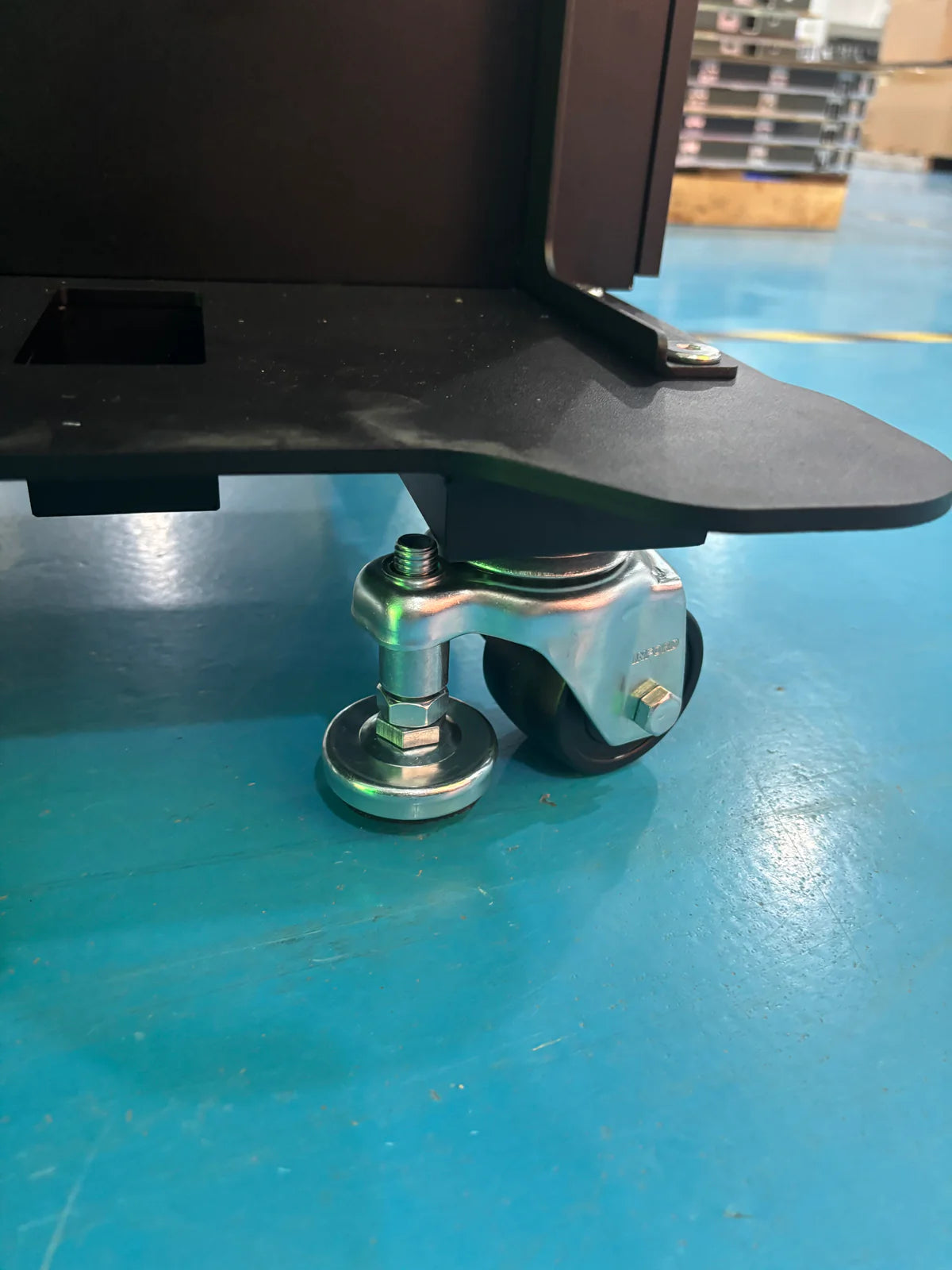

- 【Upgraded Wheel for Heavy Duty and Free Standing】 ：Equipped with a universal super heavy-duty adjustment wheel to increase the load-bearing capacity, and the gap between the screens can be adjusted by adjusting the height of the screws.
-

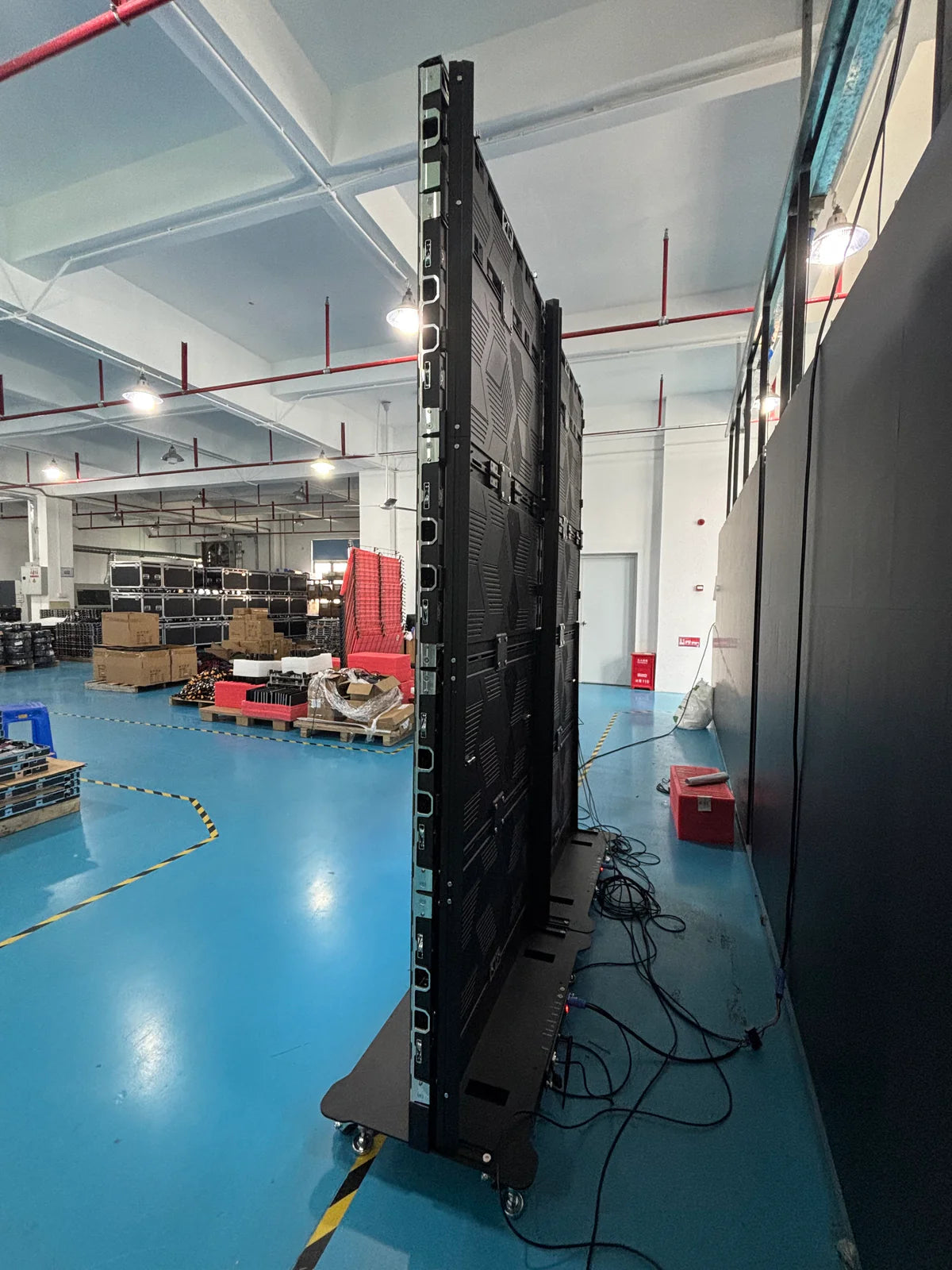

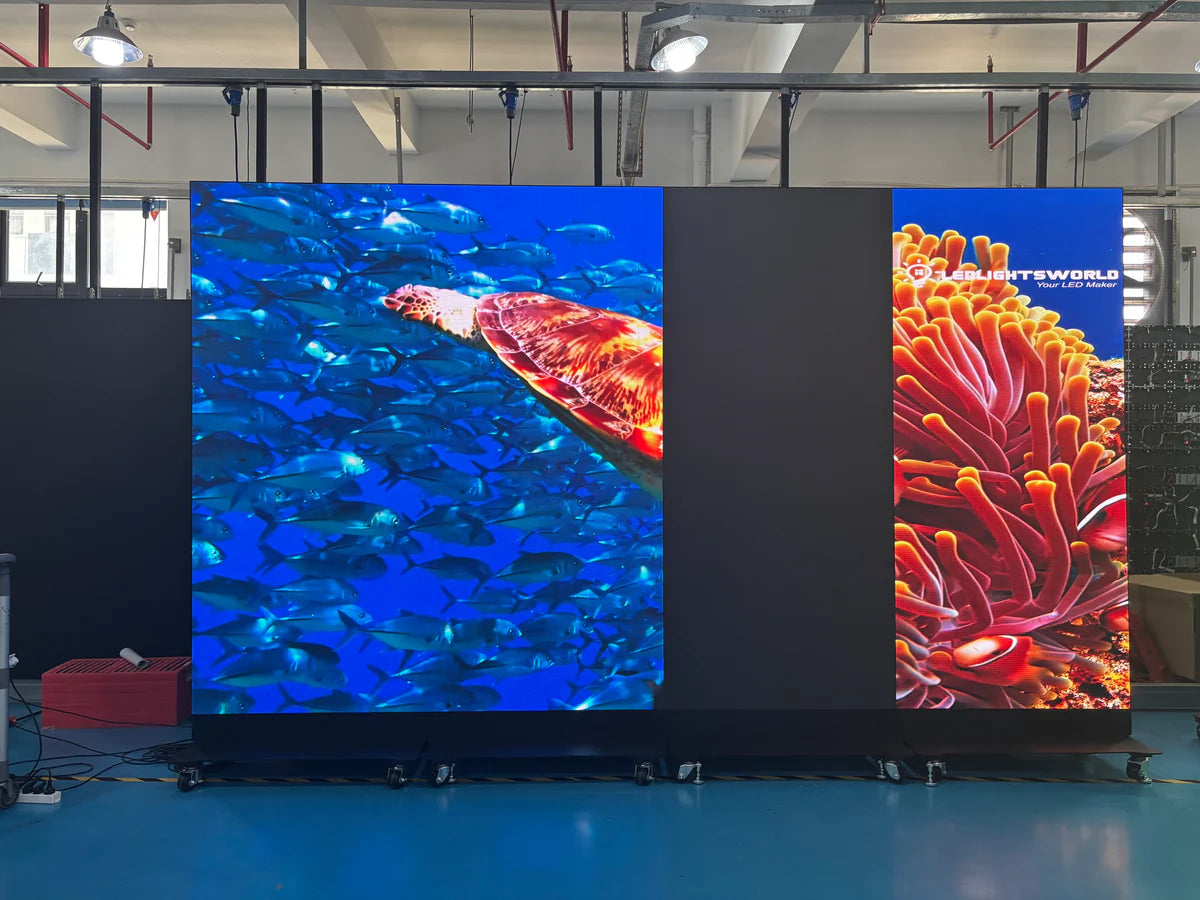

【Multiple Pieces Linkable】 ：LED poster video display allow for multi-pieces chain together and get big SEAMLESS display screen. Please refer to "ABOUT SPLICING and CONTROLLER" Table.

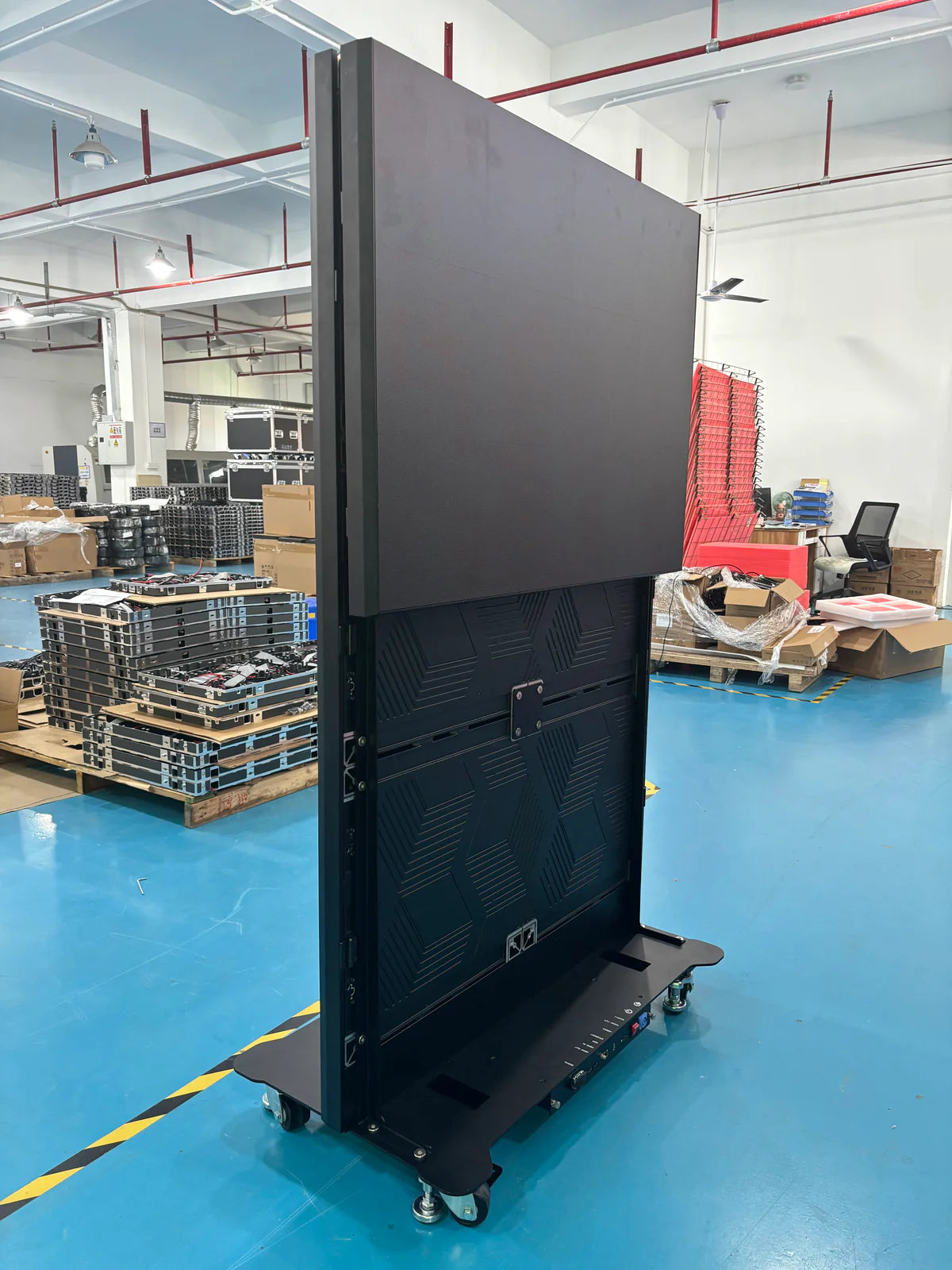

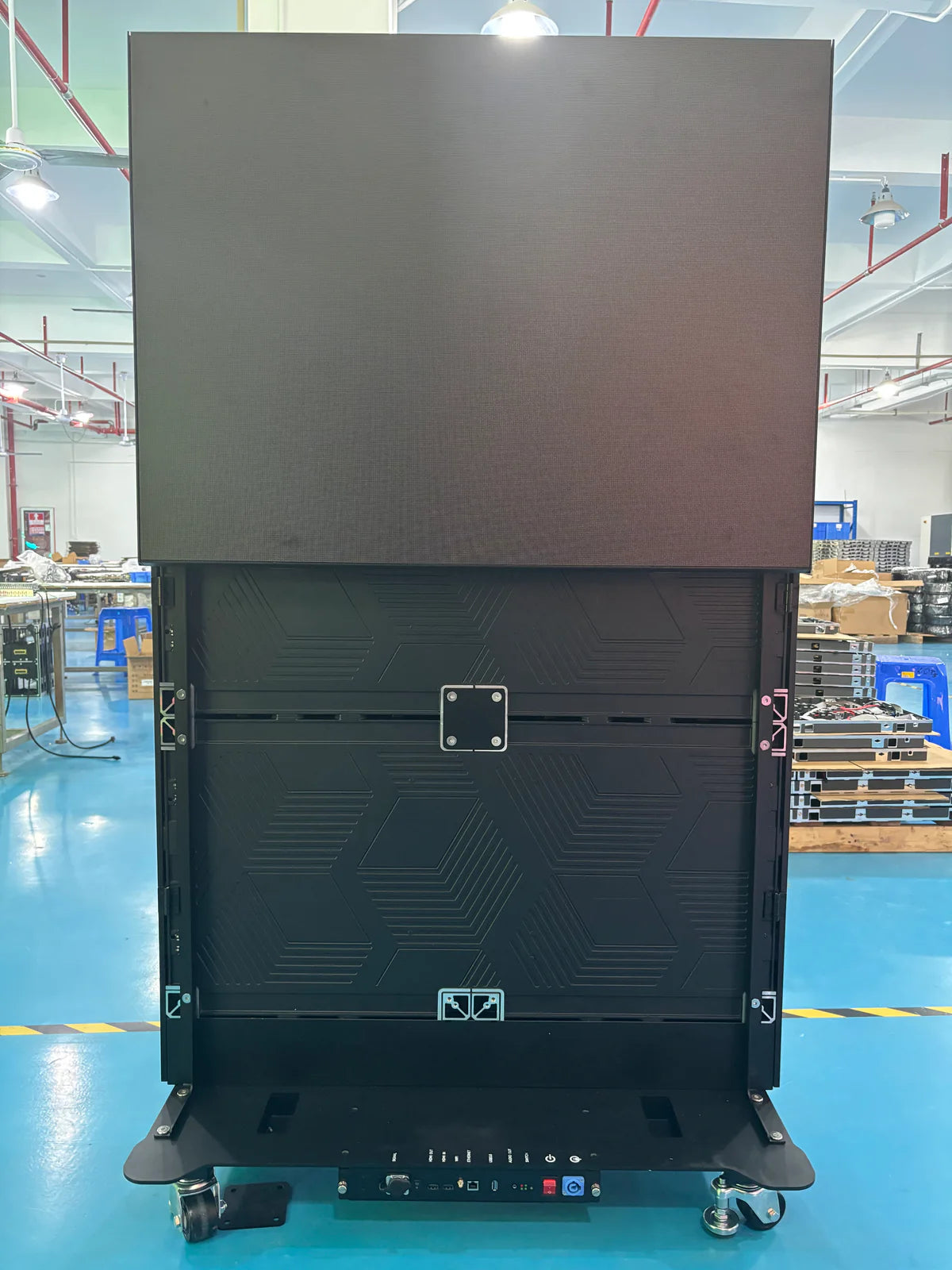

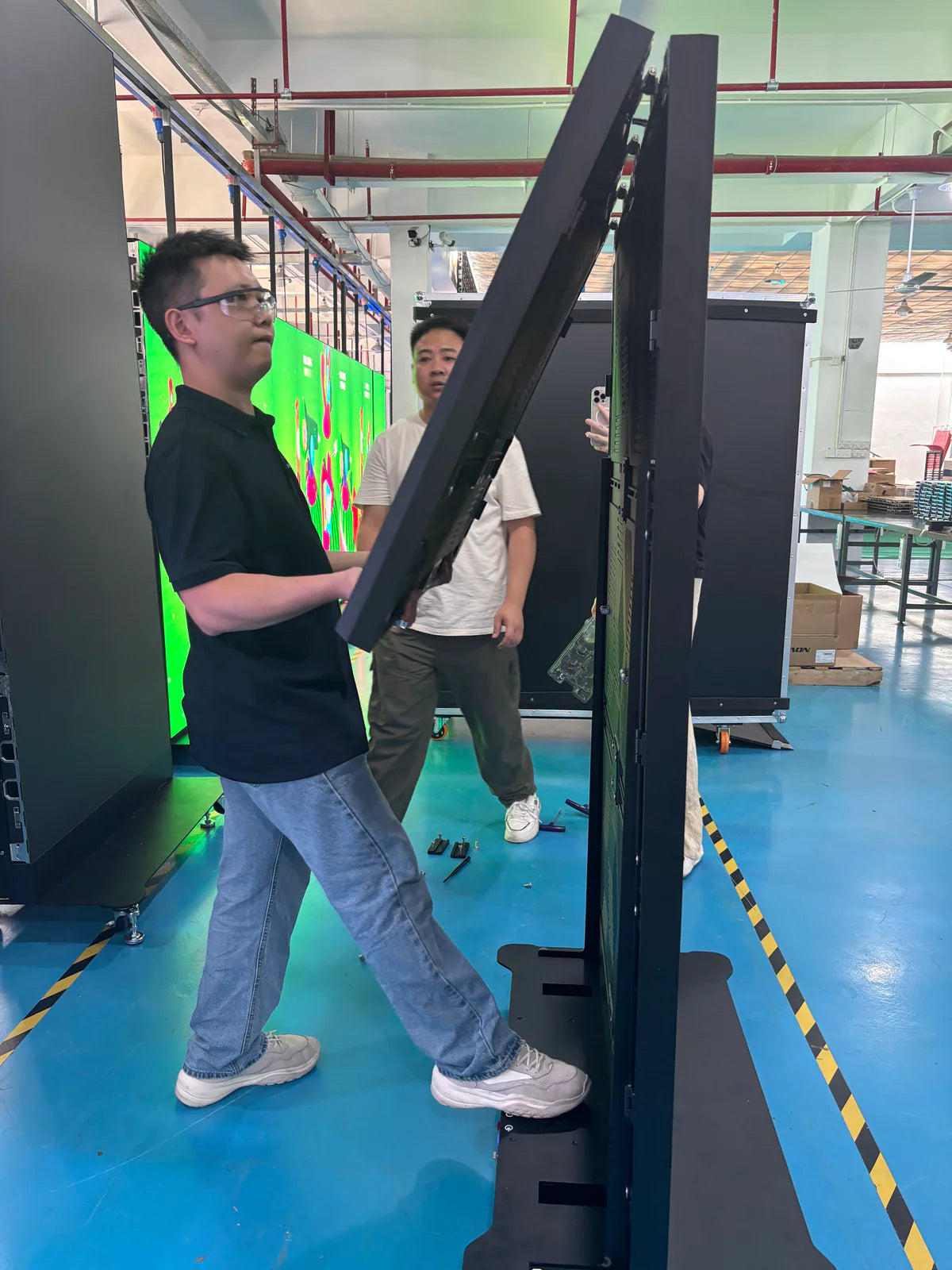

- 【Upgraded Frame】: Made with Backward Foldable Bracket, to save transportation and storage space. Upgrade with flip open magnetic frame, making multi-screen combination process simpler. Just need to ope the edge frame and fasten the quick locks of the two adjacent LED digital posters.
- 【GOB Technology】 ：GOB (gel on board) Technology LED module protecting from water, bump and dust. Modules are fixed with magnets, front access for maintenance.
ABOUT SPLICING and CONTROLLER
| Model # | Display Area (W*H) | Module QTY. | Resolution | Support Splicing QTY. | ||||
| W | H | W | H |
AD20① |
TU20 Pro ② | TU4K Pro ③ | ||
| EP-F-L-P1.25 | 1000X2250 | 4 | 9 | 800 | 1800 | n/a | 2 | 6 |
| EP-F-L-P1.56 | 1000X2250 | 4 | 9 | 640 | 1440 | n/a | 3 | 10 |
| EP-F-L-P1.95 | 1000X2250 | 4 | 9 | 512 | 1152 | n/a | 6 | 20 |
| EP-F-L-P2.6 | 1000X2250 | 4 | 9 | 384 | 864 | 6 | 6 | 20 |
|
Remarks: ① AD20/T60 is the built-in control card in the LED poster. To splicing more pcs LED poster together need to use External Controller. ②TU20 Pro is external controller with loading capacity 3.9 million; ③TU4K Pro is external controller with loading capacity 13 million. |
||||||||
PACKAGE INCLUDED :
LEAD TIME & DELVIERY :
- 【Lead Time】: The products takes 30-40 days to make if none in stock (P1.95 and P2.6 takes 30days, while P1.25 and P1.56 takes 40days).

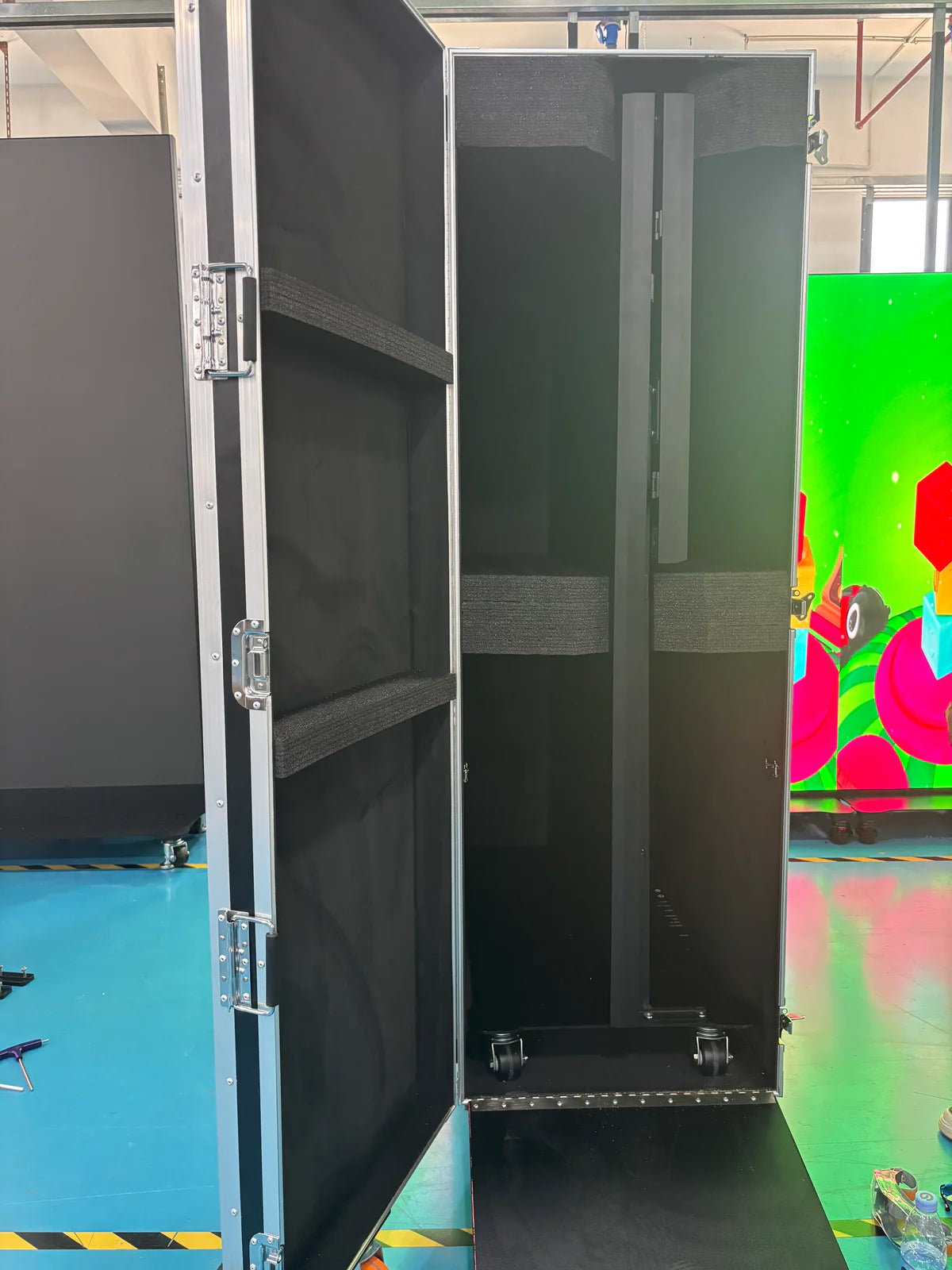

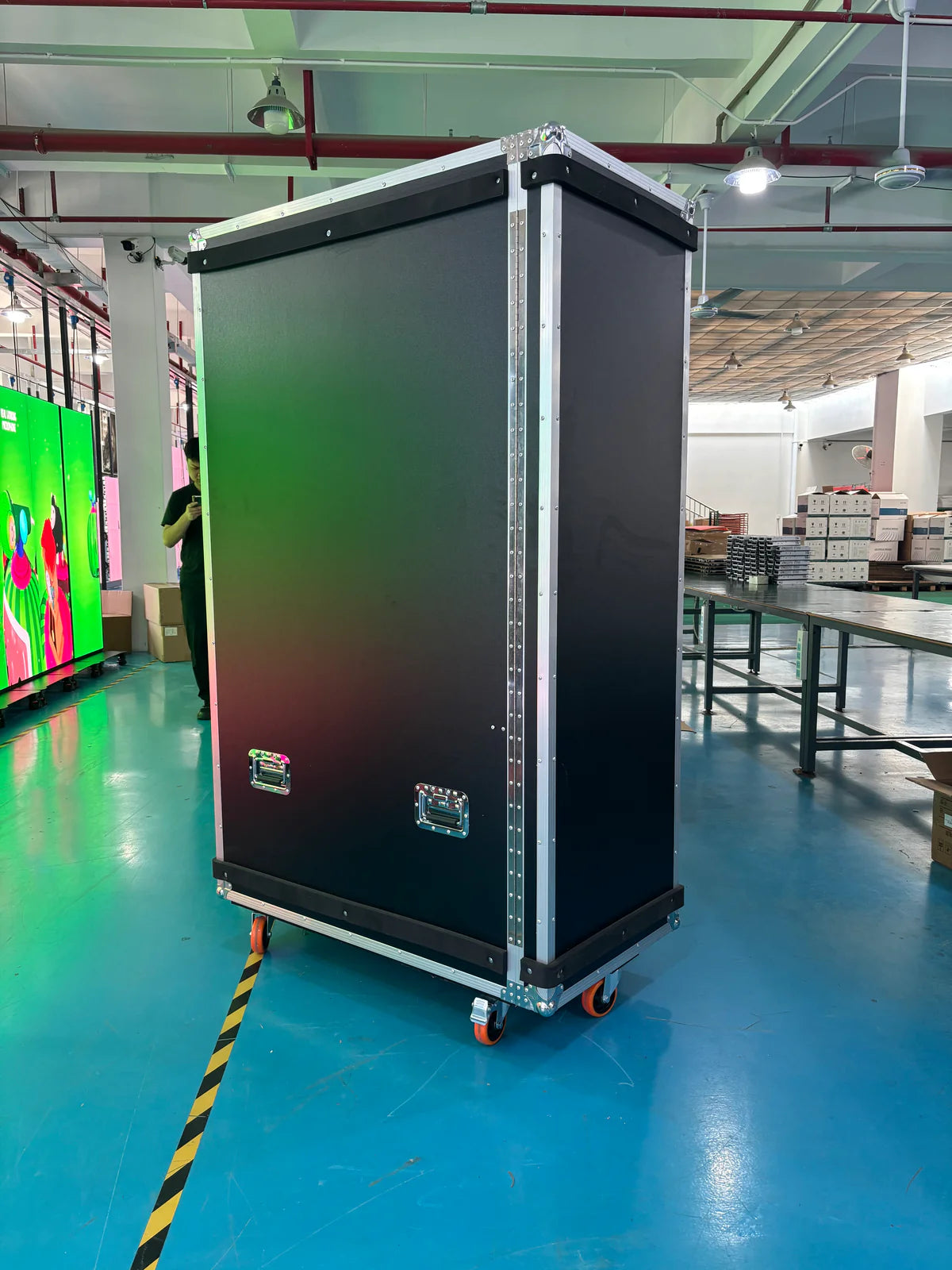

- 【Packing】：The LED Signage Poster will be packed in road rolling air-flight case for shipping (1 LED poster per case).
- 【Free Shipping】：
- For shipping, the prices on this page include free shipping by SEA +Delivery to door by truck. It's by Fast Boat which in regular would take around 30-35days at least in transportation after boat departure;
- DDP TERM (delivery duty paid, all fee included) except the to destination country that this shipping service is not available, then we will contact the buyer if this clause does not apply to his country.
SPECIFICATON :
| Item | Specification | EP-F-L-P1.25 | EP-F-L-P1.56 | EP-F-L-P1.95 | EP-F-L-P2.6 |
| Module Parameter | Pixel Pitch (mm) | 1.25 | 1.56 | 1.95 | 2.6 |
| Pixel Structure | SMD 1R1G1B, GOB Selectable | ||||
| Pixel Density(dot//m²) | 640,000 | 409,600 | 262,144 | 147,456 | |
| Module Size(W*H)(mm) | 250*250 | 250*250 | 250*250 | 250*250 | |
| Module Resolution(W*H)(dot) | 128*128 | 160*160 | 128*128 | 96*96 | |
| Maximum Current(A） | 7 | 7 | 7 | 7 | |
| Supply Voltage(V) | 5 | 5 | 5 | 5 | |
| Scanning Method | 1/50 | 1/40 | 1/32 | 1/32 | |
| Refresh Frequency(Hz) | ≥3840 | ||||
| Illumination(cd//m²) | 600~700 | ||||
| Driver IC | Constant Current Drive | ||||
| Contrast Ratio | ≥8000:1 | ||||

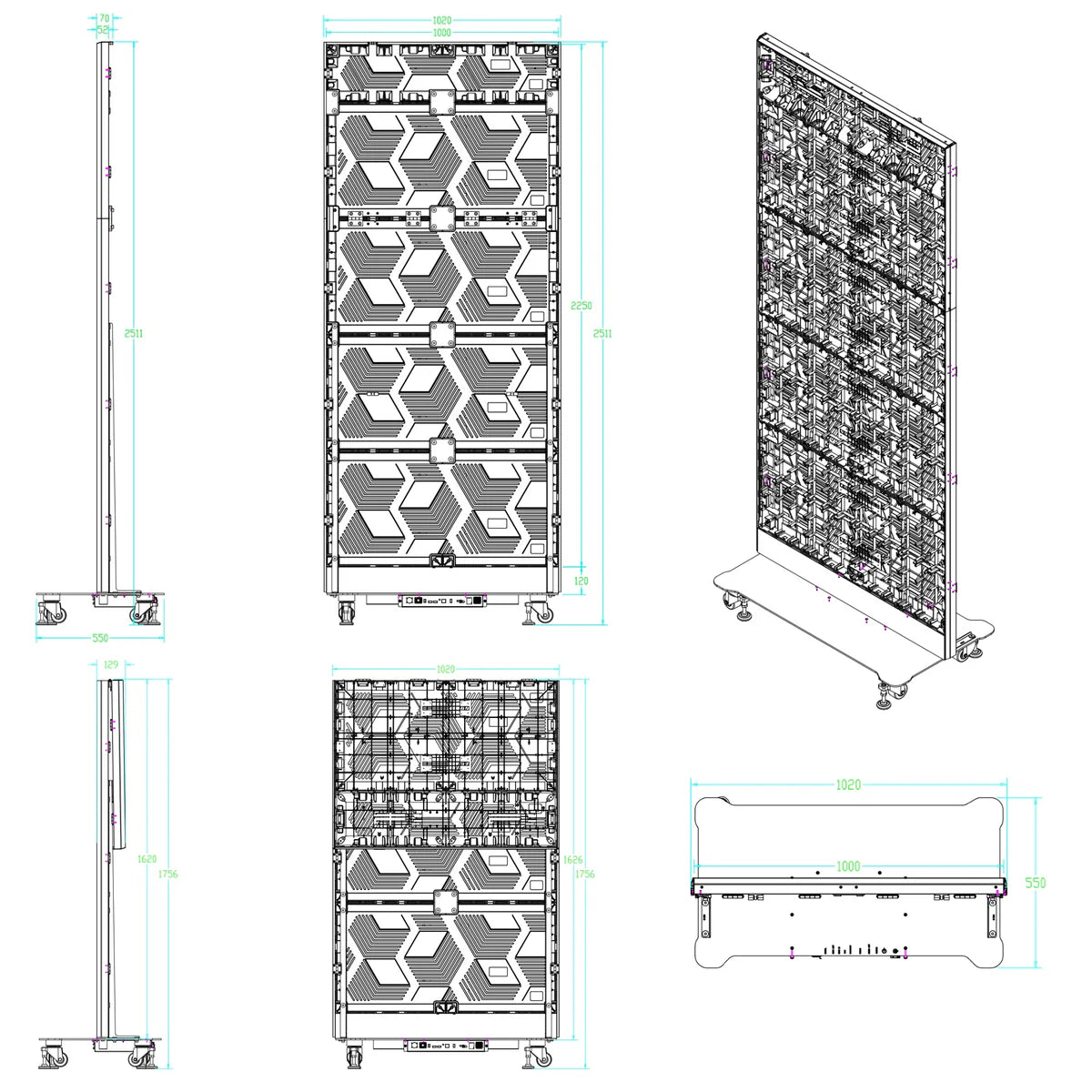

| Screen Parameter | Display Area Size(W*H) | 1000mm X 2250mm (3.28x7.38 FT) | |||
| Cabinet Size(W*H*D) | 1000mm X 2500mm (3.28x 8.2 FT) | ||||
| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight(kg) | 75 | ||||
| Enclosure Connection Method | Screw Fixing | ||||
| Installation/Maintenance Methods | Front and Rear Installation/Front Maintenance | ||||
| Color Temperature/Luminance Uniformity | 3200-9300K；≥98% | ||||
| Chromatic Uniformity | ±0.003Cx,Cy | ||||
| Horizontal/Vertical View | ≥140°/≥120° | ||||
| Single-point Color Correction | Available | ||||
| Single Point Brightness Correction | Available | ||||
| Frame Rate(Hz) | 50/60 | ||||
| Protection Level | IP30 | ||||
| Control Way | Standard Receiver Card | Novastar A5S-PLUS | |||
| Control Card | Novastar AD20 | ||||

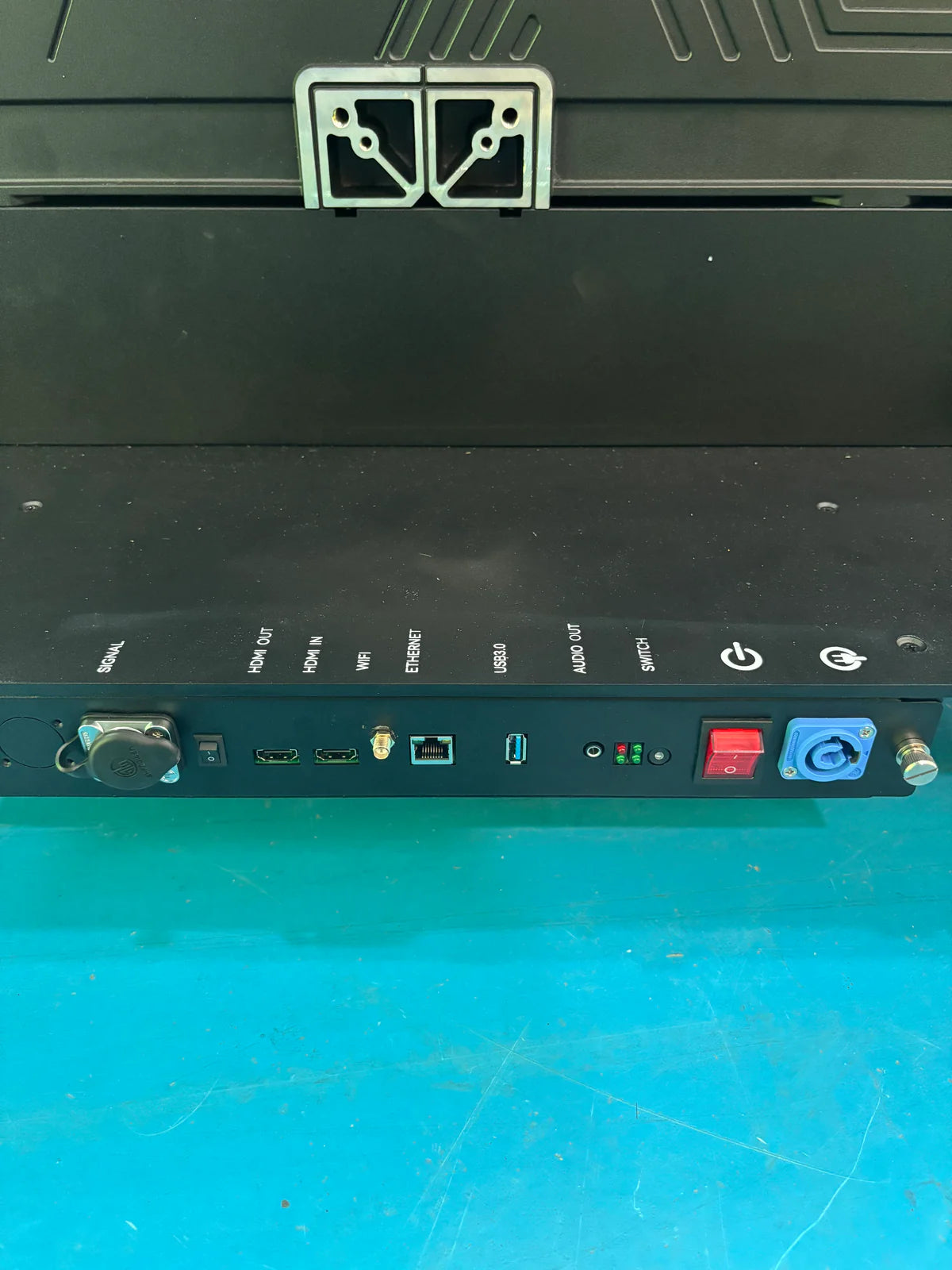

| Connections Power/Data | 1x Data EtherCon In; 1x Signal Conversion Switch; 1x Audio Out; 1x Ethernet RJ45; 1x HDMI in and 1x HDMI out; 1x WiFi Antenna Fixing port; 1x USB3.0; 1x Locking power In;1x Power Switch | ||||
| Publishing System | Asynchronous Control via Mobile APP (APP Name: Viplex Handy) or Synchronous Control via PC Software (Viplex Express), Sync with PC screen via HDMI, and Novastar VNNOX Care Cloud Platform. | ||||
| Program Format |
Supported Picture formats: JPEG, BMP, GIF, PNG, WEBP * Supported Video formats: AVI, MKV, MP4, MOV, 3GP, DAT, MPG, VOB, TS, FLV, WEBM, WMV, ASF, TS |
||||
| Power | Power Interface Method | Plug type fit for destination country | |||
| Input Voltage Range AC(V) | 100-240 | ||||
| Peak Power Consumption(W/m²) | ≤620 | ||||
| Average Power Consumption(W//m²) | ≤310 | ||||
| Environment | Working Temperature and Humidity Range | -20℃～+50℃,10%～95%RH | |||
| Storage Temperature and Humidity Range | -40～+70℃,10%～95%RH | ||||
| Service Life(H) | ≥100000 | ||||
| Mean Time Between Failure(H) | ≥10000 | ||||
APPLICATIONS:
The poster display can be widely used in retail stores, hotels, restaurants, shopping malls, banks, companies, hospitals, schools, airports, subway stations and etc.
