IF-300C Series Flexible LED Screen Modules | 300×168.75mm | COB | P1.875 / P1.5625 / P1.25 / P0.9735 | Soft Back Shell with Magnet | Fine Pitch Creative LED Displays

Package Included

About this item

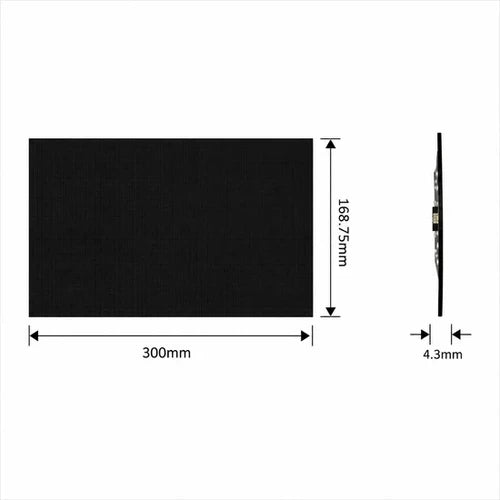

• 300×168.75mm Flexible LED Screen Modules Platform – Designed with a compact flexible module structure, these Flexible LED Screen Modules combine Mini Chip LED COB technology, flexible PCB design, and magnetic mounting capability for premium indoor LED video walls, virtual production environments, and professional visualization projects.
• Advanced Mini Chip LED COB Technology – The COB structure integrates LED chips directly onto the PCB surface, improving display consistency, reducing surface exposure risks, and providing enhanced reliability for fine pitch LED applications.
• Ultra High Contrast Display Performance – Featuring a 30000:1 contrast ratio, these Flexible LED Screen Modules provide deep blacks, enhanced image depth, and accurate visual reproduction for professional display environments requiring superior image quality.
• High Brightness and Refresh Performance – With 1200 nits brightness, ≥3840Hz refresh rate, and 13–22bit grayscale capability, the modules deliver smooth motion performance, detailed image output, and stable visual presentation for demanding indoor LED applications.

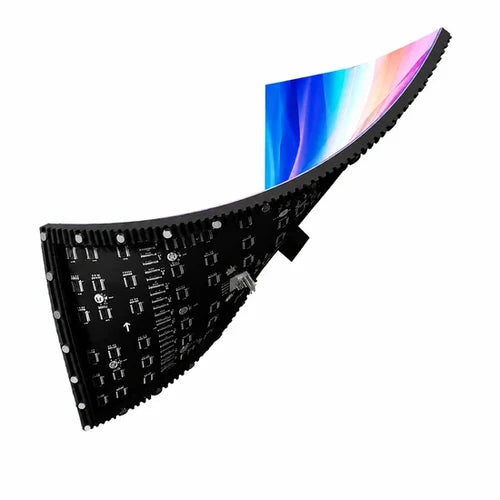

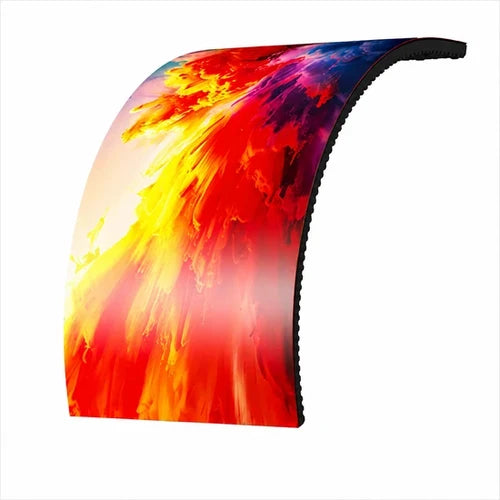

• Flexible COB Structure for Creative Display Designs – Supporting front and rear bending directions with up to 158° bending capability, these Flexible LED Screen Modules enable curved LED walls, immersive display systems, XR environments, and customized architectural LED structures.
• P1.875 Fine Pitch COB LED Performance – The P1.875 version provides 160×90 pixel resolution with Mini Chip LED COB technology, 1200 nits brightness, and high contrast performance for premium fine pitch LED display projects.
• P1.5625 High Density COB Display Performance – The P1.5625 version provides 192×108 pixel resolution and 409,600 dots/m² pixel density for professional visualization environments requiring detailed image reproduction.
• P1.25 Ultra Fine Pitch COB Display Performance – The P1.25 version provides 240×135 pixel resolution and 640,000 dots/m² pixel density for command centers, premium LED video walls, and advanced visualization applications.
• P0.9735 Ultra High Density COB Display Performance – The P0.9735 version provides 320×180 pixel resolution and 1,137,778 dots/m² pixel density for next-generation fine pitch LED applications requiring exceptional detail accuracy.
• Project-Based Flexible LED Screen Modules Supply – Available in MOQ, bulk, and engineering package options to support product testing, system integration, engineering procurement, and large-scale premium LED display projects.

Order & Logistics

Lead Time

• IF-240S Series / IF-240G Series / IF-256S Series / IF-320S Series / IF-320G Series: Handling time 3–5 business days.
• IF-300C: Handling time 15–20 business days.

Freight & Delivery

• Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Protection & Design Features

• COB Integrated LED Surface Technology – The COB structure integrates Mini Chip LEDs directly onto the PCB surface, improving display consistency, reducing surface exposure risks, and supporting premium fine pitch Flexible LED Screen Modules applications.

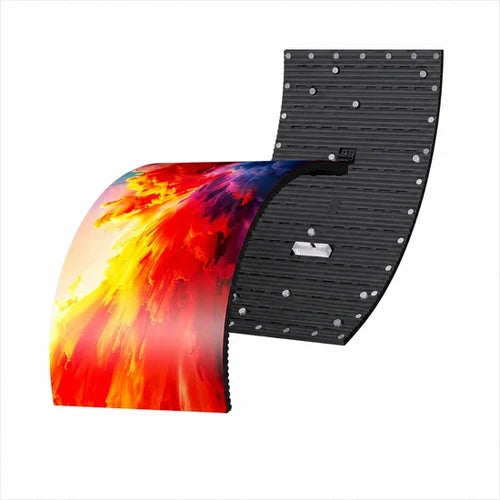

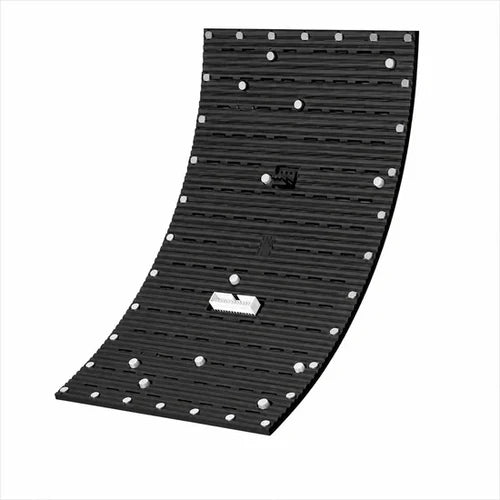

• Flexible COB Structure with Magnetic Installation – The flexible PCB design combined with magnetic mounting enables curved display construction, efficient installation, and customized LED display structures for professional indoor projects.
• Premium Fine Pitch Display Performance – Combining high contrast ratio, Mini Chip LED technology, and advanced grayscale capability, these Flexible LED Screen Modules deliver professional image quality for demanding visualization environments.
• Ultra High Pixel Density Performance – P1.25 and P0.9735 models provide extremely high pixel density for close-viewing applications requiring precise image reproduction and detailed visual presentation.
• High Contrast Visualization Capability – The 30000:1 contrast ratio improves black level performance and image depth for virtual production, broadcast, command center, and premium commercial display applications.
• Flexible Curved Display Platform – The flexible COB technology combined with magnetic mounting supports curved LED walls, immersive display systems, XR backgrounds, and customized architectural LED installations.

Installation Guide

• Confirm the LED display structure, module arrangement, controller configuration, receiving card compatibility, and power requirements before installation.
• Install the P1.875/P1.5625/P1.25/P0.9735 300×168.75mm Flexible LED Screen Modules according to the designed curved or creative display structure and ensure accurate alignment.
• Secure the modules using the magnetic mounting system and connect data and power cables according to the system wiring design.
• Connect the 26Pin data cables and DC 5V power cables correctly before powering on the LED display system.
• Use compatible NovaStar or ColorLight control systems for stable signal transmission and display operation.
• Handle the COB LED surface carefully during installation and maintenance to avoid unnecessary impact, pressure, or surface damage.
• Follow proper anti-static procedures during transportation, installation, and maintenance operations.

Applications

• Fine Pitch LED Video Walls: Suitable for premium indoor LED video walls requiring high contrast performance, detailed image reproduction, and reliable long-term operation.
• Virtual Production LED Screens: Supports professional virtual production environments requiring high refresh performance, accurate image output, and flexible LED structures.
• XR Studio LED Background Displays: Suitable for XR production environments requiring curved LED backgrounds and customized display structures.
• Broadcast Studio LED Displays: Supports professional broadcast applications requiring stable image quality, high grayscale performance, and flexible installation.
• Control Room LED Video Walls: Suitable for command centers, monitoring environments, and visualization systems requiring detailed image presentation.
• Command Center LED Displays: Supports high-end control environments requiring fine pitch image quality and reliable display performance.
• Premium LED Video Walls: Suitable for commercial, corporate, and professional visualization spaces requiring advanced LED display technology.
• Immersive Visualization Systems: Supports immersive spaces, interactive environments, and creative digital experiences.
• Museum Digital Display Systems: Suitable for digital exhibitions, cultural displays, and high-detail visual presentations.
• Exhibition LED Display Systems: Supports professional exhibition projects requiring flexible installation and premium image performance.
• Digital Art LED Displays: Suitable for creative digital artwork, immersive installations, and detailed visual projects.
• Corporate Visualization Systems: Supports corporate presentation environments, meeting spaces, and premium visual communication projects.
• High-End Commercial LED Display Projects: Suitable for premium retail, brand experience, and professional visualization applications.
• Custom Flexible LED Screen Modules Projects: Supports customized curved, special-shape, and high-end indoor LED display projects.
