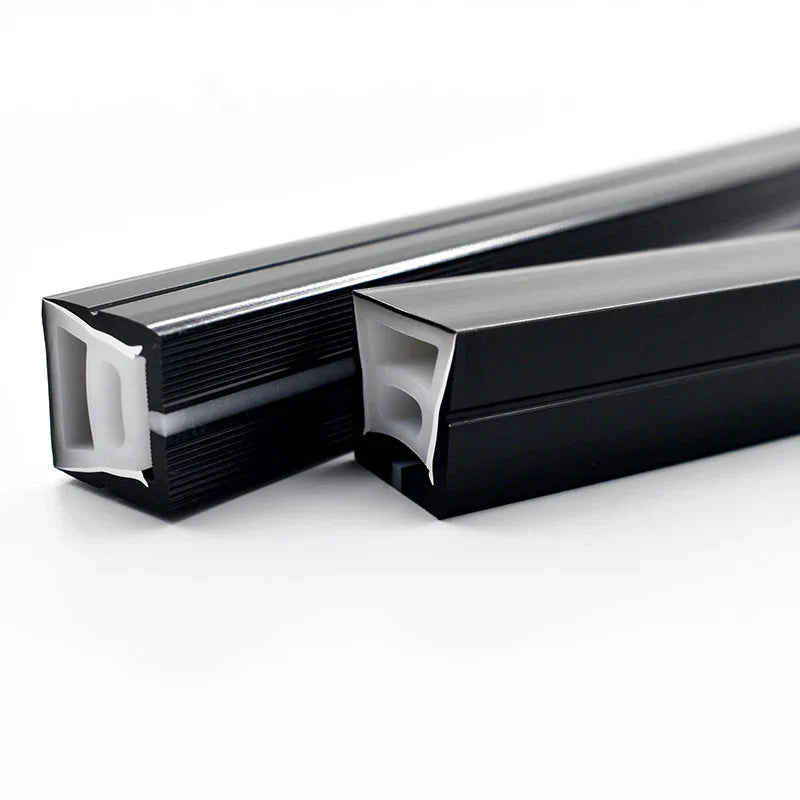

Different Types of LED Aluminum Channels and Their Installation Scenarios
LED aluminum channels play a crucial role in modern lighting systems. They not only provide structural support for LED strips but also aid in heat dissipation, light diffusion, and protection of the LEDs. Understanding the structural characteristics, optical principles, and installation scenarios of different types of aluminum channels helps achieve efficient, durable, and visually appealing lighting solutions. This article provides a technical overview of common LED aluminum channel types along with practical product examples.
1. U-Shape Channels
U-shape channels have a “U” profile with a base for mounting LED strips and side walls for the diffuser cover. The aluminum’s high thermal conductivity ensures rapid heat dissipation, extending the lifespan of the LEDs. Frosted or transparent covers soften the light, creating even illumination and reducing glare or hotspots.
These channels offer high thermal efficiency, uniform light diffusion, and flexible installation, suitable for straight or angled mounting. They can accommodate various LED strip widths and are ideal for cabinet lighting, furniture insets, display cases, and stair step lighting. Their simple structure allows easy replacement of LED strips.
Product examples: U01-A 12mm, U02-A 12mm, U03-A 20mm
2. Drywall Recessed Channels
Drywall recessed channels can be flush-mounted with walls or ceilings, with plaster or putty covering the edges for a seamless finish. Single-sided channels direct light in one direction, while double-sided channels provide symmetrical illumination. Close contact with the wall improves heat dissipation while hiding the light source for a soft and natural glow.
These channels allow the lighting to integrate with the architecture, producing continuous and uniform illumination. Suitable for living rooms, hallways, office ceilings, exhibition spaces, and commercial interiors.
Product examples: Single-sided Recessed Channel, Double-sided Recessed Channel
3. Round Suspended Channels
Round suspended channels have a tubular design, with LED strips mounted along the inner wall and suspended from rods or wires. The circular cross-section creates uniform ring-shaped illumination, and the translucent cover further diffuses light. Suspension height can be adjusted to suit different spaces.
These channels provide soft and even illumination, reduce glare, and offer decorative appeal. They are ideal for restaurants, cafes, open offices, exhibition halls, and high-ceiling corridors.
Product example: D60-B
4. Wide Recessed Channels
Wide recessed channels have a larger inner cavity to accommodate wider or multiple rows of LED strips. The larger space helps diffuse light evenly and reduces heat concentration. Included mounting accessories support both recessed and surface installation.
These channels are suitable for high-brightness applications, providing stable and uniform lighting. The thick aluminum structure enhances heat dissipation, allowing high-power LEDs to operate reliably. Ideal for office linear lighting, conference rooms, malls, and exhibition areas.
Product example: H15050B
Summary
Different types of LED aluminum channels have distinct characteristics in structure, heat dissipation, and optical performance. U-shape channels are suitable for linear and localized lighting, drywall recessed channels provide seamless linear light integration, round suspended channels are ideal for open spaces, and wide recessed channels accommodate high-brightness multi-row installations. Understanding their design principles and installation scenarios helps engineers, designers, and lighting enthusiasts select the right solution for efficient, durable, and visually appealing linear lighting while ensuring system stability and long LED lifespan.
