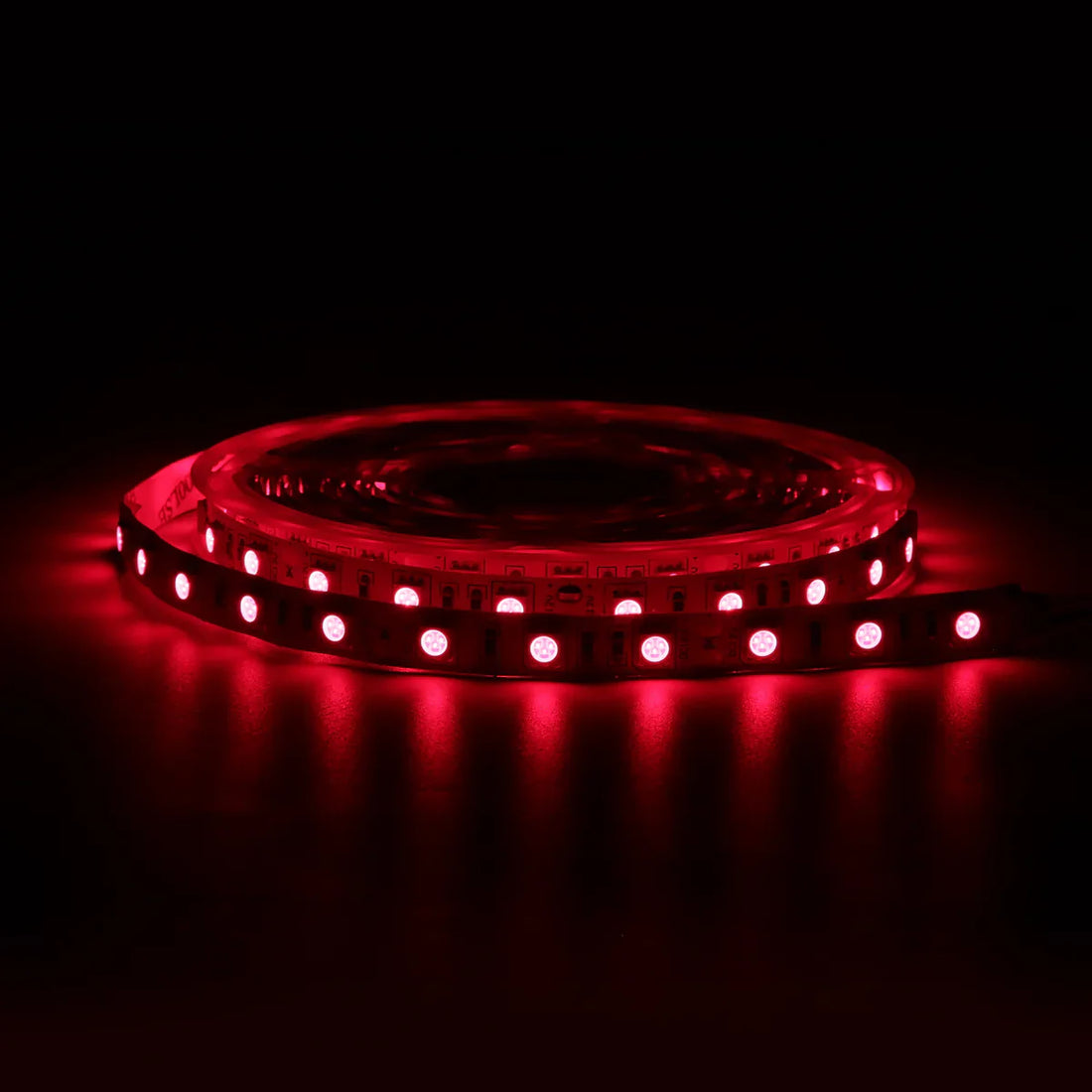

How to Choose the Right Red and Infrared LED Strip Light: 635nm, 660nm, 730nm, 810nm, 850nm and 940nm Guide
When selecting a red or infrared LED strip light for industrial, agricultural, machine vision, security, or optical applications, wavelength is one of the most important specifications.
Different wavelengths interact differently with human vision, cameras, sensors, plants, and optical systems. A wavelength that works well for CCTV may not be suitable for plant growth. A wavelength used for visible red indication may be ineffective for covert infrared illumination.
This guide explains the practical differences between 635nm, 660nm, 730nm, 810nm, 850nm, and 940nm LED strip lights, and helps project buyers choose the correct wavelength for their application.
635nm LED Strip: Bright Visible Red Light for Indicators and Signaling
635nm belongs to the visible red spectrum and is one of the easiest red wavelengths for the human eye to recognize. Compared with deeper red wavelengths such as 660nm, 635nm usually appears brighter under the same output level.
This makes 635nm suitable for applications where people need to clearly see the light source or quickly identify a visual signal. Typical projects include equipment status indicators, warning lights, control panels, display systems, and visible red decorative lighting.
If the goal is to create a strong visible red signal rather than infrared illumination, 635nm is usually the most suitable choice.
660nm LED Strip: Deep Red Light for Plant Growth Applications
660nm is commonly known as deep red light. Although it appears darker than 635nm to the human eye, it is highly important in horticultural lighting because plants can efficiently use this wavelength for photosynthesis.
For greenhouse lighting, hydroponic systems, vertical farming, and plant research projects, 660nm is often one of the core wavelengths used in grow light systems. It is not selected because it looks bright to humans, but because it provides targeted spectral energy for plants.
If the project is focused on plant growth support or agricultural lighting, 660nm is usually a better choice than visible red wavelengths designed mainly for human viewing.
730nm LED Strip: Far Red Light for Photoperiod and Bloom Control
730nm is located in the far-red region. It appears only as a very weak dark red glow to the human eye, but it plays an important role in plant photoperiod control.
In horticultural systems, 730nm is often used together with 660nm to influence flowering, stem elongation, shade response, and plant growth cycles. It is commonly used in greenhouse projects, bloom enhancement systems, and agricultural research applications.
730nm is not intended for general lighting. It is a specialized wavelength for projects that require far-red spectral control.
810nm LED Strip: Near Infrared Light for Optical and Imaging Projects
810nm belongs to the near-infrared range and is largely invisible to the human eye. This wavelength is often selected for optical research, imaging systems, infrared testing platforms, and scientific instruments.
Compared with 850nm, which is widely used in CCTV and security cameras, 810nm is more commonly chosen for specialized optical engineering projects where compatibility with sensors, filters, or testing equipment is important.
If your project involves optical experimentation, imaging development, or near-infrared testing, 810nm can be a useful engineering wavelength.
850nm LED Strip: Standard Infrared Light for CCTV and Machine Vision
850nm is one of the most widely used infrared wavelengths in camera-based systems. Most CCD and CMOS camera sensors respond well to 850nm infrared light, which makes it highly effective for night vision and machine vision applications.
It is commonly used in CCTV systems, security cameras, license plate recognition, industrial inspection, robotics, and automated vision systems. Compared with 940nm, 850nm usually provides better image brightness and longer effective illumination distance under the same power level.
The main trade-off is that 850nm LEDs may show a faint red glow in dark environments. For most security and machine vision applications, this is acceptable. For fully covert lighting, 940nm may be preferred.
940nm LED Strip: Invisible Infrared Light for Covert Illumination
940nm is a deeper near-infrared wavelength and is almost invisible to the human eye. Unlike 850nm, it produces little to no visible red glow during operation.
This makes 940nm suitable for wildlife cameras, covert surveillance, hidden monitoring systems, smart detection devices, and infrared sensor applications where the light source should not be noticed.
The trade-off is that many cameras are less sensitive to 940nm than to 850nm. As a result, a 940nm system may require higher optical power or a more sensitive camera to achieve similar image brightness.
If invisibility is more important than maximum camera brightness, 940nm is usually the better choice.
Quick Product Selection Guide
| Wavelength | Spectrum Type | Typical Application | Visibility | Product |
|---|---|---|---|---|
| 635nm | Visible Red | Indicators, warning systems, display equipment | Highly visible red | View Product |
| 660-670nm | Deep Red | Plant growth, greenhouse lighting | Visible deep red | View Product |
| 730-735nm | Far Red | Photoperiod control, bloom enhancement | Weak red glow | View Product |
| 810nm | Near Infrared | Optical systems, imaging projects | Invisible | View Product |
| 850nm | Near Infrared | CCTV, security cameras, machine vision | Slight red glow | View Product |
| 940nm | Near Infrared | Covert surveillance, wildlife cameras | Invisible | View Product |
Waterproof 50cm Rigid LED Bar Series
| Wavelength | Recommended Application | Product |
|---|---|---|
| 635nm | Indicator lighting and visible red applications | View Product |
| 660-670nm | Greenhouse and hydroponic lighting | View Product |
| 730-735nm | Photoperiod lighting and bloom enhancement | View Product |
| 810nm | Imaging systems and optical projects | View Product |
| 850nm | Security monitoring and night vision lighting | View Product |
| 940nm | Smart detection and infrared sensor systems | View Product |
Conclusion
Choosing the correct wavelength is often more important than selecting LED density, power level, or waterproof rating. The wavelength determines how the light interacts with cameras, sensors, plants, optical systems, and human vision.
For visible red signaling, choose 635nm. For plant growth, choose 660nm. For photoperiod control, choose 730nm. For optical research, choose 810nm. For CCTV and machine vision, choose 850nm. For covert infrared illumination, choose 940nm.
Understanding these differences helps engineers, system integrators, and project buyers select the right red or infrared LED strip light for their application.
