OF-3N Series Outdoor Flexible LED Module – P8 / P5 / P4 / P2.5 | 320×160mm Panel | IP65 Front & Rear Maintenance | Dual-Side Waterproof Options | 4500–5000nits | Nationstar LEDs

From $325.00
Pixel Pitch
Package Qty
$325.00
$325.00
Shipping calculated at checkout.
In stock

OF-3N Series Outdoor Flexible LED Module – P8 / P5 / P4 / P2.5 | 320×160mm Panel | IP65 Front & Rear Maintenance | Dual-Side Waterproof Options | 4500–5000nits | Nationstar LEDs

About this item

  • Durable & Reliable – IP65 waterproof front & back with silicone sealing for stable performance in demanding outdoor environments.
  • High Precision Visuals – Pixel pitch options: P8 / P5 / P4 / P2.5, 1/5–1/10 scan, vivid and smooth display with accurate color reproduction.
  • Bright & Long-lasting – 4500–5000 nits with auto-brightness adjustment and low lumen depreciation for consistent performance over time.
  • Wide Viewing Angle – 140° horizontal / 120° vertical for uniform color and brightness across the screen.
  • Flexible Installation – Seamless splicing; supports creative shapes (curved, cylindrical, custom sizes). Requires receiving card, sending card, software, and DC 5V power supply.

Package Included

Version Package Included

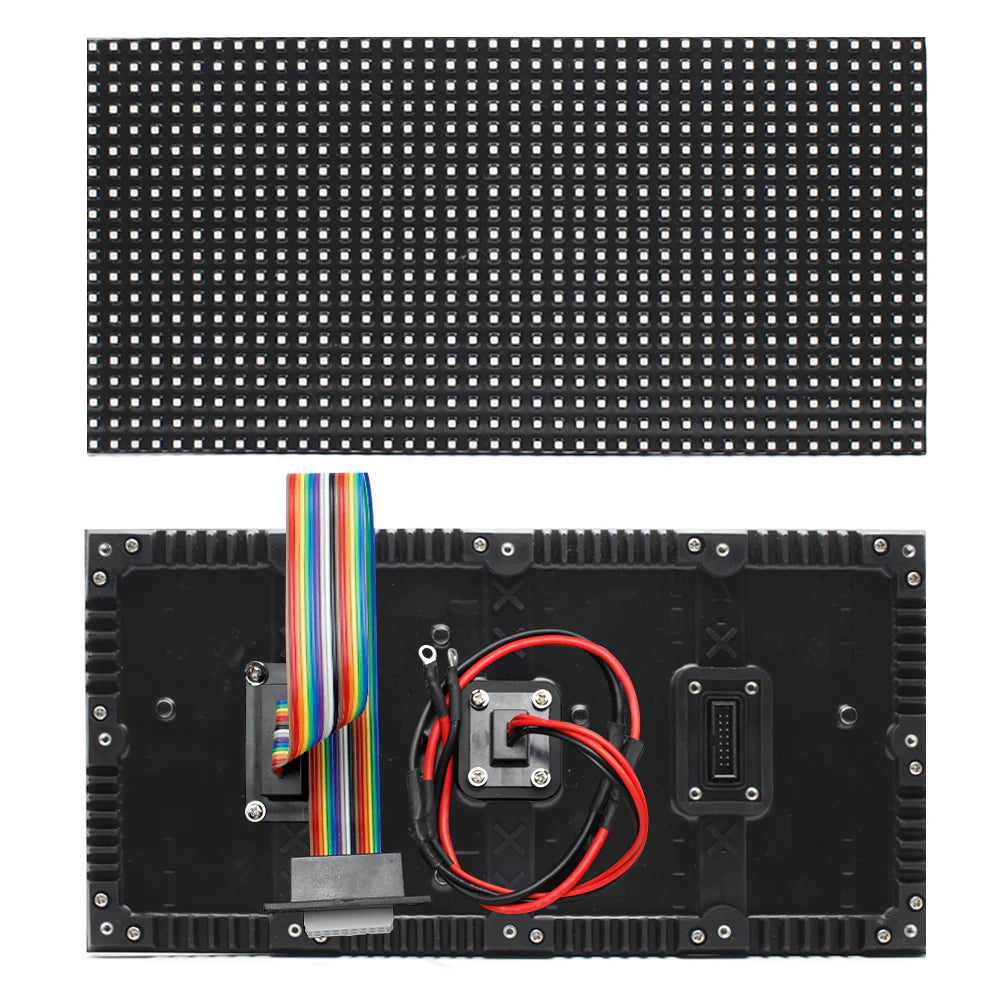

Single Module Set 1 × 5V Power Cable 1-to-2 Split
1 × 16 PIN Flat Cable
1 × P8 / P5 / P4 / P2.5 320 × 160 mm RGB Full Color LED Display Module
30 Modules Set 15 × 5V Power Cable 1-to-2 Split
30 × 16 PIN Flat Cable
30 × P8 / P5 / P4 / P2.5 320 × 160 mm RGB Full Color LED Display Module

Order & Logistics

  • Lead Time: Typically ships within 1–3 business days.
  • Packing: Cardboard box with protective packaging.
  • Shipping: All products in this series are shipped directly from our headquarters warehouse （Standard Shipping: 9–18 days | Express Shipping: 5–9 days.）

Protection & Design Features

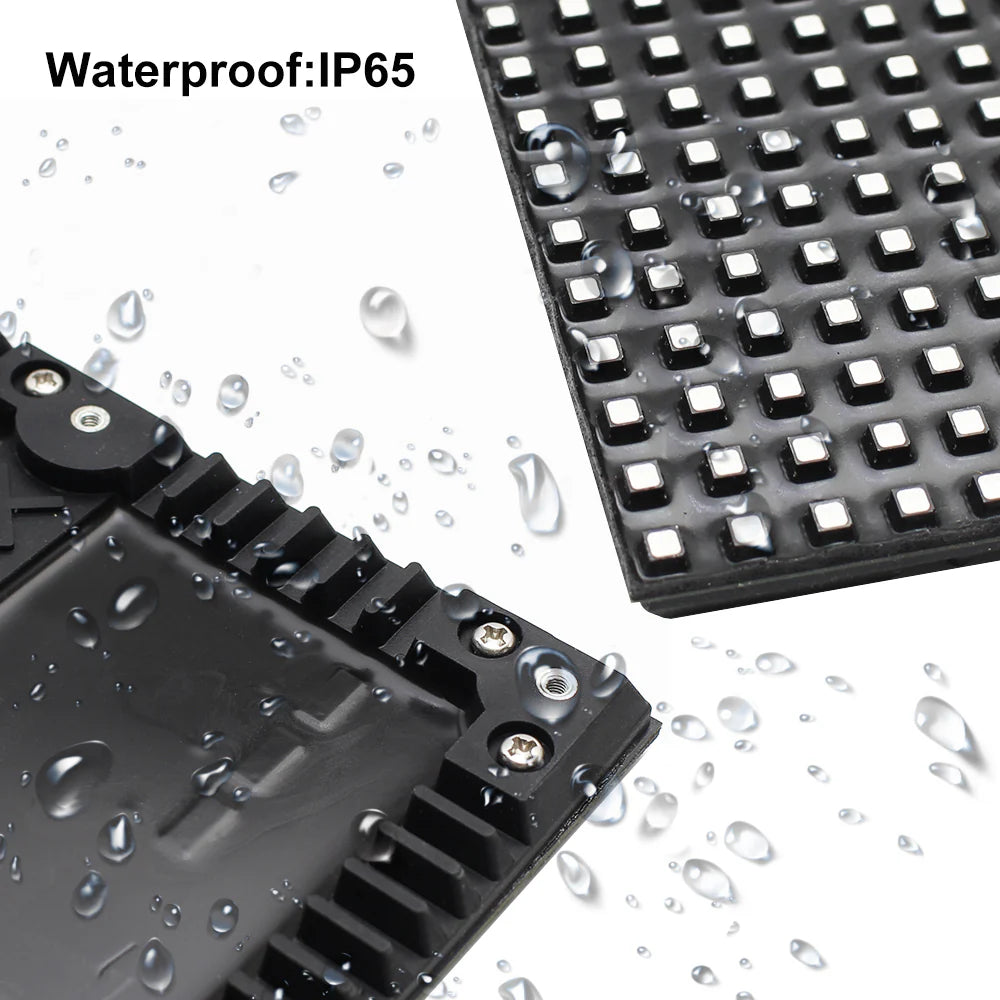

  • Outdoor Series: IP65 Waterproof – silicone encapsulation on front and back; sealed power/data ports for enhanced weather resistance.

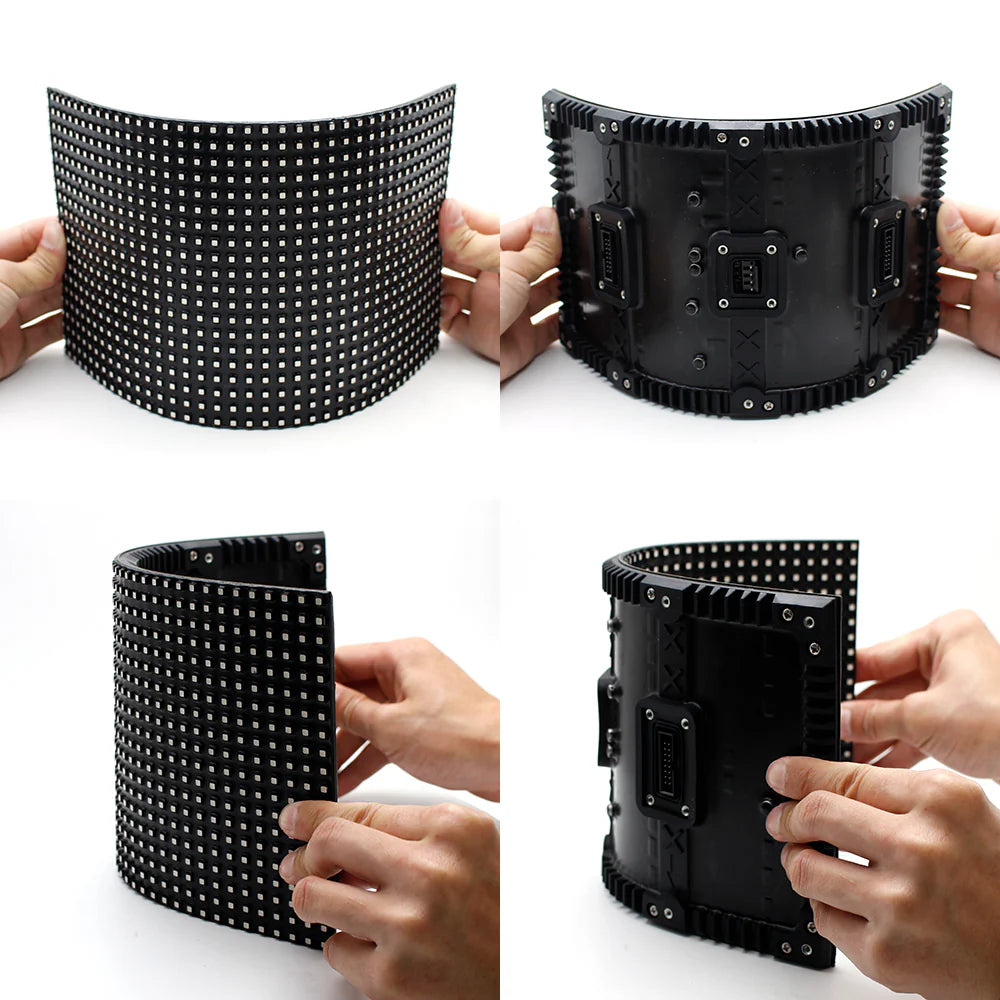

  • Flexible module options for creative curved or cylindrical displays.

Installation Tips

  • Always disconnect power before installing or servicing the module.
  • Ensure correct polarity for power/data connections.
  • Avoid bending or twisting the PCB beyond rated tolerance (for flexible models).
  • Use compatible receiving card, sending card, software, and DC 5V power supply.

Technical Specifications

Specification Value

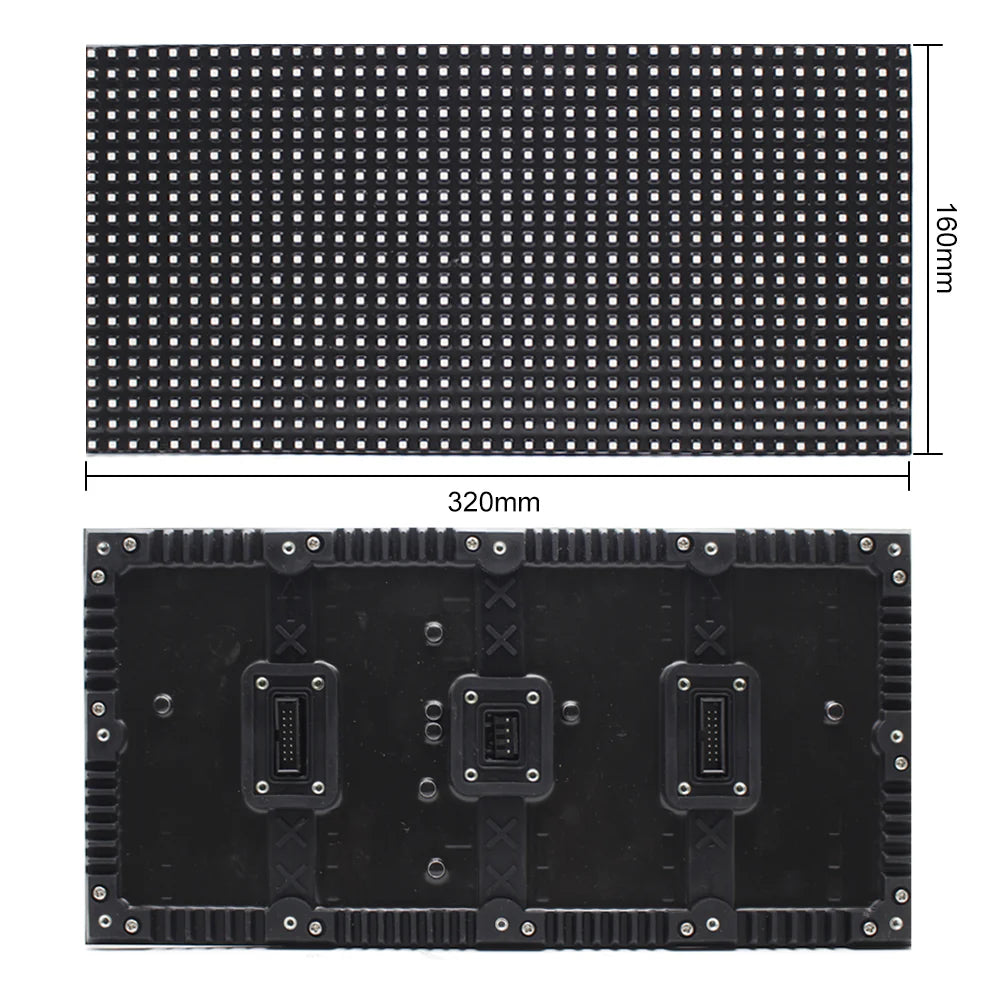

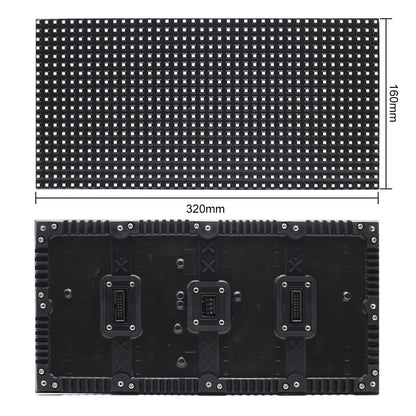

Module size 320 × 160 mm
Pixel pitch P8 / P5 / P4 / P2.5

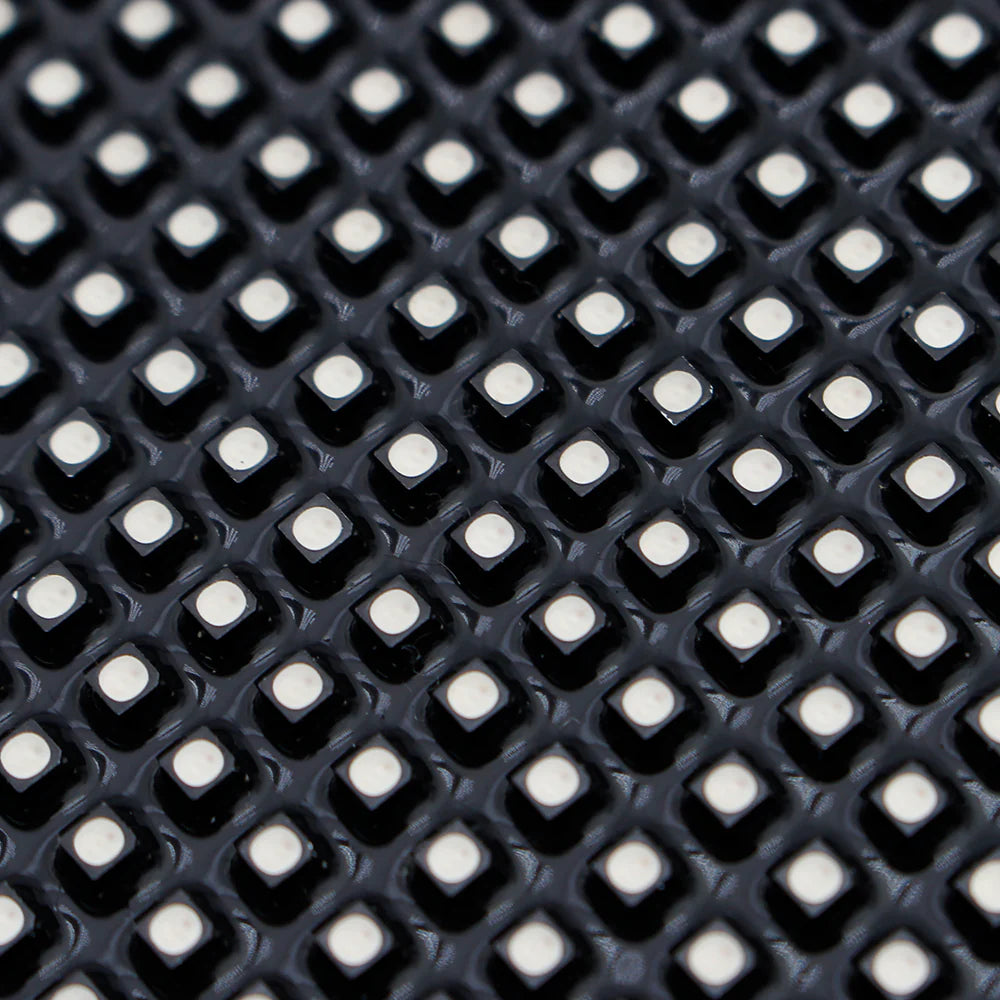

LED type Nationstar SMD3535
Brightness 4500–5000 nits
Scan rate Depends on pixel pitch: 1/5–1/10 scan
Refresh Rate 3840Hz
Viewing angle 140° horizontal / 120° vertical
Input voltage DC 5V
Module protection level IP65 front & rear
Operating temperature range -20°C ~ 50°C
Operating humidity range 20%–90% RH
Typical lifespan 100,000h

Applications

  • Outdoor: Billboards, stadiums, event stages, transportation hubs.
  • Creative: Curved displays, cylindrical screens, artistic installations.
