IF-320G Series Flexible LED Screen Modules | 320×160mm | GOB | P1.86 / P1.53 / P1.25 | Soft Back Shell with Magnet | Protective Creative LED Displays

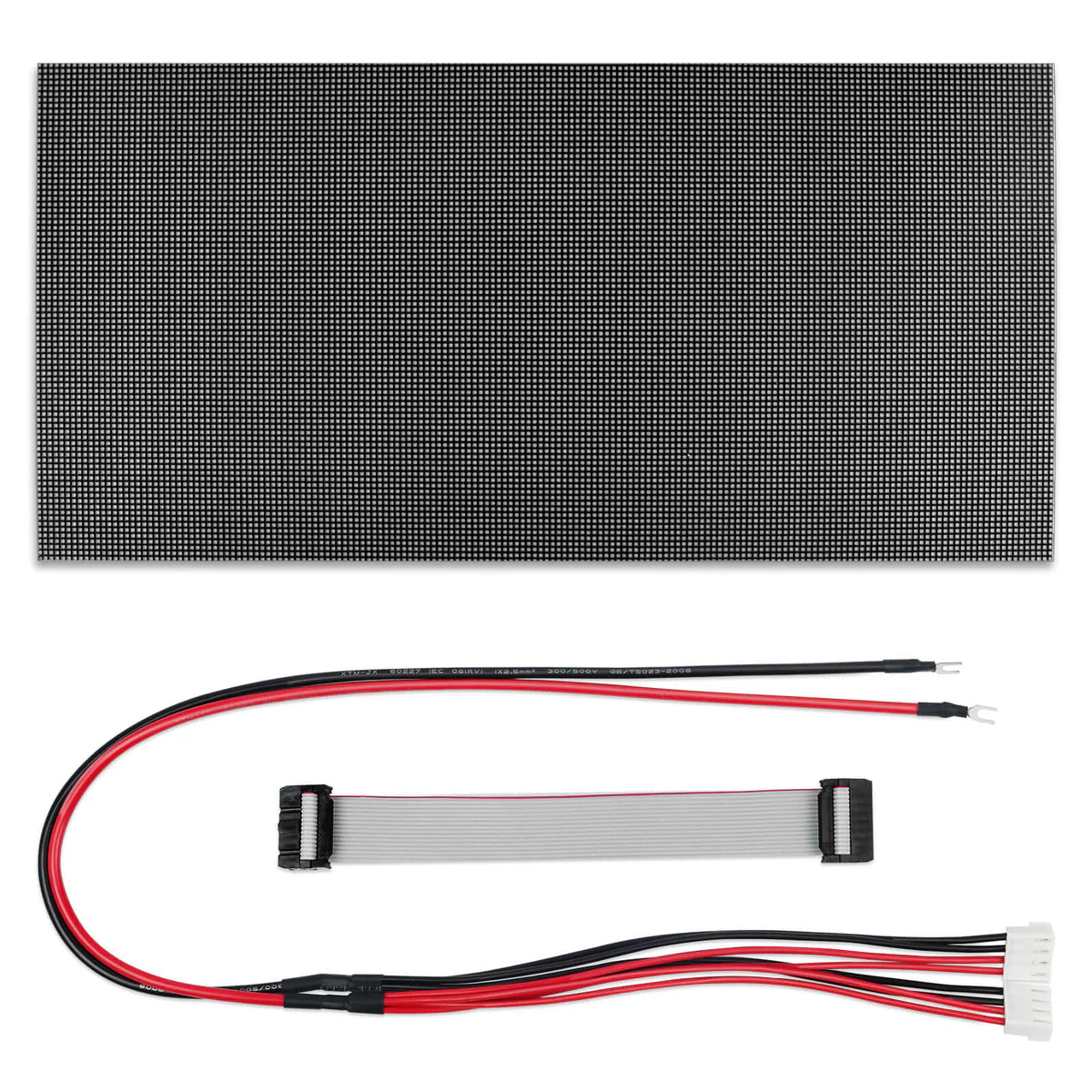

Package Included

About this item

• 320×160mm Flexible GOB LED Screen Modules Platform – Designed with a standardized 320×160mm flexible module structure, these Flexible LED Screen Modules combine GOB surface protection, fine pitch LED technology, and flexible installation capability for premium indoor LED video walls, creative displays, and professional visualization projects.

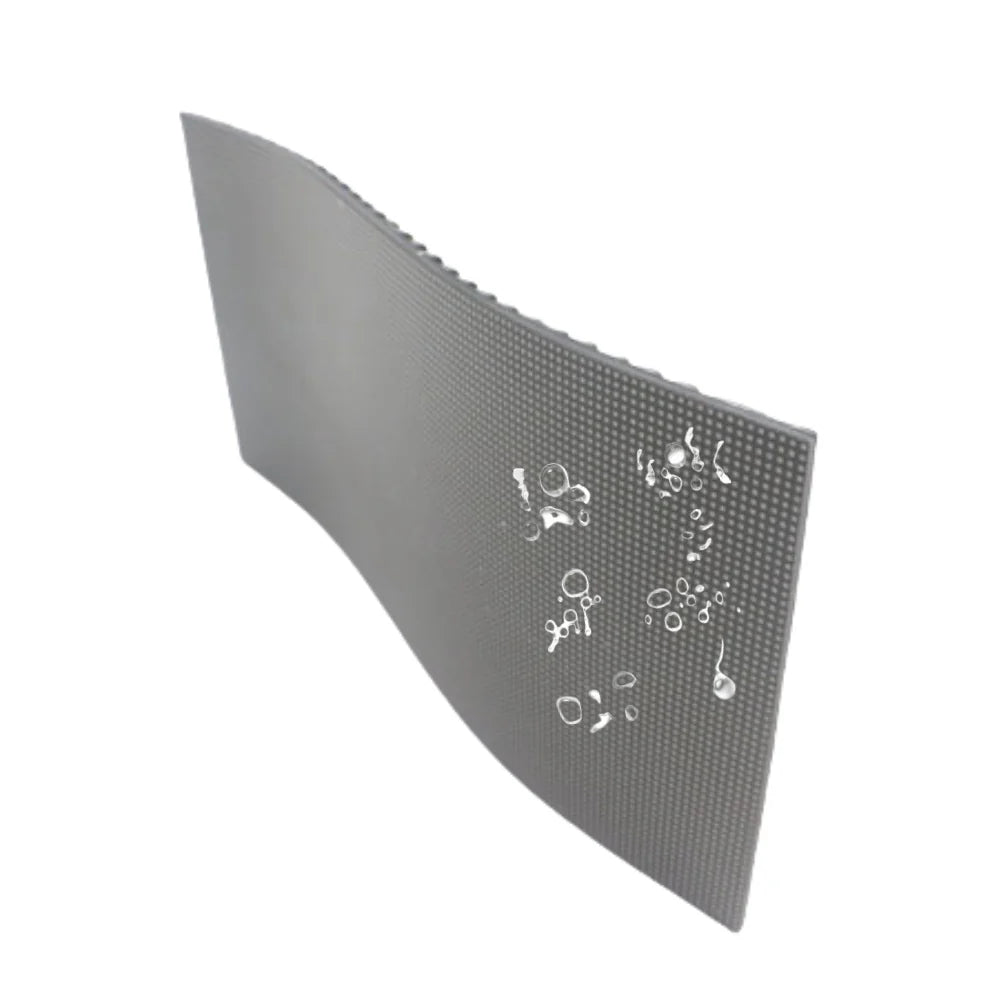

• GOB Surface Protection Technology – The GOB protection layer improves LED surface durability and resistance against accidental contact, dust, and surface impact, providing enhanced reliability for demanding indoor LED display applications.

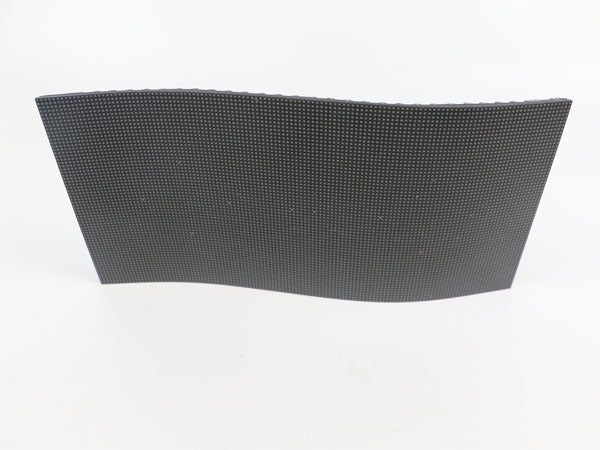

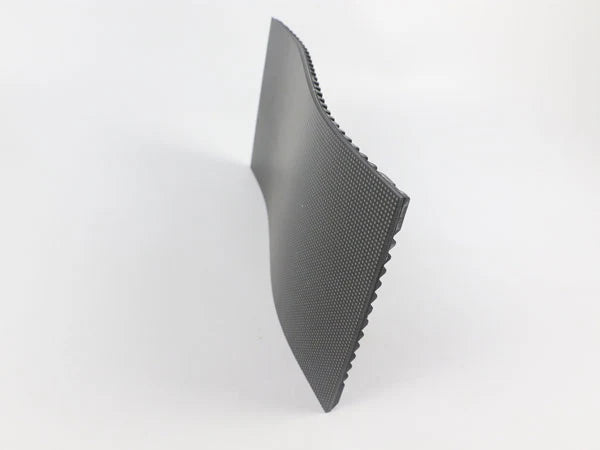

• Flexible PCB Structure with Soft Back Shell – The flexible PCB combined with soft back shell design provides structural support while enabling curved installation, customized LED display structures, and efficient module integration.
• Magnetic Front Service Installation – The magnetic mounting system simplifies module assembly, replacement, and front maintenance, making these Flexible LED Screen Modules suitable for projects with limited rear access.
• P1.86 High Resolution GOB Display Performance – The P1.86 version uses SMD1515 LED technology with GOB protection, 600 nits brightness, and ≥3840Hz refresh rate, providing detailed image performance for professional indoor LED video walls and visualization projects.
• P1.53 Fine Pitch GOB Display Performance – The P1.53 version uses SMD1212 LED technology with GOB protection, 600 nits brightness, and ≥3840Hz refresh rate, providing high pixel density and refined image quality for close-viewing environments.
• P1.25 Ultra Fine Pitch GOB Display Performance – The P1.25 version uses SMD1010 LED technology with GOB protection, 600 nits brightness, and ≥3840Hz refresh rate, delivering ultra high pixel density and detailed visual performance for premium indoor LED projects.

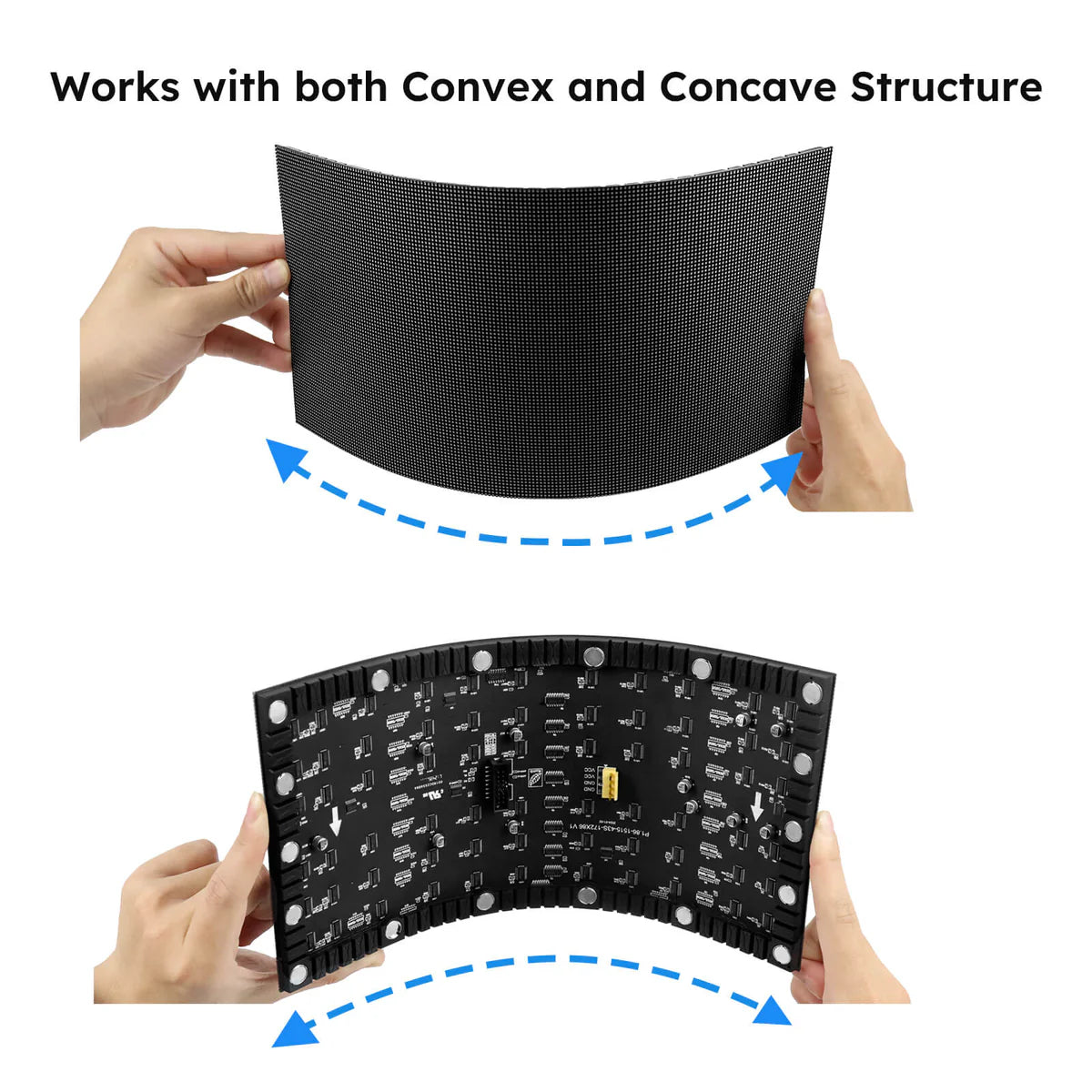

• Flexible Curved Display Capability – Supporting front and rear bending directions, the Flexible LED Screen Modules enable curved LED walls, fine pitch LED video walls, architectural LED installations, immersive spaces, and customized indoor LED structures.
• Project-Based Flexible LED Screen Modules Supply – Available in sample, standard, and bulk package options to support product evaluation, system integration, engineering procurement, and large-scale fine pitch LED display projects.

Order & Logistics

Lead Time

• IF-240S Series / IF-240G Series / IF-256S Series / IF-320S Series / IF-320G Series: Handling time 3–5 business days.
• IF-300C: Handling time 15–20 business days.

Freight & Delivery

• Shipping fees are not included in product pricing and will be charged separately based on the actual freight cost.
• Available shipping methods: Standard shipping / Express shipping / Project logistics.
• Estimated shipping time: Standard delivery takes 9–18 business days, while express delivery takes 5–9 business days. For faster delivery, express options like DHL / UPS / FedEx are available during checkout.
• Shipping Terms: DDP TERM (all fees included), except for destination countries where this shipping service is unavailable. In such cases, we will contact the buyer if this clause does not apply to their country.
• For large projects or bulk orders, please contact us to confirm freight solutions, lead time, and delivery arrangements.

Technical Specifications

Protection & Design Features

• GOB Surface Protection Technology – The GOB protection layer enhances LED surface durability and reliability, improving resistance against accidental contact, dust, and surface impact for professional Flexible LED Screen Modules applications.
• Flexible PCB Structure with Magnetic Mounting – The flexible PCB design combined with soft back shell and magnetic installation enables curved display construction, efficient assembly, convenient module replacement, and front service maintenance.
• High-Performance Fine Pitch GOB Display Technology – Combining SMD1515, SMD1212, and SMD1010 LED technologies with GOB protection and high refresh performance, these Flexible LED Screen Modules provide reliable image quality for premium indoor LED applications.
• Enhanced Front Surface Protection – The GOB surface treatment improves LED protection performance and supports applications requiring higher durability compared with standard LED modules.
• Fine Pitch Flexible Display Platform – The 320×160mm module structure supports high pixel density, close-viewing applications, curved LED walls, and customized indoor LED display designs.
• Front Service Maintenance Design – The magnetic mounting structure allows convenient front-side installation and maintenance, improving efficiency for projects with limited rear access.

Installation Guide

• Confirm the LED screen design requirements, module layout, curved structure requirements, receiving card configuration, and power supply capacity before installation.
• Install the P1.86/P1.53/P1.25 320×160mm Flexible LED Screen Modules according to the designed curved or creative display structure and ensure accurate alignment.
• Secure the modules using the magnetic mounting system and ensure the soft connection between adjacent modules is properly connected.
• Connect the 16pin data cables and DC 5V power cables correctly before powering on the LED display system.
• For P1.25 models using 26PIN data interface, connect the signal interface according to the system configuration requirements.
• For front service maintenance, remove and replace modules from the front side using suitable tools and anti-static handling methods.
• Avoid excessive bending, impact, pressure, or surface damage during transportation, installation, and maintenance procedures.

Applications

• Fine Pitch GOB LED Video Walls: Suitable for high-resolution indoor LED video walls requiring detailed image performance, enhanced surface protection, and stable long-term operation.
• Experience Center LED Displays: Supports immersive visual spaces, brand experience areas, and interactive display environments requiring fine pitch flexible LED structures.
• Flexible Indoor LED Screen Modules: Provides flexible display solutions for customized indoor LED projects requiring curved installation capability.
• Curved GOB LED Display Projects: Enables curved LED walls, creative display structures, and customized indoor LED installations beyond traditional rigid modules.
• Architectural Indoor LED Displays: Supports creative architectural LED applications, decorative display structures, and customized visual installations.
• Broadcast Studio LED Displays: Suitable for professional studio environments requiring stable image output and high refresh performance.
• Control Room LED Displays: Supports professional monitoring and visualization environments requiring detailed image presentation.
• Digital Art LED Displays: Suitable for creative digital artwork, immersive visual projects, and high-detail content presentation.
• Museum Digital Display Systems: Supports exhibition spaces, digital showcases, and interactive visual environments.
• Immersive Experience Spaces: Suitable for themed spaces, interactive environments, and creative commercial display projects.
• Exhibition LED Display Systems: Supports temporary and permanent exhibition projects requiring flexible installation structures.
• Premium Commercial Indoor LED Displays: Suitable for retail, corporate, and professional visualization applications requiring fine pitch image quality.
• Brand Experience LED Displays: Supports premium commercial showcases, promotional spaces, and immersive brand installations.
• Custom Flexible LED Screen Modules Projects: Suitable for customized curved, fine pitch, and special-shape indoor LED display projects.
• Large-Scale Fine Pitch GOB LED Display Projects: Supports engineering projects requiring scalable deployment, detailed image quality, enhanced protection, and reliable operation.

Waterproof	Shock-proof	Dust-proof
