IF-1FT Series Indoor Flexible LED Module – 1ft×1ft | P1.27 / P1.587 / P1.905 | Front & Rear Maintenance | 1000nits | Nationstar LEDs | Power Box & Receiver Card Included

Get a quote now
9999 in stock

IF-1FT Series Indoor Flexible LED Module – 1ft×1ft | P1.27 / P1.587 / P1.905 | Front & Rear Maintenance | 1000nits | Nationstar LEDs | Power Box & Receiver Card Included

About this item

  • Large 1-Square-Foot Display Area – Each panel measures 304.8×304.8 mm, delivering a substantial viewing surface with fewer modules needed for large screens, reducing cost and complexity.
  • High Brightness & Longevity – ≥1000 nits with automatic brightness adjustment; lower lumen depreciation than LCD/DLP ensures consistent performance over long-term use.
  • Vivid Visual Experience – 160° wide viewing angle with Nationstar digital RGB LEDs and 1/16 scan rate brings realistic, vibrant imagery.
  • Seamless Splicing – Creates a true whole-screen effect with no visible black gaps as seen in LCD or DLP displays.
  • DIY & Custom Applications – Flexible combinations for exhibitions, studios, retail, and control rooms. Requires receiving card, sending card, software, and DC 5V power supply.
  • Power Box & Receiver Card Included – Simplifies installation and reduces additional component sourcing.

Order & Logistics

  • Lead Time: Typically ships within 1–3 business days.
  • Packing: Cardboard box with protective packaging.
  • Shipping:
  • Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）

Package Included

Version Package Included
Single Panel Set 1 × IF-1FT Flexible LED Module (Choose P1.27 / P1.587 / P1.905)
1 × Power Box
1 × Receiver Card
Necessary Data & Power Cables

Technical Specifications

Parameter IF-1FT1905 IF-1FT1587 IF-1FT127
Pixel Pitch 1.905 mm 1.587 mm 1.27 mm

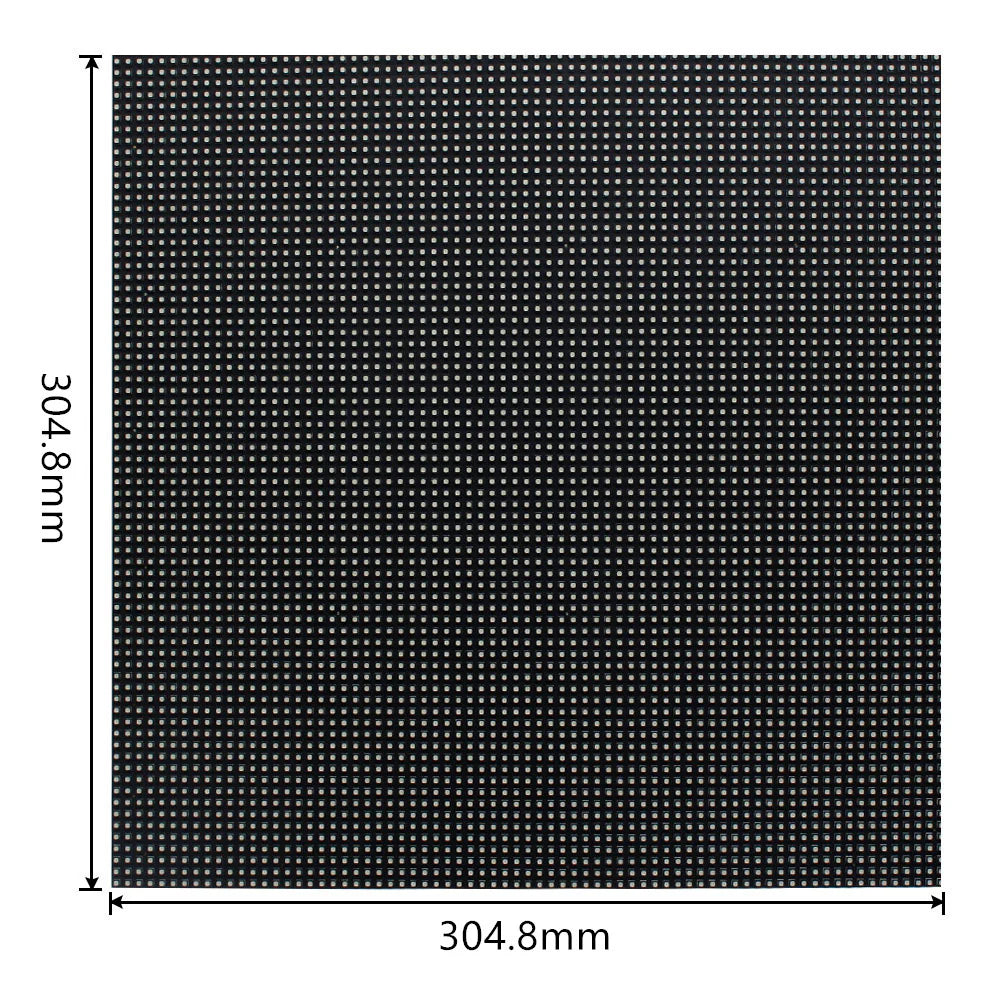

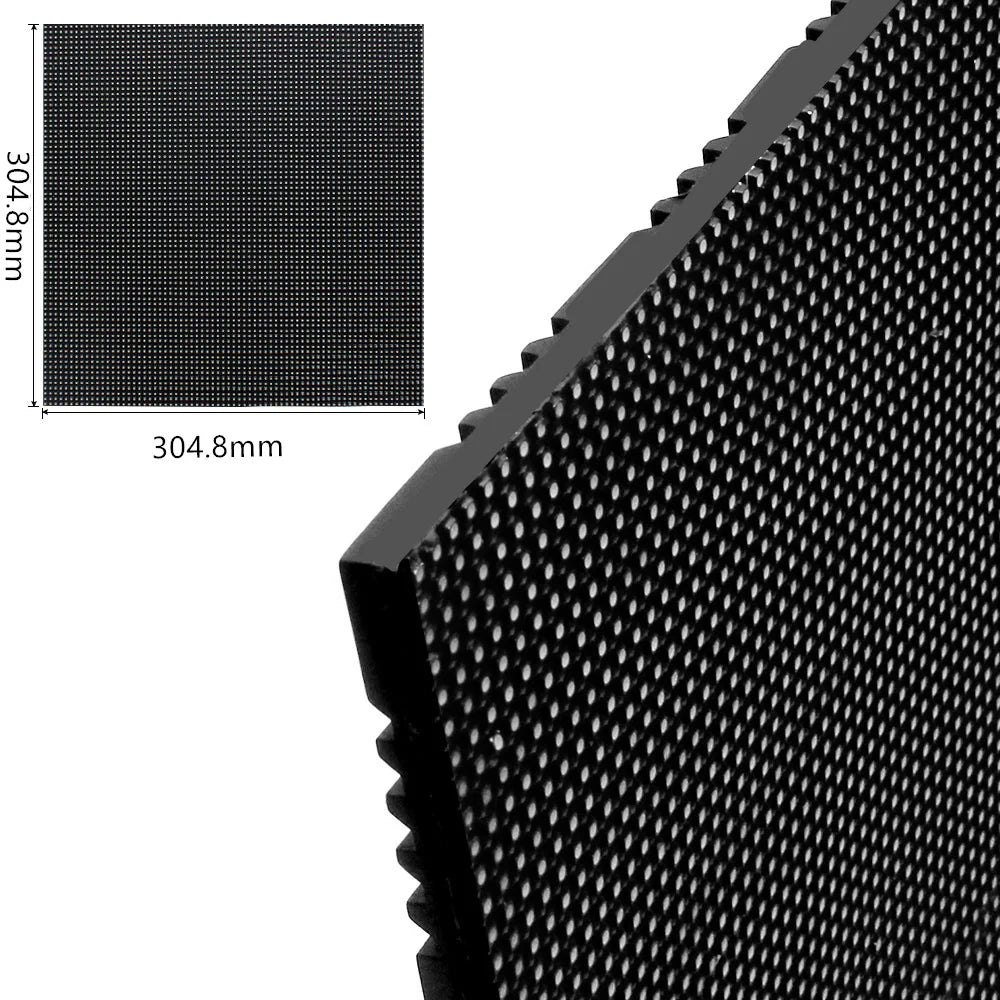

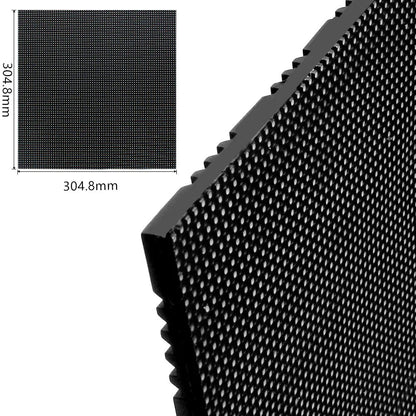

Module Size 304.8 × 304.8 mm (1ft × 1ft)
Module Resolution 160 × 160 192 × 192 240 × 240
Module Pixels 25,600 36,864 57,600
Scan 1/40 1/48 1/40
Pixel Density 274,576 dots/㎡ 396,900 dots/㎡ 617,796 dots/㎡
Viewing Distance ≥3.8 m

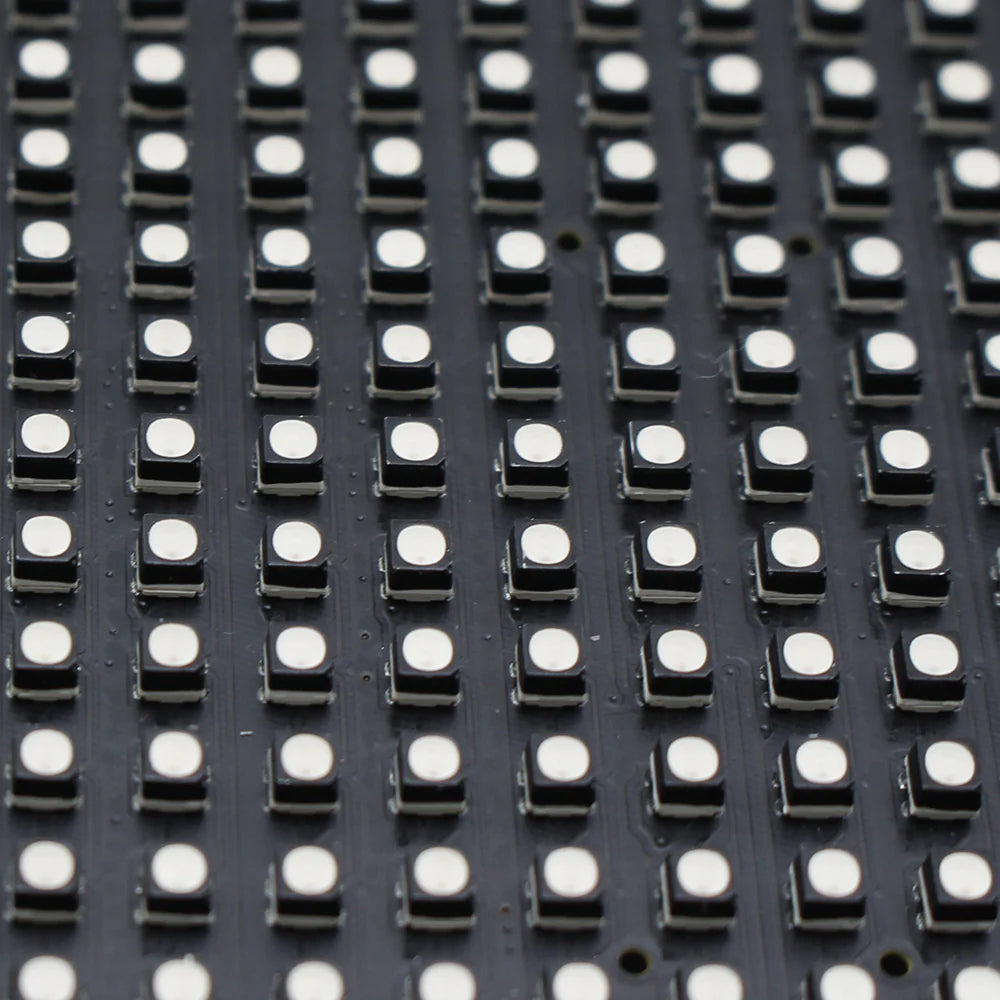

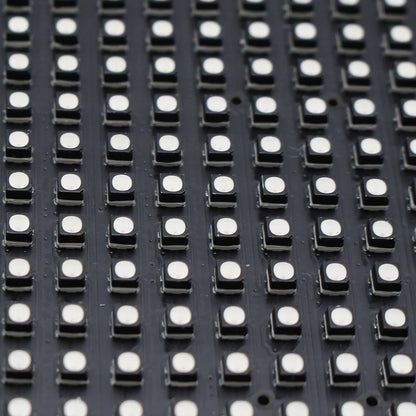

LED Model SMD1415 SMD1212 SMD1010
Pixel Configuration 1R 1G 1B
Brightness ≥1000 nits
Contrast Ratio 3000:1
Color Depth 16-bit
Gray Level 16,384
Refresh Rate >3840 Hz
Color Uniformity ≥97%
Protection Rating IP30
Life Span ≥100,000 hours
Operating Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 10% ~ 90%
Voltage DC 5V
Viewing Angle H:160° / V:160°
Power Consumption Max 80W Max 60W Max 75W
Blind Spot Rate ≤0.0003

Applications

  • Broadcast studios, control rooms, and conference centers.
  • Exhibition booths, stage backdrops, and retail displays.
  • Indoor large-screen projects requiring high brightness and seamless splicing.
