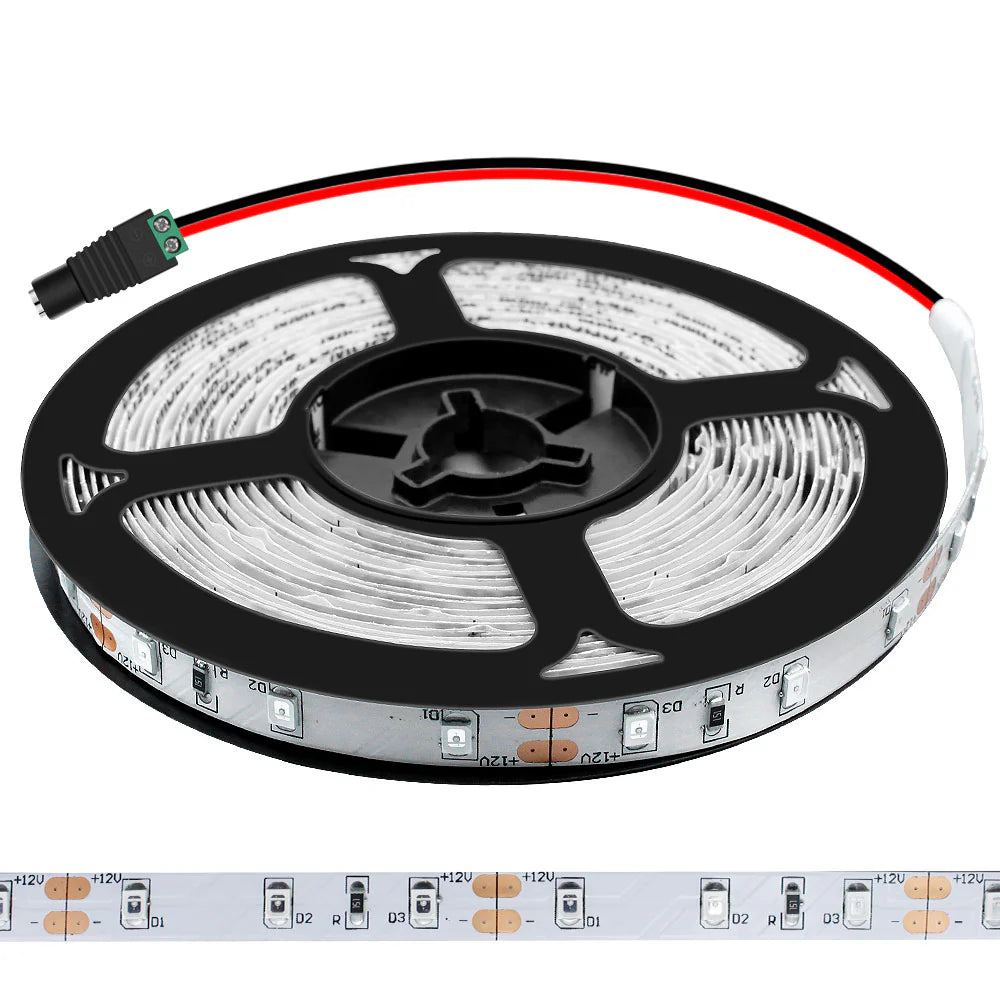

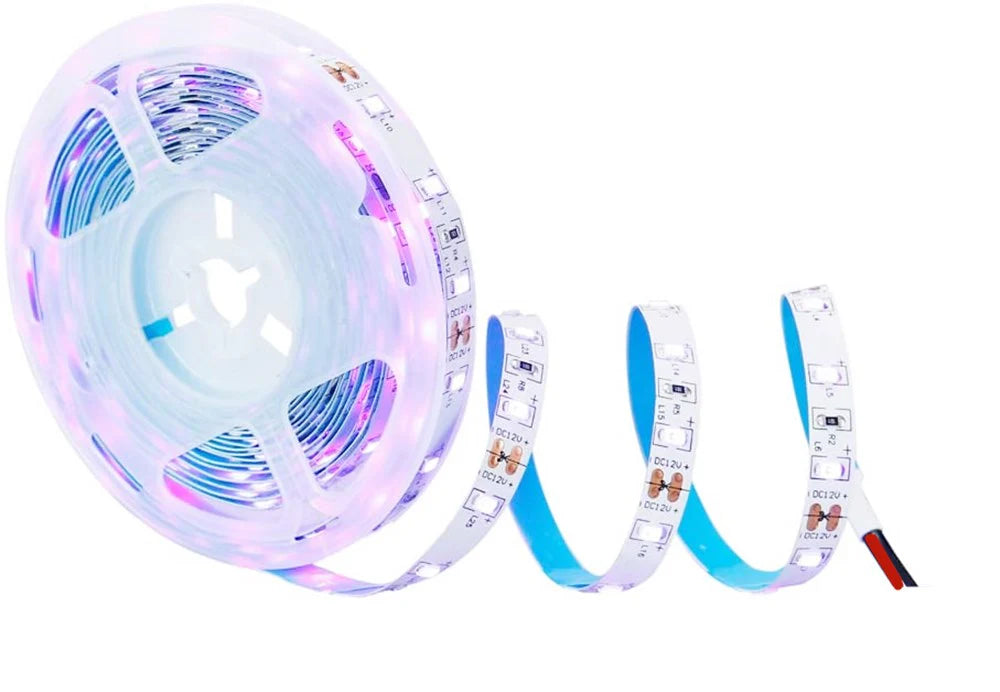

380-385nm SMD2835 UV LED Strip Light – 16.4FT / 5M / 10M | 60 / 120 / 240 LEDs/m | DC12V | Non-Waterproof / IP67 Waterproof | Power Adapter Required | UV Strip for Resin Curing, Fluorescent Response & Display Light

380-385nm SMD2835 UV LED Strip Light – 16.4FT / 5M / 10M | 60 / 120 / 240 LEDs/m | DC12V | Non-Waterproof / IP67 Waterproof | Power Adapter Required | UV Strip for Resin Curing, Fluorescent Response & Display Light

Package Included

About this item

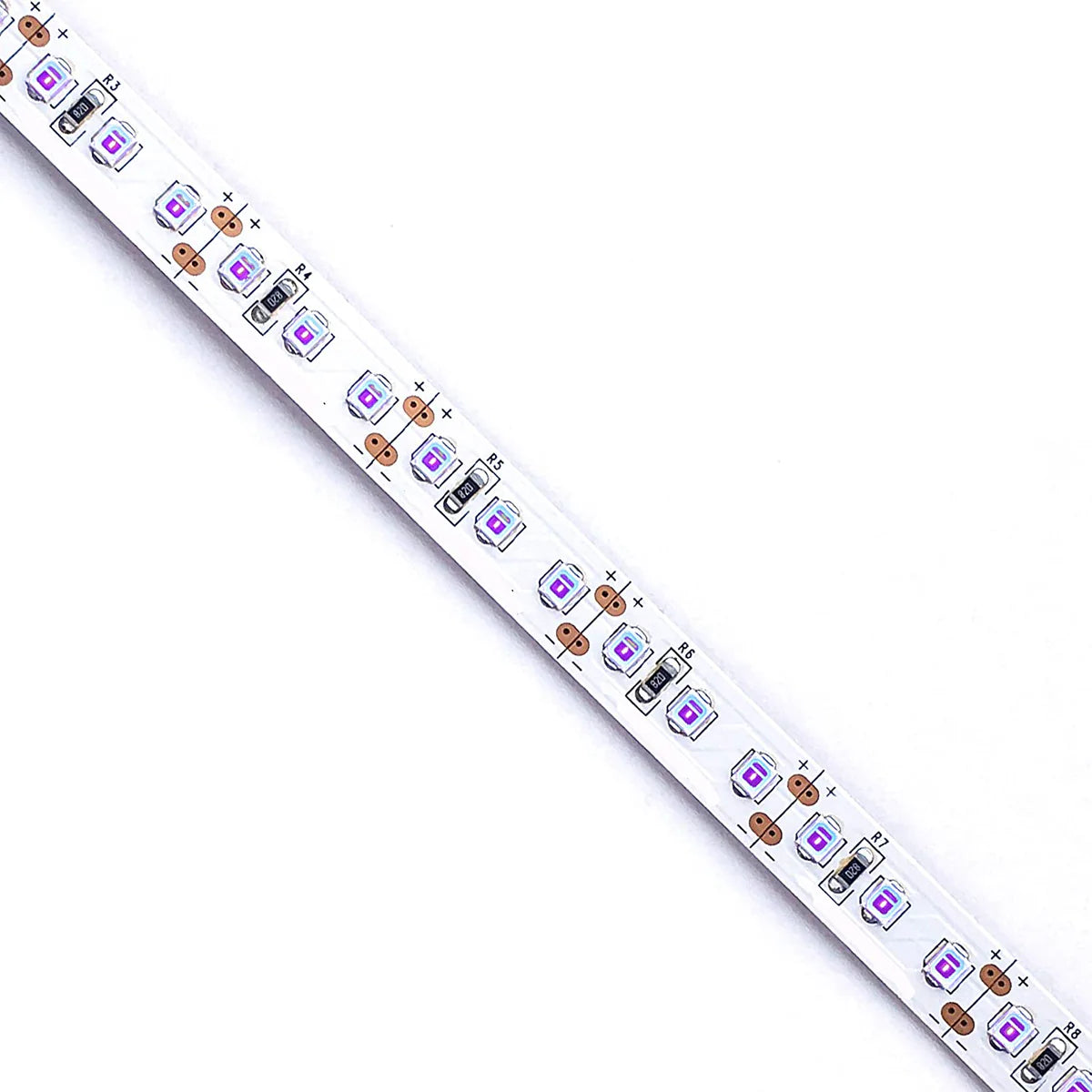

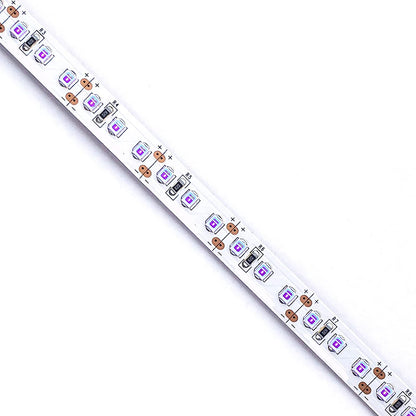

• Uses SMD2835 UV LEDs, available in 380nm–385nm wavelengths.
• Multiple LED densities: 60 LEDs/m (<6W/m), 120 LEDs/m (<12W/m), 240 LEDs/m (<18W/m, dual row).
• Operates on DC 12V with a 120° beam angle.

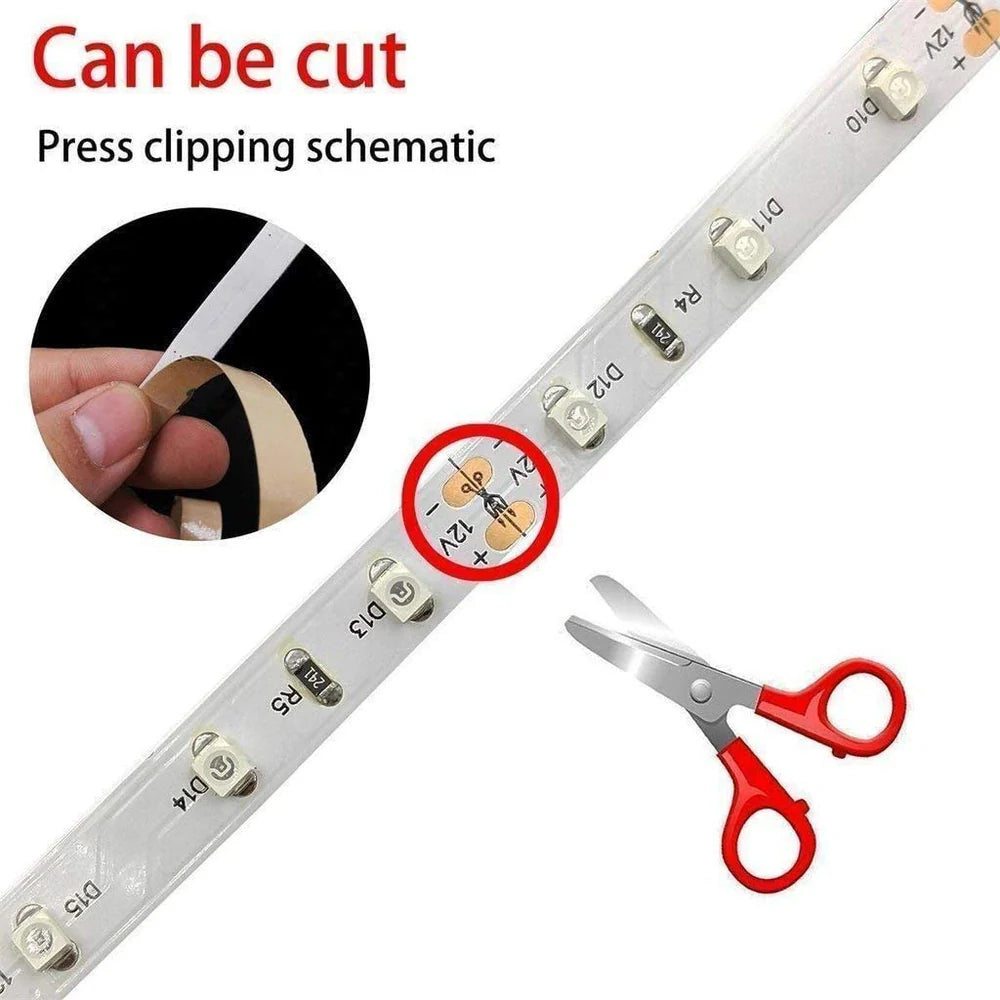

• Cuttable design: 3 LEDs per 2" (60 LEDs/m), 3 LEDs per 1" (120 LEDs/m), 6 LEDs per 1" (240 LEDs/m).
• Available lengths: 5M/10M (16.4 ft) per roll.
• Flexible white PCB, width x height: 8×2mm (single row), 15×2mm (dual row).
• Waterproof options: Non-waterproof (IP20), IP65 Waterproof, IP67 Waterproof.
• Dimmable with compatible dimmers (more information available based on dimmer applications).
• Features self-adhesive backing for easy installation.

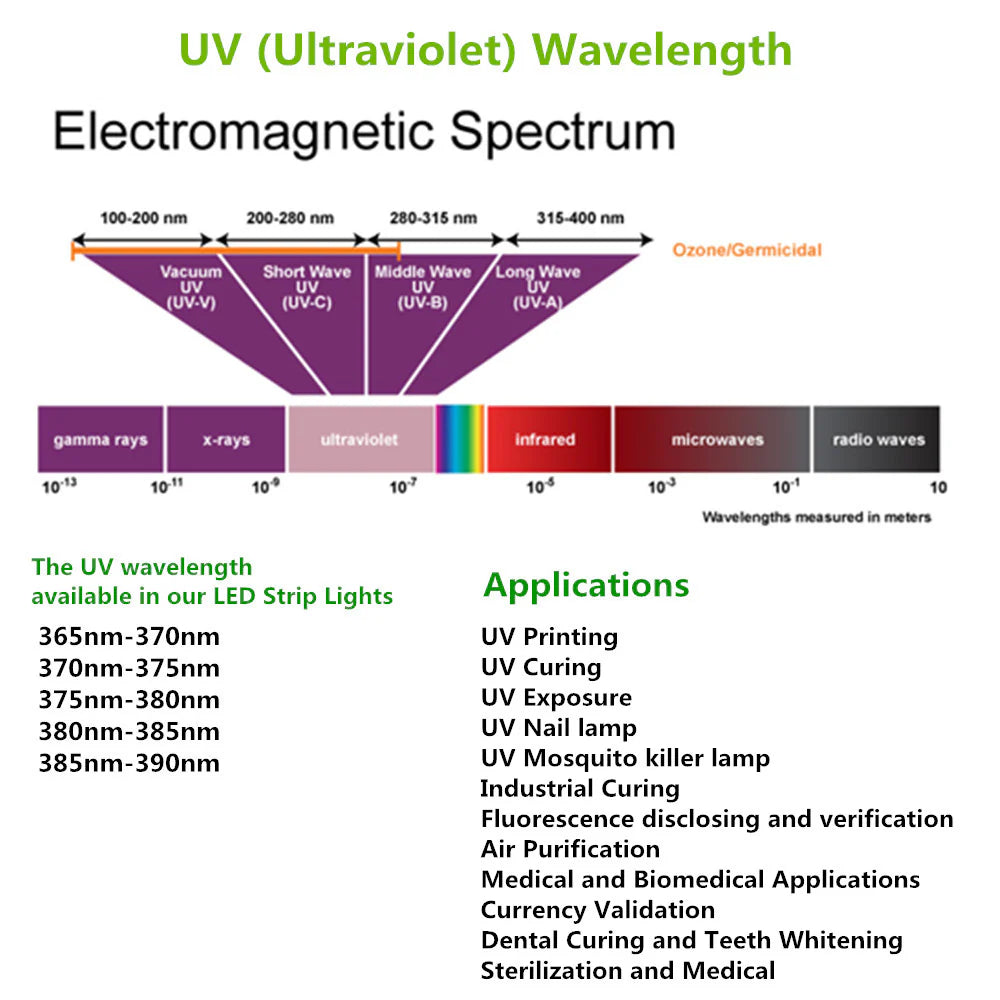

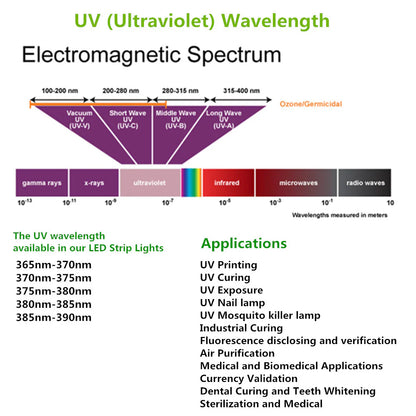

• Emits invisible ultraviolet light, ideal for UV curing, currency validation, mosquito killers, fluorescence disclosing, and medical applications.

Order & Logistics

• Lead Time: Typically ships within 3–5 business days.
• Packing: Cardboard box.
• Shipping: Ships from our headquarters (9-18 days standard / 5-9 days express).

Type of LED & Different Waterproof IP Grade

• Non-waterproof (IP20): Bare strip, self-adhesive backing, for indoor/dry use.
• Waterproof IP65: Surface covered with gel, self-adhesive backing. Protects from sprayed water from all directions.
• Waterproof IP67: Strip enclosed in a hollow silicone tube, sealed at both ends; suitable for short-term immersion in water.
• Waterproof IP68: Strip enclosed in U-shape silicone tube, covered with silicone gel, sealed at both ends; suitable for underwater use.

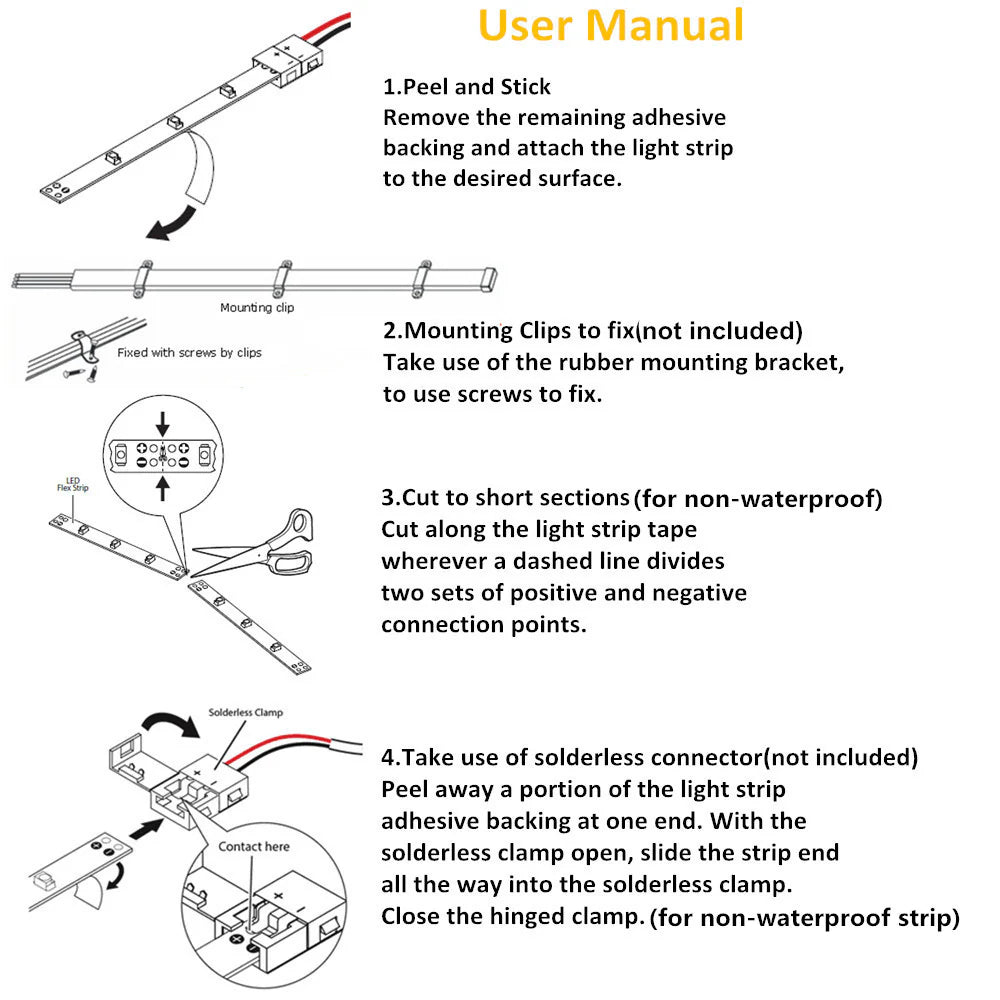

Installation Tips

• Always disconnect power before cutting or connecting LED strips.

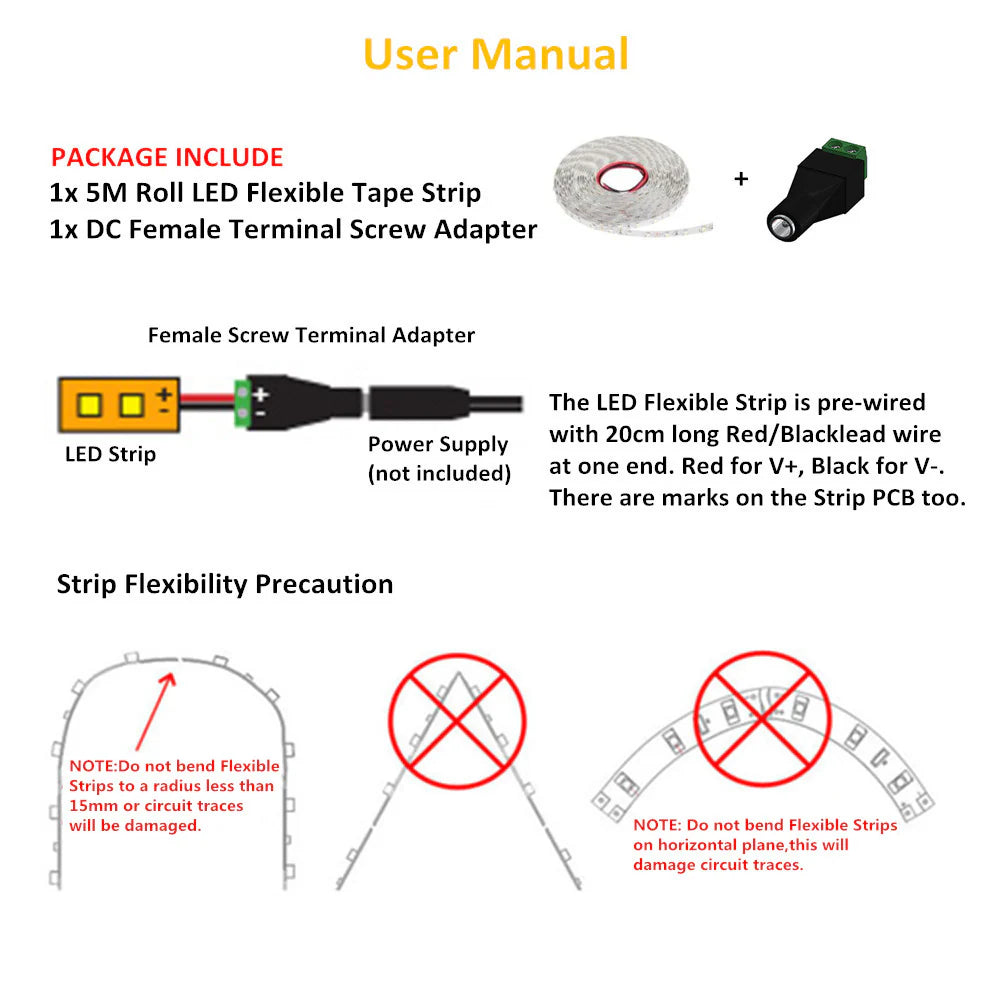

• Do not crimp, bend width-wise, or bend to a radius less than 15mm.
• Do not connect directly to 120V AC power.
• Test LED strips before mounting.

How to Power / Control the Strip

• When selecting a transformer: Choose based on total wattage of connected strips.
• Always select a transformer with higher wattage than the strip’s rated power to avoid full-load operation.
• A higher wattage transformer is safe and helps prolong lifespan.

Applications

• Security camera night vision
• UV Sensing and automation systems
• Industrial equipment illumination
• Special-purpose lighting
• UV Printing, UV Curing, UV Exposure
• UV Nail lamp, UV Mosquito killer lamp
• Industrial Curing, Fluorescence Disclosing and Verification
• Air Purification, Medical and Biomedical Applications
• Currency Validation, Dental Curing and Teeth Whitening
• Sterilization and Medical

Warnings and Handling Instructions on UV LED Lights

• UV-LEDs emit invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for brief periods. Do NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate "UV" safety protection for eyes and skin.
• If you incorporate a UV-LED into a product, be sure to provide WARNING labels.
