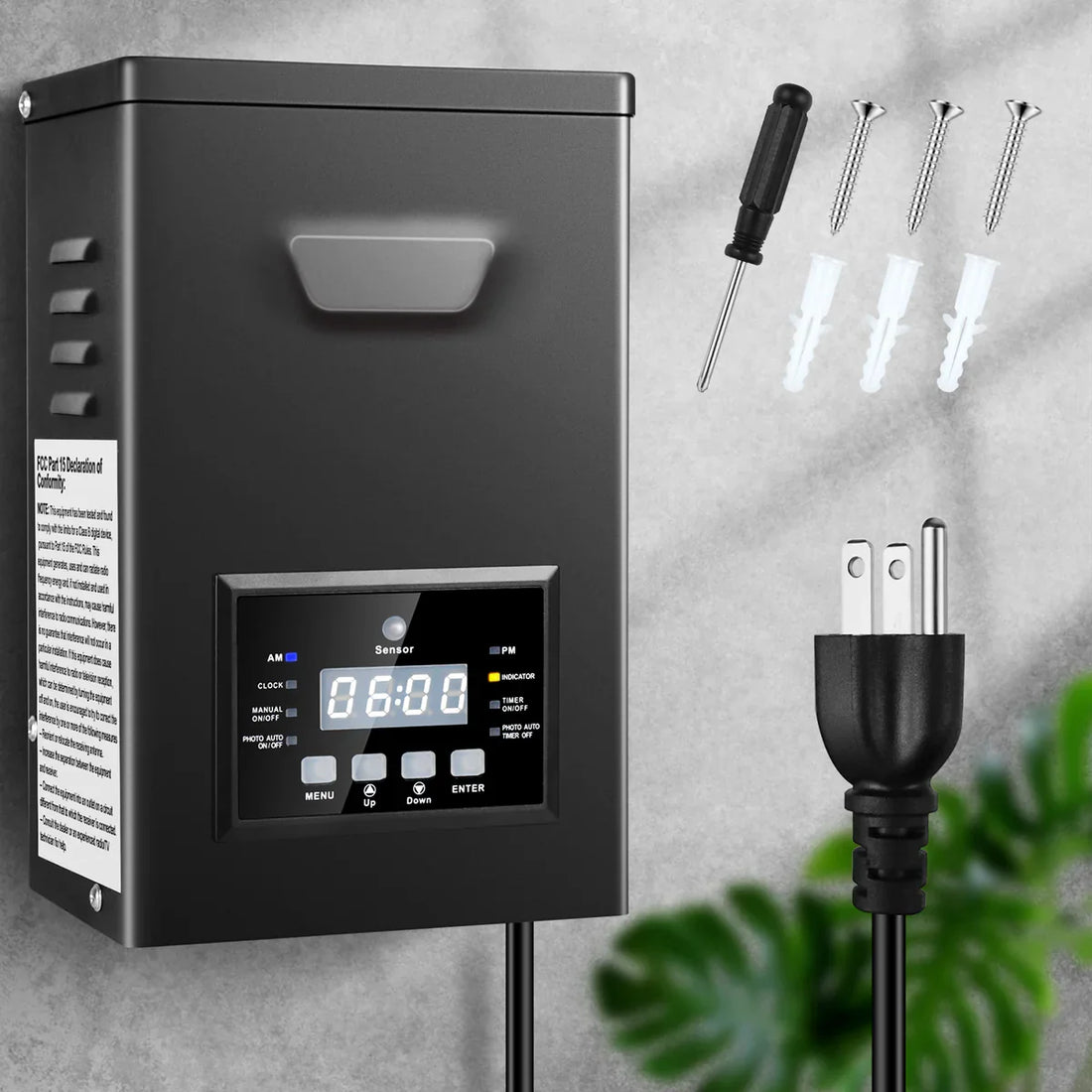

How to Choose a Low Voltage Landscape Transformer for Outdoor Lighting Projects

In outdoor landscape lighting projects, fixtures are usually not powered directly by 120V line voltage. Instead, a low voltage transformer converts 120V input into safer 12V, 14V, or 15V AC output for landscape lights.

This setup is commonly used for yard lights, garden lights, pathway lights, patio lighting, step lights, spotlights, and other outdoor low voltage lighting systems.

Choosing the correct transformer is important. If the wattage is too low, the system may suffer from voltage drop, dim lights, unstable operation, or limited expansion capacity. If the transformer is oversized, the project may spend more than necessary without improving performance.

This guide explains how to choose the right low voltage landscape transformer based on wattage, output voltage, photocell type, timer control, and single-zone or dual-zone operation.

Why Outdoor Landscape Lighting Uses Low Voltage Transformers

A low voltage landscape transformer converts standard 120V power into low voltage AC output that is more suitable for outdoor lighting systems.

Outdoor fixtures are often installed near soil, grass, irrigation systems, rain exposure, and walking areas. For this reason, low voltage lighting is widely used in residential yards, gardens, patios, walkways, and commercial landscape projects.

The transformer acts as the power center of the entire system. It supplies power to multiple low voltage fixtures such as pathway lights, landscape spotlights, wall wash lights, deck lights, and garden lighting fixtures.

For contractors and project buyers, the transformer is not just an accessory. It directly affects system stability, voltage consistency, and future expansion capacity.

How to Choose Between 150W, 250W, 300W, 400W, 500W, and 600W

The correct transformer wattage should be selected based on the total wattage of all connected fixtures, cable length, voltage drop, and future expansion needs.

For example, if a project uses 20 fixtures and each fixture consumes 6W, the total load is 120W. A 150W transformer may work in theory, but the remaining margin is limited. In real installations, it is usually better to leave enough capacity for cable loss, long-term stability, and possible future fixture additions.

For small residential yards, short pathways, and simple garden lighting systems, 150W or 250W transformers are usually sufficient.

For medium-sized gardens, patios, and multi-fixture residential systems, 300W or 400W transformers are more commonly used.

For large outdoor landscape projects, long cable runs, commercial yards, or systems with many fixtures, 500W or 600W transformers provide stronger capacity and better room for expansion.

Why Some Transformers Offer 12V, 14V, or 15V Output

Many buyers only look for 12V output, but 14V and 15V taps are important in larger landscape lighting systems.

As cable distance increases, voltage drop becomes more noticeable. Fixtures located far from the transformer may receive less than 12V, causing dimmer output or uneven brightness across the system.

A 12V output is suitable for short cable runs and standard loads. A 14V output can help compensate for moderate voltage drop. A 15V output is useful for longer cable runs or heavier loads where additional voltage compensation is needed.

This does not mean 15V is always better. The correct output should be selected based on cable length, wire gauge, fixture wattage, and system layout.

Why Timer and Photocell Control Matter

Outdoor lighting systems often need automatic control. A built-in timer allows the lighting system to turn on and off according to a set schedule.

For example, the lights can turn on in the evening and turn off late at night without manual operation.

A photocell detects ambient light and automatically turns the system on when it gets dark and off when daylight returns.

When timer and photocell functions are combined, the lighting system becomes easier to manage, more energy-efficient, and more convenient for daily use.

Internal Photocell vs External Photocell

An internal photocell is built into the transformer body. This is suitable when the transformer is installed in a location where it can accurately sense outdoor daylight.

An external photocell can be installed away from the transformer in a better sensing location. This is useful when the transformer is mounted inside a garage, behind a wall, inside an equipment box, or in a shaded area.

If the transformer installation location has good exposure to natural light, an internal photocell is usually sufficient. If the installation location is blocked or shaded, an external photocell provides more accurate automatic control.

Single-Zone vs Dual-Zone Landscape Transformers

A single-zone transformer controls one lighting zone. All connected lights turn on and off together. This is suitable for simple yard lighting, pathway lighting, and small garden systems.

A dual-zone transformer allows two separate lighting areas to be controlled independently. For example, the front yard and backyard can be controlled separately, or pathway lights and landscape spotlights can run on different zones.

For larger projects or installations with clearly separated lighting areas, dual-zone control provides more flexibility and better energy management.

How to Choose the Right Transformer for Your Project

For a small residential yard with a limited number of pathway lights or spotlights, a 150W or 250W single-zone transformer is usually a practical choice.

For medium-sized gardens, patios, and residential landscape lighting systems with more fixtures, a 300W or 400W transformer provides a better power margin.

For large outdoor lighting systems, long cable runs, or projects that may expand in the future, 500W or 600W transformers are recommended.

If all lights need to operate together, choose a single-zone transformer. If the project requires separate control for different areas, choose a dual-zone transformer.

Single-Zone Low Voltage Landscape Transformer Selection

Dual-Zone Low Voltage Landscape Transformer Selection

Conclusion

A low voltage landscape transformer should be selected based on total fixture wattage, cable distance, voltage drop, zone control requirements, and automatic control needs.

For small projects, 150W or 250W is usually enough. For medium-sized systems, 300W or 400W provides more flexibility. For large outdoor lighting projects, 500W or 600W offers stronger capacity and expansion room.

Single-zone transformers are suitable for simple systems where all fixtures operate together. Dual-zone transformers are better for larger projects that require separate control of different lighting areas.

By choosing the correct transformer, outdoor landscape lighting systems can operate more reliably, maintain more consistent brightness, and remain easier to manage over time.
