OF-3S Series Outdoor Flexible LED Modules – P4 / P3.076 / P2.5 | 320×160mm Panel | IP65 Front Maintenance | 4500nits High Brightness
From $252.00
Regular price
$252.00
Sale price
$252.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
9999 in stock
OF-3S Series Outdoor Flexible LED Modules – P4 / P3.076 / P2.5 | 320×160mm Panel | IP65 Front Maintenance | 4500nits High Brightness
About this item
- Durable & Reliable – Designed for outdoor use, featuring IP65 waterproof front & back with silicone encapsulation and sealed power/data ports for stable performance in harsh environments.

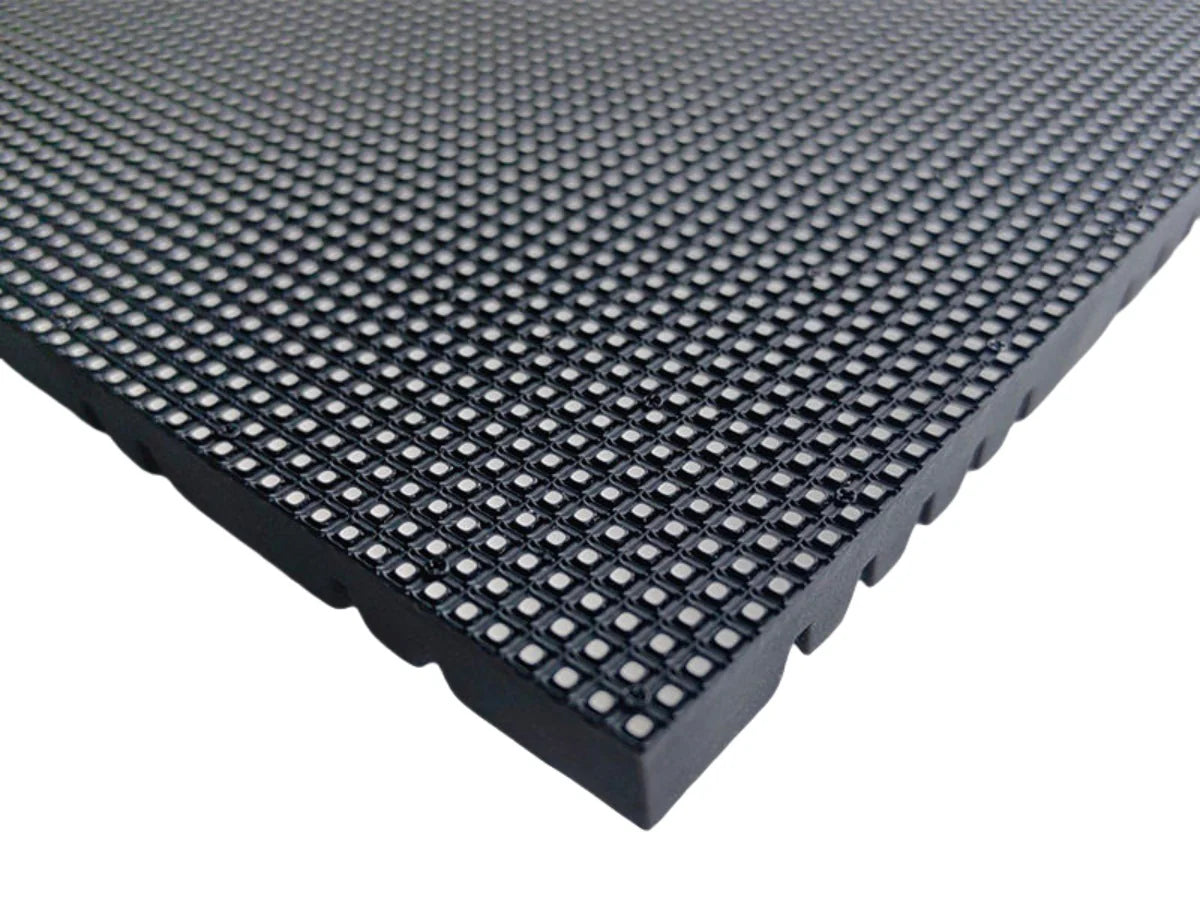

- High Precision Visuals – 4.0 mm pixel pitch, 1/10 scan, vivid and smooth display with accurate color reproduction.
- Bright & Long-lasting – 4500 nits brightness with low lumen depreciation, delivering consistent output over 100,000 hours.
- Wide Viewing Angle – 140° horizontal / 120° vertical viewing for consistent color and brightness across the screen.
- Flexible Installation – Seamless splicing supports curved or cylindrical shapes. Requires receiving card, sending card, control software, and DC 5V power supply.
Package Included
| Version | Package Included |
| 1pcs Sample Pack | 1 × 5V Power Cable 1-to-2 Split 1 × 16 PIN Flat Cable 1 × P4 320×160mm RGB Full Color LED Display Module |
| 30pcs Standard Pack | 15 × 5V Power Cable 1-to-2 Split 30 × 16 PIN Flat Cable 30 × P4 320×160mm RGB Full Color LED Display Module |
Order & Logistics
- Lead Time: Typically ships within 1–3 business days.
- Packing: Cardboard box with protective packaging.
- Shipping: Orders in this series qualify for our Free Shipping Policy on purchases over $399. All products in this series are shipped directly from our headquarters warehouse（Standard Shipping: 9–18 days|Express Shipping: 5–9 days.）
Structure & Design Features

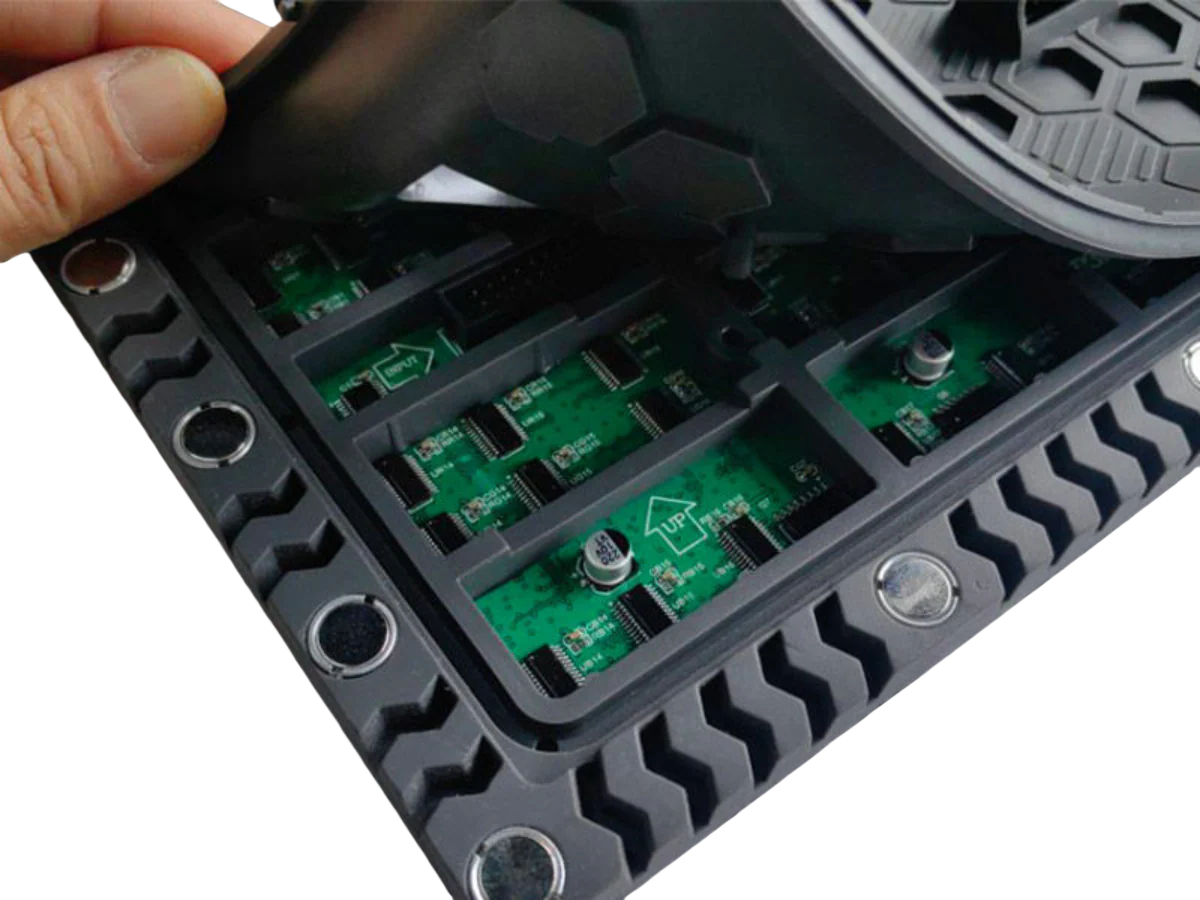

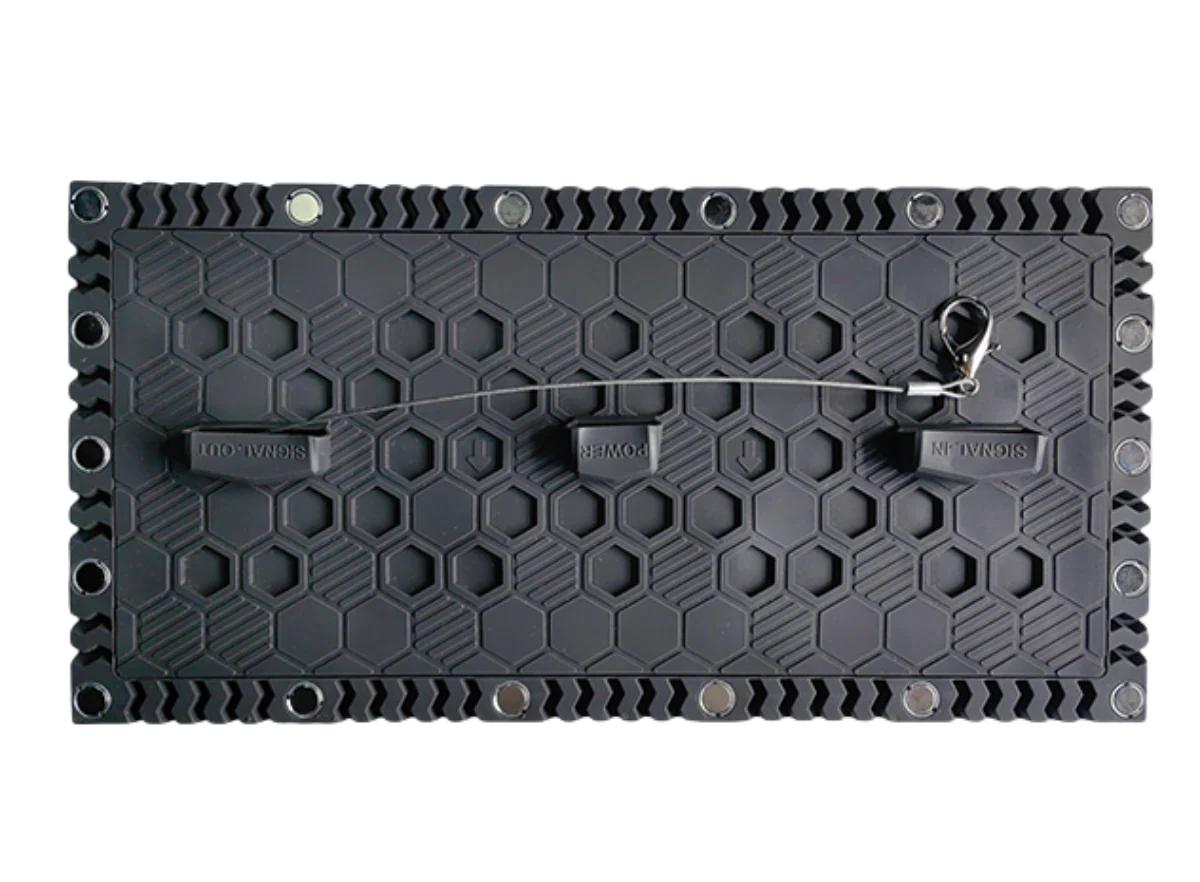

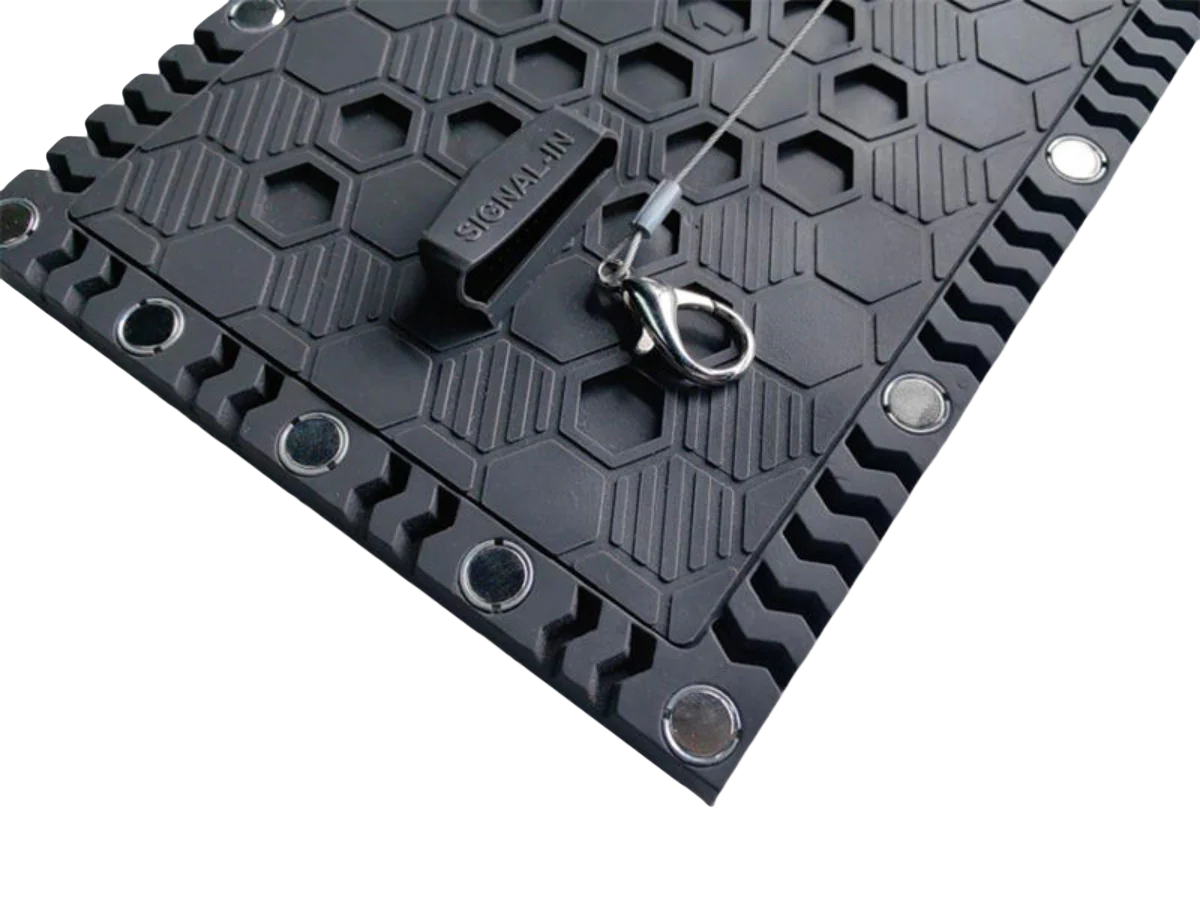

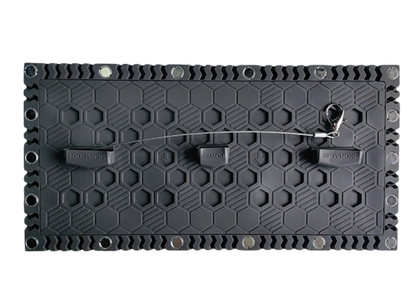

- Outdoor flexible LED module with full silicone encapsulation on front and back, and sealed power/data ports for enhanced weather resistance.

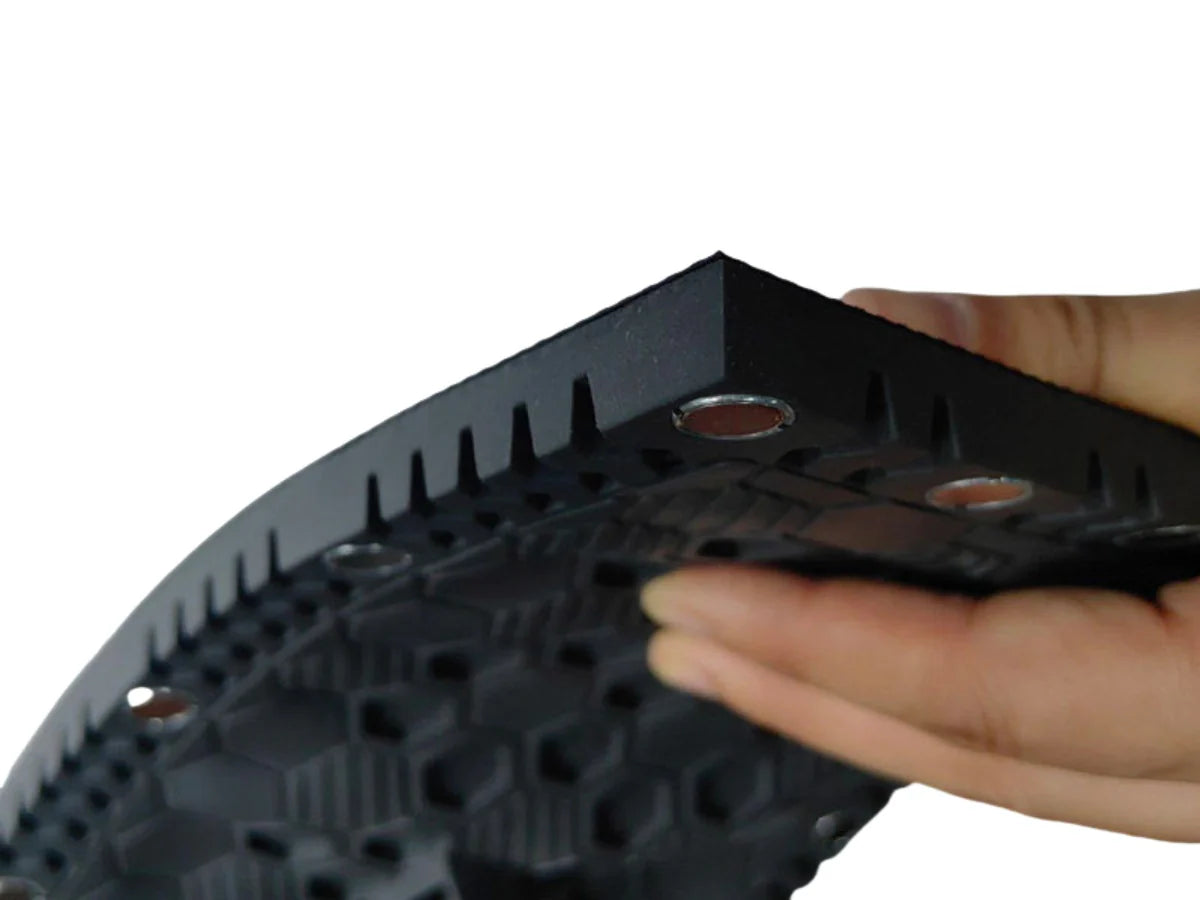

- Supports ≥165° curvature, ideal for creative curved or cylindrical display shapes.
Installation Tips
- Disconnect power before installation or maintenance.
- Ensure correct polarity for power and data connections.
- Do not bend or twist the PCB beyond the rated tolerance.
- Use with compatible receiving card, sending card, control software, and DC 5V power supply.
Technical Specifications （Datasheet Download)
| Item | P4 | |
| Parameter | Pixel configuration | 1R1G1B (Full Color) |
| LED package specifications | SMD1921 | |
| Pixel density (dots/㎡) | 62500 | |
| Module size (mm) | 320x160x12 (Length x Height x Depth) | |
| Module resolution | 80x40 | |
| Scanning method | 10-scan | |
| Standard constant current IC | PWM | |
| Refresh rate (Hz) | 3840Hz | |
| Frame rate (Hz) | 60Hz | |
| Grayscale level (bit) | 13-bit | |
| Assembly diameter | 1019mm | |
| Bending radius | 162° | |
| Signal interface method | HUB75 (One inlet, one outlet) | |
| Module base material | Silicone soft bottom case | |
| Module weight (g/sheet) | 600g | |
| Smoothness (mm) | ≤ 0.5 mm | |
| Module protection level | IP65 (with sealed enclosure) | |
| Installation/maintenance method | Front installation/maintenance | |
| Optical | Brightness (cd) | 5000cd |
| Color temperature (K) | 9000-9500K adjustable | |
| Coordinates | X:0.2800 Y:0.3000 ± 0.01 | |
| Horizontal/vertical viewing angles | X:140° / Y:120° | |
| Contrast ratio | 4000:01:00 | |
| Electrical | Module DC supply voltage (V) | 5V |
| Module maximum DC current (A) | 7A | |
| Module maximum power consumption (w/sheet) | 30W | |
| Operating AC input voltage (V) | 220V | |
| Peak power consumption (w/m²) | 600W | |
| Average power consumption (w/m²) | 170W | |
| Usage | Typical lifespan (h) | 100,000h |
| Operating temperature range (°C) | -20-50 ℃ | |
| Operating humidity range (RH) | 20%-90%RH | |
Applications
- Outdoor: Billboards, stadium displays, event stages, transportation hubs.
- Creative: Curved splicing, cylindrical LED screens, artistic installations.
