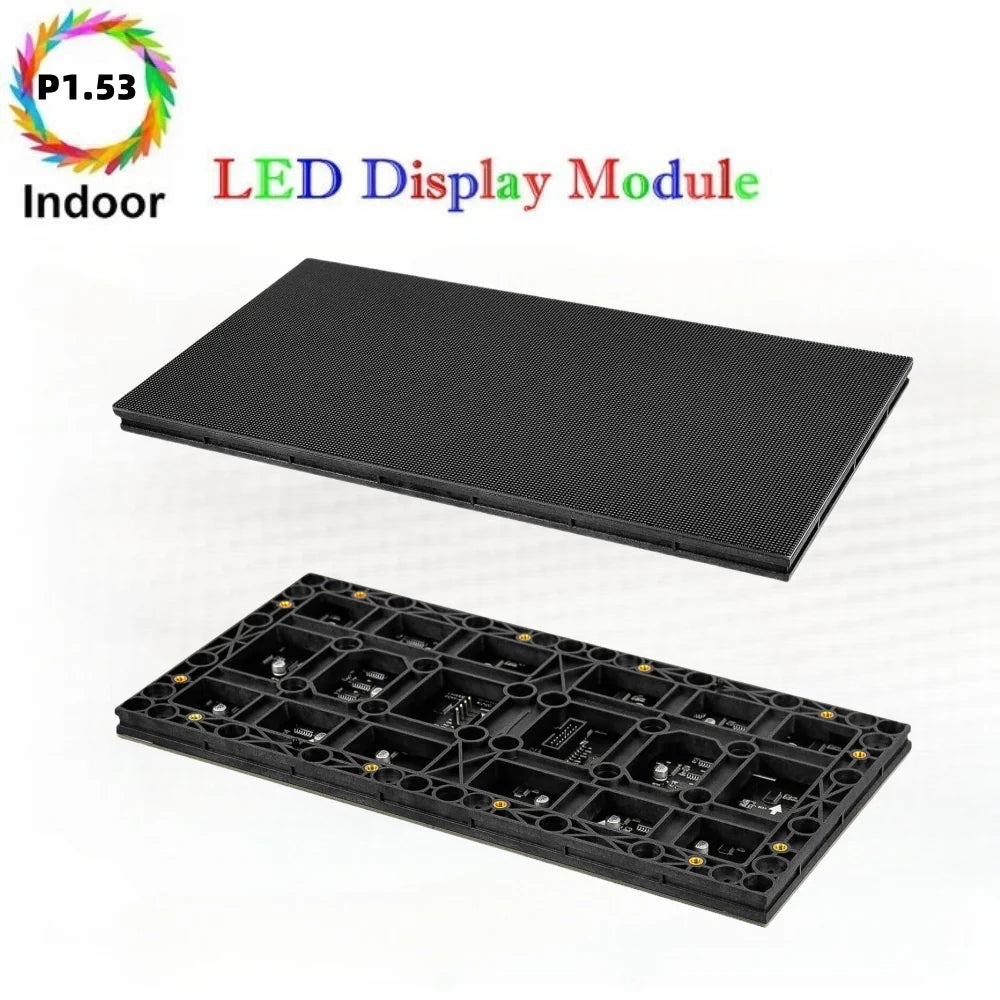

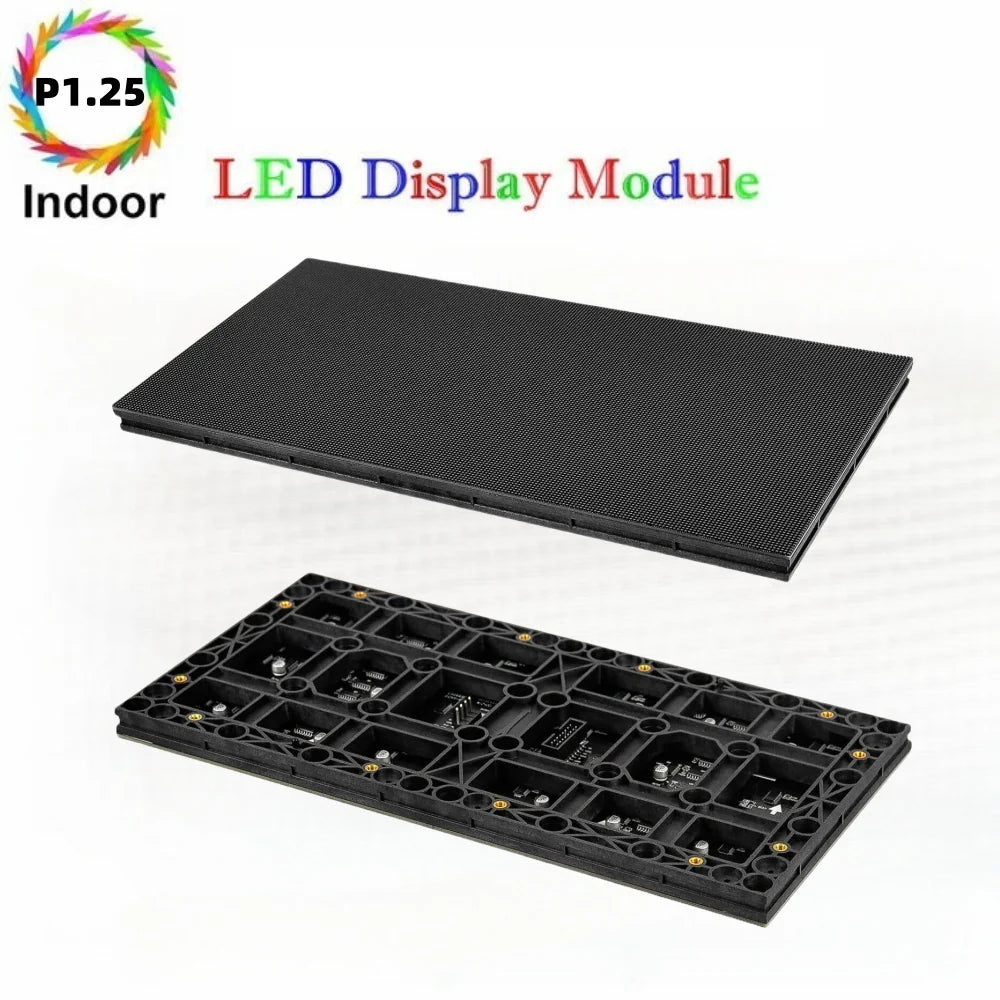

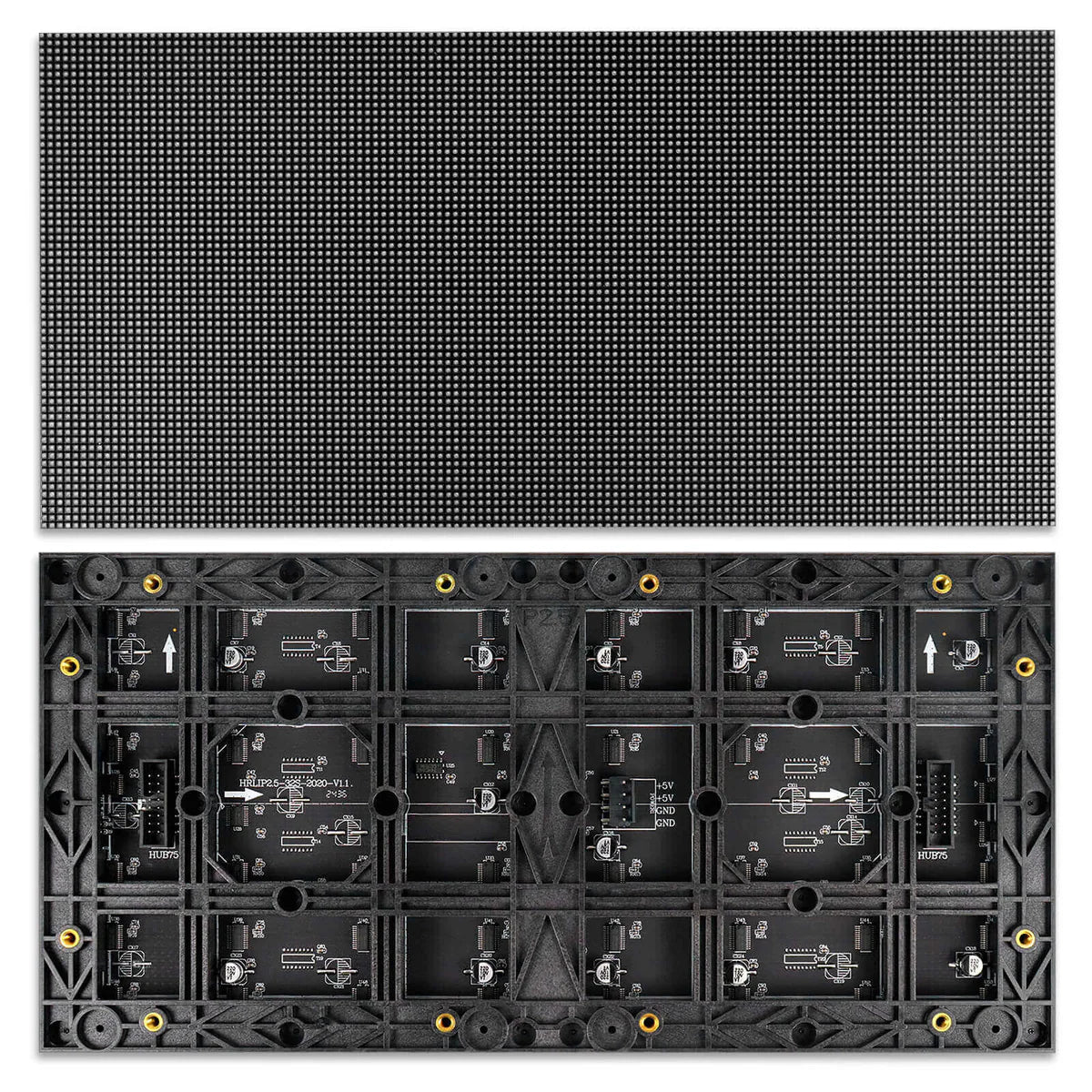

ID-S Series – Indoor LED Display Modules | 320×160mm Panels | P4 / P3.076 / P2.5 / P2.0 / P1.86 / P1.53 / P1.25 | Full-Color RGB Tiles | 600nits | High-Resolution Fine-Pitch LED Panels

From $141.00
Pixel Pitch
Package Qty
$205.00
$205.00
Shipping calculated at checkout.
In stock

ID-S Series – Indoor LED Display Modules | 320×160mm Panels | P4 / P3.076 / P2.5 / P2.0 / P1.86 / P1.53 / P1.25 | Full-Color RGB Tiles | 600nits | High-Resolution Fine-Pitch LED Panels

About this item

  • Durable & Reliable – Indoor LED module with stable performance for long-term use in controlled environments.
  • High Precision Visuals – Pixel pitch P4 / P3.076 / P2.5 / P2.0 / P1.86 / P1.53 / P1.25, 1/20 scan, vivid and smooth display with accurate color reproduction.
  • Bright & Long-lasting – 600 nits brightness with low lumen depreciation for consistent performance over time.
  • Wide Viewing Angle – 160° viewing angle for uniform color and brightness across the screen.
  • Flexible Installation – Seamless splicing design, supports creative arrangements. Requires receiving card, sending card, software, and DC 5V power supply.

Package Included

Version Package Included

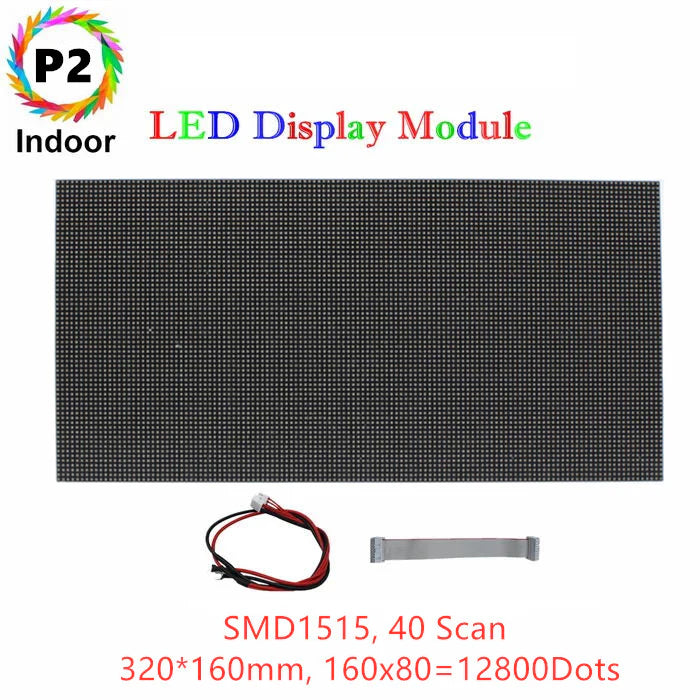

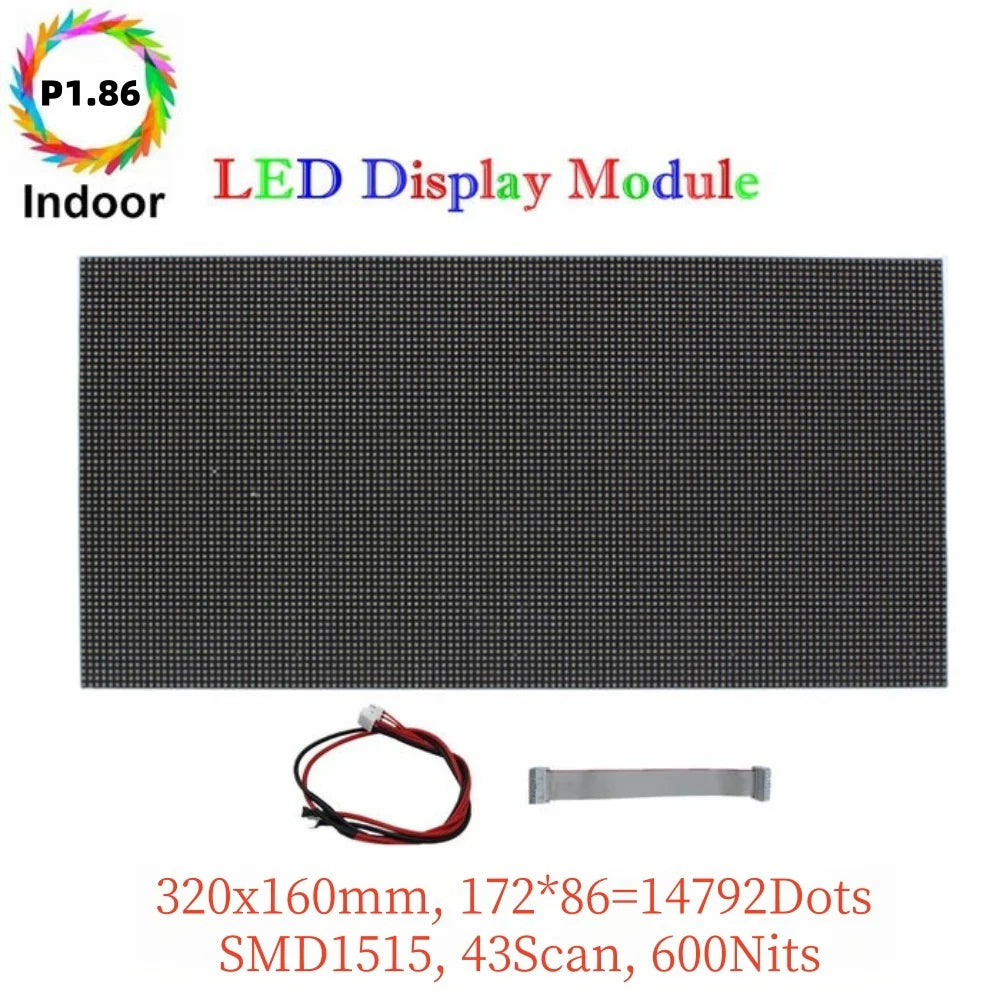

1pc Pack 1× LED Module (Pixel Pitch selectable: P4 / P3.076 / P2.5 / P2.0 / P1.86 / P1.53 / P1.25)
1× 5V Power Cable 1-to-2 Split
1× Flat Data Cable
40pcs Pack 40× LED Matrix Module (Pixel Pitch selectable)
20× 5V Power Cable 1-to-2 Split
40× Flat Data Cable

Order & Logistics

  • Lead Time: Typically ships within 1–3 business days.
  • Packing: Cardboard box with protective packaging.
  • Shipping: Standard Shipping: 9–18 days | Express Shipping: 5–9 days. Shipped directly from our headquarters warehouse.

Protection & Design Features

  • Indoor Series design – stable operation in indoor environments.
  • High-quality SMD2121 LEDs ensure color consistency and long lifespan.
  • Seamless modular design for uniform display without visible gaps.

Installation Tips

  • Always disconnect power before installing or servicing the module.
  • Ensure correct polarity for power/data connections.
  • Avoid bending or twisting the PCB beyond rated tolerance.
  • Use compatible receiving card, sending card, software, and DC 5V power supply.

Technical Specifications

Specification Value

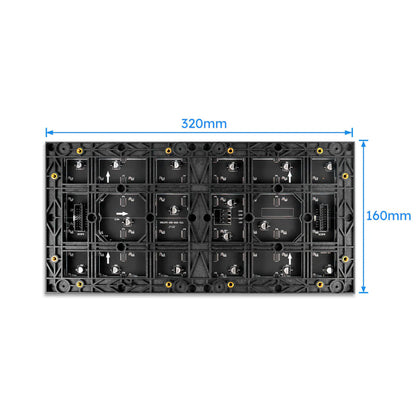

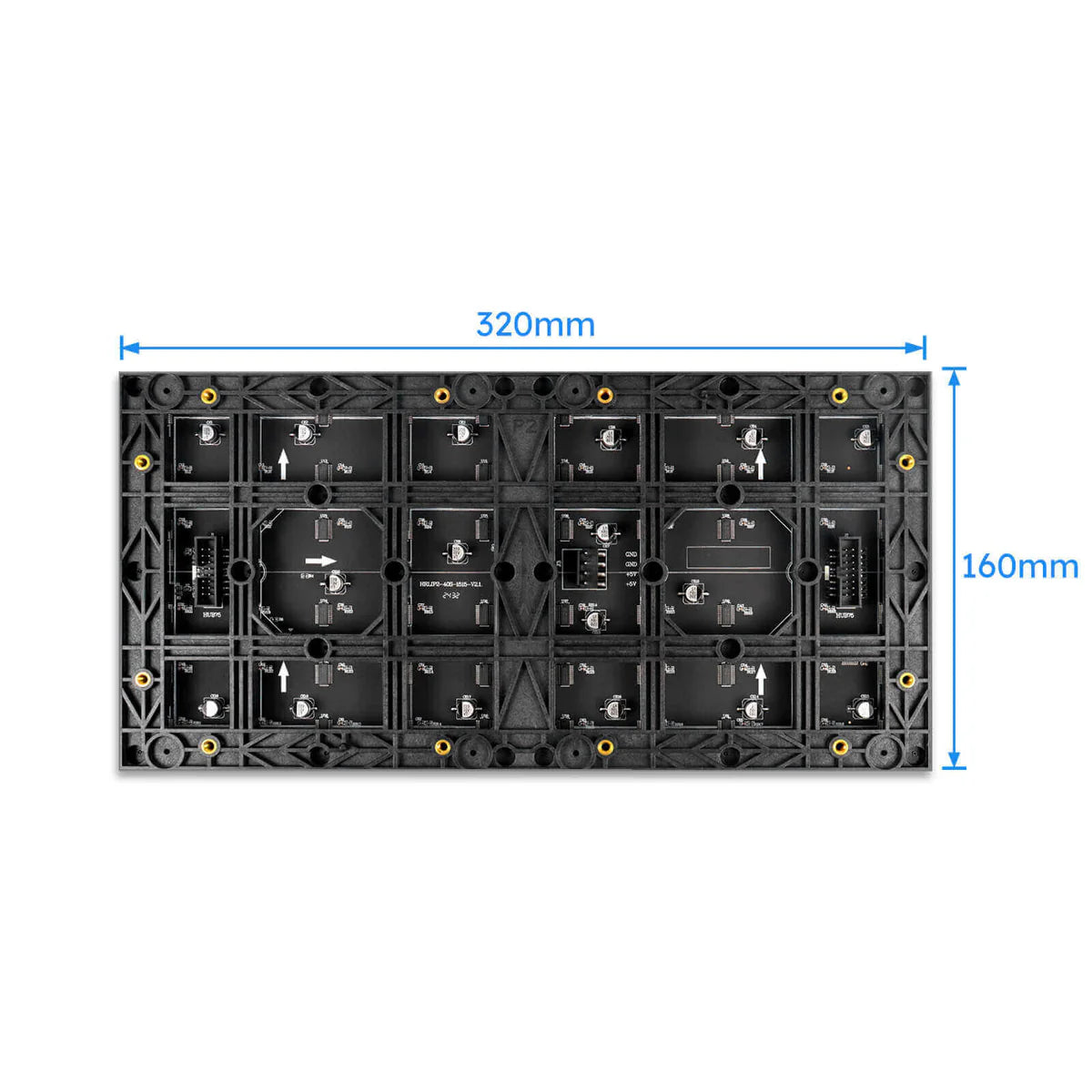

Module Size 320×160mm
Pixel Pitch P4 / P3.076 / P2.5 / P2.0 / P1.86 / P1.53 / P1.25
LED Type SMD2121
Brightness ≥600 nits
Scan Rate 1/20
Viewing Angle H:160° / V:160°
Pixel Density 62,500 dots/m²
Module Resolution 80×40 pixels
Module Pixels 3,200 dots
Contrast Ratio 3000:1
Color Depth 16bit
Grey Level 16,384
Refresh Rate >3840Hz
Driving IC ICN/FM
Color Uniformity ≥97%
Protection Rating IP30
Life Span ≥100,000 hours
Operating Temp -20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity 10% ~ 90%
Input Voltage DC 5V
Power Consumption Max. 20W
Blind Spot Rate ≤0.0003

Applications

  • Indoor: Retail shops, conference rooms, exhibitions, broadcast studios, control centers.
  • Creative: Video walls, artistic installations, brand showcases.
