Waterproof IP65 Aluminum Channel Rigid LED Strip Light – White 5630 SMD, 72 LEDs/M, 0.5m / 1m Length Options, 18x11mm Housing for Indoor & Outdoor Lighting

From $2,549.00
Color Options
Length
Package QTY
$2,549.00
$2,549.00
Shipping calculated at checkout.
999 in stock

Waterproof IP65 Aluminum Channel Rigid LED Strip Light – White 5630 SMD, 72 LEDs/M, 0.5m / 1m Length Options, 18x11mm Housing for Indoor & Outdoor Lighting

Package Included:

Version Package Included
10pcs Pack 10pcs of the 0.5 Meters or 1Meter LED Rigid Strip
50pcs Pack 50pcs of the 0.5 Meters or 1Meter LED Rigid Strip
100pcs Pack
 100pcs of the 0.5 Meters or 1Meter LED Rigid Strip

Order & Logistics:

  • Lead Time: Typically 5–7 business days
  • Packing: Cardboard box, sealed with anti-static bag
  • Shipping:  7-12 days by AIR.

Specification:

Specification Details
Product Type Waterproof Rigid LED Strip Light
LED Type SMD 5630
LED Density 72 LEDs per meter
Size 18 mm x 11mm - Wide by Height
Housing Material Aluminum Channel with Clear Cover
Waterproof Rating IP65 (Water-Resistant)

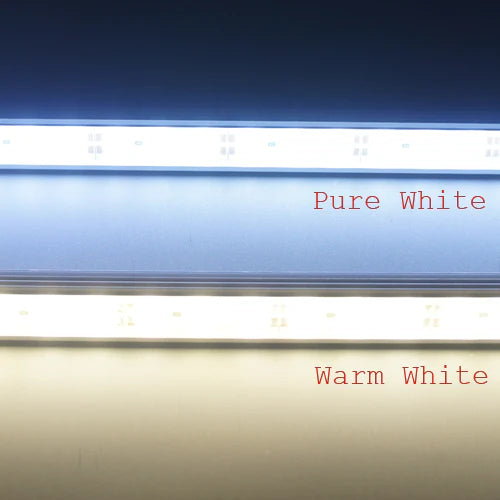

Color Temperature Options Pure White / Warm White
Input Voltage DC 12V
Power Consumption 9Watt for 0.5Meters; 18W for 1Meter
Beam Angle 120°
Length Options 0.5m (20”) / 1m (40”)
Package Options 10 pcs / 50 pcs / 100 pcs per pack
Application Indoor lighting, under-cabinet, signage, display showcase, shop decoration
Operating Temperature -20°C ~ +50°C
Certification CE, RoHS

Product Features:

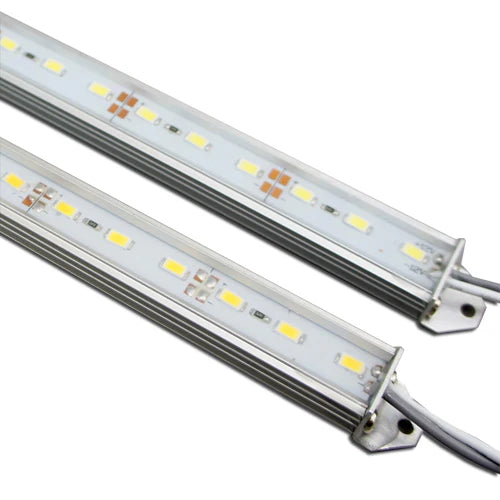

  • Durable Aluminum Channel Design – Provides excellent heat dissipation and rigidity, ensuring stable brightness and extended LED lifespan.

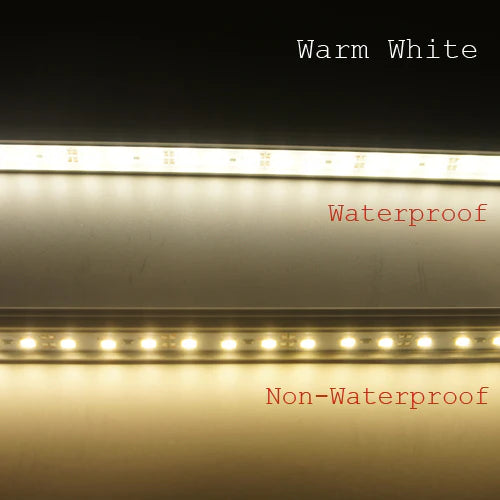

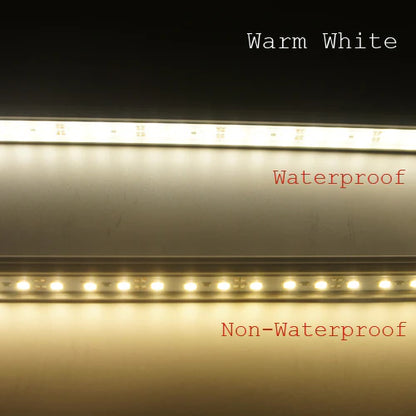

  • Waterproof IP65 Protection – Sealed aluminum housing resists moisture and dust, ideal for indoor or semi-outdoor environments such as display cabinets or shop signs.

  • High Brightness 5630 SMD LEDs – Equipped with 72 high-efficiency LEDs per meter, delivering uniform and powerful illumination with low power consumption.

  • Multiple Color Temperatures Available – Choose from >3000K (Warm White),  >6500K (Cool White), to match different lighting moods.

  • Flexible Length & Packaging Options – Offered in 0.5m and 1m rigid bars, with bulk pack options (10, 50, or 100 pcs) for both DIY users and commercial installers.

Application:

  • Architectural decorative lighting
  •  Path, Contour Marking
  •  Auditorium walkway lighting
  •  Stairway accent lighting
  •  Backlighting for signage letters
  •  Indoor and outdoor lighting and signs

NOTEs:

1. The LED light bar in Waterproof IP65 rated, the strip both ends are prewired with waterproof DC5521 female and male plug.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch



Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
