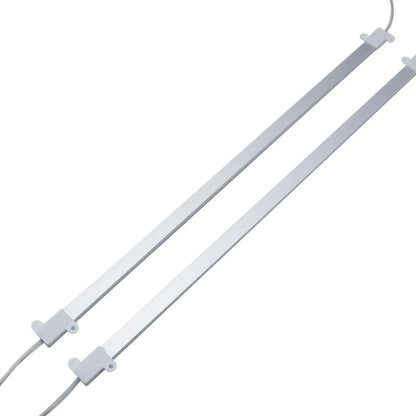

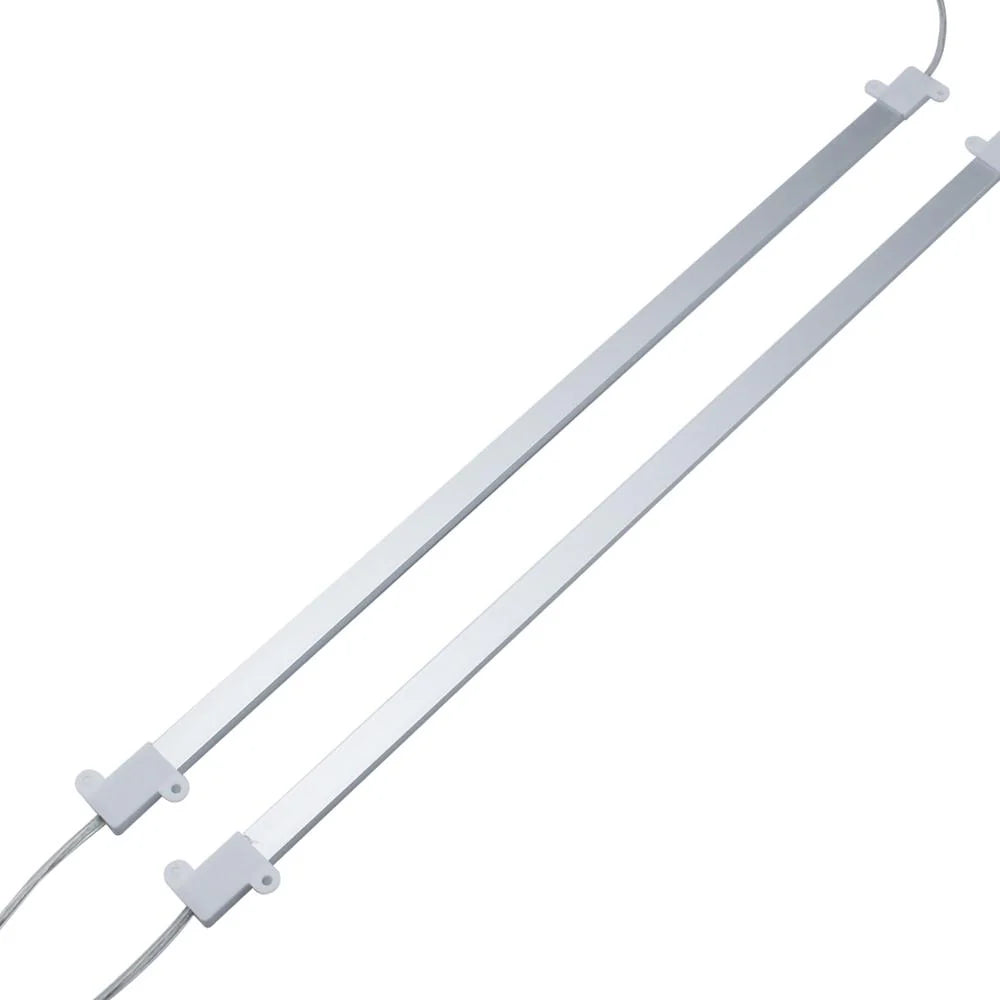

Waterproof IP65 Aluminum Channel Rigid LED Strip Light – 5630 SMD, 72 LEDs/M, 0.5m / 1m Length Options, Warm White & Pure White, 14×7mm Housing for Indoor & Outdoor Lighting

From $2,401.00
Color Options
Length
Package QTY
$2,401.00
$2,401.00
Shipping calculated at checkout.
999 in stock

Waterproof IP65 Aluminum Channel Rigid LED Strip Light – 5630 SMD, 72 LEDs/M, 0.5m / 1m Length Options, Warm White & Pure White, 14×7mm Housing for Indoor & Outdoor Lighting

Package Included:

Version Package Included
10pcs Pack 10pcs of the 0.5 Meters or 1Meter LED Rigid Strip
50pcs Pack 50pcs of the 0.5 Meters or 1Meter LED Rigid Strip
100pcs Pack
 100pcs of the 0.5 Meters or 1Meter LED Rigid Strip

Order & Logistics:

  • Lead Time: Typically 5–7 business days
  • Packing: Cardboard box, sealed with anti-static bag
  • Shipping:  7-12 days by AIR.

Product Features

  • Aluminum Channel with Built-in Diffuser – Compact 14×7mm aluminum housing provides strong rigidity, effective heat dissipation, and a professional lighting finish.

  • Waterproof IP65 Rated – Silicone-sealed design protects against moisture and dust, ideal for kitchens, shop displays, or semi-outdoor covered spaces.

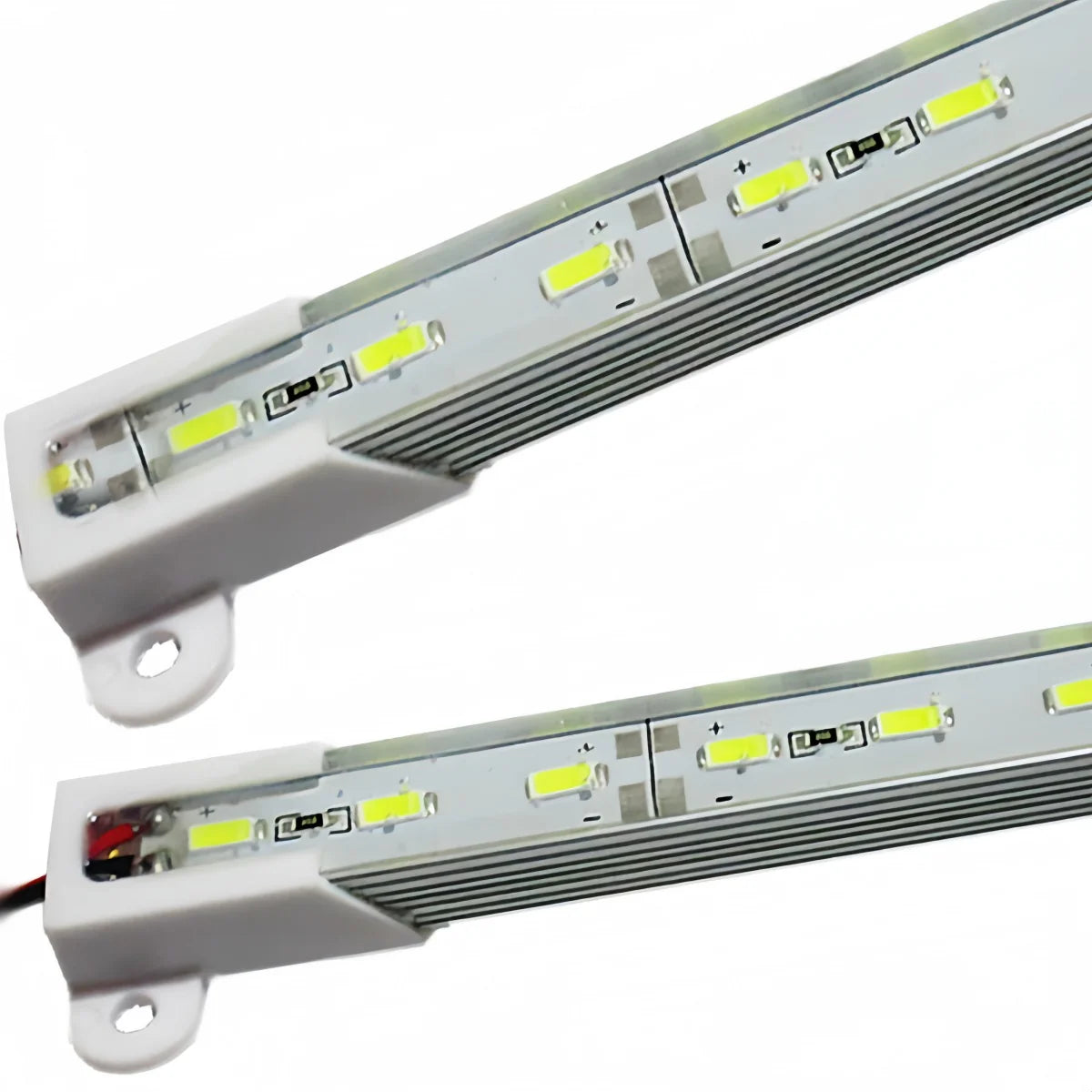

  • High-Efficiency 5630 SMD LEDs – Equipped with 72 high-lumen LED chips per meter for bright, even light output and superior color rendering.

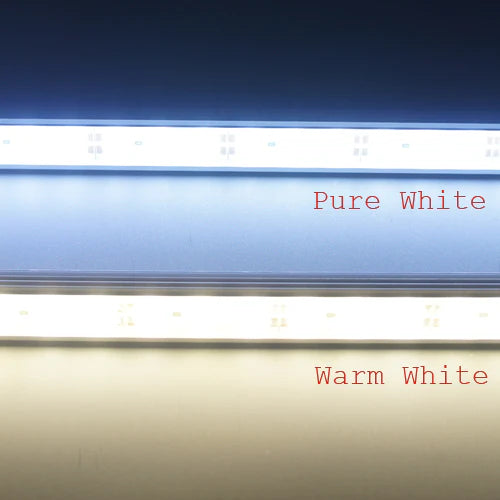

  • Selectable Color Temperatures – Choose Warm White (3000K) for soft, cozy lighting or Pure White (6000K) for clean, crisp illumination.

  • Multiple Length & Pack Options – Available in 0.5m (20") and 1m (40") lengths, with bulk pack options (10 / 50 / 100 pcs) to meet both DIY and commercial project needs.

Specification

Specification Details
Product Type Rigid LED Strip Light with Aluminum Channel
LED Type SMD5630
LED Density 72 LEDs per meter
Housing Dimensions 14 × 7 mm (Aluminum + Diffuser)
Length Options 0.5 m (20”) / 1 m (40”)
Voltage DC 12V
Power Consumption 9Watt for 0.5Meters; 18W for 1Mete
Color Temperature Options Warm White (3000K) / Pure White (6000K)
Beam Angle 120°
Waterproof Rating IP65 (Splash & Dust Resistant)
Material Aluminum Channel + Silicone Cover + LED PCB
Operating Temperature -20°C ~ +50°C
Package Quantity 10 pcs / 50 pcs / 100 pcs per pack
Certifications CE, RoHS
Applications Under-cabinet lighting, shop displays, signage, shelves, outdoor decoration



NOTEs:

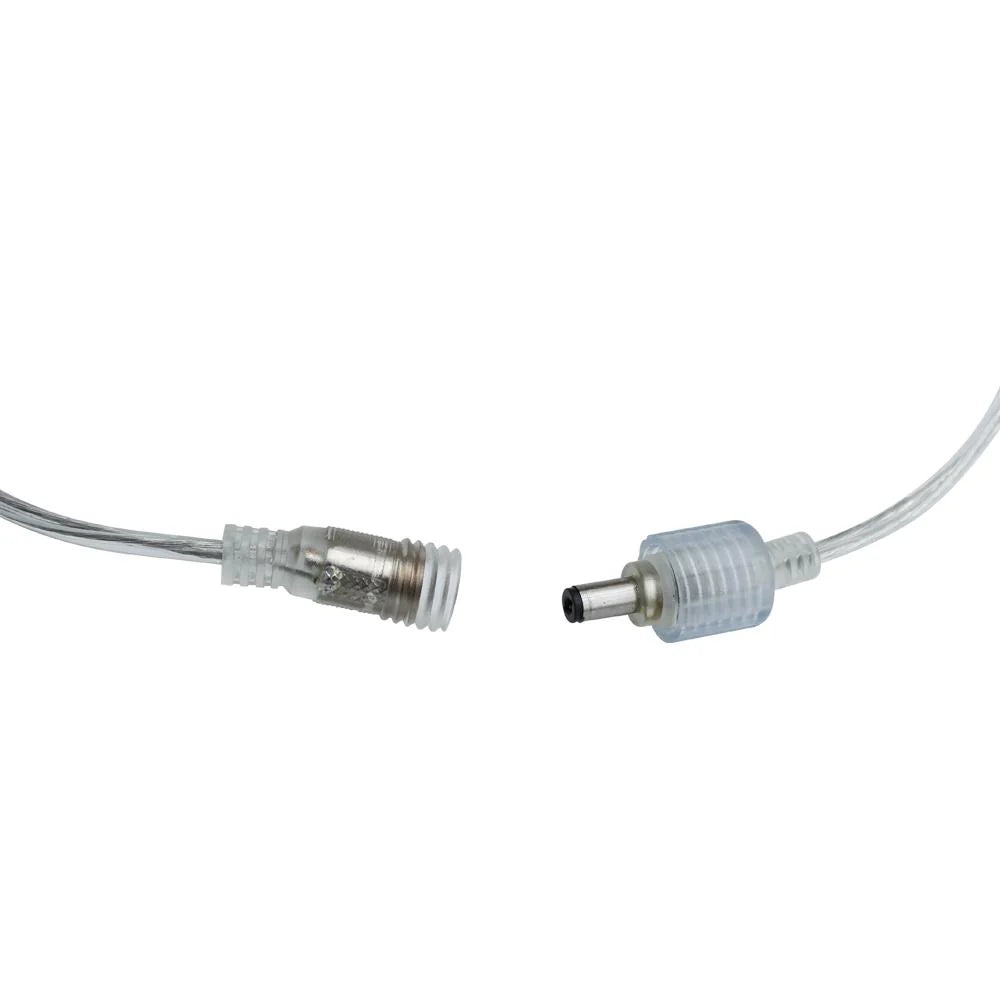

1. The LED light bar in Waterproof IP65 rated, the strip both ends are prewired with waterproof DC5521 female and male plug.

Wiring Tips

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch



Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifer loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
