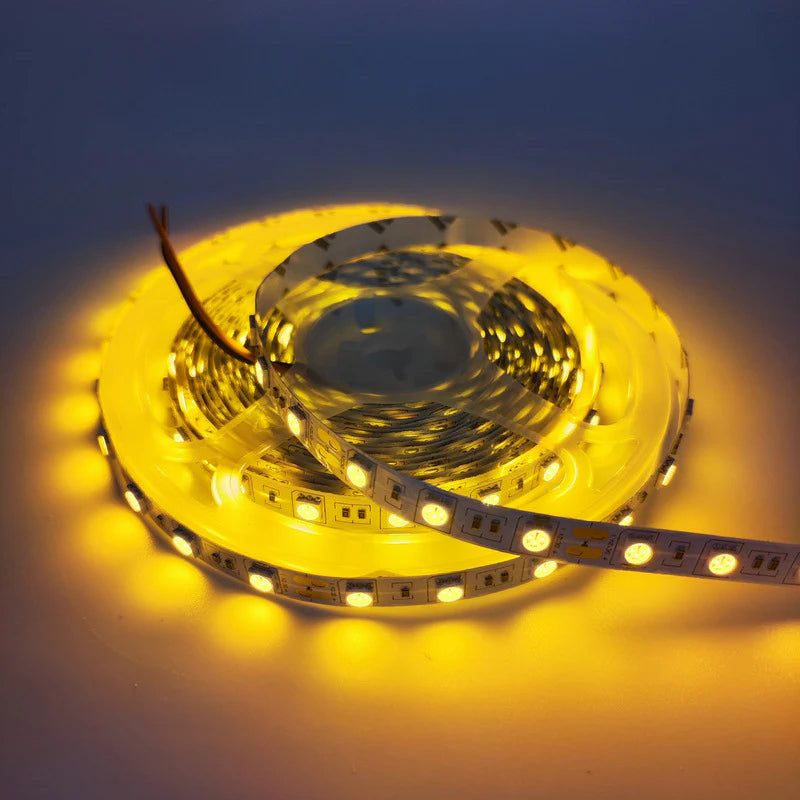

SMD5050 Red/Green/Blue/Yellow/Pink/Icy Blue LED Strip Light | Standard Brightness | 12V DC | 12W/m | 60 LEDs/m | 5m Roll | IP00 / IP65/IP67 Options

Package Included:

Version	Package Included
1 Roll × 5 m (16.4 ft total) (Strip Only)	1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller
20 Rolls × 5 m (328 ft total) (Strip Only)	20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller
100 Rolls × 5 m (1640 ft total) (Strip Only)	100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller

Order & Logistics:

Lead Time: Typically 1–3 business days
Packing: Cardboard box, sealed with anti-static bag
Shipping: 7-12 days by AIR.

Product Features:

Vibrant Color Options – Available in Red, Green, Blue, Yellow, Pink, and Icy Blue to create dynamic lighting effects for any space.
Standard Brightness – 12W per meter with 60 LEDs/m, delivering consistent illumination suitable for ambient, decorative, or display lighting.
Flexible & Easy Installation – 5m (16.4 ft) rolls with cuttable design, white flexible PCB, ideal for DIY, retail displays, signage, and architectural accents.
Waterproof Options – Choose IP00 for indoor use (bare PCB) or IP65 (surface coated) and IP67 (Silicone Tube) for damp areas and light-exposed outdoor environments.
Reliable & Long-Lasting – High-quality SMD5050 LEDs ensure stable performance, energy efficiency, and long lifespan.

Strip Specification:

Parameter	Specification	Notes
LED Chip Type	SMD5050	High-quality RGB/color LEDs
Brightness	Standard Brightness (12W/m)	60 LEDs/m
Voltage	12V DC	Low-voltage, safe for indoor use
Color Options	Red / Green / Blue / Yellow / Pink / Icy Blue	Dynamic color options
PCB Width	10mm	Flexible white PCB
IP Grade	IP00 / IP65 / IP67	Bare PCB or surface coated and Silicone Tube Sealed for damp areas
Roll Length	5m (16.4 ft)	Cuttable every 3 LEDs
Applications	Indoor decorative lighting, retail display, signage, accent lighting	Flexible usage
Lifespan	30,000+ hours	Depending on usage & environment

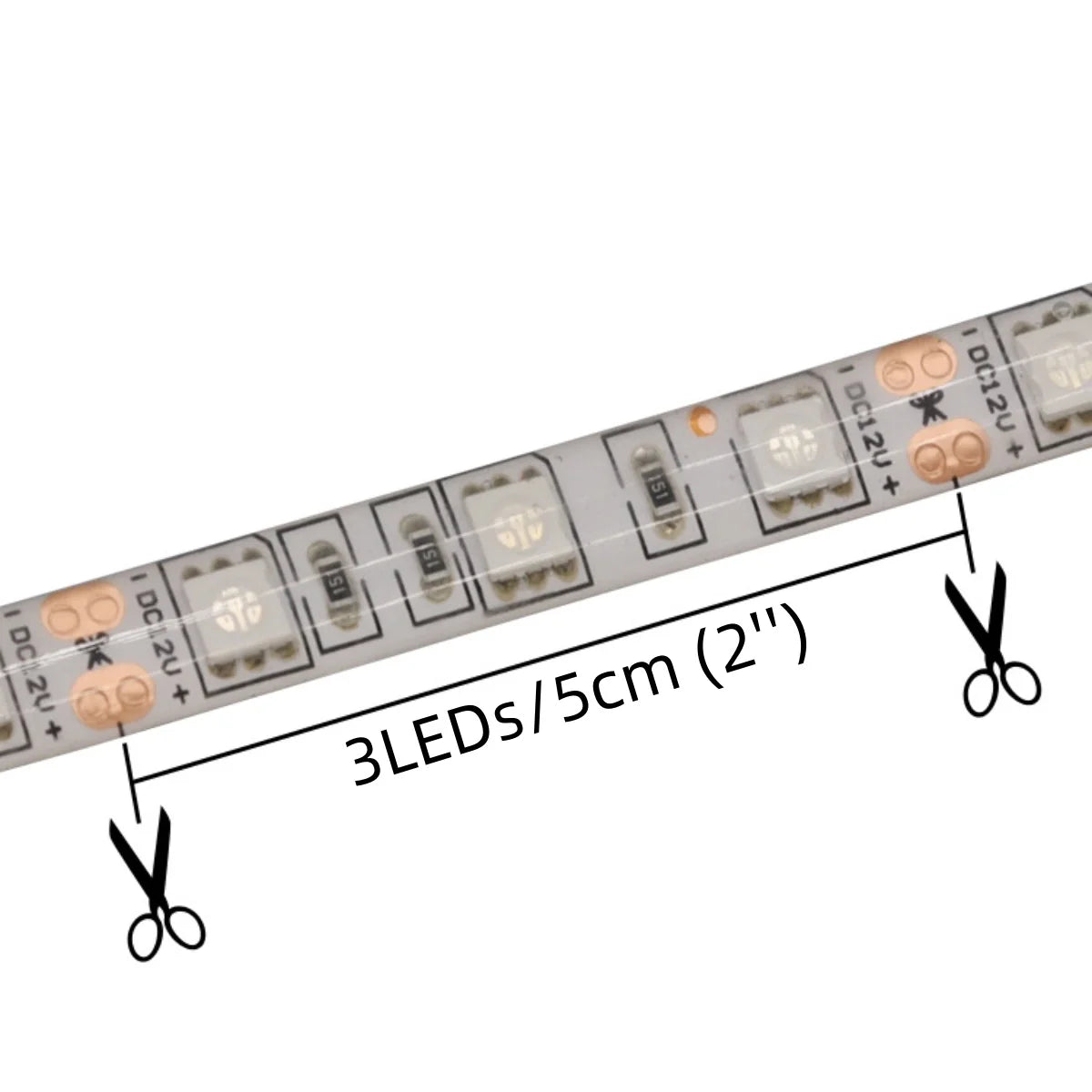

Cuttable Section (non-waterproof ) (1inch=25.4mm)

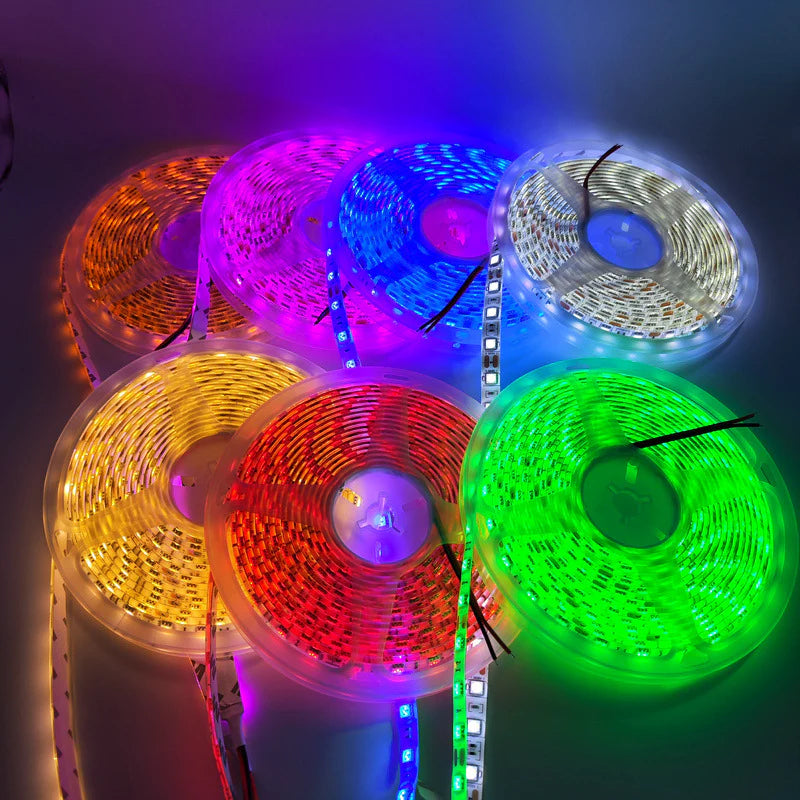

Colors Option

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.

And a big power transformer do no harm to the strip but good for safty.

Below please find the connection diagram for Single Color Light Strip for reference.

a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
