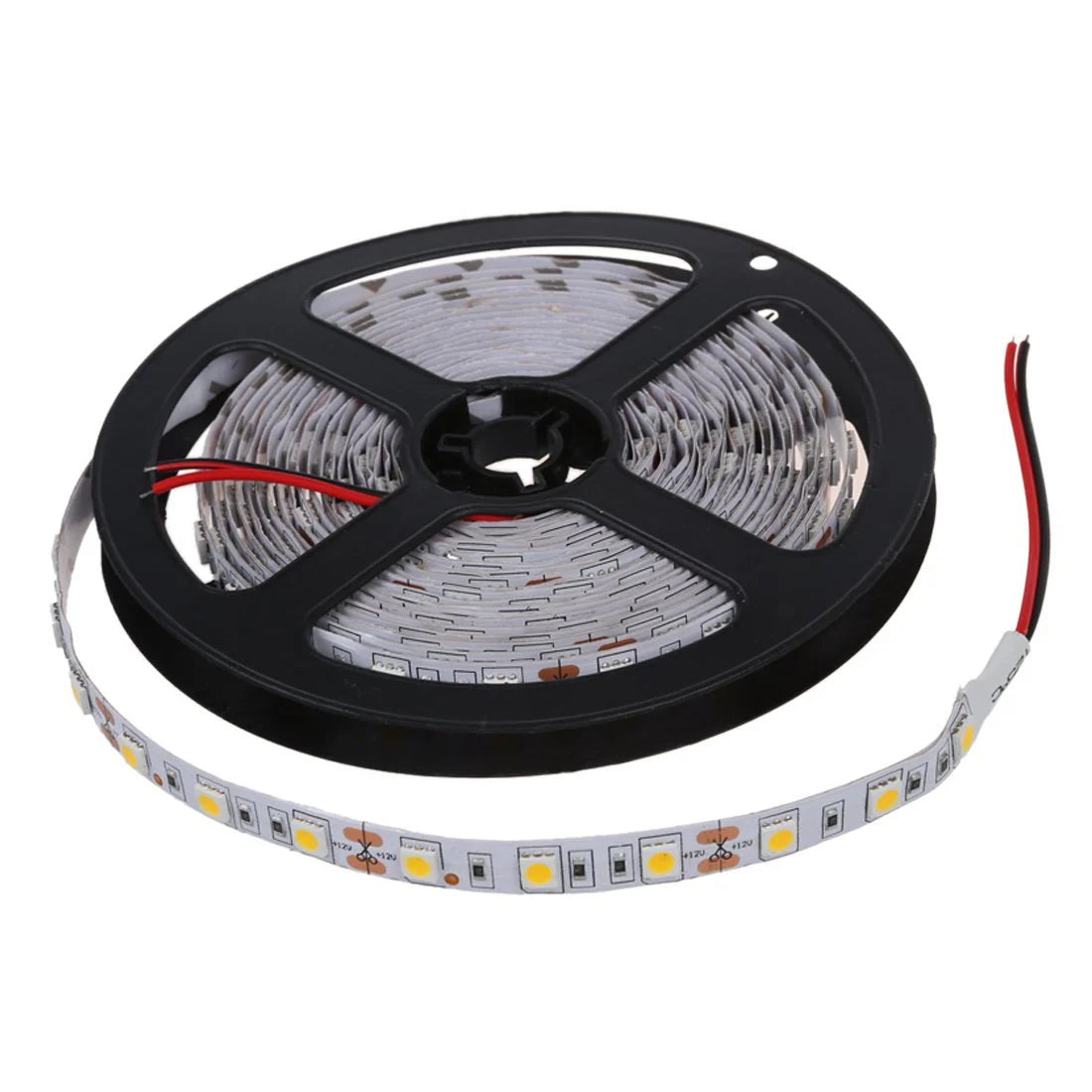

SMD5050 LED Strip Light | Standard (10–12lm/LED) & High Brightness (20–22lm/LED) Options | 12V DC | 12W/m | 60 LEDs/m | 5m Roll | White Colors (3000K/4000K/6000K) | IP00/IP67
From $1,034.00
Regular price
$1,034.00
Sale price
$1,034.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
9999 in stock
SMD5050 LED Strip Light | Standard (10–12lm/LED) & High Brightness (20–22lm/LED) Options | 12V DC | 12W/m | 60 LEDs/m | 5m Roll | White Colors (3000K/4000K/6000K) | IP00/IP67
Package Included:
| Version | Package Included |
| 1 Roll × 5 m (16.4 ft total) (Strip Only) | 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller |
| 20 Rolls × 5 m (328 ft total) (Strip Only) |
20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
| 100 Rolls × 5 m (1640 ft total) (Strip Only) | 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller |
Order & Logistics:
- Lead Time: Typically 1–3 business days
- Packing: Cardboard box, sealed with anti-static bag
- Shipping: 7-12 days by AIR.
Product Features:
-
Brightness Options for Any Need – Available in Standard Brightness (10–12 lm per LED) and High Brightness (20–22 lm per LED), giving you flexibility for ambient lighting or high-output applications.
-

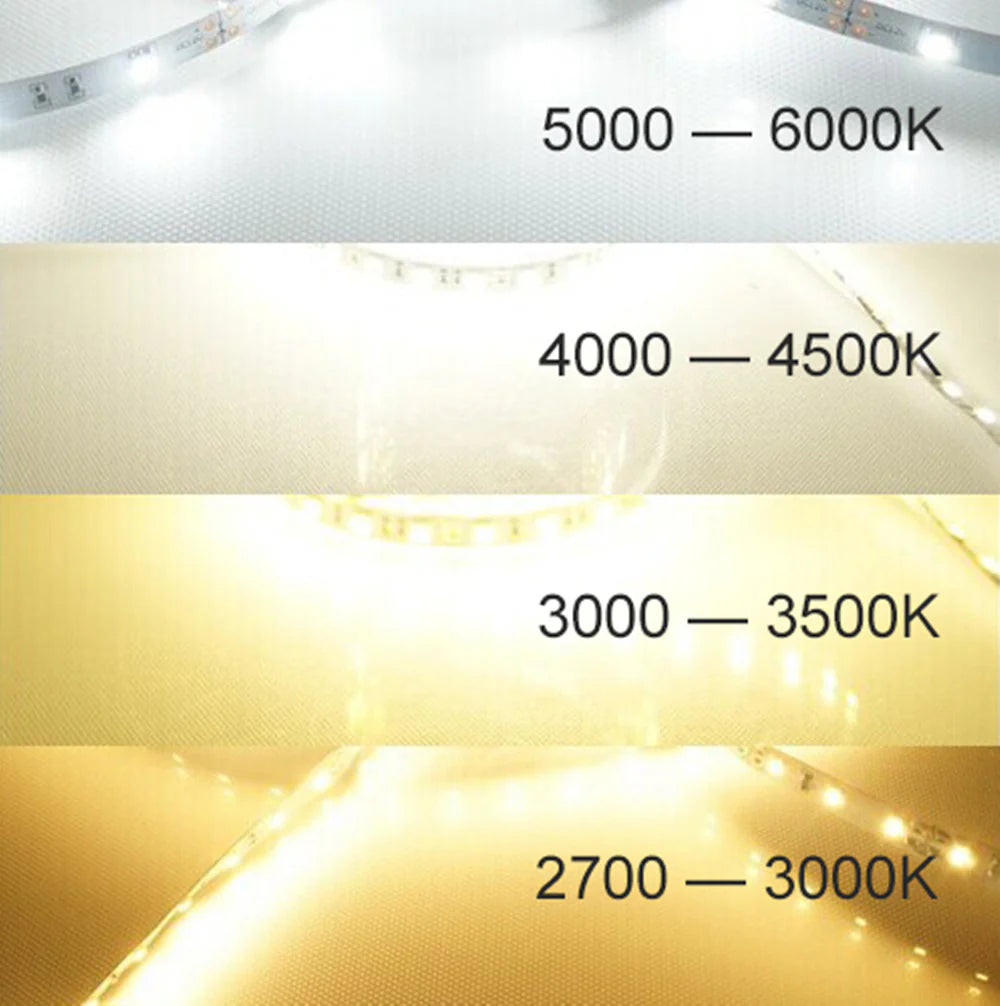

Selectable Color Temperatures – Choose from 3000K warm white, 4000K neutral white, or 6000K cool white to match residential, commercial, or display lighting needs.
-
High Efficiency & Long Lifespan – 60 LEDs per meter, 12W/m power consumption, delivering consistent illumination with low energy usage and 30,000+ hours rated lifetime.
-

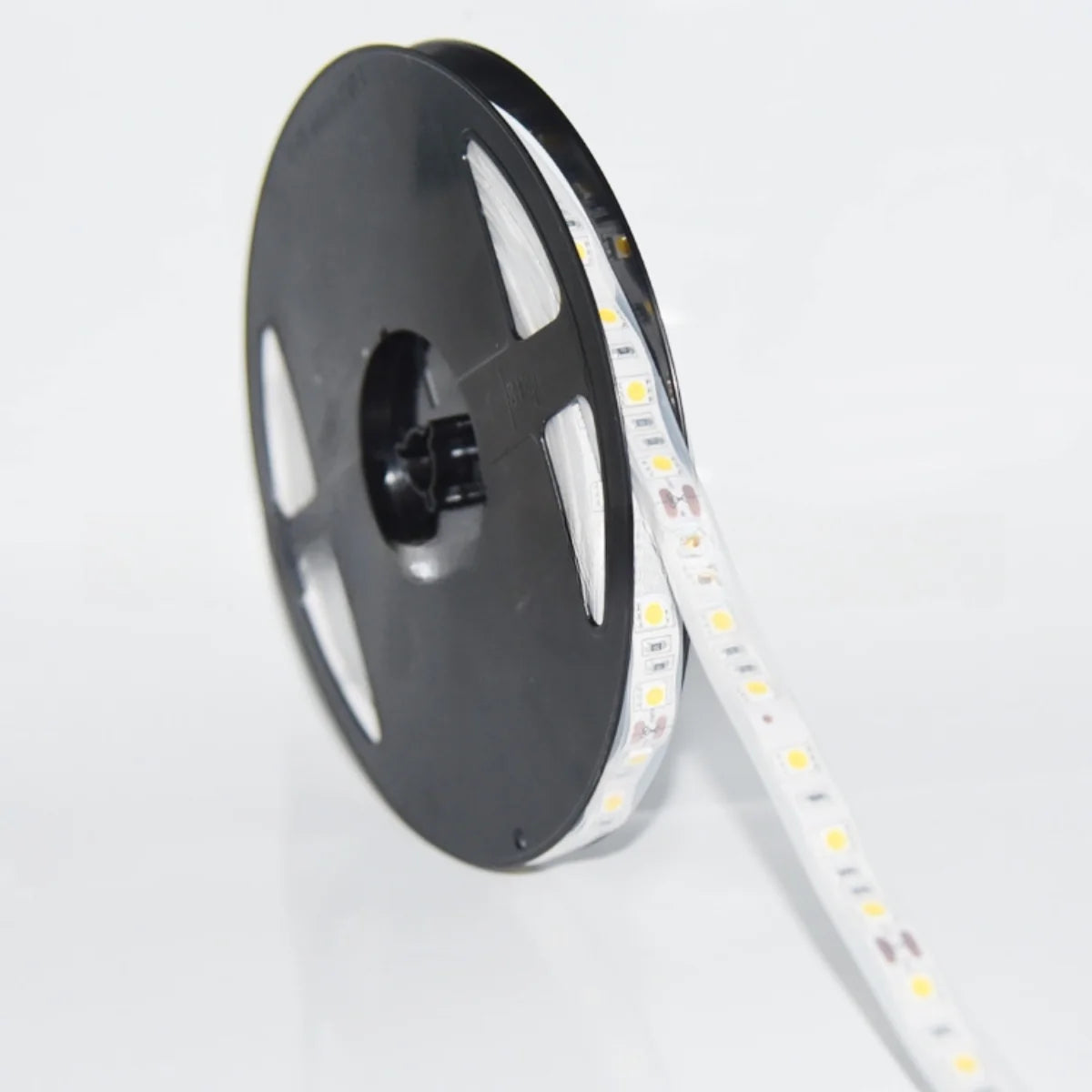

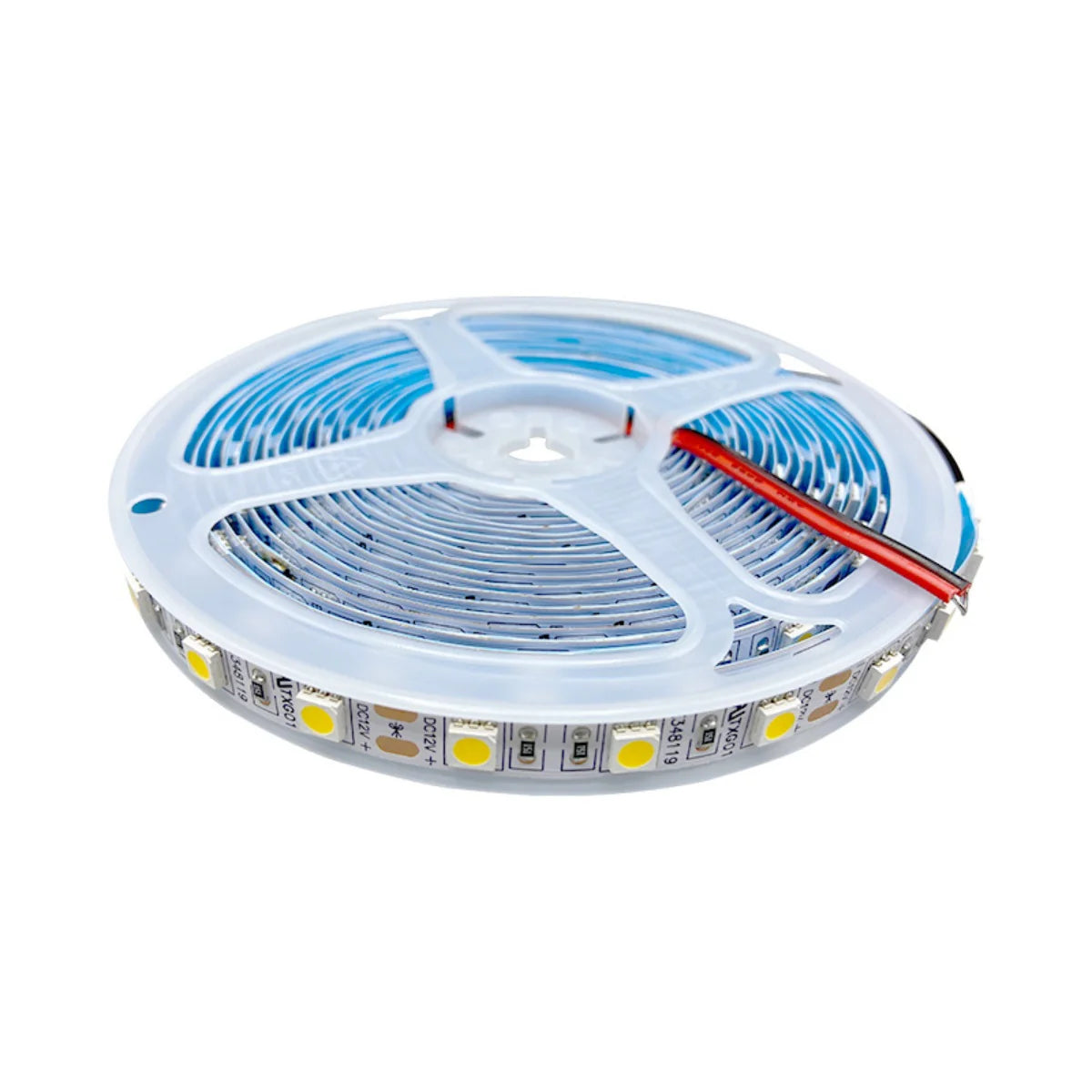

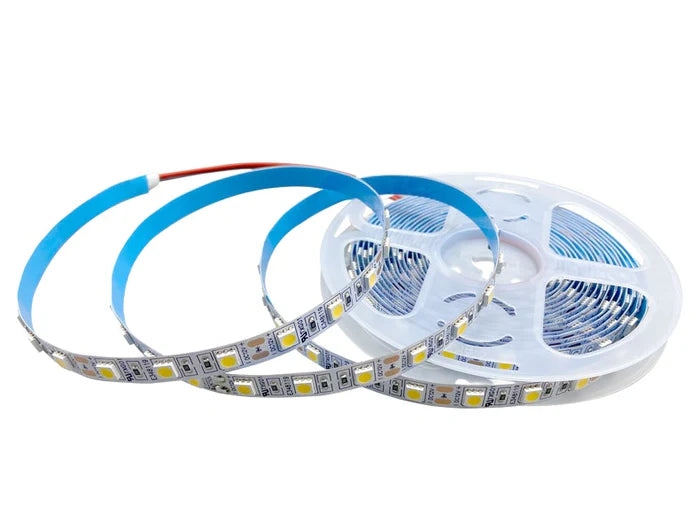

Flexible & Easy Installation – Supplied in 5m (16.4ft) rolls with 10mm wide PCB, cuttable and linkable design, suitable for DIY projects, retail displays, and architectural lighting.
-

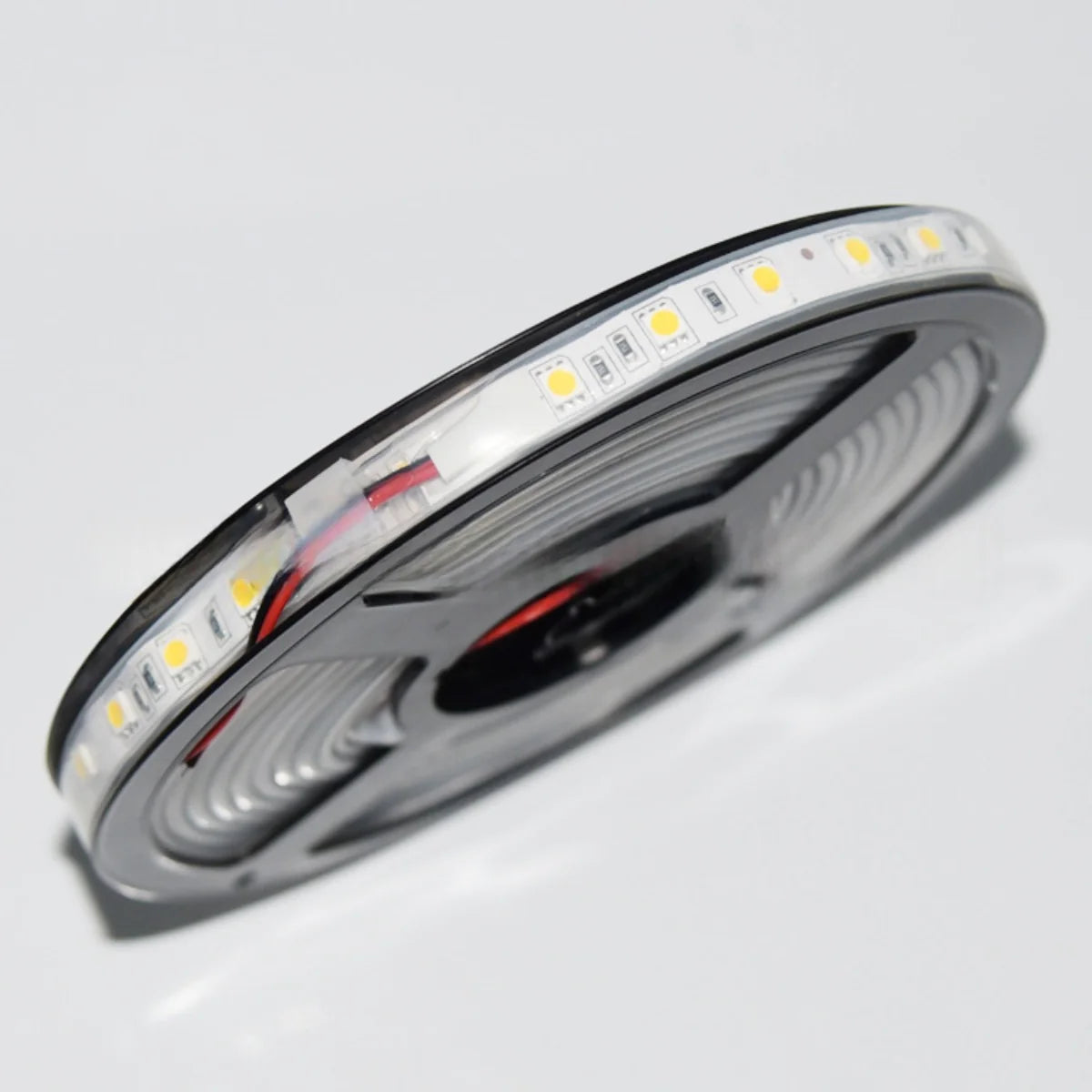

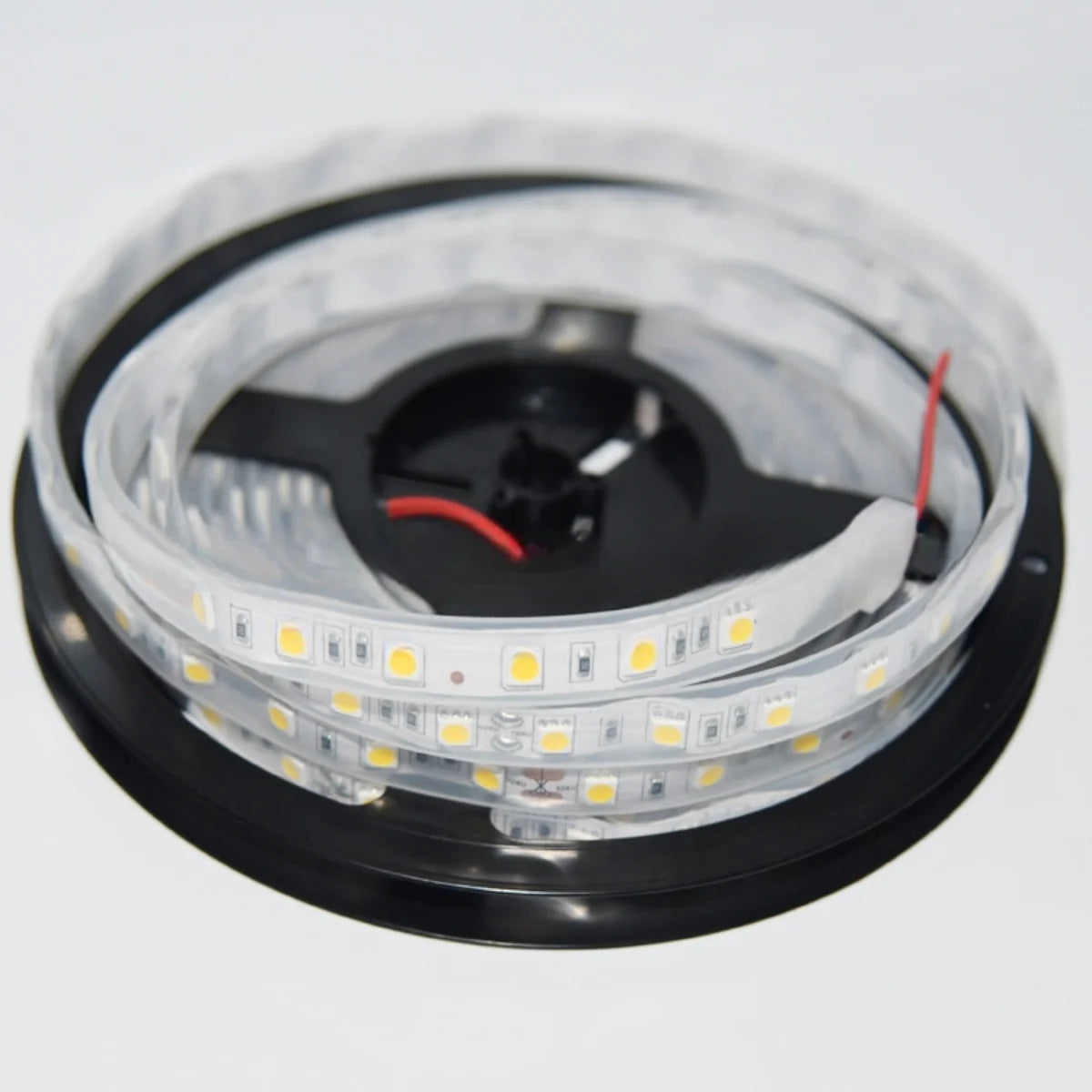

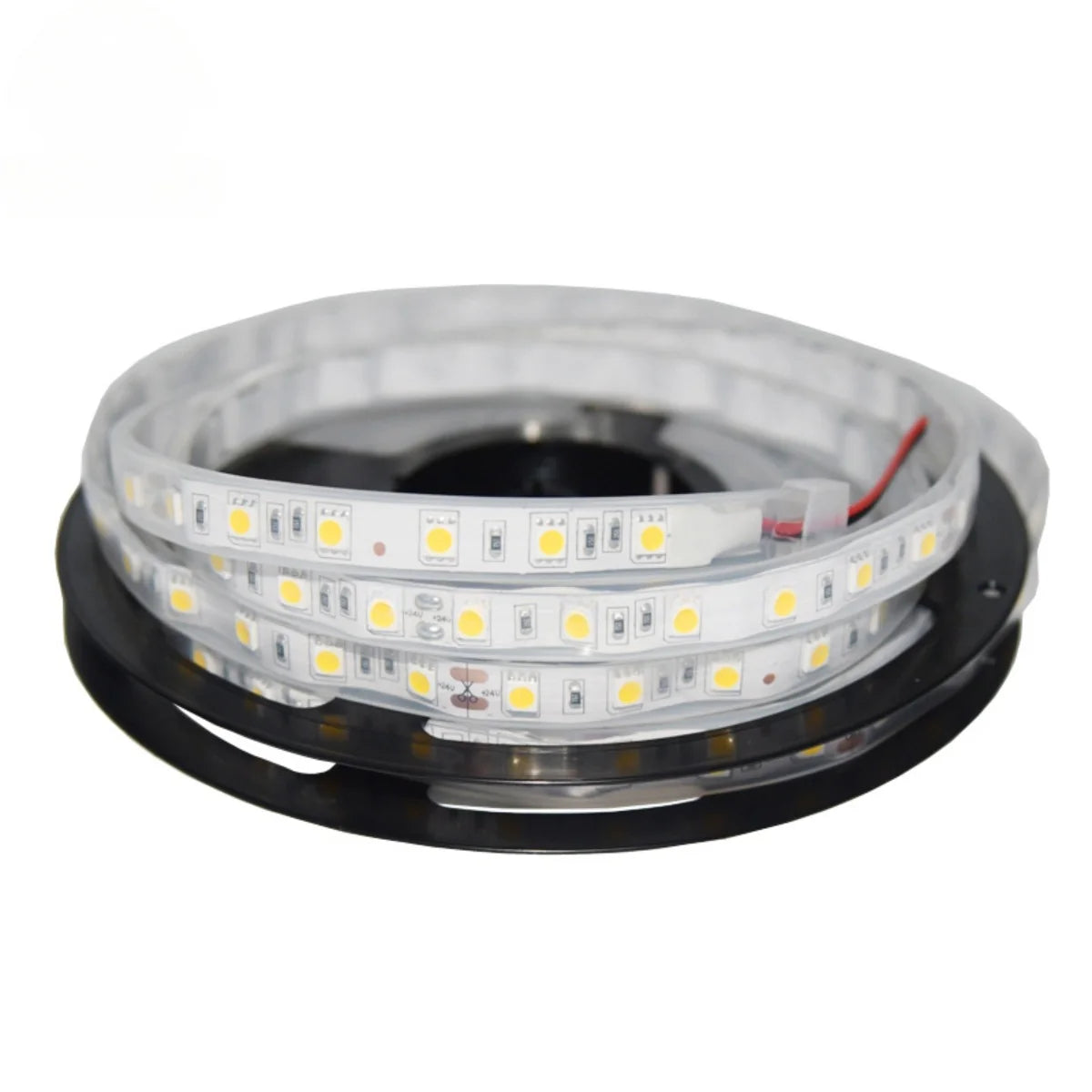

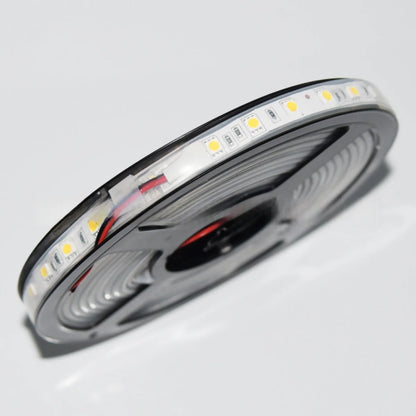

Multiple Waterproof Grades – Offered in IP00 (non-waterproof), IP65 (surface coated), and IP67 (silicone tube) versions for both indoor and outdoor environments.
Strip Specification:
| SMD5050 LED Strip Light – Product Specification Table | |||
| Parameter | Standard Brightness | High Brightness | Notes |
| LED Chip Type | SMD5050 | SMD5050 | High-quality LEDs |
| Lumen per LED | 10–12 lm | 20–22 lm | Measured at 12V DC |
| LED Density | 60 LEDs/m | 60 LEDs/m | Consistent spacing |
| Power Consumption （Max) | 12W/m | 12W/m | 12V DC input |
| Voltage | 12V DC | 12V DC | Standard low-voltage |
| Color Temperature (CCT) | 3000K / 4000K / 6000K | 3000K / 4000K / 6000K | Warm / Neutral / Cool White |
| PCB Width | 10mm | 10mm | Flexible white PCB |
| Waterproof Options (IP) | IP00 / IP67 | IP00 / IP67 | Bare PCB, Silicone Tube |

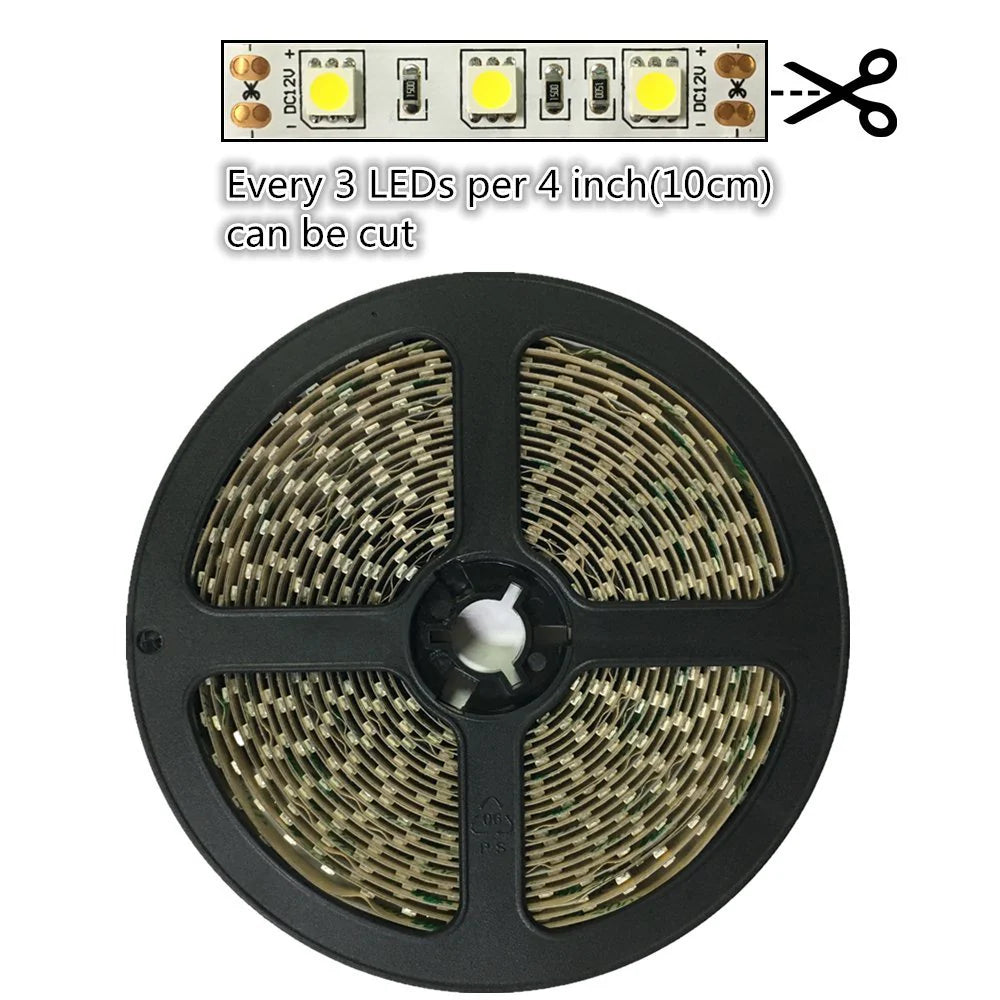

| Roll Length | 5m (16.4 ft) | 5m (16.4 ft) | Cuttable every 3 LEDs |

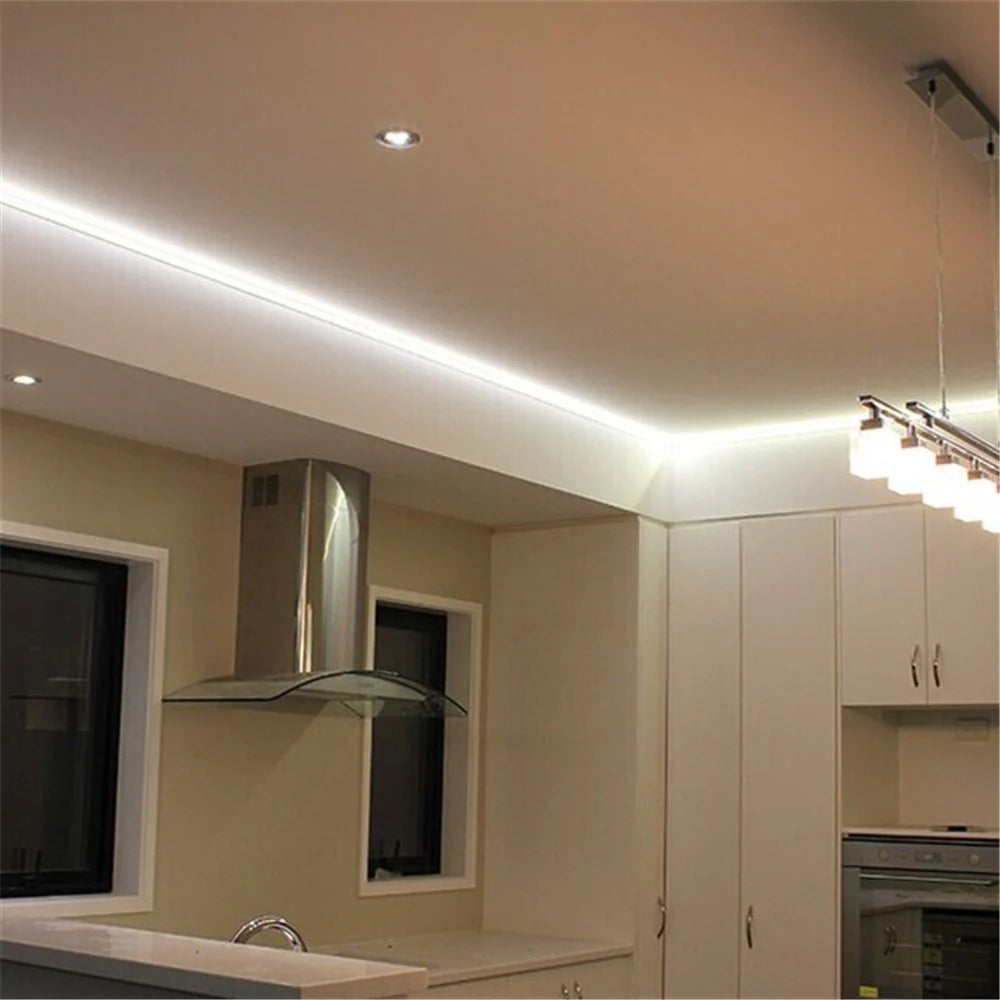

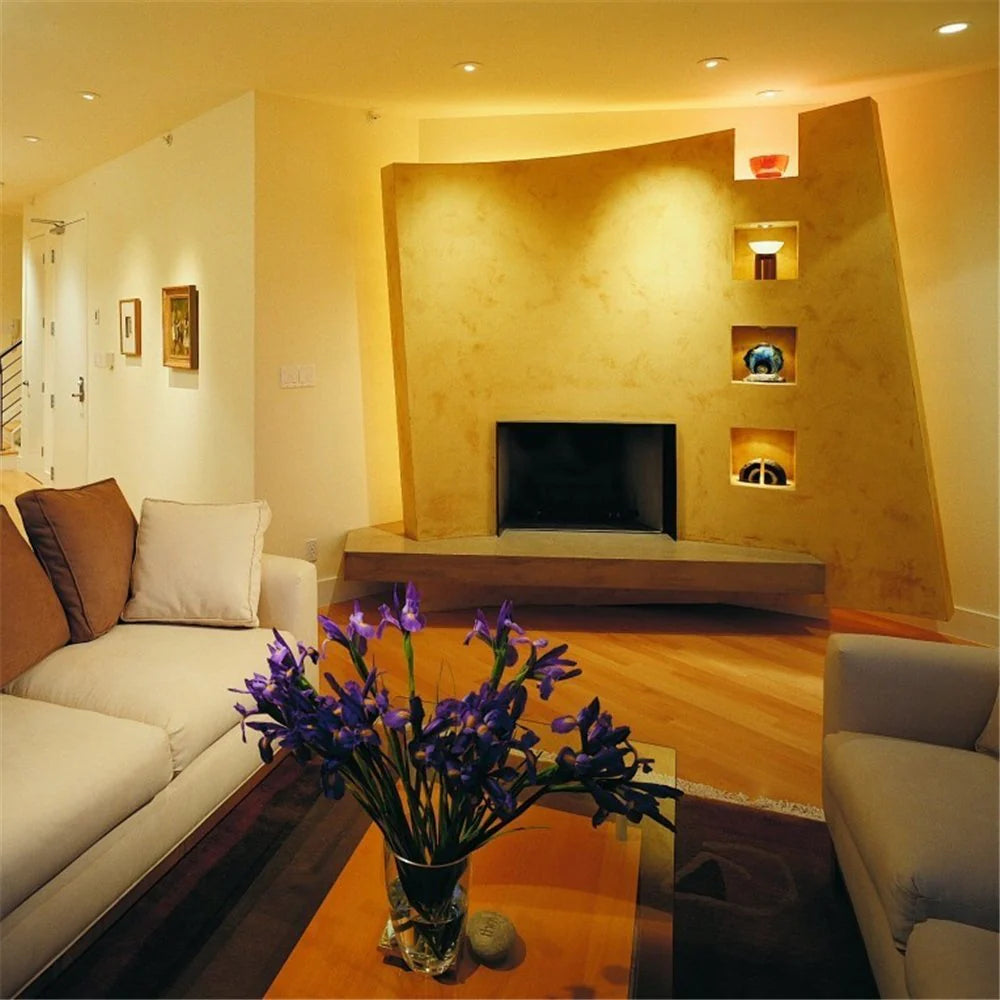

| Applications | Indoor ambient, under-cabinet, decorative lighting | High-output indoor/outdoor, signage, retail display | Flexible usage |
| Lifespan | 30,000+ hours | 30,000+ hours | Depends on usage & environment |

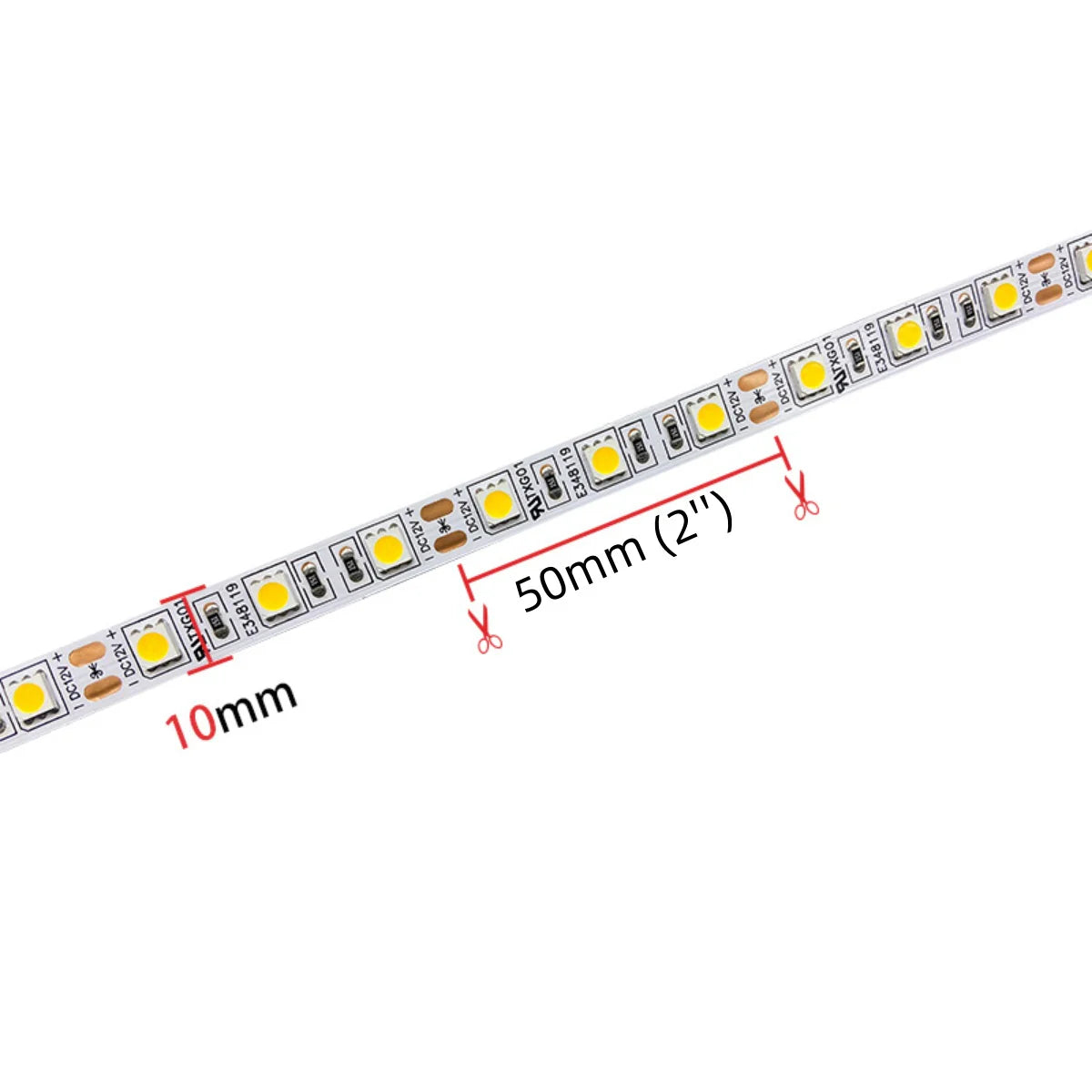

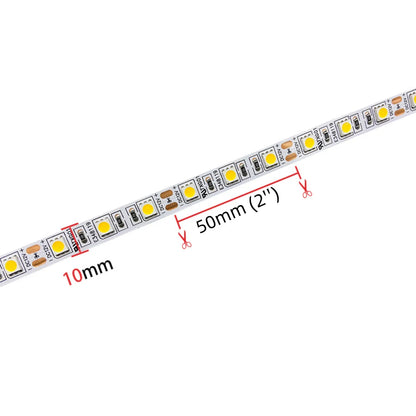

Cuttable Section (non-waterproof ) (1inch=25.4mm)
How to power/control the strip
When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safty.
And a big power transformer do no harm to the strip but good for safty.
Below please find the connection diagram for Single Color Light Strip for reference.
a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
b. Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
#1 Typical connection for one Dimmer to control one string of light bars
#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
