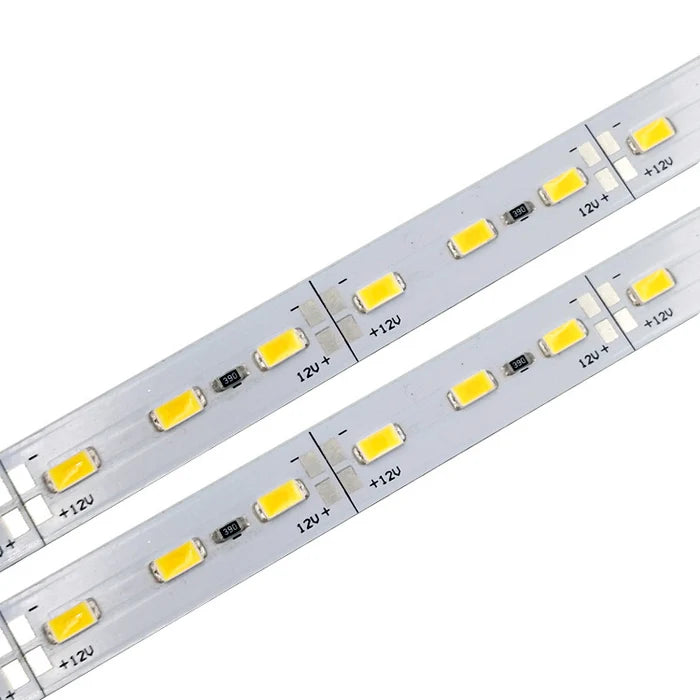

Rigid LED Strip Light – SMD5630, 72 LEDs/M, 12mm Bare PCB, 1 Meter Length, 12V / 24V DC, Available in 3000K / 4000K / 6500K / 8000K White, Indoor Linear Lighting Bar

From $1,441.00
Color Options
Voltage
Package QTY
$1,441.00
$1,441.00
Shipping calculated at checkout.
999 in stock

Rigid LED Strip Light – SMD5630, 72 LEDs/M, 12mm Bare PCB, 39 Inch Length, 12V / 24V DC, Available in 3000K / 4000K / 6500K / 8000K White, Indoor Linear Lighting Bar

Package Included:

Version Package Included
20pcs Pack 20pcs of the 39'' LED Rigid Strip
50pcs Pack 50pcs of the 39'' LED Rigid Strip
100pcs Pack
 100pcs of the 39'' LED Rigid Strip

Order & Logistics:

  • Lead Time: Typically 3–5 business days
  • Packing: Cardboard box, sealed with anti-static bag
  • Shipping:  7-12 days by AIR.

Product Features:

  • High-Brightness SMD5630 Chips:
    Equipped with premium SMD5630 LEDs delivering strong and uniform illumination — ideal for display cases, under-cabinet lighting, and linear architectural accents.

  • 12V or 24V Options for Versatility – Compatible with both 12V and 24V DC power inputs, offering flexibility for different project requirements or system setups.

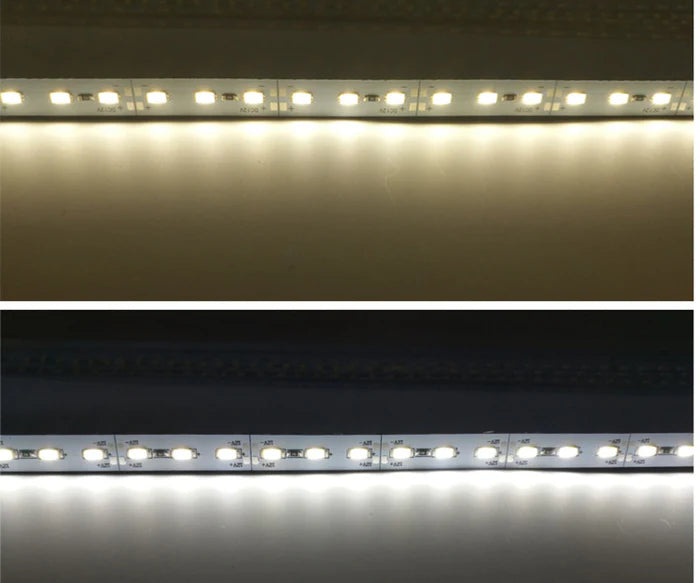

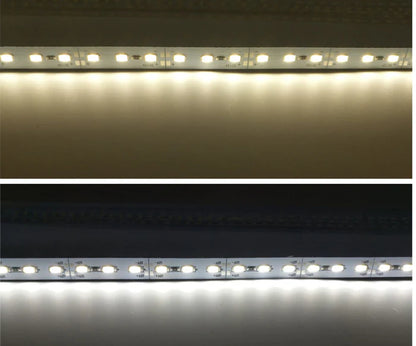

  • Multiple White Color Temperatures:
    Available in 3000K warm white, 4000K neutral white, 6500K daylight white, and 8000K cool white — providing flexibility for any interior lighting environment.

  • Rigid 10mm Bare PCB Design:
    Made with durable aluminum or FR-4 PCB substrate, ensuring excellent heat dissipation and stable performance for long-term use in indoor applications.

  • Easy Installation & Customization:
    Each strip is 1 meter (39 inches) long, can be easily connected or cut, and supports simple screw or clip mounting for a clean linear layout.

  • Energy-Efficient and Reliable:
    Low 12V DC operation with low power consumption and high lumen output — a safe, efficient solution for DIY projects, shelves, cabinets, signage, and more.

Specification:

Item Description
Product Type Rigid LED Strip Light (Bare PCB Type)
LED Type SMD5630
LED Density 72 LEDs per meter
PCB Width 12mm
Length 990mm (≈39 inches)
Operating Voltage 12V DC
Power Consumption Approx. 14.4W/m
Color Temperature Options 3000K / 4000K / 6500K / 8000K
CRI (Color Rendering Index) ≥80
Light Output ~1300–1500 lm/m (varies by CCT)
PCB Material Aluminum or FR-4 rigid board
Beam Angle 120°
Working Temperature -20°C ~ +50°C
IP Rating IP20 (Indoor use only)
Dimmable Yes (with compatible 12V dimmer)

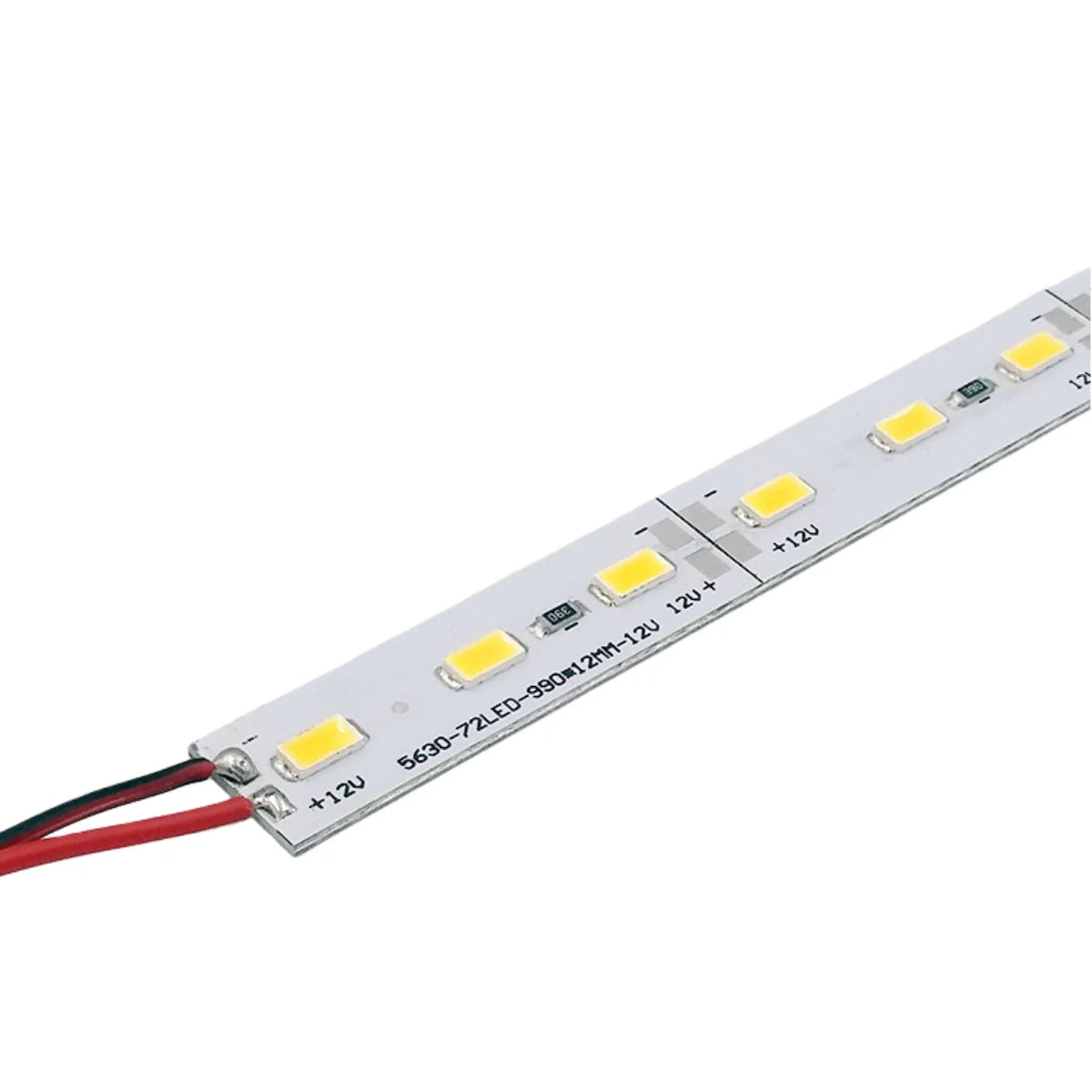

Connection Type Solder pads on both ends
Package Options 20 pcs / 50 pcs / 100 pcs per pack
Applications

Display lighting, cabinet lighting, signage,

indoor accent, DIY light box, retail shelf illumination

12V DC24V DC

Application:

  • Architectural decorative lighting
  •  Path & Contour Marking
  • Auditorium walkway lighting
  • Stairway accent lighting
  • Backlighting for signage letters
  •  Indoor lighting and signs
Rigid LED Strip Light – SMD5630, 72 LEDs/M, 12mm Bare PCB, 1 Meter Length, 12V / 24V DC, Available in 3000K / 4000K / 6500K / 8000K White, Indoor Linear Lighting Bar

$1,441.00
