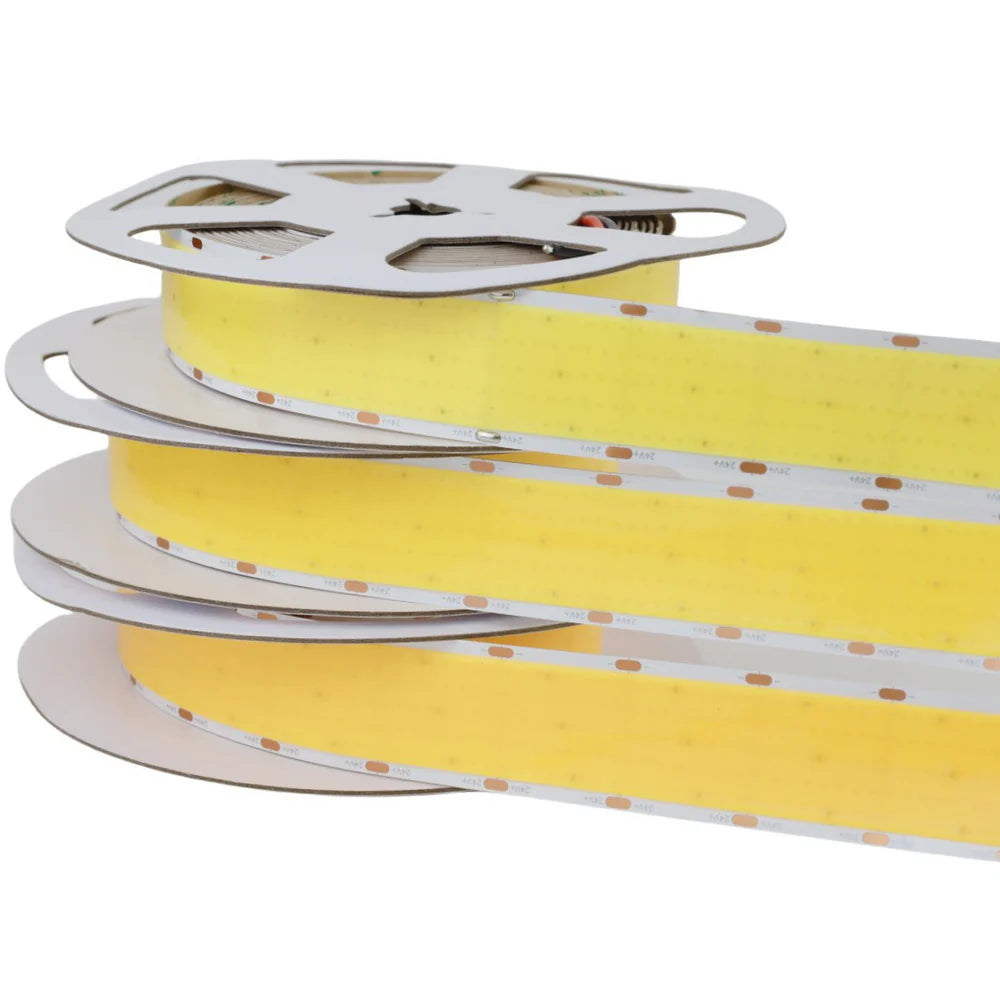

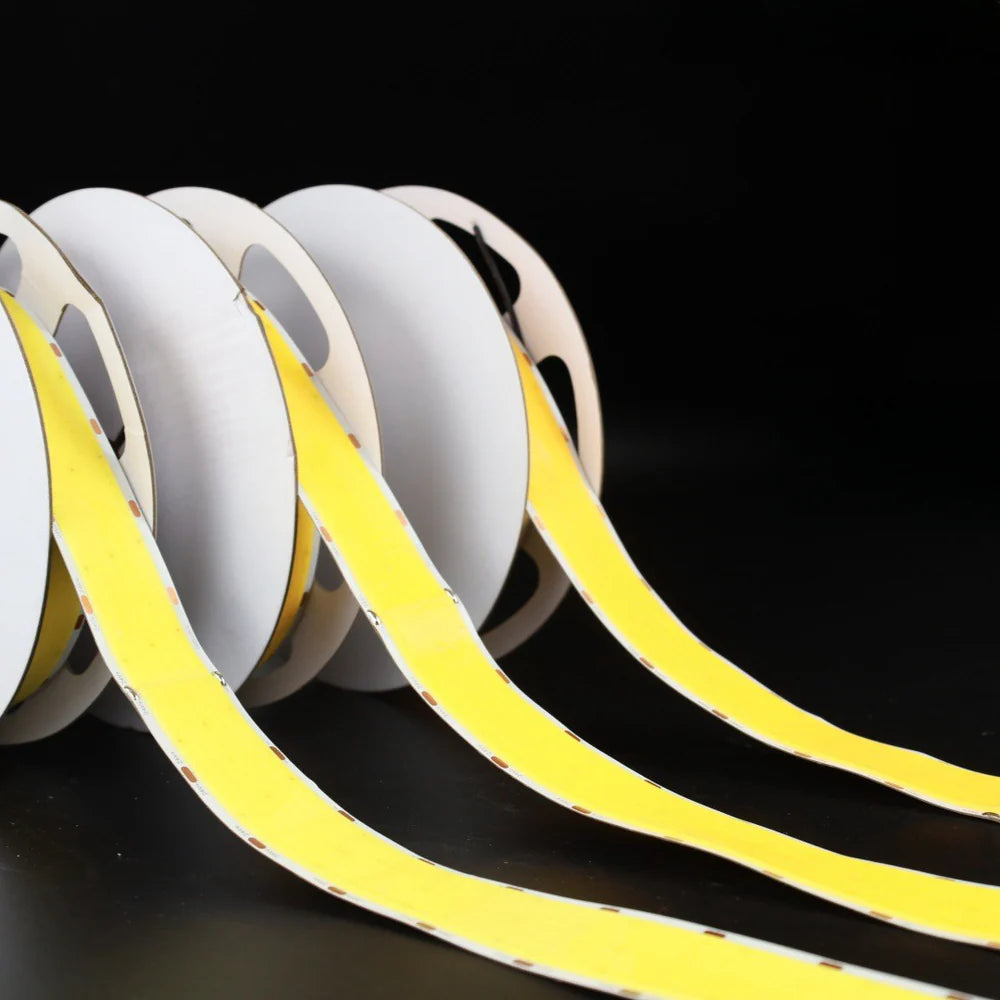

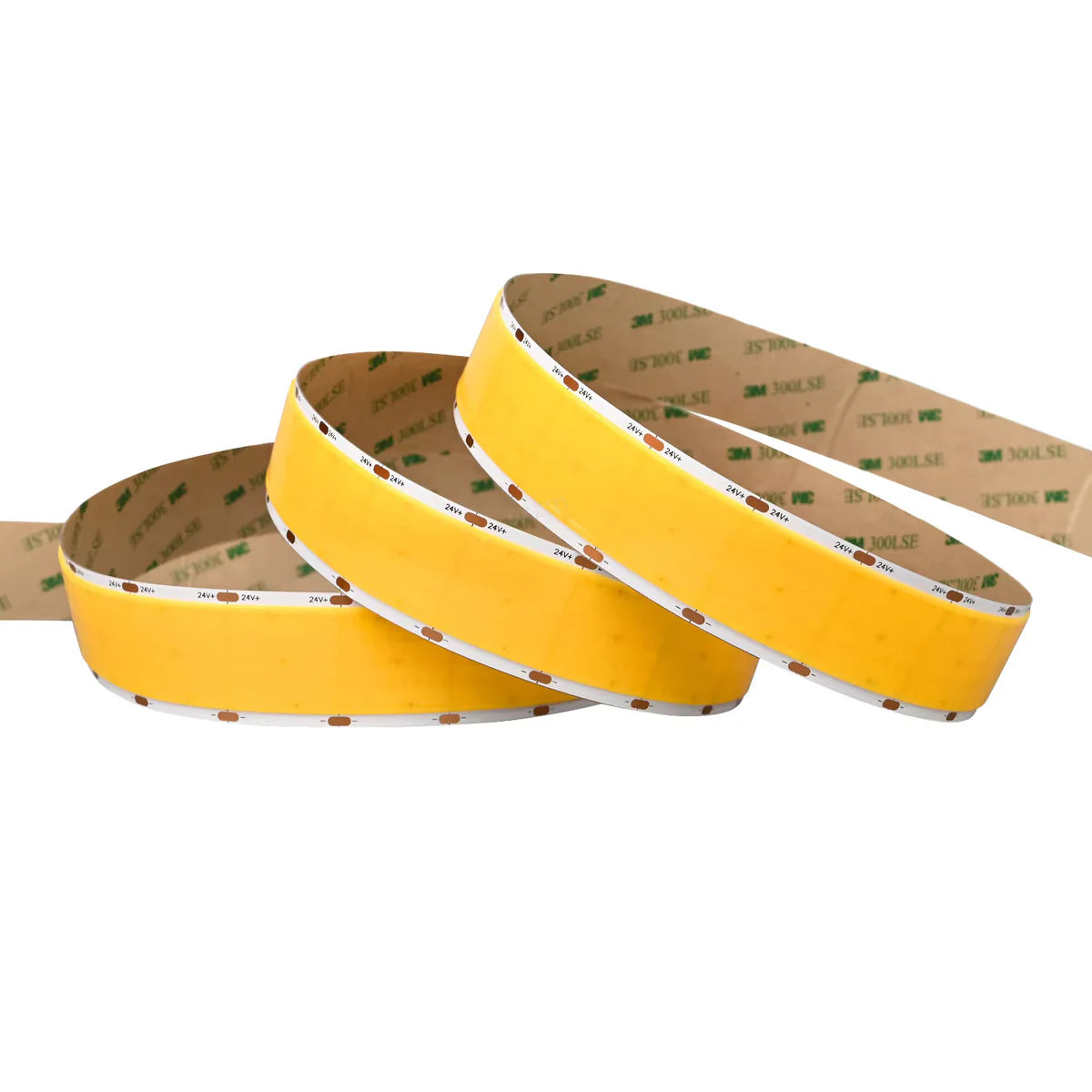

FCOB Ultra High-Density LED Strip Light | 5m (16.4ft) Roll | CRI90 | 3000K / 4000K / 6000K | 1600 LEDs/m | 40W | 24V DC | 30mm Wide | Dimmable Indoor IP00 Ribbon Lighting

From $4,875.00
Color Options
Voltage
Package QTY.
$4,875.00
$4,875.00
Shipping calculated at checkout.
9999 in stock

FCOB Ultra High-Density LED Strip Light | 5m (16.4ft) Roll | CRI90 | 3000K / 4000K / 6000K | 1600 LEDs/m | 40W | 24V DC | 30mm Wide | Dimmable Indoor IP00 Ribbon Lighting

Package Included:

Version Package Included
1 Roll × 5 m (16.4 ft total) (Strip Only) 1 Roll × 5 m (16.4 ft) LED Strip Light Only, Do not include Power Supply and Controller
20 Rolls × 5 m (328 ft total) (Strip Only)
 20 Rolls × 5 m (328 ft total) LED Strip Light Only, Do not include Power Supply and Controller
100 Rolls × 5 m (1640 ft total) (Strip Only) 100 Rolls × 5 m (1640 ft total) LED Strip Light Only, Do not include Power Supply and Controller

Order & Logistics:

  • Lead Time: Ships directly from headquarters. Handling time 3–5 business days
  • Packing: Cardboard box, sealed with anti-static bag
  • Shipping:

    This series enjoys our Free Shipping Policy for orders over $399.

    • HQ Fulfillment (when local stock is unavailable): Standard 9–18 days  |  Express 5–9 days.

Key Features:

  1. Ultra High LED Density – Packed with 1600 LEDs per meter for continuous, seamless illumination with no visible light dots.

  2. High Color Rendering (CRI90) – Produces vivid, accurate colors, ideal for professional and architectural lighting projects.

  3. Powerful & Bright – Consumes 40W per meter, delivering exceptional brightness for demanding indoor applications.

  4. Wide 30mm PCB – Extra-wide design ensures stable performance, effective heat dissipation, and durability.

  5. Customizable Indoor Lighting – Works on 24V DC systems, dimmable, and available in 3000K, 4000K, and 6500K color options.

Specification

Specification Details

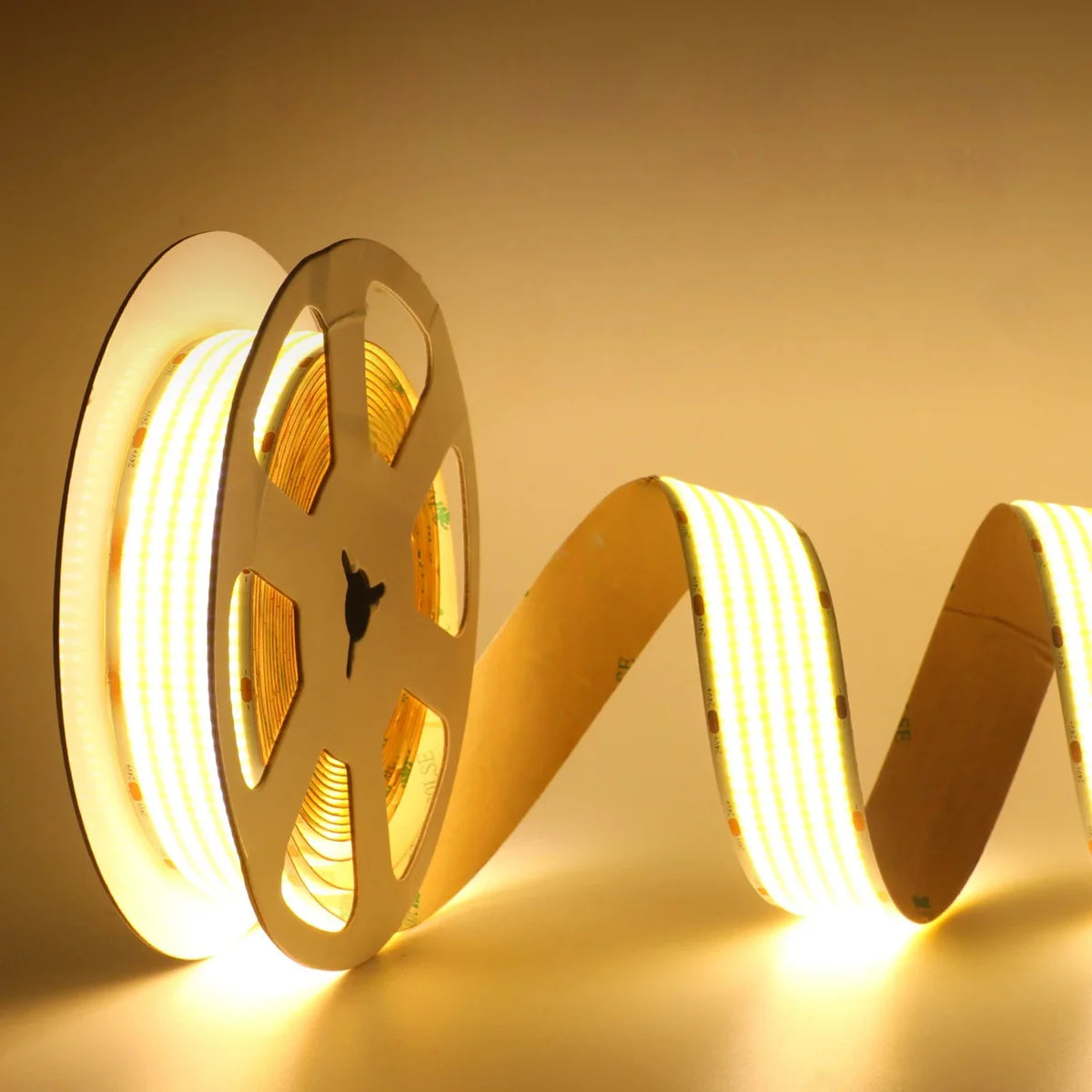

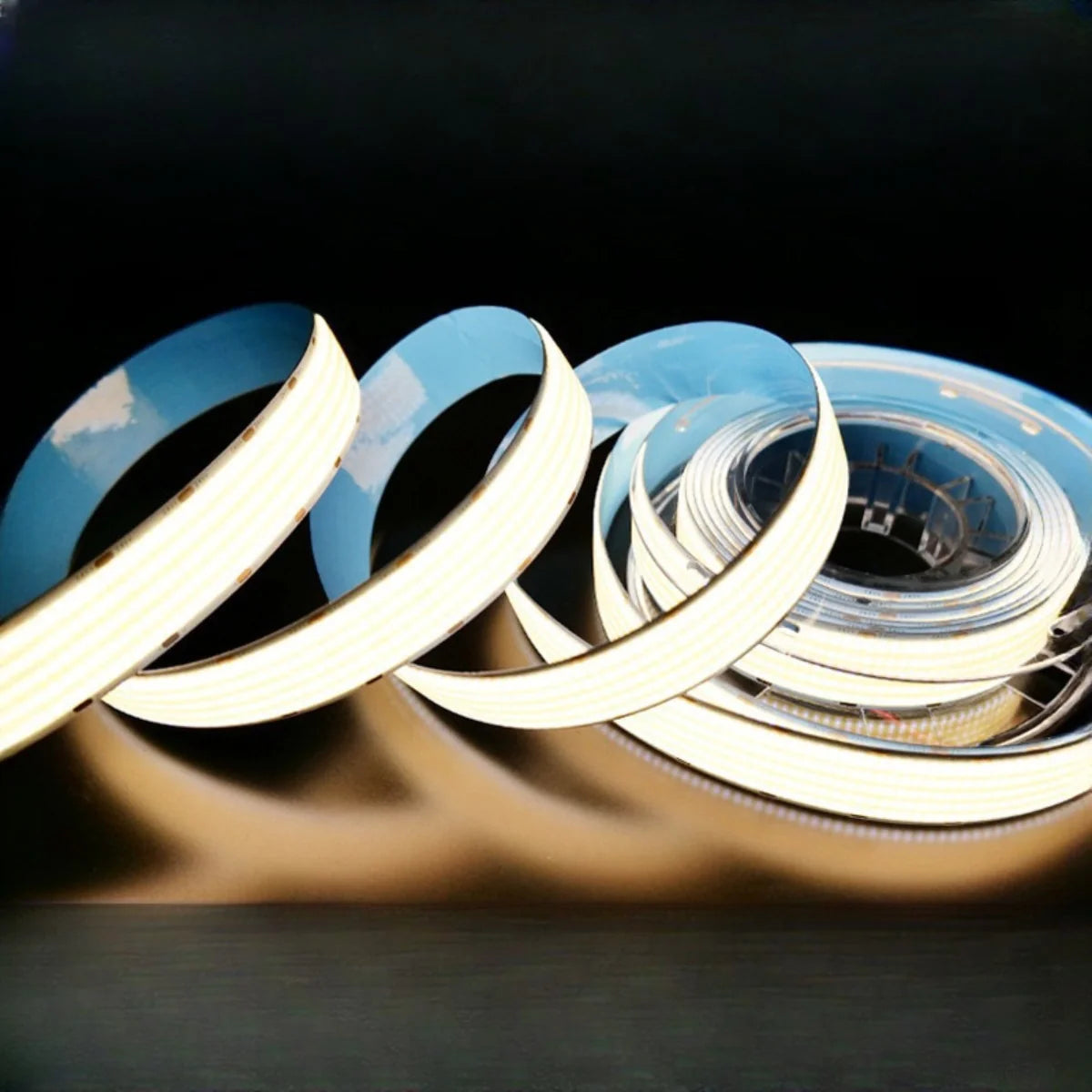

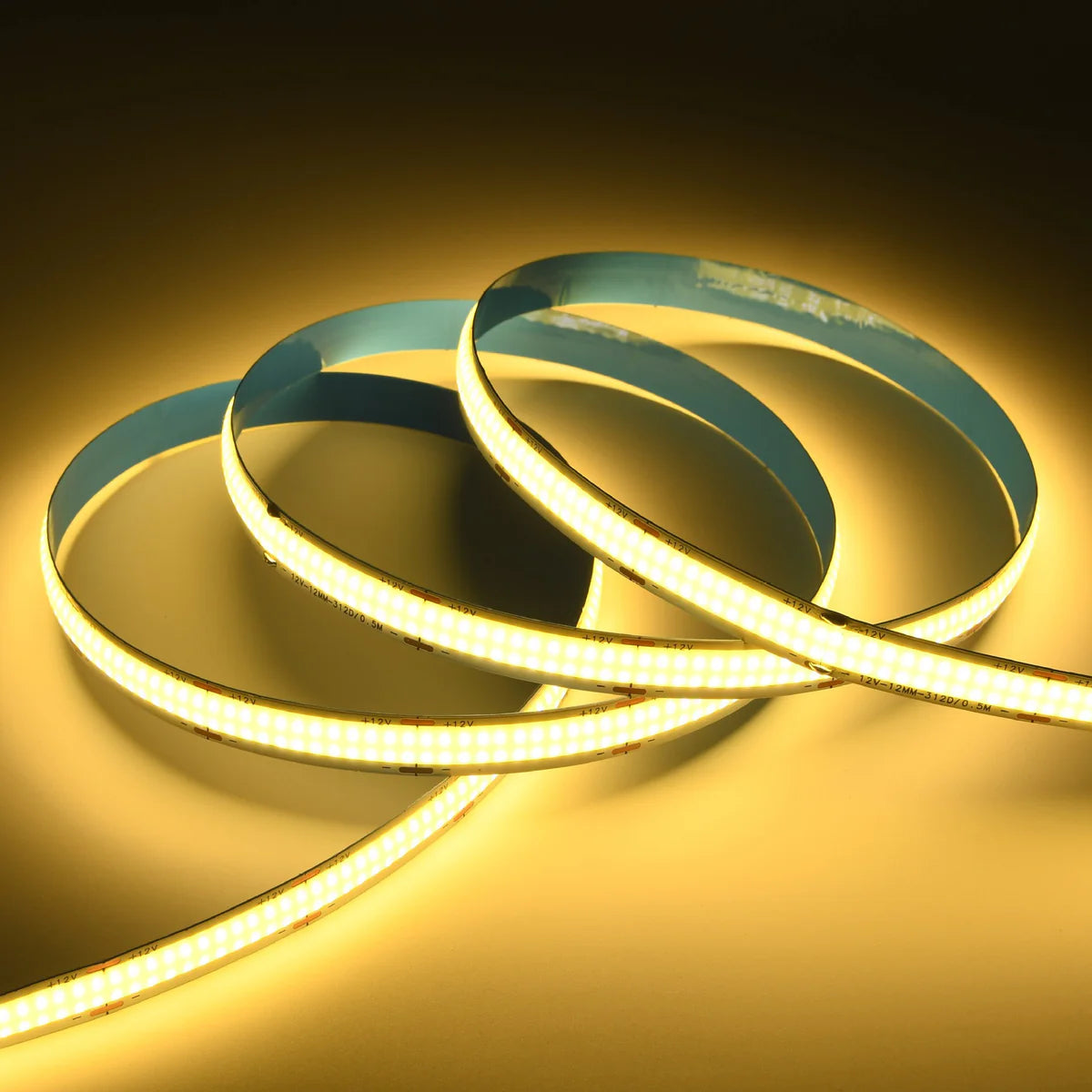

Product Name FCOB Ultra High-Density Flexible LED Strip Light

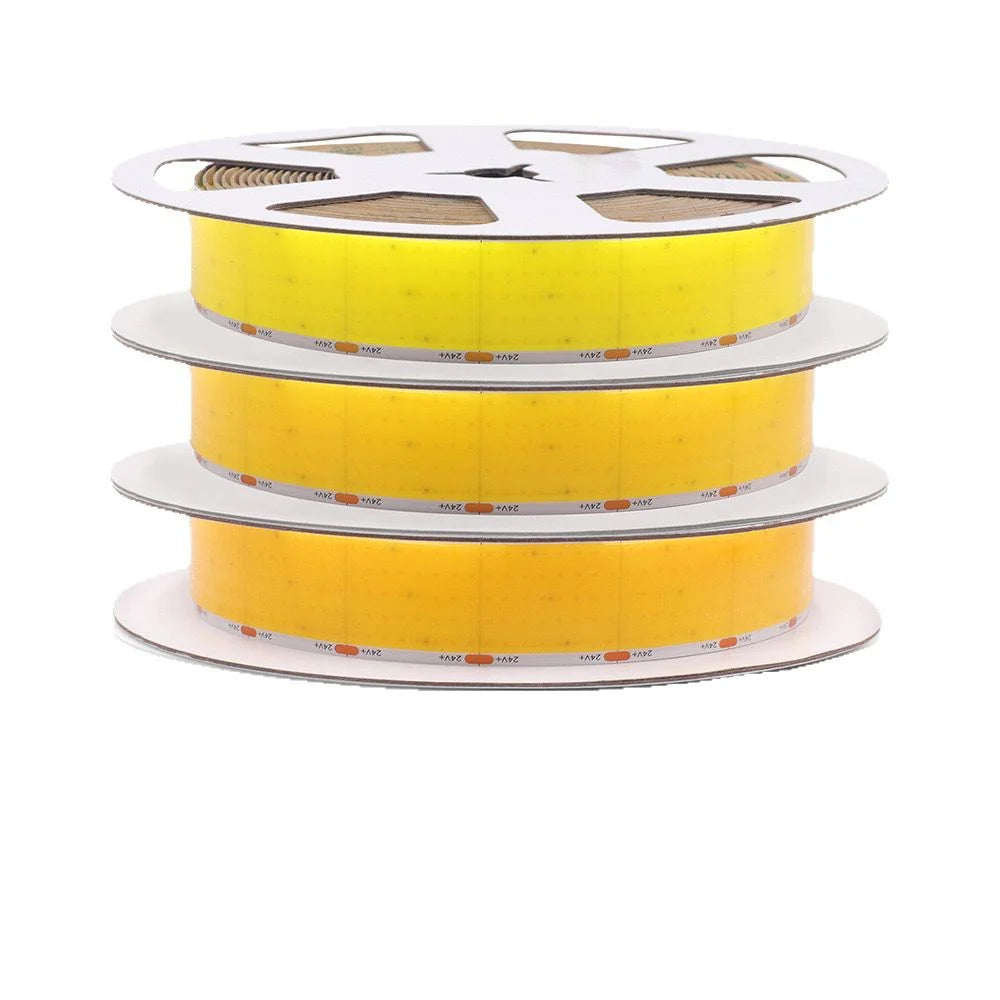

Length per Roll 5m (16.4 ft)
LED Type FCOB (Flip Chip-on-Board)

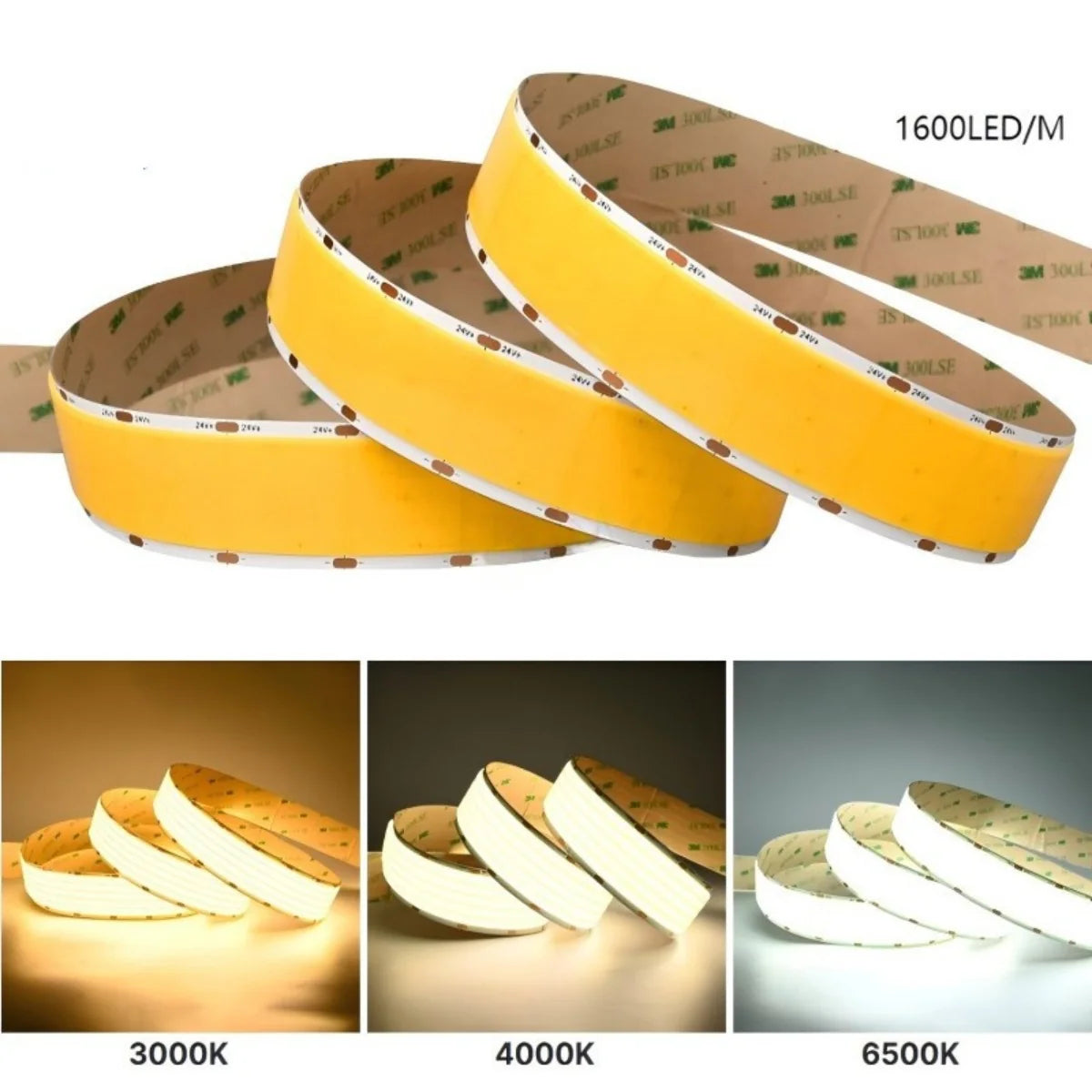

Color Options 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White)
CRI ≥90

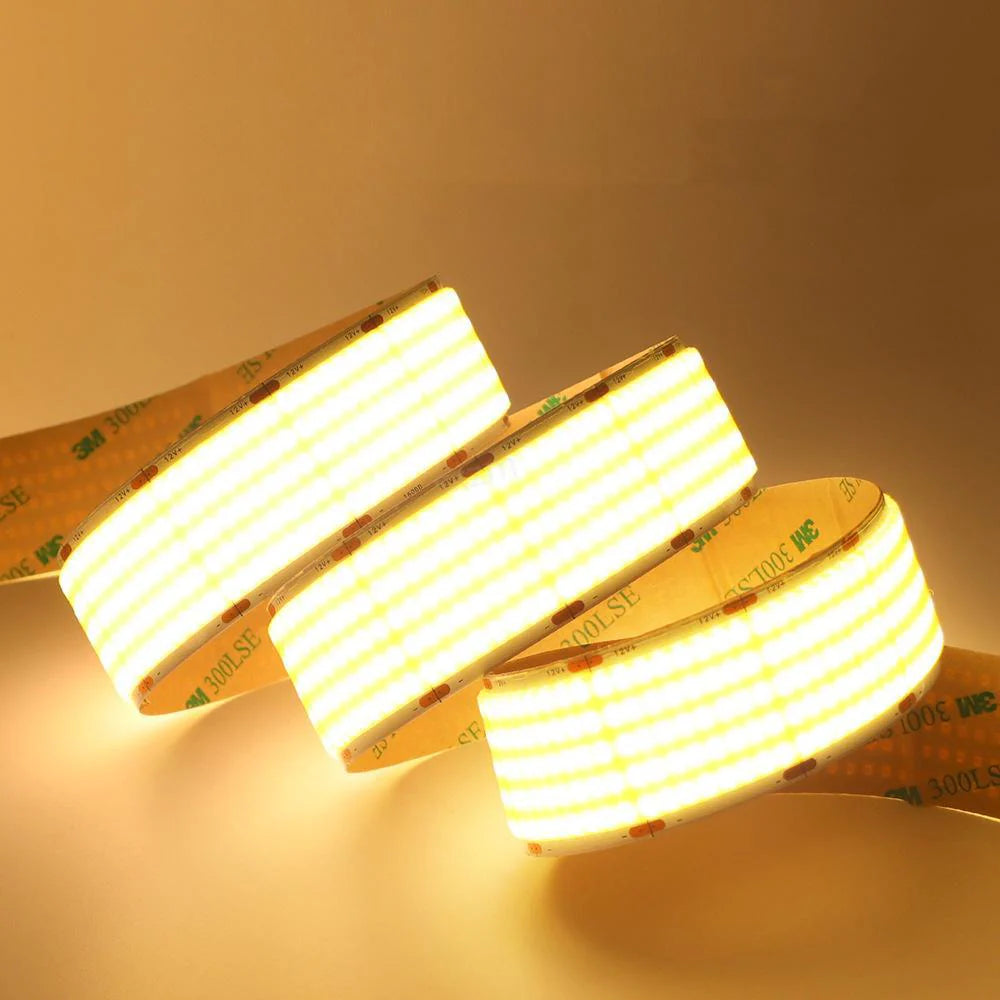

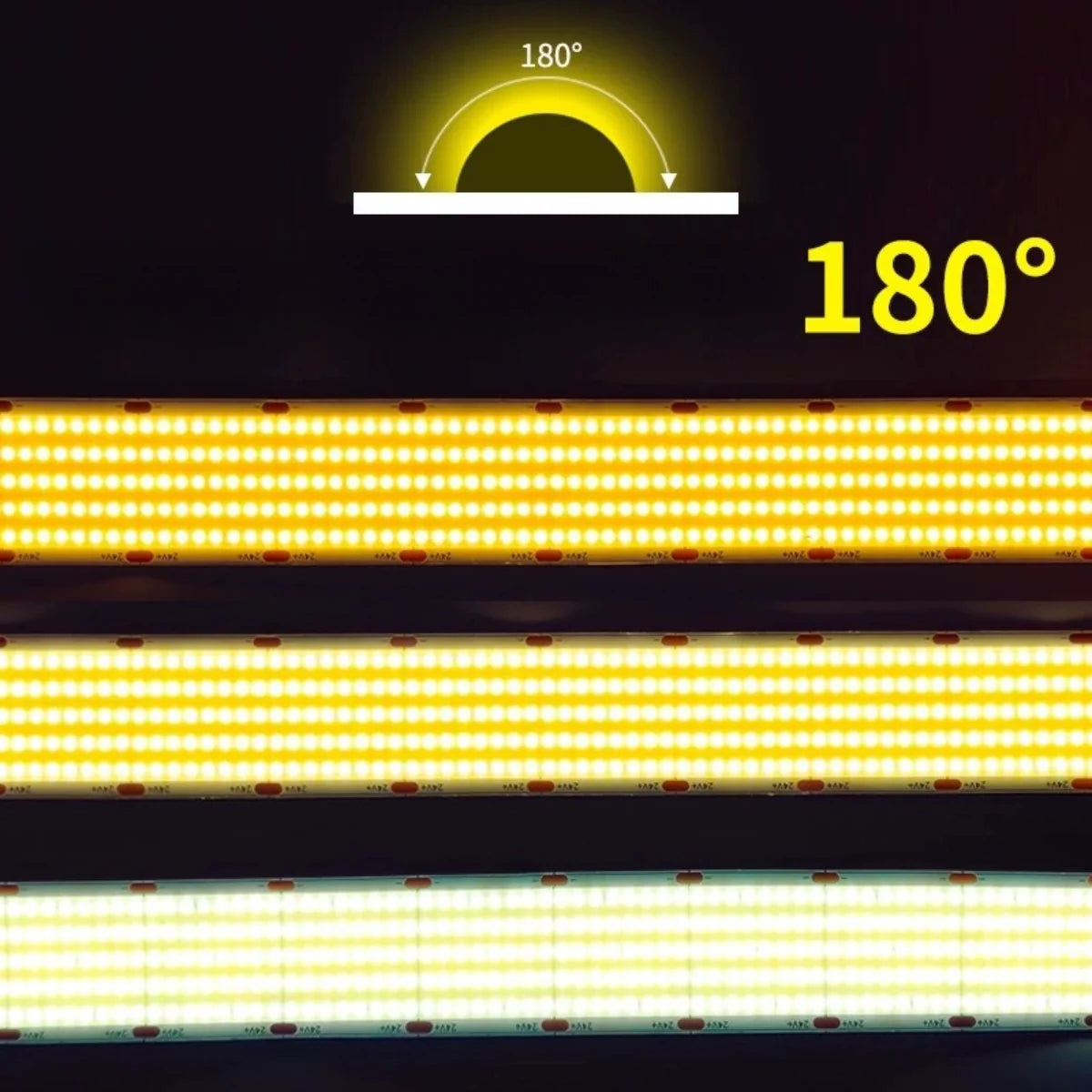

LED Density 1600 LEDs per meter
Power Consumption 40W per meter
Input Voltage 24V DC

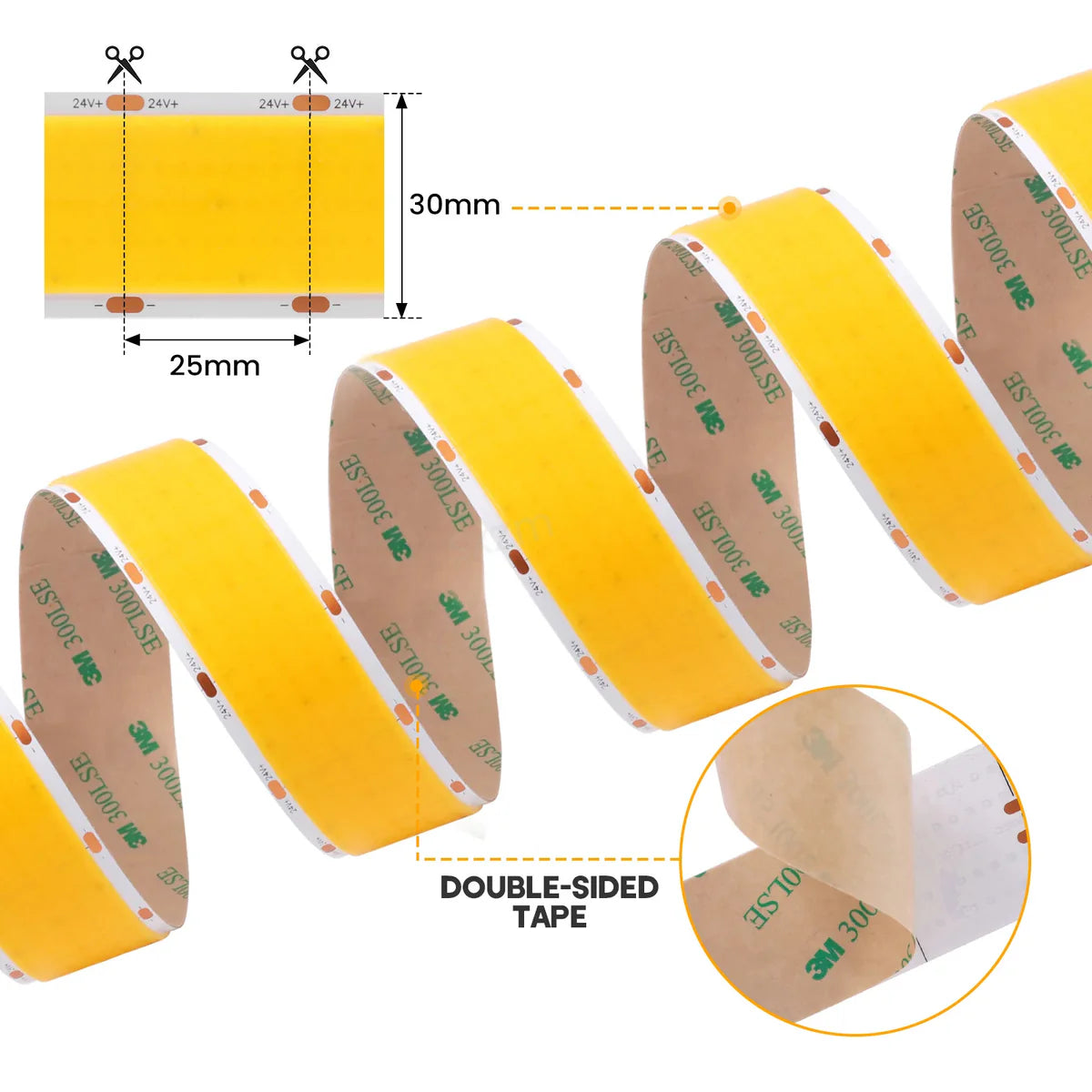

Cut Section 25mm (1'')
PCB Width 30mm
Dimmable Yes
Waterproof Rating Non-Waterproof, IP00
Package Options 1 Roll × 5m / 20 Rolls × 5m / 100 Rolls × 5m

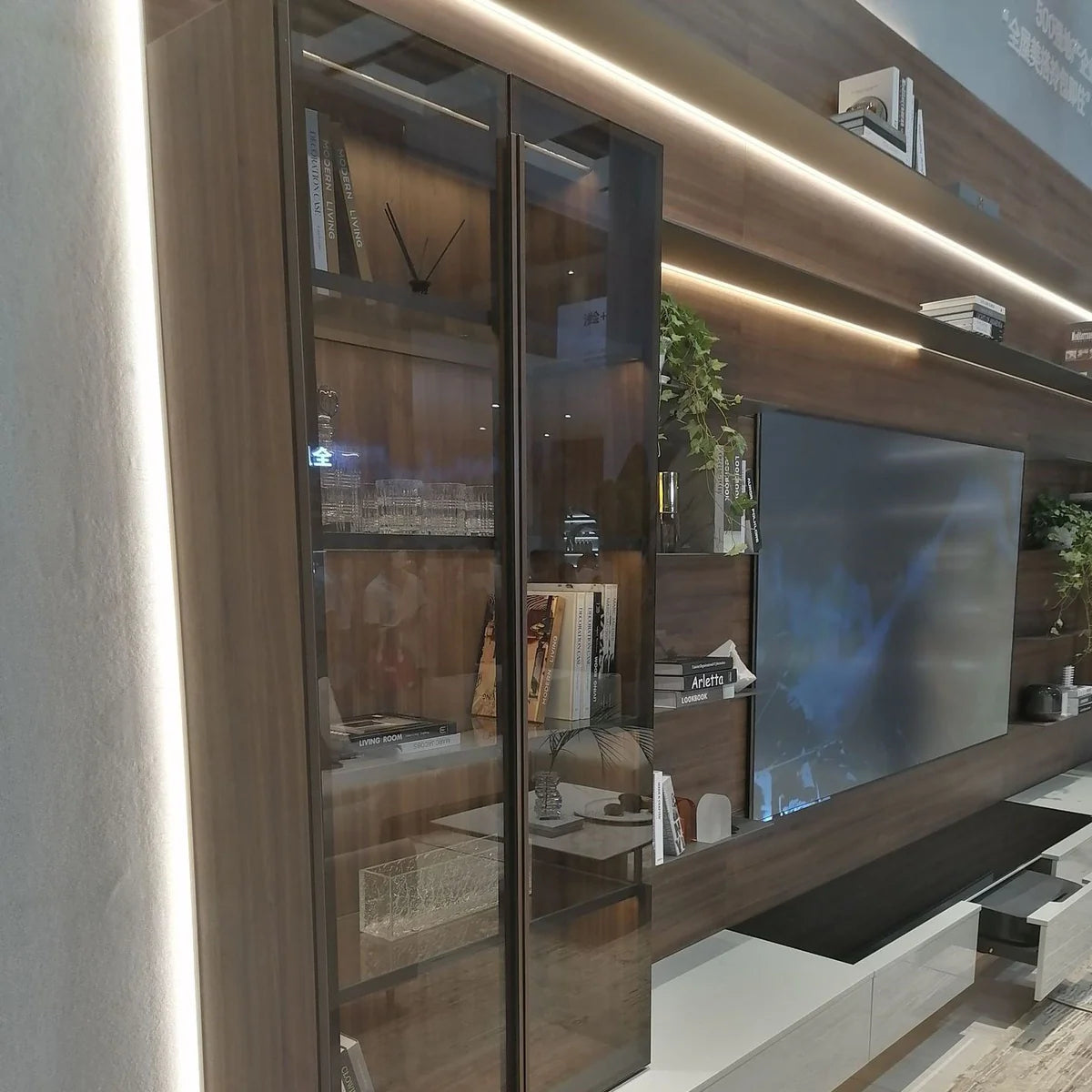

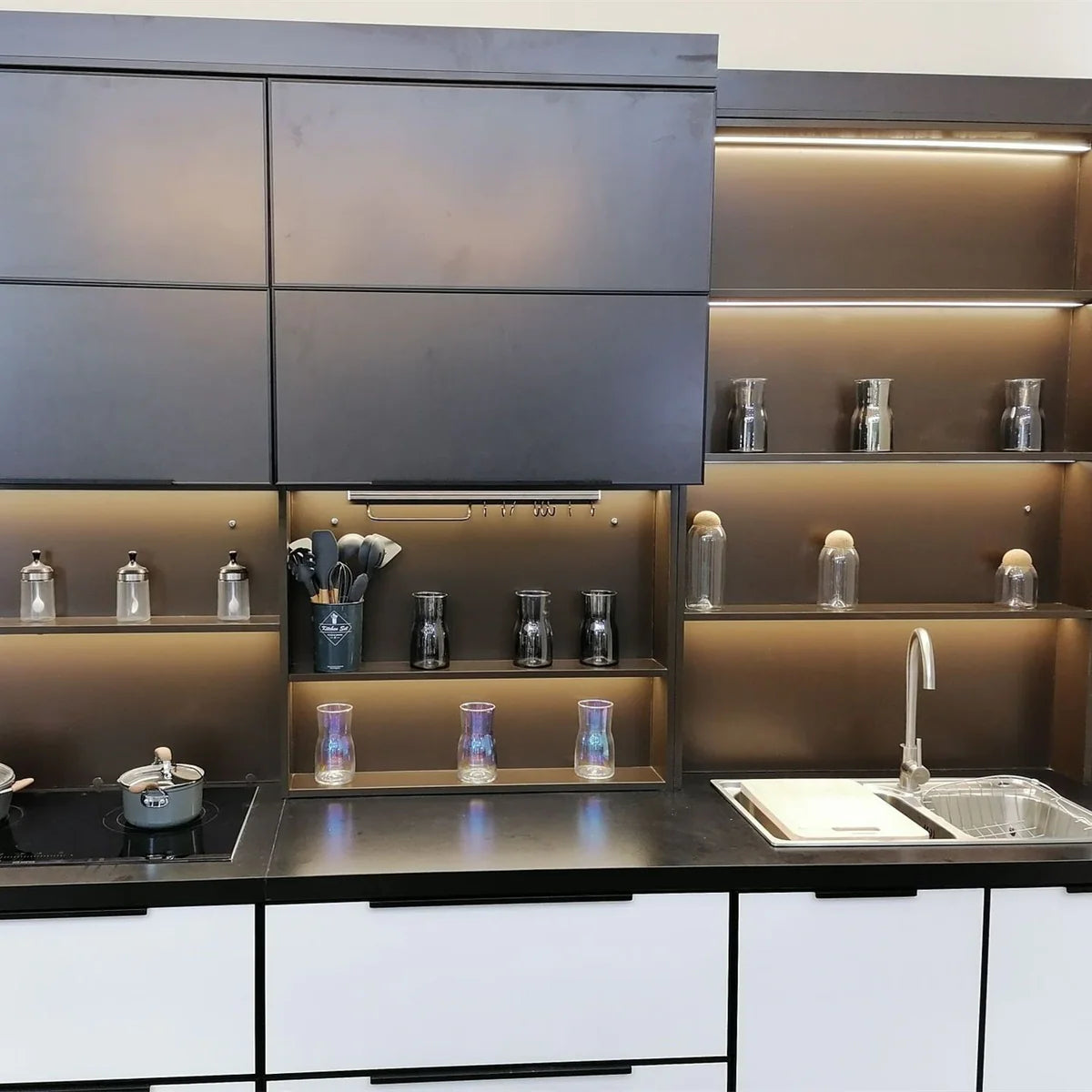

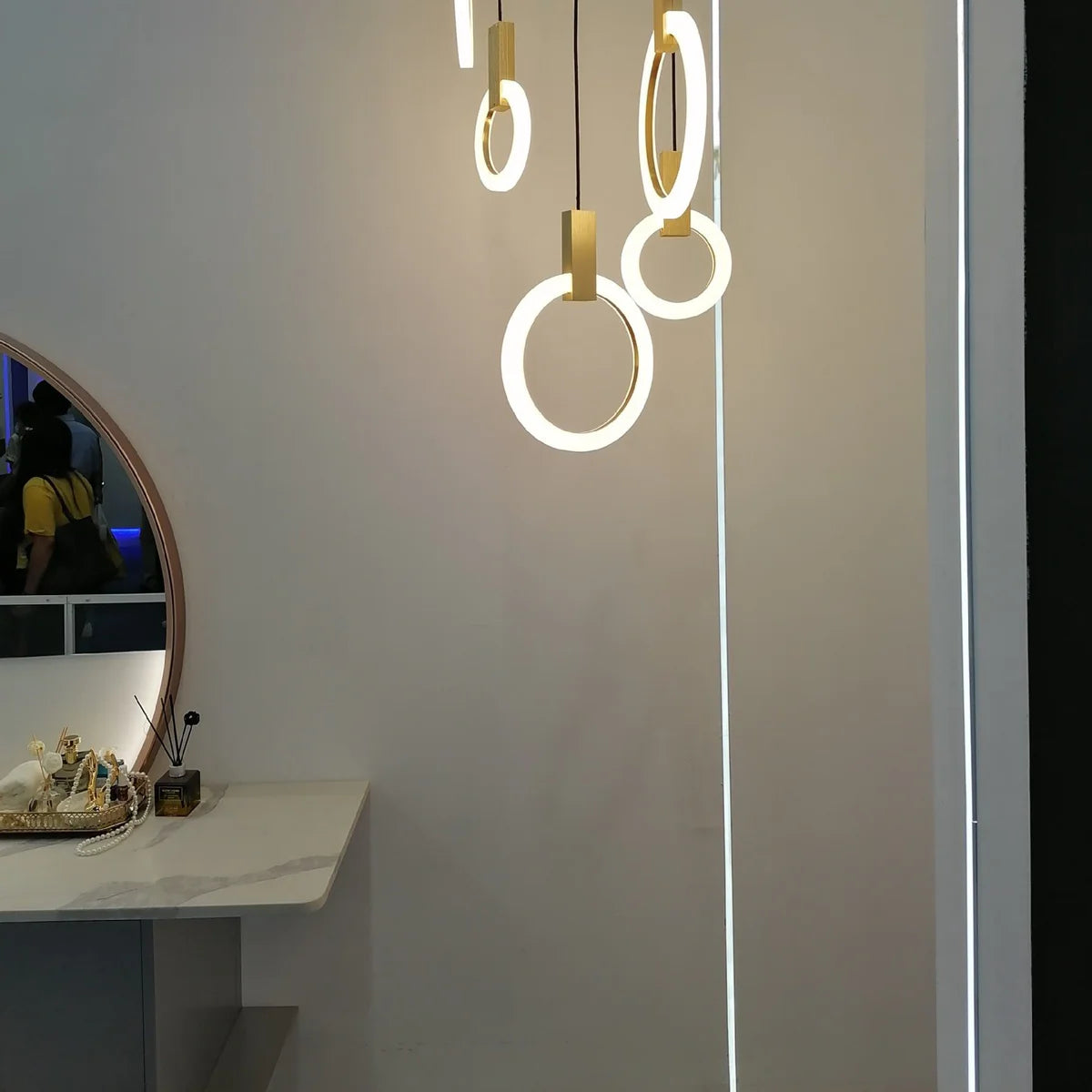

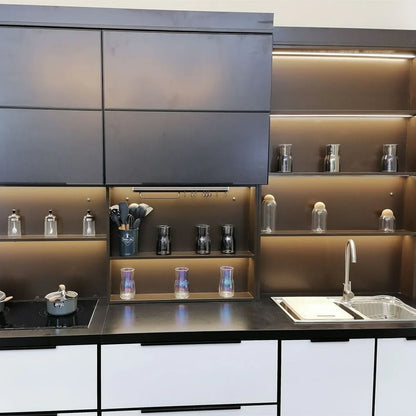

Applications Indoor accent lighting, architectural design, signage, studio lighting

General Information:

 Power Wiring Methods:

How to power/control the strip

When choosing the transformer, the wattage to choose depends on how many pieces light strips it power.And when choosing the transformer, we suggest to use a bigger wattage transformer than the strip rated power to  avoid full load working of the transformer. And a big power transformer do no harm to the strip but good for safety.

And a big power transformer do no harm to the strip but good for safety.

Below please find the connection diagram for Single Color Light Strip for reference.

a. Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch



b. Light strip On/Off/Brightness is controlled by  Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier, and powered by one or several transformers. Note: The strips the Dimmer and Amplifier loaded with cannot exceed their rated max value. And in theory, you can add endless Amplifiers after the Dimmer.
