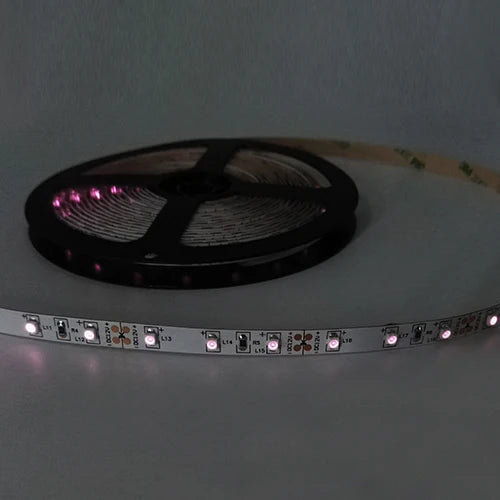

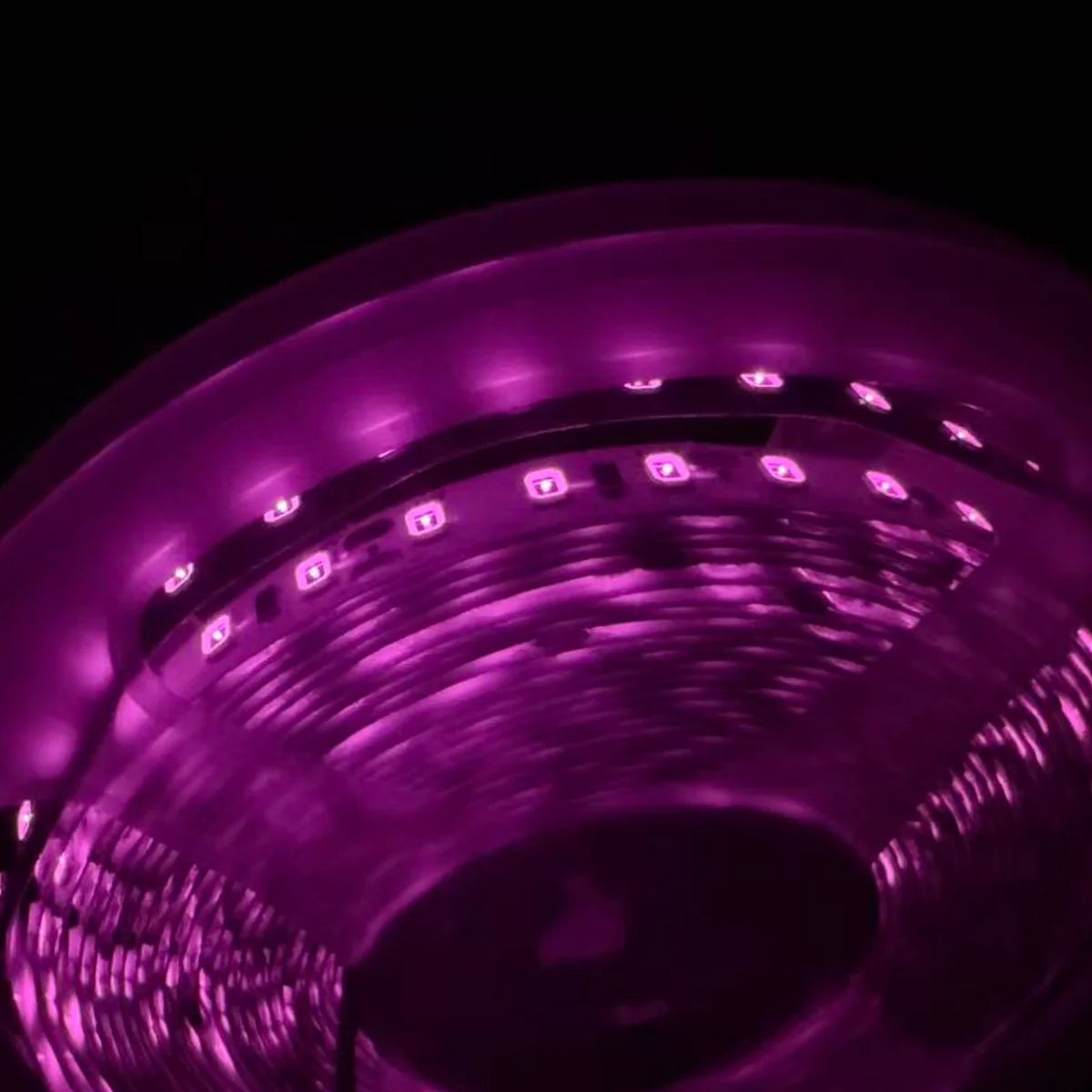

850nm SMD2835 DC12V Infrared LED Strip Light – Night Vision IR for Security, 60/120/240 LEDs/m, 5M /10M, IP00/IP65

From $280.00
LED Density
Waterproof Level
Length
$280.00
$280.00
Shipping calculated at checkout.
9999 in stock

850nm SMD2835 DC12V Infrared LED Strip Light – Night Vision IR for Security, 60/120/240 LEDs/m, 5M /10M, IP00/IP65

LED Density Illustration

About this item

  • Uses SMD2835 infrared LEDs, available in 850nm and 940nm wavelengths.
  • Multiple LED densities: 60 LEDs/m (<6W/m), 120 LEDs/m (<12W/m), 240 LEDs/m (<18W/m, dual row).
  • Operates on DC 12V with a 120° beam angle.

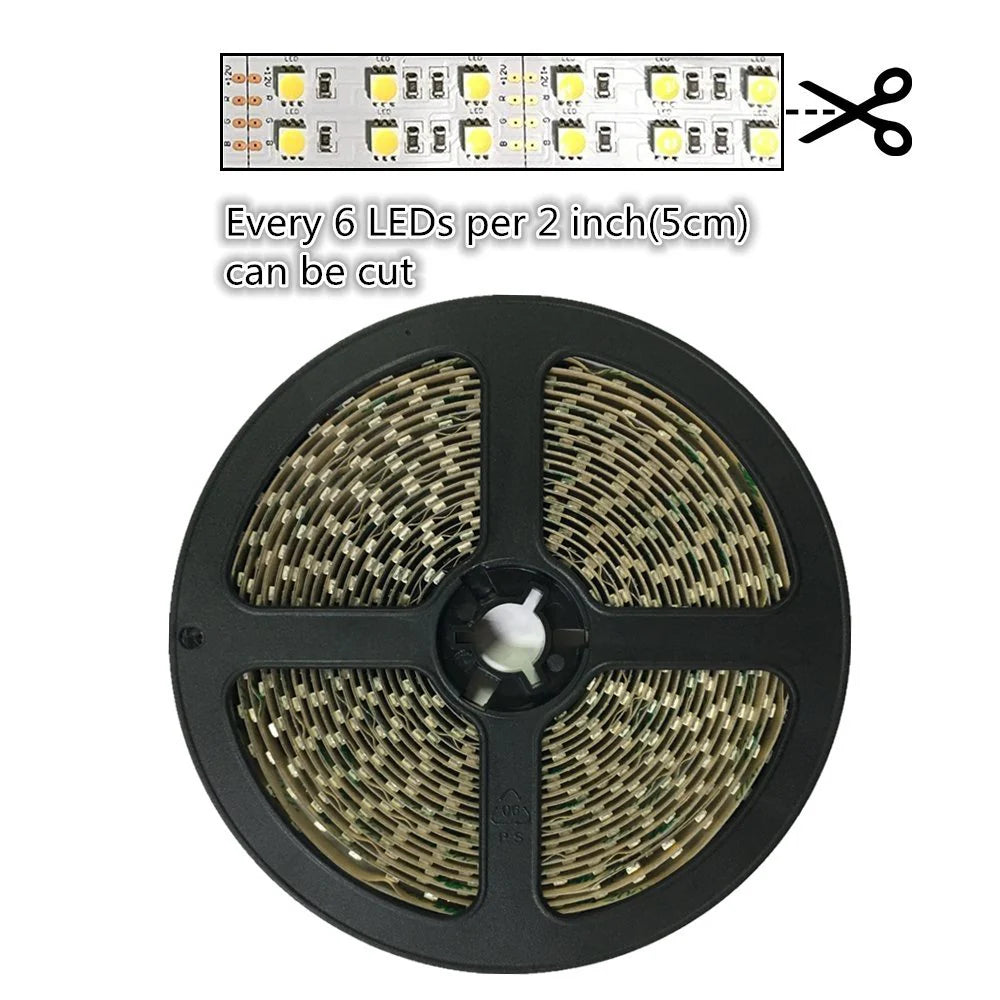

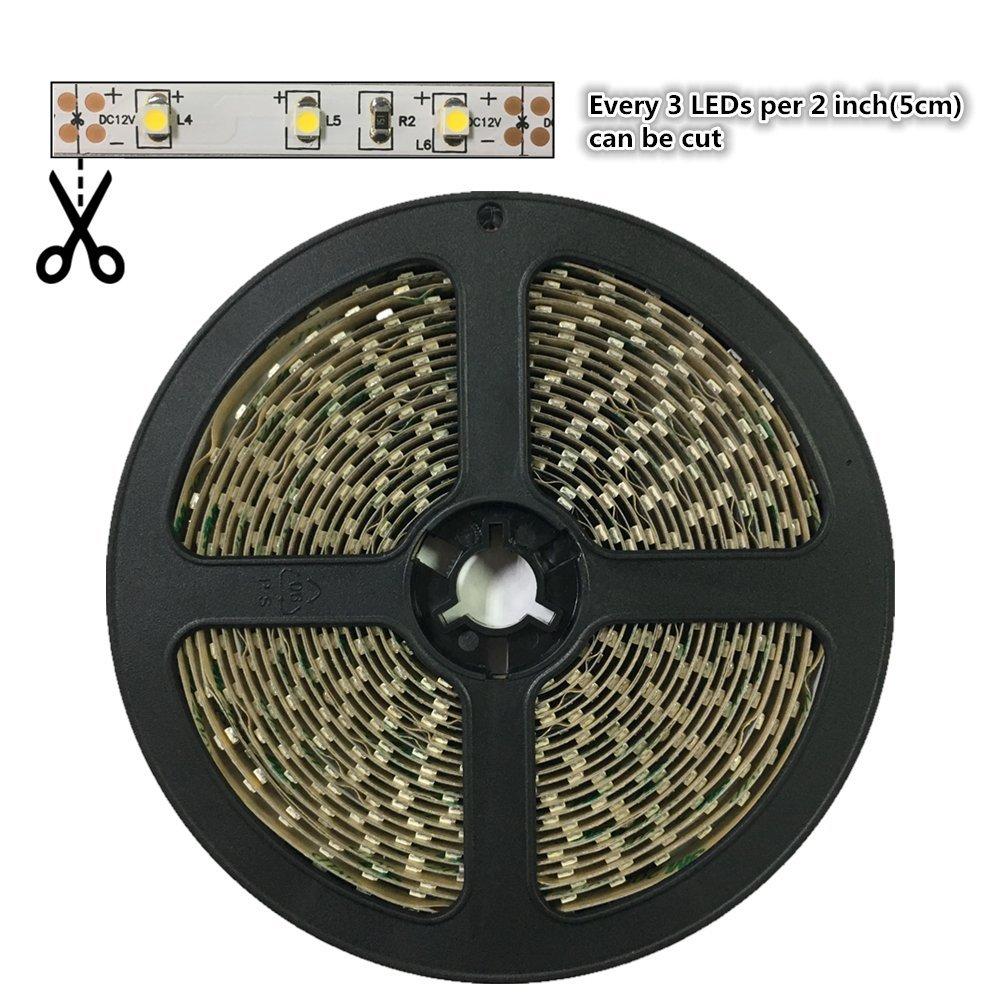

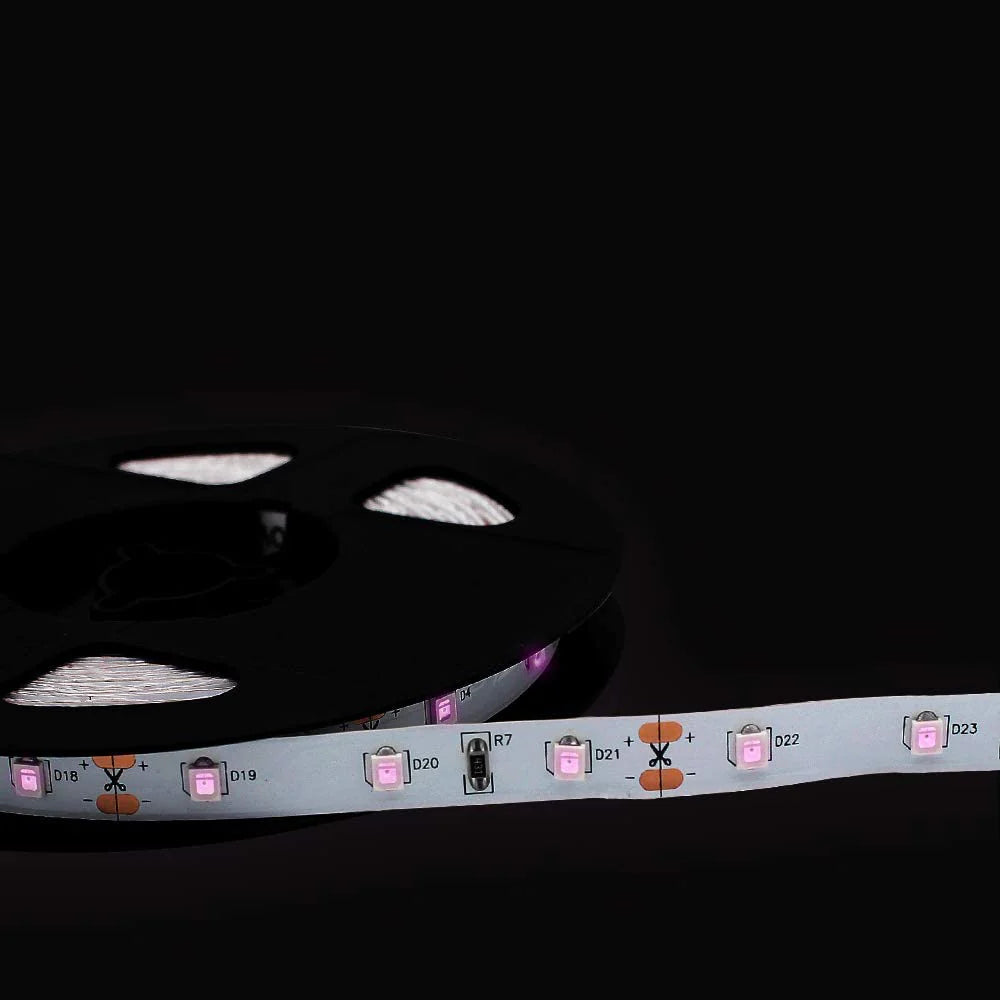

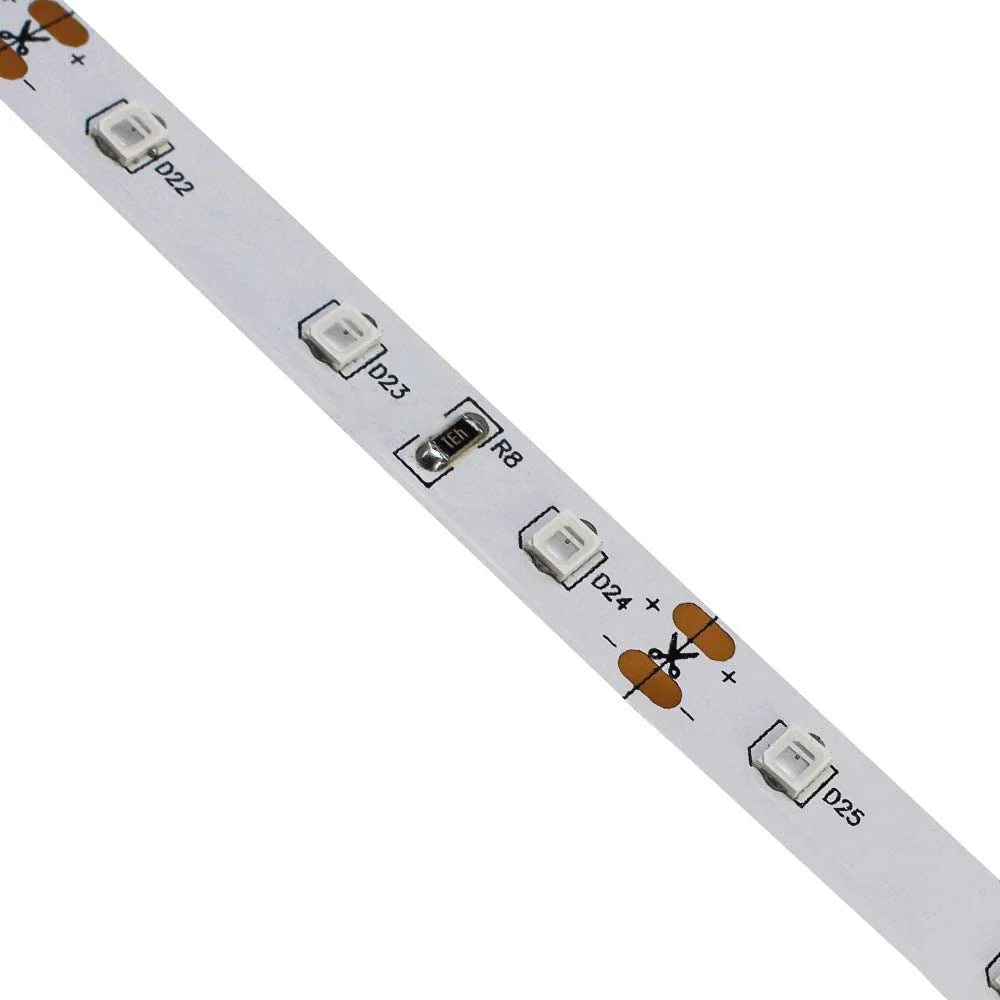

  • Cuttable design: 3 LEDs per 2" (60 LEDs/m), 3 LEDs per 1" (120 LEDs/m), 6 LEDs per 1" (240 LEDs/m).
  • Available lengths: 5 meters (16.4 ft) per roll.

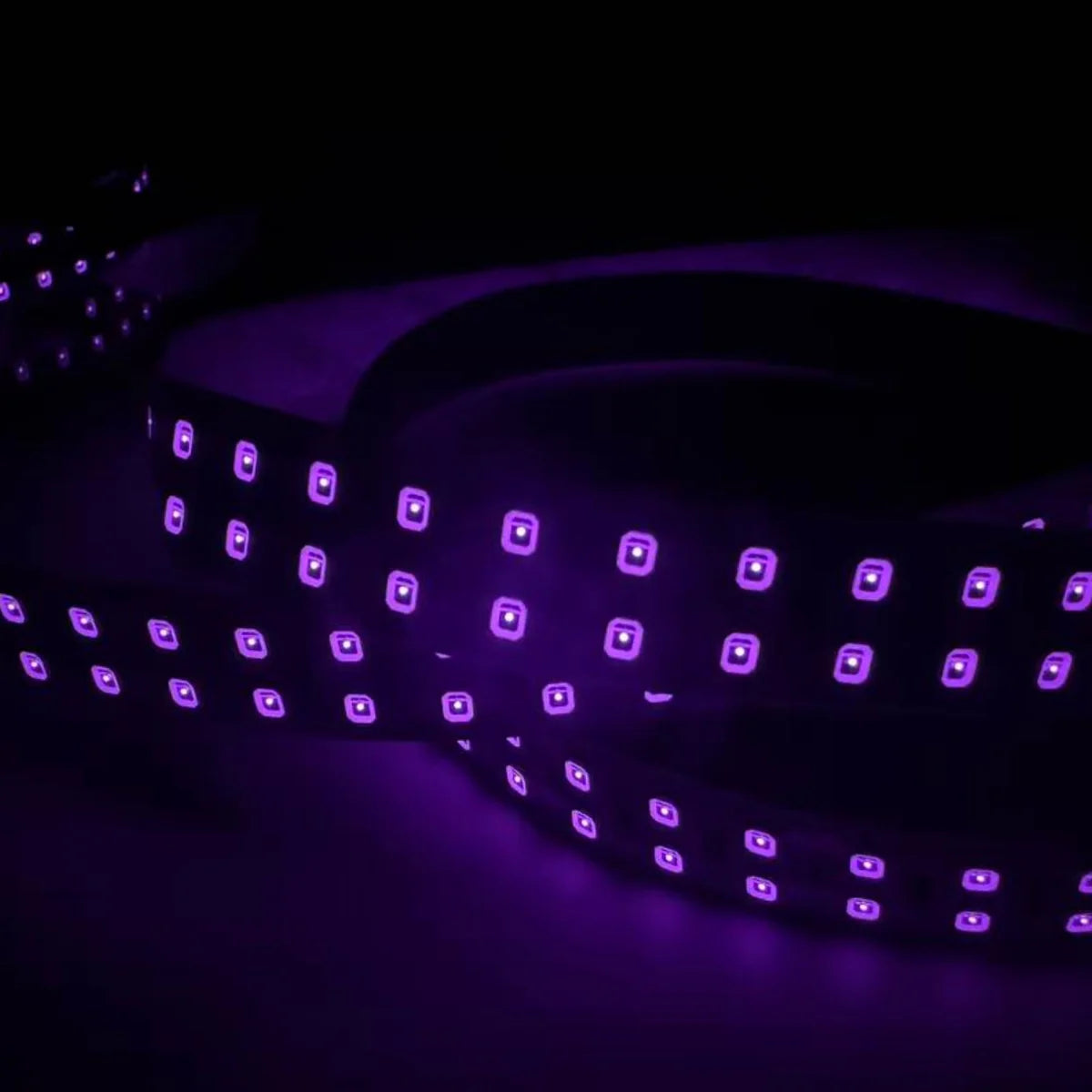

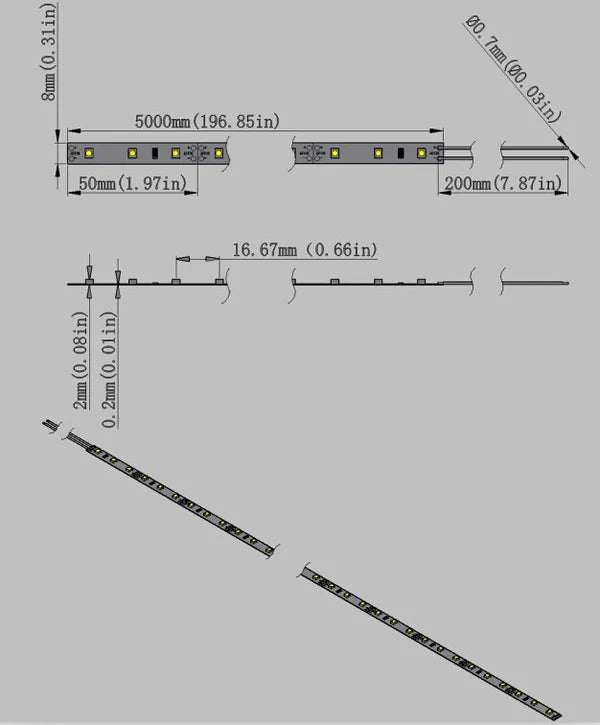

  • Flexible PCB in white color, width x height: 8×2mm (single row), 15×2mm (dual row).
  • Waterproof options: Non-waterproof (IP20), IP65.
  • Dimmable with compatible dimmers.
  • Features self-adhesive backing for easy installation.

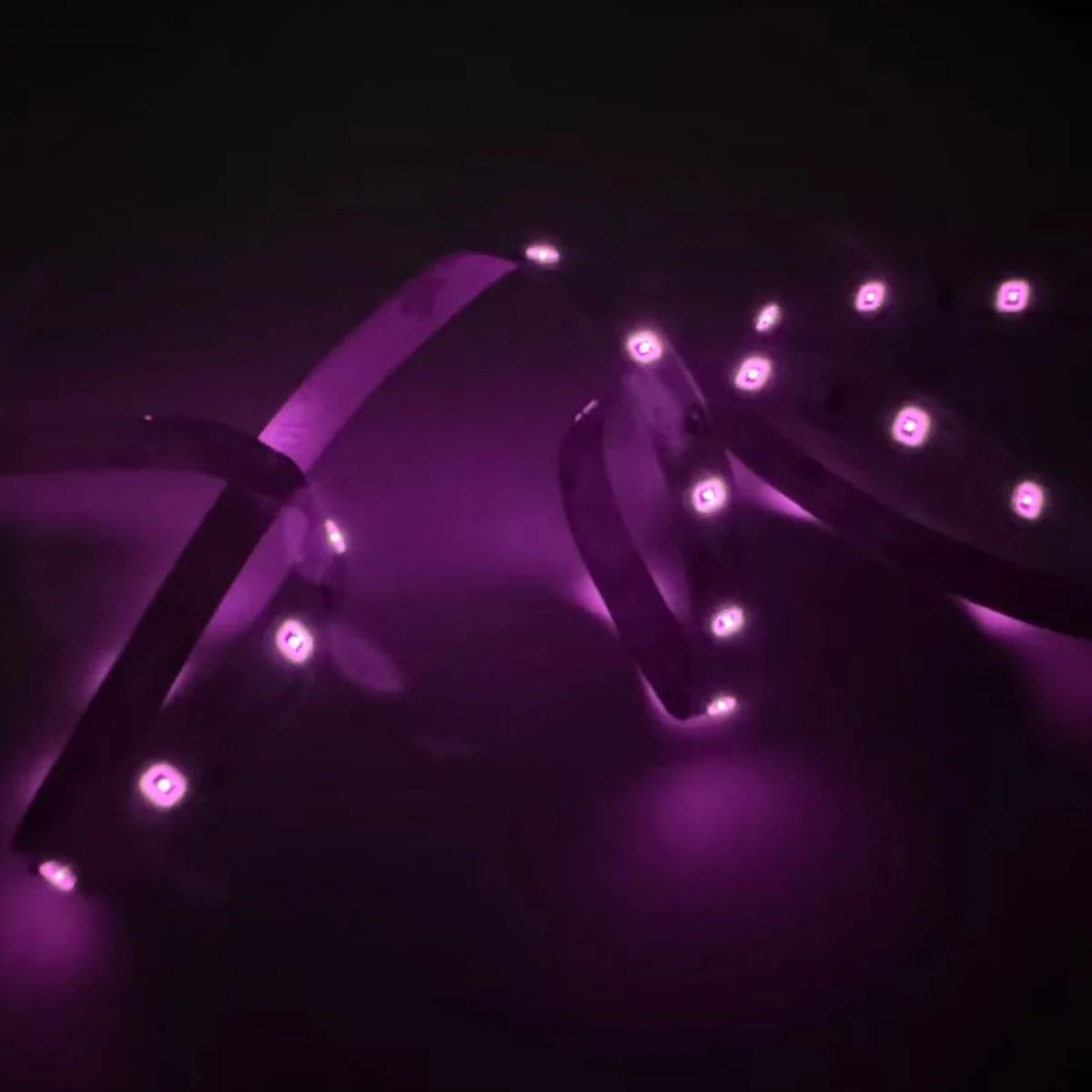

  • Emits invisible infrared light, suitable for specialized lighting applications.

Package Included

Version Package Included

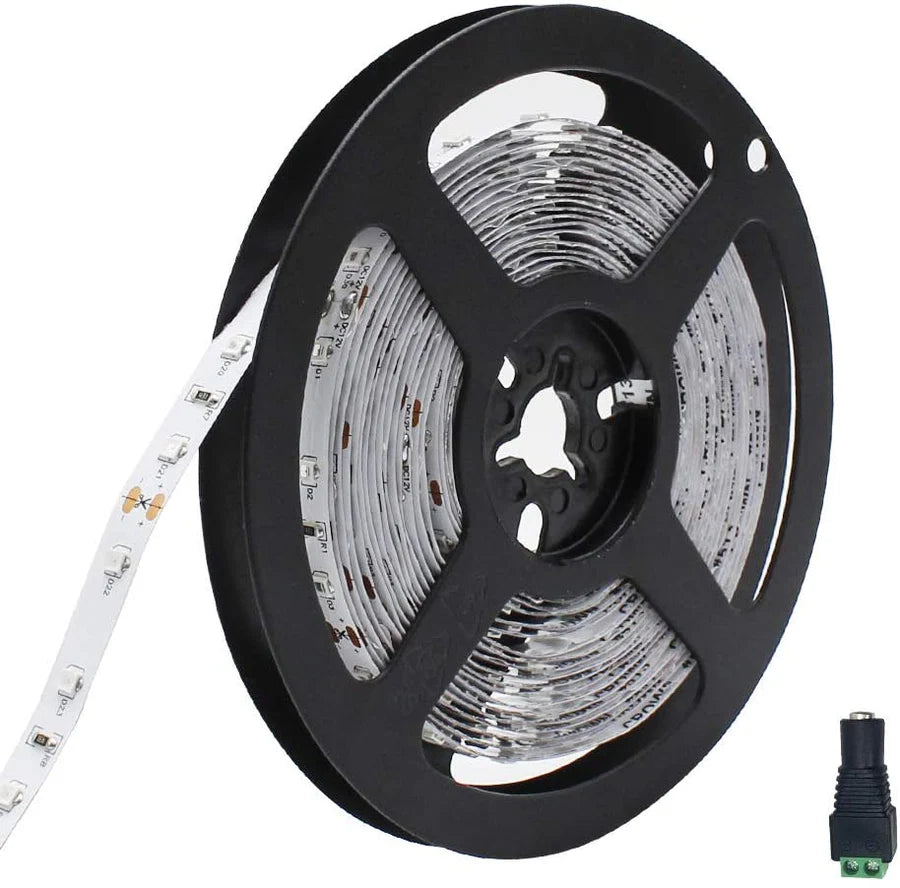

60 LEDs/m Non-Waterproof 5M LED strip, 1 × Terminal Block
60 LEDs/m Non-Waterproof 10M LED strip, 1 × Terminal Block
60 LEDs/m IP65 Waterproof 5M LED strip, 1 × Terminal Block
60 LEDs/m IP65 Waterproof 10M LED strip, 1 × Terminal Block
120 LEDs/m Non-Waterproof 5M LED strip, 1 × Terminal Block
120 LEDs/m Non-Waterproof 10M LED strip, 1 × Terminal Block
120 LEDs/m IP65 Waterproof 5M LED strip, 1 × Terminal Block
120 LEDs/m IP65 Waterproof 10M LED strip, 1 × Terminal Block
240 LEDs/m Non-Waterproof 5M LED strip, 1 × Terminal Block
240 LEDs/m Non-Waterproof 10M LED strip, 1 × Terminal Block
240 LEDs/m IP65 Waterproof 5M LED strip, 1 × Terminal Block
240 LEDs/m IP65 Waterproof 10M LED strip, 1 × Terminal Block

Order & Logistics

  • Lead Time: Ships within 1–3 business days, occasionally 3–6 business days.
  • Packing: Cardboard box.
  • Shipping: From local warehouse (3–7 days) if available, or from HQ (9–18 days standard or 5–9 days express).

Technical Specification

Specification 60 LEDs/m 120 LEDs/m 240 LEDs/m (Dual Row)
Wavelength 850nm 850nm 850nm
Color Infrared Infrared Infrared
Strip Model SDM2835-300 SDM2835-600 SDM2835-1200
LED Type SMD2835 SMD2835 SMD2835
LED Quantity 60 LEDs/m 120 LEDs/m 240 LEDs/m
Voltage 12V DC 12V DC 12V DC
Wattage <8W/m <12W/m <18W/m
Beam Angle 120° 120° 120°
Cuttable Section 3 LEDs / 2" 3 LEDs / 1" 6 LEDs / 1"
Strip Length 5 m (16.4 ft) 5 m (16.4 ft) 5 m (16.4 ft)
Strip WxH 8×2 mm 8×2 mm 15×2 mm
PCB Color White White White
Protection Grade Non-waterproof, IP65 Non-waterproof, IP65 Non-waterproof, IP65
Dimmable Yes (requires compatible dimmer)

Type of LED & Different Waterproof IP Grade

  • Non-waterproof (IP20): Bare strip, self-adhesive backing, for indoor/dry use.

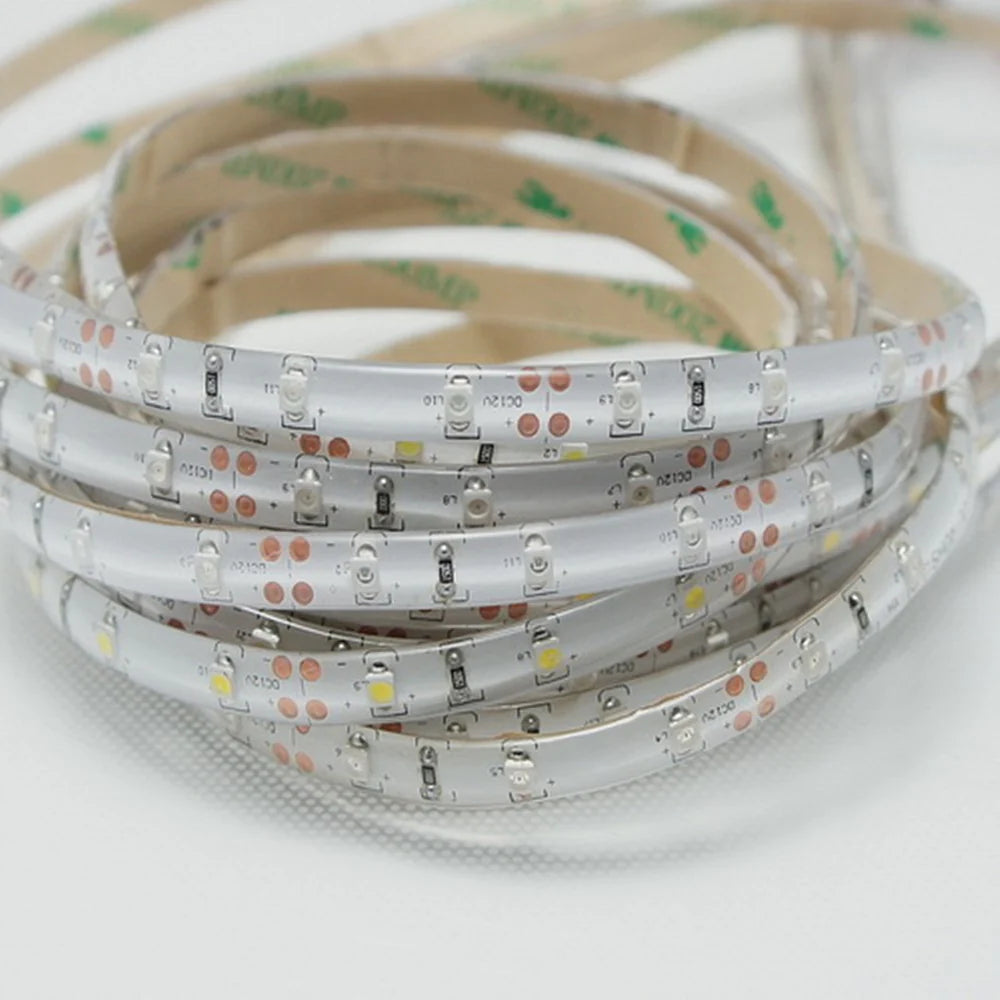

  • Waterproof IP65: Surface covered with gel, self-adhesive backing, protects from sprayed water from all directions.
  • Waterproof IP67: Strip enclosed in a hollow silicone tube, sealed at both ends; suitable for short-term immersion in water.
  • Waterproof IP68: Strip enclosed in U-shape silicone tube, covered with silicone gel, sealed at both ends; suitable for underwater use.

Type of LED & Waterproof Grades

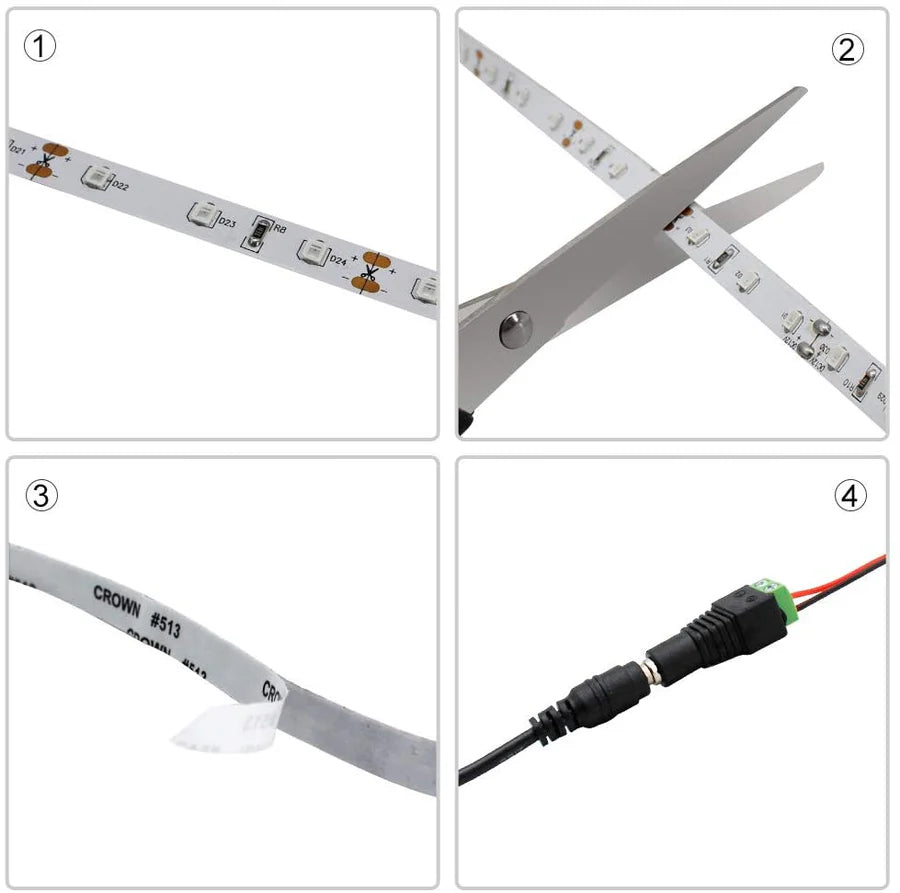

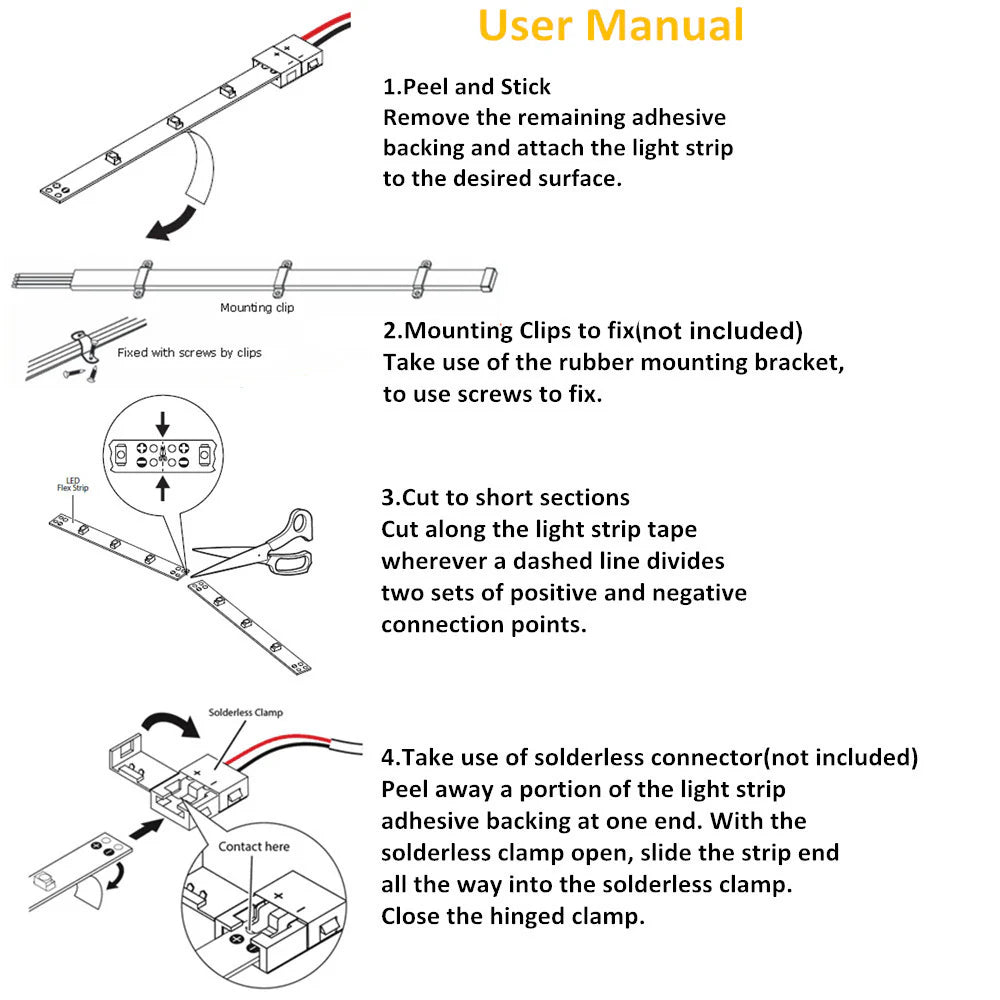

Installation Tips

  • Always disconnect power supply before cutting/connecting LED Light Strips.
  • Do not crimp strip tape, attempt to bend strips width-wise, or length-wise to a radius less than 15mm.
  • Do not connect LED Light Strips directly to 120V AC power.
  • Apply power to test LED Light Strips before mounting.

Installation Tips

How to Power / Control the Strip

When selecting a transformer:

  • Choose wattage based on how many LED strips you need to power.
  • It is recommended to select a transformer with higher wattage than the total rated power of the strips to avoid full-load operation.
  • Using a higher wattage transformer does not harm the strips and is safer for longevity.

Below please find the connection diagram for Single Color Light Strip for reference.

Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch

Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)

#1 Typical connection for one Dimmer to control one string of light bars

#2 One Dimmer to control several strings of light bars by adding Amplifier...

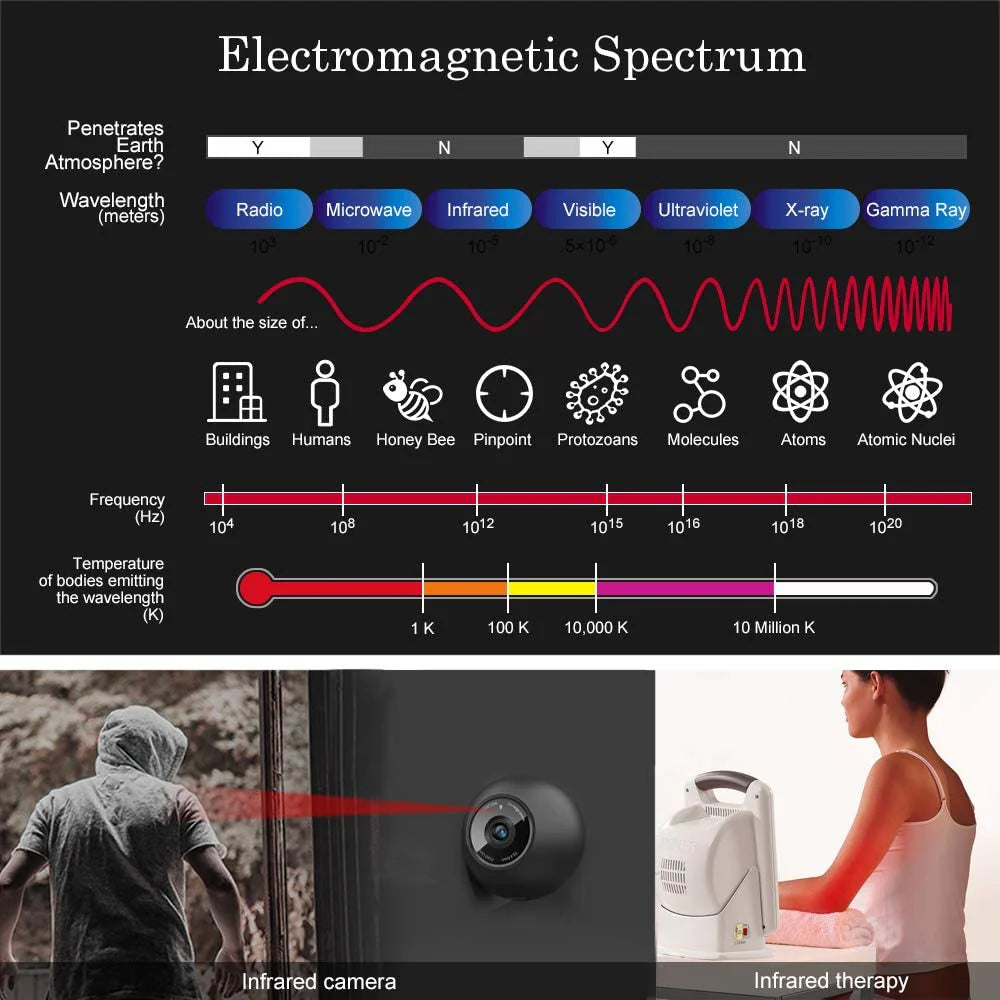

Applications

  • Medical and health applications
  • Industrial and inspection lighting
  • Plant growth supplemental lighting
  • Stage lighting and ambient illumination
